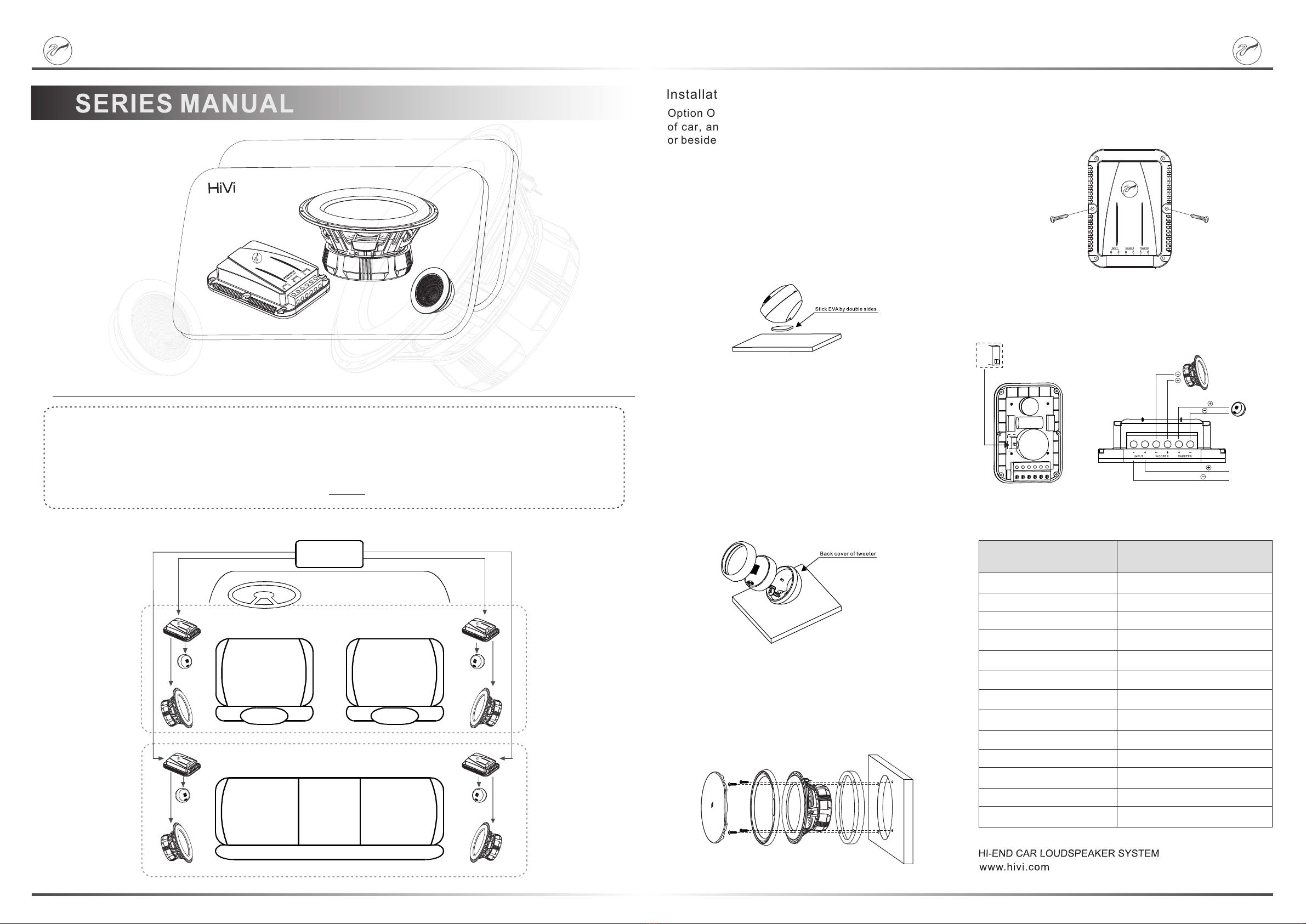

HiVi M Series User manual

因设计变更等原因，所示资料可能与实物不符，恕不另行通知
安装方式二：要想牢固地将高音安装在仪表盘前方或车
门边，可以采用此种安装方式。
1、先用“一字”螺丝刀将高音喇叭的前盖打开。
2、按图示将安装螺丝穿过后盖、安装板，将高音喇叭的
后盖锁紧在选取的位置。
3、将喇叭装入后盖内、压紧前盖。
4、调整喇叭的方向，以便达到理想的听音效果。
注:此种方式需在车上锁螺丝，故在安装前须确定高音喇
叭的安装位置。
二、高音喇叭安装(KX26T-S)
安装方式一：如不想改变车结构，将高音安装在仪表盘
前方或车门边，可以采用此方式。
1、取半圆形双面自粘EVA，去除一面保护纸后将它粘在
高音喇叭的安装位(如图)。
2、将自粘EVA的另一面保护纸去除，然后将喇叭粘在选
定的位置。
3、调整喇叭方向，以便达到理想的听音效果。
注:此种方式优点在于可以完全不对车进行改变；缺点是
不能很牢固的固定高音。
三、低音喇叭安装(M6WIII)
1、依实际需要将密封垫片贴于喇叭的安装位。
2、螺丝穿过装饰网及喇叭安装孔将喇叭锁紧。
3、当安装深度不够时，可以在喇叭的安装位加一垫圈以
增加安装深度。
M1600MKIII
型号
中 低 音
高 音
灵 敏 度
频率响应
最大功率
额定功率
额定阻抗
M6WIII
KX26T-S
8 dB
63-20KHz
100W
50W
4Ω
8
安装尺寸
开孔尺寸
安装深度
网罩尺寸
高通衰减斜率
低通衰减斜率
157mm
148.5mm
>66mm
φ172X22mm
12dB/0ctave
dB/0ctave
φ
φ
12
六、规格：
四、分频器安装：
1、按图示将安装螺丝穿过分频器，将分频器锁紧在车门内
或其他选定位置。
五、接线方法：
1、分频器与高音、低音连接示意图。
www.hivi.com
M1600MKIII
+3dB
0dB
-3dB 使用波动开关依个人喜好将
高音调节为“+3dB、0dB、
-3dB”三种状态。
低音
高音
M
欢迎您选购惠威车用扬声器系统。为了便于您的安装及使用，我们编写本折页。请务必在安装使用之前，仔细阅
读并清楚了解安装程序及注意事项，依据不同型号的扬声器系统，采用不同的安装方式。
虽然本折页说明了安装的方式，但是对于汽车拆装并没有作说明，假如您没有此方面的经验，请不要自行安装，
您可以去有经验的汽车服务处进行咨询。
请特别注意您的汽车处于熄火状态!
一、线路图：请按照以下线路图连接
6.5 ” component system
Design by HiVi Acoustics, Inc.
Hi-end Car Loudspeaker System
M1600MKIII

Because of the design change,the illustration may not conform to the practicality.We will not inform again!
M1600MKIII
Model
8 dB
63-20KHz
100W
50W
4Ω
M6WIII
KX26T-S
8
157mm
148.5mm
>66mm
φ172X22mm
12dB/0ctave
dB/0ctave
φ
φ
12
Woofer
Tweeter
Sensitivity
Frequency Response
Max Power
Power Handling
Rating Impedance
Installation Size
Hole Size
Installation Depth
Net size
High pass decay rate
Low pass decay rate
Specifications:
1、Pass supplied screws through crossover as illustrated,
install crossover securely inside car door or other desired
position.
lnstallation of crossover:
1、The drawing of crossover and tweeter,woofer
Connection:
www.hivi.com
M1600MKIII
+3dB
0dB
-3dB Adjust high frequency output to +3dB,
0dB or -3dB as per your preference by
use of the toggle switch on the crossover.
Crossover
Option One:if you don't want to change the structure
of car, and install the tweeter before steering wheel
or beside the door of car,then you can use this mode.
1、Take semicircle double sides stick EVA,get rid of
one side protecting paper and stick this on the place
of installation of tweeter(as drawing).
2、Get rid of another protecting paper of EVA,then
stick speaker at the fixed place.
3、Adjust the orientation of speaker so as to get the
best sound quality.
Note:The merit of this kind of installation is that there
's no need to change the car,the demerit is that can
it fix the tweeter well enough.
lnstallation of Tweeter(KX26T-S)
Installation of Woofer (M6WIII)
1 According the demand then stick the gasket on
the place of Installation.
2、Drive the screws through the grill and into the
installation holes, and then fasten the screws.
3、If the depth is notenough, can use some mate on
the place of installation then can add some depth.
、
Option : lf you want to fix the tweeter before the
steering wheel or beside the door of car,then you can
use this mode.
1、Use the“-”screwdriver open the front cover of
tweeter.
2、Use the screw threading the back cover,
installation plate,then fix the back cover of speaker
on the selected place as drawing.
3、Put the speaker into the back cover, press the
front cover.
4、Adjust the orientation of speaker so as to reach
the best sound quality.
Note:This kind of installation needs to lock the
screws on the car,so you have to fix the place of
tweeter before installation.
Two
Thank you for your purchase of HiVi Car-Audio Speaker Systems. Please read the following
installation and operation guidelines carefully to ensure many years enjoyment of car audio speaker
system. All HiVi Speaker Systems products should be set-up and installed by authorized and licensed
technicians.
Though this manual narrates the installation, it didn’t show the remove of car.lf you got no experience of
this, please don’t set up by yourself,you can inquire at the experienced car service office.
Please note your car is on flameout situation!
M
CD/DVD
(Amplifier)
Front car loudspeaker system
Rear car loudspeaker system
Circuit diagram Please connect according to the following circuit diagram
Hi-end Car Loudspeaker System
Red
Red
White
White
Woofer
Tweeter
Audio Input(-)
Audio Input(+)
Red
White
6.5 ” component system
Design by HiVi Acoustics, Inc.
M1600MKIII
