HIWATT T40 User manual

Proudly producing generations of Iconic British Tone for the World’s
Best Artists. Legendary headroom, clean and clear sounds, great for
pedals and studio work, unbeatable Live Onstage.
T40/20
Combo
featured
Visit us online at Hiwatt.co.uk
Be inspired: the depth of music legends who have played through
a Hiwatt before you is truly remarkable.
Stay connected: send us a video or post and become the Hiwatt future.
THE ‘ORIGINAL PEDAL AMP’
Welcome to Hiwatt.
T40/20
Hiwatt.co.uk

• Always use the supplied mains lead
provided with your amplifier. If a
replacement is needed, please contact
your Hiwatt Dealer.
• Never attempt to by-pass fuses or fit ones
of incorrect value.
• Do not attempt to remove the amplifier
chassis, there are no user serviceable parts.
• All servicing should be carried out by a
professionally qualified service technician.
• Never use an amplifier in wet or damp
conditions.
• Always unplug this amplifier during
lightning storms or when unused for
prolonged periods of time.
• Protect the power cord from being walked
on or pinched.
• Do not switch the amplifier on without
the loudspeaker connected. It is important
that the amplifier and speaker are matched
at the correct impedance. Failure to do so
can result in damage to the amplifier or
speaker.
• Please ensure that the voltage selector/
indicator matches the supply voltage of
the country in which the amplifier is being
used.
• Always ensure free movement of
air around the amplifier to prevent
overheating.
• Never modify or make changes to
equipment or use in an unapproved
manner
Follow all instructions and warnings
Please keep instructions in a safe place
Register product online: Hiwatt.co.uk
Please read these instructions carefully before
switching your amplifier on.
The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, with an equilateral triangle, is intended to alert the user to
the presence of un-insulated‘dangerous voltage’within the product’s enclosure that may be of sufficient
magnitude to constitute a risk to persons.
IMPORTANT SAFETY INSTRUCTIONS
Serial Number:
__________________________________________________________________________________
Date of Purchase:
__________________________________________________________________________________
Store Contact Info:
__________________________________________________________________________________
WARNING - if used improperly or without proper safeguards this equipment can cause
hearing damage or loss of hearing.

AMPLIFIER FEATURES*
Input - Plug your guitar in here with a 1/4” jack.
Aux - Plug in an external audio device here with a 3.5mm jack.
Channel Select - Choose between Normal Gain and Overdrive Gain channels. The red LED indicates
when the Overdrive Gain channel is selected.
Normal Gain - This controls the level of Normal Gain applied to the input.
Overdrive Gain - This controls the level of Overdrive Gain applied to the input.
Bass - Adjusts the level of low frequency.
Middle - Adjusts the level of middle frequency.
Toneshift - Pull to adjust the frequencies centred around 500hz.
Treble - Adjusts the level of treble frequency.
Reverb - Adjusts the level of reverb effect.
Master Volume - Controls the volume of the amplifier - always set the control completely anticlockwise (off)
when turning on or off the amplifier. (caution: wear hearing protection when applicable).
LED - This LED will light up when the power is on.
Standby - The Standby switch allows the valves to heat to the optimum working temperature. Leave switched
off when turning the Power on and allow 2 - 3 minutes before turning on. Correct use of the Standby switch
will prolong the lifespan of the amplifiers tubes.
Power - Turns the amplifier’s power on and off.
• Classic Hiwatt ‘Tube Amplifier’ with switchable power 40 Watt /20 Watt
• 2 X ECC83 + 1 X ECC82 British Tubes in the preamp and 4 x EL84
British Tubes in the power stage
• 3 band EQ plus push/pull ‘Tone Shift’ ( middle control) for maximum
tone versatility.
• Hi-Quality Hiwatt Speaker ‘voiced’ specifically for this amp.
• Spring Reverb.
• Auxiliary In- great for small gigs and practice.
Hiwatt.co.uk
Visit Hiwatt.co.uk for more product info and setup instructions

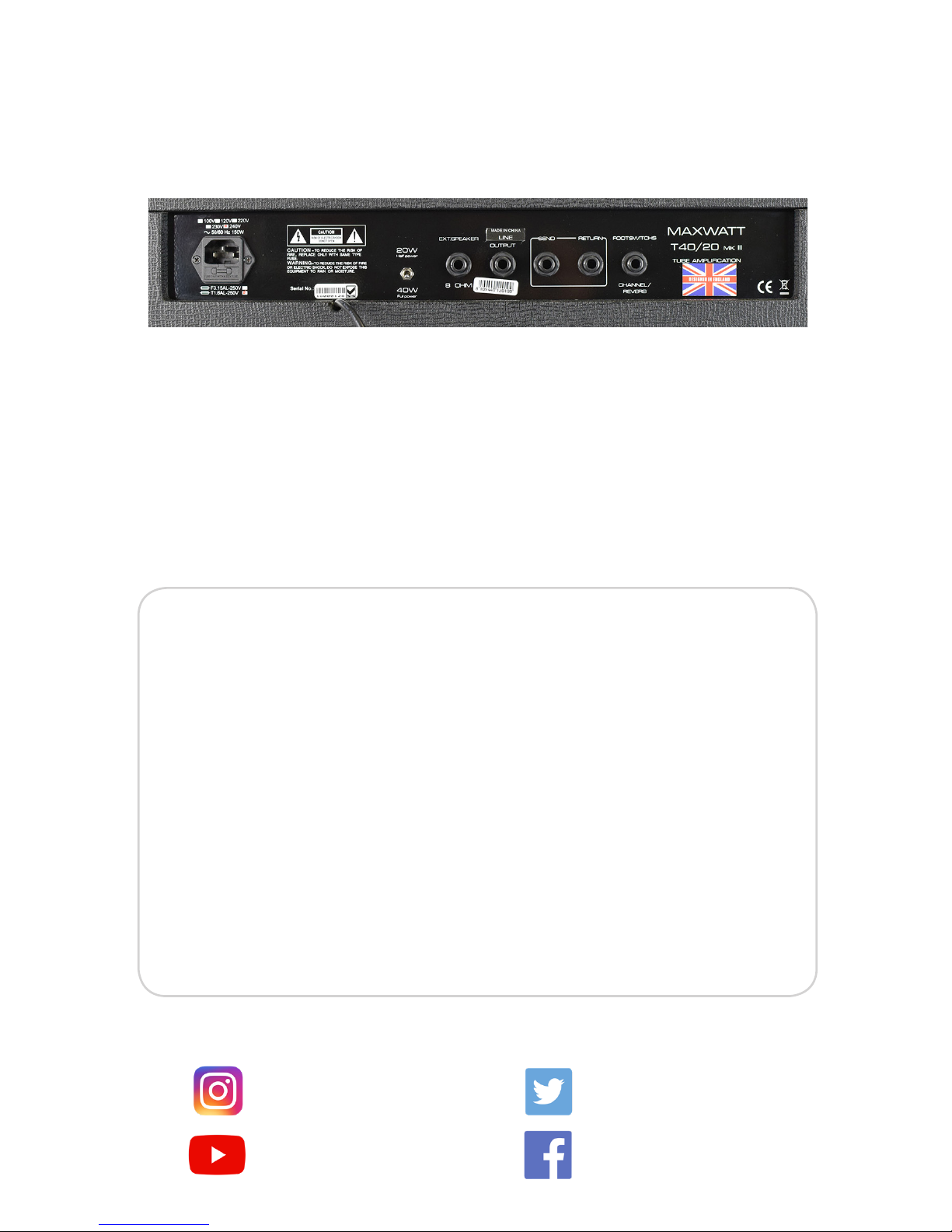

REAR PANEL FEATURES*
• Hiwatt amplifiers are warranted against defects in materials and workmanship for a period of 1 year.
Speakers, transformers, reverb tank, batteries, and tubes/valves for 90 days.
• Please note: It is your responsibility to use the equipment safely and properly
– without modifications, within specifications and with a safe power supply.
• Please note: The limited Warranty provided is non-transferable. (Please register your product online
and retain sales receipt and original packaging) and authorization needs to be obtained by Hiwatt
Electronics. (Hiwatt.co.uk) before any service work is completed by a Professionally Qualified Service
Technician.
• Shipping costs incurred obtaining warranty service are the responsibility of the purchaser, and the
purchaser must obtain permission to ship any/all product prior to shipping.
• Please note: Any damages incurred in shipping must be reported to the shipper and Hiwatt
Electronics immediately upon receipt of the product.
Hiwatt product – designed in the UK
Phone: [phone]
Mains Input - Connect with correct power cable
Triode/Pentode - Switchable output power. Switches from Full Power (Pentode) to Half Power
(Triode), allowing you to drive the valves at the same level at a lower volume.
Ext.Speaker - The Combo version connects to the 8 Ohm Fane speaker within the cabinet. The
Head version connects to an external speaker at a minimum impedance of 8 Ohm
Line Output - Connects to a unit with a level line input
Send - Connects to the input of an external effects pedal, rack or processor
Return - Connects to the output of an external effects pedal, rack or processor
Foot switch - Connects optional FS201 foot switch to select channel and turn reverb on/off
