GoMix™
Mounting instructions

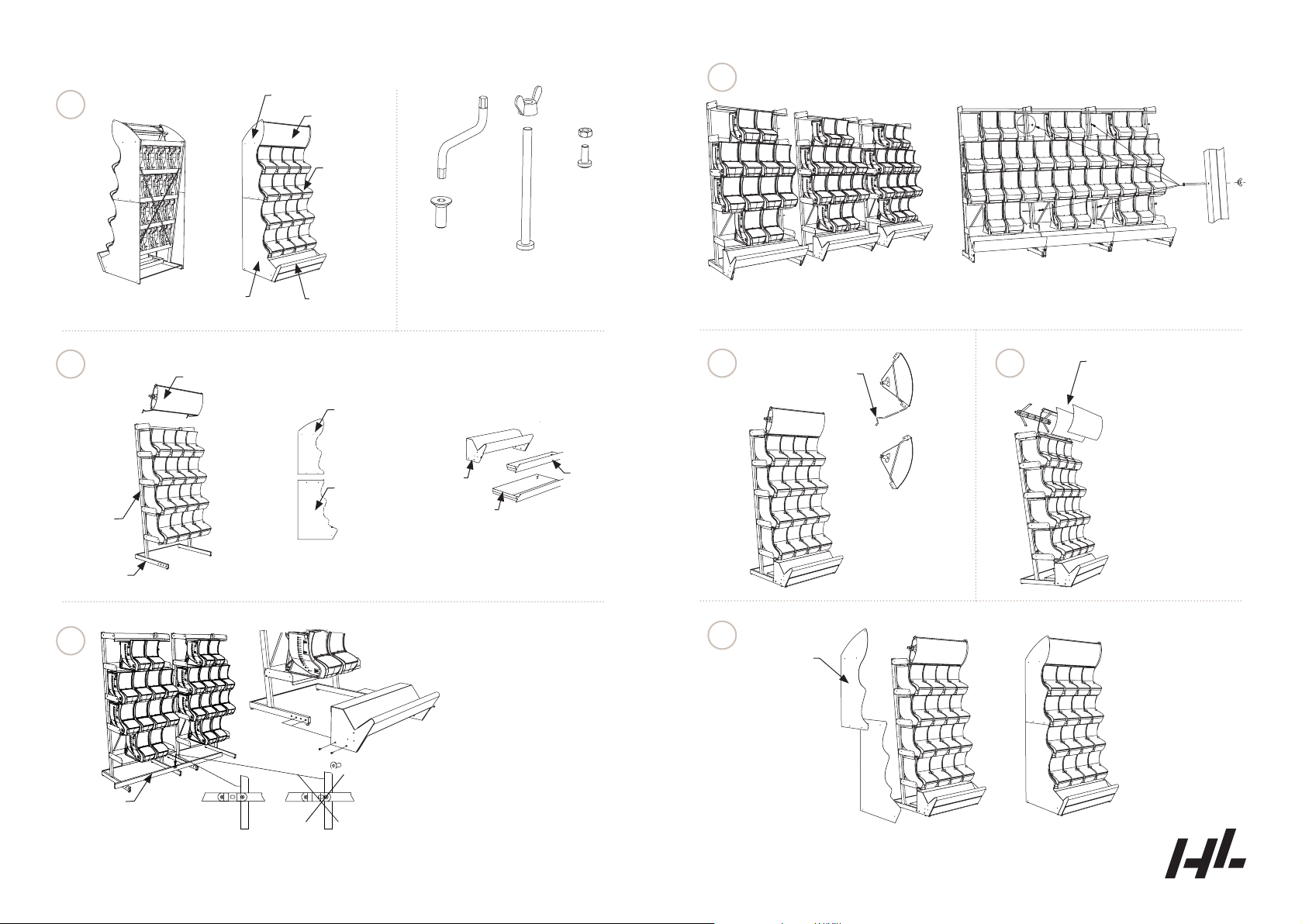

Mounting Instruction - GoMix™
Gable,
simple base
Gable, simple top
X 4 st
X 1 st
X 2 st
X 6 st
SB220 Bin
Gable top
Signholder 170
Gable base
SB220
Spirit level Yes No
Frame
Catch
tray Frontbox
Alternatively
Front
box with
storage
Signholder
340 with light
Collector unit
with storage
For connecting
modules.
Screw M5x70
Wing nut M5
For connecting
modules.
Screw M5x70
Wing nut M5
For gables only
For mounting gables
Screw M4x10
Nut M4
3
Place the frames in the designated area.
Determine how even the floor is, attach the
foot screws entirely in the frame that is placed
at the highest point of the floor. Balance the
frames at the front and back. Dismount the
bins according to the sketch to facilitate the
frame connection.
Pull up or split the frames to mount the catch
tray. Decide the depth of the catch tray
placement and attach with the countersunk
allen screws.
2
1
5 6
7
Put this ”hook” in
the last hole from
the front.
Printed matter to be inserted
between the two plastics.
Top outside
of base part.
Connect the light
box with a starter
cord, divert power
to the next light box
with ”passthru
connections”
between the light
boxes. NOTE MAX
8st light boxes may
be connected to a
starter cord.
Connect to AC power
in the same way as for
the large lightbox, MAX
8st light boxes may be
connected to the same
starting cord.
Put the frames together Connect the frames at the top and bottom with
the M5x70 screw and wing nut.
4
