User Guide 3 (18)
1 User Guide
Please read the manual carefully. Make sure you fully understand the manual before using the
product.
1.1 Target Audience
This manual addresses trained personnel who are familiar with CAN, CAN FD and the applicable
standards. The contents of the manual must be made available to any person authorized to use
or operate the product.
1.2 Document History
Version Date Description
1.0 February 2018 First release
1.1 February 2018 Minor corrections
1.2 March 2019 Layout changes, added description for lock time and extending the recessive bit
1.3 May 2019 Corrections bit rate
1.3 Trademark Information
Ixxat®is a registered trademark of HMS Industrial Networks. All other trademarks mentioned in
this document are the property of their respective holders.
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
User Guide 4 (18)
1.4 Conventions
Instructions and results are structured as follows:
►instruction 1
►instruction 2
→ result 1
→ result 2
Lists are structured as follows:
• item 1
• item 2
Bold typeface indicates interactive parts such as connectors and switches on the hardware, or
menus and buttons in a graphical user interface.
This font is used to indicate program code and other
kinds of data input/output such as configuration scripts.
This is a cross-reference within this document: Conventions, p. 4
This is an external link (URL): www.hms-networks.com
Safety advice is structured as follows:
Cause of the hazard!
Consequences of not taking remediate action.
How to avoid the hazard.
Safety signs and signalwords are used dependent on the level of the hazard.
This is additional information which may facilitate installation and/or operation.
This instruction must be followed to avoid a risk of reduced functionality and/or damage
to the equipment, or to avoid a network security risk.
Caution
This instruction must be followed to avoid a risk of personal injury.
WARNING
This instruction must be followed to avoid a risk of death or serious injury.
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Safety Instructions 5 (18)
2 Safety Instructions
2.1 Information on EMC
Risk of interference to radio and television if used in office or home environment!
Make sure, that DIN rail is connected to the ground.
Use exclusively included accessories. Use exclusively shielded cables.
Make sure, that the shield of the CAN cable is connected.
If necessary, enlarge distance between source of interference (e.g. motors, frequency inverter) or
drain of interference and device to avoid interference.
2.2 General Safety Instructions
►Protect product from moisture and humidity.
►Protect product from too high or too low temperature (see Technical Data, p. 12).
►Protect product from fire.
►Do not paint the product.
►Do not modify or disassemble the product. Service must be carried out by HMS Industrial
Networks.
►Store products in dry and dust-free place.
2.3 Intended Use
The devices are used to establish a physical coupling of two or more segments of a CAN or CAN
FD bus system. It is possible to implement tree or star topologies, as well as long drop lines. With
a galvanically isolated repeater network segments can be electrically decoupled.
The devices cannot be used to extend a CAN/CAN FD system because in terms of signal the
repeater corresponds to a line with delay time.
3 Scope of Delivery
Included in scope of delivery:
• CAN FD Repeater
• User Manual CAN FD Repeater
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Product Description 6 (18)
4 Product Description
CAN-CR100
• 2 x CAN/CAN FD interfaces according to ISO 11898-2
• ISO CAN FD and nonISO CAN FD
• variant with integrated bus termination resistor and variant without bus termination resistor
available
• 1 kV isolation voltage
CAN-CR120/HV
• 2 x CAN/CAN FD interfaces according to ISO 11898-2
• ISO CAN FD and nonISO CAN FD
• variant with integrated bus termination resistor and variant without bus termination resistor
available
• 3 kV isolation voltage
CAN-CR110/FO
• 2 x CAN/CAN FD interfaces:
– 1 x CAN interfaces according to ISO 11898-2
– 1 x FO interface (F-SMA connector)
• ISO CAN FD and nonISO CAN FD
• variant with integrated bus termination resistor and variant without bus termination resistor
available
• 1 kV isolation voltage
HMS Industrial Networks offers cable assemblies (F-SMA) in various lengths to connect two CAN-CR110/
FO.
CAN-CR300
• 4 x CAN/CAN FD interfaces according to ISO 11898-2
• ISO CAN FD and nonISO CAN FD
• variant with integrated bus termination resistor and variant without bus termination resistor
available
• 1 kV isolation voltage
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Configuration 7 (18)
5 Configuration
To operate the CAN repeater no software installation is required. The CAN repeater is configured
via DIP switches (1).

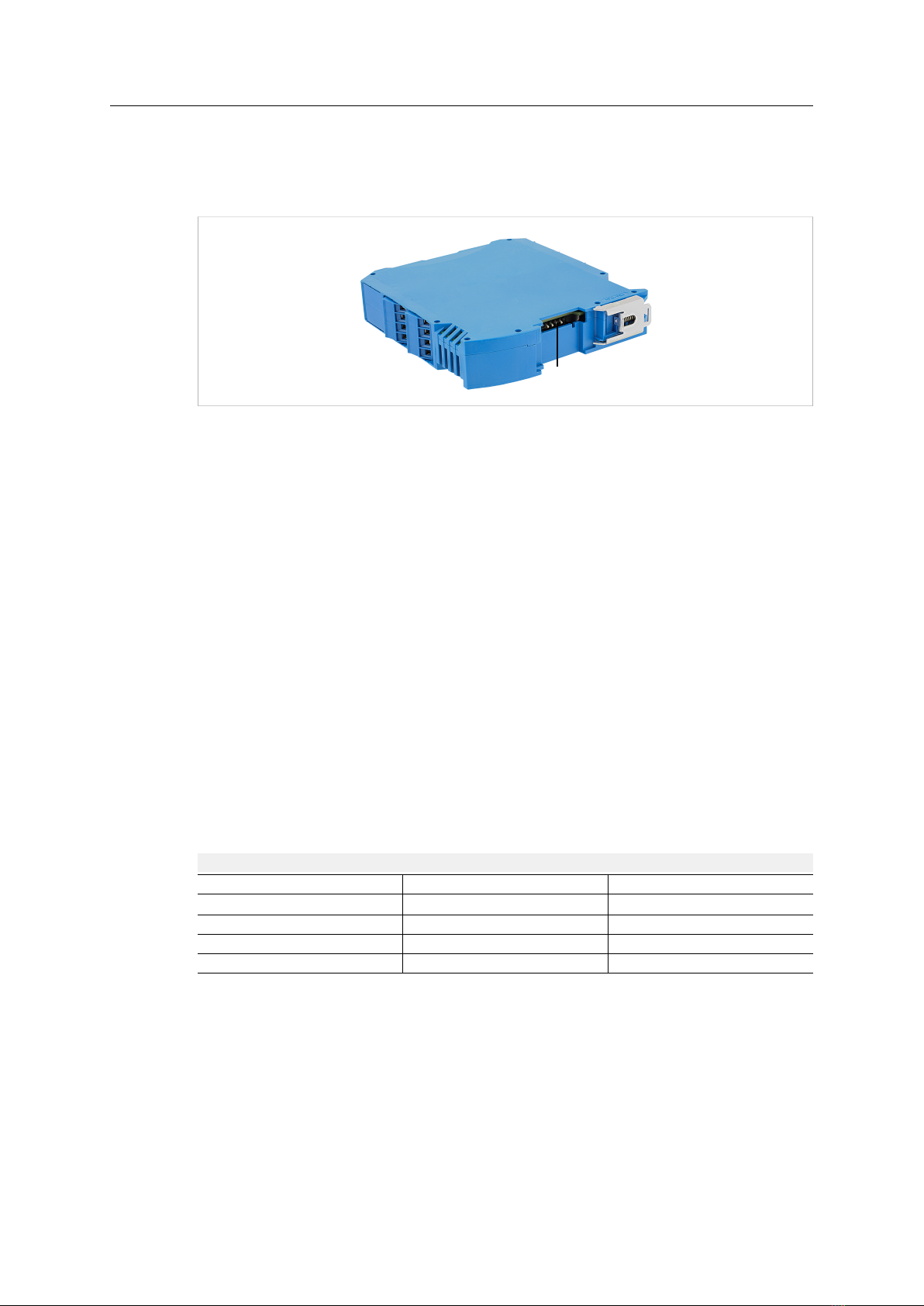

Fig. 1 DIP switches
5.1 Configuring the Lock Time
The CAN transceiver transmits data and receives these transmitted data again after a certain
delay, the so-called loop delay. For example, if the transceiver transmits a dominant bit and after
that a recessive bit, the transceiver only sees the recessive bit in its receive output after the loop
delay. The size of the loop delay depends on several factors, like for example the number of CAN
nodes in the network. The higher the capacity load is, the higher is the loop delay. To avoid bit
errors caused by this delay, the configured lock time must be higher then the loop delay.
►Use a screwdriver or similar tool to set the DIP switches.
►Observe, that the setting depends on the bit rate and the capacitive load of the network
(the higher the capacity load, the higher the value).
►Configure the lock time with DIP switches 1 and 2.
►Observe the following reference values:
– for networks with less than 32 nodes the lock time is about 200 ns
– for networks between 32 and 64 nodes the lock time is about 400 ns
– for networks with more than 64 nodes the lock time is about 800 ns and with this
setting the bit rate is limited to maximal 500 kbit/s
Valid Lock Time Combinations
DIP switch 1 DIP switch 2 Lock time
Off Off 200 ns (default)
On Off 400 ns
Off On 800 ns
On On 1600 ns
1
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Configuration 8 (18)
5.2 Extending the Recessive Bit
Due to the internal structure the CAN transceiver shortens recessive bits on the network, and
thus dominant bits are extended. At high bit rates this might cause errors. To extend the
recessive bits may improve the error rate, as the bits then are closer to their nominal value on
the network. If the recessive bits are extended with the DIP switches, the extension is made
independently of the bit rate, also at low bit rates.
►Use a screwdriver or similar tool to set the DIP switches.
►Extend the recessive bit with DIP switches 3 and 4.
Valid Combinations
DIP switch 3 DIP switch 4 Recessive bit extension
Off Off 0 ns (default)
On Off 10 ns
Off On 20 ns
On On 30 ns
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Installation 9 (18)
6 Installation
6.1 Mounting the Device

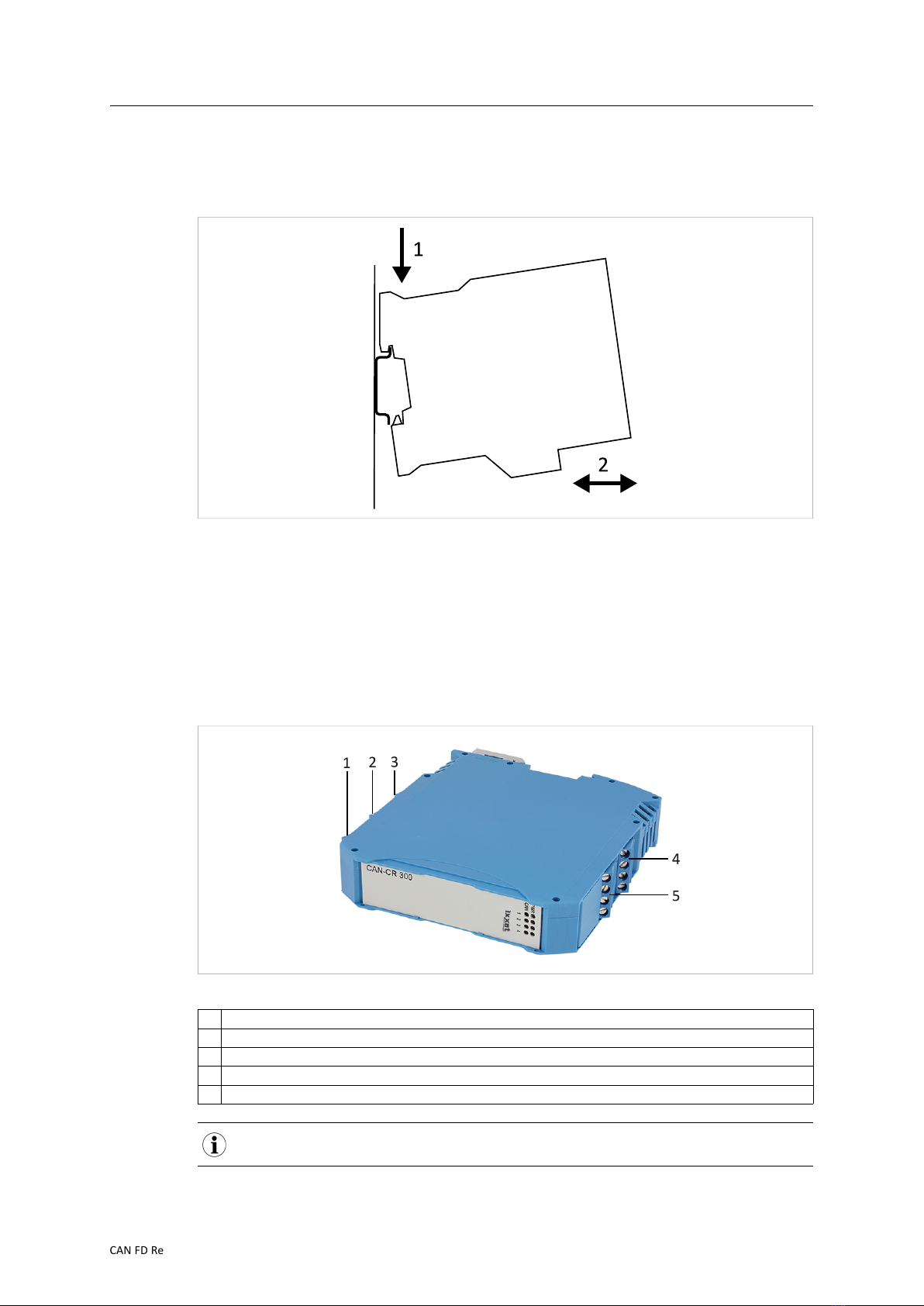

Fig. 2 Mounting on DIN rail
►Make sure that the lock time is configured (see Configuration, p. 7).
►Make sure, that the device is not connected to power supply.
►Hook the device onto the upper lip of the rail and push downwards (1).
►Push the device towards the rail until it snaps into place (2).
6.2 Connectors
Fig. 3 Connectors
1 CAN 1
2 CAN 3
3 Power
4 CAN 2
5 CAN 4
The CAN connectors and the power connector are fixed and can not be removed.
1
2
31
2
4
5
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Installation 10 (18)
6.2.1 Power Connector
Pin Allocation
Pin no. Signal
1 +9 V to +36 V DC
2 0 V
3—
4—
6.2.2 CAN Connector
Pin Allocation
Pin no. Signal
1CAN high
2CAN low
3 CAN GND
4Shield
If a D-Sub 9 connector is used, observe the following pin allocation of the D-Sub 9 connector.
Pin no. Signal
1—
2CAN low
3 CAN GND
4—
5—
6—
7CAN high
8—
9—
The shield of the CAN connector is connected to the ground via a 10 nF capacitor. The ground of
the device is connected to the DIN rail after mounting the device on the DIN rail. The ground of
the CAN connector (CAN GND) is connected via a 10 nF capacitor to the device ground.
For best noise immunity, ground the shields of the CAN cables.
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Operation 11 (18)
7 Operation
7.1 LEDs
Fig. 4 LED array
LEDs PWR 2/3/4 do not have any function.
The LEDs CAN 3/4 are activated only with CAN-CR300.
7.1.1 Power LED
Power LED PWR 1 indicates the status of the power supply.
LED state Description Comments
Off No power Device not connected to power supply, or fuses of device
or internal power supply damaged
Green Power ok Device fully functional
Red Device is reset After power-up the device is set into reset, LEDs are red
during reset (normal duration: about 200 ms). Or power
supply is damaged, internal voltage is below necessary
level.
7.1.2 CAN LEDs
With CAN-CR100, CAN-CR120/HV and CAN-CR110/FO the LEDs CAN 1 and 2indicate the status of
the CAN connections.
With CAN-CR300 LEDs CAN 1,2,3and 4indicate the status of the CAN connections.
LED state Description Comments
Off No CAN communication No CAN communication, device not connected to CAN
Green or green
flashing
CAN communication LED is triggered with each dominant received bit.
Red flashing CAN communication, but errors Each CAN circuit transmits and reads back the transmitted
bits. An error occurs, if the repeater transmits a dominant
bit, but measures a recessive bit.
Red Dominant-lock External device applies a permanent dominant level to the
CAN.
PWR
1
2
3
CAN
4
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Technical Data 12 (18)
8 Technical Data
Weight Approx. 150 g
Operating temperature -20 °C to +70 °C
Storage temperature -40 °C to + 85 °C
Power supply +9 V to +36 V DC
Housing material Polyamid
CAN/CAN FD transceiver Microchip MCP2562FD
CAN bus termination resistor 120 Ohm (only with variants with integrated bus termination resistor)
CAN bit rates Up to 1 Mbit/s
CAN FD bit rates 500 kbit/s up to 4 Mbit/s
Protection class IP20
Relative humidity 10 to 95 %, non-condensing
CAN-CR100
Dimensions 22.5 x 105 x 114 mm
Current consumption at 24 V Typ. 70 mA, max. 100 mA
Galvanic isolation 1 kV DC/1 sec, 500 V AC/1 min
CAN propagation delay (typical) Typ. 175 ns (35 m bus length)
CAN-CR120/HV
Dimensions 22.5 x 105 x 114 mm
Current consumption at 24 V Typ. 70 mA, max. 100 mA
Galvanic isolation 3 kV DC/1 sec, 1500 V AC/1 min
CAN propagation delay (typical) Typ. 175 ns (35 m bus length)
CAN-CR110/FO
Dimensions 22.5 x 105 x 120 mm
Current consumption at 24 V Typ. 70 mA, max. 100 mA
Galvanic isolation 1 kV DC/1 sec, 500 V AC/1 min
CAN propagation delay (typical) Typ. 300 ns (60 m bus length) between wire connection of a FO Repeater through
the fiber optic cable to the wire connection of a second FO Repeater (not including
the signal delay time of the fiber optics: approx. 5 ns/m)
FO transmitter Broadcom HFBR 1404Z, 820 nm
FO receiver Broadcom HFBR 2402Z, 820 nm
FO line Multi mode fiber optic cables (only glass);
Recommended: 50/125 μm, 62.5/125 μm,
also compatible with: 100/140 μm, 200 μm (consider max. line length)
Maximal line length between two
FO repeaters
50/125 μm: 1500 m
62.5/125 μm: 2000 m
CAN-CR300
Dimensions 22.5 x 105 x 114 mm
Current consumption at 24 V Typ. 90 mA, max. 125 mA
Galvanic isolation 1 kV DC/1 sec, 500 V AC/1 min
CAN propagation delay (typical) Typ. 175 ns (35 m bus length)
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Support/Return Hardware 13 (18)
9 Support/Return Hardware
Observe the following information in the support area on www.ixxat.com:
• information about products
• FAQ lists
• installation notes
• updated product versions
• updates
9.1 Support
►For problems or support with the product request support at www.ixxat.com/support.
►If required use support phone contacts on www.ixxat.com.
9.2 Return Hardware
►Fill in the form for warranty claims and repair on www.ixxat.com/support/product-returns.
►Print out the Product Return Number (PRN resp. RMA).
►Pack product in a physically- and ESD-safe way, use original packaging if possible.
►Enclose PRN number.
►Observe further notes on www.ixxat.com.
►Return hardware.
10 Disposal
►Dispose of product according to national laws and regulations.
►Observe further notes about disposal of products on www.ixxat.com.
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
This page intentionally left blank
Appendix A: Regulatory Compliance 15 (18)
A Regulatory Compliance
A.1 EMC Compliance (CE)
The product is in compliance with the Electromagnetic Compatibility Directive. More information
and the Declaration of Conformity is found at www.ixxat.com.
A.2 FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.
Product name CAN Repeater
Model CAN-CR100, CAN-CR110/FO, CAN-CR120/HV, CAN-CR300
Responsible party HMS Industrial Networks Inc
Address 35 E. Wacker Dr, Suite 1700
Chicago , IL 60601
Phone +1 312 829 0601
Any changes or modifications not expressly approved by HMS Industrial Networks could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
Appendix A: Regulatory Compliance 16 (18)
A.3 RoHs Directive
The product is in compliance with the RoHs Directive 2002/95/EC (Restriction of the use of
certain hazardous substances in electrical and electronic equipment).
A.4 Disposal and recycling
You must dispose of this product properly according to local laws and regulations. Because this
product contains electronic components, it must be disposed of separately from household
waste. When this product reaches its end of life, contact local authorities to learn about disposal
and recycling options, or simply drop it off at your local HMS office or return it to HMS.
For more information, see www.hms-networks.com.
CAN FD Repeater User Manual 4.01.0210.20000 1.3 en-US
This page intentionally left blank
last page
© 2019 HMS Industrial Networks
Box 4126
300 04 Halmstad, Sweden
This manual suits for next models
3
Table of contents
Other HMS Repeater manuals
