Hobbex A .OFF-ROAD BUGGY User manual

1/5TH SCALE AWD GASOLINE POWER OFF-ROAD
BUGGY AND MONSTER TRUCK
INSTRUCTION MANUAL
A .OFF-ROAD BUGGY
B. MONSTER TRUCK
Notes:
The radio controlled racing models is not toy. It is suited for experienced operators.
Read and understand the instructions carefully before operating or assembling your racing model.
Specifications are subject to change without prior notice, and actual received model may
vary from the images and/or descriptions in this manual.
14+
C. SHORT COURSE

Introducing your model...
This manual contains all the basic instructions for assembly,
operation, and maintenance.Please read and understand all
instructions thoroughly before operating and building your
model.
1.High quality main/diff.gears .
2.Four wheel centre drive system.solid universal joint cups.high
performance full ball bearing.
3.Fiberglass brake disc provides quick brake response under high temperature.
4.Wheel rim is assembled and secured by 24 screws enable the tire and
wheel rim are not seperated while high speed running.
5. Fold stylish and solid full anodized aluminum 6061chassis.
6. New design solid roll Cage protects the inner instruction perfectly.
7.Perfect design and extra width front/rear suspension arm .
8.Powerful engine system with air filter.full aluminm polished
Exhaust pipe.
9.Enhanced suspension arm system,solid front/rear shock tower.
10.High quality unleaded Gasoline+Stroke oil mixture to start your engine.
Replace the shield body after adjustment and before driving.
Do not abruptly alter the speed during running.
Carefully check whether all screws or nuts are loose or not after running.
Handle the fuel only outdoors!
Never measure the fuel close to open fire or any source of heat.
Never run the vehicle without a clean air filter installed.
Do not run the model lean and do not allow the engine to overheat.
Use the special fuel for models.
Store fuel in cool,dry and dark places away from Children's reach!
Tighten the cap of the fuel bottle when not used.
Never throw the empty fuel bottle into fire! Otherwise,it may explode.
Do not put your finger or any object into the rotating or moving parts.
To avoid the danger of burns, do not touch the engine and muffler immediately after
they have stopped running.
Before Starting Your Vehicle
Verify that all retainers are well fastened (screws, nuts, bolts and clips)
Verify proper function of steering, drive-line and engine/braking control.
.
Scissors Wire CutterNeedle Nose Cutter
4-way Wrench(small) 4-way Wrench(large)
Hobby Knife
Sleeve(16mm) Sleeve(23mm)
Hex Wrench
(1.5/2.0/2.5/3.0/4.0/5.0mm)
Engine View
Note:The engine is sticked with warning labels,
please pay special attention on it . The image is
presented for your reference only.
Throttle Lever
to control the fuel
inflowing
Recoil Starter
Stop Switch
Clutch Bell
Glow Plug
Air Back Needle Valve
Fuel Inflow Mouth
Air inflow switch
Fuel Composition:
Unleaded Gasoline+Stroke Oil(Gasoline about 75%
+Stroke Oil about 25%),Please mix the two different
fuel to start your engine.
2
1
Features:
Important Safety Precautions
Specifications:Monster SCT ) monster(B/C
1.Engine:23/28CC HY26/30CC
2.Steering Servo:20KG-cm Throttle Servo:9KG-cm
3.Length:740mm
4.Width:600mm
5.Height:350mm
6.Net Weight:15KG. Gross Weight:20.5KG
7.Wheelbase:516mm(F/R)
8.Drive way:upright drive
9.Chassis:4mm thickness. Aluminum6061T6
Ground Clearance:72mm
10.Wheel Diameter/Width:212mm/140mm
11.Fuel Tank Capacity:700CC
12.Drive System:four wheel suspension drive system
13.Diffirential System:CNC process metal gear
14.Brake Syetem:double brake disc turn round sytem
15.Gear Ratio:12.6:1 (B)Gear Ratio:9.6:1 (C)
16.Receiver battery/charger:2500mAh,Ni-MH battery
17.Body:anti-explode,high resistance
18.Camber Angel:0-8
19.R/C Control System:AM24G Transmitter
20.out of Control protection:standard protection equip
℃
Specifications:off-road Buggy(A)
1.Engine:23/28CC HY26/30CC
2.Steering Servo:20KG-cm Throttle Servo:9KG-cm
3.Length:720mm
4.Width:490mm
5.Height:285mm
6.Net Weight:12 KG. Gross Weight:16.9KG.7
7.Wheelbase:516mm(F/R)
8.Drive way: driveupright
9.Chassis:4mm thickness. Aluminum6061T6
Ground Clearance:55mm
10.Wheel Diameter/Width:178mm /80mm
Wheel color:black&white;chrome plated
11.Fuel Tank Capacity:700CC
12.Drive System:four wheel suspension drive system
13.Diffirential System:CNC process metal gear
14.Brake Syetem:double brake disc turn round sytem
15.Gear Ratio:9.6:1
16.Receiver battery/charger:2500mAh,Ni-MH battery
17.Body:anti-explode,high resistance
18.Camber Angel:0-8
19.R/C Control System:AM/2.4G Transmitter
20.out of Control protection:standard protection equip
℃
Wheel rim color:black&white;chrome plated
11.Stylish off road wing .(for Buggy only)
Tools For Assembling Your Model

Please read the instructions for the radio system carefully before running your car.
The servo is required to be set at Center position before starting assembly. To set the servo at the Idle
(Neutral) position switch on the transmitter and receiver. Allow the servo trim arm at Center position,
and turn off the transmitter then the receiver.All debug operations are complete, and the servo is in the
Middle position that you expect.
A.Neutral
B.Brake
/Speed down
C.Forward
/Speed up
Throttle Trigger
C.Right
Steering Wheel
A.Neutral
B.Left
1.Push the trigger forwards to allow the
vehicle to speed down to brake.
2.Pull the trigger backwards to allow the
vehicle to go forward and speed up.
Turn the steering wheel to
the left or right to let the
vehicle turn left or right.
The 1/5th transmitter has two different setting way.Push up the power button,will enter
into common function set.Press the mode fuction key while pushing up the power button,
up the power button,will enter into the system function set.
Switch on the transmitter,then the
receier to start the engine;turn off
the receiver then the transmitter
to stop running engine.
04
Use Transmitter to control your Vehicle...
The function switches on the transmitter:
1.Antenna
LCD 2-Channel(FM)
#TR80127
1/5th scale Gasoline powered RTR model Transmitter has 2 styles,
Transmitter(AM).you can choose it.Below is the LCD Transmitter(FM) function description.
LCD Transmitter(FM)&Multifunctional
6.Power switch on(push up)
Power switch off(push down)
7.Working Indicator3.Four function Key:
Mode Channel
Increase Decrease
4.Throttle Trigger
8.Steering Wheel
2.Switch key
5.T1/T2/T3/T4:
Shortcut key
2
3
4
5
5
5
6
7
8
1.The throttle trigger and steering wheel must be in netural position before reading the figure.
2.EPA:
a.EPA-ST : front wheel steering set b.EPA-TH:brake or forwarding operation set.
3.SPD:
a.SPD-TN: steering speed set b.SPD-RN:return to netural position set
4.EXP:(sensibility adjustable range:-100%~+100%;-100% is low-grade,+100% is superior.)
a.EXP-ST:steering sensibility set. b.EXP-FW:forward sensibility set
c.EXP-BK:brake sensibility set.
7.BMX: brake function mix set
8.TRM:(idle position adjust)
a.TRM-ST:steering trim set b.TRM-TH:forward trim set
9.D/R
a.D/R steering rate set b. D/R-ST:steering angle set
10.ATL
a.brake intensity set b.ATL-BK:set the brake intensity solely(adjusting brake servo angel)
11.SBT:(two channel idle position set)
a.SBT-ST:steering trim set b.SBT-TH:forward trim set
12.REV:
a.REV-ST:steering reverse set(off/on) b.REV-TH:forward reverse set(off/on)
13.MODE SEL:can save 10 models control data.
1.Copy mode control data
2.Mode control data initialization
3.Each mode control data name set.
4.Signal output set(PPM mode only)
5.FNC-SW2:switch key
6.FNC-DT:
a.ST:steering trim adjust b.TH:throttle trim adjust
c.DR:steering control rate DR-ST adjust
d:AT:ATL-BK adjust
e.E1:steering EXP-ST adjust f.BK:BMX-RT adjust
7.LED-MD:LED bright adjustment.press the increase or decrease to change light brightness.
6.ACC:
a.ACC-FW:add forward speed set b.ACC-BW:add brake speed set
5.ABS:(anti-slip brake set)
a.ABS-PT:brake return speed set. b.ABS-CY:perform cycle set
c. ABS-DL:extend brake time set d.ABS-MD:off or on set
4
be fully extended
Make sure antenna is properly
inserted and screwed in
the transmitter.Antenna should
1
LCD Transmitter(FM)Function Description:
Battery Precaustions:
1.In order to keep continue better performance under
operations, we strongly recommend you to use the
1.5V alkaline batteries instead of the 1.2 V chargeable
batteries.eight AA battery should be inserted on the
bottom of the transmitter.
2.The batteries may leak in the event that they are
installed with wrong polarities.
3.Do not use batteries of different types.
4.Do not leave the batteries if not in use for long periods.
Multifunctional
2-Channel(AM)
#TR80126
Common Function Setting:
System Function Setting:
2-Channel Radio Transmitting System
3

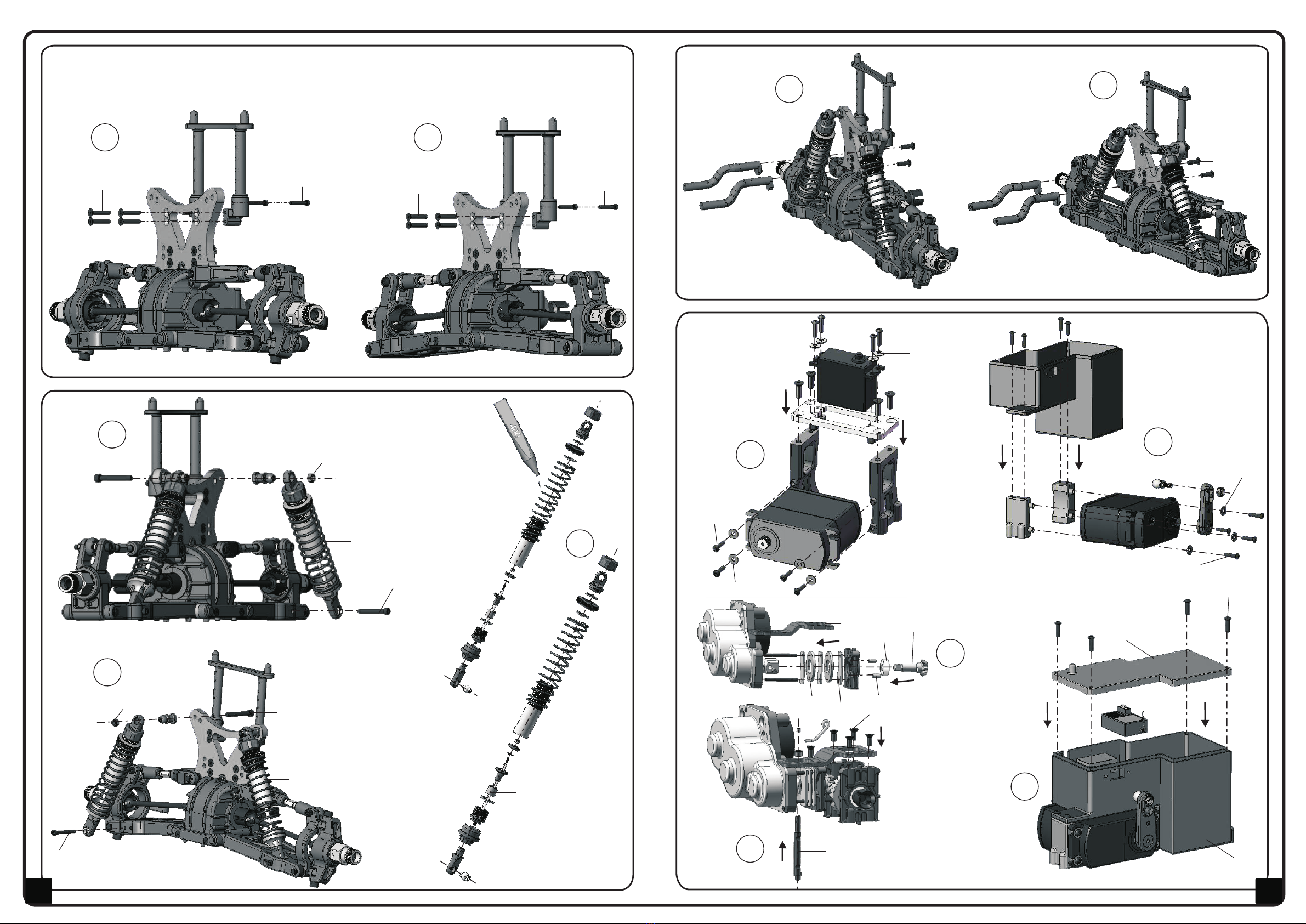

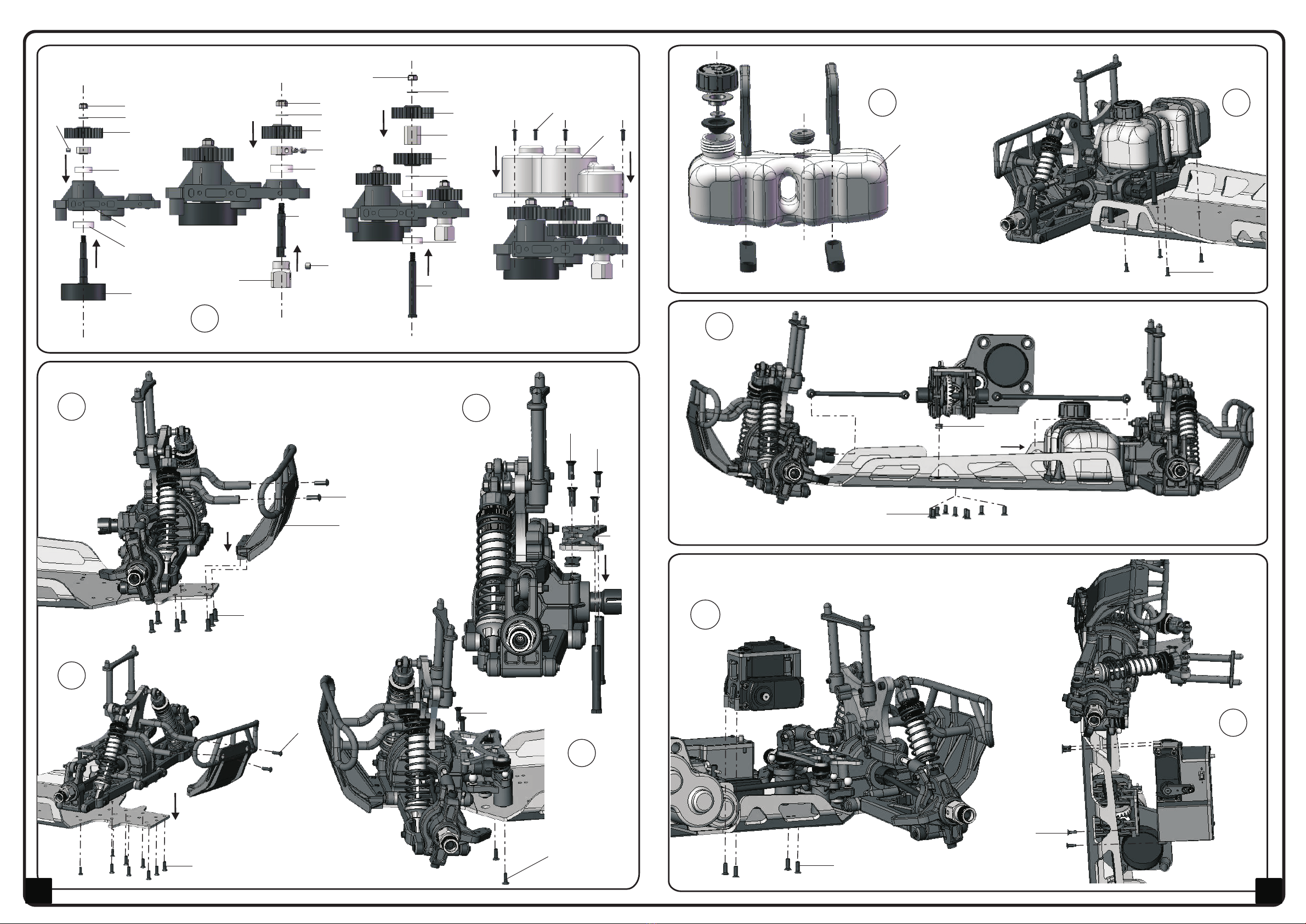

Diff. Box Exploded View
Don't forget to assemble the O Ring.
Diff.Gear Exploded View
Front Gear Box Exploded View
Center Diff.Gear Exploded View
Rear Gear Box Exploded View
50067N
50064
50064
50109
50045
50031N
50031N
50045
50071
50064
50067N
50067N
50085
50067N
50067N
50067N
50079
50073
50084
50033
Don't forget to assemble the O Ring.
50062
50087
50105
50062
50103
50007N
50007N
50072 50045
50045
50030
50107
50010
50030
50107
50045
50045
50107
50030
50010
50087
50063
50063
50105 50007N
50074
50045
50007N
50045
50030
50107
1
2
3
4
5
6
7
6
5
50103
The assembly diagram all in common use unless special remark

Steering Complete Assembly
50205
50205
50205 50114
50079
50205
50079
50114
Front Upper Suspension Arm
50054
50055
Rear Upper Suspension Arm
Front Upper
Suspension Arms Assembly
50087 50063
50004N
50026
50044
50034
50043
50115
50106
50201
Servo Link
Steering Link 50049
Rear Hub Carrier
50032 50069
50059 50025
50109
50025
Front Hub Carrier
50014
50109
8
9
10
11
12
13
14
15
50098 16
17
19
20
18
Rear Lower Suspension
Arms/Shock Tower Assembly
Rear Upper Suspension
Arms Assembly
Front Lower Suspension
Arms/Shock Tower Assembly
50026
40mm
24mm
55mm
32mm
30mm
Steering Mount Assembly
50087
50062
50004N
50034
8
7
50084
50115
50079
50056
50080
50040
50096
50041
50091
50104
50091
50104
50040
50096 50039
50080
50063
50021
50013

Servo Unit
Exploded View
Front body post Assembly Rear body post Assembly
21 22
Front Shock Absorber Assembly
Front Shock Absorber
Exploded View(short)
Rear Shock Absorber
Exploded View(long)
23
24
25
Rear Shock Absorber Assembly
26 27
Front Bumper
Stay post Assembly
Rear Bumper
Stay post Assembly
50006N
50006N
50037
50010
50088
Center Diff.
Assembly
Brake Disc Assembly
50023 50023
50020
50111
50068 50074
28 29
Battery Case
Exploded View
30
33
32
Battery Case Top Cover
Assembly
50097
50080
50095
50097
50095
50080
50003N long( )
50002N(short)
50101
50078
50084 50006N
10
9
50086 50202 50086
50008N
50002N
(short)
50003N long( )
50106
50106
50100
50101
50078
50101
50100
50078
50008N
50019
50046

Diff. Gear Mount Assembly
50081
50077
50116
50108
50070
50011
50045
50029N
50107
50081
50077
50116
50108
50070
50024
50075
50081
50077
50027
50075
50116
50076
50070
50024
50100
50066
31
34
37
35
36
38 39
40
42
41
Battery Case Assembly
Servo Assembly
Fuel Tank Assembly
Centre Gear Complete Assembly
Front Unit Assembly
Rear Unit Assembly
Rear Unit Reinforced
Plate Assembly
Steering Complete
Assembly
50009N
11
50106
50089
50084
50089
50106
50089
50089
50084
50084
50088
50084
50084
50037
50008N
50061
12

Roll Cage Exploded View
43
44
46
45
47
48
49
50
Roll Cage Assembly
51
Engine Assembly
Steering Link Assembly
Steering Link Assembly
Steering Link Assembly
Thottle Link Assembly
Front Brace Assembly
50084
50103
50045
Dustproof Plate
Assembly
13
50092
50090
50058
50079
50080
50085
50100
50101
50080
50085
50084
50011
50077 50099
50047
50065
14

Truck s Exploded View(L/R)Wheel Complete Body Complete Assembly
Wheels Complete Assembly
52
53
54
55
Exhaust Pipe Assembly
50093 50015
50016
50016
50015 50093
15
50025
50082
16
51002
51002
51001
5100151001
51001
50093
50093
Buggy or Rally monster s Exploded ViewWheel Complete
(Monster Truck)
(Monster Truck)

Front Unit Assembly
Rear Unit Assembly
New Style Assembly
Off-road Buggy
18
(Buggy)(Buggy)
(Buggy)
050115
50070
050115
50045
050114
50070050113
050112
50077
50081
50077
50077
50077
050116
050116
050116
50077
50077
50081
050111
50070
50070 050113
050112
50081
50099
50099
50099
Steel Centre Diff.Gear Assembly(for Optional Use)
050108(Truck)-Steel Gear
(25T/35T/25T/25T)
050114-Clutch Bell
050109 - Centre Diff
Mount Set
(Truck) Steel
050113-Diff.Second Shaft
mount
050112-Diff.first way
shaft mount
050116-Pins
3P
050115-Diff.First Way Shaft+
Diff.Second Way Shaft
050111-Diff.Gear Mount
(AL ).
50099-Column Head
Mechnical Screw(6*40) 4P
50070-Ball Bearing(22*8*7)
4P
50077-Second Way Gear
Washer
6*12*1.5MM
6P
50081-Nuts(M6) 6P
051030
- Centre Diff Mount Set
(Buggy )
Steel
/Rally Monster 051040(Buggy )
-Steel Gear (25T/31T/29T/25T)
/Rally Monster
25T(buggy/truck/Rally Monster)
25T(buggy/truck
/Rally Monster)
31T(buggy )/Rally Monster
35T(truck)
25T(truck)
29T(buggy
/Rally Monster)
17

49
48
2
134
57
56
55
56
11
567810
9
13
12
14 15
54 53
51 50
52
35
250
46
47
45
29 29
13 16 17 18 19 20 21
40
38
37
36
34
33
32 39
25
41
24
23
22
26
27
42
31
44
30
43
28
39.25039-Washer
40.25040-Glow Plug Igniter
41.25041-Screw(M4*18)
42.25042-Screw(M5*45)
43.25043-Silencer
44.25044-Exhaust Pipe Washer
45.25045-Venthole Washer
46.25046-Engine Connector
47.25047-Carburetor Washer
48.25048-Screw M5*50
49.25049-Carburetor Set
50.25050-Washer
51.25051-Air Cleaner Set
52.25052-Air Cleaner
53.25053-Bush
54.25054-Air Filter Screw M5*55
55.25055-Fire Guard Mesh
56.25056-Foam
57.25057-Air Cleaner Cover
1.25001-Screw
2.25002-Washer
3.25003-Spring
4.25004-Friction Set
5.25005-Washer
6.25006-Screw
7.25007-Clutch Bell Connector
8.25008-Screw M5*55
9.25009-Clutch Bell Cover
10.25010-Ball Bearing
11.25011-Shim
12.25012-Gear Box
13.25013-Ball Bearing
14.25014-Gear Housing Washer
15.25015-Gear Box Set
16.25016-Ball Bearing
17.25017-Screw
18.25018-Flywheel
19.25019-Small Cover
20.25020-Nut
21.25021-Fan Cover
22.25022-Screw M5*20
23.25023-Pull Start Set
24.25024-Screw M4*16
25.25025-Power-off Switch
26.25026-Screw
27.25027-Glow Plug(Insert)
28.25028-Cylinder Cover
29.25029-Screw M4*10
30.25030-Screw M5*23
31.25031-Cylinder
32.25032-O-Ring
33.25033-Cylinder Piston
34.25034-Cylinder Pi
35.25035-E-Clips
36.25036-Gasket
37.25037-Ball Bearing
38.25038-Washern

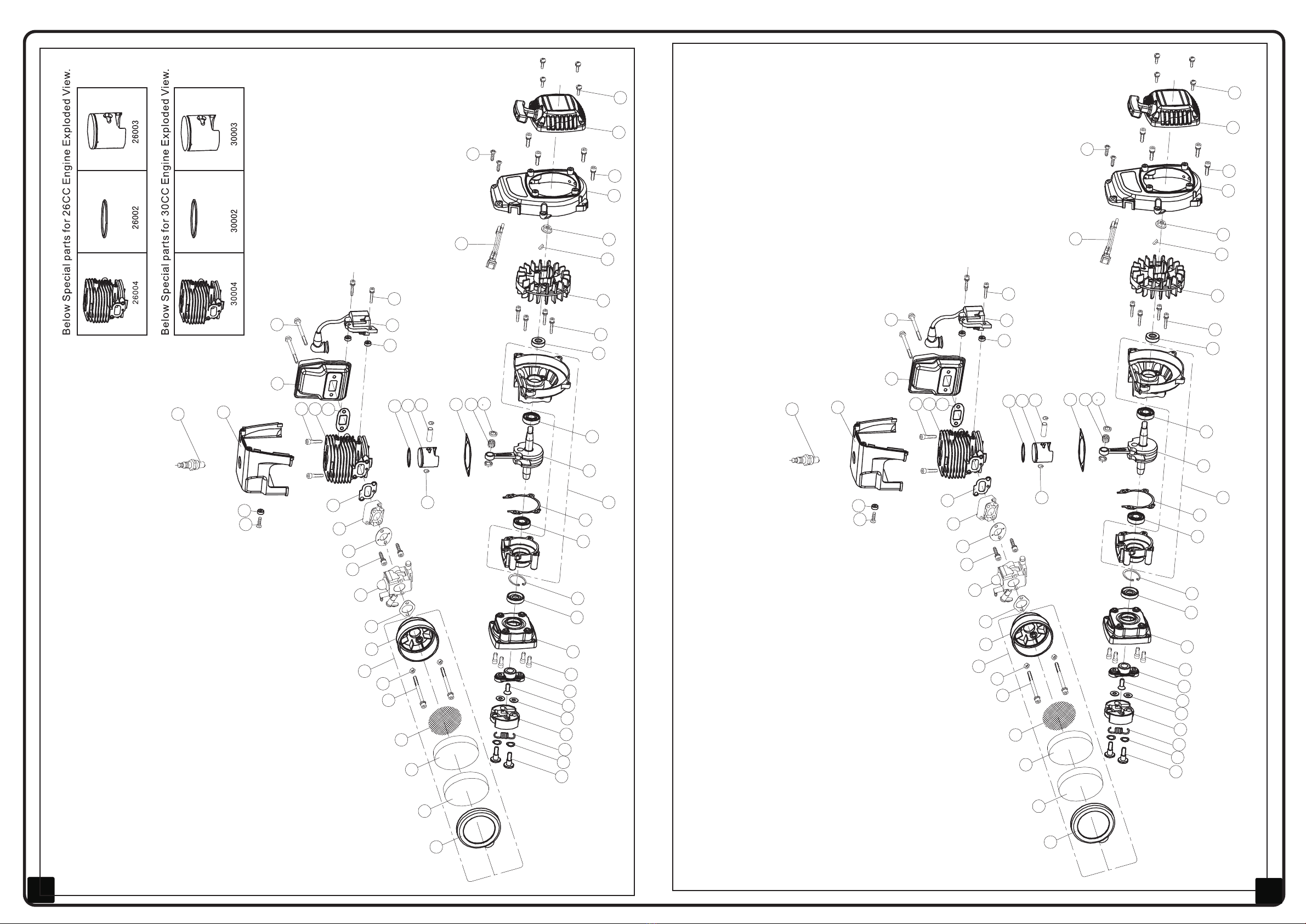

Engine Diagram (25CC) Tai Wan
20
19
4948
2
134
57
56
55
56
11
567810
9
13
12
14 15
54 53
51 50
52
35
46
47
45
29 29
13 16 17 18 19 20 21
40
38
37
36
34
33
32 39
25
41
24
23
22
26
27
42
31
44
30
43
28
1.25058-Ait Cleaner Cover
2.25002-Washer
3.25003-Spring
4.25004-Gear Friction
5.25005-Washer
6.25006-Sunk Screw
7.25007-Clutch Connector
8.25008-Flange Screw M5*55
9.25009-Clutch Cover
10.25010-Oil Seal
11.25011-Shim
12.25012-Crankcase
13.25013-Ball Bearing
14.25014-Crankcase Filling Piece
15.25015-Crank Group
16.25016-Oil Seal
17.25017-Flange Screw
18.25018-Flywheel
19.25019-Half Month Key
20.25020-Flange Nut
21.25021-Gear Fan Cover
22.25022-Screw
23.25023- Starter
24.25024-Flange Screw
25.25025-Stop Switch
26.25026-Screw
27.25027-Glow Plug
28.25028-Cylinder Complete
29.25029-Screw
30.25030-Flange Screw
31.26004/30004-Cylinder
32.26002/30002-Piston Curl
33.26003/30003-Piston
34.25034-Piston Pin
35.25035-Circlip
36.25036-Cylinder ring
37.25037-Needle Bearing
38.25038-Elastic ring
39.25039-Gasket
40.25040-Lgniter
41.25041-Flange Screw
42.25042-Flange Screw
43.25043-Damper
44.25044-Damper Pad
45.25045-Air Inlet Pad
46.25046-Branch Pipe
47.25047-Carburetor Pad
48.25048-Flange Screw
49.25049-Carburetor
50.25050-Filtration Pad
51.25051-Air Cleaner
52.25052-Air Cleaner Foundation
53.25053-Nut
54.25054-Flange Screw
55.25055-Mesh
56.25056-Sponge
57.25057-Air Cleaner Cover
HY Engine Diagram(26CC/30CC)

Off-road Monster Truck&Buggy Common Parts-1&SC T
1P 2P
50003 -Rear Shock
Absorber(long)
N
50005N-Rear Lower
Suspension Arm
50002 -Front Shock
Absorber(short)
N
50001N-Chassis
50004N-Front Lower
Suspension Arm
50007N-Gear Box
50160-Battery/Receiver
Case
50011-Centre Diff. Mount
Set
50205-Servo Saver/Steering
Complete
50010-Center Diff.Mount
50013-Steering Mount(L/R)
50014-Steering Mount B
50020-Radio Tray
50019-Servo Top Mount
2P
2P 2P2P
2P2P 1P1P 1P
2P 1P
1P 2P
1P 1P
2P
1P1P
1P
2P
1P
2P 1P 2P 1P 2P
50023-Brake Discs+Pads
+Pins
50022-Deck Spacer
+ Countersunk Screw
50024-Diff.First Way Shaft
+Second Way Shaft
50021-Front Upper
Top Plate
50025- Wheel Mount+Nut
+Shaft
50026-F/R Shock Tower+
Susp.Arm Bush+E Clip
50030-Centre Dogbone
Joint Cup
50031N-Diff. Joint Cups
50032-Front/Rear Wheel
Axle
1P
2P 1P
1P
1P
1P1P1P1P1P1P 1P
1P
1P1P 1P 1P
1P1P1P1P1P1P1P
1P 4P 1P
1P
2P 2P
2P
2P
50033-CenterDiff. Shaft
+Washers
50034- Front/Rear Dogbones
135MM
50035-Centre Diff.Front
Dogbone(Long) 172MM
50036-Centre Diff. Rear
Dogbone(Short)125MM
50038-Front/Rear Lower Arm
Pins 6*94MM
6*61MM
6*65MM
6*45MM
50039-Rear Lower Arm Pins
50040- Upper Arm Pins
50037-Brake Cam Set
1P
1P
2P
2P
1P
1P
1P
1P
1P 4P 2P
4P
50041-Front Lower Arm Pins
50043-Sus. Arm E- Clips
50044-Shock Tower Arm
E- Clips
50045-Ball Bearing(26*10*8)
50046-Servo Mount(L/R)
Sp2701-Steering Servo(27kg) Sp2001- Throttle Servo(20kg)
50047-Servo horn and Throttle
Linkage Set
2P 8P
8P
6P 6P
2P
4.0 8.0
50049-Steering Link
2P
50051-Chargeable Battery
Pack(6V 2500MA)
1P1P
22
21
50201-Buffer post
Sp1301- Throttle Servo(13kg)
50027-Diff. Gear(35T)
1P
50029N-Clutch Bell Bush
1P
50009N-Fuel Tank(700CC)
1P
50006N-Battery/Receiver
Case
1P
50012-Servo Saver/Steering
Complete
Off-road Monster Truck&Buggy Common Parts-&SCT 2
(Truck Only)

50055-Rear Upper
Suspension Arms
50056-Servo Link
2P 1P 1P
50057-Body Post
50058N-Front Brace
50059-Rear Hub Carrier
50062-Front Sus.Arm Holder
50063-Rear Sus.Arm Holder
50064-Front/Rear Diff.Shell
Set
1P
2P
50065-Roll Cage
50066-Diff. Gear Cover
50067N-Front/Rear Diff.
Gear Set
50068-Ball Bearing(22*10*7)
50069-Ball Bearing(24*12*6)
50070-Ball Bearing(22*8*7)
50071-Front /Rear Crown
Gear(33T)
50072-Front/Rear Drive
Pinion(11T)
1P
1P
1P 1P1P 1P1P
4P
8P
3P
1P
1P
1P
1P
1P 1P
50074-Diff.Drive Pinion
(10T)
50073-Diff.Crown Gear
(30T) 50075-Centre Diff. Gear Set
50078-Servo Washers
50079-Nuts(M4)
50080-Nuts(M5)
50081-Nuts(M6)
1P
4P 6P 9P 6P
9P 9P
7P
6P
4P 4P 8P
8P 8P 4P
12P
8P
8P8P8P8P8P8P8P8P8P8P
4P
8P8P8P8P8P8P8P8P
4P
10P 12P
12P
4P
3*8*0.8MM
50076-First Way Gear
Washer
8*15*1.5MM
50077-Second Way Gear
Washer
6*12*1.5MM
8P
50161-Rear Reinforcement
Plate
(unassemble)
2P
1P
50107-Hex Head
Grub Screw(6*6)
50108-Hex Head
Grub Screw(5*5)
50109-Hex Head
Grub Screw(4*4)
50110- Hex Head
Grub Screw(3*3)
50111-Hex Head
Grub Screw(5*10)
50101-Cap Head
Mechnical Screw(3*12)
50103-Cap Head
Mechnical Screw(4*15)
50104-Cap Head
Mechnical Screw(4*25)
50085-Countersunk
Mechnical Screw(4*16)
54031-Nuts(M3) 6P
50115-Steering Link Ball
10MM
4P
8P
24
23
50113-Rear Sus.Arm Ball
50114-Servo Link Ball
11MM 8MM
50112-Front Sus.Arm Ball
10MM
50054-Front Upper
Suspension Arms
50105-Cap Head
Mechnical Screw(4*30)
50106-Cap Head
Mechnical Screw(5*15)
50084-Countersunk
Mechnical Screw (4*12)
50052-Engine 23CC PRO
(25 CC PRO/ 26CC PRO
/ 28CC PRO/ 30CC PRO)
50053-Glow Plug
1P
1P 1P 1P
81013-Body Clips
6P
50086-Countersunk
Mechnical Screw(4*20)
Off-road Monster Truck&Buggy Common Parts-&SCT 3 Off-road Monster Truck&Buggy Common Parts-&SCT 4

4P
8P 4P
4P 6P
4P 8P
2P
2P
8P
12P
4P 8P
50093-Column Head Hex.
Self-tapping Screw(3*11)
50095-Column Head
Mechnical Screw(4*30)
50096-Column Head
Mechnical Screw(5*30)
50097-Column Head
Mechnical Screw(5*35)
50098-Column Head
Mechnical Screw(6*25) 8P
50099-Column Head
Mechnical Screw(6*40) 4P
50100-Cap Head
Mechnical Screw(3*10)
8P
2P
(1x4P)
50016-Tires
(for Monster Truck only)
50017-Wheels Complete
(50015+50016)
(for Monster Truck only)
50116-Diff. Gear(25T)
50117-Servo Mount(L/R)
50118-Servo Horn
50117/50118 can be used on
FUTABA/SANWA/HITECH/KO
Brand Steering&Throttel Servo
26
25
50089-Countersunk
Mechnical Screw(5*15)
50090-Countersunk
Mechnical Screw(5*18)
50091-Countersunk
Mechnical Screw(5*20)
50092-Countersunk
Mechnical Screw(5*25)
50202-Column Head Hex.
Self-tapping Screw(3*16)
50203-Cap Head
Mechnical Screw(3*5)
8P
12P 12P
1P
1P 3P
50082- Exhaust pipe+
Silicone Joint Tubing
1P
50008N-Front/Rear Bumper
&
Rally monster)
(for Monster Truck
1P
8P
50087-Countersunk
Mechnical Screw(4*25)
50088-Countersunk
Mechnical Screw (5*12)
12P
1P
50121(94mm)
50123
50125(72mm)
50124
50126(78mm)
50122(100mm)
Front Shock Absorber
Exploded View(short)
50002N-
Rear Shock Absorber
Exploded View(long)
50003N-
50120-O Ring
-50121-Front shock main
Axle+Nut M3
+Pads (94mm)
50123-Front Shock
spring (short)
50124-Rear Shock
spring (long)
50122-Rear shock main
Axle+Nut M3
+Pads (100mm)
50125-Shock Body
(72mm)
50126-Shock Body
(78mm)
50127-Shock Plastic Parts
50128-Shock Absorber
Cap+Ball Mount
50120
50120
50128
50128
50127
50127
50127
50127
50127
50127
50127
50128
50128
50120
50120
50127
50127
50127
50127
50127
50127
50127
50121(M3)
50121
50121(M3)
50121
Off-road Monster Truck&Buggy Common Parts-&SCT 5
Spare Parts for Off-Road Buggy&SCT
For buggy only
For buggy only
For buggy only
50015-Wheel Rims Complete
(for Monster Truck only)
1P
1P

1P 1P 1P
1P
1P
1P
4P 1P1P 1P
1P
1P
1P
2P
(AL.)
VX28000-Engine(28CCPRO)
050040-Air Filter
050009-Universal Drive
Joint 2P
(steel)
050010-Futaba Servo
Mount(L/R) (AL.)
050011-Servo Mount(L/R)
(AL.)
050023-Servo Horn
(AL.)
(AL.)
050005-Caster Mount(L/R)
050007-Rear Hub Carrier
(AL.)
(AL.)
2P
28
27
050015-Body Post
050060-Gear Box
050018-Roll Cage
050024-Aluminum Polished
Exhaust Pipe
(AL.)
(AL.)
2P 2P
9P
1P 1P 2P
1P
1P 1P
2P
1P
1P 2P 2P 1P
Upgradable Optional for Monster Truck&Buggy &SCT
2P
2P
054001-Front Lower
Suspension Arm
(AL.)
054002-Rear Lower
Suspension Arm
(AL.)
05 -Sus.Arm short
Holder(F/R)
(Direct hole)
(AL.)
4007 05 -Sus.Arm long
Holder(R)
(Inside bevel hole)
4008
(AL.)
054010-Rear Shock
Absorber (long) (AL.)
054009-Front Shock
Absorber(short) (AL.)
050037N-Rear Reinforcement
Plate (AL.)
050022 - Shock Tower
(AL.)
W F/R050014-Servo Saver/Steering
Complete
(AL.)
054018-Steering Mount
(AL.)
054012
050038N-Front Upper Top
Plate (AL.)
050061-Center Dogbone
125mm (AL.)
050008N-Front brace
(AL.)
054013-Center Diff.Tray
(AL.)
050032
(AL.)
Adjust angel center&two side( ) Adjust angel center&two side( )
1P 1P 1P
050062-Center Dogbone
172mm (AL.)
054003-Center Diff.Mount
(AL.)
054004-Gear Mount
(AL.)
050050-Servo Saver/Steering
Complete
(AL.)
1P
1P 1P
1P
1P
(For truck only)
1P
(AL.)
(For truck only)
(for truck&buggy only)
4P
050109-Alum.Centre Diff
Mount Set(for Truck only)
051030-Alum.Centre Diff
Mount Set(for Buggy/
RallyMonster)
(Gear:25T/35T )/25T/25T
(AL.)
(AL.)
1P 1P
(Gear:2 T/3 T )9 1 /25T/25T
1P
2P
050001N-Front Lower
Suspension Arm
(AL.)
modified optional parts 2P
050002N-Rear Lower
Suspension Arm
(AL.)
modified optional parts
(For buggy only)
054016-Front Shock
Tower (AL.)
modified optional parts 1P
2P 2P
050012W-F Upper
Susp.Arm (AL.)
054006- Upper
Suspension Arm
R
(AL.)
Upgradable Optional for Monster Truck&Buggy &SCT

30
29
1P
050022N-F/R ShockTower
(AL.)
modified optional parts
050012N-Front Upper
Suspension Arm
050013N-Rear Upper
Suspension Arm
051011-Front Upper
Suspesnion Arm
modified optional parts modified optional parts modified optional parts
50054
50019
50015
50065
50052
5005750057
50009N
50063
50072
50007N
50007N
50062
50049
50058N
50040
50062
50035
50001N
50061
50041
50004N
50038
50037
50020
50074
50011
50023
50024
50024
50029N
50011
50016
50015
50093
50031N
50064
50071
50003N
50034
50005N
50055
50038
50039
50059
50010
50010
50033
50030
50033
50073
50036
50084
50103
50107
50045
5010750107
50007N
50064
50067N
50031N
50045
50067N 50045
50008N
50026
50026
50083
50160
50160
50008N
50008N
50002N
50032
50025
50046
50116
50027
50066
50016
50015 50015
50093
50062
50056
50007N
MONSTER TRUCK FULL ASSEMBLY EXPLODED VIEW
50116
50116
5011650116
Upgradable Optional for Monster Truck&Buggy &SC T
50082
56157

31
For buggy only
Buggy&RallyMonster Exploded view(AWD)
For buggy only
For Rally
Monster only
For Rally
Monster only
50008N
50007N
50007N
50058N
50006N
50006N
50001N
50029N
50067N
50007N
50007N
50008N
50009N
50082
