Holife HM322A Mounting instructions

Handheld Cordless
Vacuum Cleaner
Use Manual
Model: HM322A
Need any help?
Please contact us and we will make things right within 24 hours.
[email protected]

CONTENT
English
Deutsch
Français
Español
Italiano
01
21
38
54
70
Thanks for choosing Holife Product
If you have any problems,
please contact us
[email protected]

EN 4 5 EN
The vacuum cleaner is disassembled when packing, so you need to as-
semble each part after receiving the package.
Assembly Instructions
A: Insert the aluminum pipe into the motor block
Assemble the brush head to the other end of the aluminum pipe.
Install the accessories to the other end of the aluminum pipe
B: Install the accessories to the motor block.
Install the ground brush to the motor block.
EN
Quick Start Guide

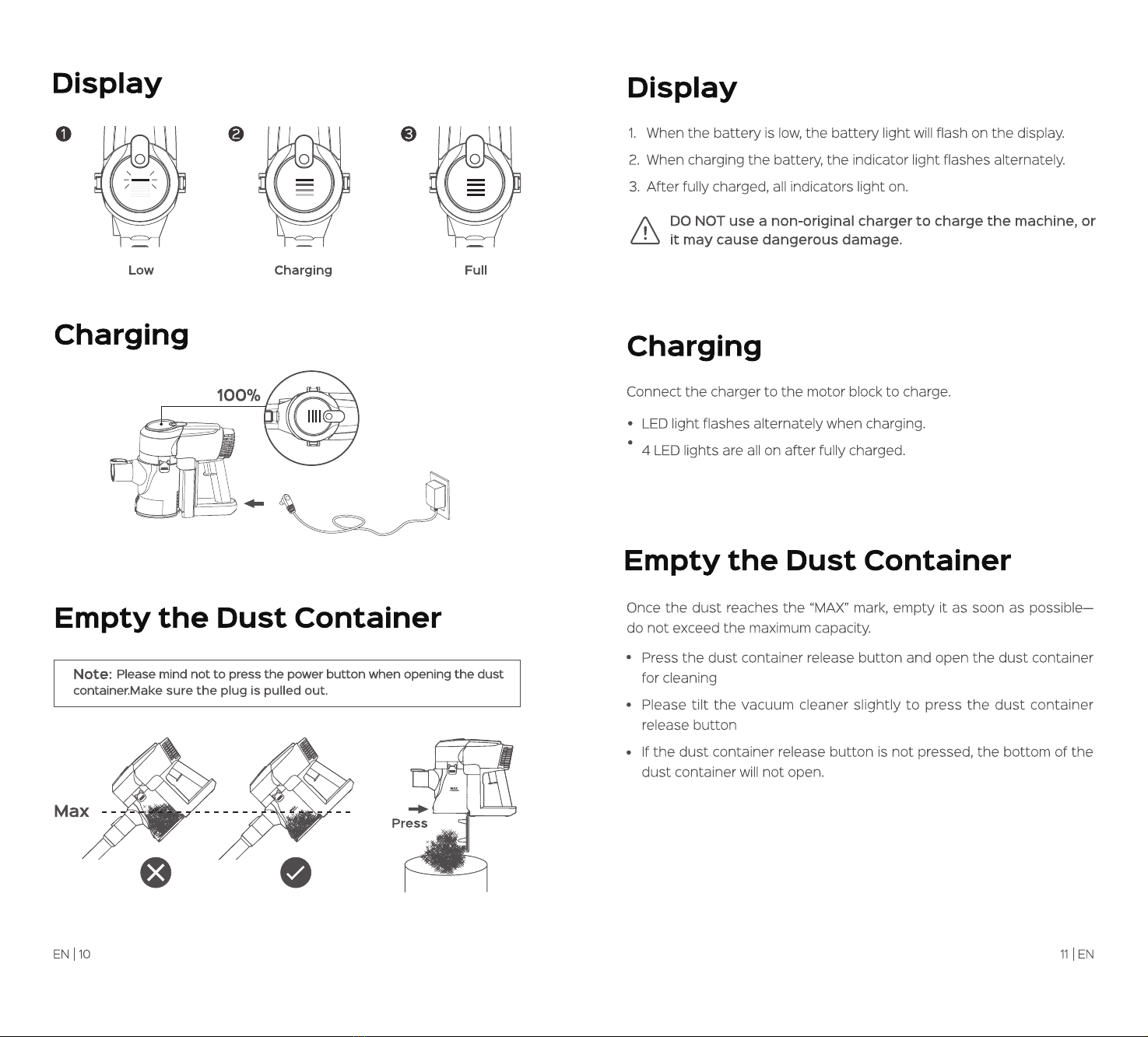

Charging
Please fully charge the vacuum cleaner before first use.
100%
Warning
Please read all instructions and warnings on the manual and product
before using. These warnings are also fit for nozzles, accessories,
batteries, and adapters of the product.
Please pull out the power before regular cleaning and maintenance.
Please do not place the objects on the nozzle which will easily block
the vacuum nozzle.
Please do not start the vacuum cleaner while the suction part is
blocked and make sure that nothing will block the vacuum while using.
Keep hairs, clothes, fingers and body parts away from the suction and
moving parts of the vacuum. Avoid vacuuming the flammable liquids
such as gasoline and alcohol.
When turn on the power switch of the vacuum cleaner, do not look
directly at the ventilation hole.
When using the vacuum cleaner, do not point the vacuum cleaner
suction to the person or animal.
This appliance is for home use only, please do not use it outdoors;
please use it in a dry environment.

EN 6 7 EN
When unplugging the charger, please grasp the plug, do not pull the
power cord.
It must be replaced by a serviceman if the power cord is damaged.
Please do not change it privately to avoid harm.
Please do not vacuum the big or sharp objects such as glass.
The product is suitable for dry use, do not vacuum any liquid.
If the product is damaged, please do not continue to use it. Please do
not disassemble the device or the charger yourself.
When charging the machine, please pay special attention to avoid
being tripped by the power cord.
Keep the power cord away from hot objects. (E.g. Cooking utensils
and other hot objects)
Please do not touch the charger or power cord with wet hands.
Use only accessories and replacements recommended by Holife.
Place the product at room temperature 18°C(64°F)-28°C (82°F)when
not using.
The appropriate operating and charging temperature is 10°C (50°F)-
30°C(86°F).
Diagram
Motor Block
Battery Display
Conductive
Aluminum Tube
Brush Head
Brush Roller
2 in 1 Accessories
+
Filter Assembly
Handle
Dust Container
Power Button
Battery
Charging Port
Sponge Filter
Hepa Filter

EN 8 9 EN
Specification
Button Functions
Rated Voltage Rated Power Noise Dust Capacity
22.2V 250W ≤72dB 0.6 L
Battery Charging Time Usage Type Air Flow
22.2V 2200mAh 3-4h Dry 100AW
2
3
4
5
6
7
1
8
Power Button
Turn on /off the vacuum cleaner. Switch Suction Mode, the default
suction mode is normal mode (low-level).
1.
Battery Release Button
Press the battery release button to remove the battery.
3.
Dust Container Lock Button
Unlock the dust container and clean the interior of the dust container.
4.
Brush Head Release Button
For connecting the aluminum and the floor head.
7.
Aluminum Tube Release Button
For connecting the aluminum tube to the motor block
Brush Head Release Button.
6.
Dust Container Release Button
Press the release button on the bottom of the dust container to re-
lease dust.
5.
Motor Block Release Button
Detach motor block and the dust collector, convenient for taking off
battery and dust collector.
2.
8. Roller Release Button
For change the roller on the brush head.

EN 12 13 EN
Fig 1
Fig 2
Clean & Replace the Filter Screen
Clean & Replace Foam
Press
Press
Buckle-Fix
1
4
2
3
Follow the instructions in Fig. 1.
Press the motor block release button to separate the dust container
from the motor block
Open the dust container lock button and take out the dust container
Pour garbage into the trash can.
Clean the dust container only with a damp cloth
Ensure that the clear dust container and seal are completely dry
before making replacements.
Reinstall the transparent dust container, as shown in Fig. 2.
Insert the pillar into the dust container slot.
Close the dust container lock until you hear the "click" sound.
Clean the transparent dust container if needed.
Clean & Replace the Filter Screen
Clean & Replace Foam
Clean the filter unit at least once a month, or clean the filter every time
when the dust is heavy.
Follow the instructions to check the cleaning filter unit to ensure
performance.
Separate the main unit and the dust container according to the
instructions in Fig.1.
Rotate the strut to the open state as instructed to remove the filter
and sponge
Before cleaning, gently tap the filter to remove excessive dust and
debris.
Only use cold water to clean the filter unit: Do not use detergent or
use a dishwasher or washing machine for cleaning.
First, clean the Hepa filter, hold the filter device under the cold-water
tap, and let the water rinse folded filter paper;
Continue to rinse until the water is clean.
Then clean the foam of the filter device, take out the foam filter
separately, and continue to rinse the inner and outer sides of the
Sponge Filter
Hepa Filter

EN 14 15 EN
Brush Head Maintenance
—— Clean the Brush roller
Brush Head Maintenance
—— Clear Obstacles
OPEN
CLOSE
1
4
2
5
3
6
1
4
2
3
If you use a vacuum cleaner to clean fine dust or mainly use the boost
mode, the filter unit may require more frequent cleaning.
Do not put any accessories of this product in the dishwasher and wash-
ing machine or dry it in a tumble dryer, oven, microwave or open flame.
Before replacing or cleaning the brush roller, make sure that the brush
head and the aluminum tube are separated and the vacuum cleaner
has been powered off.
When disassembling or replacing the electric brush roller, do not press
the switch button until the brush head is reassembled.
Let the brush head stand sideways, and make the roller brush
release button upwards, then insert a coin in the slot according to the
instructions, press and rotate it counterclockwise, or use the thumb
to rotate it counterclockwise.
Push the brush roller gently, and slide the brush roller out of the
brush head, and remove the brush roller for cleaning.
Place the brush roller under running water and gently rub it to remove
any lint or dust.
The floor brush of this product is equipped with two washable brush
rollers. Regularly clean the brush roller according to the instructions to
ensure performance:
Brush Head Maintenance
—— Clean the Brush roller
foam with cold water, gently squeeze out the dirt from the sponge;
Continue to rinse until the water is clean.
Take out the filter holder according to Fig. 2.
Rinse the filter holder under clear water until it is cleaned.
Place the filter in a well ventilated and dry environment for at least 24
hours to allow it to dry thoroughly.
Check that the filter unit is completely dry.
To reinstall the filter unit, place the foam part back into the filter unit
and rotate the unit to the locked state as indicated.

EN 16 17 EN
Place the brush roller vertically as shown in the illustration and leave it
for at least 24 hours to dry thoroughly. Before installing it back, make
sure the brush roller is completely dry.
Slide the brush roller back to the brush head and reinstall the end cap
on the main brush roller.
The end cap should be in a position where the figure shows. After it is
installed, gently press and rotate the end cap to the closed position.
Make sure the fasteners are rotated into place and the brush roller is
fixed.
Remove the brush roller as described above, clean the foreign matter
such as the wrapped hair, and then install the brush roller back.
Do not accidentally touch the switch during the removal of the brush
roller and the installation of the brush roller to avoid injury.
If the battery temperature is below 0 °C, the machine will be turned off
to protect the motor and battery. Do not charge the product and store it
at a temperature below 0 °C.
To extend battery life, please avoid charging immediately after full
discharge, the product needs to be cooled for a few minutes.
Avoid using the product when the battery surface is hot. Running the
machine at a low temperature helps to extend the working time and
service life of the battery.
If you do not use the vacuum cleaner for a long time, remove the battery
from the battery compartment and place it in a cool place.
Brush Head Maintenance
—— Clear Obstacles
Empty the Dust Container
Low suction or almost no suction
The product is hot while using
The product in normal mode can work up to 40 minutes, and in
the boost mode is up to 22 minutes. After the product is used for
a period of time, the suction will decrease with time. If the suction
becomes smaller, first think about the product usage time.
If the suction is small at initial, please check whether the product is
fully charged.
Check if the filter is dirty.
If the above reason is excluded, please contact us.
[[email protected]]
Please power off first, and check if the dust container is full. if the
dust container is full, clean it according to the guidelines of emptying
the dust container.
Check if the filter screen and the foam filter element are blocked.
If they are blocked, please clean the filter according to the filter
cleaning operation guide.
Please fully charge the vacuum cleaner before first use.
Before using the vacuum cleaner, check whether the suction head
and accessories are clean.
Before cleaning the floor and carpet, please confirm the manu-
facturer's cleaning guidelines to avoid damage to your carpet and
floor.
The brush roller may damage some carpets or floors. When using this
product for cleaning, the hard brush roller may cause some carpets
to fluff. If it happens, please do not use the electric floor suction head
when vacuuming.
The suction head of the product is not suitable for cleaning carpets
with over 4mm fluff.
Troubleshooting
Usage Instructions

EN 18 19 EN
Leakage
The product does not work
Check if the dust container is full.
Check if the dust container is installed in place.
Check if the battery has power
Please contact customer service in time for other abnormalities.
When using an electrical appliance, basic precautions should always be
followed, including the following:
WARNING - To reduce the risk of fire, electric shock, or injury:
Do not leave appliance when plugged in. Unplug from outlet when not
in use and before servicing.
Do not use outdoors or on wet surfaces.
Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
Use only as described in this manual. Use only manufacturer’s
recommended attachments.
Do not use with damaged cord or plug. If appliance is not working as
it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
Do not pull or carry by cord, use cord as a handle, close a door on
cord, or pull cord around sharp edges or corners. Do not run appliance
over cord. Keep cord away from heated surfaces.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
1.
2.
3.
4.
5.
6.
7.
READ ALL INSTRUCTIONS
BEFORE USING (THIS APPLIANCE)
IMPORTANT SAFETY INSTRUCTIONS
Check if the brush head and the aluminum tube are blocked, and
clean them according to the instructions mentioned above.
Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to battery pack, picking up or carrying the
appliance. Carrying the appliance with your finger on the switch or
energizing appliance that have the switch on invites accidents.
Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk
of fire when used with another battery pack.
When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small metal
objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
WARNING:
Read all safety warnings and instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury.
Do not handle plug or appliance with wet hands.
Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce air
flow.
Keep hair, loose clothing, fingers, and all parts of body away from
openings and moving parts.
Turn off all controls before unplugging.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible liquids, such as
gasoline, or use in areas where they may be present.
Do not pick up anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
Do not use without dust bag and/or filters in place.
Household and indoor use only.
For use only with the charger, Model :GT15W260045B/GT15W260045E/
YUQX12G260045UL.
1.
2.
3.
4.
