Home Accents TY086-1824-2 User manual

SKU # 1003 081 561
OMS THD SKU # 1003 002 178
Model # TY086-1824-2
Thank you!
We appreciate the trust and confidence you have placed in Home Accents
through the purchase of this 6 ft 120 Light LED Stacked Jack-O-Lantern.
We strive to continually create quality products designed to enhance your
home. Visit us online to see our full line of products available for your home
decoration needs. Thank you for choosing Home Accents!
1-877-527-0313
HOMEACCENTSHOLIDAY.COM
ASSEMBLY INSTRUCTIONS
6 ft 120 Light LED Stacked Jack-O-Lantern
USEANDCAREGUIDE
PLANNING ASSEMBLY
Carefully remove all the parts from the box and place them on a flat surface. Please
note that many of the parts are connected by the lighting string that runs throughout
the item. Remove the parts with care not to damage the lighting string or parts. Read
the entire manual prior to assembly and identify all the parts included in the package
against the parts list. If any parts are missing or damaged do not attempt assembly.
Contact our customer service center or return the item to place of purchase with
purchase receipt. Assembly of this product may require more than one person.
Pre-Operation
CAUTION:Grasp the plug to insert or remove from the power source.
Do not unplug by pulling on cord.
CAUTION:The lighting string on this product is rated at 12Watts
(0.1Amps). Do not overload. Do not connect to another lighting string, decorative
outfit or other electrical products. Before you use or re-use this product, inspect it
carefully. Discard or return to place of purchase with purchase receipt if the product
has cuts, damage, frayed wire insulation on cords, cracks in the socket enclosures,
loose connections or exposed copper wire.
CareandCleaning
a. Carefully remove the product from wherever it is placed. This helps to avoid any
undue strain or stress on the product connections and wires. If the product is
placed somewhere other than the ground it should be well secured and stable.
b. Wipe the unit with a damp cloth and allow the unit to dry before storing.
c. Store the product neatly in a cool, dry location protected from sunlight.
Guarantee
What is Covered
The product is intended for residential seasonal use for 90 days per year. This
product is covered by a 90 days limited guarantee due to defects in material and
workmanship. Return the product with purchase receipts to the location of
purchase for refund within 90 days of purchase.
What is Not Covered
This warranty does not cover commercial use, normal wear and tear, products not
used in accordance with directions provided on or with the product, burn out of bulbs
or LEDS, batteries, products that have been subjected to unauthorized repair and/or
modification and damage caused by shipping and improper handling, alterations,
misuse or accidents. Questions, problems, missing parts? Before returning to the
store, call Home Accents Holiday Customer Service 8 a.m.-6 p.m., EST,
Monday-Friday

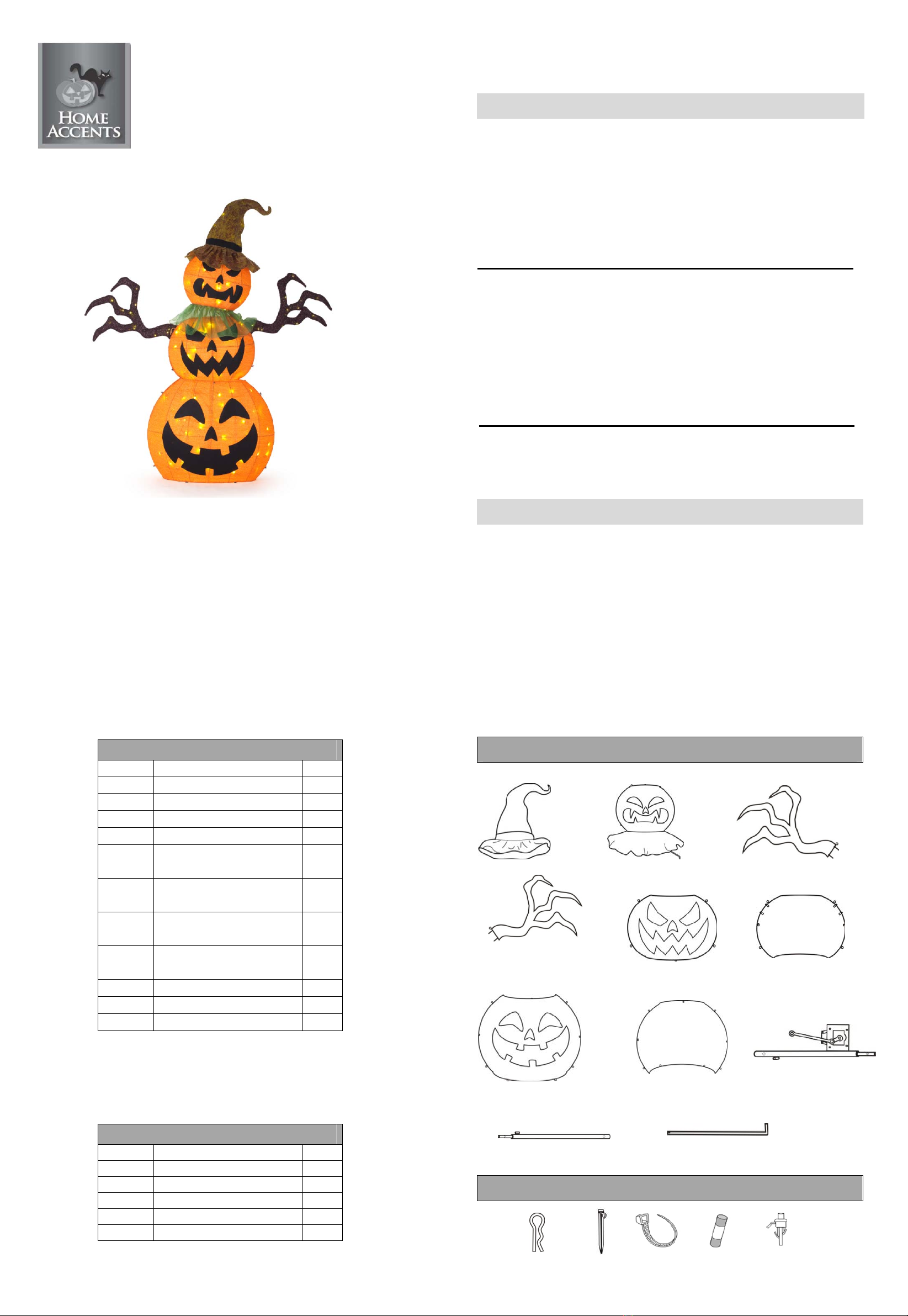

Diagram of Parts
Hardware
Parts List
Locater Name Qty.
A Hat 1
B Head Top Section 1
C Left Hand 1
D Right Hand 1
E Front Half of Middle Section 1
F Back Half of Middle Section 1
G Front Half of Lower Section 1
H Back Half of Lower Section 1
I Motor Vertical Pole 1
J Vertical Pole 1
K Horizontal Metal Bar 1
Hardware List
Locater Name Qty.
L Cotter Pin 4
M Ground Stake 4
N Plastic Tie 10
O Spare Fuse 1
P Spare Bulb 3
A B C
D E F
G H I
J K
L M N O P

A
SSEMBLY
1 Assembling the Vertical Pole to the Front Half of Lower
Section
Stack the Vertical Pole (J) into the short metal rod at the base of the
Front Half of Lower Section (G) with the tapered end upwards. Secure
with built in locking pin. Insert the free end of a hook attached to the
metal frame on the Front Half of Lower Section (G) into the matching
hole on the side of the Vertical Pole (J).
2 Assembling the Front Half of Lower Section to the Back
Half of Lower Section
Align the Front Half of Lower Section (G) with the Back Half of Lower
Section (H) then insert the connecting rods into the matching holes.
3 Assembling the Motor Vertical Pole
Stack the Motor Vertical Pole (I) onto the Vertical Pole (J). Secure with
built in locking pin.
4 Assembling the Front Half of Middle Section to the Lower
Section and connecting the Motor Arm
Find the Horizontal Metal Bar (K). This Bar is used to stabilize the Middle
Section and Lower Section of the Pumpkin. Insert (K) thru the matching
holes on the upper rim of Lower Section and the holes on the lower rim of
the Front Half of Middle Section (E) and one hole in the pole of the Motor
and Vertical Pole then lock at the end with the Cotter Pin (L). Connect the
plastic motor arm to the hook on the left inside of the Front Half of Middle
Section then secure with Cotter Pin.
5 Assembling the Head to the Front Half of Middle Section
Insert the small vertical connecting pole located at the base of the Head
Top Section (B) onto the top of the Motor Vertical Pole (I) then secure with
built in locking pin. Insert the free end of long metal connecting bar
attached to the Head Top Section (B) into matching tube on the right
inside of the Front Half of Middle Section (E) then lock with the Cotter
Pin (L).
6 Assembling the Back Half of Middle Section to the Front Half
of Middle Section
Align the Back Half of Middle Section (F) with the Front Half of Middle
Section (E) then insert the connecting rods into the matching holes.
7 Assembling the Hat and Hands
Insert the connecting rods on the Hands (C, D) into the matching holes
on the sides of the Front Half of Middle Section (E). Insert the connecting
rods on the bottom of the Hat (A) into the holes on the top of the Head
Top Section (B). Fasten all parts together at the connecting loops with
the Plastic Ties (N).
8 Assembling the Ground Stakes
Place the Ground Stakes (M) over the metal frame at the base of the
Lower Section of Pumpkin at four points then into the Ground.
