HOMEAIDE GF-MT506 User manual

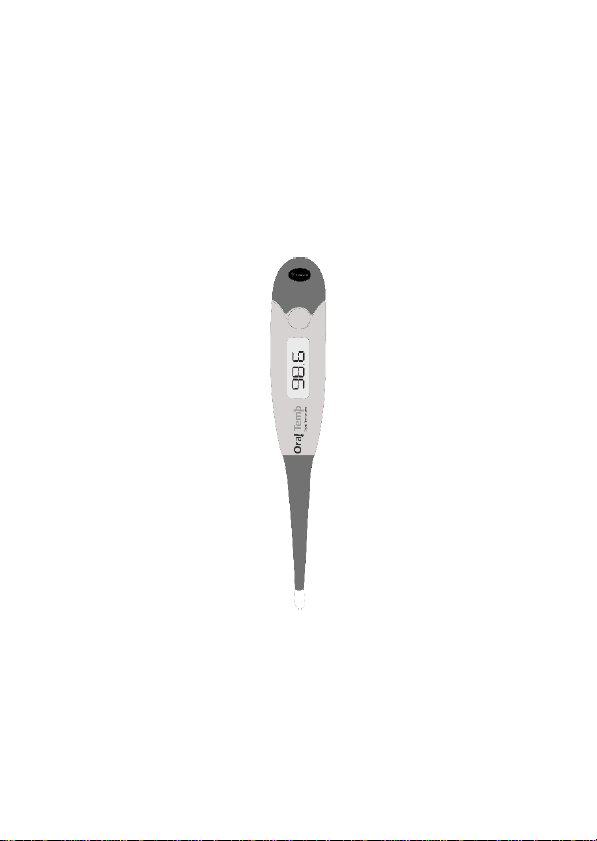

Oral Temp Digital Thermometer
Oral Digital Thermometer
USER MANUAL
Model: GF-MT506 (Flexible tip and Waterproof)
Certifications: CE0197 and ISO13485:2016

Contents
INTRODUCTION......................................................................................... 3
PACKAGE CONTENTS.............................................................................. 3
PRODUCT STRUCTURE ........................................................................... 3
WARNINGS AND PRECAUTIONS............................................................ 4
PRODUCT DESCRIPTION......................................................................... 5
INDICATIONS FOR USE............................................................................ 7
CARE AND CLEANING.............................................................................. 8
ºC/ºF CONVERSION................................................................................... 9
TO TURN OFF THE THERMOMETER..................................................... 10
MEMORY RECALL................................................................................... 10
BATTERY REPLACEMENT..................................................................... 10
TEMPERATURE TAKING TIPS...............................................................11
WARRANTY AND AFTER-SALE SERVICE ........................................... 12
SPECIFICATIONS .................................................................................... 13

INTRODUCTION
Thank you for purchasing the Oral Temp Digital Thermometer. Please read
the instructions carefully before using the thermometer for the first time.
Keep the instructions for future reference. This product is intended for the
measurement of the human body temperature via mouth (oral), armpit
(axillary) and rectum (rectal).
NOTE: This thermometer comes with a clear storage case which should be
used to store the thermometer in a dry cool place at all times when not in
use.
PACKAGE CONTENTS
No.
Name
Quantity
1
DigitalThermometer
1
2
Storage Case
1
3
Battery (1.5 V DC button) LR41xSR41x UCC392
1
4
User Manual
1
PRODUCT STRUCTURE
Numerical temperature displays on the Left side of the
screen
°C (Celsius) or °F (Fahrenheit) on the Top Right corner
M on the Bottom Right corne

4
WARNINGS AND PRECAUTIONS
1) Use of this thermometer is not intended as a substitute for
consultation with your physician or pediatrician. It is for
household use
only.
2) Keep out of reach of children under 12 years. This thermometer
contains multiple small parts which are a hazard to person requiring
monitoring or supervision.
3) Never immerse the thermometer into water or other liquids for longer
than 2 minutes. For cleaning and disinfecting please follow the
instructions in the “Care and cleaning”section.
4) Never use the thermometer for purposes other than those it hasbeen
intended for. Please follow the general safety precautions when using
on
children.
5) Do not allow the device to come into contact with hot water.
6) Keep the thermometer away from direct exposure to the sun and keep
it in a dust- free, dry area, well-ventilated place at a temperature
between
10°C (50°F)-40°C (104°F). Do not use the thermometer in
highhumidity
environments. (＞95% RH)
7) Do not use the thermometer if there are signs of damage on the
measuring sensor or on the instrument itself. If damaged, do not
attempt
to repair the instrument! Please contact 1-800-915-0116.
8) Do not drop the instrument. Protect it from severe impact and shock.
Do not twist the
instrument or the measuring sensor. This
thermometer is neither shock-proof nor impact-resistant.
9) Do not bend any part of the device. The tip should not be bent more
than 30° at any time or for any period of time.
10) Do not open the device aside from the battery compartment when
changing the battery.
11) This thermometer will not provide accurate reading if the ambient
temperature is over 35°C or 95°F.

5
12) Please consult your doctor if you see symptoms such asunexplained
irritability, vomiting, diarrhea, dehydration, changes in appetite or
activity,
seizure, muscle pain, shivering, stiff neck, pain when
urinating, etc., even
in the absence of fever.
13) Even in the absence of fever, those who exhibit a normaltemperature
maystill need to receive medical attention. People who are on
antibiotics,
analgesics, or antipyretics should not be assessed solely
on temperature
readings to determine the severity of their illness.
14) Temperature elevation may signal a serious illness, especially in
adults who are old, frail, have a weakened immune system, or
neonates
and infants. Please seek professional advice immediately
when there is a
temperature elevation and if you are taking
temperature for whomare:
•Over 60 years of age (Fever may be blunted or even absent in
elderly
patients)
•Having diabetes mellitus or a weakened immune system (e.g.,HIV
positive, cancer, chemotherapy, chronic steroid treatment,
splenectomy)
•Bedridden (e.g., nursing home patient, stroke, chronic illness)
•A transplant patient (e.g., liver, heart, lung, kidney)
15) This thermometer is not intended for pre-term babies or small-for-
gestational age babies. This thermometer is not intendedto
interpret
hypothermic temperatures.
16) Clean the thermometer probe after each use.
17) Do not use the thermometer on newborns or forcontinuous
temperature monitoring purposes.
18) Do not take a measurement while or immediately after nursing ababy.
19) Patients should not drink/eat or be physically activebefore/while
taking the measurement.
PRODUCT DESCRIPTION

6
Infrared Thermometer measures the body temperature based onthe
infrared energy emitted from the eardrum or the forehead. Users can
quickly get measurement results after positioning properly the
temperature probe in the ear canal orforehead.
Normal body temperature is a range. The following tables shows that this
normal range also varies by site. Therefore, readings from different site
should not be directly compared. Tell your doctor what type of thermometer
you used to take your temperature and on what part ofthe
body. Also bear
this in mind if you are diagnosingyourself.
Measurements
Maximum thermometer
measurement range 32.0°C to 42.9°C 90.0°F to109.9°F
Measurement accuracy +/- 0.1°C 35.5°C – 42.0°C
+/- 0.2°F 95.9°F – 107.6°F
Storage/transportation temperature +/- 0.2°C -20°C – 55°C
+/- 0.4°F -4°F –131°F
Storage/transportation humidity 15% ~ 95% RH
Ambient During Use temperature
+/- 0.2°C 15°C – 40°C
+/- 0.4°F 59°F –104°F
During Use humidity 15% ~ 95% RH
Structure
The thermometer consists of a shell, an LCD screen, a measure button,
a
beeper, a battery compartment, and a Microprocessor.

7
INDICATIONS FOR USE
It is important to remember that the body temperature reading depends and
varies on the site where it is measured. For this reason, the measurement site
must always be consistent in order to ensure that a correct temperature
reading is recorded.
IN THE MOUTH (ORAL)
There are different heat zones in the mouth. As a general rule, the oral
temperature is 0.3°C to 0.8°C (0.5-2°F) lower than the rectal temperature.
1. Place the thermometer tip to the left or right of the root of the
tongue. (The thermometer tip must have constant contact with the
tissue and be placed under the tongue in the heat pocket at the
back of the tongue during the reading)
2. Keep your mouth closed during the entirety of the reading and
breathe evenly through the nose.
3. Press the power button once and let it go to begin the reading.
(Approximately reading time is between 15 and 19 seconds).
4. One the temperature has been constant within 0.1°C for 4
seconds the thermometer will beep four times.
5. Remove the thermometer and record the reading.
IN THE ARMPIT (AXILLARY)
Placing the thermometer in the armpit provides a measurement of core body
temperature which can fluctuate by 0.5°C to 1.5°C (1-3°F) from rectal
temperature readings in adults.
1. Place the thermometer tip between your armpit and your body.
(The thermometer tip must have constant contact with the tissue
during the reading.)
2. Please ensure your arm is held tightly to your body the entire time.
(Do not allow your armpit to cool prior to testing)
3. Press the power button once and let it go to begin the reading.
(approximately reading time is between 23 and 29 seconds)

8
4. One the temperature has been constant within 0.1°C for 4
seconds the thermometer will beep four times.
5. Remove the thermometer and record the reading.
IN THE RECTUM (RECTAL)
Placing the thermometer in the rectal canal is the most accurate method from
a medical point of view. This reading does not fluctuate between readings.
1. Place the thermometer tip very carefully about 2 cm into the
rectum. (2cm is twice the length of the silver probe)
2. Press the power button once and let it go to begin the reading.
(approximately reading time is between 9 and 11 seconds)
3. One the temperature has been constant within 0.1°C for 4
seconds the thermometer will beep four times.
4. Remove the thermometer and record the reading.
Contraindications
Do not use the thermometer if the area is infected or lacerated.
CARE AND CLEANING
Use an alcohol swab or cotton swab
moistened with 70% alcohol to clean the
thermometer body and the measuring
probe. Wait until after the alcohol has
completely
dried out before you can take
a new
measurement.
Ensure that no liquid enters the interior of
the thermometer. Never use abrasive
cleaning agents, thinners or benzene for cleaning and never immerse the
instrument
in water or other cleaning liquids.

9
ºC/ºF CONVERSION
To switch from ºC to ºF
1. With the screen blank, press and hold the Calibration
Button (ON/OFF button).
2. Keep the button pressed down while the thermometer
shows 188.88 ºC on your screen
3. Keep the button pressed down and the ºC on the top
right corner will switch to ºF and display Lo or Hi with a
flashing ºF.
4. Press and let go of the Calibration button once to
complete the setting and turn the thermometer off.
To switch from ºF to ºC
1. With the screen blank, press and hold the Calibration
Button (ON/OFF button).
2. Keep the button pressed down while the thermometer
shows 188.88 ºF on your screen
3. Keep the button pressed down and the ºF on the top
right corner will switch to ºF and display Lo or Hi with a
flashing ºC.
4. Press and let go of the Calibration button once to
complete the setting and turn the thermometer off.

10
TO TURN OFF THE THERMOMETER
The unit will shut down automatically after 10 seconds of no use. You can
also press the ON/OFF button.
MEMORY RECALL
The unit will has a last memory recall function.
1. With the thermometer off; Press and hold the ON/OFF button
for 2-3 seconds.
2. The last measurement value will appear with an M on the
bottom right corner of the LCD display.
3. The reading will only be visible for 2 seconds before being over
written with a new temperature record.
NOTE: Do not hold button down for longer than 4 seconds or you
will switch the ºC to ºF or vise versa.
BATTERY REPLACEMENT
The battery is empty and needs to be replaced when the battery
symbol appear on the right of the LCD display.
Remove the battery cover by sliding the orange lid locate on the
top of the thermometer upwards.
Remove the old battery and replace the battery with a new (non-
mercury) 1.5V DC button battery size LR41 or SR41 or UCC 392.
Please make a note that the + sign is facing the back of the thermometer
and the – is facing the LCD screen.

11
TEMPERATURE TAKING TIPS
1) It is important to know each individual’s normal temperature when
they
are well. This is the only way to accurately diagnose a fever.
Record
readings twice a day (early morning and late afternoon).
Take the
average of the two temperatures to calculate normal
oral equivalent
temperature. Always take the temperature in the
same location, since the
temperature readings may vary from
different locations on the body.
2) A child’s normal temperature can be as high as 99.9°F (37.7) or as
low
as 97.0°F (36.11). Please note that this unit reads 0.5ºC
(0.9°F)lower
than a rectal digital thermometer.
3) External factors may influence ear temperatures, including when
an
individual has:
– been lying on one ear or the other
– had their ears covered
– been exposed to very hot or very cold temperatures, or
– been recently swimming or bathing
In these cases, remove the individual from the situation and wait 20
minutes prior to taking atemperature.
Use the untreated ear if prescription ear drops or other ear medications
have been placed in the earcanal.
4) Holding the thermometer for too long in the hand before taking a
measurement can cause the device to warm up. This meansthe
m
easurement could beincorrect.
6) Patients and the thermometer should stay in steady-state room
condition for at least 30 minutes.
7) Before placing the thermometer sensor onto the forehead,
remove dirt,
hair, or sweat from the forehead area. Wait 10
minutes aftercleaning
before taking measurement.

12
8) Use an alcohol swab to carefully clean the sensor and wait for 5
minutes before taking a measurement on another patient. Wiping
the
forehead with a warm or cool cloth may impact your reading.
It is advised
to wait 10 minutes before taking a reading.
9) In the following situations it is recommended that 3-5
temperatures in
the same location be taken and the highest one
taken as thereading:
• Newborn infants in the first 100 days.
• Children under three years of age with a compromised
immune
system and for whom the presence or absence of
fever iscritical.
• When the user is learning how to use the thermometer for the
first time
until he/she has familiarized himself/herself with the
instrumentand
obtains consistent readings.
WARRANTY AND AFTER-SALE SERVICE
The device is under warranty for 12 months from the date of purchase.
The batteries, the packaging, and any damage caused by improper use
are not covered by thiswarranty.
Excluding the following user-causedfailures:
1. Failure resulting from unauthorized disassembly and
modification.
2. Failure resulting from an unexpected dropping during
applicationor
transportation.
3. Failure resulting from not following the instructions in the
operating
manual.
Register your product’s warranty at: http://homeaide.us/warranty.html

13
SPECIFICATIONS
Product name Oral Temp Digital Thermometer
Power supply
(Battery) DC1.5V × 2 button battery (Size LR41, SR41 or UCC392) | Approx. 200 hours
Measurement range
32.0°C–42.9°C(89.6°F–109.2°F)
Accuracy
(Laboratory) ±0.2°F\C /±0.4°F (35.5°C ~ 42.0°C / 95.9°F ~ 107.6°F)
Display resolution 0.1°C /°F
Automatic shutdown
10s±1s
Memory
35 groups of measuredtemperature.
Storage/Transit
conditions
Temperature: -20~55°C
Humidity: 15-95%RH, non-condensing
Atmospheric
pressure: 86-106kPa
Operational
conditions
Temperature: 15~40°C
Humidity: 15-95%RH, non-condensing Atmospheric
pressure: 86-106kPa
Weight 11g
Follow product disposal instruction for electronic
devices dictated by your city/state/country
The battery that is provided with this product
complies with the requirements stated in the
European Directives 2006/66/EEC
Type BF equipment (devices that have conductive
contact with the patient, or having medium or long
term contact with the patient)
