CFN-1054
Instruction Manual
V20210254
Read Completely Before Installation
& Use and Keep for Future Reference

1
TABLE OF CONTENTS
INTRODUCTION
Introduction ·························································································· 1
Package Contents ················································································· 2
Safety Information·················································································· 3
Preparation ·························································································· 4
Initial Installation ··················································································· 5
Downrod Mounting ················································································ 6
Circuit Connections ··············································································· 7
Receiver Installation ·············································································· 8
Blade Installation ··················································································· 8
Light Installation ··················································································· 9
Color Temperature Adjustment ································································· 9
Remote Control Operation ····································································· 10
Troubleshooting ···················································································11
Contact Information···············································································11
Before beginning installation of this product, read the package list on page 2 and ensure all
parts are present and display no defects. If any part is missing or damaged, contact customer
service and do not attempt to install the product. Read all of the safety information on page
3 before installation or use.
Estimated assembly time: 120 minutes

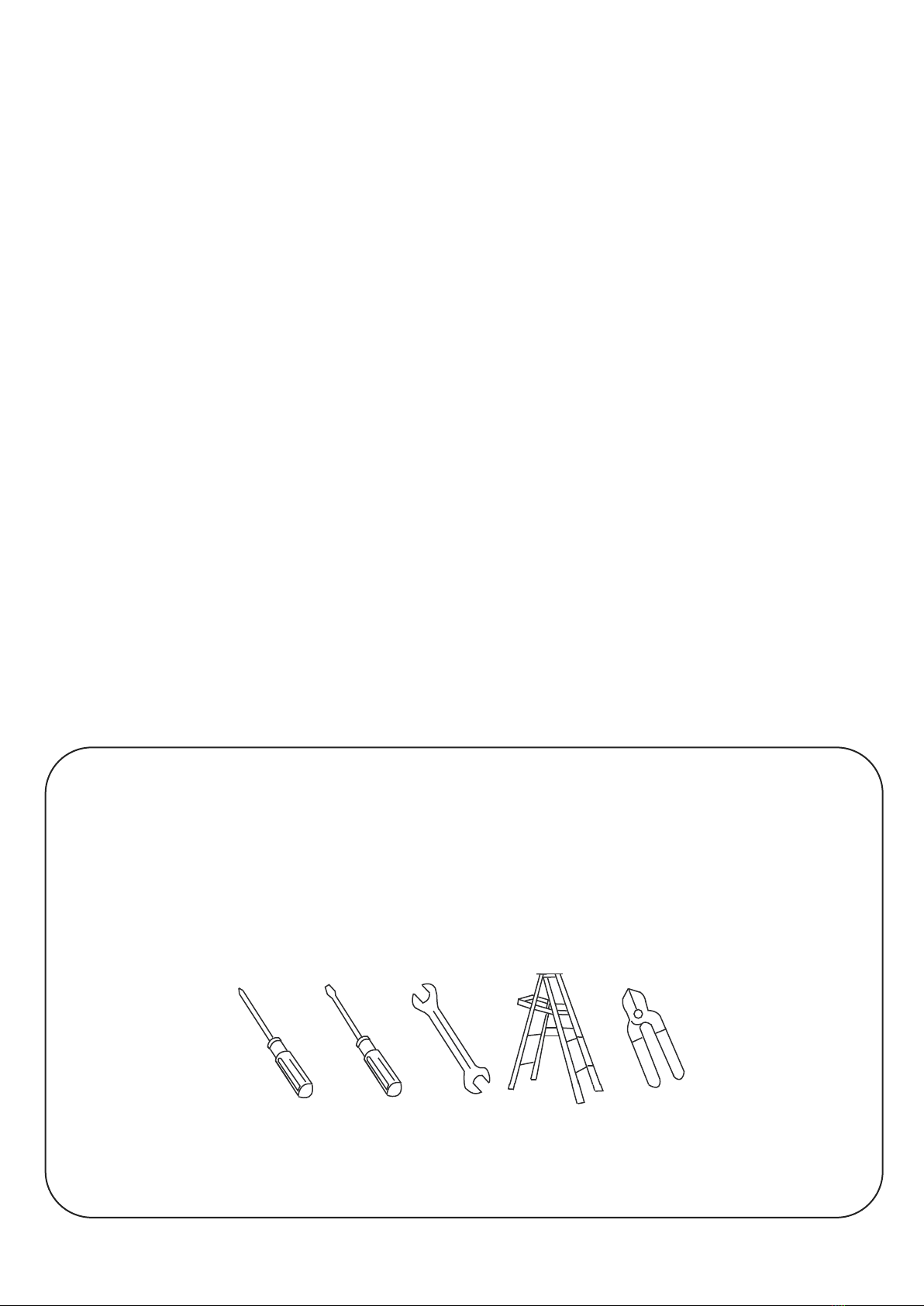

Additional tools required for assembly:
Electrical tape, flathead & Phillips screwdriver, pliers, safety glasses, ladder, and wire strippers
Additional helpful tools:
Electrical Tape, Phillips Screwdriver, Flathead Screwdriver, 11mm Wrench, Step Ladder
Wire Cutters, Protective Eyewear

2

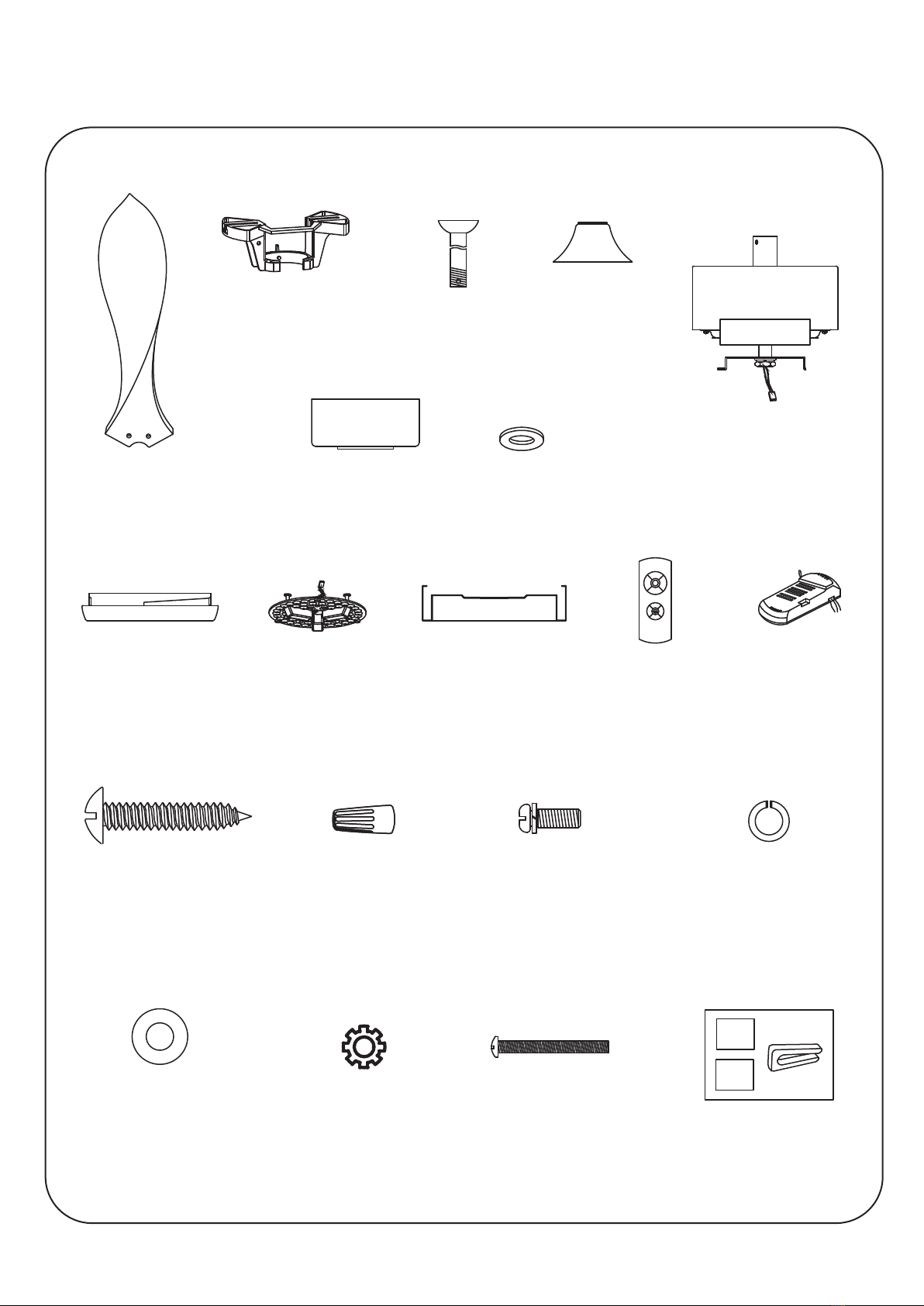

PACKAGE CONTENTS
Fan Blades (×2)
Remote Control Receiver
Ceiling Mounting Bracket
Balance Kit
Mounting Screws (×4) Wire Nuts (×10)
Flat Washers (×4)
Lamp Shade LED Light Kit Light Plate
Blade Bolts (×2)
Star Washers (×4) Mounting Bolts (×2)
Spring Washers (×4)
Canopy
Downrod Coupling Cover
Fan Motor Assembly
Canopy Cover
MED
HILOW
STOP
2H
4H
1H
R/F
LI

3
1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with national and local electrical codes. Electrical
installation should be performed by a qualified licensed electrician.
3. This fan is suitable for use with solid-state speed controls.
4. To reduce the risk of personal injury, use only the screws and washers provided with
the outlet box for mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
5. The outlet box and support structure MUST be securely mounted and capable of reliably
supporting a minimum of 50 pounds. Use only UL listed outlet boxes marked "FOR
FAN SUPPORT".
6. After marking electrical connections, spliced conductors should be turned upward and
pushed carefully up into outlet box. The wires should be spread apart with the grounded
conductor and the equipment-grounding conductor on one side of the outlet box.
7. The fan must be mounted with a minimum of 7 feet clearance from the trailing edge of
the blades to the floor.
8. Do not use the reverse switch while the fan blades are in motion. To prevent damage
and ensure long use, the fan must be turned off and the blades stopped before
reversing direction.
9. Do not place objects in the path of the blades.
10. Exercise caution when working around or cleaning the fan.
11. Use a soft dry cloth to clean the fan body and blades. Do not use water or detergent.
12. The electrical diagrams provided herein are for reference only. Light kits that are not
packaged with the fan must be UL listed and suitable for use with this fan. Switches must
be UL general use switches. Refer to their separate instructions for proper assembly.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, & PERSONAL INJURY,
MOUNT FAN TO AN OUTLET BOX MARKED “ACCEPTABLE FOR FAN SUPPORT”.
SAFETY INFORMATION
Warning!
NEVER BEND THE BLADE BRACKETS/FLANGES FOR ANY REASON.

4
PREPAR ATION
1. Turn Off Your Power
Begin installation by removing fuses or turning off circuit
breakers to the wiring you will be using. Use your compatible
UL listed outlet box if you already have one installed.
2. Choose Your Mounting Position
If you need to install a new UL listed outlet box, secure it
directly to your building's structure usingappropriate fasteners
and materials. Do not use plastic boxes. The outlet box and its
supports must be able to support the MOVING weight of the
fan (at least 50 lb.) and be rated for fan support.
3. Choose a Suitable Location
Ensure the blades will be at least 30 inches from any
obstruction and at least 7 feet above the floor. In
locations without a ceiling joist, a hanger support bar
may be required. Do not install in clamp locations.
Failure to disconnect the power supply prior to
installation may result in serious injury or death.
Use only on flat ceilings
Do not use on slanted surfaces
7feet
30 inches

5
Pass the 120V supply wires through the center hole in the ceiling mounting bracket. Secure
the bracket to the outlet box with the provided mounting screws or bolts and spring or star
washers.
INITIAL INSTALLATION
Outlet Box
Ceiling Mounting Bracket
Hook
120V Wires
Mounting Screws/Bolts
Washers

6

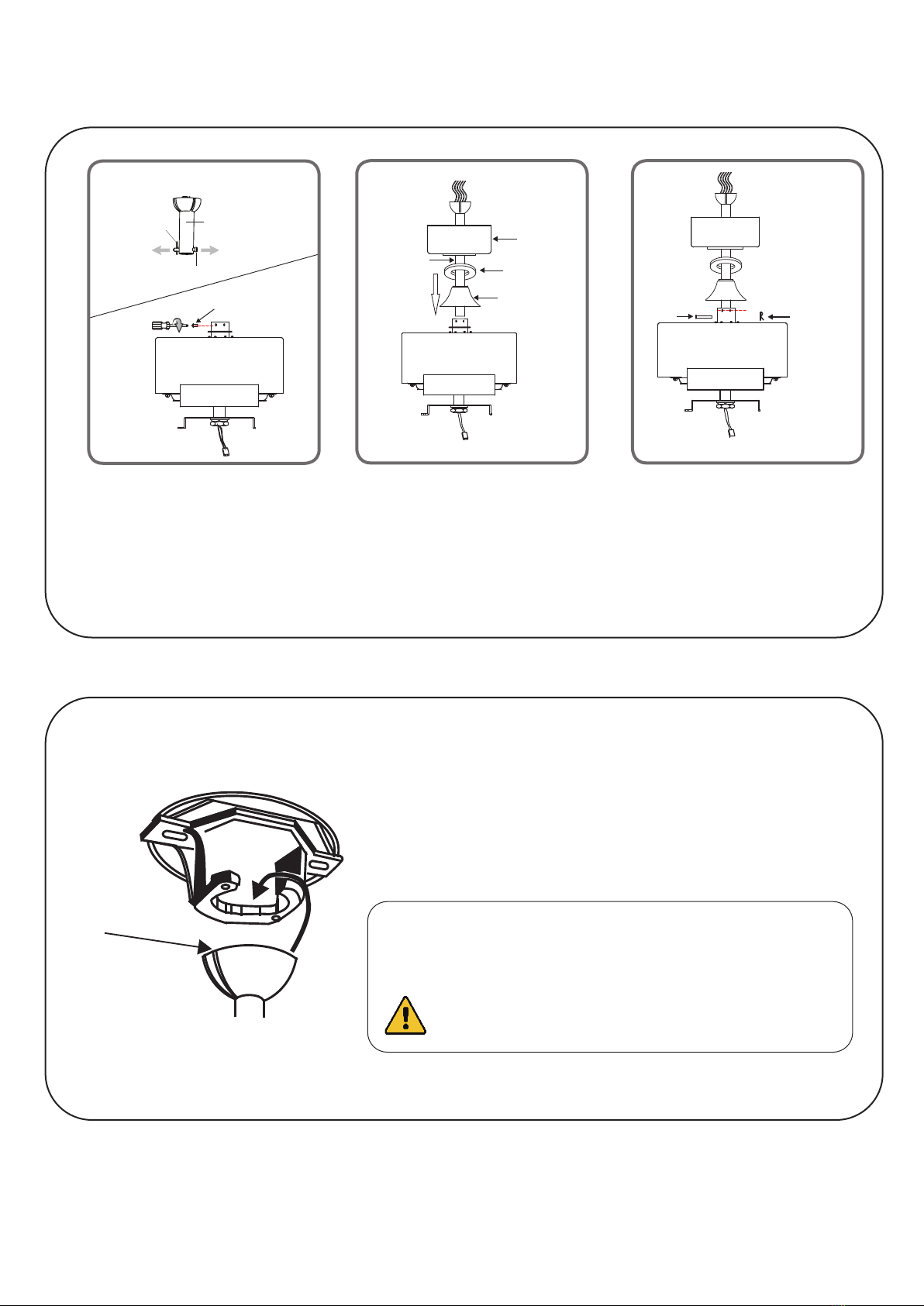

DOWNROD MOUNTING
Pin
Downrod
Clip
Downrod
Canopy
Canopy Cover
Coupling Cover
Step 1. Remove the pin
and clip from the downrod.
Loosen the two pre-in-
stalled bolts in the yoke at
the top of the fan motor
assembly.
Step 2. Carefully place the
canopy, canopy cover, and
coupling cover onto the
downrod. Feed the supply
wires from the fan motor
through the downrod.
Step 3. Install the downrod
onto the yoke, aligning the
holes, inserting the pin
through the downrod, and
reinstalling the clip.
Retighten the bolts.
Step 4. Place the downrod’s mount into the bracket on
the outlet box. Rotate the entire assembly until the tab
has dropped into the mount’s slot and locked into place.
The motor assembly should no longer rotate if seated
properly.
Failure to reattach the hitch pin and/or properly seat
the downrod can cause the fan to fall from the ceiling
during operation.
DO NOT use the fan before ensuring it is properly
secured and the motor can no longer rotate.
Bolts Pin Clip
Downrod

7

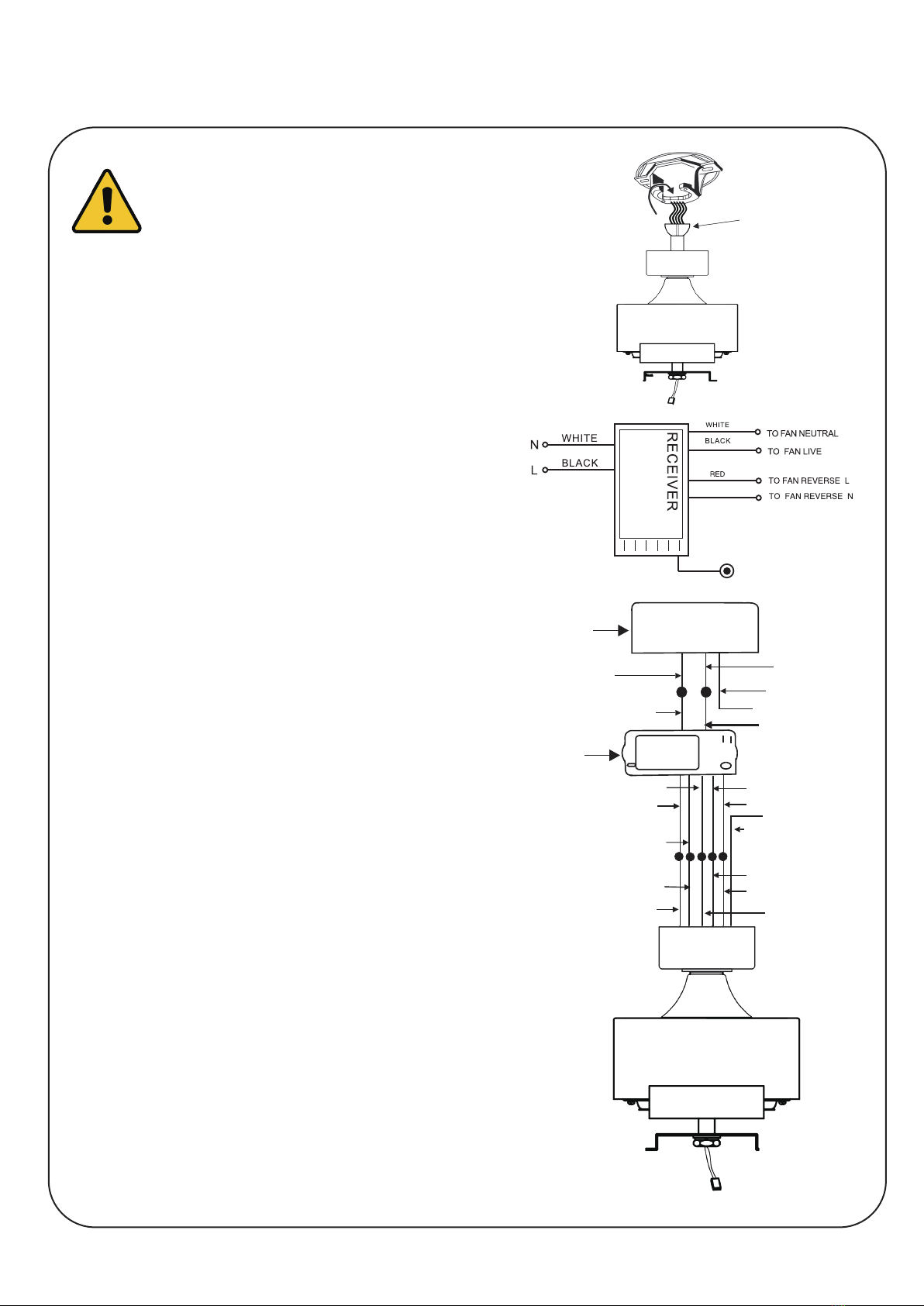

CIRCUIT CONNECTIONS
White (neutral)
Green or Bare
Copper (ground)
White (“AC IN N”)
Outlet Box
Black (hot)
Black (“AC IN L”)
White (neutral)
Blue (light)
Green (ground)
White (neutral)
Black (motor)
Blue (light)
Red (for L)
Receiver
Red (for L)
Orange
(for N)
Black (“to motor L”)
Orange (for N)
Receiver Head
GREY
Step 1. Insert the receiver into the tray with
the receiver facing the ceiling. For
best performance, make sure the
white antenna, on the end of the
receiver, remains extended and not
tangled with any of the electrical wires.
Step 2. Connect the 5 colored wires from the
remote receiver to the 5 identically
colored lead wires from the fan motor.
Secure each set with the provided
wire nuts.
Step 3. Connect the 2 colored wires from the
remote receiver to the 2 identically
colored lead wires from the outlet box.
Secure each set with the provided
wire nuts.
Step 4. Connect the green or bare copper
ground wire from the outlet box to the
ground wires from the ceiling
mounting bracket and the ceiling fan.
Separate the white and green
connections from the black wire
connections, which should be kept
on opposite sides of the outlet box.
Ensure there are no loose wires or connections,
and secure connectors with electrical tape.
Again, ensure that the power has
been cut before working with the
wiring. Use the wire nuts provided
with your fan. Registration Slot

8
RECEIVER INSTALLATION
BLADE INSTALLATION
Step 1. Remove the bolts and flat washers
pre-installed on the blade holder
underneath the fan motor assembly.
Step 2. Fit the blades in place on the blade
holder.
Step 3. Making sure the blades are straight,
secure them by replacing and
retightening the bolts and washers.
Insert the receiver into the tray with the receiver facing the ceiling. For best results, make
sure the white antenna on the end of the receiver remains extended and not tangled with
any of the electrical wires.
Flat Washer
Blade Bolt
Blade
Ceiling Mounting
Bracket
Canopy
Mounting Screws/Bolts
Receiver
Outlet Box

9
Wire Connectors
Wire Connectors
LED Light Kit
Light Plate
Bolts
Lamp Shade

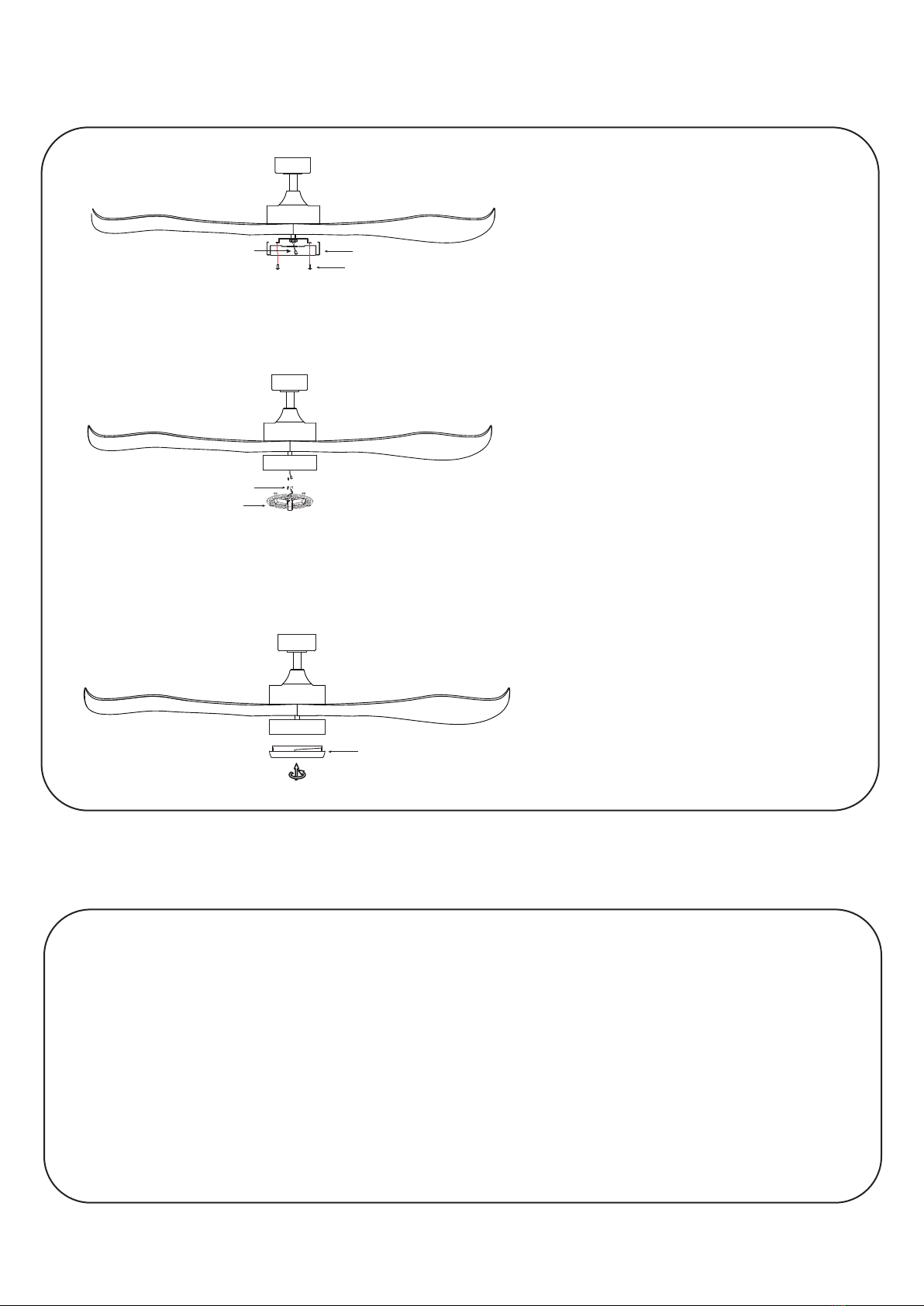

LIGHT INSTALLATION
Step 1. Remove the pre-installed
bolts on the fan motor
assembly.
Step 2. Feed the wire connectors
through the middle of the
light plate. Install the light
plate onto the motor
assembly and secure it by
replacing and retightening
the bolts.
Step 3. Connect the LED light kit
to the light plate using its
magnetic suction-cup
bolts.
Step 4. Connect the wire plugs of
the LED light kit to the wire
connectors (blue to blue
and white to white).
Step 5. Fit the lamp shade onto
the light plate and screw it
into place. Ensure it is
firmly connected to avoid
loosening during use.
COLOR TEMPERATURE ADJUSTMENT
The LED light has 3 different color setting: Warm White (3000K), Daylight (4500K), and
Cool White (6000K). To adjust the light settings,
1. Press LIGHT on the remote control to turn on the LED light.
2. Press and hold the the LIGHT button until the LED light turns off.
3. Press and hold the the LIGHT button until the LED light turns on again with the next
color temperature in order.
Repeat these steps to cycle through the 3 color temperatures.

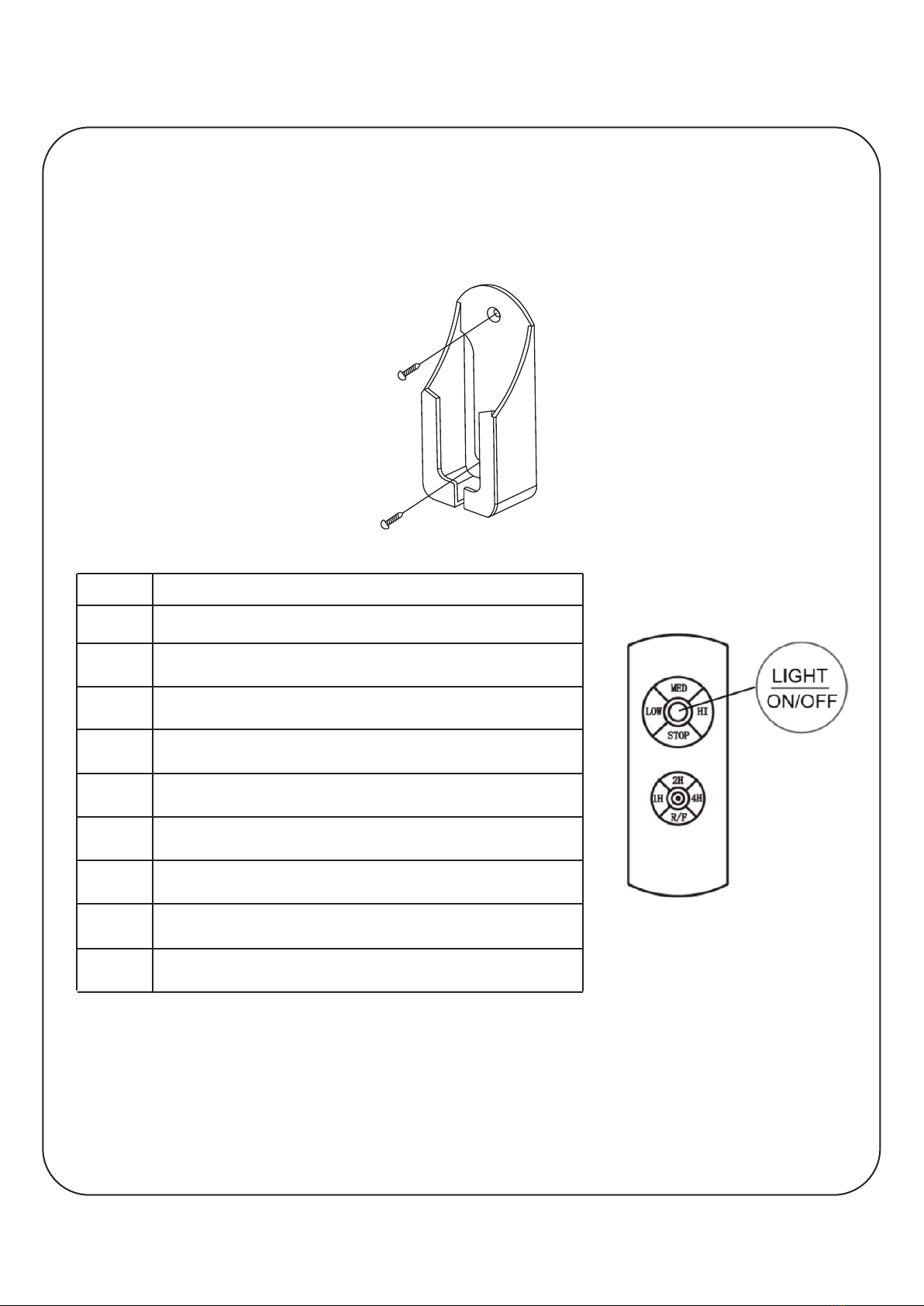

REMOTE CONTROL OPERATION
DO NOT press F/R while the fan is turning. Wait for it to stop completely before changing
the direction of its rotation.
This remote operates with a range of 30 feet (10 m). It uses 2 1.5V AAA batteries (not
included). If the remote will not be used for a prolonged period, it is recommended to
remove the batteries for better service life.
Starts the fan at low speed
Starts the fan at medium speed
Starts the fan at high speed
Stops the fan
Turns the light on or off
Runs the fan for 1 hour and then turns it off
Runs the fan for 2 hours and then turns it off
Runs the fan for 4 hours and then turns it off
Reverses the fan’s direction
Key Function
LOW
MED
HI
STOP
LIGHT
1H
2H
4H
F/R
Install the remote control holder onto any wall or suitable flat surface using the two steel
screws. Upon first use, connect the remote control to its receiver in the fan by pressing the
emitter's "LI" and "Hi" button for 3 seconds. There should be a beep to announce that the
remote has successfully connected to its receiver. (Note that this programming cannot be
done for the first 30 seconds after the receiver is turned on.)
10

11
TROUBLESHOOTING
CONTACT US
Potential Problems
Fan blades
don't rotate
Fan is too noisy
Fan wobbles
during use
Common Solutions
Check fuses and/or circuit breakers and reset if needed.
Cut off power to the fan and check its internal electrical
connections.
Replace the remote control’s batteries.
Check that the fan cover is correctly placed and no bolt
interfere with the movement of the blades.
Contact customer service to replace a faulty remote control.
Check that all bolts, screws, and fasteners are well tightened.
Ensure the canopy housing has a short distance between
itself and the ceiling.
Upon initial installation, allow 24 hours of use for the machine
to break itself in.
Cut off power to the fan and check that the wire nut connections
are not rubbing against one another or the inner housing.
If you have installed a solid-state variable-speed control, cut
off power to the fan and disconnect this control from the
device. See if using the remote resolves the problem, which
can be caused by erratic signals from such controls.
Check that all bolts, screws, and fasteners are well tightened.
Use the provided blade balancing kit to adjust the blades if
their tips are found to be an unequal distance from the ceiling
while well fastened.
Exchange the position of the various blades.
Again, do not bend the blades during any of these procedures.
Thank you for your purchase! If you have any questions or concerns, don’t hesitate contact us
at [email protected]. We'll resolve your problem ASAP! Customers are always the
best teachers to keep us growing!
