HOMEDEPOT CPBS1129-COM User manual

ASSEMBLY INSTRUCTIONS
CPBS1129-COM-AI-V1
Do not use power tools in assembly.
Do not throw away any packaging material until assembly is complete.
Assemble product on soft surface so as not to scratch or damage the item.
Keep all small parts away from children.
Carefully remove all parts from the box and make sure that nothing is missing.
Use only the parts and tools provided unless otherwise noted in these assembly instructions.
We encourage you to reuse or recycle all of the materials used in the packaging.
Failure to follow assembly instructions may void any applicable warranties.
To make assembly easier, please do not fully tighten the bolts until you finish assembly.









** We recommend that you save the allen wrench and periodically tighten all bolts.
** Please make sure all bolts and screws are placed in their proper positions and are
tightened securely to ensure your safety.
** CLEANING: Wipe with a soft cloth. NEVER use harsh chemicals or abrasive cleaners
for polishing.
Leighton Bathroom Collection
2 - Tier Floor Shelf With Drawer
ITEM# CPBS1129-COM
050276996668UPC #
Allen wrench
(provided)
Phillips Screwdriver
(not provided)

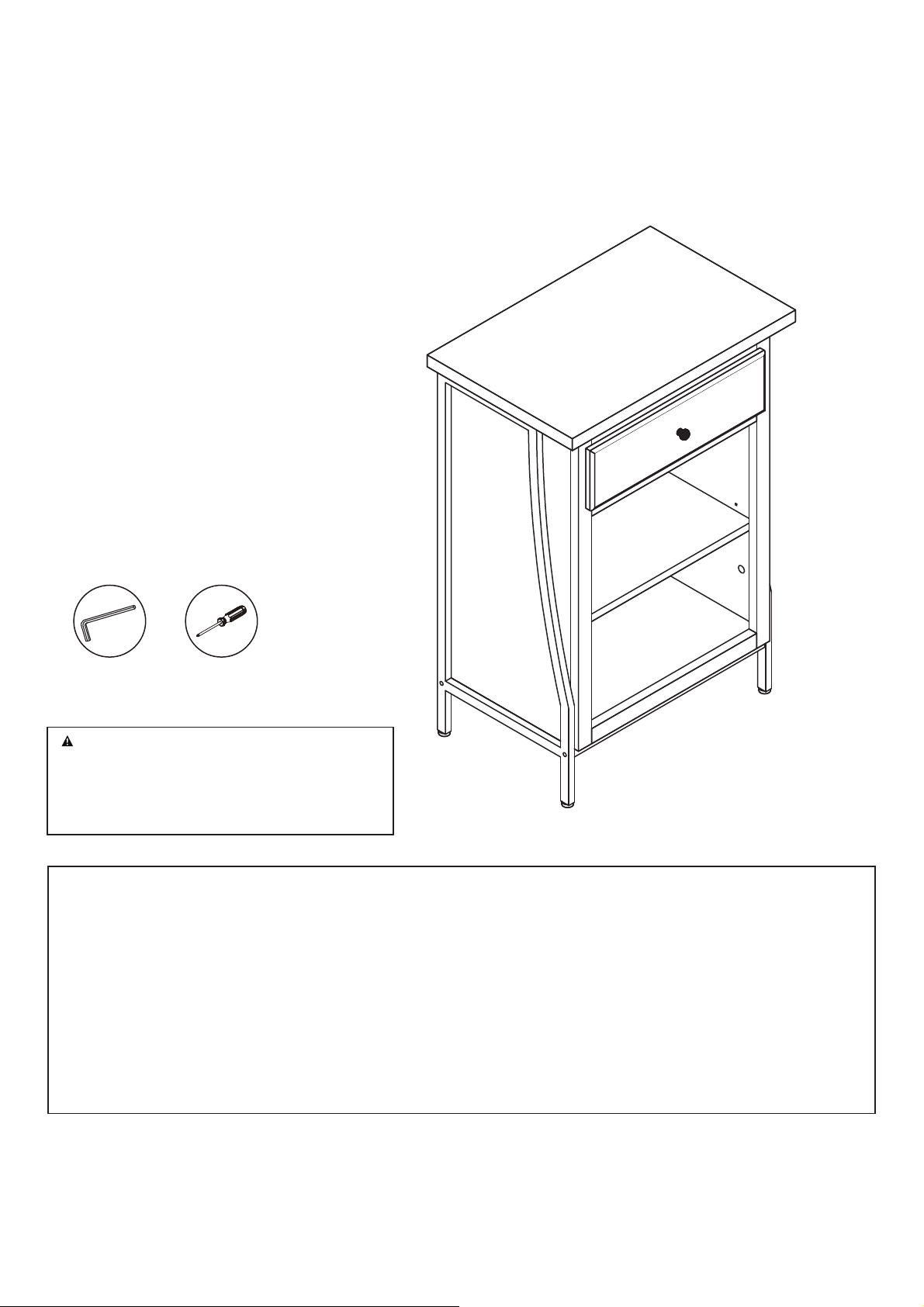

WARNING:
The maximum weight load capacity is 11 lbs (5 kgs) per shelf.
The maximum weight load capacity is 7 lbs (3.2 kgs) for
drawer. Maximum weight capacity is 50 lbs (22.7 kgs).
Exceeding capacity may result in collapse and possible injury.

1
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
HARDWARE:
×22 pcs
1/4"x1-3/4" metal dowel
A×22 pcs
5/8"x1/2" cam
B×6 pcs
5/16” x1-3/16”
wood dowel
C×8 pcs
1/16"x5/8" screw
D
×4 pcs
supporter
K×1 pc
allen wrench
N
×9 pcs
1/8"x1/2" screw
E
×10 pcs
1/4"x1-3/16" screw
G×1 pc
handle
H×2 pcs
12” slide
J
×2 pcs
12” slide
I
×9 pcs
5/32"x1-3/16"
screw
F
×1 pcs
5/32"x13/16" screw
L×4 pcs
leveler
M
×1 pc
anti-tip strap
P
×2 pcs
1/2”x1/32” washer
0
×1 pc
plastic wall anchor
Q

left side frame 1 pc1
right side frame 1 pc
2
bottom support bar 2 pcs
3
top panel 1 pc
4
left side panel 1 pc
5
right side panel 1 pc
6
top wood bar 1 pc
7
back panel 1 pc
8
adjustable shelf 1 pc
9
bottom wood bar 1 pc
10
bottom panel 1 pc11
front frame 1 pc12
drawer front panel 1 pc13
left drawer side panel 1 pc14
right drawer side panel 1 pc15
drawer back panel 1 pc16
drawer bottom panel 1 pc17
2
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)

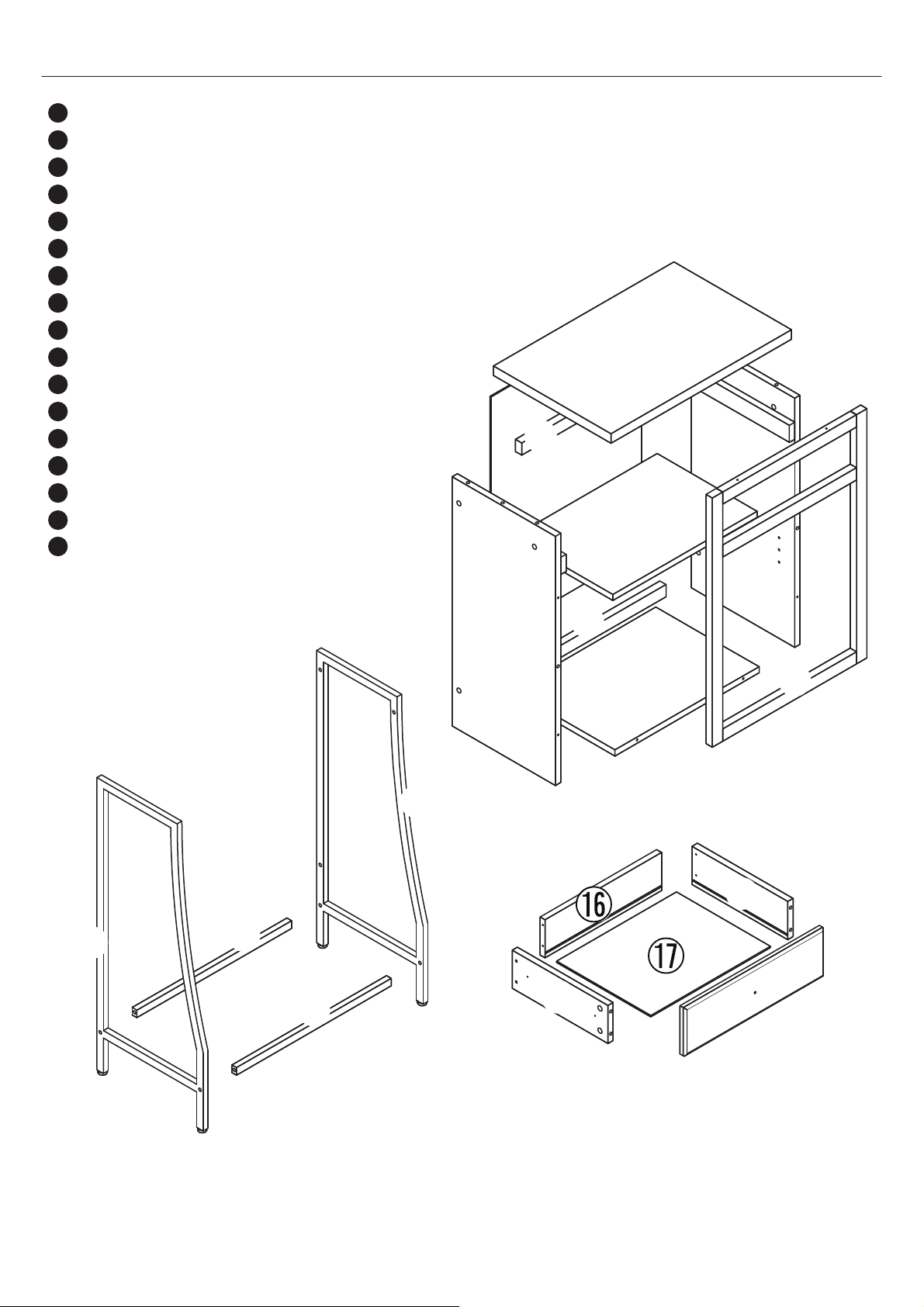

PARTS LIST:
②
③
③
①
⑬
⑭
⑮
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪⑫

3
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
NOTE: To make assembly easier, please do not
fully tighten the bolts until you finish assembly.

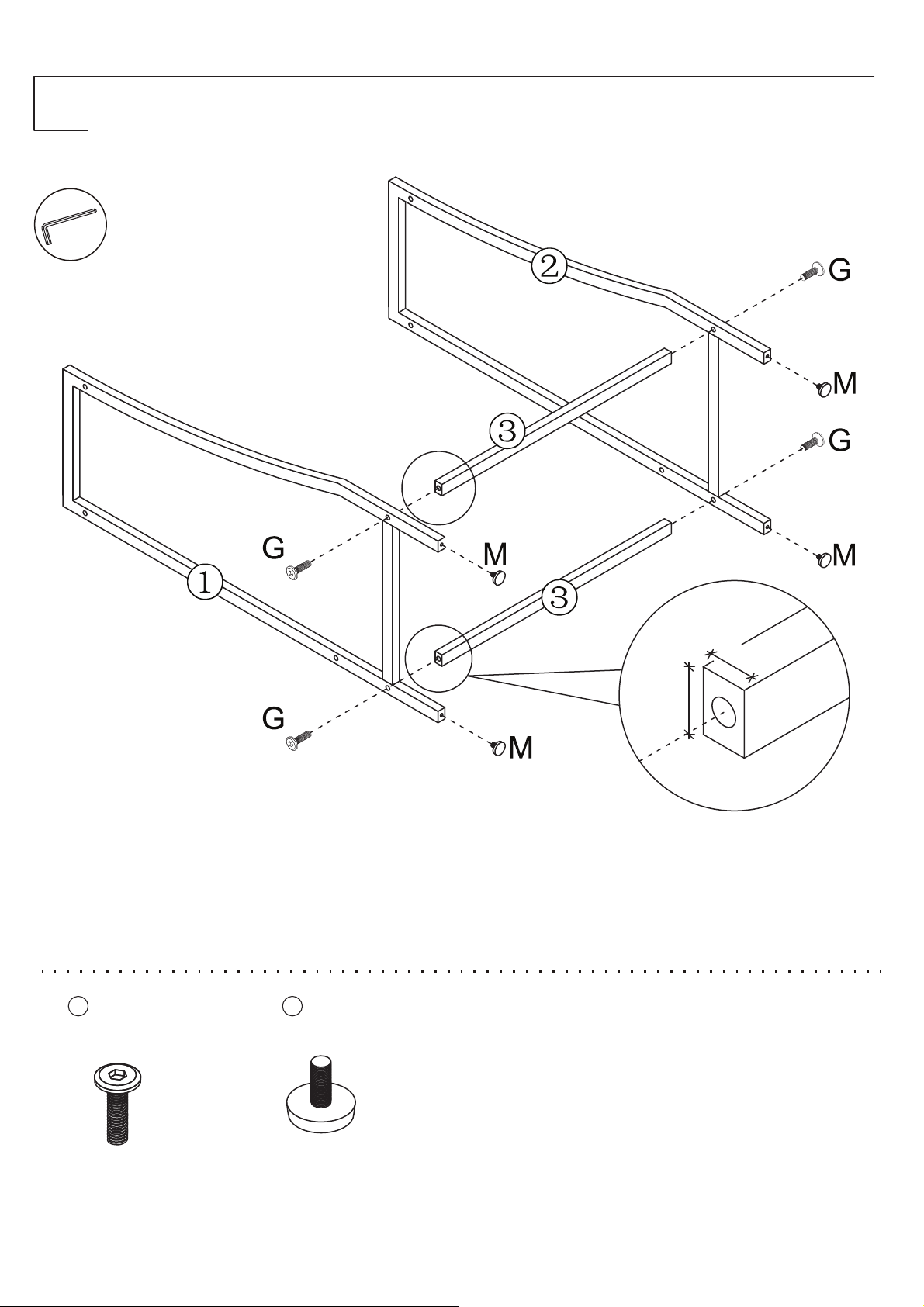

1
ASSEMBLY INSTRUCTIONS
Allen wrench
(provided)
×4 pcs
1/4"x1-3/16" screw
G×4 pcs
leveler
M
20mm
14mm
Fig. 1

4
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)

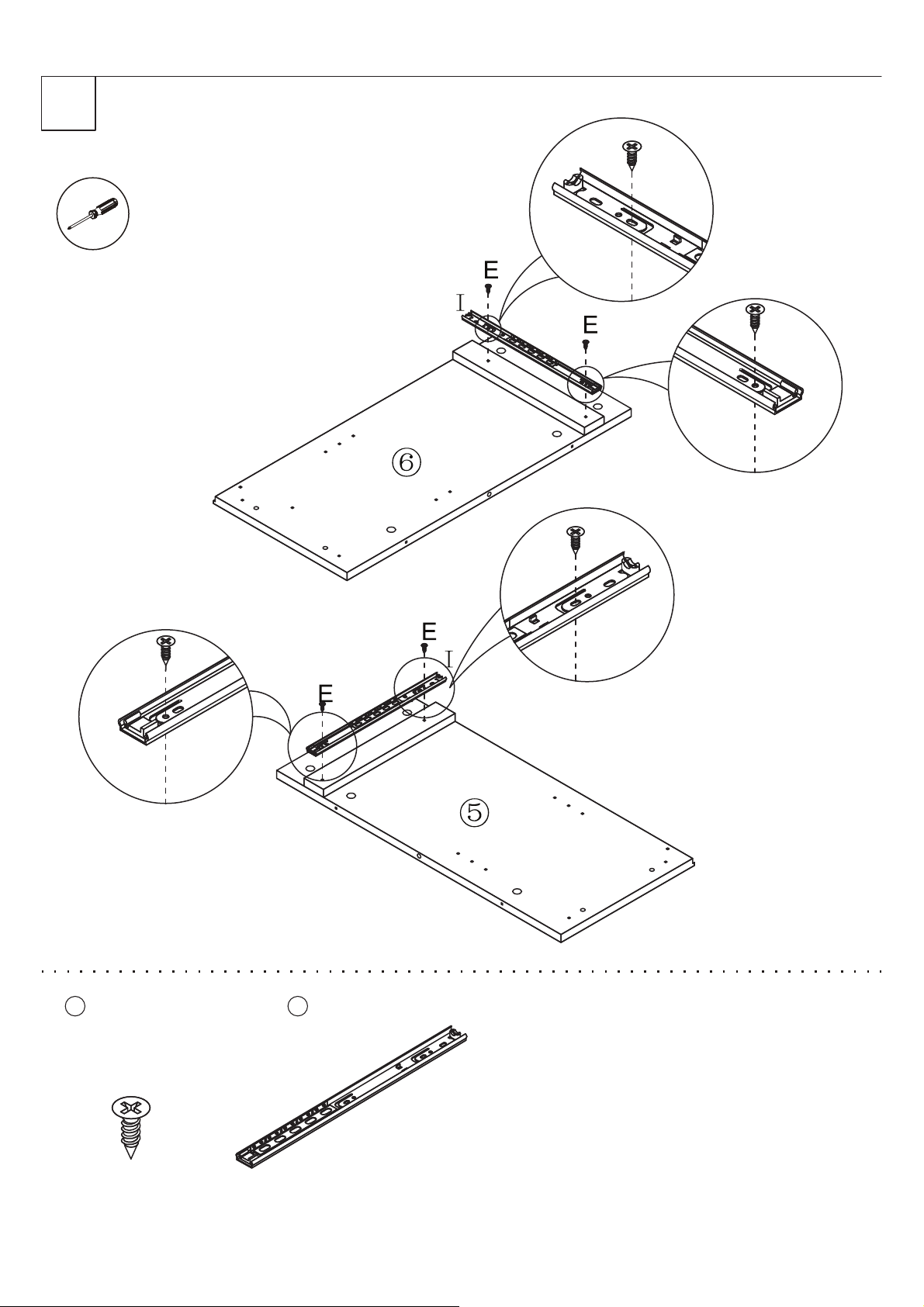

2
ASSEMBLY INSTRUCTIONS
×4 pcs
1/8"x1/2" screw
E×2 pcs
12” slide
I
Phillips Screwdriver
(not provided)

5
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)

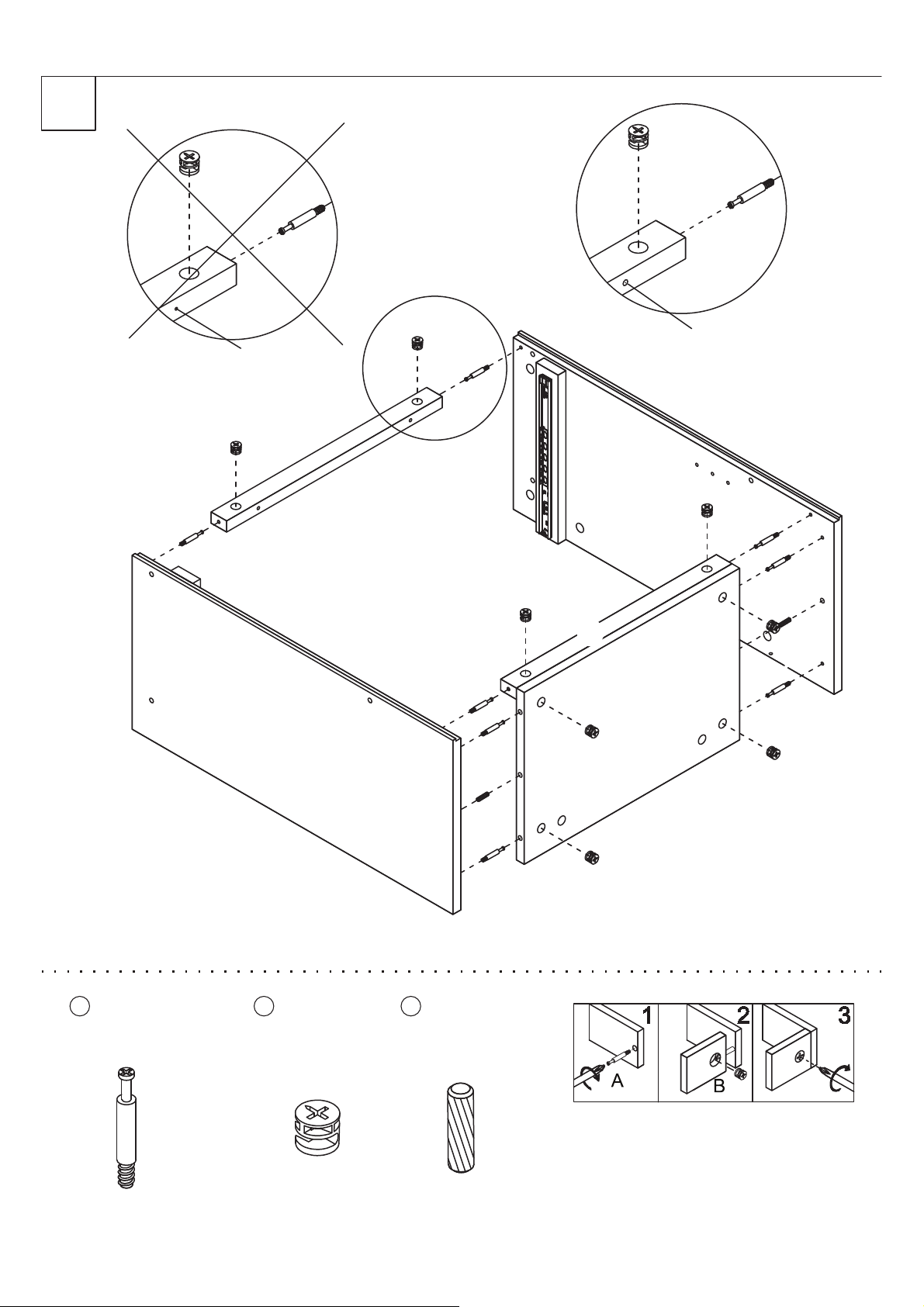

3
ASSEMBLY INSTRUCTIONS
B
A
A
B
BA
A
C
A
B
B
B
B
A
A
A
B
C
⑦
⑤
⑥
⑩
⑪
Fig. 1
Fig. 2
Ø4mm Ø8mm
×8 pcs
1/4"x1-3/4" metal dowel
A×8 pcs
5/8"x1/2" cam
B×2 pcs
5/16” x1-3/16”
wood dowel
C

6
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
4
ASSEMBLY INSTRUCTIONS
×6 pcs
1/4"x1-3/4" metal dowel
A×6 pcs
5/8"x1/2" cam
B×2 pcs
5/16” x1-3/16”
wood dowel
C

7
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
5
ASSEMBLY INSTRUCTIONS
Phillips Screwdriver
(not provided)
×4 pcs
1/4"x1-3/4"
metal dowel
A×4 pcs
5/8"x1/2" cam
B×2 pcs
5/16” x1-3/16”
wood dowel
C×4 pcs
5/32"x1-3/16"
screw
F

8
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
6
ASSEMBLY INSTRUCTIONS
G
G
G
G
G
G
Allen wrench
(provided)
×6 pcs
1/4"x1-3/16" screw
G

9
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
7
8
ASSEMBLY INSTRUCTIONS
Phillips Screwdriver
(not provided)
×6 pcs
5/32"x1-3/16"
screw
F
×4 pcs
1/4"x1-3/4"
metal dowel
A
×4 pcs
5/8"x1/2" cam
B

10
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
9
ASSEMBLY INSTRUCTIONS
Phillips Screwdriver
(not provided)
×4 pcs
1/8"x1/2" screw
E×1 pc
handle
H×2 pcs
12” slide
J×1 pcs
5/32"x13/16" screw
L

11
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
×8 pcs
1/16"x5/8" screw
D
10
ASSEMBLY INSTRUCTIONS
Phillips Screwdriver
(not provided)
Phillips Screwdriver
(not provided)
11 ×1 pc
1/8"x1/2" screw
E
×1 pc
anti-tip strap
P
×1 pc
1/2”x1/32” washer
0
E
O
P

P
12
ASSEMBLY INSTRUCTIONS
12
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)
Phillips Screwdriver
(not provided)
×1 pc
5/32"x1-3/16"
screw
F
×1 pc
1/2”x1/32” washer
0
×1 pc
plastic wall anchor
Q
13
To remove drawer, push
plastic lever up on this side,
and down on the other side.

13
DO NOT RETURN THIS ITEM TO THE STORE OR CONTACT THE RETAILER.
Please contact our dedicated customer service team at 1-800-737-5267 or email [email protected] to
request parts or assistance with your merchandise. Oce hours: Monday - Friday from 8:00 AM - 5:00 PM - (Central Time Zone)

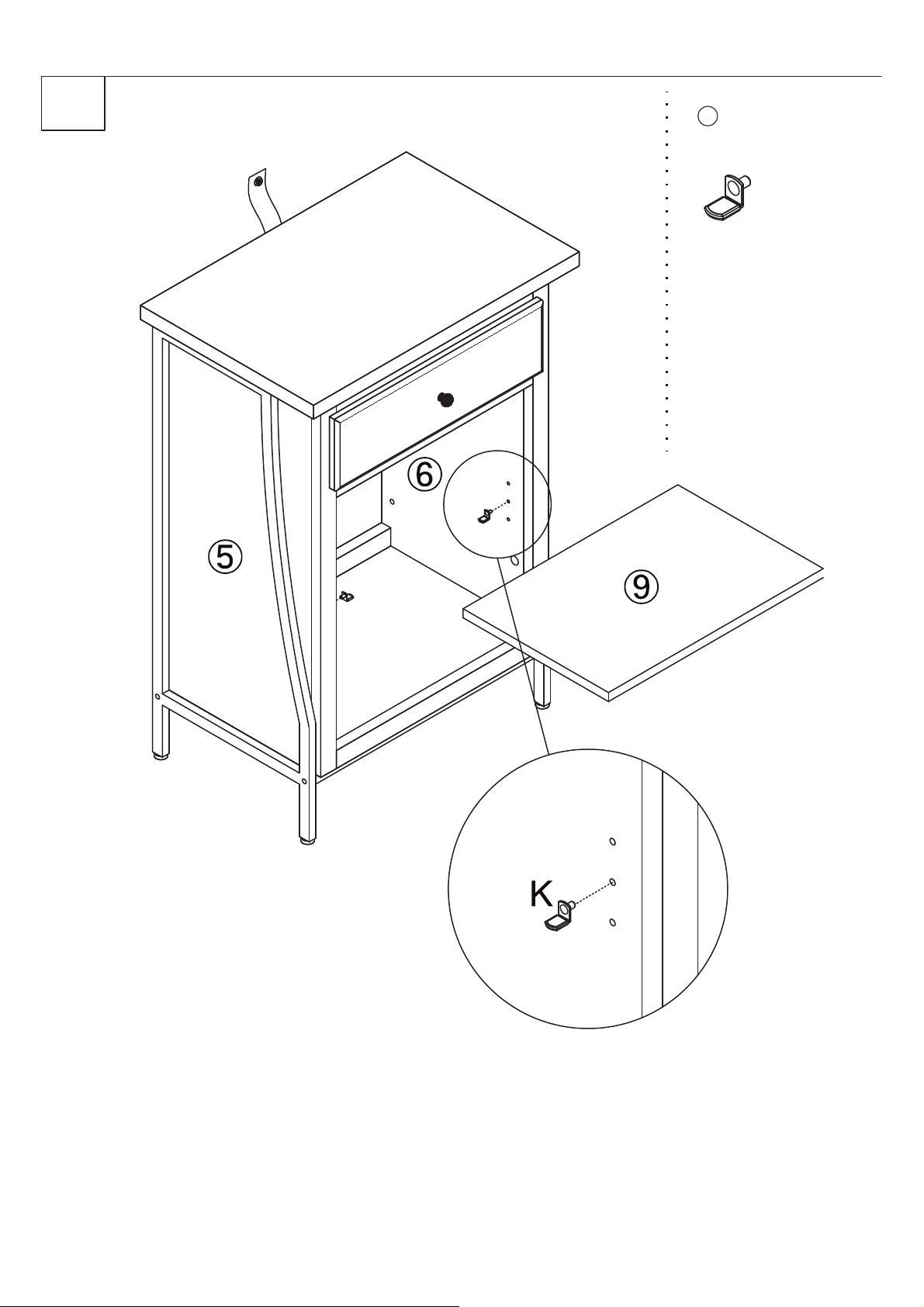

14
ASSEMBLY INSTRUCTIONS
Please make sure all bolts
and screws are placed in
their proper positions and
are tightened securely to
ensure your safety.
Assembly Complete.
×4 pcs
supporter
K

Printed in China
Our products are produced under the strict quality control standards and
meet or exceed all applicable industry standards and consumer regulations.
Your merchandise is warranted for ninety (90) days from the date of
purchase against manufacturing defects.
In the unlikely event you should have a problem with your merchandise,
or you are missing parts, it is not necessary to return the unit to the store
where it was purchased. Please contact customer service at 1-800-737-5267
or [email protected] to request parts or assistance
with assembling your merchandise. Our offices are open Monday thru Friday
between 8:00am and 5:00pm (Central time zone) - excluding major holidays.
Our customer service reps are committed to resolving your problems as
quickly as possible.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
For future reference, please record the model number and UPC barcode
number from the box onto this form in the space below:
MODEL # _________________________________________________________________
UPC BARCODE# __________________________________________________________
IMPORTANT WARRANTY INFORMATION
* SAVE THIS INFORMATION FOR FUTURE REFERENCE *

INSTRUCCIONES PARA ARMAR
CPBS1129-COM-AI-V1
Colección para baño Leighton
2 - Estante para piso en niveles con cajón
No utilice herramientas eléctricas para el montaje.
No se deshaga de cualquer material de embalaje hasta que el montaje estécompleto
Ensamble el producto sobre una superficie suave por lo que el artículo no está rayado o dañado.
Mantenga todas las piezas pequeñas lejos de los niños.
Retire con cuidado todas las piezas de la caja y asegúrese de que no le falta nada.
Use únicamente las piezas y las herramientas suministradas a menos que se indique lo contrario
en estas instrucciones de ensamblaje.
Le animamos a reutilizar o reciclar todos los materiales utilizados en el embalaje.
Si no se siguen las instrucciones de ensamblaje, se podrían anular las garantías aplicables.
Para facilitar el montaje, por favor no apriete completamente los pernos hasta que termine el montaje.









** RECOMENDAMOS QUE GUARDE LA LLAVE ALLEN PARA APRETAR PERIODICAMENTE TODOS
LOS TORNILLOS. ASEGURESE DE QUE LOS TORNILLOS ESTEN EN SU LUGAR Y BIEN APRETADOS.
** ASEGÚRESE DE QUE TODOS LOS PERNOS Y TORNILLOS SE COLOCAN EN SUS POSICIONES
CORRECTAS Y ESTÉN BIEN APRETADOS PARA ASEGURAR SU SEGURIDAD.
** PARA LIMPIAR: USE UN PANO SUAVE, NO USE QUIMICOS O SUBSTANCIAS ABRASIVAS.
MODELO# CPBS1129-COM
UPC CODIGO DE BARRAS#
050276996668
llave Allen
(suministrado)
Desatornillador
Phillips (no inacluido)
ADVERTENCIA:
La capacidad máxima de carga es de 11 libras (5 kgs)
por estante. La capacidad máxima de carga es de 7
libras (3.2 kgs) para el cajón. La capacidad máxim es
de 50 libras (22.7 kgs). Si se excede la capacidad, el
producto se puede derrumbar y causar posibles lesiones.

1
NO REGRESE EL ARTICULO A LA TIENDA O CONTACTE AL VENDEDOR. Póngase en contacto con nuestro dedicado servicio al cliente
al 1-800-737-5267 o envíenos un correo electrónico a [email protected] requiriendo piezas de reemplazo o
ayuda al armar su producto. Nuestras ocinas están abiertas de Lunes a Viernes de las 8:00am a 5:00pm (Tiempo del Centro).
FERRETERÍA:
×22 pcs
1/4"x1-3/4"
pasador de metal
A×22 pcs
5/8"x1/2" leva
B×6 pcs
5/16” x1-3/16”
pasador de madera
C×8 pcs
1/16"x5/8" tornillo
D
×4 pcs
soporte
K×1 pc
llave allen
N
×9 pcs
1/8"x1/2" tornillo
E
×10 pcs
1/4"x1-3/16" tornillo
G×1 pc
manija
H×2 pcs
corredera de 12"
J
×2 pcs
corredera de 12"
I
×9 pcs
5/32"x1-3/16"
tornillo
F
×1 pcs
5/32"x13/16" tornillo
L×4 pcs
nivelador
M
×1 pc
tira antivuelco
P
×2 pcs
1/2”x1/32” arandela
0
×1 pc
ancla de plástico
Q

2
NO REGRESE EL ARTICULO A LA TIENDA O CONTACTE AL VENDEDOR. Póngase en contacto con nuestro dedicado servicio al cliente
al 1-800-737-5267 o envíenos un correo electrónico a [email protected] requiriendo piezas de reemplazo o
ayuda al armar su producto. Nuestras ocinas están abiertas de Lunes a Viernes de las 8:00am a 5:00pm (Tiempo del Centro).
LISTA DE PARTES:
marco lateral izquierdo 1 pc1
marco lateral derecho 1 pc
2
barra de apoyo inferior 2 pcs
3
panel superior 1 pc
4
panel lateral izquierdo 1 pc
5
panel lateral derecho 1 pc
6
barra de madera superior 1 pc
7
panel posterior 1 pc
8
estante regulable 1 pc
9
barra de madera inferior 1 pc
10
panel inferior 1 pc11
marco delantero 1 pc12
panel delantero del cajón 1 pc13
panel lateral izquierdo del cajón 1 pc14
panel lateral derecho del cajón 1 pc15
panel posterior del cajón 1 pc16
panel inferior del cajón 1 pc17
②
③
③
①
⑬
⑭
⑮
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪⑫

NOTA: Para facilitar el montaje, por favor no apriete
completamente los pernos hasta que termine el montaje.
3
NO REGRESE EL ARTICULO A LA TIENDA O CONTACTE AL VENDEDOR. Póngase en contacto con nuestro dedicado servicio al cliente
al 1-800-737-5267 o envíenos un correo electrónico a [email protected] requiriendo piezas de reemplazo o
ayuda al armar su producto. Nuestras ocinas están abiertas de Lunes a Viernes de las 8:00am a 5:00pm (Tiempo del Centro).
1
INSTRUCCIONES PARA ARMAR
llave Allen
(suministrado)
×4 pcs
1/4"x1-3/16" tornillo
G×4 pcs
nivelador
M
20mm
14mm
Fig. 1

4
NO REGRESE EL ARTICULO A LA TIENDA O CONTACTE AL VENDEDOR. Póngase en contacto con nuestro dedicado servicio al cliente
al 1-800-737-5267 o envíenos un correo electrónico a [email protected] requiriendo piezas de reemplazo o
ayuda al armar su producto. Nuestras ocinas están abiertas de Lunes a Viernes de las 8:00am a 5:00pm (Tiempo del Centro).
2
INSTRUCCIONES PARA ARMAR
×4 pcs
1/8"x1/2" tornillo
E×2 pcs
nivelador de 12''
I
Desatornillador
Phillips (no inacluido)
