HOMEDEPOT LEGEND FORCE 1005697755 User manual

THANK YOU
USE AND CARE GUIDE
22 INCH WALK-BEHIND STRING TRIMMER
Questions, problems, missing parts?
Before returning to the store, call
Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
Item #LF22173ST
We appreciate the trust and confidence you have placed in Legend Force through the purchase of this trimmer. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Legend Force!
Model #1005697755

2
Table of Contents
Safety Information .................................. 2
Warranty .......................................... 6
What Is Covered................................... 6
What Is Not Covered ............................... 6
Pre-Assembly ...................................... 8
Planning Assembly ............................... . 3
Tools Required .................................... 3
Hardware Included................................. 3
Package Contents ................................. 4
Assembly ............................... . .........9
Operation ....................................... . 11
Maintenance ...................................... 15
Care and Cleaning ................................. 16
Troubleshooting ................................... 17

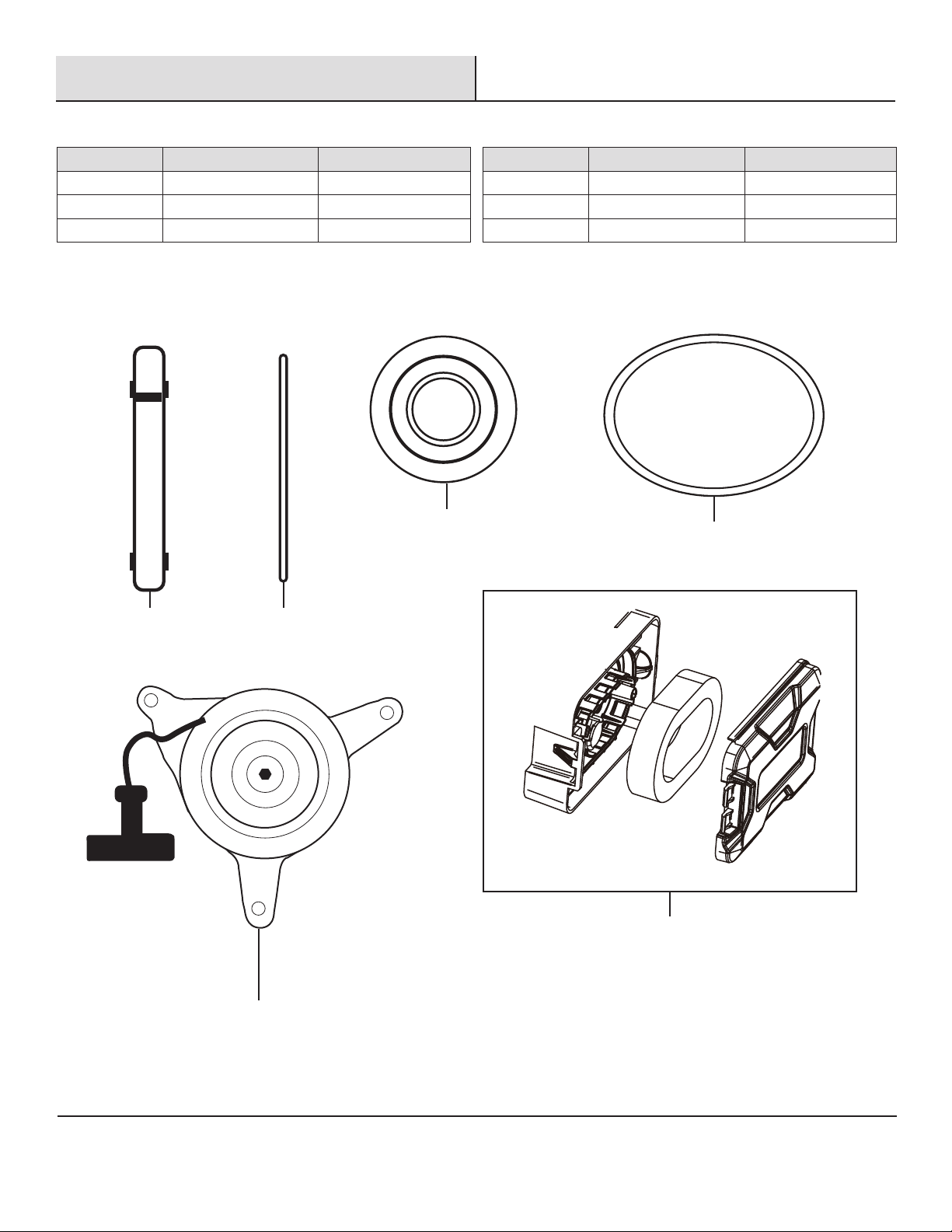

Service Parts...................................... 18
Safety Information
GENERAL SAFETY
Read this operator’s manual carefully in its entirety before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manual(s) before operation. Keep this manual in a safe
place for future and regular reference and for ordering
replacement parts.
□
□
□
□
□
□
□
□
□
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate injury.
IMPORTANT: Indicates operation or maintenance
information which is important but not hazard-related.
NOTICE: Indicates a practice not related to personal injury which,
if not avoided, may result in property damage.
Be completely familiar with the controls and the proper use
of this machine before operating it.
This machine is a precision piece of power equipment.
Therefore, exercise extreme caution at all times. This
machine has been designed to perform one job: to cut
vegetation and grass. Do not use it for any other purpose.
Never allow children to operate this machine.
Only responsible individuals who are familiar with these
rules of safe operation should be allowed to use this
machine.
Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys and other
foreign objects, which could be tripped over or picked
up and thrown by the string trimmer. Thrown objects can
cause serious personal injury.
Plan your trimming pattern to avoid discharge of material
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or obstruction,
which may cause discharged material to ricochet back
toward the operator.
To help avoid trimmer line contact or a thrown object
injury, stay in operator zone behind handles and keep
children, bystanders, helpers and pets at least 75 feet from
string trimmer while it is in operation. Stop machine if
anyone enters area.
Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
Wear sturdy, rough-soled work shoes and close-fitting
pants and shirts. Shirts and pants that cover the arms
and legs and steel-toed shoes are recommended. Never
operate this machine while barefoot, in sandals, slippery
or lightweight (e.g. canvas) shoes.
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

3
Safety (continued)
GENERAL SAFETY
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
Do not put hands or feet near or under rotating parts. Keep
clear of discharge area at all times as the rotating spindle
and trimmer lines can cause injury.
Never operate the string trimmer without proper shields,
guards, control lever or other safety protective devices in
place and working.
Never operate the string trimmer with damaged safety
devices. Failure to do so, can result in personal injury.
Many injuries occur as a result of the string trimmer being
pulled over the foot during a fall caused by slipping or
tripping. Do not hold on to the string trimmer if you are
falling; release the handle immediately.
Never pull the string trimmer back toward you while you
are walking. If you must back the string trimmer away from
a wall or obstruction first look down and behind to avoid
tripping and then follow these steps:
a. Step back from string trimmer to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the string trimmer back slowly, no more than
half way toward you.
d. Repeat these steps as needed.
Do not operate the string trimmer while under the
influence of alcohol or drugs.
The control lever is a safety device. Never attempt to
bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through
contact with the rotating trimmer line. The control lever
must operate easily in both directions and automatically
return to the disengaged position when released.
Never operate the string trimmer in wet grass. Always
be sure of your footing. A slip and fall can cause serious
personal injury. If you feel you are losing your footing,
release the control lever immediately and the spindle will
stop rotating within three seconds.
Operate only in daylight or good artificial light. Walk, never
run.
Stop the spindle when crossing gravel drives, walks or
roads.
If the equipment should start to vibrate abnormally, stop
the engine and check immediately for the cause. Vibration
is generally a warning of trouble.
Shut the engine off and wait until the spindle comes to
a complete stop before cleaning the discharge area. The
spindle continues to rotate for a few seconds after the
control lever is released. Never place any part of the body
in the trimmer line area until you are sure the spindle has
stopped rotating.
Never operate string trimmer without the proper trail shield,
discharge cover, control lever or other safety protective
devices in place and working. Never operate string trimmer
with damaged safety devices. Failure to do so can result in
personal injury.
Muffler and engine become hot and can cause a burn. Do
not touch.
Only use parts and accessories made for this machine by
the manufacturer. Failure to do so can result in personal
injury.
When starting engine, pull cord slowly until resistance
is felt, then pull rapidly. Rapid retraction of starter cord
(kickback) will pull hand and arm toward engine faster than
you can let go. Broken bones, fractures, bruises or sprains
could result.
If situations occur which are not covered in this manual,
use care and good judgement. Contact Customer Support
for assistance or the name of the nearest service dealer.
Trim across the face of slopes; never up and down. Exercise
extreme caution when changing direction on slopes.
Watch for holes, roots, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
SLOPE SAFETY
Slopes are a major factor related to slip and fall accidents,
which can result in severe injury. Operation on slopes
requires extra caution. If you feel uneasy on a slope, do not
trim on it. For your safety, use the slope gauge included as
part of this manual to measure slopes before operating this
machine on a sloped or hilly area. If the slope is greater than
15 degrees, do not trim on it.
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

4
Safety (continued)
GENERAL SAFETY
□
□
□
□
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the string
trimmer and the trimming activity. They do not understand the
dangers. Never assume that children will remain where you last
saw them.
□
□
□
□
□
□
□
Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the control lever immediately and the
spindle will stop rotating within three (3) seconds.
Do not trim near drop-offs, ditches or embankments, you
could lose your footing or balance.
Do not trim slopes greater than 15 degrees as shown on
the slope gauge.
Do not trim on wet grass. Unstable footing could cause
slipping.
Keep children out of the trimming area and under watchful
care of a responsible adult other than the operator.
Be alert and turn string trimmer off if a child enters the
area.
Before and while moving backwards, look behind and
down for small children.
Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the string trimmer.
Keep children away from hot or running engines. They can
suffer burns from a hot muffler.
Never allow children to operate this machine.
To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes,
which can ignite. Wash your skin and change clothes
immediately.
CHILDREN SAFETY
□
□
□
□
□
□
□
□
□
□
□
□
□
□
Use only an approved gasoline container.
Never fill containers inside a vehicle or on a truck or trailer
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not possible,
then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
Never fuel machine indoors because flammable vapors will
accumulate in the area.
Never remove gas cap or add fuel while engine is hot or
running. Allow engine to cool at least two minutes before
refueling.
Never over fill fuel tank. Fill tank to no more than 1 inch
below bottom of filler neck to provide for fuel expansion.
Replace gasoline cap and tighten securely.
If gasoline is spilled, wipe it off the engine and equipment.
Move machine to another area. Wait 5 minutes before
starting engine.
Never store the machine or fuel container near an open
flame, spark or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas appliances.
To reduce fire hazard, keep machine free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
Allow machine to cool at least 5 minutes before storing.
Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
SAFETY WHILE SERVICING
Safe Handling Of Gasoline:
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

5
Safety (continued)
GENERAL SAFETY
□
□
□
□
□
□
□
□
□
□
□
Before cleaning, repairing, or inspecting, make certain the
spindle and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
Check the spindle and engine mounting bolts at frequent
intervals for proper tightness. Also, visually inspect spindle
for damage. Replace with the original equipment
manufacture’s (O.E.M.) parts only, listed in this manual.
“Use of parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!”
Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
Never tamper with safety devices. Check their proper
operation regularly.
After striking a foreign object, stop the engine, disconnect
the spark plug wire and ground against the engine.
Thoroughly inspect the string trimmer for any damage.
Repair the damage before starting and operating the string
trimmer.
Trimmer components, guards and shields are subject
to wear and damage which could expose moving parts
or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only,
listed in this manual. “Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!”
Do not change the engine’s governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
Check fuel line, tank, cap, and fittings frequently for cracks
or leaks. Replace if necessary.
Do not crank engine with spark plug removed.
Maintain or replace safety and instruction labels, as
necessary.
Observe proper disposal laws and regulations. Improper
disposal of fluids and materials can harm the environment.
Do not modify engine.
□To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a
runaway engine and cause it to operate at unsafe speeds.
Never tamper with factory setting of engine governor.
WARNING: This machine is equipped with an internal
combustion engine and should not be used on or near any
unimproved forest-covered, brush covered or grass-covered
land unless the engine’s exhaust system is equipped with a
spark arrestor meeting applicable local or state laws (if any).
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

6
Warranty
2 YEAR LIMITED WARRANTY
WHAT IS COVERED
From the date of original purchase, Legend Force warrants to the original purchaser that each lawn and garden product sold, shall be free
from defect in material and workmanship for the items and time period set forth below. Legend Force, at its discretion, agrees to repair or
replace any defective part that upon examination, inspection, and testing by a Legend Force authorized service dealer, is found to be
defective within the original warranty period. Legend Force will also decide upon the use of new or rebuilt parts or comparable product. Any
part or product that is replaced will be retained by Legend Force. This warranty period shall not be extended and any repaired product shall
be warranted for the remaining period of the original warranty. The consumer is responsible, and shall prepay all transportation costs,
including returning items to Legend Force. This warranty is non-transferable and proof-of-purchase and serial number must be presented
when requesting warranty service. If a proof-of-purchase receipt is not provided, the product’s shipping date by the manufacturer will be
used to determine the warranty period.
LENGTH OF WARRANTY: Personal use applications of this lawn and garden product are warranted for two (2) years. Proof of
purchase and of maintenance must be provided.
YEAR 1 - Limited coverage on lawn and garden product components, parts and labor.
YEAR 2 - Limited coverage on lawn and garden product components, parts only.
“Personal use” means personal residential household use or recreational use by the retail consumer. “Commercial use” means all other
uses including commercial, construction, or other income producing purposes. Once a lawn and garden product has been used for
commercial purposes, it shall thereafter be considered as a “commercial use” product for the purposes of this warranty. Any commercial
product used as rental equipment will not be covered under this warranty.
CONSUMER RESPONSIBILITIES:
• Consumer is responsible for carefully reading and following all instructions in the operator manual. Any product that is damaged due to
misuse or abuse will not be covered by this warranty.
• Customer MUST present their concerns to Legend Force Support – FIRST by calling 1-877-527-0313. Only when we authorize the
work may the customer deliver the product to a repair center. Warranted repairs will be completed in a reasonable period of time, not to
exceed 30 days.
• Consumer is responsible for all transportation costs to an authorized Legend Force Service Center. Unless otherwise requested,
ground shipping will apply for part orders. Customer may request expedited service, but will be responsible to pay any additional charge(s).
• Consumer is responsible for labor costs associated with warranted repairs twelve (12) months after the purchase date. Consumer is
responsible for maintaining the lawn and garden product as specified in the operator’s manual. Warranty coverage for labor will be based
on normal working hours for the repair center.
• Maintenance may be required to fulfill a warranty claim; consumer is responsible for all costs for routine maintenance.
WHAT THIS WARRANTY DOES NOT COVER:
• Normal wear: This warranty excludes normal wear items such as filters, spark plugs, gaskets, o-rings, adapter cord sets, wheels,
and batteries.
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

7
Warranty (continued)
2 YEAR LIMITED WARRANTY
• Maintenance: This warranty does not apply to tune-ups or routine maintenance and does not cover any adjustments or repairs not
performed by an authorized repair facility.
• Misuse: This warranty does not apply if your product has failed due to abuse, misuse, neglect, using incorrect fuels or lubricants,
overloading, overspeeding, improper maintenance, improper storage, unapproved modifications, or has been operated in any way contrary
to the instructions found in the product operator manual.
• Adverse conditions: This warranty does not apply if your product has failed due to freezing, accident or natural disasters.
• Product shipment: This warranty does not apply to damage resulting from shipping, handling, or warehousing. Any damage claims to this
product caused by shipment must be filed with the freight company.
• Other exclusions: This warranty does not apply if your product has been sold “as is” or where the factory applied serial number has been
removed. Refurbished, used, demonstration or floor models are not covered by this warranty.
WHERE WARRANTY IS VALID:
For warranty coverage, this product must be purchased from an authorized Legend Force dealer and the warranty only extends to
the original purchaser in the United States, Canada, or Mexico. Refurbished, used, demonstration, or floor models are not covered by this
warranty. Products purchased from auction websites, are not covered by this warranty. Products used for commercial use are not covered
by this warranty.
HOW TO OBTAIN WARRANTY SERVICE:
You can locate your nearest Legend Force dealer for service or warranty questions by calling 1-877-527-0313. Legend Force recommends
you retain all of your receipts covering the purchase and maintenance of your lawn and garden product.
Legend Force obligation under this warranty is exclusively limited to product repair or replacement and shall not be liable fo any incidental or
consequential damages including, but not limited to, the expense of delivering product to and from repair center, loss or damage to personal
property, loss of revenue, telephone charges, loss of time, or inconvenience. Some states, provinces or jurisdictions do not allow the
exclusion or limitation of incidental damages, so the above limitation may not apply to you. The warranty gives you specific legal rights, and
you may also have other rights which vary from state to state or province to province.
HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

8 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Pre-Assembly
PLANNING ASSEMBLY
Place box on a level surface. Remove all items from box. Make sure all items listed on the package contents list are included and not
damaged.
TOOLS REQUIRED
PACKAGE CONTENTS
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity
A
A
One String Trimmer 1
B Trimmer Line 10
Part Description Quantity
C
D
Trimmer Line Pouch
Use And Care Guide
1
1
Part Description Quantity
AA
AA
Bolt M6 2
BB Bolt M8 4
Part Description Quantity
CC Washer 4
DD Star Knob with Nut 4
D
C
B
Safety goggles Phillips Funnel
screwdriver
BB CC DD

9 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly

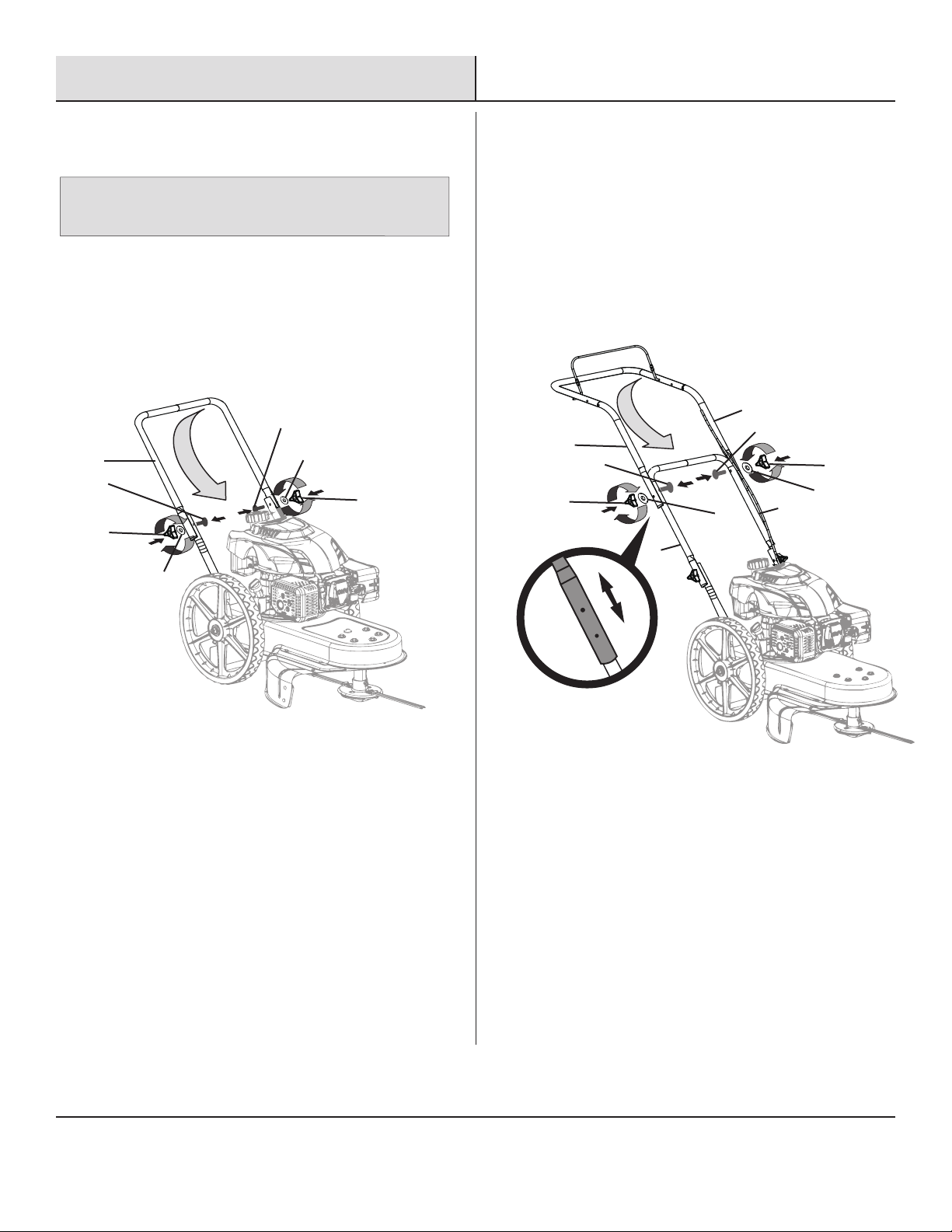

Assembling the Middle Handle
□
□
Remove the star knob (DD) and carriage bolt (BB) from the
left lower handle and the right lower handle.
Pivot the middle handle (1) into the operating position
and fasten the middle handle. See Figure 1-1.
21 Assembling the Upper Handle
□
□
Remove the star knob (DD) and carriage bolt (BB) from the
left upper handle (1) and the right upper handle (1).
Attach the upper handle (1) into one of two positions by pivoting
and fastening the middle handle (2). See Figure 1-2.
NOTICE: This string trimmer is shipped without gasoline or oil
in the engine. Fill up the gasoline and oil BEFORE operating your
machine.
Figure 1-1 Figure 1-2
DD
DD
CC
CC
BB
BB
BB
BB
1
DD
DD
1
1
2
2
CC
CC

10 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly (continued)
Attaching The Pull Start Rope
□
□
□
Disconnected the spark plug boot from the spark plug.
Pivot the control handle against the upper handle and pull
the rope out of the engine.
Put the starter rope into the hook. See Figure 1-3.
□
□
Pull the trimmer shield (1) out into position by pivoting
the hole. See Figure 1-4.
Insert the bolt (AA) into the hole and fasten it with a
wrench tool. See Figure 1-5.
3
Assembling the Trimmer Shield
4
Figure 1-3
Figure 1-4
Figure 1-5
WARNING: Make sure the trimmer shield is installed in
place before starting the machine.
AA 1
1
AA

11 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Operation
Adding Gas and Oil
□
□
Remove gas cap. Place funnel securely and add fuel.
Do not top off. Fuel tank capacity is approx. .32 gallons.
Secure the gas cap and wipe off any excess fuel.
See Figure 1-6.
□
□
□
Place string trimmer on a level surface.
Remove the filler cap. Place the funnel securely and add oil.
Do not top off. Oil capacity is approx. .5 liters. Check
dipstick to confirm adequate amount of oil.
Secure the oil cap and wipe off any excess oil.
See Figure 1-7.
□
□
□
We recommend the use of 10W-30 oil. Other high-quality
detergent oils are acceptable if classified for service SF, SG,
SH. SJ or higher.
Do not use special additives.
Outdoor temperatures determine the proper oil viscosity for
the engine. Use the chart to select the best
viscosity for the outdoor temperature range expected.
1
WARNING: Use extreme care when handling gasoline.
Gasoline is extremely flammable and the vapors are
explosive. Never fuel the machine indoors or while the
engine is hot or running. Extinguish cigarettes, cigars,
pipes and any other sources of ignition.
GAS
OIL
IMPORTANT: Use only Regular Octane Fuel.
IMPORTANT: We recommend using 10W-30 Oil.
Figure 1-6
Figure 1-7
104
86
68
50
32
14
-4
-22
40
30
20
10
0
-10
-20
-30
°C°F
SAE 30
10W-30
SYNTHETIC 5W-30
5W-30

Operation (continued)

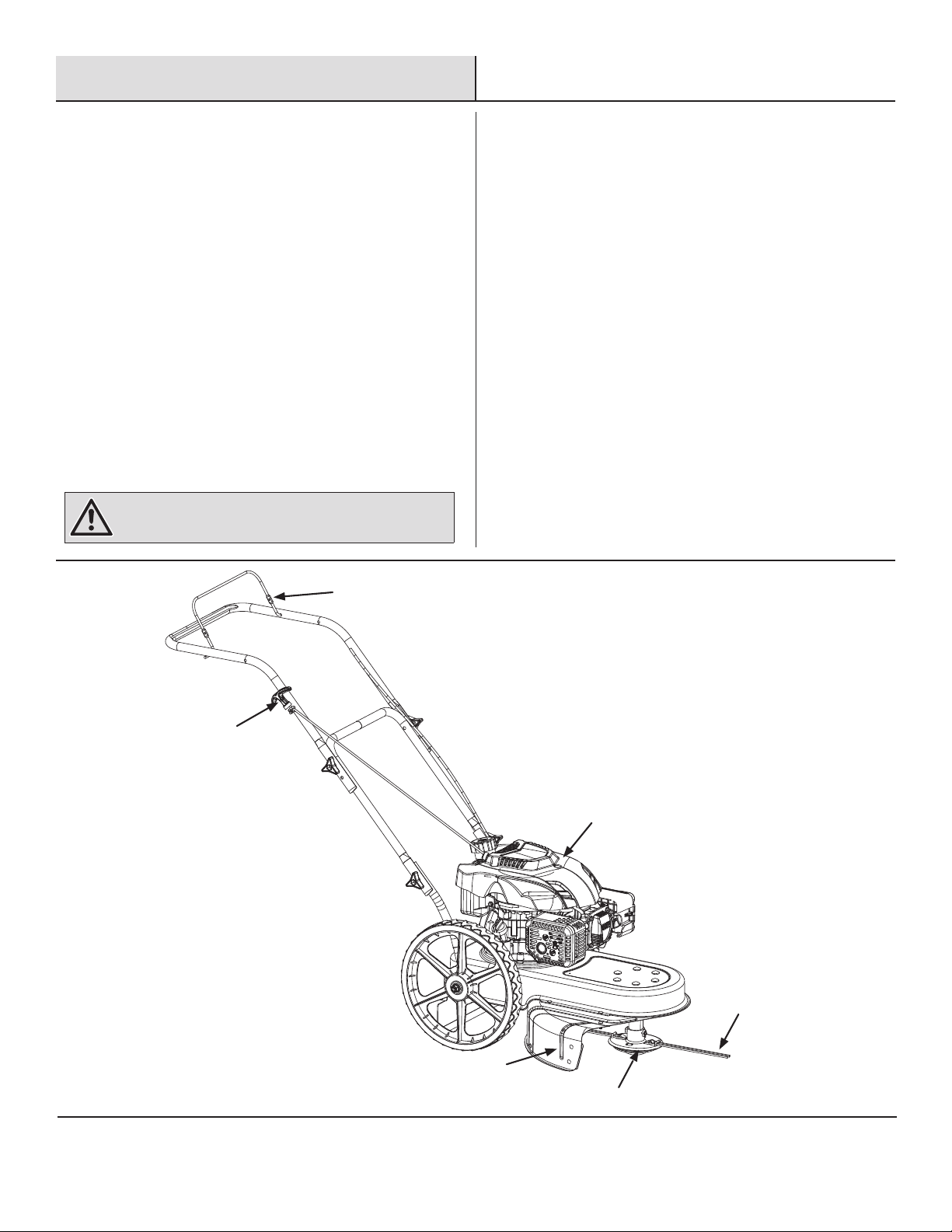

Controls and Features
RECOIL STARTER
TRIMMER SHIELD
CONTROL LEVER
□
□
The recoil starter is attached to the right side of the upper
handle. Stand behind the unit and pull the recoil starter
rope to start the unit.
The trimmer shield is connected to the trimmer base and
it is used to prevent debris from being thrown.
□The control lever must be depressed to start the engine
and rotation of the trimmer spindle assembly. Releasing the
control lever stops the engine and trimmer spindle
assembly.
2
SPINDLE
TRIMMER LINE
FLYWHEEL SCREEN
□
□
The spindle rotates the trimmer line.
The trimmer line is attached to the spindle assembly and it is
used to trim grass, vegetation, undergrowth and weeds.
□Keep the flywheel screen free of grass clippings and debris
at all times.
Control Lever
Recoil Starter
Trimmer Line
Flywheel Screen
Spindle
Trimmer Shield
WARNING: This control lever is a safety device. Never
attempt to bypass its operations.
12 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Operation (continued)

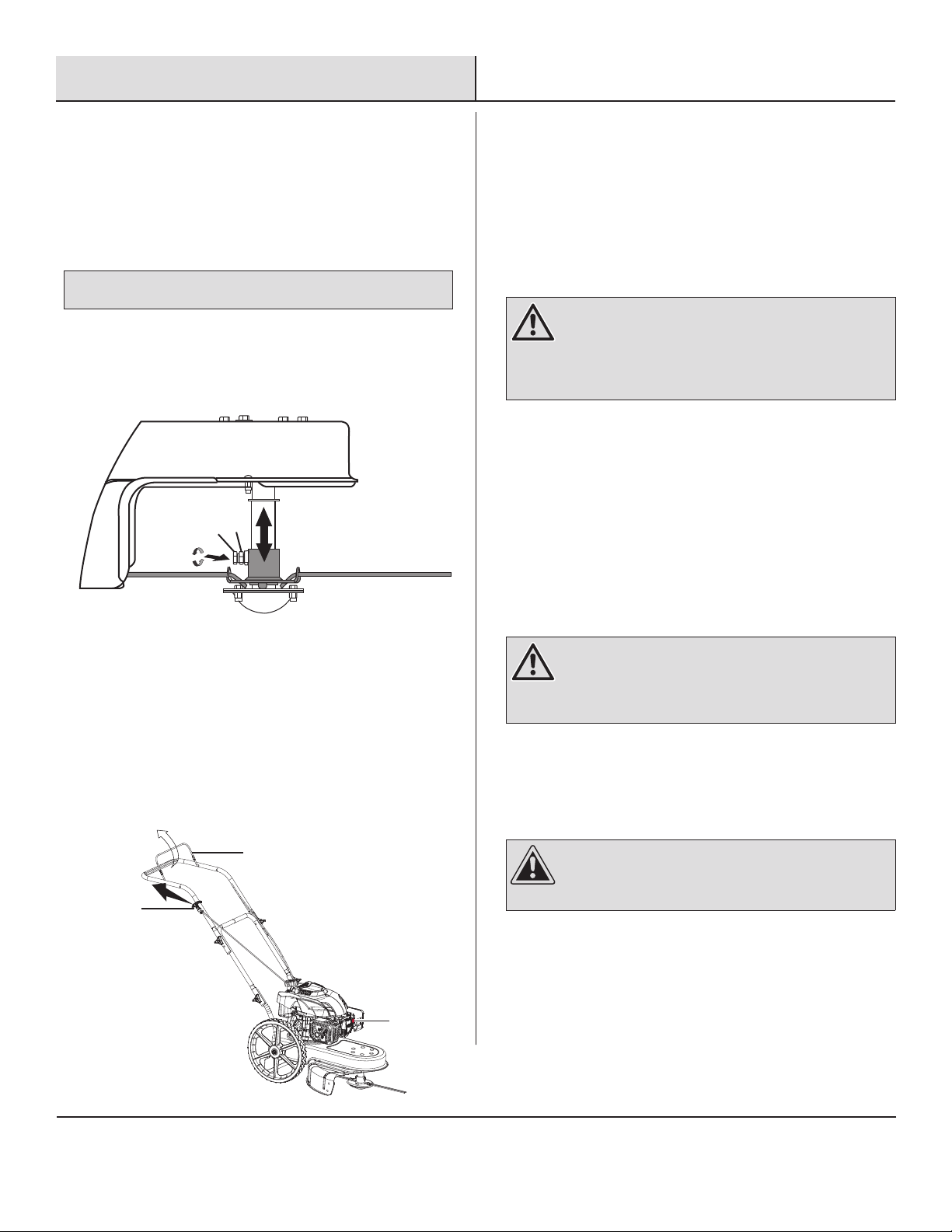

Adjusting the Spindle Height
□
□
Loosen the bolt found on the side of the spindle shaft.
Slide the spindle upward or downward to the desired
position before retightening the bolts (1) and nut (2).
See Figure 1-8.Bolts must be tightened with
the spindle when starting the equipment.
□
□
Press the priming bulb one or two times and depress
control lever. Pull the starter rope to start the engine.
See Figure 1-9.
Releasing the control lever stops the engine.
□
□
□
□
□
Be sure trimming area is clear of stones, sticks, wire, or
other objects which could damage the string trimmer or
engine. Such objects could be accidently thrown by the
trimmer in any direction and cause serious personal injury
to the operator and others.
The string trimmer is designed with the spindle offset to
the left side, allowing the operator to trim along a fence,
landscaping, or a house to his or her right side without
having to make any adjustments to the machine.
Operate the string trimmer at a slower walking speed when
trimming tall, thick weeds or grass.
Clean the underside of the trimmer after each use to
remove any debris build up.
Do not trim on excessively steep slopes. If a slope is difficult
to stand on, do not trim. Do not trim on slopes when the
ground is slippery or wet. Trim across the face of a slope,
not up and down.
3
Starting and Stopping
4
WARNING: The operation of any string trimmer can result
in foreign objects being thrown into the eyes, which can
damage your eyes severely. Always wear safety glasses
while operating the string trimmer, or while performing
any adjustments or repairs on it.
WARNING: Shut the engine off and wait until the trimmer
head comes to a complete stop before cleaning the
discharge area. The trimmer head continues to rotate for a
few seconds after the trimmer head control is released.
Figure 1-8
Figure 1-9
The spindle height can be adjusted for various applications.
To do so, proceed as follows:
Using Your String Trimmer
5
NOTICE: The bolts are designed so that they cannot be
removed from the spindle shaft.
CAUTION: While operating the string trimmer, do not
allow the spindle to contact a concrete, asphalt, or gravel
surface. Doing so will result in premature wear.
Priming
Bulb
Control Lever
Starter
Rope
12
13 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Operation (continued)

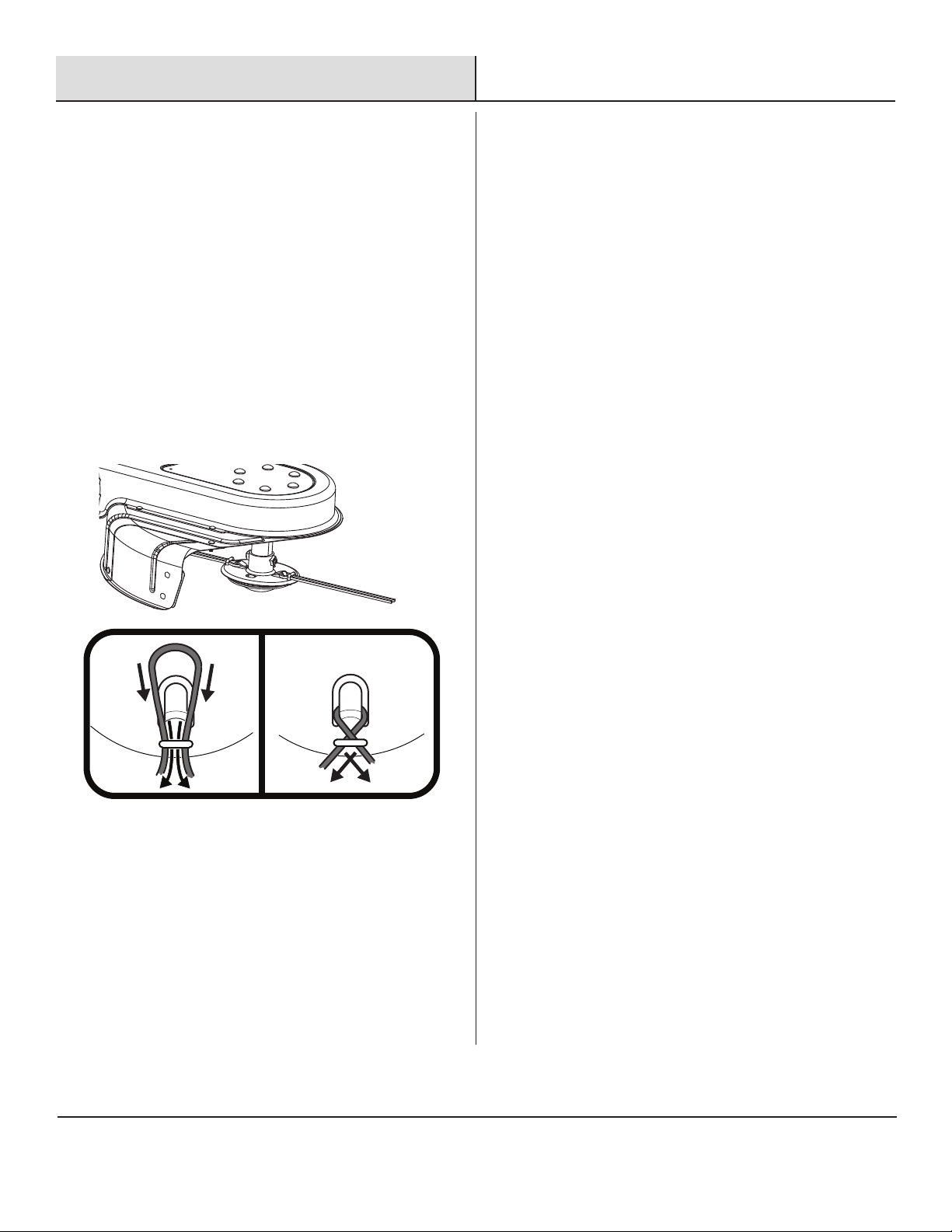

Changing the Trimmer Line
□
□
□
□
Remove the worn trimmer line from the spindle.
Fold the replacement trimmer line in half and insert both
ends through the loop near the edge of the spindle.
Pull the ends of the trimmer line through the loop until
the line is securely beneath the metal tab.
Cross the line ends and pull each tightly to secure the
trimmer line in place. See Figure 1-10.
6
Figure 1-10
To ease in removing worn trimmer line, change the trimmer line
before it becomes too short (i.e. approximately half its original
length).
14 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Maintenance
□
□
□
□
□
□
□
□
□
The warranty on this string trimmer does not cover items
that have been subjected to operator abuse or negligence.
To receive full value from warranty, operator must
maintain the string trimmer as instructed here.
Changing of engine-governed speed will void engine
warranty.
All adjustments should be checked at least once each
season.
Periodically check all fasteners and make sure these are
tight.
Lubricate pivot points on the control lever at least once a
season with light oil. This control must operate freely in
both directions. See Figure 1-11.
Lubricate the wheels at least once a season with light oil (or
motor oil). If wheels are removed for any reason, lubricate
surface of the axle bolt and inner surface of the wheel with
light oil.
Follow the accompanying engine manual for lubrication
schedule and instruction for engine lubrication.
Maintain oil level. Always check oil before each use.
1. Remove the dipstick and wipe with a clean cloth.
2. Insert the dipstick into the filler neck without screwing it in.
3. Remove the dipstick and check the oil level. The oil level
should be in between the MIN. and MAX. levels.
4. If low, add oil slowly into the engine oil fill tube. Do not
overfill. After adding oil wait one minute and then re-check
the oil level.
5. Replace and tighten the dipstick.
The oil must be drained from the oil drain plug. See Figure 1-12.
1. Remove the dipstick.
2. Put a container below the oil drain plug.
3. Remove the oil drain plug and allow oil to drain into the
container.
Figure 1-11
Always observe safety rules when performing any
maintenance.
LUBRICATING THE STRING TRIMMER
WARNING: Always stop engine, disconnect spark plug,
and ground against engine before performing any type of
maintenance on your machine.
ENGINE
A list of key engine maintenance jobs required for good
performance by the trimmer is given below.
HOW TO REMOVE OIL
CAUTION: Used oil is a hazardous waste product and
must be disposed of properly. Do not discard with
household waste. Check with your local city or service
center for safe disposal/recycling facilities.
Max.
Min.
15 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Maintenance (continued)
□
□
□
WARNING: Never tip the trimmer more than 90º in
any direction and do not leave the trimmer tipped
for any length of time. Oil can drain into the upper
part of the engine causing a starting problem.
WARNING: When you drain the oil from the oil drain
plug, the fuel tank must be empty or fuel can leak out
and result in fire or explosion. To empty the fuel tank,
run the engine until it runs out of fuel.
Clean spark plug and reset the gap once a season. Spark
plug replacement is recommended at the start of each
mowing season.
Service the air filter every 25 hours under normal conditions.
Clean every few hours under extremely dusty conditions.
Poor engine performance and flooding usually indicates
that the air filter should be serviced.
1. Remove the air cleaner outside cover. Be careful to
prevent dirt and debris from falling into the air
cleaner assembly.
2. Separate the air filter from the air filter housing.
3. Inspect the air filter. Clean the dirty air filter with warm
water and mild soap. Allow air filter to dry thoroughly
before re-installing.
4. Install the air filter assembly onto the carburetor and
secure with the screw.
GAP 0.6-0.8 mm (0.024-0.031 in.)
Check the gap with a wire gauge. If necessary, reset
the gap. Install and tighten the spark plug.
Oil Drain Plug
4. Install the oil drain plug and tighten with a wrench.
Figure 1-12
AIR FILTER
SPARK PLUG
Care and Cleaning
□
□
□
□
□
Clean the engine regularly with a cloth or brush. Keep the
top of the engine clean to permit proper air circulation.
Remove all grass, dirt and debris from muffler area.
Engines stored between 30 and 90 days need to be treated
with a gasoline stabilizer such as STA-BIL® to prevent
deterioration and gum from forming in fuel system or on
essential carburetor parts.
Clean and lubricate the trimmer.
Store the trimmer in a dry, clean area. Do not store next to
corrosive materials, such as fertilizer.
Using a light oil or silicone, coat the equipment, especially
cables and all moving parts of your string trimmer.
Take the following steps to prepare your trimmer for storage.
□Scrape and clean the underside of the machine with a
suitable tool. Do not spray with water.
IMPORTANT: Do not use a pressure washer or
garden hose to clean the machine. These may cause
damage to the engine. The use of water will result in
shortened life and reduce serviceability.
Air Filter Element
Air Filter Cover
Air Filter Housing
16 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Troubleshooting
Problem SolutionCause
The engine fails to
start.
□Engage the control lever.
Connect the wire to the spark boot.
Fill the tank with clean, fresh gasoline.
Prime the engine as instructed in the Operation section.
Clean, adjust the gap, or replace.
Clean the fuel line.
Wait a few minutes to restart, but do not prime.
The control lever is disengaged.
The spark plug boot is disconnected.
The fuel tank is empty or the fuel is stale.
The engine is not primed (if equipped with primer).
The spark plug is faulty.
The fuel line is blocked.
The engine is flooded.
□
The engine runs erratic. □Connect and tighten the spark plug boot.
Clean the fuel line. Fill the tank with clean, fresh
gasoline.
Clear the vent.
Drain the fuel tank. Refill with fresh fuel.
Clean the air filter.
Push the CHOKE knob in.
The spark plug boot is loose.
The fuel line is blocked or the fuel is stale.
The vent in the gas cap is plugged.
There is water or dirt in the fuel system.
The air cleaner is dirty.
The unit is running with the CHOKE (if equipped)
applied.
□
The engine overheats. □Fill the crankcase with proper oil.
Clean the area around and on top of the engine.
The engine oil level is low.
The air flow is restricted.
□
The motor occasionally
skips (hesitates) at
high speeds.
□Adjust the gap to 0.030 in..Spark plug gap is too close. □
The motor idles poorly. □Adjust the gap to 0.030 in. or replace the spark plug.
Clean the air filter.
Spark plug is fouled, faulty, or gap too wide.
Dirty air cleaner.
□
There is excessive
vibration.
□Tighten the wing nuts.
See an authorized service dealer.
The spindle wing nuts are loose.
The spindle is damaged.
□
The trimming
performance is poor.
□Replace the trimmer line.
Replace the spindle belt.
The trimmer line is too short or worn.
The spindle belt is worn or damaged.
□
□□
□□
□□
□□
□□
□
□
□
□
□
□
□
□
□□
□□
□□
□□
□□
□□
17 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Service Parts
Part Description Quantity
624011 Driven Pulley 1
623020 Filament Holster 1
624006 Belt 1
Part Description Quantity
372903 Air cleaner Assy 1
294813 Recoil 1
AA Trimmer Line 10
Air Filter Assembly
Recoil
Belt
Trimmer Line
Filament Holster
Driven Pulley
18 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.

Questions, problems, missing parts?
Before returning to the store, call Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
Retain this manual for future use.

GRACIAS
GUIA DE USO Y CUIDADO
RECORTADOR DE EMPUJE CON CORDEL DE 22 PULGADAS
Favor de llamar al servicio al cliente si encuentra problemas,
tiene preguntas o descubre partes faltantes antes de visitar de nuevo a la tienda.
Horario de tienda
Lunes – Viernes 8 a.m. – 7 p.m. EST
Sabado 9 a.m. – 6 p.m. EST
1-877-527-0313
HOMEDEPOT.COM
Articulo #LF22173ST
Agradecemos su compra del recortador Legend Force. Nos esmeramos en hacer productos que ayuden en su hogar. Visitenos en linea para ver todos
nuestros productos Legend Force dedicados al mejoramiento del hogar. Gracias por seleccionar Legend Force.
Modelo #1005697755
