HOMELAND GOODS HG-3 User manual

HG-3
7 Stages Air Purifier
CAUTION:
Read manual carefully for proper installation and operation.

2

3
CONTENTS
Getting Started
1.Specifications .............................................................................................. 4
2.Product Features ......................................................................................... 4
3.Introduction.................................................................................................. 5
4.Applications................................................................................................. 5
How To Use
5.Installation ................................................................................................... 6
6.Quick Start Guide ........................................................................................ 6
7.Back Cover & Filter Removal ....................................................................... 6
8.Placing the Unit............................................................................................ 6
9.Settings and Adjustments............................................................................. 7
Care And Warranty
10.Maintenance............................................................................................ 11
11.Replacing the Fuse.................................................................................. 12
12.Troubleshooting....................................................................................... 13
Warranty Terms
13.Service and Warranty............................................................................... 15
14.Warranty Card.......................................................................................... 15

4
1. SPECIFICATIONS
Model:
Rated Voltage:
USA market: AC 110~ 120V/60Hz;
European market: AC220~ 240V/50Hz
Power Consumption:
40W
Fan Speed (non-grade):
1500-3000 RPM
Air Volume:
Max 106 CFM(3 m
3
/min)
Ion Output
6 6
/cm3)
UV Spectrum:
500 w/cm2(at 10cm-distance), 1PC UV bulb
Ozone Plates
2PCS, 115mm*115mm
HEPA Rate:
up to 99.97%
Remote Control
Distance 10M
Sound Level (DB):
Low 35; Med 45; High 50
Product Size:
D 270 x W 210 x H 300 mm
Packing Size:
L 345 x W 285 x H 375 mm
Gross Weight:
6.5KG
2. PRODUCT FEATURES
Negative Ion Generation Technology
Adjustable Ozone Generation
UV and ozone can be on/off separately
UV Bulb & TiO2 Filter-Photo-Catalytic Oxidation Process
(to kill virus, bacteria & mold)
Remote Control
Adjustable Fan Speed Control(5 speed)
Washable Permanent Pre-filter, washable HEPA filter
Adjustable Ozone Control(5 grade) and 2pcs Plate Configuration
Ion Output: 20 KV negative ion generator
Double fuses to make sure safety
Filtration Type: HEPA filter, Carbon filter,TiO2 Photo-catalytic Filter.
cm3 (or≥2.5 x 10≥5 x 10
μ≥
≤
HG-3

5
To reduce the risk of electric shock, this equipment has a grounding
type plug that has a third (grounding) pin. This plug will only fit into a grounding type
power outlet. If the plug does not fit into the outlet, contact qualified personnel to
install the proper outlet. Do not alter the plug in any way.
CAUTION! –Cut off the power when performing maintenance.
WARNING! –
Do not operate without proper installation. Doing so may void the warranty.
If the fuse is blown and needs to be replaced,
the current of fuse should no more than 1.0 Amp.
3. INTRODUCTION
4. APPLICATIONS
Home, Office, Restaurant, Hotel, Basements
Smoking Areas, Paint, Carpets and construction
Casinos & Large Meeting Halls
Veterinary Hospital; Barns, Kennels & Stables
Day Care Centers etc.
The air purifier reproduces the
natural environment outdoors. It is
designed to create clean fresh air
like the outdoors with its 6 stages
processes of air purification.
Its UV germicidal bulb and
Negative Ion technology
suppresses the growth of
microorganisms like mold, mildew,
bacteria, viruses and germs. The
ozone generator system sanitizes
up to 3,500 sq. ft.

6
5. INSTALLATION
Remove unit from shipping carton.
Remove all protective materials.
Read Owner’s Manual thoroughly prior to installation.
Fully insert cord into the power cord receptacle on the back of the unit.
Install Ozone and Filters as shown in the steps below.

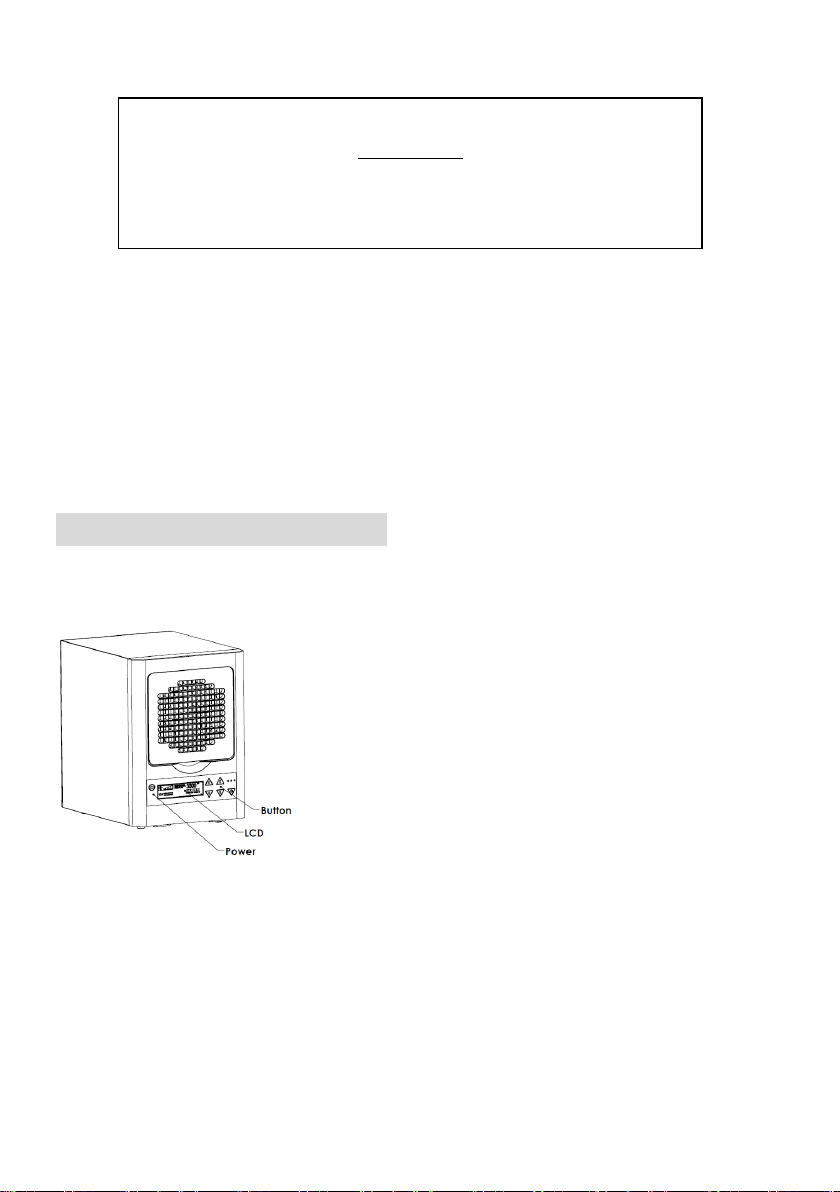

6. QUICK START GUIDE
Make sure no humans, animals are present in the area before ozone working
Turn off air purifier when cleaning.
Do not stay too closed when sleeping.
Ensure air circulate 30 minutes at least everyday.
7.BACK COVER＆FILTER REMOVAL

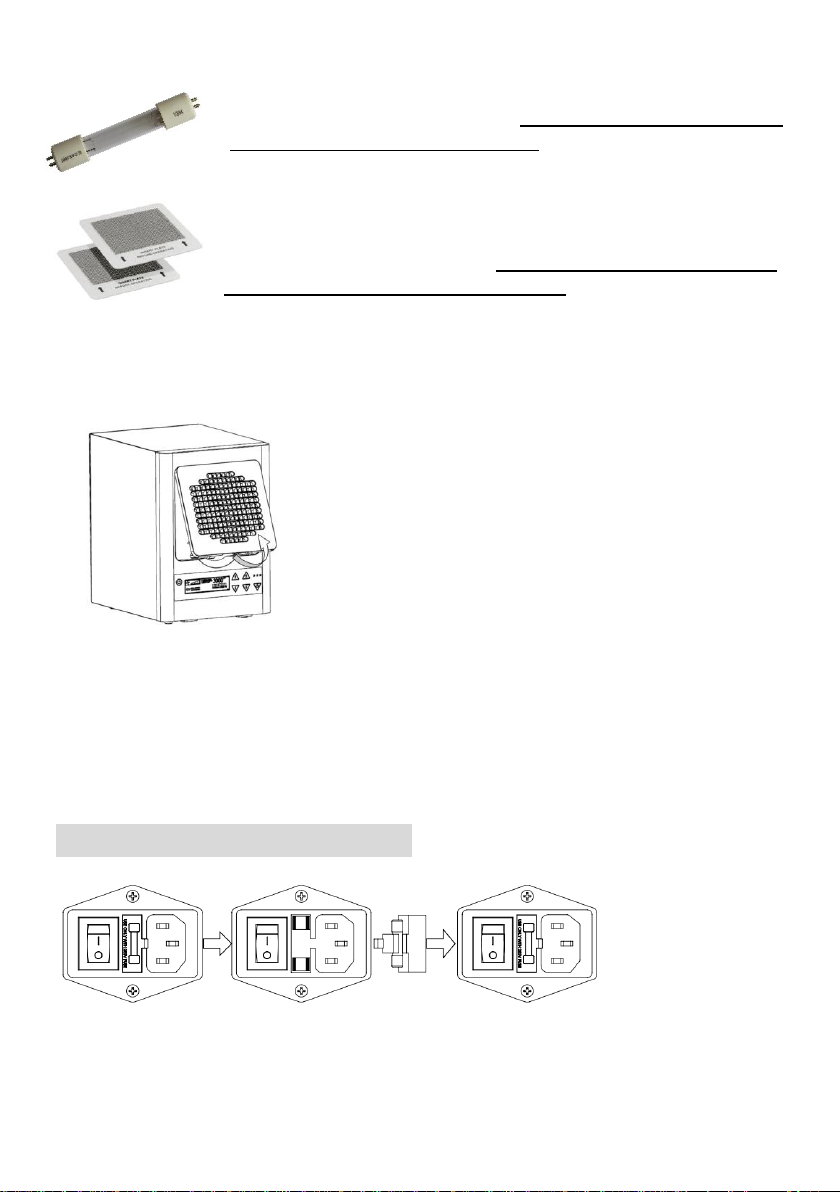

Installing Ozone Plates and Filters
Step 1: Make sure the unit is unplugged before
installing or removing any filters or maintaining the unit
in any way to prevent electric shock.
Step 2: Push two latches down on back cover.
Step 3: Remove HEPA filter and all other filters by
pulling out the white ribbon on the top.
Step 4: Insert the 2 Ozone plates found in the small
brown box. For maximum performance, Ozone plates
may need to be washed in warm water. Always allow
them to properly dry before installing.
Step 5: Reinstall all filters in the same order they
were removed and reattach back cover. Determine
placement location，plug unit into 110-230volt outlet.

7
8. PLACING THE UNIT
In order to maximize the purification function, the unit
should be placed as high as possible. Alternately, placing
something under the unit bottom, ensuring the front grill
is tilted upward will better oxidize and purify the floating
bacteria and smog pollutants. A ceiling fan can also aid
the unit with air purification.
Suggested locations, listed in order of preference:
Nearest to the source of the worst pollutant.
Near cold-air return in an air circulation system.
In the area most frequently used location to achieve maximum benefit.
For maximum control, the unit should be placed where easy access to the
control panel is possible.
The rear of the unit should always have at least six inches of open area to
allow unrestricted airflow.
Be sure power cord is not accessible to small children to prevent injury.
CAUTION!
During Ozone mode this unit should never be placed where it can
blow directly into the face of any person or pet.

8
9. SETTINGS AND ADJUSTMENTS

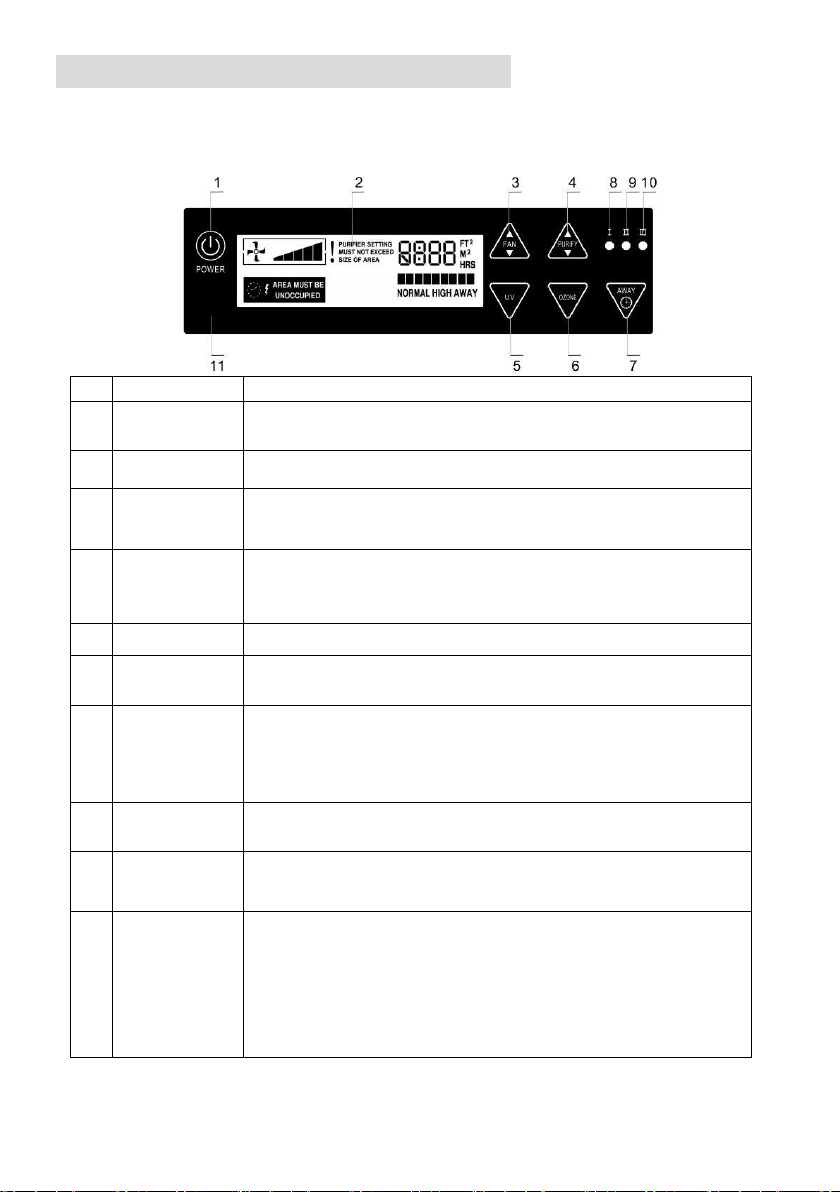

Buttons function and Operation Description
No
Name
Function & operation instruction
1
Power
Standby mode: Press the POWER button to turn the unit on, air purifier
start working; Air purifier off when press the Power button
2
LCD screen
Displays the machine’s work status;FAN,PURIFY,OZONE and TIMER
3
FAN
Press to adjust the fan speed.5 speed fan to adjust fan speed,( note: the
coverage area change 200 sq. ft each time press the fan button)
4
PURIFY
Press to adjust the ozone output: 5 different settings to adjust ozone
output, it is “1-2-3-4-5-0”,0 means stop, (note: the coverage area change
200 sq ft each time when you press the PURIFY button)
5
UV light
Press the UV button to turn the UV bulb on or off.
6
OZONE
Press to turn the ozone generator on or off, (note: the PURIFY settings
does not work when Ozone is off)
7
AWAY mode
Air purifier work at max. settings on AWAY mode, the air purifier is off when
timer returns to 0. Press once for 0.5 Hour run time；Press twice for 1
hour run time; Press third time for a 2 hour run time；Press again to return
to manual model.
8-
10
Indicator for
Away mode
Indicate timing mode:
Ⅰmeans 0.5 hour；Ⅱmeans 1 hour；Ⅲmeans 2 hours.
11
Receiver
Infrared receiver,( Note: do not block the receiver, otherwise it will affect
the normal working of the air purifier)
12
Timer off
1. Press button 3 & 5 at the same time, LCD will show 0:00 clock for timer;
2. Press button 4 (PURIFY) within 2 seconds to adjust timer, the timer
increase 0.5 hour each time press this button
3. When timer runs out, the unit will automatically revert to previous
working status.(Note: press any button to turn off the timer function)

9
LCD Display
No
Name
LCD display
1
Fan working status
Press FAN to indicate fan working status, to display 1 to 5 fan speed
2
HIGH purifying
reminder
When the coverage area is more than 2400 sq.ft, the LCD display show
HIGH
3
Coverage area
It show 1000- 3000 sq. ft . when working, the coverage area change 200
sq. ft. each time press FAN and PURIFY button
Timing reminder
When the timing function is turned on, the countdown clock, purified area
and timer will be Interactive Display
Standby
Standby mode display 0000, the LCD backlight off at the same time.
4
FT²/HRS
Display indicates the square foot covered. When set to “AWAY” the display
will flash between HRS and FT²
5
Ozone function
reminder
LCD display”AREA MUST BE UNOCCOPED” when ozone is on.( Note:
Ozone has obvious effefct on killing germs and removing odors, however,
excess ozone can have health effects , therefore, it should be used in
unoccuped space only)
6
Mode
Will display; NORMAL（1~5），HIGH（1~3），AWAY（1~3 according to
different working condition base on purified area .

10
Remote control function and description
No
Name
Function and operation instruction
1
Power
Standby mode: Machine turns on when press Power button, air purifier start
working;press Power button again to turn it off
2
Sleep
mode
Press one time: enter 1200 sq.ft SLEEP mode
Press second time: 1000 sq.ft SLEEP mode
LCD light turns off at SLEEP mode, and the negative ion, UV, OZONE turn off on
SLEEP mode,Press any button to exit SLEEP mode.
3
Fan speed
increase
To increase the fan speed, press FAN UP ,press 1-2-3-4-5 to increase fan speed.
(Note: each time press FAN button, coverage area increase 200 sq. ft.)
4
Fan speed
decrease
To decrease fan speed from 5-4-3-2-1,( Note: each time press the Fan, the coverage
area decrease 200 sq,ft)
5
Decrease
OZONE
5 speed Ozone Adjustment - to adjust ozone output, press 5-4-3-2-1-0, 0 means
stop.( Note: each time press OZONE, the coverage area decrease 200 sq .ft.)
6
Increase
OZONE
Decrease ozone output from 5-4-3-2-1-0, (Note: each time press OZONE, coverage
area decrease 200 sq.ft.)
7
Timer Off
1. Press TIMER, display 0:00 clock
2. Press 6 within 2 seconds to adjust time of shut off, press one time increase 0.5h,
the Max. timing:9.5H,the Min. is 0.5H
3. When the time setting is finished, it enters automatic shut off mode, and back to
normal working mode before time setting.
8
AWAY
mode
Air purifier works at maximum function on AWAY mode
Press 1 time: shut off after 0.5H；Press 2nd time, shut off after 1hr；Press 3rd time,
shut off after 2hr；Press 4th time, back to manual mode
9
Ozone
on/off
Press this button to on or off the OZONE
Note: PURIFY does not work if OZONE OFF, OZONE can only be used in unoccuped
space only.
10
UV on/off
UV is on or off when press this button

11
CAUTION!
Always ensure the room or area is UNOCCUPIED before
performing the above-described Ozone control.
10. MAINTENANCE
Periodic maintenance is required to ensure that the Air Purifier operates properly. A
severely polluted environment can foul an air purifier plate in as little as four weeks
or as long as a year. Shown here are basic maintenance procedures that should be
carried out to keep your unit running at top performance.

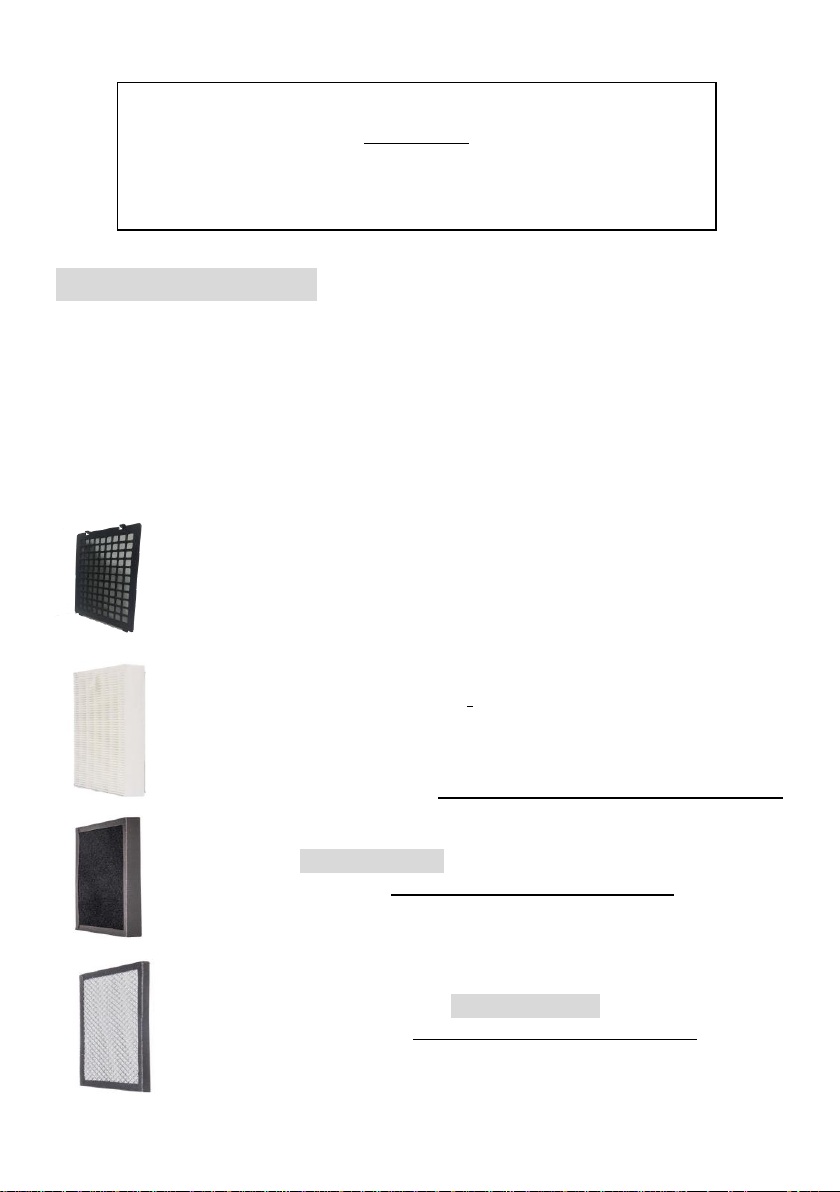

Filter Cleaning and Replacement:
(Note: Charcoal filter and Photo-Catalytic Filter are not allow to wash!)
Pre-Filter: Clean regularly;
Simply remove the pre-filter to clean the heavy particulate with a
hand-held vacuum. Also can be cleaned in cool water and then use a
toothbrush to gently remove particulates. Dry completely before
re-installing.
HEPA Filter: Clean regularly;
Monthly cleaning is recommended, if heavy population, need to be
cleaned more often. simply remove the HEPA filter to clean the heavy
particulate with a hand-held vacuum. Also can be cleaned in cool water
and then use a toothbrush to gently remove particulates. Dry
completely before re-installing. It needs to bereplaced half or one year.
Carbon Filter: DO NOT WASH
Under normal conditions, it should be replaced each year.
If Under heavy chemicals or gases, it needs to be replaced more often.
Photo-Catalytic Filter (TiO2): DO NOT WASH
Under normal conditions, it should be replaced each year.

12
UV-C Bulb: Do not touch bulb with your hands, use latex
gloves whenever replacing bulb. Lifespan: 8000 hrs(It needs to
be replaced after 8000hrs working)
Ozone Plates: For maximum performance, ozone plates need
to be washed in warm water. Always allow them to dry
completely before re-installing. Lifespan:10,000 hours(It needs
to be replaced after 10000hrs working)
Fan Blade and Front Grill Cleaning:
How to clean:
1. As detail on the left shows, hold bottom of
front grill and pull out.
2. When latch releases from front panel, lift
front grill approximately 30 degrees.
3. Pull front grill away from unit in a parallel
motion.
How to re-install after clean:
1. Place top latch of grill in front panel opening.
2. Push bottom latch of grill into bottom slot.
Cleaning notes:
Wipe off fan blade and front grill with damp washcloth. The fan requires no
maintenance. If the fan squeaks, a drop of lightweight machine oil may be needed
on the fan shaft.
11. REPLACING THE FUSE
Fuse holder (located on the back of the unit next to the power cord)

13
To replace or check the fuse:
Remove the fuse holder by pressing on the clip and pulling straight out.
If the fuse is blown:
Replace with the standard replacement fuse. Insert the new fuse into the fuse
holder. Press the assembly straight in until it latches.
110 volt models: Fusing current no more than 1.0 AMP.
220 volt models: Fusing current no more than 0.5 AMP.
12. TROUBLESHOOTING
Indicators of Operation:
(Operation of the Ozone & Power Indicator lamp.)
Ozone button to be operated when the room is
unoccupied. Open the door and window when you
return to the room if Ozone operated for several
hours.
Turn the unit on and check that the small red/orange
lamp is illuminated. The lamp is located on the front
panel; one is silkscreen ‘Power’ and the other is
silkscreen ‘OZONE’.
Troubleshooting –What to look for first:
1. I have plugged in the unit, turned the power switch to "On" and nothing is
happening. What's wrong?
Make sure the electrical outlet is capable of providing power to the unit.
Check the back cover located at the back of the unit to make sure it is fully installed and
snapped into place. If the back cover is not fully installed, a safety switch will cause the
unit to not power on.
CAUTION!
If the fuse holder cap is not installed correctly,
the unit will not operate.

14
Check to see if the proper fuse is installed and that it is serviceable.
Ensure that the fuse cap is completely seated and secured in its receptacle. See Page
12 for more details.
Be sure the cord is fully pushed in / plugged into unit & on the wall outlet side.
Some models are equipped with an On/Off switch on the back of the unit. Make sure
this is switched to On.
2. The fan is operating but the unit won't produce any ozone. What's wrong?
Check the air purifier plate(s) for serviceability. If they are cracked or broken, the plate(s)
will require replacement.
Ensure maintenance procedures required for the HAP air purifier plate have been
performed (i.e. washing the Ozone plates). See page 6 for more details.
Make sure the Ozone button is pushed to on.
You will know the Ozone is on when a strong smell comes out of the air purifier. Aside
from steps above, do not attempt to disassemble without contacting customer service
from your HAP dealer.
3. The unit has a burning smell, and/or appears to be arcing or sparking.
Remove and clean the ozone plates and re-install. If problems persist replace ozone
plates.
Ozone produces a smell or odor that smells like bleach or electric smell. This is normal
during Ozone use and why Ozone is so effective in removing odors.
4. What are the most typical application problems?
Warning Sign: A belief that the proper equipment is placed in the environment and the
equipment appears unsuccessful.
Problem: Lack of air movement, improper placement of the unit.
Warning Sign: Strong odors still remain in the environment after placement.
Problem: Lack of ozone, improper placement of the unit.
Warning Sign: A strong odor of ozone is in the environment.
Problem: Too much ozone accumulation in the environment, as a
Result of improper purifier control setting and/or lack of air movement.
5. Unit does not operate:
Is the unit plugged in?
Is the power cord fully inserted into the back of the unit?
Are you sure the outlet is functioning normally?
Is the unit turned on?
Is the back grill installed properly to depress the safety switch forward?
6. Air flow is restricted or reduced:
Is the unit properly placed away from objects that may obstruct air flow?
Are the filters clean?

15
13. SERVICE AND WARRANTY
The Commercial air purifier comes with 2 Year Limited Warranty.
This device is warranted to be free from all defects in material in normal use for a
period of 1 year from date of purchasing. The warranty is granted only to the original
purchaser. This warranty provides for the repair or replacement of the unit,
replacement product or parts may include re-manufactured or refurbished parts or
components.
This warranty does not cover part of the unit that requires replacement under
normal use. Any damages or malfunctions caused by negligence, abuse, or use not
in accordance with the owner’s manual are not covered by this warranty. Likewise,
any defects or damages caused by unauthorized service.
To order parts, please contact with your distributor or retailer.
14. WARRANTY CARD
To activate warranty you must return this card within 30 days of purchase.
-------------------------------------------------------------------------------------------------------------
FOR YOUR RECORDS
Please record the model and serial number below, for easy reference, in case of
loss or theft. These numbers are located on the back panel of your air purification
unit. Space is also provided for other relevant information.
Name:_______________________ Phone:____________________
Address:________________________________________________
Model Number:___________________________________________
Serial Number: ___________________________________________
Date of Purchase: _____________Distributor Name:_____________
