HOMELEADER K56-016 User manual

INSTRUCTION MANUAL
ELECTRIC FOOD CHOPPER

IMPORTANT SAFETY INSTRUCTIONS
Please read this part well and used the appliance correctly. This instructions explain the possibility
hazards and accident involved.
1. The input voltage is AC110-120V; 50-60Hz.
2. Be sure to cut off the power before dismantling /assembling or adjusting the appliance.
3. If the cable is damaged, return the appliance, to avoid hazard.
4. The chopper won’t run unless it’s properly assembled.
5. Don’t detach or amend the appliance by non-professional repair personnel, to avoid hazard.
6. Don’t use the appliance for any purpose other than those described in these instructions.
7. Don’t use the appliance run empty or overload.
8. Please do not heat the appliance in the microwave oven or freeze in the refrigerator, to avoid
appliance burst.
9. Please do not use the appliance for dry grinding hard food like soybean, rice and frozen meat
ect, and succulent liquid foods.
10. Please do not touch the blade unit or motor during the appliance is running, to avoid personal
injury or damage the appliance.
11. Don’t run the appliance for more than 15 seconds continuously, after 15 seconds, let it cool for
2 minutes before using it again.
12. Please cut off the power before you open the appliance. Don’t open the chopper till the motor
and blades stop moving.
13. If the appliance stop running during the normal operation, maybe it caused by motor
temperature protection. Please turn off the swift and cut off the power, cool it about 20-30
minutes before using again.
14. The chopper bowl and blade unit, lid can use 100℃hot water for cleaning and sterilizing.
15. Don’t put the motor unit in water or the other liquid, or wash it by water or the other liquid.
16. Please DO NOT use steel ball and the other abrasive cleaning tools to avoid scratch the
appliance.
17. Don’t use dishwasher to clean the appliance.
18. Keep the appliance and cable out of reach of children and and persons with no capacity.
Children and must not use or play with the appliance.
19. The appliance is only suitable for personal or family use. It’s no suitable for commercial use.
20. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
21. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and if they understand the hazards involved.
22. Children shall not play with the appliance.
23. Always disconnect the appliance from the supply if it is left unattended and before assembling,
disassembling or cleaning.
24. This appliance shall not be used by children. Keep the appliance and its cord out of reach of
children.
25. WARNING: Potential injury from misuse. Care shall be taken when handling the sharp cutting
blades, emptying the bowl and during cleaning.
26. Switch off the appliance and disconnect from supply before changing accessories or
approaching parts that move in use.
27. This appliance is intended to be used in household and similar applications such as:
28. – staff kitchen areas in shops, offices and other working environments;
29. – farm houses;
30. – by clients in hotels, motels and other residential type environments;

31. – bed and breakfast type environments.
32. Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to
a sudden steaming.
Please save these instructions.
KNOW YOUR CHOPPER
1. I level Button
2. Ⅱlevel Button
3. Power code
4. Motor unit
5. Lid
6. Seal ring
7. Side blade unit
8. Main blade unit
9. Spindle
10. SS gasket
11. Shaft Seal ring
12. Bowl
13. SS gasket
14. SS Screw
15. Non Slip mat
16. Spatula
Item
Part
Function
1
I level Button
To control on/off，to chop soft food like vegetable
2
Ⅱlevel Button
To control on/off ，to chop hard food like meat and
carrot
3
Motor unit
Main unit ，power source of appliance
4
Lid
safety protections during operation
5
Side blade unit
Making food (vegetable, fruit, meat) mud and stuffing
after assembling with main blade unit, bowl and lid.
6
Main
blade unit
Making food (vegetable, fruit, meat) mud and stuffing
after assembling with side blade unit, bowl and lid.

7
Bowl
Serving food
8
Non
Slip mat
Anti-slip ，need to assemble on the product during
operation, can be detachable for cleaning
9
Spatula
Take out the food
The advantage of your mini chopper
1) S blade design make perfect chopper effect.
2) Micro switch can control the chopper level easily.
3) Motor overheat protection, good for safety use.
4) Glass chopper bowl, healthy and easy cleaning.
5) Detachable parts, easy cleaning.
6) Change-speed gear box, smooth running, low noise and strong chopping
7) With Spatula and easily to take out food.
HOW TO USE
Before using, please clean all parts which will touch the food.
1. Take out the mini chopper and accessories, use the food cleanser and water to clean the lid,
main/side blade units, chopper bowl. Use wet cloth to clean the motor unit.
2. Put the anti-slip mat to the flat surface, then assemble the chopper bowl on it. Avoid
knocking it by the other thing and keep it way from the children.
3. Assembling
a) Put the chopper bowl on the non-slip mat. (Fig 1)
b) Fix the main/side blade unit into the blow shaft, then put the food. (Fig 2)

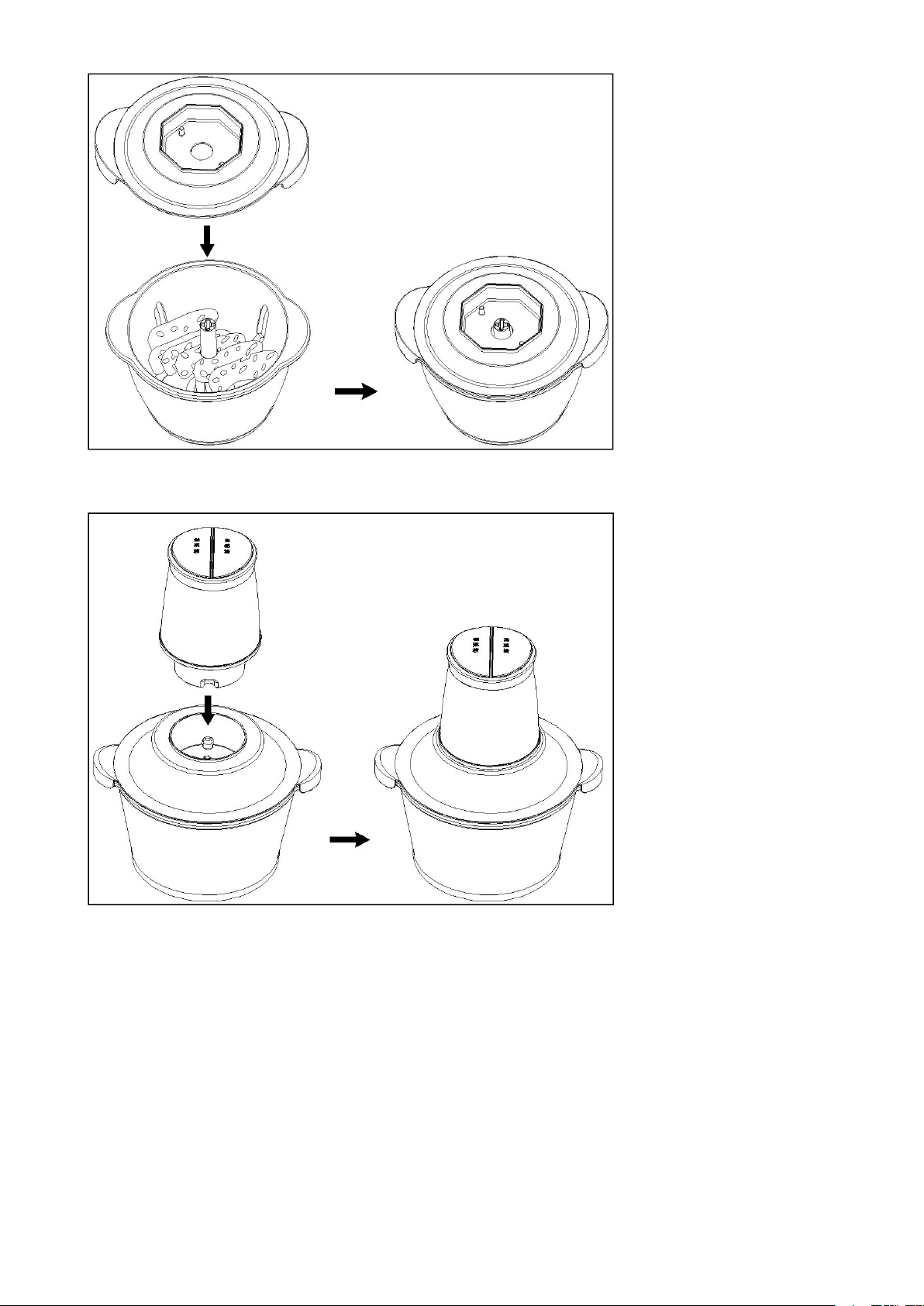

c) After putting the food, cover the lid as Fig 3.
d) Put the motor unit on the chopper lid, the blade unit handle is aligning with the middle hole
of main unit.(Fig4)
e) After assembling the appliance well, plug in the power code and press the switch, the
appliance will start working. When the finger leave the switch, the appliance will stop
running.
f) How to assemble/disassemble the main/side blade unit.
Assemble method: Put the side blade unit to the main blade unit (Fig 1 and Fig 2), and screw the
side blade unit anticlockwise (Fig 3), then took off the blade protective sleeve
Disassemble method: Take out the side blade unit by clockwise from main blade unit.

IMPORTANT
1.Each interval at least 2 minutes. Then keep the machine at room temperature.
2.Please add adequet food for better chopping or it would not meet your chopping
expectation.
3.In some cases, if the motor stops or smokes when you use it in the first time, please
do not worry. The motor oil is heated in the first use so the motor gets hot but it will
cool down in several mins and work fine in the next operation.
Remark
1.There are 2 anti –slip lines on main/side blade unit. If the 2 lines didn’t align well it means you
didn’t assemble the main/side blade unit well.
2.If you didn’t assemble the side blade well before using, the side blade unit may loose and touch
the bowl or lid and hurt the human. Please use it correctly.
3. There is safety lock on the main unit. During operation, please lay the appliance flat and press the
button strongly to start the operation, otherwise the appliance cannot be activated.
4. Meat food making method: can choose only single layer or double layers blades for your mini
chopper. Installed the blade into chopping bowl, removed the muscle, bone, skin of the meat food

before processing, cut the food into 1-2 cm massive and put into the bowl. The processing food
cannot exceed the maximum limit of scale line of corresponding meat food.
5. Connect the power supply, press the switch lightly, start to work. Don’t run the appliance for
more than 15 seconds continuously
6. For LB7004A, LB7005A, : this appliance have 2 levels.
7. After processing, cut off the power. After the blade stopped running, move out the main unit and
open the lid, remove the chopping blade, and take out the food with a spatula or chopsticks.
8. If the processing food stick on the bowl, please turn off the switch and cut off the power, use a
spatula or chopsticks to scrape it off and then make the processing again.
9. If within 15 seconds haven’t reached the effect you want, please loosen the switch and interval
after 2 minutes again for processing, which is conducive to extend the product life.
10. For each use, the consecutive operation time should not exceed 15 seconds, The operation is
carried out three times with a rest period of 2 min during which the beef or meat is replaced.
Please let the unit cool to room temperature before performing next operation cycle
Processing table
Ingredients
recommended quantity
Beef (20mm cubes)
350g for LB7004A/B, LB7005A/B;
CLEANING AND MAINTENANCE
1. Unplug before dismantling or cleaning
2. Wipe the outside of the motor unit with a clean damp cloth, don’t immerse the motor unit in
water.
3. Wash the removable parts in warm soapy water, rinse well, drain, and air dry
4. Don’t put any part of the appliance in a dishwasher.
5. Blades are extremely sharp, please do clean it by hand directly to avoid injury. Please use clear
water to clean it so that you can see blade clearly.
6. Please dry the appliance part before re-assembling the parts.
WARNINNG
Please check the plug before using. Ensure
the plug is in good condition to
avoid electric shock.
Please use the rated voltage and use10A
plug，don’t use the universal plug with the
other appliance

Don’t Don’t let the power code hang over
beside the table or touch the high
temperature object.
The appliance is only for indoor use.
Don’t used outdoor
Don’t put the appliance into water or other
liquid. Don’t touch it by wet hand to avoid
leakage of electricity accident
If the cable is damaged, don’t use it to
avoid hazard.
Don’t retrofit the appliance. Don’t detach
or amend the appliance by
non-professional repair personnel, to avoid
fire, electric shock or injury
Keep the appliance out of reach of children
and persons with no capacity
Don’t touch blade to avoid injury
Don’t run the appliance
more than 15 seconds continuously
TECHINICAL SPECIFICATIONS
Model:
K56-016
Voltage/ Frequency:
AC220-240V; 50/60Hz / AC120V;60Hz
Power rating:
400W / 300w

COMMON PROBLEM ANALYSIS
Phenomenon
Reason
Handling method
The appliance cannot
work after power on
Didn’t cover the lid well
Check the lid and cover it well
Bad smell from motor
It normal phenomenon from
new motor
If you have used several times but it
still has bad smell, please send it
back to maintenance station.
The appliance stops
running during the
normal operation
1.The voltage is too low
2.Motor
temperature protection
1.Check if the voltage is too lower
2.Rest 20-30 mins
The knife was stuck
The knife was stuck by food
Turn off the swift, cut off the power,
take out the food and cut them to
small pieces
Abnormal noise or
shock
1. Didn’t assemble the blade
unit well
2. Didn’t put the appliance
smoothly.
3. The voltage is too high
4. Too much food
1.Take out the food and assemble
the blade unit well
2.Put the appliance smoothly
3.Check if the voltage is too high
4.Turn off the swift, cut off the
power, take out extra food
Any questions, please contact us through Amazon message or send us an email to
[e-mail]. We will reply as soon as we can and solve your
concerns. Please do leave us a review about the chopper if it works fine. Enjoy the
product! Thanks.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental
safe recycling.
