SERVICE MANUAL
THIS IS
PINBALL
rev 1.1 12-April-2022
E&OE - This manual may differ from the final production machine
MADE IN TAIWAN
TAIWAN CO. LTD.
BY

Homepin Taiwan Company Limited
This is Spinal Tap Pinball (TAP)
Contents of this Service Manual
PA E # SUBJECT
3 Warranty Details
4 TAP Introduction
6 Programming Instructions
7 YD-F600 coin mech programming
8 RF Remote Instructions
9 Service Menu – Adjustments and Operation

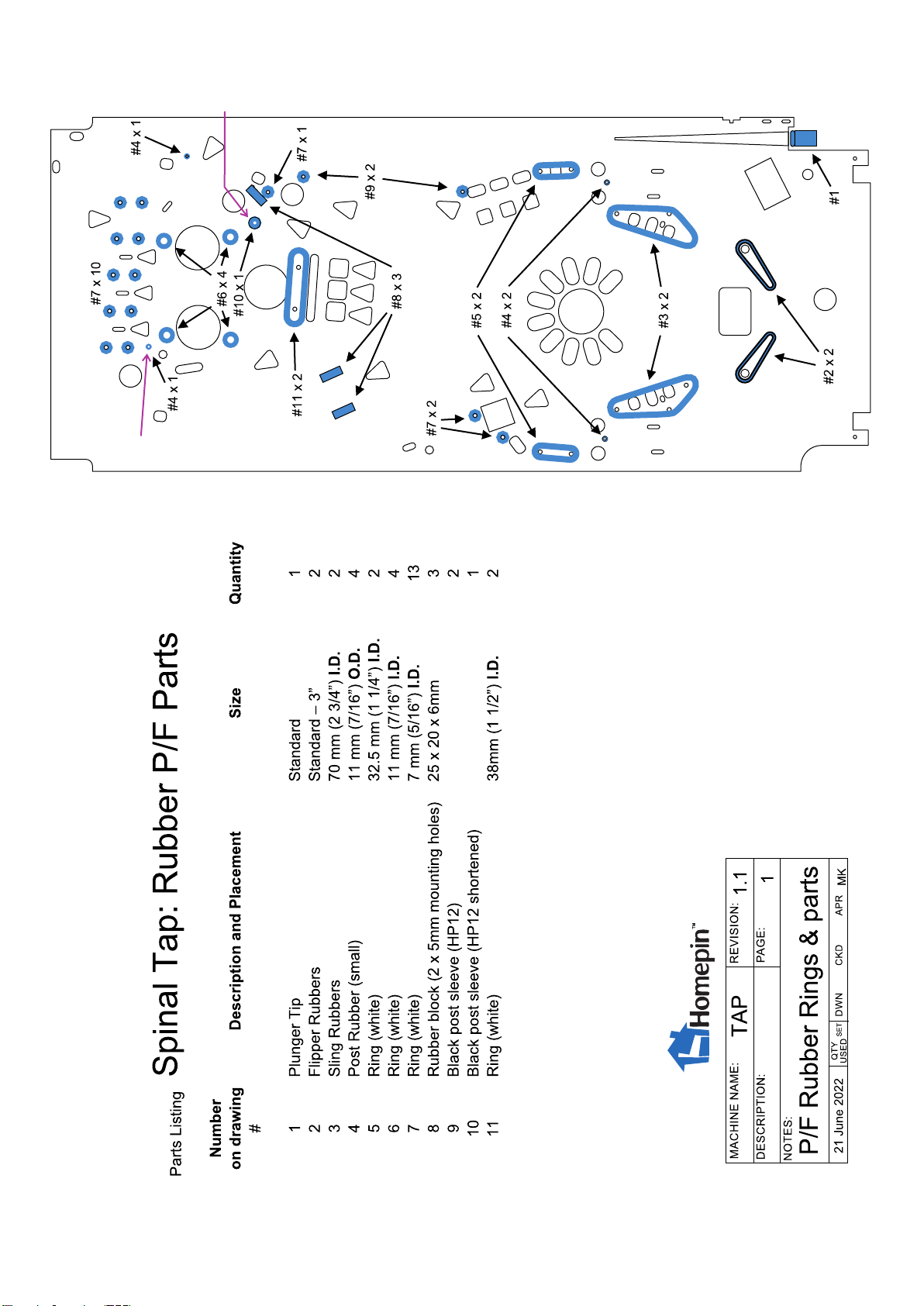

10 Rubber Rings Chart
11 eneral Illumination Allocation
12 Solenoid Table
13 Direct Switches
14 Switch Matrix

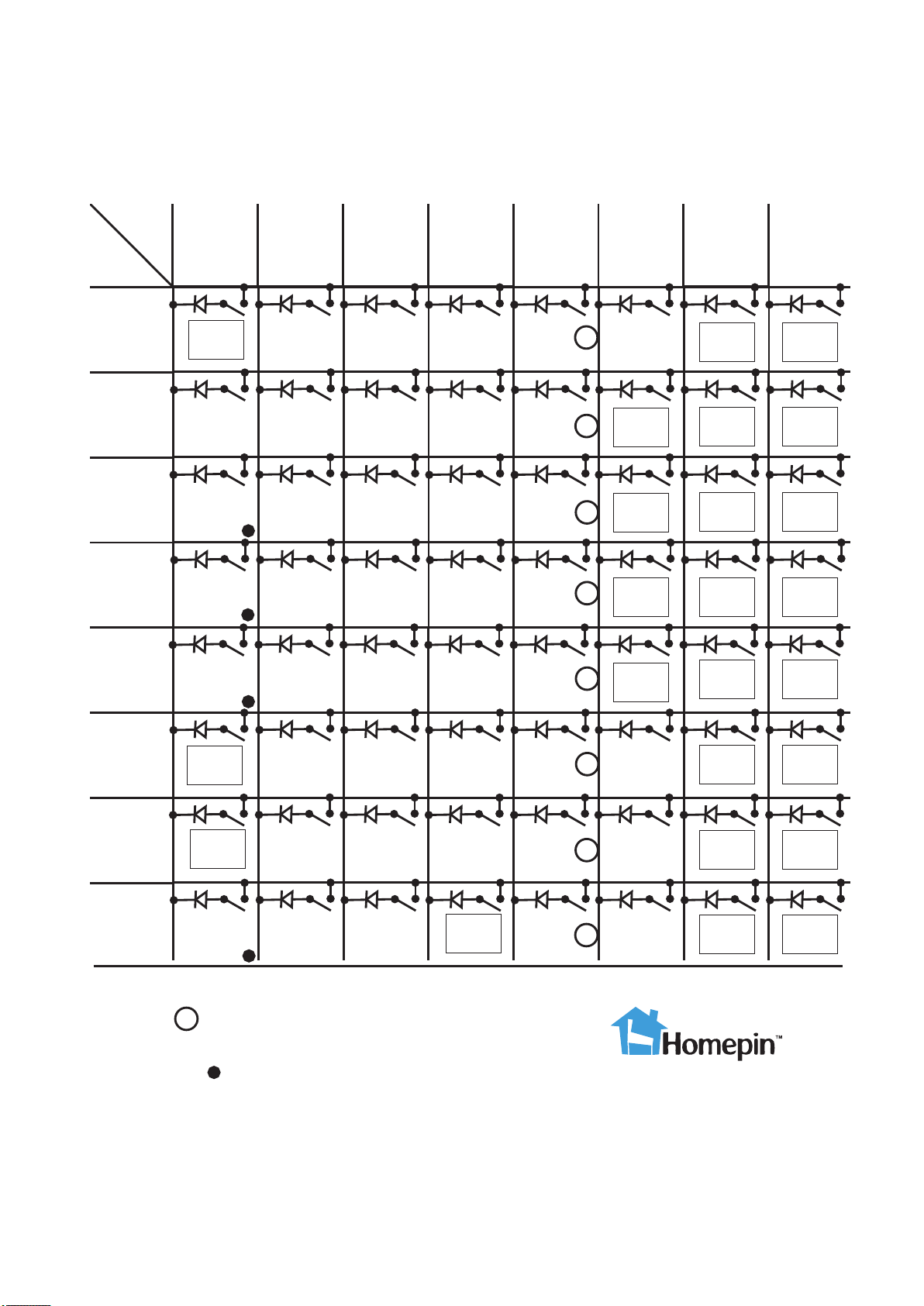

15 Lamp Matrix
16 DC Motors & Coils

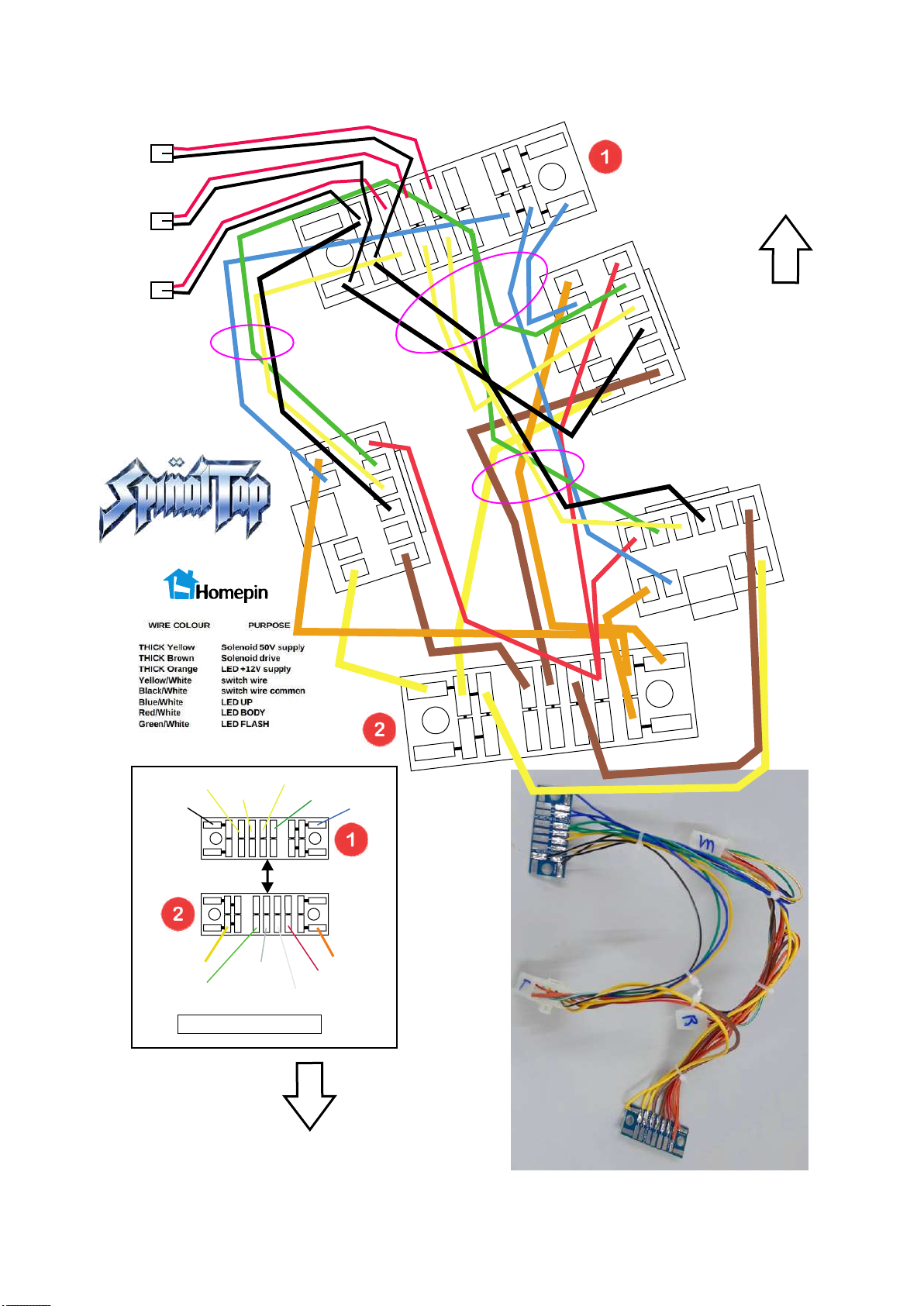

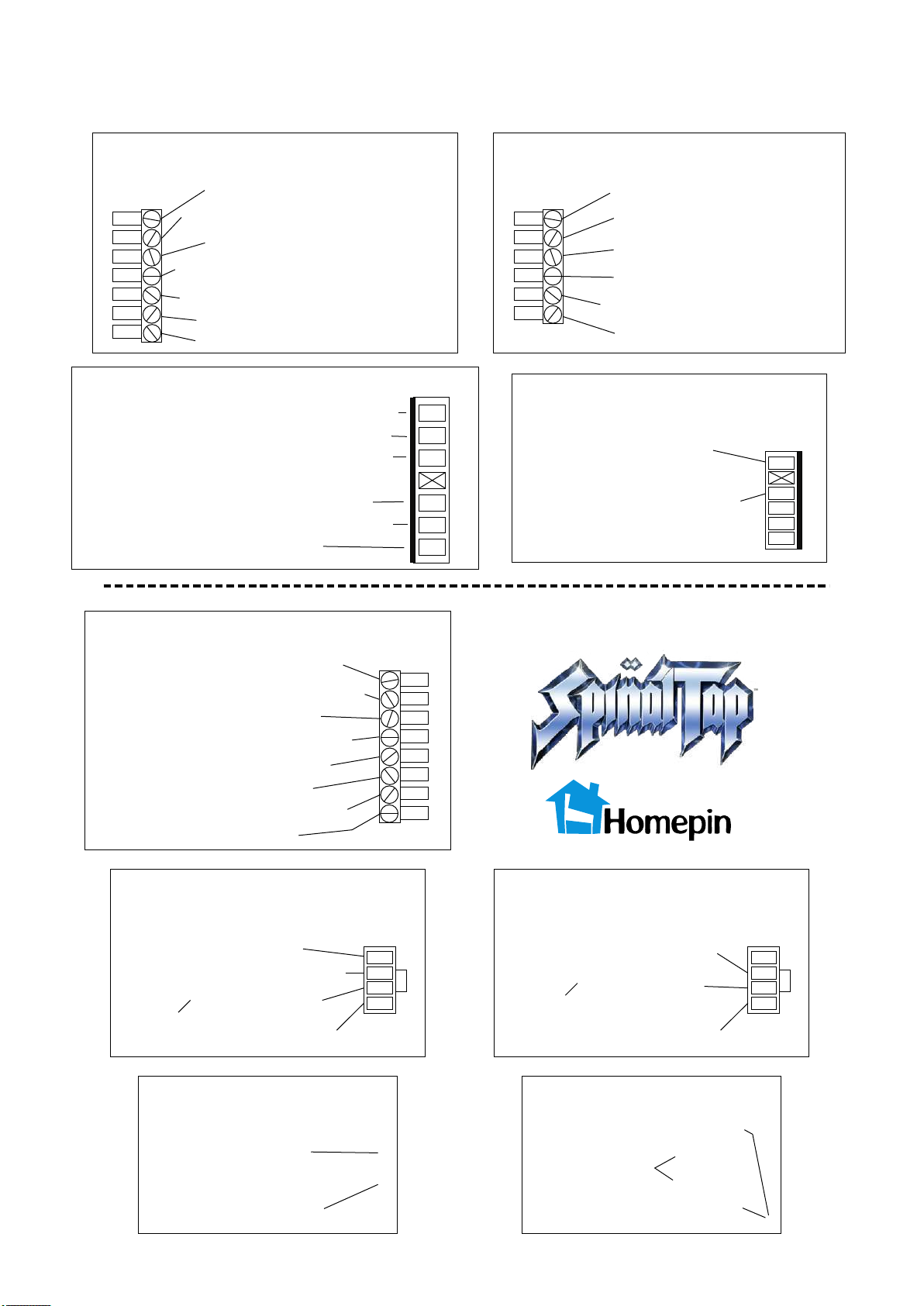

17 Cabinet Wiring Harness Connections
18 Pop Bumper Mini Wiring Harness
19 Spot Targets (stand up targets)

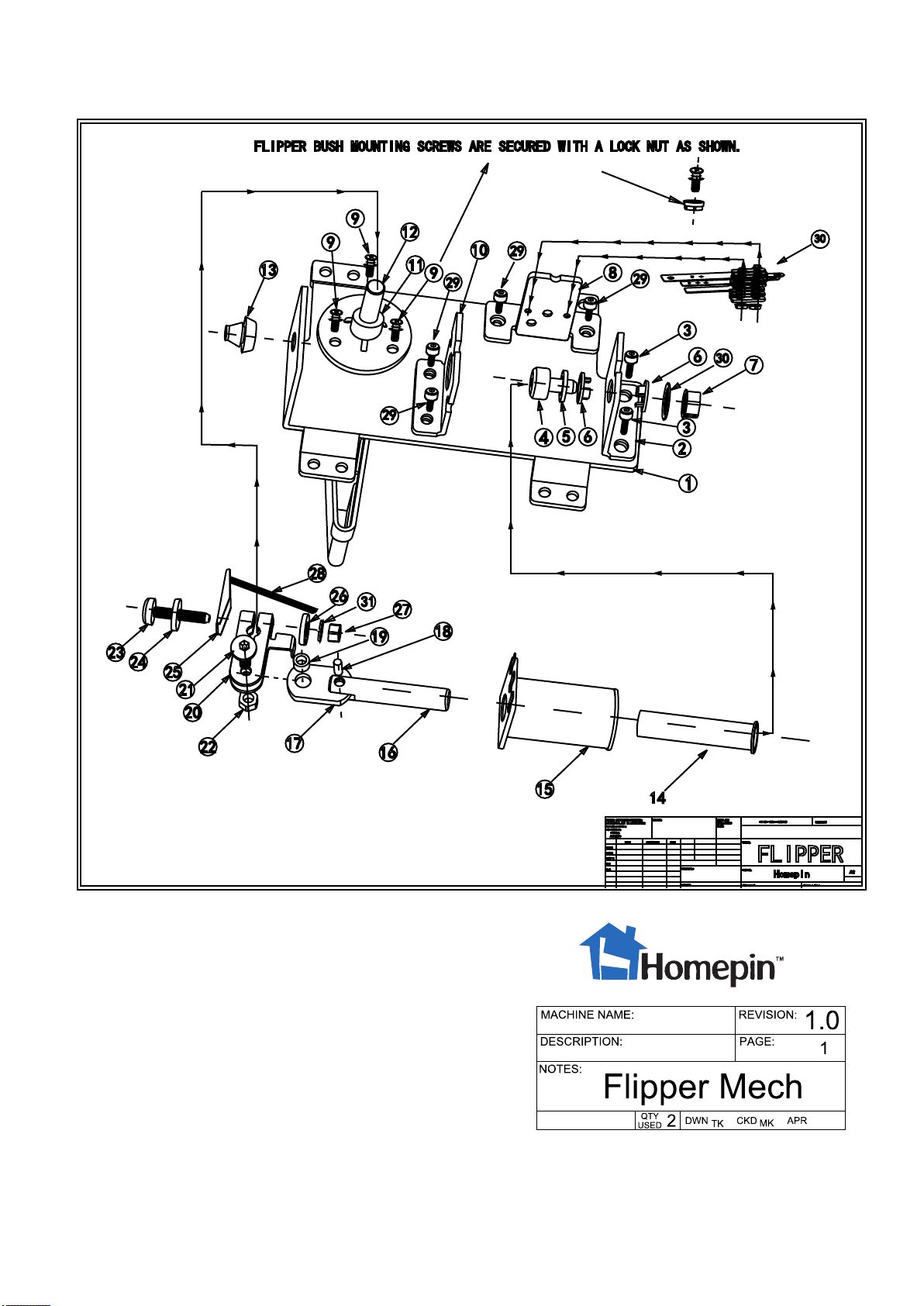

20 Flipper Mechanisms
22 Auto Ball Launch Mechanism
24 Ball Plunger - parts
25 Pop Bumpers
28 Slings
30 Vertical Up Kicker (VUK)
31 Ball Trough
32 Mains Switch Box & Voltage Adjustment Diagram
33 Power Rectifier & Regulator PCB
35 Audio PCB
37 Solenoid Driver PCBs H-0012
39 Flipper Actuator Opto Mechanisms
40 Flipper Control Description
41 Flipper Driver PCB H-0048
42 Cabinet 12V DC Buss PCB
43 Ball Trough PCBs
44 Ball Trough Schematics
45 5 x Opto Board H0106
47 Drop Target Opto PCB
48 Exploding Drummer PCB
49 Ramp up/down Control H0117
50 Opto Rollovers
52 POD Control PCBs
54 Spinners (Hall Effect)
2

Homepin new machine Warranty
------------------------------------------
Your new Homepin pinball machine, “This is Spinal Tap Pinball” has been hand
built by us in our own Taiwan factory. No two machines are identical and there
will no doubt be some differences between this service manual and your
machine. We have done our best to make sure this manual is as up to date as
possible before going to print but please check the Homepin website in case
there are updates or service notes that may have been implemented after
printing.
We guarantee all circuit boards manufactured by us for life. We are unable to
extend this to PCBs manufactured by outside vendors so those specific boards
have a 12 months warranty from the date of original purchase. All other parts of
your machine are covered for 12 months. Some trim or decoration parts can be
easily damaged by moving and transporting the machine, these are not covered
for any cosmetic problems.
Please contact Homepin or one of our authorised dealers if you have any query
or service issue.
3

4
This is Spinal Tap Pinball (TAP)
Welcome to This is Spinal Tap Pinball!
This machine is the result of over two years of work oen under the most
arduous & taxing of situaons. Recent world events have created havoc
with normal supply chains and the labour and work situaon is currently
all over the place! We have done our best, under these trying condions,
to bring you the best machine we could build.
Naturally there is no single person responsible for the design and
construcon of this machine (and many more to come) so let’s call them
“The Homepin Team”.
Homepin was formally started in 2013 by myself aer several years
making replacement pinball machine PCBs in my small home electronic
workshop. My wife of 40 years Karen & I decided that we would start a
factory in China and manufacture pinball machines.
Three years into the project Karen passed away and that created many
serious financial and personal hurdles that had to be overcome. In 2020
Homepin moved from China to Taiwan and built a new pinball factory,
again from scratch!
We inially recommenced our replacement board making business and
gradually finished building the rest of the factory required to manufacture
pinball machines again.
I hope you enjoy playing our creaon and that you appreciate the
staggering amount of me, effort and money that has been expended to
bring this very complex product to market.

5
Your TAP Pinball machine is a unique, hand made machine. No two are
exactly alike because of this. There will be differences between each
machine and even this service manual which is generic in nature.
We have tried to incorporate as many mechanical and electronic
adjustments as possible so that your machine can be tailored and
tweaked to give the best possible performance. Please ensure that you
familiarise yourself with the operaon and adjustments of the machine
covered in the service manual to maximise your playing experience.
Best wishes for the future,
Mike Kalinowski
Managing Director,
Homepin Taiwan Company Limited
[email protected]
Homepin offers our sincere thanks to the following companies and people
for their assistance or guiding ideas, no maer how small or large and in
no parcular order;
Many Homepin customers
Our loyal agents worldwide
Authorised Spinal Tap LLC
Sascha Voskuil, Amanda Sun, Edy, Mr X, James Shore.
And no doubt a host of others that don’t come to mind right now!
This is Spinal Tap Pinball is dedicated
to Amanda Sun for her unwavering support

THIS IS
PINBALL
Program update instructions
NOTE: Apple computers are not supported at this time.
A programming cable is included with your Spinal Tap pinball
machine and is stored in a plastic wallet in the backbox.
At boot, your pinball machine displays the software version installed on the DMD for about two
seconds.
If you look on the Homepin website, you will be able to see if there is a newer version of software
available than that installed in your machine. www.homepin.com
If so, you can download the ZIP file and unpack it to a folder on your PC (ideally a laptop)
where you can locate it after download & unzipping.

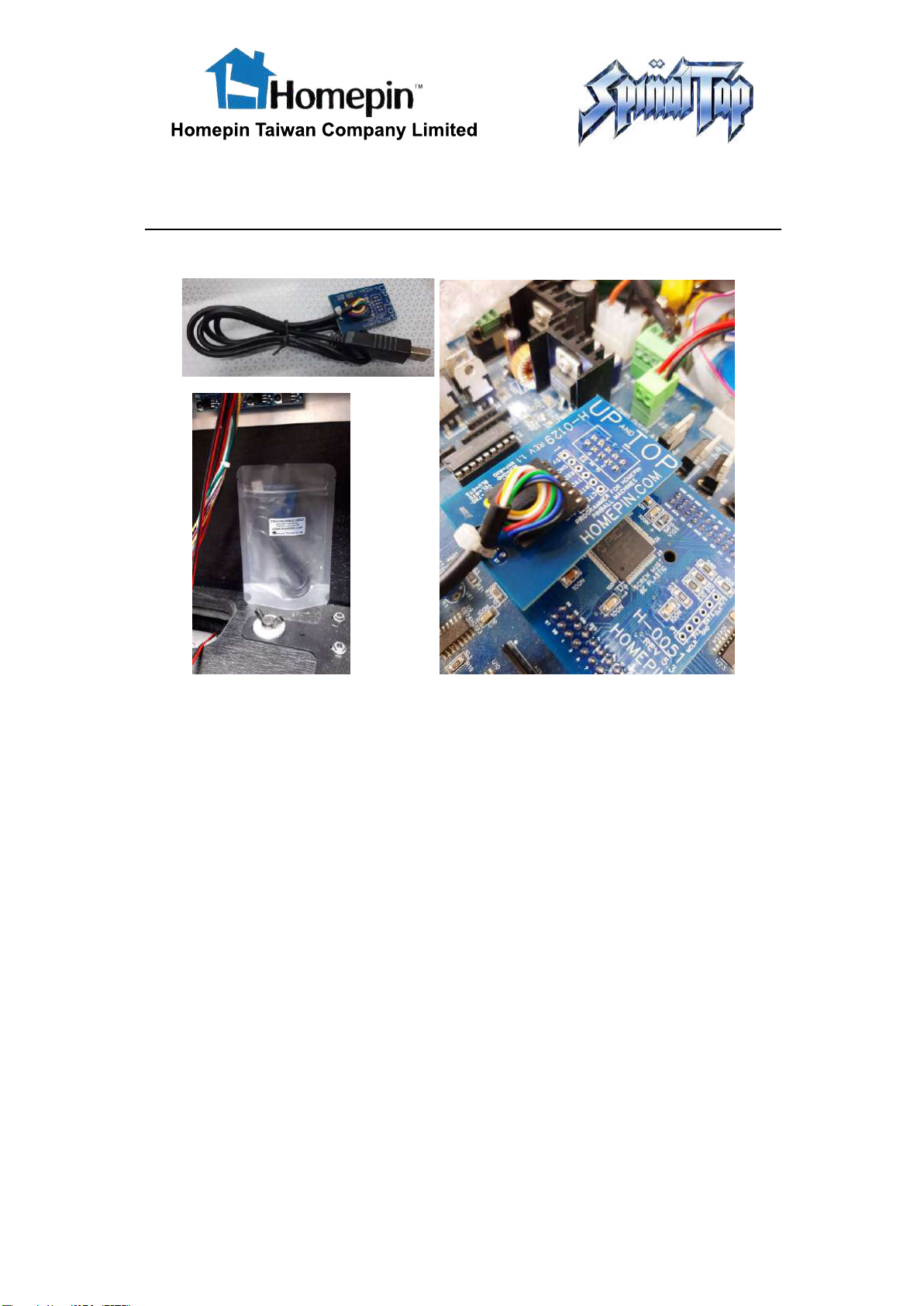

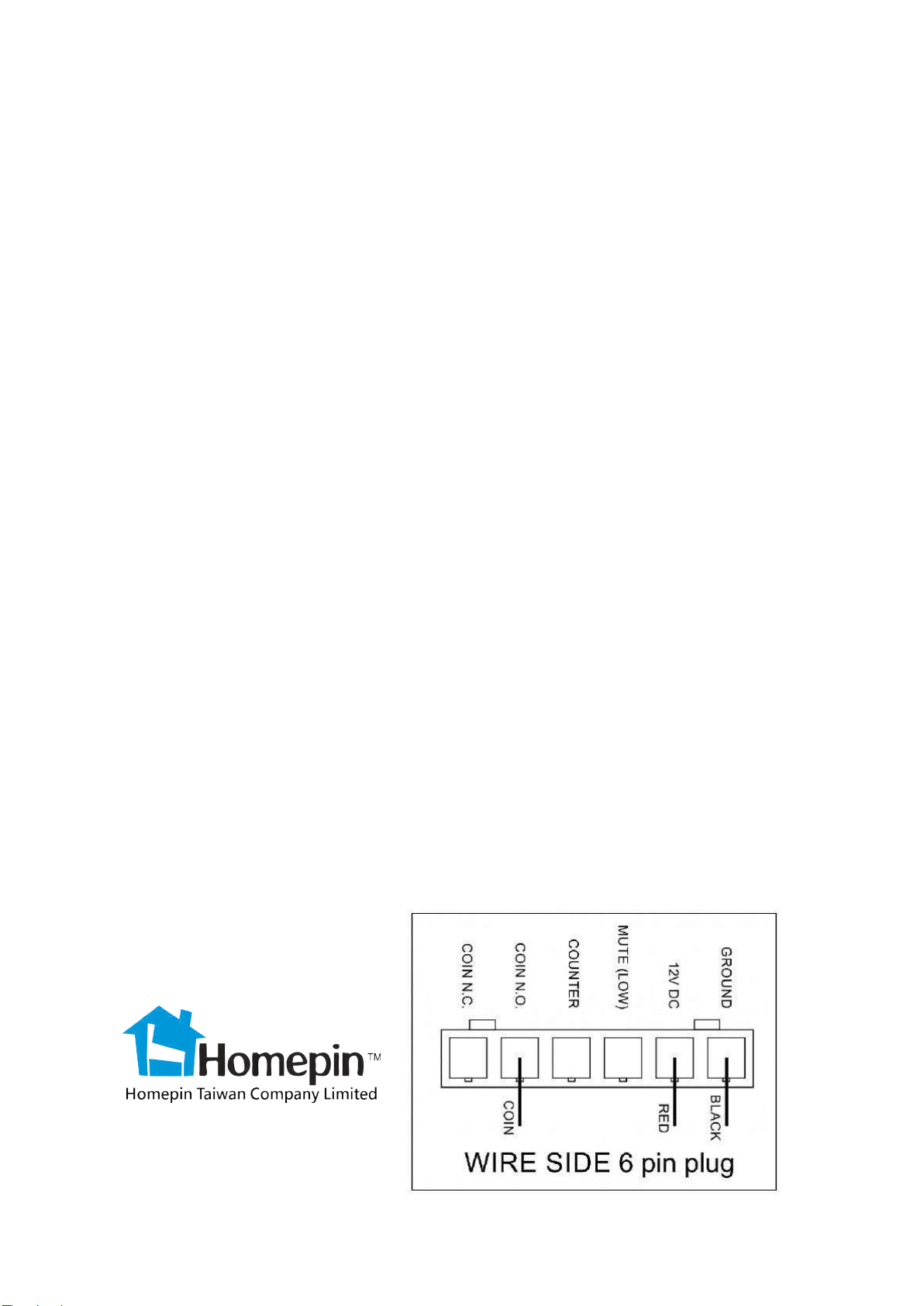

Plug the programming cable into the black 6 pin socket on the H-0051 board as shown in the
picture above. The other end plugs into a USB port of your PC.
Start the updating program by double clicking on the “HOMEPIN_UPDATE_TOOL.bat” file in
the downloaded & unzipped folder (power to the pinball machine should be on).
Once the panel opens, select the correct port for the USB updating cable and then also
select the new version of the software you wish to install. Press “Update Game” and another
panel will open showing updating is underway.
The START button on the front of your machine will also flash quickly while the machine
is being programmed.
When it has finished (this could take several minutes) the START button will stop flashing and a
window on your PC screen will open to indicate programming has completed.
Unplug the programming cable and reboot your pinball to confirm the new version has been
loaded (indicated on the DMD at boot).
*Do NOT unplug or interrupt the programming whilst
it is underway or you could brick your machine* 6

YD-F600 Multi-coin Microcomputer Coin Acceptor Instructions.
(factory fitted option at extra cost – not included with every machine)
YD-F600 Features:
1. The YD-F600 can be programmed to accept one type of coin or token only.
2. The YD-F600 can accept a wide variety of coin & token types. It operates by learning the
features specific to the sample coins used when programming.
3. High accuracy & stability ensures correct identification of old and new coins/tokens of any
denomination. Have 20 coins to hand from different years and in various condition for best results.
3. Coin inhibit input allows the YD-F600 to reject all coins.
Suitable coin diameter: 18~32mm
Suitable coin thickness: 1.4~3.5mm
Power: 12VDC +- 20%
Current draw: 40ma (standby) 350ma (when activated by a coin insertion)
Operating Temperature: -30° C~+80° C
Inhibit Operation Voltage: >0.5V
Programming:
1. Ensure all switches are in the normal position.
2. Press AND HOLD the programming switch (above the LED) for 3 seconds – the LED will blink
slowly – RELEASE the switch, then press AND HOLD the switch a second time for a further 3
seconds and the LED will blink quickly. The unit is now ready to program with your desired coin or
token.
3. Keeping the YD-F600 level, insert the desired coin or token you wish to program, one at a time.
You should prepare at least 20 examples of the desired coin/token and preferably pieces in differing
condition and from different years to ensure the YD-F600 is best positioned to accept ALL valid
coins.
4. The LED will continue to blink quickly as you keep inserting the coins – the YD-F600 is learning
the differing specifics of the coins you are inserting and, when it is satisfied, it will automatically
exit programming mode and the LED will become steady ON again.
5. The YD-F600 is now ready to use.
7

8

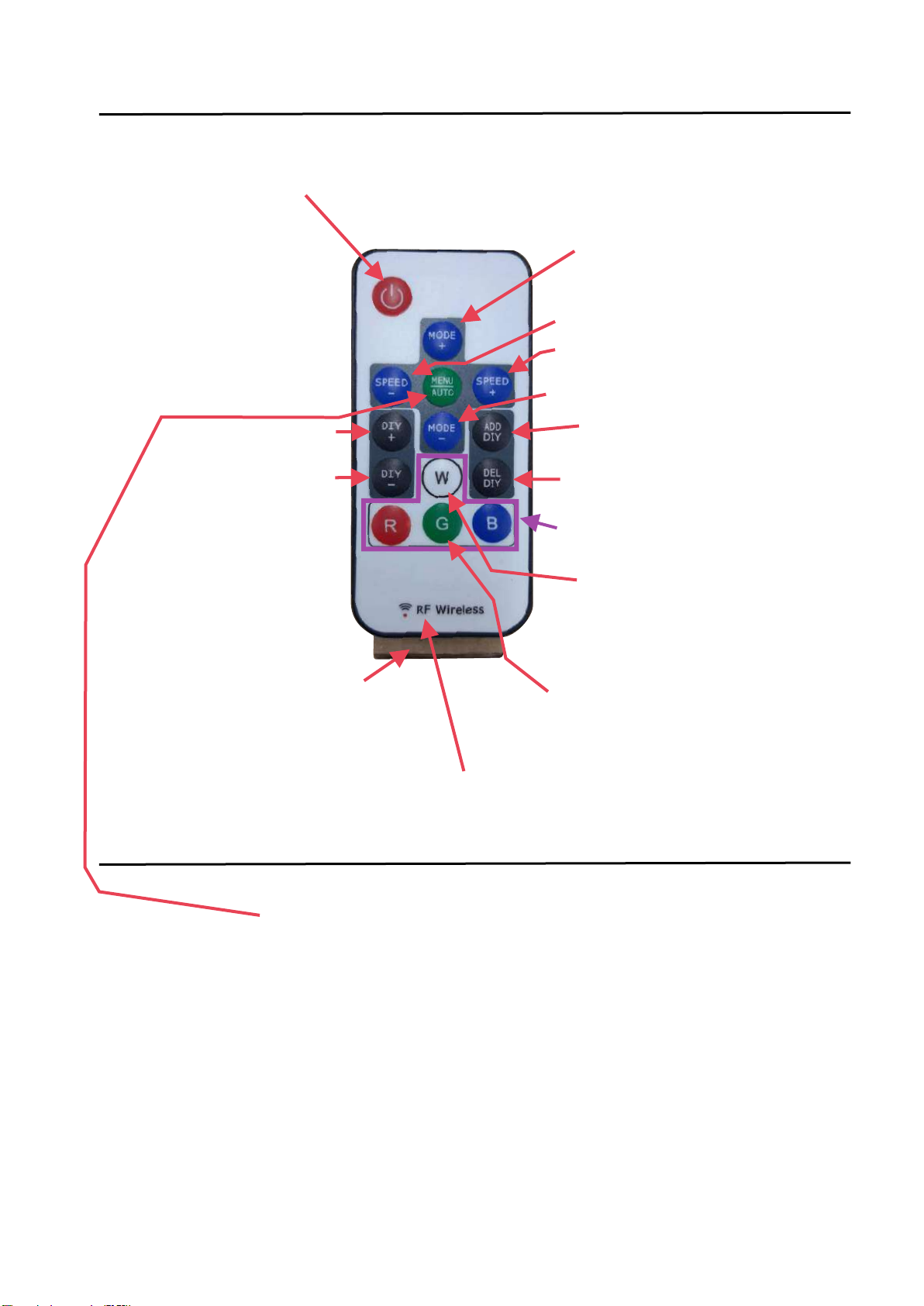

Battery isolation strip
Menu/Auto toggle
Speaker LED effect operation (if installed)
Toggles LEDs on/off
Pull down to remove and activate remote
This is a radio system not infra-red so it is not necessary
Adjusts the number of LED pixel points & the RGB order
In the OFF state, press & hold MENU for 5 seconds to enter setup menu
Press mode + and mode - to adjust the number of LED pixel points
Press the RGB button to adjust the RGB order
Press the R button until the LED strip shows RED
Press the G button until the LED strip shows GREEN
Press the B button until the LED strip shows BLUE
Press the power on/o ffbutton to exit programming mode
to point the remote at the receiver for it to operate
Press & hold “G” for 5 seconds
LED strip will flash GREEN 3 times
when paired
to pair TX to RX
Press & hold “W” for 5 seconds
LED strip will flash WHITE 3 times
when no longer paired
to un-pair TX & RX
Also used to save a manually set parameter
Mode advance (358 presets)
Mode backwards (358 presets)
Speed & Brightness +
Red/Green/Blue/White only
Adds current effect to
Removes current effect from
the custom mode
the custom mode
Speed & Brightness -
Custom mode -
Custom mode +

Homepin Taiwan Company Limited
This is Spinal Tap Pinball (TAP)
Service Menu Access & Description
The service menu is accessed by pressing the “ENTER” button on the door board
mounted inside the door.
Many things can be changed or adjusted to suit in this menu. You can also check the
switch matrix status, test all LEDs, run a test on the LED DMD and test and
individually adjust solenoid power.
The monitor and video player can be tested by pressing the small switch on the video
player board. The Homepin logo and firmware version will be displayed for 30
seconds after which time the player will automatically revert back to “game over”
mode.
To scroll through menu options, use the flipper left & right buttons and press the
“START” button to accept a choice or change a setting from on to off for example.
When finished adjusting things in the menu use the “MENU” button on the door
board to save your changes and exit the menu.
The video game is set ON by default and this can be turned OFF in the “Game
Settings” section of the menu.
Adult mode is disabled (OFF) by default and must be turned ON to enable Adult
mode. Use caution and be aware of the setting in which the machine will be used if
turning this option on. Whilst the adult language used is pretty tame by today's
standards, it still isn’t suitable for almost all public venues. This setting is under
“Game Settings” in the menu.
There is a setting in “Game Settings” for the USA that allows a depiction of
“quarters” on the LCD screen as they are added – 1 x ¼, 2 x ¼, 3 x ¼ and CREDIT.
This can be turned on or off as desired after setting the coins for 4 coins = 1 x credit
in the coin settings area.
9

10
Mounted on post top of playfield plastic
Mounted on moving mechanism up/down post

General Illumination - This is Spinal Tap Pinball (TAP)
FEB 2022 – REV 1.4
Topper Control #1 MPU J12 J12 Pin 1 GI 1 J13 P10
*** ABOVE GI IS NOT WIRED TO PLAYFIELD ***
Arena GI strips (left and right) Orange/White GI 2 J13 P9
Love Pump Spot Target (rear illumination) Pink thin GI 3 J13 P8
L Spinner Void & VUK x 2 lamps Brown thin GI 4 J13 P7
Left Upper Passive Void x 2 lamps Purple/White thin GI 5 J13 P6
White plastics Grey thin GI 6 J13 P5
Green plastics White thin GI 7 J13 P4
P3 – KEY
Left ramp lift void Yellow/White thin GI 8 J13 P2
ORANGE THICK +12V J13 P1
********** ********** *********** ************ ************
ORANGE THICK +12V J14 P1
P2 - KEY
Under Stage Red thin GI 9 J14 P3
Drop Target Void (behind D.Targets) Green thin GI 10 J14 P4
RIGHT Sling Blue thin GI 11 J14 P5
LEFT Sling Black/White thin GI 12 J14 P6
Flash (red 1W) Green/White thin GI `13 J14 P7
Down(wht 1W) Red/White thin GI 14 J14 P8
Pop Bumper LEFT Up (red LEDs) Blue/White thin GI 15 J14 P9
Flash (red 1W) Green/White thin GI 13 J14 P7
Down (wht 1W) Red/White thin GI 14 J14 P8
Pop Bumper LOWER Up (red LEDs) Blue/White thin GI 15 J14 P9
Flash (red 1W) Green/White thin GI 13 J14 P7
Down (wht 1W) Red/White thin GI 14 J14 P8
Pop Bumper RIGHT Up (red LEDs) Blue/White thin GI 15 J14 P9
Right spots & Right Spinner x 2 Black thin GI 16 J14 P10
ORANGE large wire is feed for 12v to all GI lamps from one or both of the following:
J13 P1 – J14 P1
p
red/white=down, green/white=flash
Left, 2nd & 3rd Rollovers
4th & 5th Rollovers – SKILL shot lane
NOTE: Wire colours on actual pop assemblies 12V=orange, blue/white=up
11

12
TAP Solenoid Table 31st October 2021
SOLENOID # PIN # BOARD PLUG WIRE COLOUR VOLTAGE SOLENOID FUNCTION
50V POWER 10 J7 -FUSE 1 LEFT DRIVER BOARD 50V SUPPLY YELLOW WIRE
1 9 GREY – LINK TO MPU J36 12V Rocking Guitar (via exploding drummer board) 2 8 3 7 4 6 PINK – LINK TO MPU J36 50V Knocker 5 5 GREEN LINK TO MPU J36 12V BELL 6 4 Reserved (do not use)
KEY KEY KEY KEY KEY
7 2 BLUE – LINK TO MPU J36 18V SHAKER 8 1 WHITE LINK TO MPU J36 SWITCH EXPLODING DRUMMER MECH
10 J8 -FUSE 2 MIDDLE DRIVER BOARD 50V SUPPLY YELLOW WIRE
9 9 Yellow – thin SWITCH POD UP (LOCKOUT FOR POD MECH)
10 8 Red – thin SWITCH POD DOWN (ALLOW ACCESS TO POD MECH) 11 7 Blue – thin SWITCH POD – KICK BALL OFF (OPEN POD AND RELEASE BALL) 12 6 Pink – THICK 12V SUBWAY BALL LOCK SOLENOID 13 5 Green – thin 50V LEFT Pop Bumper 14 4 White – thin 50V RIGHT Pop Bumper
KEY KEY KEY KEY KEY
15 2 Grey – thin 50V MIDDLE Pop Bumper 16 1 Purple - THICK 50V V.U.K. (BIG BOTTOM)
10 J9 – FUSE 3 RIGHT DRIVER BOARD 50V SUPPLY YELLOW WIRE
17 9 Black – thin SWITCH RAMP UP (ALLOWS ACCESS TO STAGE) 18 8 Brown – thin SWITCH RAMP DOWN (BLOCKS ACCESS TO STAGE) 19 7 Yellow/White - thin 50V RIGHT SLING 20 6 Purple – thin 50V LEFT SLING 21 5 Green – THICK 50V BALL TROUGH (ball kickout to shooter lane) 22 4 White – THICK 50V DROP TARGET RESET
KEY KEY KEY KEY KEY
23 2 Grey – THICK 50V AUTO PLUNGER (ball launch) 24 1 Red – THICK 50V KICKOUT HOLE (HELL HOLE)
BLACK GROUND YELLOW 50V ORANGE 12V Yellow – THICK 50V To both flipper boards – each board has 50V fuse on the board
Flipper Boards J39 – FUSE 4 (12V)Orange – THICK 12V Goes to right flipper PCB and links to the left flipper PCB
Black – THICK Ground
NOTE: Pin numbers on driver boards are numbered from PIN 1 on the RHS
Reserved (do not use)
TAP Solenoid Table

Homepin Taiwan Company Limited
J15 – J16 – J27 connections
INC: Direct switches
This is Spinal Tap Pinball (TAP)
12th April 2022
Connectors on H-0012 interconnect PCB
J27 – Flipper connection
P1 – Flipper mute signal to flipper boards white
P2 – Left Flipper OUT, drive to flipper PCB (to IN on flipper PCB) blue/white
P3 – Right Flipper OUT, drive to flipper PCB (to IN on Flipper PCB) yellow/white
KEY
P5 – Left Flipper IN from flipper control PCB (from OUT on flipper PCB) blue
P6 – Right Flipper IN from flipper control PCB (from OUT on flipper PCB) yellow
P7 – Launch Warn signal IN from H-0106 (5 opto board) VIA flipper board pink
J16 - Cabinet
P1 – Left Flipper IN from flipper opto board (cabinet push button) blue
P2 – Right Flipper IN from flipper opto board (cabinet push button) yellow
P3 – 5V N/C
P4 – Tilt IN from plumb bob green
P5 – Menu (switch on door PCB) orange/white
P6 – Enter (switch on door PCB) grey
J15 - Cabinet
P1 – Coin ONE IN (optically isolated – usually from coin mech etc) purple
P2 – Coin TWO IN (optically isolated – usually from coin mech etc) purple/white
P3 – Door (Ball launch button) (NOTE: Not used in TAP) N/C green/white
P4 – Start IN (front cabinet button game start button) black/white
P5 – Start Lamp OUT (LED mounted inside start button) red/white
P6 – 5V red
P7 – Ground black
13

14
DRAIN
TROUGH
DROP
TARGET
LEFT
DROP
TARGET
MIDDLE
DROP
TARGET
RIGHT
*
RIGHT
SLING
ROCKING
GUITAR
LEFT
SLING
LOVE
PUMP
TARGET
LEFT
POP
BUMPER
SPOT
TARGET
SPOT
TARGET
SPOT
TARGET
“A”
“M”
“P”
LEFT
ROLL
OVER
2ND. LEFT
ROLL
OVER
3RD. LEFT
ROLL
OVER
RIGHT
IN
LANE
RIGHT
ROLL
OVER
LEFT
OUT
LANE
LEFT
IN
LANE
POD LOCK
POST
DOWN
MIDDLE
POP
BUMPER
TOP
KICKOUT
HOLE
STAGE
RAMP
UP
STAGE
RAMP
DOWN
RIGHT
POP
BUMPER









*
*
*
*
*
Connected to 5 opto board H-0106
Connected to 8 opto board H-0069
Connected to SW interface board H-0110
Connected to Ramp Control board H-0117
Ball trough optos
Hall Interface H-0114
Pod Control H-0109
TROUGH
BALL 2
TROUGH
BALL 3
TROUGH
BALL 1
SHOOTER
LANE
NOT
USED
NOT
USED
LOWER
RIGHT
PASSIVE
SWITCH
NOT
USED
NOT
USED
LEFT
SPINNER
BALL ON
POD LIFT
PIN 12 PIN 14 PIN 16
RIGHT
SPINNER
POD LIFT
UP POS
ROW 1
WHITE/
BLUE
BLACK BLUE YELLOW GREEN ORANGE
WHITE/
PURPLE
WHITE/
GREEN
WHITE/
RED
WHITE/
YELLOW
WHITE/
BLACK
WHITE/
ORANGE
WHITE
ROW 2
ROW 3
ROW 4
ROW 5
ROW 6
ROW 7
ROW 8
COL 8
COL 7
COL 6
COL 5
COL 4
COL 3
COL 2
COL 1
ROWS
COLUMNS
63 55 47 39 31 23 15 7
62 54 46 38 30 22 14 6
61 53 45 37 29 21 13 5
60 52 44 36 28 20 12 4
59 51 43 35 27 19 11 3
58 50 42 34 26 18 10 2
57 49 41 33 25 17 91
56 48 40 32 24 16 80
SWITCH MATRIX - R EV 1.2
Spinal Tap Pinball (TAP)
February 2022
©
J6
PIN 2
PIN 1
PIN 3
PIN 5
PIN 7
PIN 9
PIN 11
PIN 13
PIN 15
PIN 4 PIN 6 PIN 8 PIN 10
J5
A
B
C
D
E
F
G
H
RIGHT
OUT
LANE
POD LOCK
POST
UP
Connected to SW interface board H-0110 - J2,J3




























STONE
HENGE
OPTO
OPTO
VUK
OPTO
LEFT
RAIL
OPTO
SUBWAY
HOMEPIN TAIWAN COMPANY LIMITED
SUBJECT TO CHANGE
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
NOT
USED
X

TAP LAMP MATRIX – DECEMBER 2021 – REV 1.3
LED CATHODES FACE ROWS, (H-00** indicates lamp board LED is mounted on)
COLUMNS
ROWS
C8
GREY
J3 Pin 1
C7
PURPLE
J3 Pin 2
C6
PINK
J3 Pin 3
C5
YELLOW
J3 Pin 4
C4
GREEN/
WHITE
J3 Pin 5
C3
BLACK/
WHITE
J3 Pin 6
C2
TO J46
C1
TO J46
R1
BLACK
J4 Pin 9
----------------
KEY - PIN 8
56
VOLUME
ONE
H-0118
48
VOLUME
NINE
H-0118
40
BIG
BOTTOM
VIA H-0118
32
D.T.
PRISE
H-0123
24
TOP
SPOT
H-0124
16
UNUSED
8
RESERVED
0
RESERVED
R2
Blue/White
J4 Pin 7
57
VOLUME
TWO
H-0118
49
VOLUME
TEN
H-0118
41
NAPKIN
ARROW
VIA H-0118
33
D.T.
HAMMER
H-0123
25
MIDDLE
SPOT
H-0124
17
UNUSED
9
RESERVED
1
RESERVED
R3
ORANGE
J4 Pin 6
58
VOLUME
THREE
H-0118
50
VOLUME
ELEVEN
H-0118
42
STAGE
ARROW
VIA H-0123
34
D.T.
TORCH
H-0123
26
BOTTOM
SPOT
H-0124
18
UNUSED
10
RESERVED
2
RESERVED
R4
Orange/
White
J4 Pin 5
59
VOLUME
FOUR
H-0118
51
GIG
CANCELLED
H-0120
VIA H-0118
43
S’HENGE
ARROW
VIA H-0123
35
RIGHT
SPINNER
ARROW
H-0124
27
“T”
ROLLOVER
H-0125
19
UNUSED
11
RESERVED
3
RESERVED
R5
GREEN
J4 Pin 4
60
VOLUME
FIVE
H-0118
52
LEFT
OUTLANE
H-0096
VIA H-0118
44
SKILL
SHOT
BOTTOM
VIA H-0123
36
D.T.
SMALL
BREAD
H-0123
28
“A”
ROLLOVER
H-0125
20
UNUSED
12
RESERVED
4
RESERVED
R6
WHITE
J4 Pin 3
61
VOLUME
SIX
H-0118
53
LEFT
INLANE
H-0096
VIA H-0118
45
UNUSED
37
D.T.
HAM
H-0123
29
“P”
ROLLOVER
H-0125
21
UNUSED
13
RESERVED
5
RESERVED
R7
Yellow/
White
J4 Pin 2
62
VOLUME
SEVEN
H-0118
54
RIGHT
OUTLANE
H-0096
VIA H-0118
46
HELL
HOLE
ARROW
VIA H-0123
38
D.T.
TOMATO
H-0123
30
TOP
SKILL
ARROW
VIA H-0125
22
UNUSED
14
RESERVED
6
RESERVED
R8
PURPLE/
WHITE
J4 Pin 1
63
VOLUME
EIGHT
H-0118
55
RIGHT
INLANE
H-0096
VIA H-0118
47
UNUSED
39
UNUSED
31
UNUSED
23
UNUSED
15
RESERVED
7
RESERVED
15

Homepin Taiwan Company Limited
This is Spinal Tap Pinball (TAP)
DC Motors
Exploding Drummer Mechanism 12VDC 30 RPM
Ramp up/down 12VDC 30 RPM
Rocking Guitar 12VDC 3 RPM
Pod Elevator 12VDC 3 RPM
Shaker (proprietary Homepin) 12VDC 2400RPM (unloaded)
Coils
Flipper HP-850/3000 2 x coils
(850T x 0.56mm – 3000T x 0.20mm)
General HP-40-1200 9 x coils*
(1200T x 0.40mm)
Drop Targets Reset HP-1000 large frame
(1000T x 0.57)
Kick Out Hole HP-28-800
Up Post HP-ES-110
Dual windings 12VDC 2A
(450T x 0.61mm + 2000T x 0.15mm)
Solenoid Pod Doors Open
HP-0837B 12VDC 1A - 10mm stroke
Solenoid Pod Push Ball
HP-0530B 6VDC 300ma – 10mm stroke
Solenoid Bell
JF-0530B 12VDC 300ma – 10mm stroke
*ball trough, shooter lane, VUK, knocker, 2 x slings, 3 x pop bumpers
16

17
J16
6 PIN
BLUE - L FLIP IN
YELLOW - R FLIP IN
N/C - +5V NOT USED
GREEN - TILT
ORANGE/WHITE - MENU
GREY - ENTER
X
P1
N/C - LAUNCH (NOT USED)
X
J15
7 PIN
PURPLE - COIN 1
RED/WHITE - START BUTT LED
RED - +5V TO FLIPPER PCBS
PURPLE/WHITE - COIN 2
BLACK/WHITE - START BUTTON
BLACK - GND
P1
ORANGE/WHITE - MENU
GREY - ENTER
WHITE - VOL UP
DOOR 8 PIN
PURPLE - COIN 1
+12V RED COIN MECH
PURPLE/WHITE - COIN 2
GREEN/WHITE - VOL DN
GND BLACK COIN MECH
P1
FIG 8{
WHITE - VOL UP
AUDIO BOARD
VOL 6 PIN
GREEN/WHITE - VOL DN
KEY
P1
TOP
BLUE - TO J16 P1
RED FROM R FLIP - +5V
RED - +5V
BLACK - GND
L FLIP 4 PIN
P1
TOP
TO CAB BUSS PCB
PLUMB BOB
TILT
GREEN - TO J16 P4
BLACK - GND
TO CAB BUSS PCB
YELLOW - TO J16 P2
RED TO L FLIP - +5V
BLACK - GND
R FLIP 4 PIN
P1
TOP
TO CAB BUSS PCB
RED/WHITE - START LED
RED +12V
BLACK/WHITE - START SW
START BUTTON
BLACK - GND
TO CAB 12V BUSS
SMALL SPADE CONN
LARGE SPADE CONN
{
CABINET WIRING CONNECTIONS
HEADBOX
MAIN CABINET
Homepin Taiwan Company Limited
TM
J27 7 PIN
LAUNCH WARN - PINK
FLIPPER MUTE TO BOTH FLIP PCBS - WHITE
KEY
R FLIP IN FROM FLIP PCB - YELLOW
R FLIP OUT DRIVE TO FLIP PCB - YELL/WHT
L FLIP OUT DRIVE TO FLIP PCB - BLUE/WHT
L FLIP IN FROM FLIP PCB - BLUE
P1
TOP

18
PLAYFIELD
FRONT
TAP POP BUMPERS MINI HARNESS
Homepin Taiwan Company Limited
TM
THIS IS
PINBALL
HOMEPIN H-0057
INTERCONECT
HOMEPIN H-0057
INTERCONECT
PLUG
PLUG
WIRE SIDE VIEW
PLUG
WIRE SIDE VIEW
RIGHT
LEFT
MIDDLE
BLUE/WHITE
YELLOW/WHITE
BLACK/WHITE
RED/WHITE
GREEN/WHITE
WIRE SIDE VIEW
TOP OF PLAYFIELD
HOMEPIN H-0057
INTERCONECT
HOMEPIN H-0057
INTERCONECT
SOL 50V P10
WIRING CONNECTIONS TO HARNESS
MIDDLE
POP COIL P2
FROM MIDDLE SOL DRIVER PCB
LEFT
POP COIL P5 RIGHT
POP COIL P4
LED 12V
LED BODY
DOWN
LED UP
LED FLASH
MIDDLE SW
LEFT SW
SW WIRE
COMMON
RIGHT SW
(WHITE)
(GREY)
*
***
*
TO SW INTERFACE H-0110
SW40
SW41
SW42

19
TAP
22 June 2022

20
TAP
22 June 2022
