HomeScenario HSW-120Z User manual

HSW-120Z
Z‐Wave Dual In-Wall Switch
Introduction:
The HomeScenario HSW-120Z is a low-cost Z-Wave Dual In-Wall Switch Module specifically used to enable Z-Wave command and
control two appliances on/off wirelessly. The HSW120 can work with traditional wall panels, such as Panasonic COSMOS ART and
install in a standard enclosure.
The wireless module is powered from the mains supply and is a three-wire design which requires a neutral connection.
In the event of power failure, non-volatile memory retains all programmed information relating to the units operating status.
It also is a repeater in the Z-Wave network. Acting as a bridge for communication, it will forward Z-Wave command messages to their
destinations if the originating controller is out of range from the destination node.
By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave
products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices.
In-Wall Electrical Installation Instructions:
IMPORTANT: A licensed electrician with knowledge and understanding of electrical systems and electrical safety should complete the
electrical installation inside the main circuit box (usually located outside of your house).
IMPORTANT: The electricity to the circuit must be shut off during installation for safety and to ensure that wires are not shortcircuited
during insallation which will cause damage to the Micro Module.
The HomeScenario HSW-120Z must first be powered by a 3-wire system in order to operate. The wiring diagram is as follows:
Z-Wave Network Instructions:
The HSW-120Z must be paired (included) into a Z-Wave network before it can receive Zwave commands to turn on/off. The HSW-120Z
can only communicate to devices within it’s own z-wave network.
Note: The LED on the HSW-120Z will blink if it is currently not paired into a Z-Wave network.
- 1 -

Adding/Including/Pairing the HSW-120Z into a Z-Wave Network
1. Press the “ADD” button (in Advanced Setup) on the HomeScenario HSK-100Z Z-Wave AV Scenario Controller to begin the Z-Wave
inclusion process. (OK LED turns on)
2. Press the “DEVICE” button (in Advanced Setup) on HSK-100Z. (OK LED blinks once and stays on, LED B blinks slowly)
3. While the HSW-120Z is connected into the light, press the button near the LED.
4. HSK-100Z adding the HSW-120Z into a Z-wave network. (OK LED blinks once then turns off, LED B off)
Note: To include the HSW-120Z with other controllers, please consult the operation manual for these controllers on how to include
Zwave products into an existing network.
Troubleshooting: If the HSW-120Z was not successfully included into any Z-Wave network, the LED will be blinking. If the HSW-120Z
was successfully included to a Zwave network, the LED will either be on or off (depending on if the switch is on or off).
Removing/Resetting the HSW-120Z from your Z-Wave Network
1. Press the “CLEAR” button (in Advanced Setup) on the HomeScenario HSK-100Z Z-Wave AV Scenario Controller to begin the Z-
Wave inclusion process. (OK LED turns on)
2. Press the “DEVICE” button (in Advanced Setup) on HSK-100Z. (OK LED blinks once and stays on, LED B blinks slowly)
3. While the HSW-120Z is connected into the light, press the button located between the LED.4. HSK-100Z removing the HSW-120Z
from a Z-wave network. (OK LED blinks once then turns off, LED B off)
Troubleshooting: If the HSW-120Z was removed from the Z-Wave network, the LED will be blinking. If the HSW-120Z was not
successfully removed from the Z-Wave network, the LED will either be on or off (depending on if the switch is on or off).

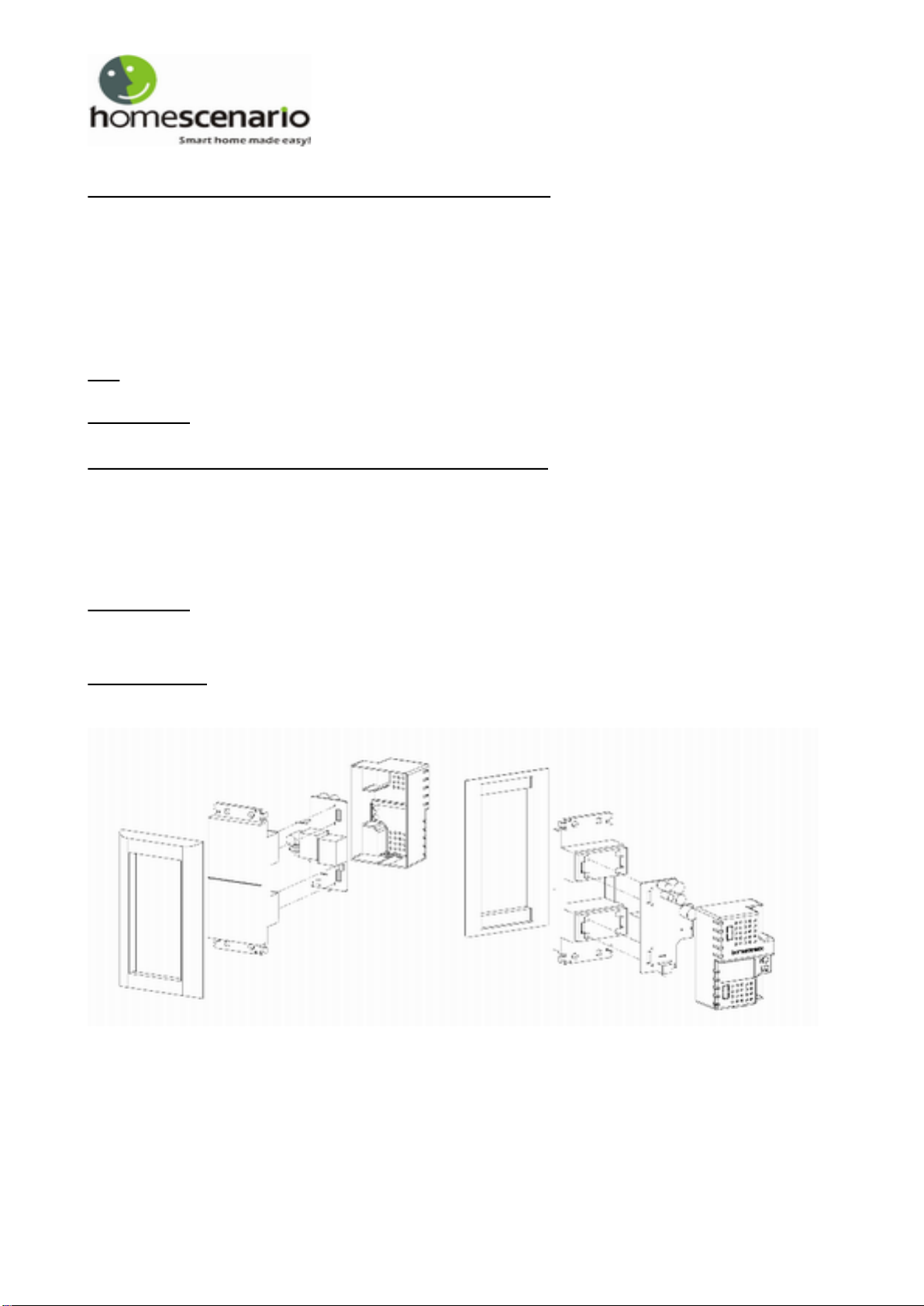

Assembly guide
The four connector in the HSW120 must be installed at the NC/NO side of the Panasonic switch module. The connectors for the light
must be outside the housing of the HSW120.
- 2 -

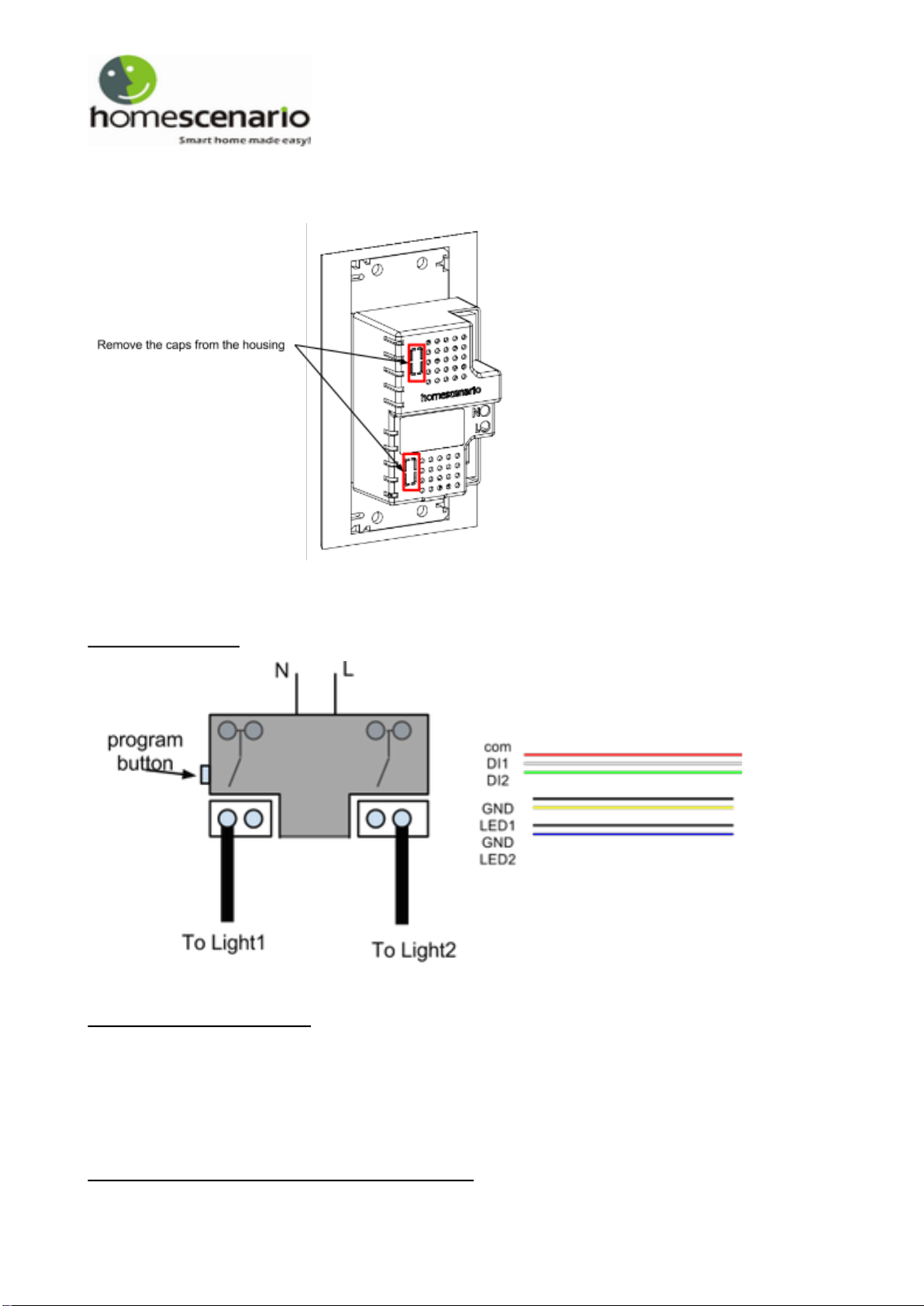

If we want to separate the Panasonic switch module with the HSW120, we need to pear the caps in the below picture from the housing
of the HSW120 and then use a screw driver to release the HSW120 connectors from the switch module.
Connection Diagram
Turning On/Off the HSW-120Z
Use any of the below methods to allow power through or cut power from the HSW-120Z.
●Use the Panasonic Wall panel to control the Light1 and Light 2 on/off.
●Pressing the button on the Wall switch, which is connected to the DI1/DI2 will be able to spin the Light 1, Light 2 on/off.
●Through the usage of Z-Wave commands built into Z-Wave certified controllers and gateways. (The specific Z-Wave commands
supporting this function are the Basic Command Class and Multilevel Switch Command Class.) Please consult the operation
manual for these. controllers for specific instructions on controlling the HSW-120Z.
Change Mode on the External Switch/Button Control
- 3 -

The HomeScenario HSW-120Z by default is set to be controlled via 2-state (flip/flop) external wall switch. Pushing the button for 3
seconds the HSW-120Z will swap between the following modes.
● On/Off mode: when LED blink twice
● Toggle mode: when LED blink for times
● AC toggle mode: when LED blink 6 times
Typically, the HSW-120 should use AC toggle mode, which can work with traditional three way wall panel, such as Panasonic COSMOS
ART.
Technical Specifications
●USA: 110V 60Hz input, 1000W or 10A max output
●EU/AU: 230V 50Hz input, 2000W or 10A max output
Warranty
HomeScenario warrants to the original purchaser of Products that for the Warranty Period (as defined below), the Products will be
free from material defects in materials and workmanship. The foregoing warranty is subject to the proper installation, operation and
maintenance of the Products in accordance with installation instructions and the operating manual supplied to Customer. Warranty
claims must be made by Customer in writing within thirty (30) days of the manifestation of a problem. HomeScenario' sole obligation
under the foregoing warranty is, at HomeScenario' option, to repair, replace or correct any such defect that was present at the time
of delivery, or to remove the Products and to refund the purchase price to Customer. The "Warranty Period" begins on the date the
Products is delivered and continues for 12 months. Any repairs under this warranty must be conducted by an authorized HomeScenario
service representative and under HomeScenario’ RMA policy. Any repairs conducted by unauthorized persons shall void this warranty.
Excluded from the warranty are problems due to accidents, acts of God, civil or military authority, civil disturbance, war, strikes, fires,
other catastrophes, misuse, misapplication, storage damage, negligence, electrical power problems, or modification to the Products or
its components.
HomeScenario does not authorize any person or party to assume or create for it any other obligation or liability in connection with
the Products except as set forth herein. HomeScenario will pass on to Customer all manufacturers’ Material warranties to the extent
that they are transferable, but will not independently warrant any Material. Customer must prepay shipping and transportation
charges for returned Products, and insure the shipment or accept the risk of loss or damage during such shipment and transportation.
HomeScenario will ship the repaired or replacement products to Customer freight prepaid. Customer shall indemnify, defend, and hold
HomeScenario and
HomeScenario’ affiliates, shareholders, directors, officers, employees, contractors, agents and other representatives harmless from all
demands, claims, actions, causes of action, proceedings, suits, assessments, losses, damages, liabilities, settlements, judgments, fines,
penalties, interest, costs and expenses (including fees and disbursements of counsel) of every kind (i) based upon personal injury or
death or injury to property to the extent any of the foregoing is proximately caused either by a defective product (including strict liability
in tort) or by the negligent or willful acts or omissions of Customer or its officers, employees, subcontractors or agents, and/or (ii) arising
from or relating to any actual or alleged infringement or misappropriation of any patent, trademark, mask work, copyright, trade secret
or any actual or alleged violation of any other intellectual property rights arising from or in connection with the products, except to the
extent that such infringement exists as a result of HomeScenario‘ manufacturing processes.
IN NO EVENT SHALL HOMESCENARIO BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR
CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR ANY
THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT, OR TORT, OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. HOMESCENARIO’ LIABILITY AND CUSTOMER’S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION
ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON
NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS
EXPRESSLY LIMITED TO, AT HOMESCENARIO’ OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE
FOR THAT PORTION OF PRODUCTS WITH RESPECT TO WHICH DAMAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND
ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED
UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM HOMESCENARIO’S DELIVERY, OR THE DATE FIXED FOR
DELIVERY IN THE EVENT OF NONDELIVERY.
THE INDEMNITY AND WARRANTY IN ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER INDEMNITIES OR WARRANTIES,
WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
FCC NOTICE (for USA):
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
- 4 -

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. This equipment
has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for
information regarding the collection systems available.
