HomeSpot HS-BTADP-236LL-BUN128D-UL User manual

The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks
by HomeSpot is under license.
Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other
countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the
United States and other countries.

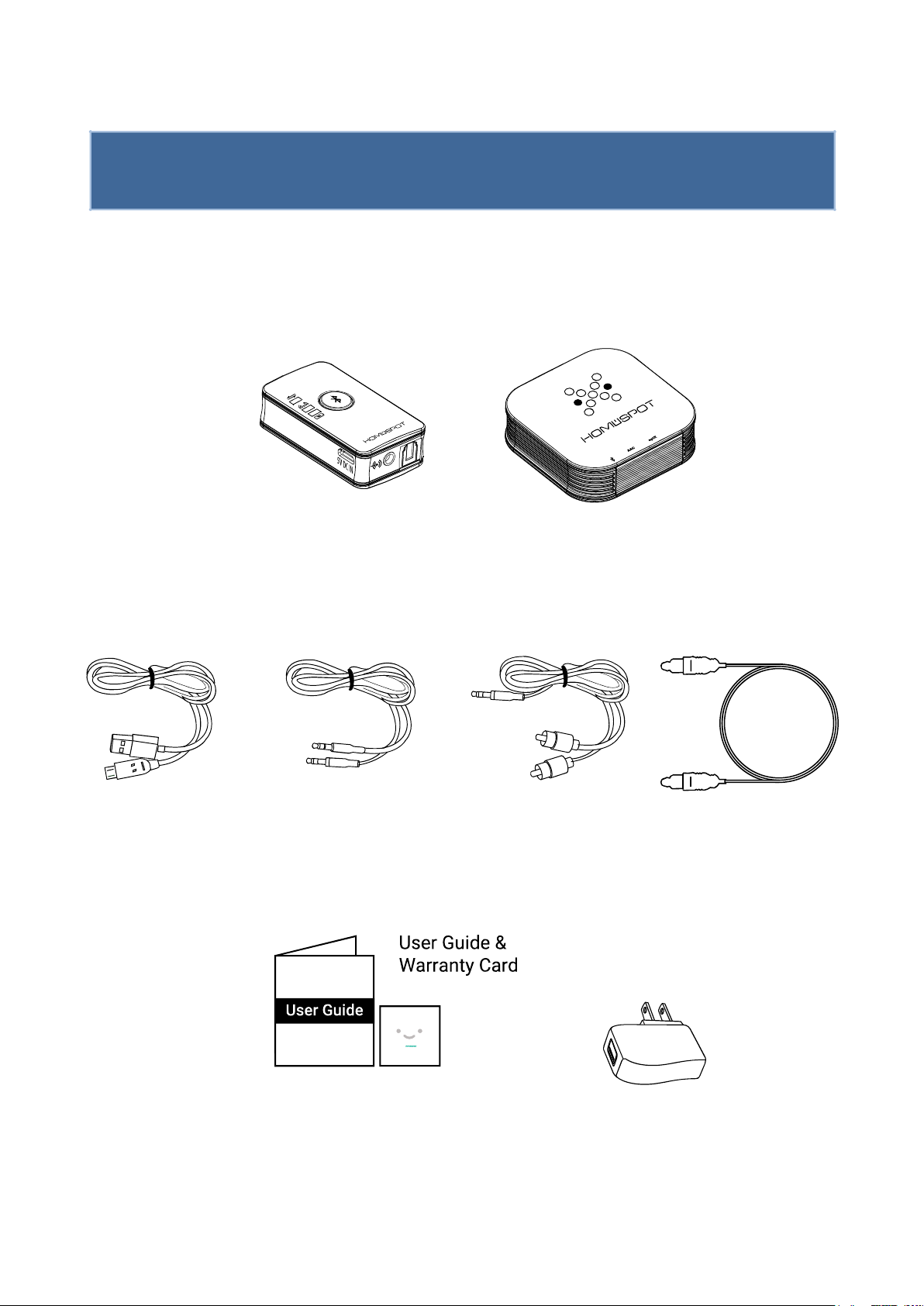

Pre-paired Bluetooth Adapter Set
Bluetooth Receiver + Bluetooth Transmitter
with aptX™ Audio

Micro USB Cable
x 2
3.5mm Aux Cable
x 2
RCA Audio Cable
x 2
Bluetooth ReceiverBluetooth Transmitter
Optical TOSLINK Cable
x 1
Power Adapter
x 1
PACKAGE CONTENTS
P.1

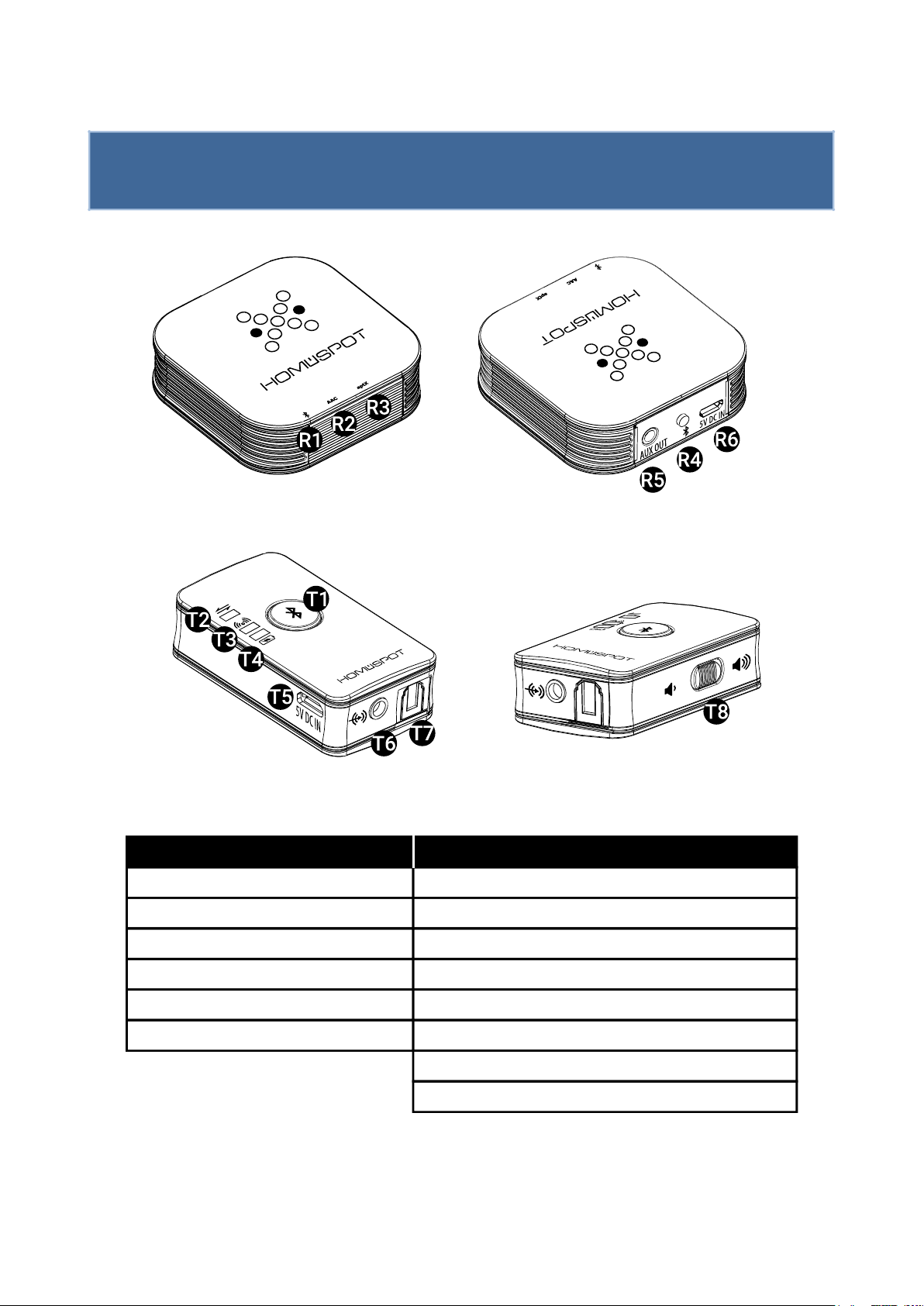

Bluetooth Receiver
R1) Bluetooth Indicator
R2) AAC Indicator
R3) aptX / aptX LL Indicator
R4) Pairing / Reconnect Button
R5) 3.5mm Audio Output
R6) micro USB Power Port
Bluetooth Transmitter
T1) Multifunction Button
T2) Pairing Indicator
T3) Dual Stream Indicator
T4) Battery Indicator
T5) micro USB Charging Port
T6) 3.5mm Audio Input
T7) Digital TOSLINK Optical Audio Input
T8) High / Low Volume Switch
PRODUCT OVERVIEW
P.2

The Bluetooth Adapter Set supports the following streaming codec:
SBC Mode
(R1)
AAC Mode
(R1) Bluetooth Indicator &
(R2) AAC lndicator on
aptX / aptX Low Latency Mode
(R1) Bluetooth Indicator &
(R3) aptX Indicator on
(T2) Pairing Indicator on
(T2) Pairing Indicator on
(T2) Pairing Indicator on
P.3
Qualcomm aptX Audio
Bluetooth Indicator on

The Bluetooth Receiver and Transmitter are pre-paired to each other
as part of the manufacturing process. Both devices can immediately
auto-connect to each other upon intial power up.
INPUT
SETTING UP
P.4

1.
2.
3.
4.
5.
6.
7.

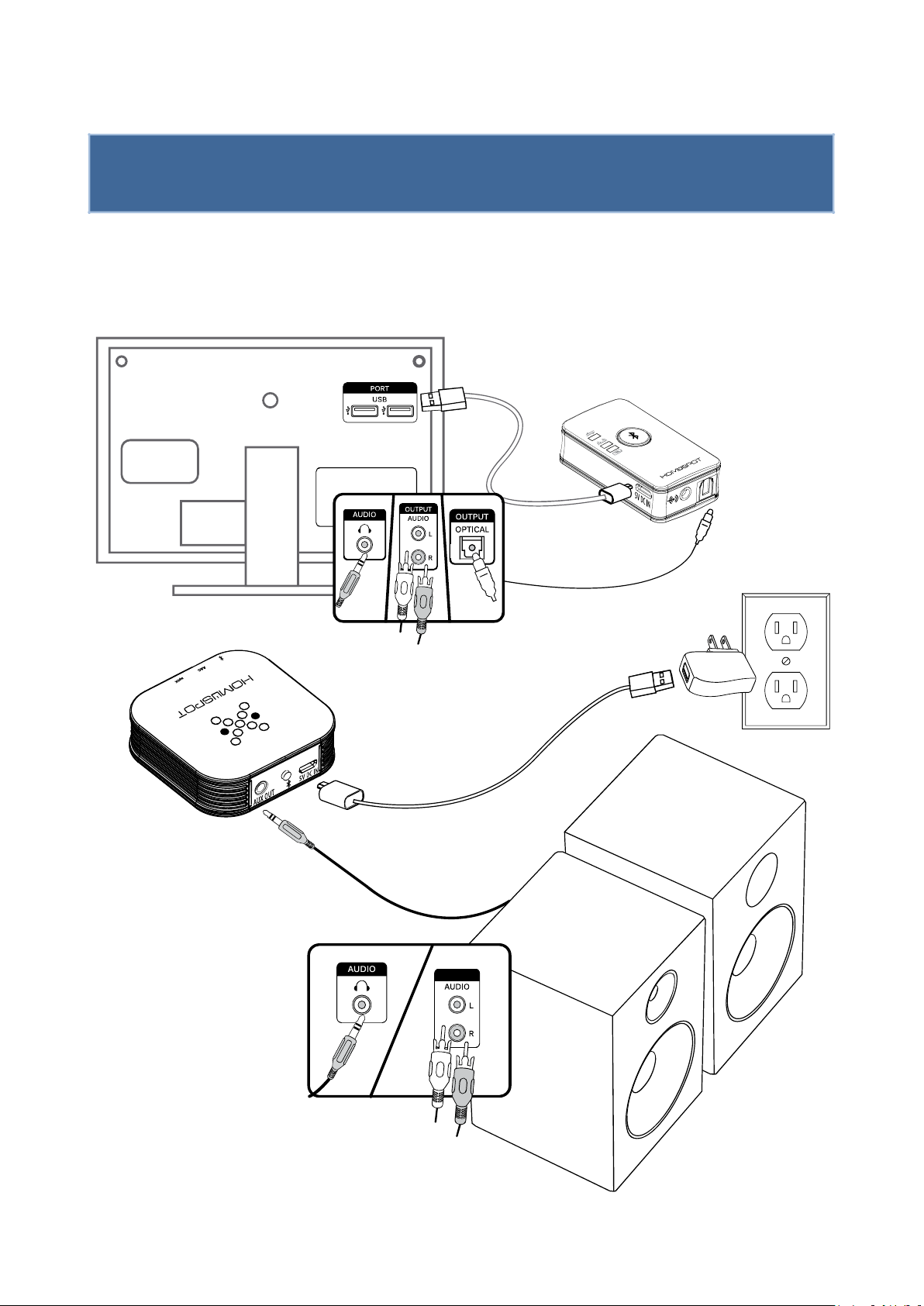

Connect the Bluetooth Transmitter to the audio source (TV, DVD
etc) with the 3.5mm, RCA or Optical TOSLINK audio cable.
Connect the Bluetooth Receiver to the audio input of your audio
system with the 3.5mm or RCA audio cable. Consult your audio /
video system user manual for more information on how to
accomplish this.
Connect the Bluetooth Receiver and Bluetooth Transmitter to
power source.
The Bluetooth Transmitter accepts only digital audio input in
uncompressed stereo PCM format. The default digital audio
output of most TVs are PCM. However, in some cases, you may
need to change the digital audio output setting of your TV, DVD,
or set-top box to PCM format.
For some TVs, you may need to turn on the Internal Mute (the
built-in TV speakers) to send audio to the digital and/or analog
RCA audio output jacks on the side panel.
Some TVs do not send audio to the digital audio output in certain
circumstances, e.g. if the input source is HDMI, or if the video
content is not in digital format. In such cases, use the analog RCA
audio connection on the TV side panel.
For PS3 game consoles, select only [Linear PCM 2 Ch. 44.1kHz]
and [Linear PCM 2 Ch. 48kHz] (deselect all others) output format
in the audio settings. If you connect the Transmitter directly to
the optical output of the PS3, set the Audio Multi-Output to ON.
For more information, check out
http://manuals.playstation.net/document/en/ps3/current/setting
s/audiooutput.html
P.5

1.
2.
3.
The Bluetooth Receiver and Bluetooth Transmitter is pre-paired to
each other at factory level. Both devices can immediately auto-
connect to each other upon intial power up.
Once powered on, 1 low tone will be played. The Bluetooth
Receiver Indicators (R1) and (R3) will be turned on.
The Bluetooth Transmitter is ready to stream aptX Low Latency
audio to the Bluetooth Receiver, which in turn will output audio to
the connected sound system.
Upon powering up, the Bluetooth Adapter set will try to reconnect to
each other.
If reconnection fails, the Bluetooth Receiver will enter standby mode,
the (R1) indicator will blink slowly. Press once the (R4) Pairing
Button to switch the Bluetooth Receiver into Pairing Mode.
When the Bluetooth Transmitter is in standby mode (i.e. when (T2)
blinks in Blue every 3 seconds) or in OFF mode, press (T1) and the
Transmitter will automatically re-connect to the last connected
device, once it is paired and connected with the Receiver, (T2)
Pairing Indicator will be turned on.
START STREAMING
AUTO-RECONNECT
P.6

Resetting your Bluetooth Adapter set will clear all pairing records.
Bluetooth Receiver Factory Reset
1.
2.
3.
4.
5.

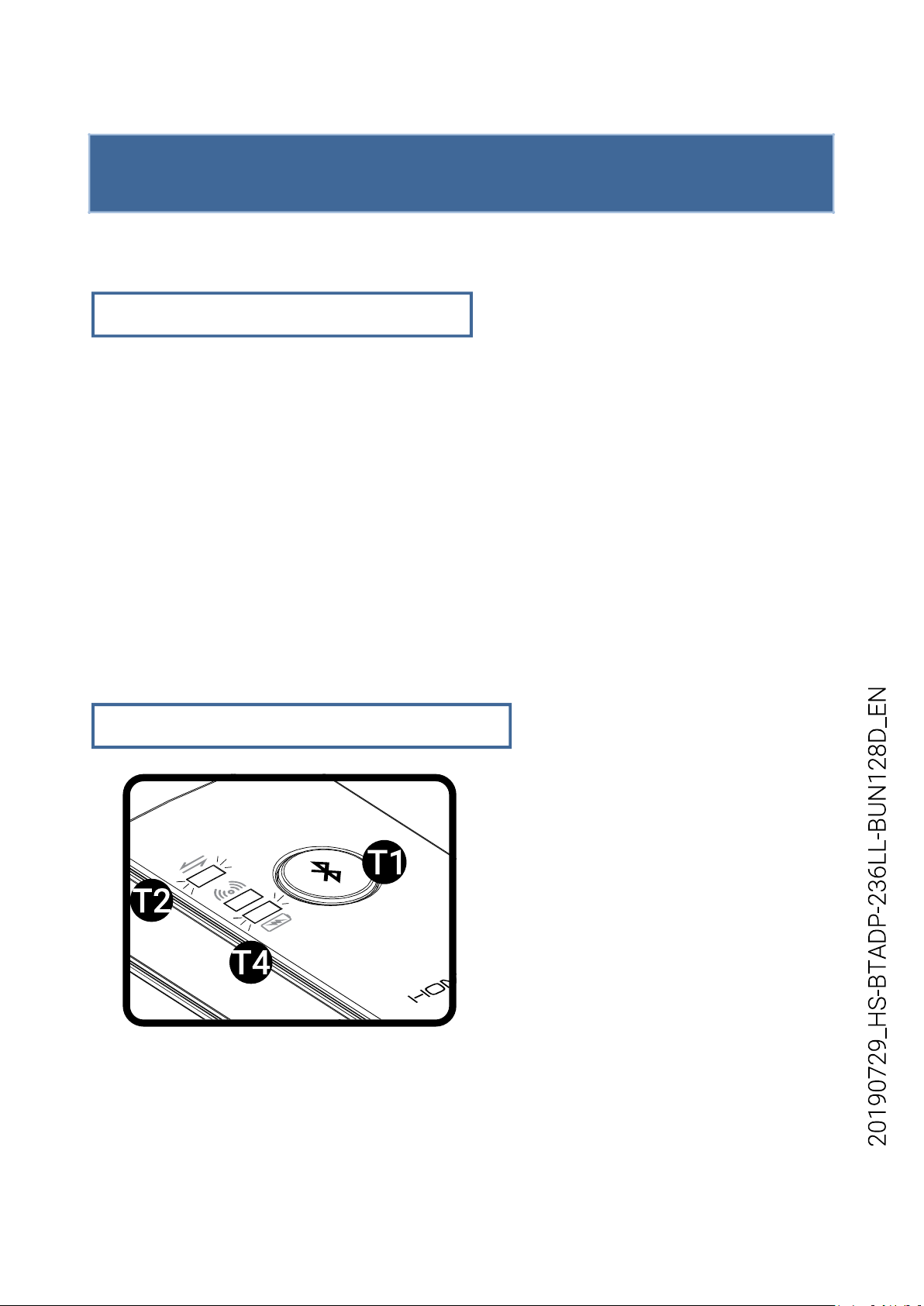

Bluetooth Transmitter Factory Reset
1.
2.
Power on the Bluetooth Receiver.
Disconnect all connections with mobile devices.
Press and hold the (R4) Pairing Button for 3 seconds until the “Reset
Successful” voice prompt is heard.
Remove power connection.Remove power connection.
Press and hold the (T1) Multifuction button for 10 seconds until
(T2) Indicator blinks in blue for 3 times. The unit will then enter
pairing mode (T2) & (T4) will blink alternately, and all previously
paired records will be deleted from memory.
Power off the Bluetooth
Transmitter
Press and hold the (T1)
Multifunction Button for 3
seconds until the LED goes off.
FACTORY RESET
P.7
All pairing records will be cleared from memory, and the Bluetooth
Receiver will enter into Pairing Mode when power-up again.

Bluetooth Receiver Pairing Steps
1.
2.
3.
4.
5.
6.
Bluetooth Transmitter Pairing Steps
1.
2.
3.
4.
The Bluetooth Receiver will enter into Pairing Mode after factory
reset.
The (R1) & (R2) Indicators will flash alternately.
Activate the Bluetooth function on your Bluetooth A2DP-enabled
mobile device. Search for “HomeSpot aptX BTR XX” and select to
pair.
Note: “XX” refers to a 2 digits identifiers.
Once paired and connected, 1 low tone will be played. The (R1)
Indicator will be turned on.
The Bluetooth Receiver is then ready to receive audio stream
from your mobile device.
Power on your Bluetooth audio receiving device / Bluetooth
Receiver and set it to pairing mode.
On the first use, once powered on, the Bluetooth Transmitter will
be in pairing mode. (T2) and (T4) Indicators will alternate blink
rapidly.
The Bluetooth Transmitter will automatically search for, and
connect to, the closest Bluetooth audio receiving device in pairing
mode.
If the pairing is successful and a connection is made, (T2)
Pairing Indicator will be turned on.
PAIRING
P.8
If your device supports AAC, the (R2) Indicator will be on during
audio streaming. If your device supports aptX or aptX Low Latency,
the (R3) Indicator will be on during audio streaming.

The High / Low Volume on the Bluetooth Transmitter can be used to
adjust the volume of the audio transmission.
1.
2.
3.
Always try to adjust the volume from the audio / video system.
Adjust the volume level on your Bluetooth audio receiving
device(s).
If the volume output is still too high, too low, or if you notice
audible distortion, switch (T8) to your desired level.
The HomeSpot Bluetooth Receiver and Transmitter has other
advanced features like Mutliple Connection and Dual Streaming.
For details, please refer to our online products manual.
http://www.homespotdigital.com/support-download/
HIGH / LOW VOLUME BUTTON
ADVANCED FEATURES
P.9

TRANSMITTER LED INDICATORS
P.10

TRANSMITTER LED INDICATORS
P.11

P.12
Status
LED Indications
Re-connection Mode
(R1) blinks in Blue slowly.
SBC Device Connected
(R1) steady in Blue
AAC Device Connected
(R1) & (R2) steady in
Blue & Green
(R1) & (R3) steady in
Blue & Yellow
Pairing Mode
Blinks in blue
Blinks in Green
Blinks slowly in blue
Remains steady in Blue
Remains steady in Blue
Remains steady in Green
Remains steady in Blue
Remains steady
in Yellow
RECEIVER LED INDICATORS
(R1) & (R2) blink in
Blue and Green alternately.
aptX / aptX LL Device
Connected

1.
2.
3.
4.
5.
6.
7.
Place the Bluetooth Transmitter within 1 meter of the Bluetooth
Receiver / receiving devices during the pairing process.
The pairing mode will last for 2 minutes. If no devices can be
Switch off the Bluetooth Transmitter and repeat the pairing steps
if it fails to pair.
The Bluetooth Transmitter will save up to 2 device pairing
records, and only those 2 previously paired devices will be
automatically re-connected when the Bluetooth Transmitter is
powered on.
When a third device is paired, the first device pairing record will
be removed.
The internal antenna of the Bluetooth Transmitter has been
fine-tuned to provide a wide operating range. When the product is
properly placed with an uninterrupted line of sight and there is no
radio interference, it can typically achieve a transmission range of
10-20m.
Do not surround the Bluetooth Transmitter with metallic objects
or put it behind any electronic appliances. Doing so will severely
reduce the transmission performance. Please ensure that there
are no obstacles (walls, corners, partitions etc.) between the
Bluetooth Transmitter and the Bluetooth Receiver / receiving
devices.
NOTES
connected within 2 minutes, the Bluetooth Transmitter will enter
standby mode, and (T2) will blink in Blue every 3 seconds.
