Model No.：HSC600184
USER MANUAL
Smart Security Light
Before using the product, please read the guide carefully to avoid
any damages to the product in virtue of faulty operation or misuse.
ID QR code

-1-
Complete Home Monitoring
HOMSCAM has you covered, whether it’s the front door, backyard, or side
entrance of your home, we can keep it secure. With a live HD video feed,
advanced activity alerts, and cloud recordings, HOMSCAM Smart Security
helps you keep an eye on what matters to you most, day and night.
● The security device includes talkback function,HD live recorded video,alarm,
and smart motion detection alerts to your smartphone and more. App supports
10 languages.
● Easy 15 minute installation with no batteries to replace so you have continuous
protection around the clock.
● Be protected at all times-Access HD live video with 1080P 110°wide angle
camera, equipped with rated CMOS, come with better NIGHT VISION effect.
100dB alarm siren, smart light control.
● Use the bandwidth 300M, built-in dual antenna WiFi module and RJ45 interface,
to ensure that the signal stronger, transmission distance farther, more smooth
video.
● 110V-240V Energy efficient continuous power supply. 2*6W LED lamp included.
IPX4 class waterproof.
Home security is now in your hands literally
Your home is the most important place in the world. With HOMSCAM,
experience the complete peace of mind that comes with your ability to
monitor and control everything from your phone.
● Aluminum alloy light box, will not worry about wind,sun and rain, causing
aging and cracking.
● Works with Amazon Alexa! Alexa can be used to control the light’s switch at
any time.
● CE,FCC,ROSH,ETL certification.

-2-
FCC/CE Certification Information
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
●This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
European Union (EU) The operated frequency is 2.4G~2.4835G with B/G/N20/N40.
The Maximum Permissible Exposure (MPE) level has been calculated based on a
distance of d=20 cm between the device and the human body. To maintain compliance
with RF exposure requirement, use product that maintain a 20cm distance between the
device and human body. Hereby, we declares that this device is in compliance with the
essential requirements and other relevant provisions of Directive 2014/53/EU.
Notice: Observe the national local regulations in the location where the device Is to be
used. This device may be restricted for use in some or all member states of the

-3-
Safety Instructions
We formulate this instruction in order to ensure users could use the product correctly
to avoid dangerous and property losses.
Be care with fire or shock hazard. You should know the electrical system of lamps
when you are going to install it. If you are not familiar with it, please do not try to
install. Please ask the professional electrician to install it.
Please cut the fuses of your power supplies or breakers off.
To avoid electric shocks, please do not disassemble the product.
To avoid damage or wear of circuit, please do not expose the wire at the edge of metal
plates or other sharp objects.
This product applies to 120V/60Hz AC voltage bulb. The maximum wattage of bulb is
15W. (US Standard)
This product applies to 240V/50Hz AC voltage bulb. The maximum wattage of bulb is
13. (European Standard)
US standard Part drawing
Lamp x1 Hook x1 Holder x1 Bulb x2
Four-bladed
Vane x1
Round-headed
screw x2
Terminal cap x3 Crown shaped
nuts x2

-4-
1.Power off. 2.Install four-bladed vane to the junction box.
3.Adjust the cross plate to keep it
horizontal and lock the round-head
screw.
4.Use the holder to adjust the length
of the round head screw on the
four-bladed vane.
5.Use one head of the hook to hock
the lamp, the other head fixed
on the four-bladed Vane.
6.Connect the corresponding wires and
bare copper wires with a terminal
cap. Make sure that the wire cap is
screwed
US standard Installation drawings

-5-
10.Debugging.
7.Adjust the position of the overall
lamp by adjusting the round head
screw through the cross panel，
tighten up Crown shaped nuts.
8.Install the bulb.
9.Power on.

-6-
2.Select 2 symmetrical points in the U-shaped
groove of the eight diagram board.
( in the dotted line)
4.Install the eight diagram board, use
one head of the hook to hock the lamp,
the other head fixed on the eight diagram
board.
Overall lamp x1 Bulb x2 Hook x1 The eight diagram
board x1
Nuts x2
Self tapping
screw x2
Expansion
tube x2
Crown shaped
nuts x2
Terminals x1 Round head
screw x2
Installation diagram according
to the European standard
European standard Part drawing
1.Power off.
3.Drill holes, then bury the
expansion pipe.(please note
the depth of the hole must be
longer than the length of the
expansion pipe)

-7-
8.Power on.
9.Debugging.
5.Connect the corresponding
wires and bare copper wires
with terminals.
6.The overall lamp goes through
the round head screw on
Four-bladed Vane,then screw
the crown nut.
7.Install the bulb.

-8-
Step3:Tighten the Round head
screws and nuts to the eight
diagram board from both
sides as close as possible.
Installation diagram of the eight diagram
board according to European standard
Step1: Round Screws pass
through these two holes.
Round Screws pass
through these two holes.
Step2: Screw two nuts onto the
corresponding two screws.

Mailbox
Input password
Log in
Register Remember password
Forget password
Quick register
Please enter the account
email
Input password
Input password once again
Register
Get verificati on
code
please enter a verification code from
mailbox(case sensitive)
password fromat:between 8 and 16 characters in length,
numbers,capital letters,lowercase letters at least two types
have to included
I have read and agree to the user agreement
-9-
Step1: Download and install “Homsca Light” app from APP Store or Google Play.
Step2: Click”Homsca Light” app, then open it (like the picture 1).
Step3: Click “Register” (like the picture 2),”Register soon”(like the picture 3).
Step4: After registered successfully, inputting the email address and password
to login (like the picture 2)
3:50 PM3:50 PM
Add via WiFi (Scan the code to add)
Step1: Click “Add Camera” (like the picture 1).
Step2: Click ”Scan the QR code to add”(like the picture 2).
Step3: Set WiFi, inputting password(like the picture 3).
Step4: Please press the "SET" button 1 second with a pin and then you will hear the
sound like "di.." . Tap QR code symbol(like the picture 4).
Step5: Put the QR code to the camera with the distance of 10-20cm. If scanned
successfully, you will hear the voice prompts like "didi" (like the picture 5).
Step6: Click “I heard” (like the picture 6).
Step7: When the LED light turns to green, meaning it has connected successfully
(like the picture 7).
Step8: After connected successfully, entering the device list (like the picture 8).
APP Install and Register
Add device to APP

camera
bedroom
Click “Add Camera” Click ”Scan the QR code to add” Set WiFi, inputting password
camera
bedroom
Tap QR code symbol Scan with APP QR code in alignment
with the camera
Click “I heard ”
When the LED light turns to
green, meaning it has
connected successfully
After connected successfully,
entering the device list
-10-

-11-
Wireless add (Add via WiFi)
Step1: Click “Add Camera” (like the picture 1).
Step2: Click ”Add via WiFi”(like the picture 2).
Step3: Set WiFi, inputting password (like the picture 3).
Step4: Please press the "SET" button 1 second with a pin and then you will hear the
sound like "di.." . Tap QR code symbol (like the picture 4).
Step5: Please scan QR code on the side interface of the equipment body (like the
picture 5).
Step6: Input password and then click confirm, APP will search device automatically
until connected successfully (like the picture 6).
Step7: After connected successfully, entering the device list (like the picture 7).
please scan QR code on the side interface of the equi...
camera
bedroom
Click “Add Camera” Click ”Add via WiFi” Set WiFi, inputting password
Tap QR code symbol Please scan QR code on the side
interface of the equipment body
Input password and then click confirm,
APP will search device automatically
until connected successfully

-12-
Cable add
Step1: Click “Add Camera” (like the picture 1).
Step2: Click ”Cable add”(like the picture 2).
Step3: Tap QR code symbol (like the picture 3).
Step4: Please scan QR code on the side interface of the equipment body
(like the picture 4).
Step5: Input password and then click confirm, APP will search device automatically
until connected successfully (like the picture 5).
Step6: After connected successfully, entering the device list (like the picture 6)
camera
bedroom
Click “Add Camera” Click ”Cable add” Tap QR code symbol
camera
bedroom
After connected successfully,
entering the device list

-13-
please scan QR code on the side interface of the equi...
camera
bedroo m
Please scan QR code on the side
interface of the equipment body
Input password and then click confirm,
APP will search device automatically
until connected successfully
After connected successfully,
entering the device list

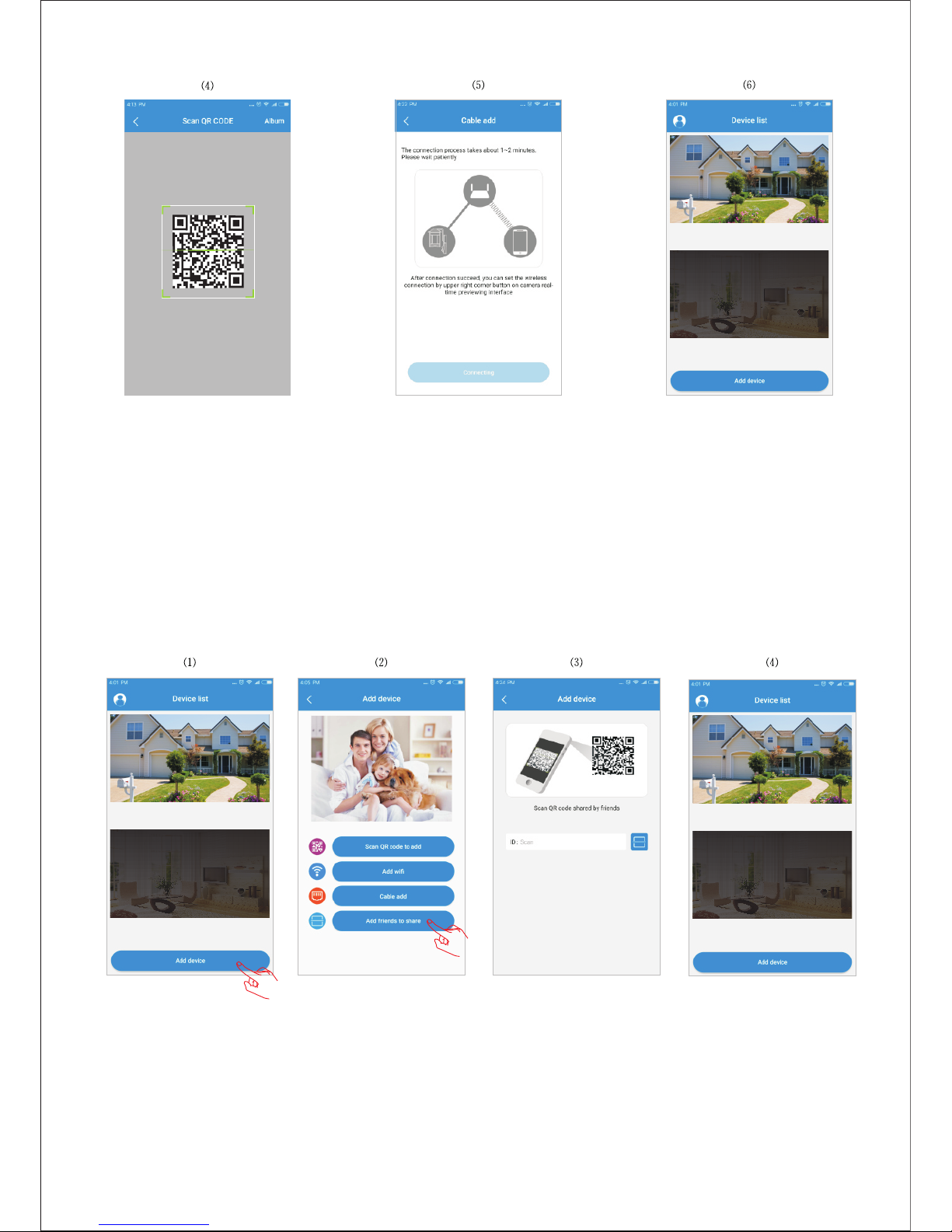

Wireless add (share with friends)
Step 1: Click “ Add camera” (like the picture 1).
Step 2: Click “ Share with friends” (like the picture 2).
Step 3: Scanning the QR code from your friend ( like the picture 3).
Step 4: You will be able to access to device lists when you connected successfully
(like the picture 4).
camera
bedroom
Click “ Add camera” Click “ Share with friends” Scanning the QR code from
your friend
camera
bedroom
You will be able to access to
device lists when you
connected successfully

-14-
Step 1: Logging in APP, click connected device, you will access to real-time
previewing interface. Click “ ” button to access to setting interface(like the picture 1).
Step 2: Choosing “delete devices” at the setting interface (like the picture 2).
(At this time, the digital safety lamp will be on, and you will hear music. The led
light will turn red and flash).
Step 3: Devices deleted successfully.
Please press the "SET" button 5 seconds at the bottom of the smart safety light with the
needle and then the smart safety light will turn on, you will hear music on, The led light
will turn red and flash. Resetting succeed.
WiFi Settings
Device Information
Delete Device
Living Room
Speak
Sound Snap shot
201 7/04 /21 13: 00
31°C
（Fig. 2）（Fig. 1）
Tab this icon to enter settings page
Tap “Delete Device” in device information list
No Service 11:50
Please read this guidance carefully and have a reference when using this device.
Follow the user guidance to operate the item, please handle carefully.
Please use the product only in the provisions of the humidity environment and the
provisions of the voltage under the conditions of use.
Do not disassemble the product.
Do not put the product camera against the sun or other strong light.
It may be necessary to periodically clean the product surface. Use only wet cloth
when cleaning, do not use corrosive cleaners or aerosols.
Device unbundled (Delete device)
Device resetting ( Restore factory settings)
Safety warning
iOS
Download Homsca Light
Android
Download Homsca Light
