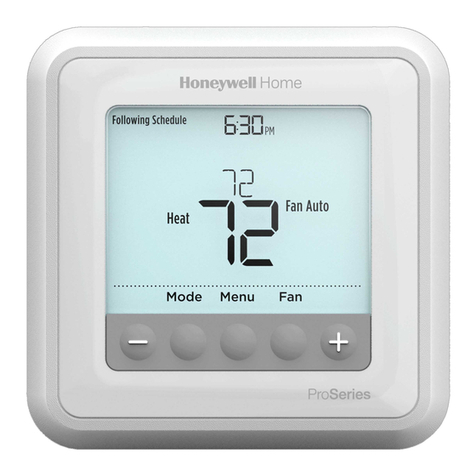

Honeywell Home T6 Pro Series User manual

Honeywell Home

Honeywell Home T6 Pro Series User manual

Honeywell Home T410A User manual

Honeywell Home

Honeywell Home T410A User manual

Honeywell Home TF228WN User manual

Honeywell Home

Honeywell Home TF228WN User manual

Honeywell Home RTH5160 Series User manual

Honeywell Home

Honeywell Home RTH5160 Series User manual

Honeywell Home RTH9585WF1004 User manual

Honeywell Home

Honeywell Home RTH9585WF1004 User manual

Honeywell Home TL7235A User manual

Honeywell Home

Honeywell Home TL7235A User manual

Honeywell Home RTH7460D1018 User manual

Honeywell Home

Honeywell Home RTH7460D1018 User manual

Honeywell Home TL8130A1005 User manual

Honeywell Home

Honeywell Home TL8130A1005 User manual

Honeywell Home HZ311 TrueZONE User manual

Honeywell Home

Honeywell Home HZ311 TrueZONE User manual

Honeywell Home T3 User manual

Honeywell Home

Honeywell Home T3 User manual

Honeywell Home TH7000 Series User manual

Honeywell Home

Honeywell Home TH7000 Series User manual

Honeywell Home TB7100A1000 MultiPRO User manual

Honeywell Home

Honeywell Home TB7100A1000 MultiPRO User manual

Popular Thermostat manuals by other brands

Full Gauge TIC-17C product manual

Full Gauge

Full Gauge TIC-17C product manual

Imit Chronomix S manual

Imit

Imit Chronomix S manual

ChiliTec ST-35 ana instruction manual

ChiliTec

ChiliTec ST-35 ana instruction manual

Salus VS05 Installer's/user's manual

Salus

Salus VS05 Installer's/user's manual

Azel D-500 user guide

Azel

Azel D-500 user guide

Honeywell Chronotherm III owner's manual

Honeywell

Honeywell Chronotherm III owner's manual

Charmeg MP-R user manual

Charmeg

Charmeg MP-R user manual

dixell WING XW40LS Installing and operating instructions

dixell

dixell WING XW40LS Installing and operating instructions

Network Thermostat NetX X7C-WIFI Installation and programming manual

Network Thermostat

Network Thermostat NetX X7C-WIFI Installation and programming manual

Radio Thermostat CT80 Operation guide

Radio Thermostat

Radio Thermostat CT80 Operation guide

HAI Omnistat RC-120 installation manual

HAI

HAI Omnistat RC-120 installation manual

Lennox iComfort E30 Installation and setup guide

Lennox

Lennox iComfort E30 Installation and setup guide

Lux Products PSD011Ba Installation and operating instructions

Lux Products

Lux Products PSD011Ba Installation and operating instructions

Computherm Q20 operating instructions

Computherm

Computherm Q20 operating instructions

Heatmiser neoStat user manual

Heatmiser

Heatmiser neoStat user manual

Mars HEAT CONTROLLER IR Wireless Thermostat user manual

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat user manual

LUX LP0511D user manual

LUX

LUX LP0511D user manual

Saswell SAS920XWHB-7-S-RF User manual and warranty card

Saswell

Saswell SAS920XWHB-7-S-RF User manual and warranty card

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Complete
installation
5
Prepare Receiver Box
for installation
2Install the
Receiver Box
3
B) Surface wiring
C) Replace the cover
min 0.25mm2
max 1.5mm2
Needed during installation:
Cable with 2 wires from the boiler to Receiver Box.
The Receiver Box requires 230V power
Before installation of the
Receiver Box
Find a suitable location near
to the boiler. Leave at least
30cm distance from any
metal objects including
wallboxes and boiler
housing.
Loosen the front
screw to remove
cover or tighten it
when the cover is
back in place.
Max 6 mm
Please refer to the wiring
diagrams over the page
32308181-020 B
After
powering up both
devices the green
LED is on.
Turn ON mains power to the Heating Appliance and Receiver Box.
Push the buttons to
check if the boiler
switches on.
Buttons light green.
After power up,
SETUP is displayed on
the thermostat screen.
To rebind the units, reset the Receiver box, then press the button for 3 seconds.
The LED on the receiver box will blink yellow to indicate the box is in binding
mode. On the thermostat press for 5 seconds to enter the advanced menu.
Navigate to Binding, clear the current binding then bind the device again.
Reset
A) Wall box or Rear Wiring
Hinge open the terminal block flap
to access the cables and wall box
screw holes.
Use the cable clamps to secure the
surface wiring.
Locate the
hinges at the top
of the cover and
wall plate, close
the cover and
secure with the
screw.
Turn OFF the power
and remove the old thermostat
1
To ensure your safety, always make sure mains power is switched OFF before
accessing wiring.
In case of removing the old thermostat be aware that the existing wiring will
no longer be used.
The T6R-HW thermostat should not be placed near draughts, in direct
sunlight or near heat sources.
WEEE Directive 2012/19/EC
Waste Electrical and Electronic Equipment directive
At the end of the product life dispose of the packaging and product in a
corresponding recycling centre. Do not dispose of the unit with the usual
domestic refuse. Do not burn the product.
Must be installed by a competent person!
Read these instructions carefully. Failure to follow these instructions
can damage the product or cause a hazardous condition.
Compatible with Sundial Y- and S-plan stored hot water
systems with zone valves. Also compatible with 24-230V
on/off appliances such as gas boilers, combi-boilers and
heat pump.
Need help? For assistance please visit: getconnected.honeywellhome.com
200 Berkshire Place
Winnersh Triangle
Berkshire RG41 5RD
Phone: 0300 130 1299
Approvals
Hereby, Pittway Sarl declares that the radio equipment type T6H700RW is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address: https://hwllhome.co/DoC
RF (868MHz): Receiver Category 2, Max RF Power 25mW, 868–868.6MHz (868.3MHz)
Wi-Fi (2.4GHz): Max Power 100mW, 2.4–2.458GHz
ErP: Class V (+3%), (EU) 811/2013
Install the
T6RHW thermostat
4
Choose the appropriate plug.
Place the thermostat on an even, horizontal surface and plug it in.
1.70 m

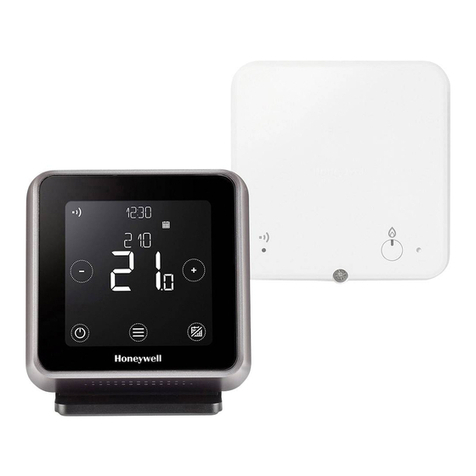

T6R-HW
Smart Thermostat
4) Touch to finalise setup.
( to setup using the App is
currently unsupported)
For other wiring
diagrams visit:
Set Up and
configuration
6
Wiring Diagrams
Once setup is completed, if you need to
change more settings go to the advanced
menu. To access the advanced menu
press for 5 seconds.
In the advanced menu the following
settings can be adjusted:
AM
PM
AM
PM
AM
PM
*1234
1 2 3 4 5 6
*****230****
5 sec
Menu Item Default Options
***SETUP****
SETUP
**LANGUAGE**
*CLOCK
SETUP
1) Touch to begin
setting up the thermostat.
2) Select your language.
3) Set the clock format,
time and date.
SETUP
A) Sundial S-plan B) Sundial Y-plan
CONFIGURE W
C) Combi boiler
Receiver Box
T1 T2
Boiler*
D) OpenTherm boiler
Receiver Box
Boiler*
T1 T2
Boiler
Receiver Box
V4043 V4043
Cylinder thermostat
1
2
MidPosition
zone valve
Boiler
Receiver Box
V4073A
Cylinder thermostat
1
2
LANGUAGE
OPENTHERM
SYSTEM TYPE
CYCLE RATE
MINIMUM ON TIME
HEAT RANGE
SCHEDULE OPTIONS
OPTIMISE
CLOCK
LOW LOAD CONTROL
TEMPERATURE OFFSET
BINDING
RESET
FAILSAFE
English
Heat+HW
6
ON 0 = off, 1 = on
OFF
-
-
-
0 = off, 1 = on
0.0ºC 1.5 ºC to 1.5ºC
Bind , check RF and clear bind.
Factory, schedule, WiFi and HomeKit reset
Clock format: 1 = 12h, 2 = 24h
Setup time and date
1 minute
3, 6, 9 or 12
Daily
Opt. start OFF
Opt. stop OFF
Opt. start: 0 = off, 1 = on, 2 = Delayed start
Opt. stop: 0 = off, 1 = on
Format: 24h
Time: --:--
Date: 01/09/16
1, 2, 3, 4 or 5 minutes
Min = 5.0ºC
Max = 35.0ºC
1 = Daily schedule, 2 = 5+2 days schedule
Min: 5ºC to 21ºC, Max: 21ºC to 35ºC
0 = English, 1 = Français, 2 = Español
3 = Deutsch, 4 = Nederlands, 5 = Italiano
Heating only, Heating + Hot Water, Heating
+ Cooling
OpenTherm boiler data when available
For security
reasons: Route
this wiring
through conduit
or in the wall so it
is not accessible.
Pittway Sarl, Z.A. La Pièce 4, 1180 Rolle, Switzerland
© 2019 Resideo Technologies, Inc.
This product is manufactured by Resideo and its affiliates. The Honeywell Home
trademark is used under license from Honeywell International Inc. All rights reserved. www.resideo.com
* See boiler specifications
for correct terminals https://hwllhome.co/uk-wiring
