Honeywell Home TH8110R1008 User manual

VisionPRO®Series with RedLINK™
User Guide
TM
Search for local rebates: HoneywellHome.com/Rebates
TH8110R1008- 1H/1C thermostat
TH8320R1003- Up to 2H/2C conv. or 3H/2C heat pump thermostat
TH8321R1001- Up to 2H/2C conv. or 3H/2C heat pump thermostat + IAQ control
YTH8321R1002- Kit with TH8321R1001 Thermostat + Gateway

With your new thermostat, you can:
• Connect to the internet to monitor and control your heating/cooling system
and receive alerts by email (requires optional RedLINK Internet Gateway)
• View outdoor temperature and humidity (requires optional Wireless Outdoor
Sensor)
• Control humidification, dehumidifcation or ventilation (TH8321 model)
Your new thermostat also provides:
• Adaptive Intelligent Recovery—over time, the VisionPRO thermostat “learns”
how long it takes your system to reach the temperature you want. It turns on
the heating or cooling system earlier to make sure you’re comfortable at the
time you expect.
• Dealer information on the screen—making it easy for you to contact your dealer
for service.
• Vacation and holiday scheduling—allowing you to program a setback
temperature to save energy while you are away.
• Keypad lockout to prevent unauthorized changes.
• Equipment status—provides on/off status of all equipment controlled by the
thermostat.
• Preferences—allowing you to customize the thermostat to your desired
settings.
Welcome
Congratulations on your purchase
of a Honeywell Home touch screen
programmable thermostat. When used with
the optional RedLINK Internet Gateway,
you can remotely monitor and control the
heating and cooling system in your home
or business—you can stay connected to
your comfort system wherever you go.
The Total Connect Comfort app is the
perfect solution if you travel frequently,
own a vacation home, a business or
manage an investment property or if you
are simply looking for peace of mind.
Features of your VisionPRO thermostat

69-2761EFS—09 1
Programming and Operation
Quick reference ....................................................2
Setting the time/date.........................................3
Setting the fan ......................................................3
Setting system mode .........................................4
Preset energy-saving schedules ...................4
Adjusting program schedules ........................5
Schedule overrides..............................................6
Menu Options
Viewing equipment status ...............................7
Setting vacation, holiday, and events..........7
Setting holiday/event schedules:
commercial use ....................................................8
Setting humidification and
dehumidification...............................................11
Setting ventilation............................................12
Setting preferences..........................................13
Cleaning the thermostat screen.................14
Security settings ...............................................14
Viewing dealer information ..........................15
Advanced features............................................15
Appendices
Installer options ................................................16
Replacing batteries..........................................16
Temperature and humidity display ...........18
Optional accessories.......................................19
Troubleshooting ................................................20
Regulatory information..................................21
Table of contents

69-2761EFS—09 2
Quick reference: residential use
Quick reference: commercial use
HOME. Touch to display Home screen.
FAN. Select fan mode.
SYSTEM. Select system mode (Heat/Cool).
MENU. Touch to display options. Start here to
set a program schedule.
Current status. Shows system mode (heat/
cool), outdoor temperature and humidity (with
optional outdoor sensor).
Current schedule. Touch an arrow to change
temperature setting and select a Temporary or
Permanent Hold.
Indoor conditions. Shows indoor temperature
and humidity.
Current time. Touch to set the current time/
date.
Alert Light. On when alert message
is active or system is set to EmHeat.
Flashes for battery-only power; on
continuous if system powered.
The screen lights when you press any
button. It stays lit for 16 seconds if
the thermostat is battery powered (45
seconds if the thermostat is powered
with a C-wire). Depending on how
your thermostat was installed, the
screen light may always be on.
HOME. Touch to display Home screen.
FAN. Select fan mode.
SYSTEM. Select system mode (Heat/Cool).
MENU. Touch to display options. Start here to
set a program schedule.
Current status. Shows system mode (heat/
cool), outdoor temperature and humidity (with
optional outdoor sensor).
Override. Touch to override program schedule.
Current schedule. Touch an arrow to change
temperature setting and set a temporary hold.
Current program status.
Indoor conditions. Shows indoor temperature
and humidity.
Current time. Touch to set current time/date.
Alert Light. On when alert message is
active or system is set to EmHeat. Flashes
for battery-only power; on continuous if
system powered.
Micro SD Card port. Use card to load
holiday schedules and custom events.
The screen lights when you
press any button. It stays lit for
16 seconds if the thermostat is
battery powered (45 seconds if
the thermostat is powered with
a C-wire). Depending on how
your thermostat was installed,
the screen light may always be
on.

369-2761EFS—09
1 Touch the current time. The screen
displays Select Option.
2 Touch Time or Date, then touch Select.
3 Touch sor t until the proper time/
date is displayed.
4 Touch Done to save or Cancel to ignore
changes.
5 Touch Home to redisplay the Home
screen.
NOTE: The date is not shown on the
home screen; however, it should be set
to allow the thermostat to adjust time
automatically for daylight saving time
and for other features such as vacation
hold.
NOTE: When used with a RedLINK
Gateway, the thermostat gets time
information from the Internet based
on the location address of the TCC
account
Select Option
Time Date
Please Set Time
6:30 PM
Setting the fan
Setting the time/date
1 Touch FAN to display fan settings.
2 Touch On, Auto, Circ, or Follow Schedule.
3 Touch Done to save and exit.
On: Fan is always on.
Auto: Fan runs only when the heating
or cooling system is on.
Circ: Fan runs randomly about 35%
of the time (residential use only).
Follow Schedule: Fan controlled by
program (see pages
4 – 6 ).
NOTE: In commercial
use, touch Auto or On to
temporarily override the
programmed fan schedule.
On Auto Circ

69-2761EFS—09 4
Setting system mode
1 Touch SYSTEM to display system
settings.
2 Touch desired option:
Heat: Controls only the heating
system.
Cool: Controls only the cooling
system.
Off: Heating/cooling systems are
off.
Auto: Selects heating or cooling
depending on the indoor
temperature.
Em Heat (heat pumps with aux.
heat): Controls auxiliary/emergency
heat. Compressor is locked out.
3 Touch Done to save and exit.
NOTE: The Auto and Em
Heat system settings may not
appear, depending on how
your thermostat was installed.
Heat Cool Auto
Off
Preset energy-saving schedules
This thermostat uses default Energy Saver settings that can reduce your
heating/cooling expenses. To customize settings, see next page.
Wake 6:00 am 70° 78° 70° 78°
Leave 8:00 am 62° 85° 62° 85°
Return 6:00 pm 70° 78° 70° 78°
Sleep 10:00 pm 62° 82° 62° 82°
Cool
(MonFri)Start time
Heat
(MonFri)Period
Heat
(SatSun)
Cool
(SatSun)
Residential Use
Occupied 1 8:00 am 70° 75° On
Unoccupied 1 10:00 pm 55° 85° Auto
Occupied 2* 12:00 am 70° 75° On
Unoccupied 2* 12:00 am 55° 85° Auto
CoolStart time HeatPeriod Fan
Commercial Use
* Period 2 is cancelled by default. If you activate it, the values shown above are
default settings.

569-2761EFS—09
Adjusting program schedules
1 Touch MENU.
2 Select Edit Schedule to display Use
Scheduling Assistant?
• Touch Yes to create a schedule by
answering simple questions.
• Touch No to manually create a
program schedule. See below.
NOTE: To reduce costs, use the pre-set
Energy Saver settings described on
page 4.
Edit Schedule
View Schedule
Use Scheduling
Assistant?
3 Select the days to schedule, touch Next.
4 Touch sor t to set your Wake time for
selected day(s).
5 Touch sor t to set Heat and Cool
temperatures for the Wake period.*
6 Touch other time periods (Leave, Return,
Sleep) to set time and temperatures for
each.*
7 Touch Done to save and exit (Touch
Cancel to exit without saving changes).
NOTE: Touch Cancel Period to eliminate
any unwanted time period.
NOTE: Touch Fan Setting to customize fan
settings for any time period.
* If the thermostat is configured for light
commercial, the schedule periods will be
Occupied and Unoccupied rather than
Wake, Leave, Return, and Sleep
Select the days
to schedule
Set Wake
time & temperature

69-2761EFS—09 6

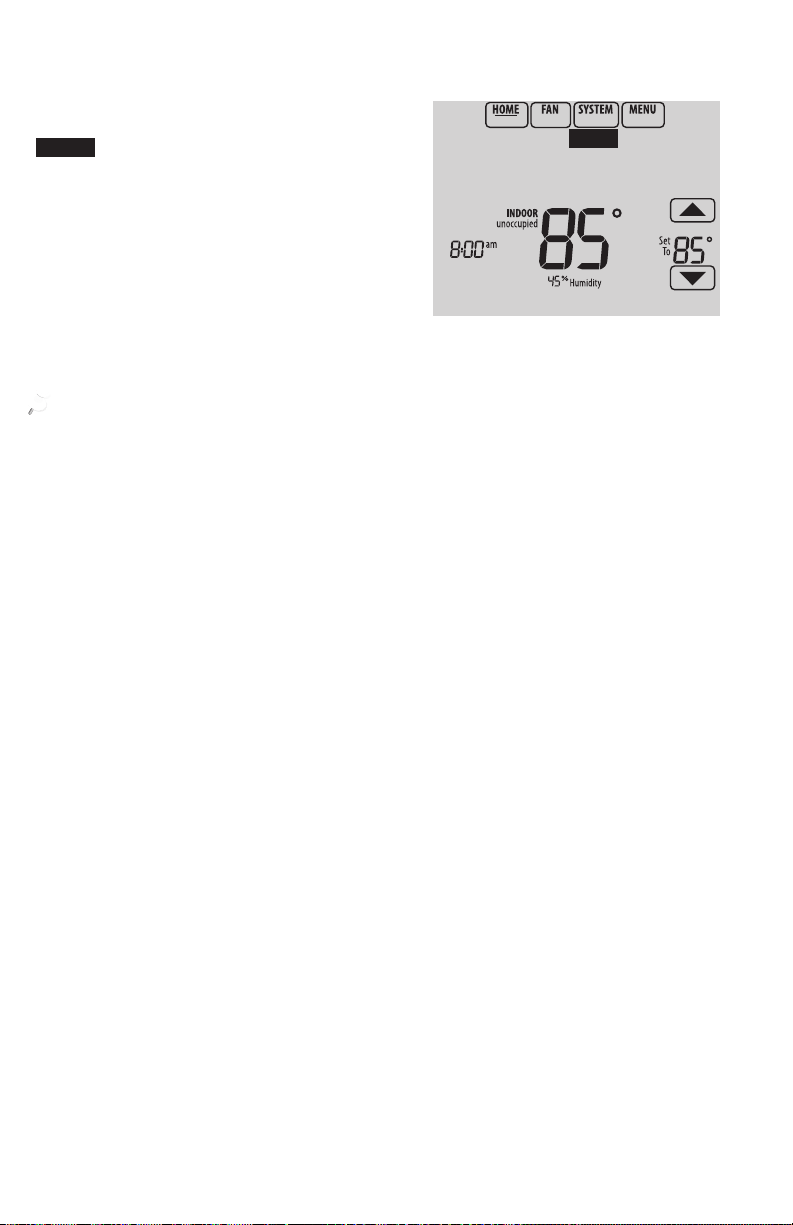

Overriding schedules: residential use
Overriding schedules: commercial use
1 Touch sor t to adjust the
temperature (right side of screen)
and the Hold Until time (left side).
The schedule will resume when the
Hold Until time expires.
2 Select Permanent Hold to keep the same
temperature until you change it or
resume the program schedule.
Touch Cancel Hold at any time to resume
the program schedule.
Temporary Hold
Permanent Hold
Touch sor tto adjust the
temperature. It will be maintained until
the hold time you set.
• To change the hold time, touch the
Hold Until arrow buttons. This time
can be adjusted up to the maximum
time set by the installer.
• Touch Override to use a pre-
set occupied temperature if a
person uses the room during
an unoccupied period. The new
temperature will be maintained for 1
hour and can be adjusted up to the
maximum time set by the installer.
The programmed schedule will resume
when the override timer expires. Touch
Cancel Hold at any time to resume the
program schedule.

769-2761EFS—09
Viewing equipment status
Setting vacation hold: residential use

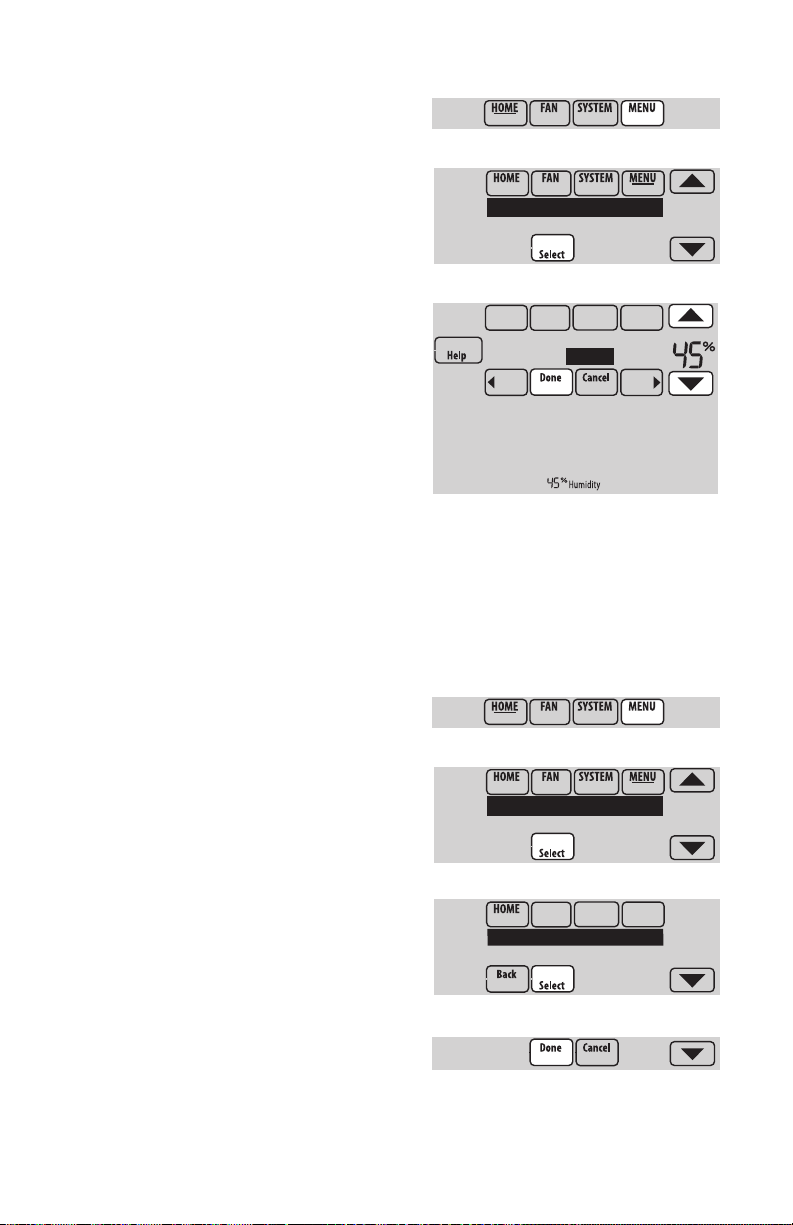

1 Touch MENU.
2 Select Equipment Status.
3 Touch sor t to view the status of
all the equipment your thermostat
is controlling. Depending on how
your thermostat was installed, the
Equipment Status screen can report
data about the following systems:
• Heating and cooling
• Fan
• Humidification
• Dehumidification
• Ventilation
• Maintenance reminders
• Thermostat information.
Equipment Status
Date/Time
Heat Stage 1: Off
Cool Stage 1: On
This feature helps you save energy while
you are away, and restores comfortable
settings just before you return home.
1 Touch MENU.
2 Select Vacation Mode.
3 Touch sor tto select the date you
leave, then touch Next for further
scheduling details, including times
of day, temperature settings, return
date, and return settings.
4 Review your selections on the last
display, and touch Done to save your
settings. Touch Cancel to ignore the
changes.
Vacation Mode
Equipment Status
Date You Leave
Jul 17, 2012
Jul 25 - Jul 26
Heat: 72 Cool: 78

69-2761EFS—09 8
This feature helps you conserve energy
when the workplace is unoccupied for
special events and holidays.
1 Touch MENU.
2 Select Holiday Schedule.
3 Select the item you want to schedule
and touch Next for further scheduling
details.
• Custom Events lets you set up
other days for special schedules.
• US and Canadian Holiday options
let you select from a list of
holidays commonly observed in
each country.
4 Make selections as prompted on
each screen. For more information,
see the next page.
5 Touch Done to save your settings.
Holiday Schedule
Holiday Mode
Custom Events
US Holidays
This feature lets you customize temperature
settings to be maintained during a specific
event. You can set up an event for a specific
date or day in a month. The thermostat
resumes normal scheduling after the event.
1 Select Custom Events from the Holiday
Schedule menu.
2 Select Create New Event.
3 Select Specific Date or Month/Weekday.
• For Specific Date, you are prompted to
select the event’s start date, settings,
end date, and frequency.
• For Month/Weekday, you are prompted
to select the month, day of the week,
week of the month, settings, length of
event, and frequency for the event.
4 Review the settings and touch Done to
save them. Touch Cancel to ignore the
changes.
Custom Events
US Holidays
Select Occurence
Specific Date
Schedule adjusted
to 62 in heating
Create New Event
Setting holiday/event schedules: commercial use
Setting custom events: commercial use

969-2761EFS—09
This feature lets you customize temperature
settings to be maintained on specified
national holidays. The thermostat resumes
normal scheduling between selected
holidays.
1 Select US Holidays or Canadian Holidays from
the Holiday Schedule menu.
2 Select Add/Edit Holidays. A list of national
holidays is displayed.
3 Touch the check box next to each holiday
for which you want to maintain specific
settings, (Touch sor t to scroll through
the holiday list.) then touch Next.
Set the holiday schedule for Occupied
or Unoccupied temperatures, depending
whether the building will be in use.
4 Touch sor tto select the Heat and Cool
temperatures.
5 Review the settings and touch Done to save
them. Touch Cancel to ignore changes.
Add / Edit Holidays
Select US holidays
New Year’s Day
Temperature
During Holiday
Setting holiday override: commercial use
Setting holiday schedule: commercial use
This feature lets you customize
temperature settings to be maintained
from now until a specified date. The
thermostat resumes normal scheduling
on the date you select.
1 Touch MENU.
2 Select Holiday Mode to display
Temperature While Away.
3 Touch sor t to select the Heat and
Cool temperatures, then touch Next to
select return date.
4 Review the settings and touch Done to
save them. Touch Cancel to ignore the
changes.
NOTE: The cool temperature can only
be set higher than the unoccupied
program setting and the heat
temperature can only be set lower than
the unoccupied program setting.
Holiday Mode
Equipment Status
Temperature
While Away

69-2761EFS—09 10
Initiating occupancy mode: commercial use
This feature keeps temperature at an
energy-saving level until you touch Press
HERE to Start Occupancy. When you
arrive, touch the message to maintain a
comfortable temperature while the room is
occupied.
Touch the sor t buttons to set the
temperature or the Hold Until time. The
temperature is maintained until the time
you set. Temperature returns to an energy-
saving level after the timer expires, or the
“Occupied” period ends.
NOTE: This feature is available only
when programmed by the installer.
Press HERE to
Start Occupancy
Remote setback (commercial use)
During Occupied program periods, an occupancy sensor directs the thermostat
to go to REMOTE SETBACK settings when the room is empty. If someone is in
the room, it uses the Occupied program period settings. The thermostat ignores
the occupancy sensor during Unoccupied program periods.
If the thermostat is set up to be non-programmable, the sensor directs the
thermostat to go to REMOTE SETBACK settings when the room is empty. If
someone is in the room, then it follows the settings set by the user.
Depending on how your thermostat was installed, it may delay for up to 30
minutes before switching to REMOTE SETBACK settings. This delay allows the
room to stay comfortable if the room is unoccupied for only a short time.

11 69-2761EFS—09
Adjusting humidification settings
1 Touch MENU and select Humidification.
2 Select Auto.
3 Touch sor t to select humidity level.
4 Touch Done to save your settings. Touch
Cancel to ignore changes.
5 If frost or condensation appears on
the windows, touch MENU, then select
Window Protection. (Use a lower number
to prevent frost or condensation. Use a
higher number if indoor air is too dry.)
NOTE: Window Protection is available
only
if an outdoor air sensor is installed.
NOTE: The thermostat controls
humidification and dehumidification
as needed to maintain the desired
humidity level. Depending on how
your thermostat was installed, the
thermostat may maintain
a 15% separation between
humidification and dehumidification
settings.
Humidification
Window Protection
Humidification
Off Auto
Adjusting dehumidification settings: residential use
This feature can control a dehumidifier
or use your air conditioner to reduce
humidity.
1 Touch MENU and select Dehumidification.
2 Select Auto.
3 Touch sor t to select humidity level.
4 Touch Done to save your settings. Touch
Cancel to ignore changes.
NOTE: If your air conditioner is used
to control humidity, the temperature
may drop up to 3° F below your
temperature setting until humidity
reaches the desired level.
Dehumidification
Equipment Status
Dehumidification
Off Auto

69-2761EFS—09 12
Adjusting dehumidification settings: commercial use
This feature can control a dehumidifier
or use your air conditioner to reduce
humidity.
1 Touch MENU and select Dehumidification.
2 Select Auto.
3 Touch sor t to select humidity level.
4 Touch Done to save your settings. Touch
Cancel to ignore changes.
If your air conditioner is used to control
humidity, the thermostat may use the
following methods to maintain humidity:
• Cool from 1° to 5° F lower than your
temperature setting.
• Run cooling for the minimum “on”
time to reduce humidity.
• Run cooling and heating at the same
time to reduce humidity without
lowering the temperature.
Dehumidification
Equipment Status
Dehumidification
Off Auto
1 Touch MENU, and select Ventilation.
2 Select Mode, Temporary Boost, or Lockout,
then select appropriate options. (For
options, see next page.)
3 Touch Done to save your settings.
Touch Cancel to ignore changes.
Ventilation
Equipment Status
Mode
Temporary Boost
Adjusting ventilation settings

13 69-2761EFS—09
Mode:
Auto: Ventilation runs as programmed by
the installer.
Off: Ventilation remains off unless
turned on using the timer.
On: Ventilation is always on.
Temporary Boost: Touch sor t to select how
long to run ventilation temporarily. To turn
it off, set it to zero.
Lockout: Touch sor t to select Yes or
No, then touch Next. Select Yes to prevent
ventilation from running during the Sleep
or Unoccupied (commercial) program
periods or when outdoor conditions exceed
values set by the installer.
Ventilation Mode
Off Auto On
Run Ventilation For
60 minutes
Lockout in Sleep
Period: No
Setting preferences
Ventilation options
Preference menu options let you select
how the thermostat displays information or
responds to certain situations.
1 Touch MENU and select Preferences.
2 Select an option and follow prompts:
• Reminders to change filters
• Fahrenheit/Celsius display
• 12/24-hour clock display
• Screen backlighting
• Alert light options
• Scheduling options
• Adaptive recovery
• Default schedule
• Daylight saving time
3 Touch Done to save your settings. Touch
Cancel to ignore changes.
Preferences
Clean Screen
Reminders
Fahrenheit/Celsius

69-2761EFS—09 14
Cleaning the thermostat screen
When you select the Clean Screen
option, the screen is locked so you don’t
accidentally change settings while you
clean.
1 Touch MENU.
2 Select Clean Screen. A prompt asks if you
want to clean the screen for 30 seconds.
3 Touch Yes. A countdown timer displays
elapsed time until the screen is
reactivated.
NOTE: Do NOT spray any liquid directly
on the thermostat. Spray liquids onto
cloth, then use the damp cloth to clean
the screen. Use water or household glass
cleaner. Avoid abrasive cleansers.
Clean Screen
Security Settings
Clean screen
for 30 seconds?
Adjusting security settings
You can adjust security options to prevent
unauthorized changes to system settings.
1 Touch MENU and select Security Settings.
2 Select an option and follow prompts:
Unlocked: Full access allowed.
Partially locked: Only temperature
can be changed.
Fully locked: No access allowed.
NOTE: If you choose to use a password
for additional security, write it here for
reference:
Security Settings
Dealer Information
Change Lock Mode
Create Password
Lock Mode
Unlocked

15 69-2761EFS—09
Viewing dealer information
Check dealer information if you need to
contact your installer for maintenance,
repairs, or upgrades.
1 Touch MENU.
2 Select Dealer Information.
3 Scroll through the displayed information.
4 Touch Done to return to the menu.
ABC HEATING & AIR
555-555-5555
Dealer Information
Installer Options
Advanced features
Adaptive Intelligent Recovery (residential use only)Over time, the VisionPRO®
thermostat “learns” how long it takes your system to reach the temperature
you want. It turns on the heating or cooling system earlier to make sure you’re
comfortable at the time you expect. The thermostat displays “In Recovery” when
it turns the system on early.
Dehumidification Away ModeYour system can be set to control indoor climate
while your home is vacant during the humid season. Before you leave, touch
MENU, then select Dehum Away Mode. Temperature and humidity will be kept at
levels that protect your home and possessions. When you return, touch Cancel to
resume normal operation.
Compressor ProtectionThe thermostat keeps the compressor off for a few
minutes before restarting, to prevent equipment damage. During this “off” time,
the message “Wait” is displayed on screen.
Pre-occupancy Purge (commercial use only)This feature turns on the fan 1
to 3 hours before each “occupied” time period, to provide a comfortable work
environment when you arrive.

69-2761EFS—09 16
Installer options
Replacing thermostat batteries
Installer options require a password and
should only be changed by a qualified
technician.
To prevent unintended changes or
damage to your equipment, do not
change these options yourself.Installer Options
Enter password
0 0 0 0
Replace Batteries
Press HERE for info
Install fresh batteries when the
REPLACE BATTERIES warning begins
flashing. The warning flashes about 60
days before batteries are depleted.
Even if the warning does not appear, it
is recommended to replace batteries
once a year, or before leaving home for
more than a month.
Press the release button on top of the
thermostat to remove it from the wall
plate.
Some versions of this
thermostat don’t have a button on the
top.
In that case, grip the thermostat along
the top and bottom and pull it straight
off the wallplate.
There is also a
CR2032 coin cell battery
located on the back of the thermostat.
Button
Thermostat
Wallplate
Thermostat
(back view)

17 69-2761EFS—09
Replacing outdoor sensor batteries
Replace batteries in your outdoor sensor
when a warning appears on the thermostat
screen, about 60 days before batteries are
depleted.
To replace the batteries:
1 Remove the sensor from the bracket.
2 Detach cover.
3 Install 2 fresh AA lithium batteries.
4 Replace cover and set sensor back into
bracket.
The outdoor sensor will restore
communication with the thermostat a few
seconds after new batteries are installed.
Outdoor Sensor
has low batteries
Replacing indoor sensor batteries
Replace batteries in your indoor sensor
when a warning appears on the thermostat
screen, about 60 days before batteries
are depleted. When the sensor status
light begins flashing red, battery power is
critically low and will be depleted within 23
weeks. During normal operation, the status
light remains off.
To replace the batteries:
1 Remove the sensor from wallplate.
2 Install 2 fresh AAA alkaline batteries. If
the status light flashes green, batteries
are good; if it flashes red, you must use
fresh batteries.
3 Attach sensor to wallplate.
The sensor will restore communication with
the thermostat a few seconds after new
batteries are installed.
Indoor Sensor
has low batteries

69-2761EFS—09 18
Using the temperature display
In some circumstances, the temperature
displayed on the Home screen may
not match the temperature near the
thermostat. If your system is set up to
use remote indoor sensors, it may be
reading a sensor in another location.
Temperature
reading depends on
location of sensor
Using the humidity display*
In some circumstances, the humidity
displayed on the Home screen may not
match humidity near the thermostat.
Some systems are set up to use two
sensors, one to control humidification,
the other for dehumidification. These
sensors are often installed in different
locations.
Depending on how your thermostat was
installed, the thermostat Home screen
will display humidity readings from only
one sensor.
* Indoor humidity is not displayed on
TH8110R and TH8320R models that are
not used with a wireless indoor sensor
Humidity reading
depends on location
of sensor.
