Honeywell Home Smart Thermostat 9000 colortouchscreen User manual

TH9320WF5003
User Guide
Smart Thermostat
9000
color
touchscreen
72º
SET TO
72
º
HOME FANSYSTEM MENU
Fri, Jun 14, 2013
6:30 pm
INDOOR
45% Humidity
OUTDOOR
STATUS
cool mode
80˚/55% Humidity
following schedule
Features of your Smart thermostat
With your new thermostat, you can:
• Connect to the Internet to monitor and control your heating/cooling
system.
• View and change your heating/cooling system settings.
• View and set temperature and schedules.
• Receive alerts via email and get automatic upgrades.
• View outdoor temperature and humidity (requires WiFi set up and
registration).
Need Help?
For assistance please visit resideo.com,
or call toll-free: 18557335465
Read before installing

69-2814EFS—07 ii
Welcome
Congratulations on your purchase of a Resideo Smart color touchscreen
programmable thermostat. When registered to Resideo’s Total Connect Comfort
Solutions, you can remotely monitor and control the heating and cooling system in
your home or business—you can stay connected to your comfort system wherever
you go.
Resideo’s Total Connect Comfort is the perfect solution if you travel frequently, own
a vacation home, a business, or manage an investment property or if you are simply
looking for peace of mind.
About your new thermostat
Home screen quick reference .................1
Business screen quick reference...........1
Installation
Connecting to your WiFi network ........2
Registering your
thermostat online.........................................3
Operation
Setting the time/date .................................5
Setting the fan...............................................6
Selecting system mode..............................6
Preset energy-saving schedules............7
Adjusting program schedules.................7
Overriding schedules–home ...................8
Overriding schedules–business.............9
Viewing equipment status........................9
Setting vacation hold–home ................10
Setting holiday/event
schedules–business.................................10
Setting custom events–business........11
Setting holiday
schedule–business...................................12
Setting holiday override–business..... 12
Initiating occupancy
mode–business..........................................13
Customizing screen color......................13
Setting preferences..................................14
Cleaning the thermostat screen .........14
Adjusting security settings....................15
Smart Response Technology................15
Pre-occupancy purge..............................16
Compressor protection ...........................16
Auto changeover........................................ 16
Setting advanced preferences.............17
Disconnecting your WiFi network.....18
Reconnecting your WiFi network......19
Unregistering your thermostat............ 19
Changing system setup..........................20
Appendices
Frequently asked questions..................23
Getting help and
responding to alerts.................................24
Software updates ......................................25
Troubleshooting......................................... 25
Limited warranty .......................................27
Table of contents

69-2814EFS—07 1
Quick reference: home use
HOME. Touch to display Home screen.
FAN. Select fan mode.
SYSTEM. Select system mode (heat/cool).
MENU. Touch to display options. Start here
to set a program schedule.
Current schedule. Change temperature
setting and select temporary or permanent
hold.
Indoor conditions. Shows indoor
temperature and humidity.
Current date and time.
Current status. Shows system mode (heat/
cool).
Outdoor conditions. Outdoor temperature
and humidity appear after registration.
Quick reference: business use
HOME. Touch to display Home screen.
FAN. Select fan mode.
SYSTEM. Select system mode (heat/cool).
MENU. Touch to display options. Start here
to set a program schedule.
Thermostat location. Quickly identify which
thermostat is in control of a specific area.
Current schedule. Touch an arrow to
change temperature setting and set a
temporary hold.
Override. Touch to temporarily override the
program schedule.
Indoor conditions. Shows indoor
temperature and humidity.
Current date and time.
Current status. Shows system mode (heat/
cool).
Outdoor conditions. Outdoor temperature
and humidity appear after registration.

69-2814EFS—07 2
Setting up your thermostat
Setting up your WiFi programmable touchscreen thermostat is easy.
Connect it to your home wireless network.
Register online for remote access.
2
1
Connecting to your WiFi network
1 Connect the WiFi network.
1a Touch MENU > WiFi Setup.
OR
Touch Yes to connect the thermostat to
your WiFi network.
The screen displays the message “Searching
for wireless networks. Please wait...” after
which it displays a list of all WiFi networks it
can find.
2 Select the network.
2a Touch the name of the network you
want to use. The thermostat displays a
password page.
Yes
Your Network
Note: If your home network is
not shown on the list, touch
Rescan .
MENU
Wi-Fi Setup
2b Using the keyboard, touch the
characters that spell out your home
network password.
2c Touch Done. The thermostat displays
“Connecting to your network. Please
wait...” then shows a “Connection
Successful” screen.
2d Touch Next to display the registration
information screen.
2e Note your Thermostat MAC and
Thermostat CRC. You need these
numbers to complete online
registration.
Done
Next

69-2814EFS—07 3
Connecting to your WiFi network
To register your thermostat, follow the
instructions below.
Note: The Register Online screen
remains active until you complete
registration and/or touch Done.
Note: If you touch Done before you
register online, your home screen
displays an orange alert button telling
you to register. Touching that button
displays registration information and an
option to snooze the task.
Done
Register
online for
remote
access
Press for info
M31570
M31570
To view and set your WiFi thermostat
remotely, you must have a Total
Connect Comfort account. Use the
following steps.
1 Open the Total Connect Comfort web
site.
Go to mytotalconnectcomfort.com
Registering your thermostat online

69-2814EFS—07 4
Registering your thermostat online
3 Register your WiFi thermostat.
After you are logged in to your
Total Connect Comfort account,
register your thermostat.
3a Follow the instructions on
the screen. After adding your
thermostat location, you must
enter the thermostat’s unique
identifiers:
• MAC ID
• MAC CRC
Note: These IDs are listed on the
Register Online screen or on the
Thermostat ID Card included in the
thermostat package. The IDs are
not case sensitive.
© 2018 Resideo Technologies, Inc. All rights reser ved. The Honeywell
Home logo is used under license from Honeywell International Inc.
69-2723EFS—03 M.S. Rev. 12-18
Printed in U.S.A.
Resideo Inc., 1985 Douglas Drive North,
Golden Valley, MN 55422
69-2723EFS-03
Thermostat ID Card
Use the MAC ID and CRC ID to register
this product at mytotalconnectcomfort.com
Carte d’identification de thermostat
Utilisez l’identification MAC et l’identification CRC pour enregistrer
ce produit à mytotalconnectcomfort.com
Tarjeta de identificación del termostato
Utilice la identificación MAC y la identificación CRC para inscribir este
producto en mytotalconnectcomfort.com
ww
w
.r
es
i
deo
.
com
MAC ID MAC CRC

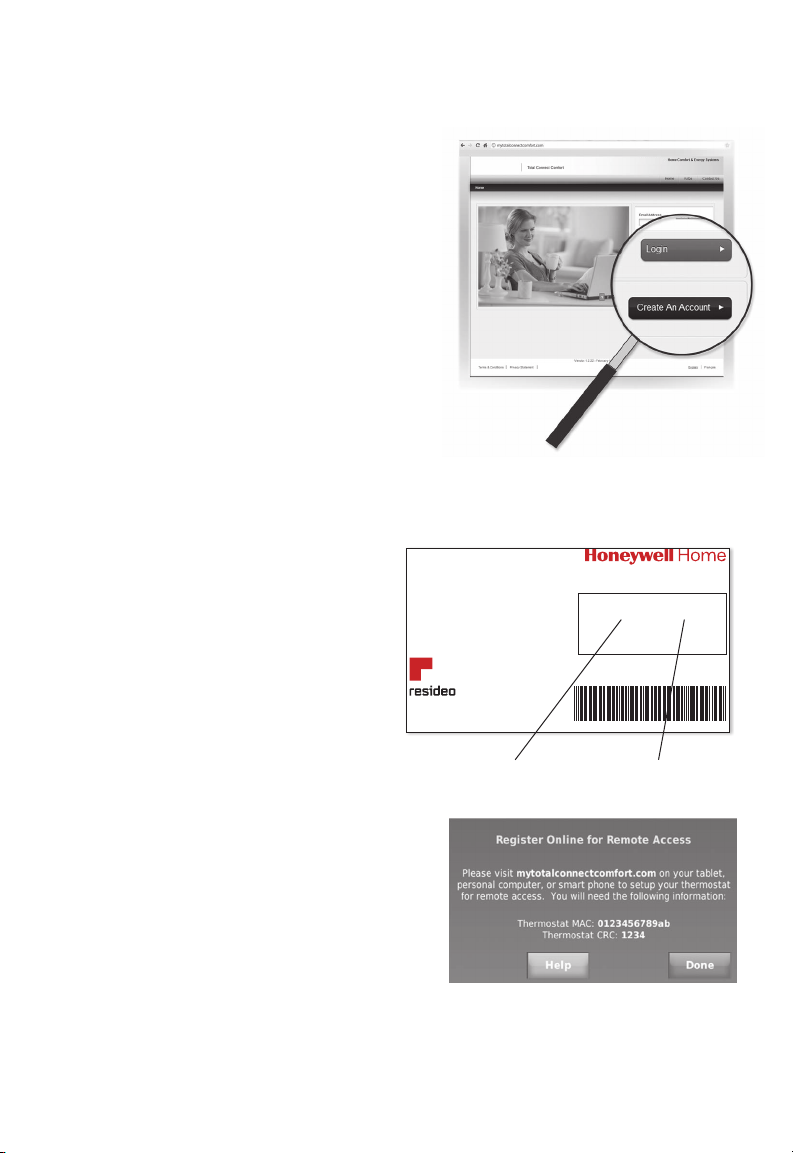

2 Login or create an account.
If you have an account,
click Login
– or –
click Create An Account
2a Follow the instructions on the
screen.
2b Check your email for an activation
message from My Total Connect
Comfort. This may take several
minutes.
Note: If you do not receive a response,
check your junk mailbox or use an
alternate e-mail address.
2c Follow activation instructions in
the email.
2d Log in.

69-2814EFS—07 5
Registering your thermostat online

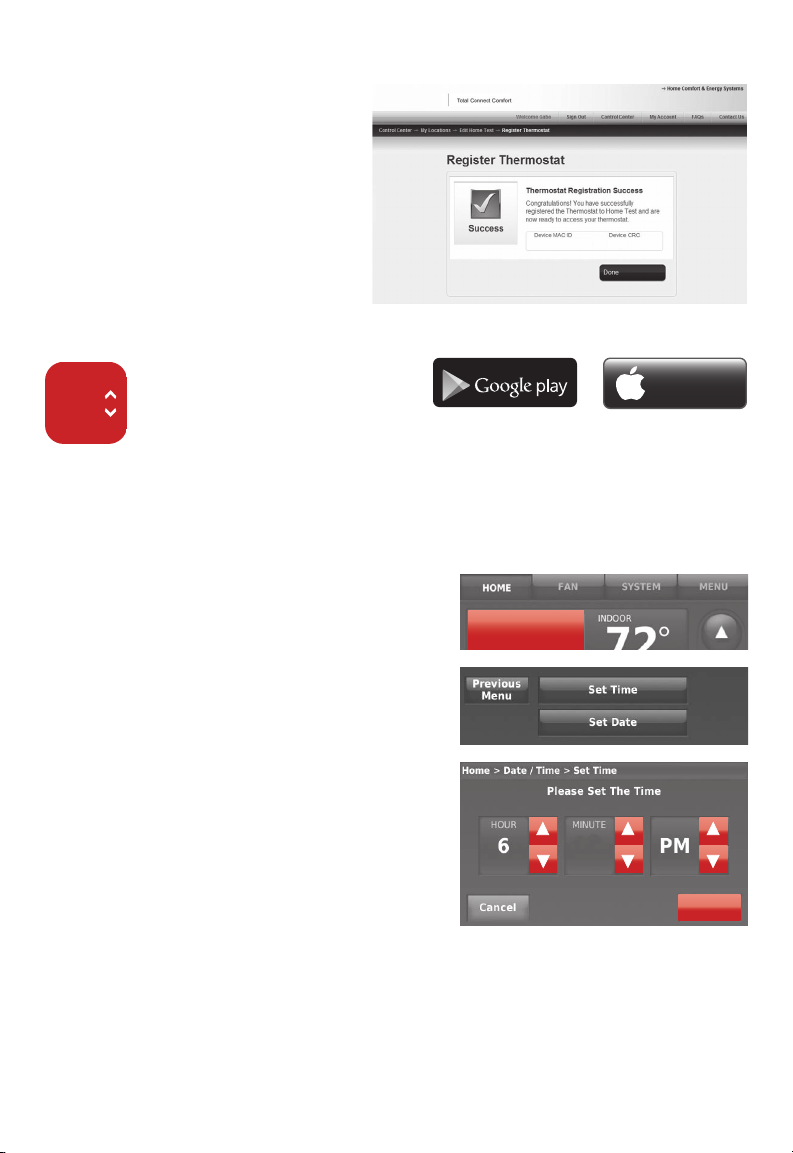

When the thermostat is
successfully registered,
the Total Connect Comfort
registration screen will display
a SUCCESS message.
You can now control your
thermostat from anywhere
through your laptop, tablet, or
smartphone.
GET IT ON
Download on
iTunes
Total Connect Comfort free
app is available for Apple®
iPhone®, iPad®and iPod
touch®devices at iTunes®
or at Google Play®for all
Android™ devices.
Setting the time/date
1 Touch the current time. The screen
displays Set Time/Set Date.
2 Touch Set Time or Set Date.
3 Touch por quntil the proper time/
date is displayed.
4 Touch Done to save or Cancel to ignore
changes.
Note: This thermostat will automatically
update for daylight saving time (if
observed in your area) and all date/time
information is stored. If the thermostat
is connected to WiFi and registered to
Total Connect Comfort, the current time
is updated from the internet.
Fri, Jun 14, 2013
6:30 pm
Done
30
°
72

69-2814EFS—07 6
Setting the fan
1 Touch FAN to display fan settings.
2 Touch On, Automatic, Circulate, or Follow
Schedule.
3 Touch Done to save and exit.
On: Fan is always on.
Automatic: Fan runs only when the
heating or cooling system is on.
Circulate: Fan runs randomly about
35% of the time (home use only).
Follow Schedule: Fan controlled by
program (see pages 7 9).
Note: Touch Auto or On to temporarily
override the programmed fan schedule.
FAN
Done
Setting system mode
1 Touch SYSTEM to display system settings.
2 Touch desired option:
Heat: Thermostat controls only the
heating system.
Cool: Thermostat controls only the
cooling system.
Off: Heating/cooling systems are off.
Automatic: Thermostat selects heating
or cooling as needed depending on the
indoor temperature.
Emergency Heat (heat pumps
with aux. heat): Controls auxiliary/
emergency heat. Compressor is locked
out.
3 Touch Done to save and exit.
Note: The Automatic and Emergency Heat
system settings may not appear, depending
on how your thermostat was installed.
SYSTEM
Done

69-2814EFS—07 7

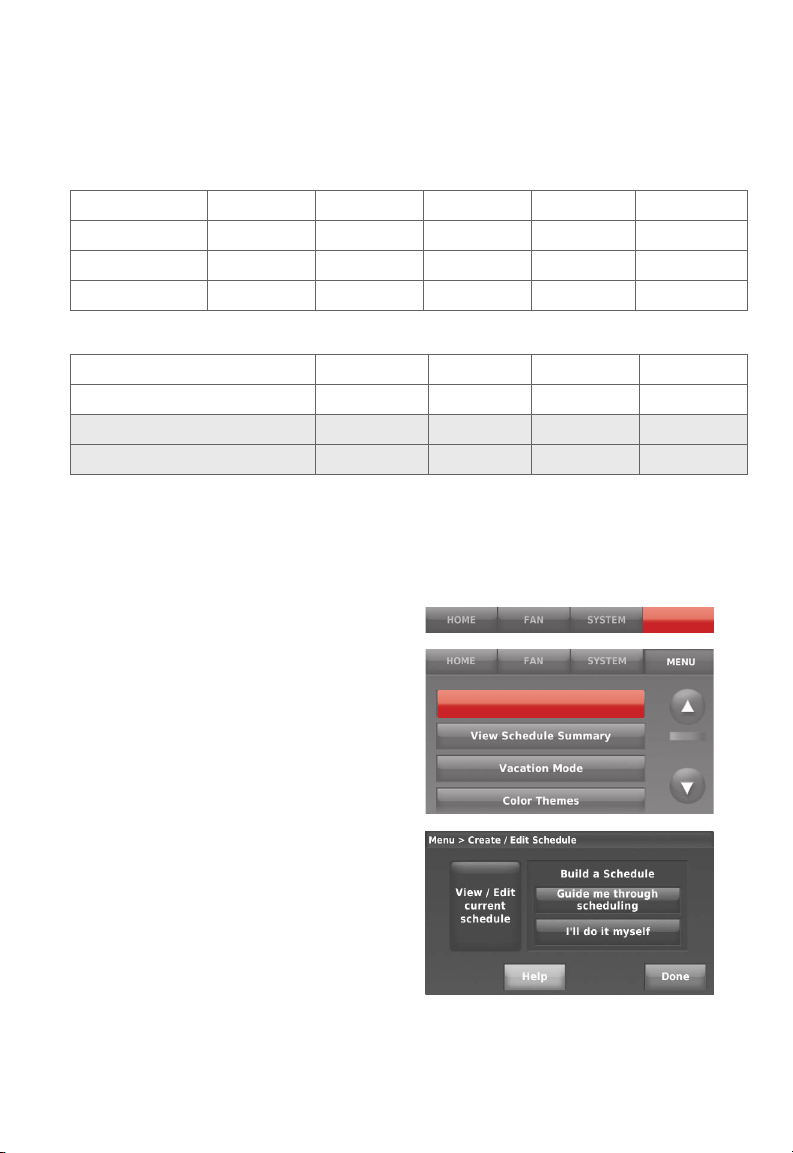

Preset energy-saving schedules
This thermostat uses default Energy Saver settings that can reduce your
heating/cooling expenses. To customize settings, see next page.
Wake 6:00 am 70° 78° 70° 78°
Leave 8:00 am 62° 85° 62° 85°
Return 6:00 pm 70° 78° 70° 78°
Sleep 10:00 pm 62° 82° 62° 82°
Cool
(MonFri)Start time
Heat
(MonFri)Period
Heat
(SatSun)
Cool
(SatSun)
Home Use
Occupied 1 8:00 am 70° 75° On
Unoccupied 1 10:00 pm 55° 85° Auto
Occupied 2* 12:00 am 70° 75° On
Unoccupied 2* 12:00 am 55° 85° Auto
CoolStart time HeatPeriod Fan
Business Use
* Period 2 is cancelled by default. If you activate it, the values shown above are
default settings.
Adjusting program schedules
1 Touch MENU.
2 Select Create/Edit Schedule.
• Touch View/Edit to view the full
schedule and make a quick
adjustment.
• Touch Guide Me to create a
schedule by answering simple
questions.
• Touch I’ll do it myself to manually
create a program schedule. See
page 8.
Note: To reduce costs, use the pre-set
Energy Saver settings shown above.
MENU
Create /Edit Schedule

69-2814EFS—07 8

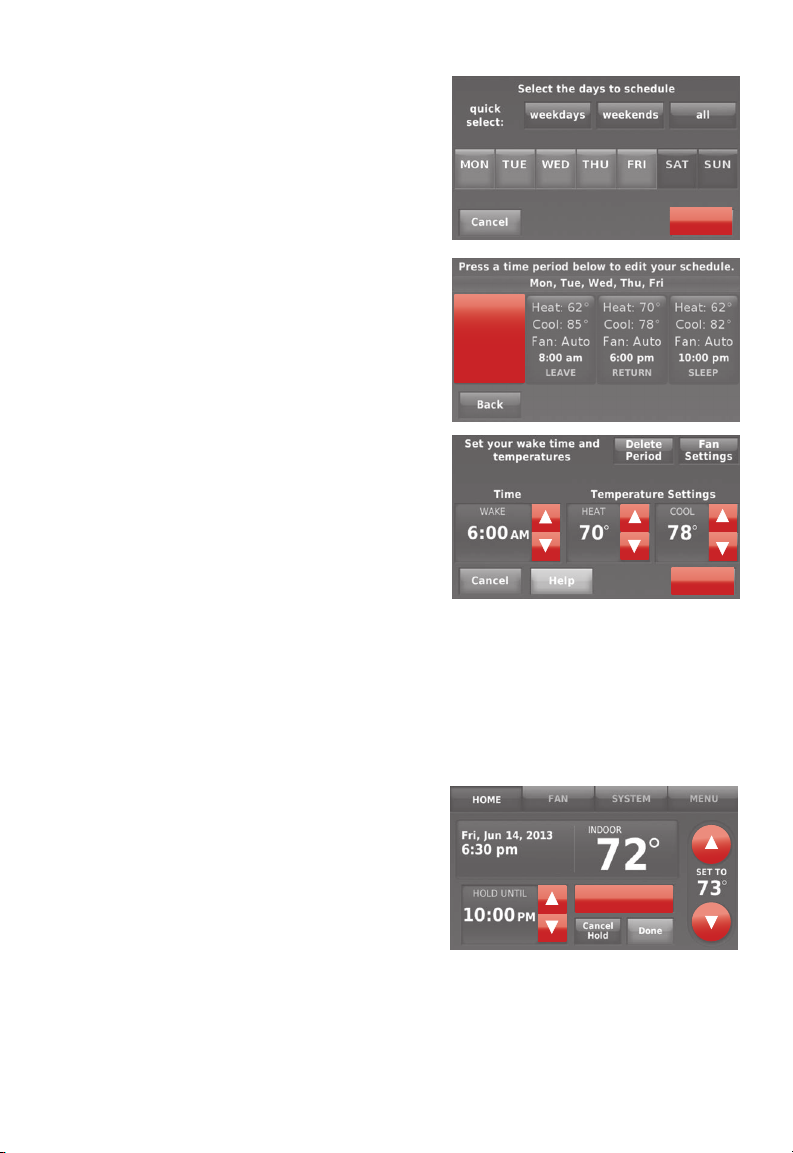

If you selected I’ll do it myself on the
Create/Edit Schedule screen (page 7),
follow these steps:
1 Select the days to schedule, touch Next.
2 Touch Wake to set your Wake time for
selected days. Next
6:00 am
Heat: 70°
Cool: 78°
Fan: Auto
WAKE
Adjusting program schedules
3 Touch por qto set Heat and Cool
temperatures for the Wake period, then
touch Done.
4 Touch other time periods (Leave, Return,
Sleep) to set time and temperatures for
each.
5 Touch Done to save and exit.
Note: Touch Delete Period to eliminate any
unwanted time period.
Note: Touch Fan Settings to customize fan
settings for any time period.
Done
Overriding schedules: home use
1 Touch por qto adjust the
temperature (right side of screen)
and the Hold Until time (left side).
The schedule will resume when the
Hold Until time expires.
2 Touch Switch to Permanent Hold to keep
the same temperature until you
change it or resume the program
schedule.
3 Touch Cancel Hold at any time to
resume the program schedule.
Switch To
Permanent Hold

69-2814EFS—07 9
Overriding schedules: business use
Touch por qto adjust the temperature.
It will be maintained until the hold time
you set.
• To change the hold time, touch the
Hold Until arrow buttons. This time can
be adjusted up to the maximum time
set on the Override Duration screen in
Advanced Preferences (page 17).
• Touch Override to use a pre-set occupied
temperature if a person uses the room
during an unoccupied period. The
new temperature will be maintained
for 1 hour and can be adjusted up
to the maximum time set on the
Override Duration screen in Advanced
Preferences (page 17).
The programmed schedule will resume
when the override timer expires. Touch
Cancel Hold at any time to resume the
program schedule.
OVERRIDE
Viewing equipment status
1 Touch MENU.
2 Select Equipment Status.
3 Touch por qto view the status of
all the equipment your thermostat
is controlling. Depending on how
your thermostat was installed, the
Equipment Status screen can report
data about the following systems:
• Heating and cooling
• Fan
• Thermostat information
MENU
Equipment Status
Done

69-2814EFS—07 10

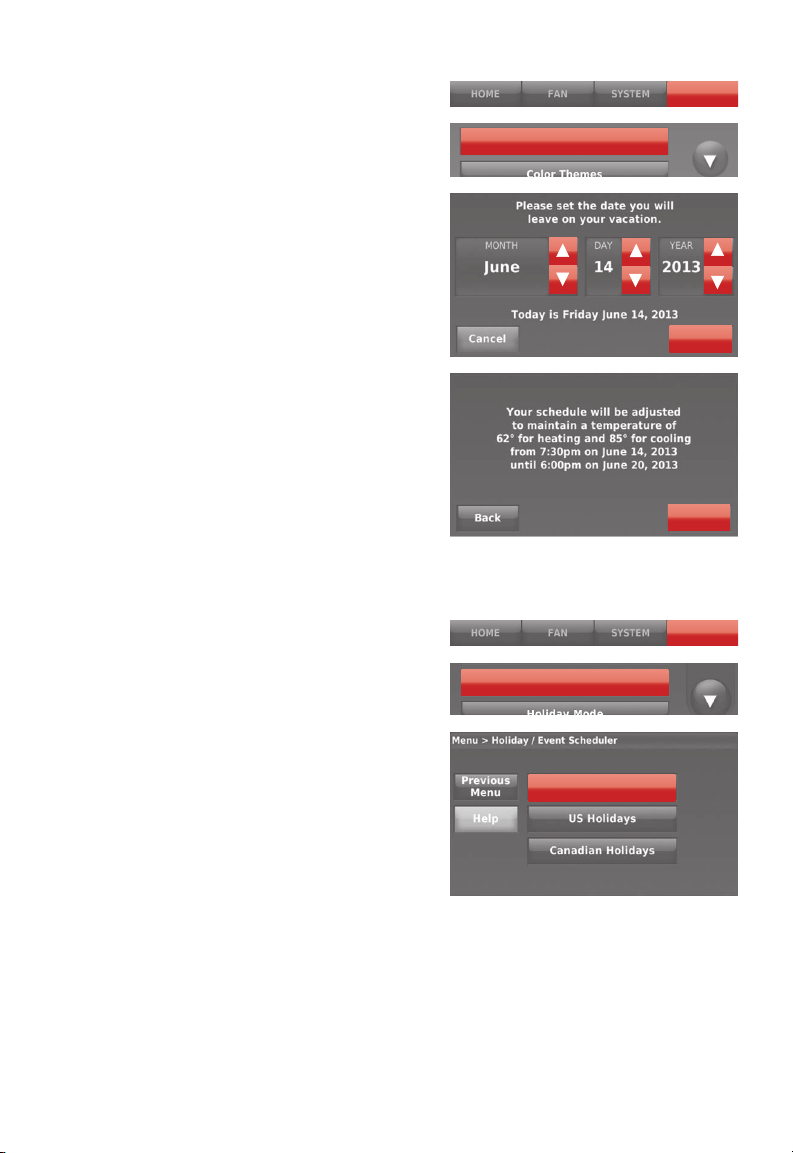

Setting vacation hold: home use
This feature helps you save energy while
you are away, and restores comfortable
settings just before you return home.
1 Touch MENU.
2 Select Vacation Mode.
3 Touch por qto select the date you
leave, then touch Next for further
scheduling details, including times
of day, temperature settings, return
date, and return settings.
4 Review your selections on the last
display, and touch Done to save your
settings. Touch Back, then Cancel to
ignore the changes.
MENU
Next
Done
Vacaon Mode
Setting holiday/event schedules: business use
This feature helps you conserve energy
when the workplace is unoccupied for
special events and holidays.
1 Touch MENU.
2 Select Holiday/Event Scheduler.
3 Select the item you want to schedule.
• Custom Events lets you set up
other days for special schedules.
• US and Canadian Holiday options
let you select from a list of
holidays commonly observed in
each country.
4 Make selections as prompted on
each screen. For more information,
see next two pages.
5 Touch Done to save your settings.
MENU
Custom events
Holiday /Event Scheduler

69-2814EFS—07 11
Setting custom events: business use
This feature lets you customize
temperature settings to be maintained
during a specific event. You can set up
an event for a specific date or day in a
month. The thermostat resumes normal
scheduling after the event.
1 Select Custom events from the Holiday/
Event Scheduler menu.
2 Select Create a new event.
3 Select Specific Date or Month/Weekday.
• For Specific Date, you are prompted
to select the start date, settings,
end date, and frequency for the
event.
• For Month/Weekday, you are
prompted to select the month, day
of the week, week of the month,
settings, length of event, and
frequency of the event.
4 Review the settings and touch Done to
save them. Touch Back, then Cancel to
ignore the changes.
Custom events
Create a new event
Done
Next

69-2814EFS—07 12

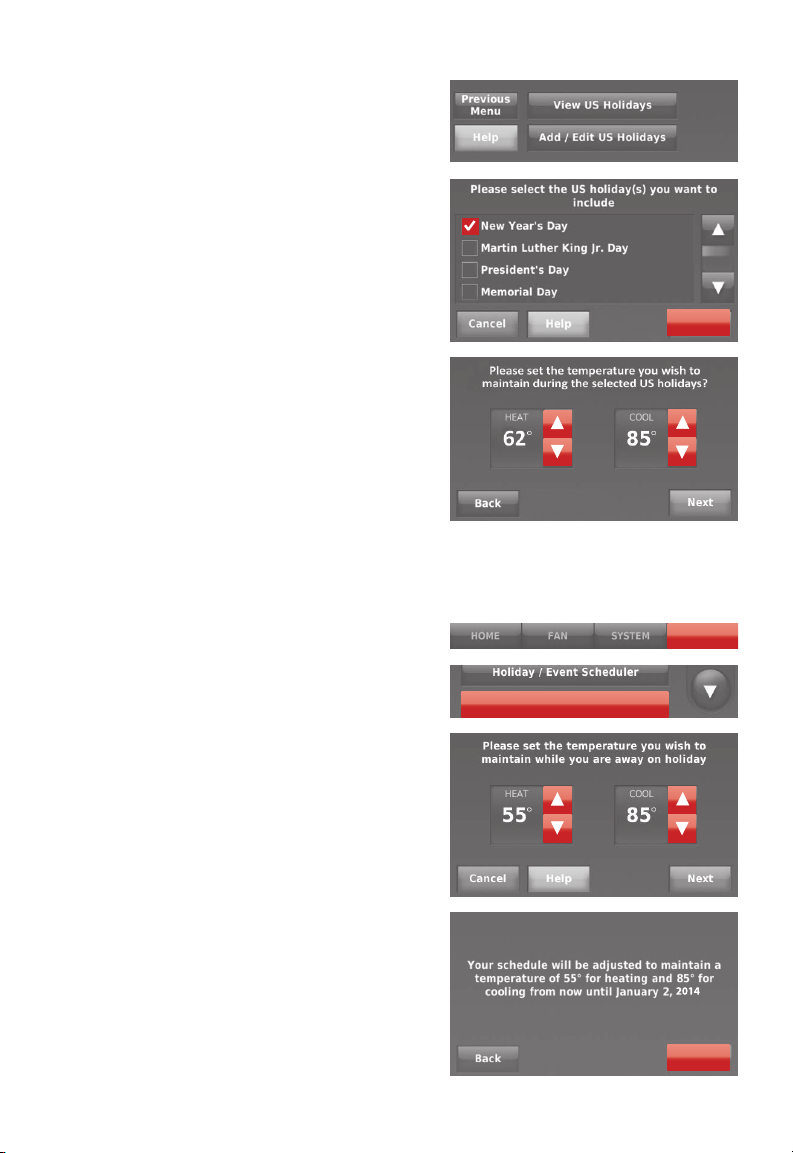

Setting holiday schedule: business use
This feature lets you customize temperature
settings to be maintained on specified
national holidays. The thermostat resumes
normal scheduling between selected
holidays.
1 Select US Holidays or Canadian Holidays from
the Holiday/Event Scheduler menu.
2 Select Add/Edit Holidays. A list of national
holidays is displayed.
3 Touch the check box next to each holiday
for which you want to maintain specific
settings, (Touch por qto scroll through
the holiday list.) then touch Next.
Set the holiday schedule for Occupied
or Unoccupied temperatures, depending
whether the building will be in use.
4 Touch por qto select the Heat and Cool
temperatures.
5 Review the settings and touch Done to save
them. Touch Back, then Cancel to ignore the
changes.
Next
Setting holiday override: business use
This feature lets you customize
temperature settings to be maintained
from now until a specified date. The
thermostat resumes normal scheduling
on the date you select.
1 Touch MENU.
2 Select Holiday Mode to display
temperatures while you are away on
holiday.
3 Touch por qto select the Heat and
Cool temperatures, then touch Next to
select return date.
4 Review the settings and touch Done to
save them. Touch Back, then Cancel to
ignore the changes.
Note: The cool temperature can only be
set higher than the unoccupied program
setting and the heat temperature can
only be set lower than the unoccupied
program setting.
MENU
Holiday Mode
Done

69-2814EFS—07 13
Initiating occupancy mode: business use
This feature keeps temperature at an
energy-saving level until you touch Press
to start occupancy. When you arrive, touch
the button to maintain a comfortable
temperature while the room is occupied.
Touch the por qbuttons to set the
temperature or the Hold Until time. The
temperature is maintained until the
time you set. Temperature returns to
an energy-saving level after the timer
expires, or the “Occupied” period ends.
Press to start
occupancy
Customizing screen color
You can customize your thermostat
display to match your décor.
1 Touch Menu.
2 Touch Color Themes.
3 Select the name of a color to
use a predefined background, or
select Custom to define you own
background color and text.
• If you select a color name, the
screen shows an example on the
left. Touch Done to accept that
selection.
• If you touch Custom, the screen
gives you instructions. Touch Next
to step through the choices; touch
Done when you are satisfied with
your changes.
Color Themes
Done
Next
MENU

69-2814EFS—07 14
Setting preferences
Preference menu options let you
select how the thermostat displays
information or responds to certain
situations.
1 Touch MENU and select Preferences.
2 Select an option and follow prompts:
• Reminders
• Utility Schedule Options
• Backlight
• Smart Response Technology
• Advanced Preferences
• Restore Default Schedule
3 Touch Done to save your settings.
Touch Cancel to ignore changes.
MENU
Preferences
Cleaning the thermostat screen
When you select the Clean Screen
option, the screen is locked so you don’t
accidentally change settings while you
clean.
1 Touch MENU.
2 Select Clean Screen. A prompt asks if
you want to clean the screen for 30
seconds.
3 Touch Yes. A countdown timer displays
elapsed time until the screen is
reactivated.
Note: Do NOT spray any liquid directly
on the thermostat. Spray liquids onto a
cloth, then use the damp cloth to clean
the screen. Use water or household glass
cleaner. Avoid abrasive cleansers.
MENU
Clean Screen
Yes

69-2814EFS—07 15

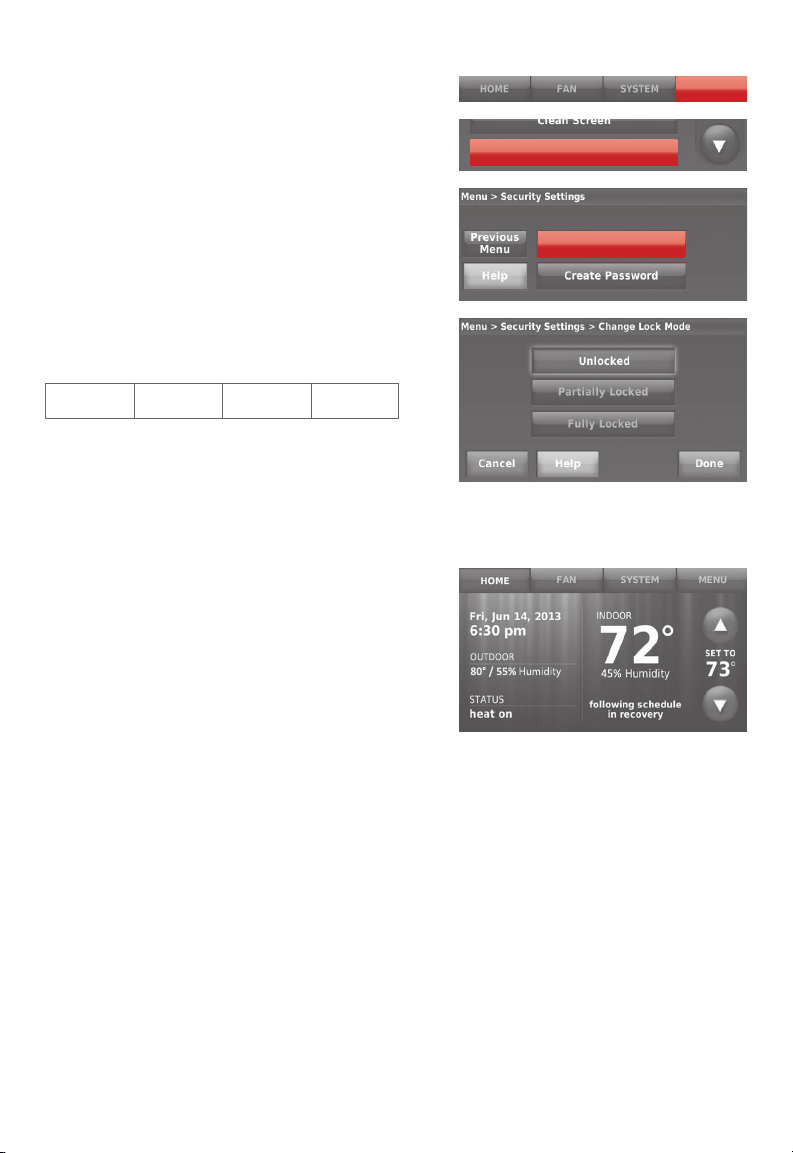

Adjusting security settings
You can adjust security options to prevent
unauthorized changes to system settings.
1 Touch MENU and select Security Settings.
2 Select Change Lock Mode.
3 Select an option and follow prompts:
Unlocked: Full access allowed.
Partially locked: Only temperature
can be changed.
Fully locked: No access allowed.
Note: If you choose to use a password
for additional security, write it here for
reference:
MENU
Security Sengs
Change Lock Mode
Smart Response Technology
This feature (home use only) allows
the thermostat to “learn” how long the
heating/cooling system takes to reach
programmed temperature settings, so the
temperature is reached at the time you
set.
For example: Set the Wake time to 6:00
am, and the temperature to 70°. The
heat will come on before 6:00 am, so the
temperature is 70° by 6:00 am.
Note: Select Smart Response Technology
in the Preferences menu (“Setting
preferences” on page 14).
The message “in recovery” is displayed
when the system is activated before a
scheduled time period.

69-2814EFS—07 16
Pre-occupancy purge
This business use feature turns on the
fan 1 to 3 hours before each “occupied”
time period, to provide a comfortable work
environment when you arrive.
Compressor protection
The thermostat keeps the compressor off for
a few minutes before restarting, to prevent
equipment damage. During this “off” time,
the message “waiting for equipment” is
displayed on screen.
Auto changeover
This feature is used in climates where both
air conditioning and heating are used on
the same day.
When the system is set to Automatic, the
thermostat automatically selects heating
or cooling depending on the indoor
temperature.
Heat and cool settings must be at least
3 degrees apart. The thermostat will
automatically adjust settings to maintain
this 3-degree separation.
Note: Select Auto Changeover on the Heating
and Cooling System Changeover screen
under Advanced Preferences. See “Setting
advanced preferences” on page 17.

69-2814EFS—07 17

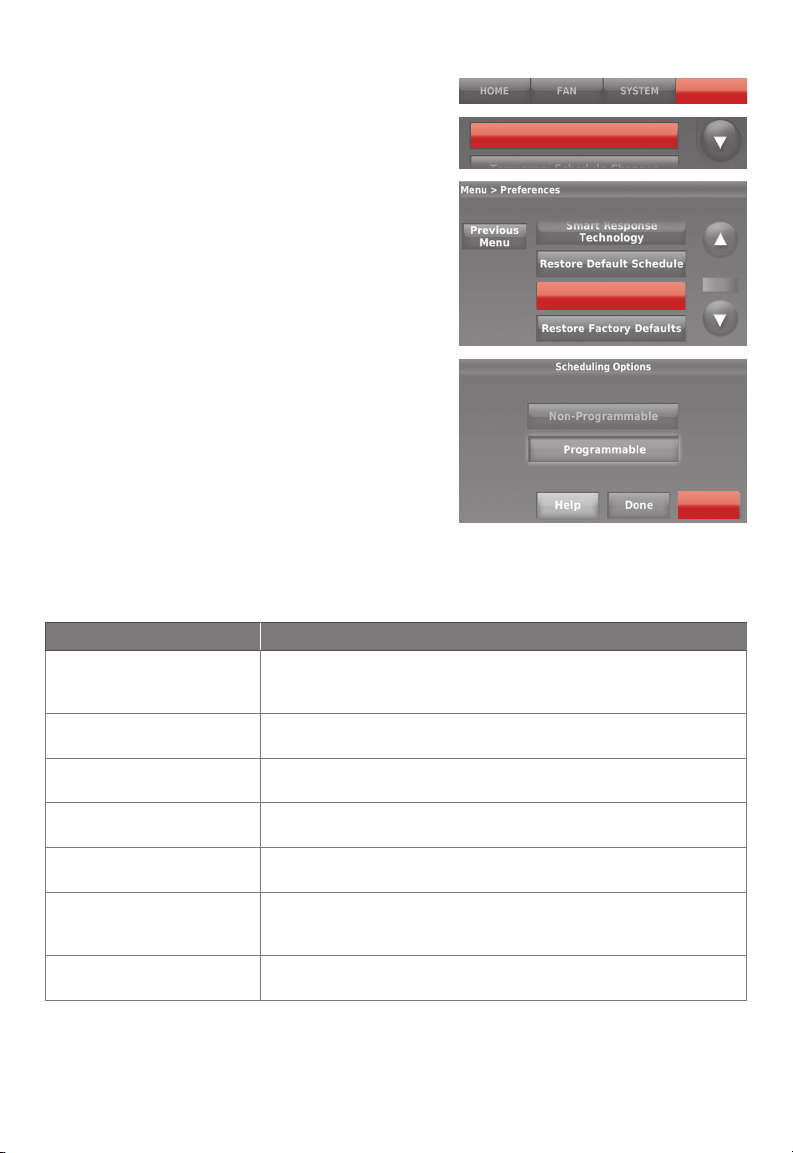

Setting advanced preferences
You can change options for a number of
system functions. Although many options,
such as language and temperature
indication settings are the same for all
setups, others depend on the type of
system you have.
1 Touch MENU. The thermostat displays a
list of options.
2 Select Preferences >Advanced Preferences.
The thermostat displays the first screen
of options that you can change.
3 On each screen, make changes as
needed, then touch Next to display new
options. Repeat this step until you have
made all changes.
Tables on pages 1718 explain the
screens and options under Advanced
Preferences.
4 When you have made all changes, press
Done to save and exit.
MENU
Preferences
Advanced Preferences
Next
Advanced Preferences Options (MENU > Preferences > Advanced Preferences)
Screen Title Settings and Options
Scheduling Options Select Non-programmable or Programmable. Programmable uses default or customized programming to automatically
raise and lower temperature settings for different times of day.
Temperature Indication
Scale Select Fahrenheit or Celsius.
Heating and Cooling
System Changeover Select Manual or Automatic.
Number of Schedule
Periods Select 2 Periods Per Day or 4 Periods Per Day. (see page 7).
Pre-occupancy Purge
Duration *Select how long the fan will run before each occupied period: Off, 1, 2, or 3 hours.
Type of Override *Select Standard to maintain the programmed periods or Initiate Occupancy to use energy-saving settings until a user
presses Start Occupancy.
Override Duration *Select how long to maintain temperature during an override:
110 hours or No Limit.
* Available when thermostat is installed in Business mode.

69-2814EFS—07 18
Setting advanced preferences
Advanced Preferences Options (concluded)
Screen Title Settings and Options
Early Recovery for
Heating *Select No to begin recovery on schedule or Yes to ramp up temperature early.
Early Recovery for
Cooling *Select No to begin recovery on schedule or Yes to ramp down temperature early.
Temperature Limits Select the Minimum Cool and Maximum Heat Limit.
Keypad Lockout Select Unlocked/Partially Locked/Locked.
Clock Format Select 12 Hour or 24 Hour.
Daylight Saving Time Select Off or On. If set to On, the system will automatically
change time/date to account for daylight saving.
Indoor Display Offsets Select the number of degrees to offset indoor temperature or
percentage to offset indoor humidity.
* Available when thermostat is installed in Business mode.
Disconnecting your WiFi network
If you need to disconnect the
thermostat from your WiFi network (for
example, you’re replacing your router),
follow these steps:
1 Touch MENU.
2 Select WiFi Setup.
3 Touch Disconnect from Network. The
thermostat will display a question to
confirm your selection.
4 Touch Yes to confirm that you want
to disconnect from the network. The
thermostat will display the WiFi
Setup screen.
5 Touch OK to display the menu.
MENU
Wi-Fi Setup
Disconnect from
Network
Yes
