Honeywell DX100 (M) User manual

1 2
11
DX100 (M)
TERMINATION UNIT
MAN0617 Issue 03 February 2003
2104M0703

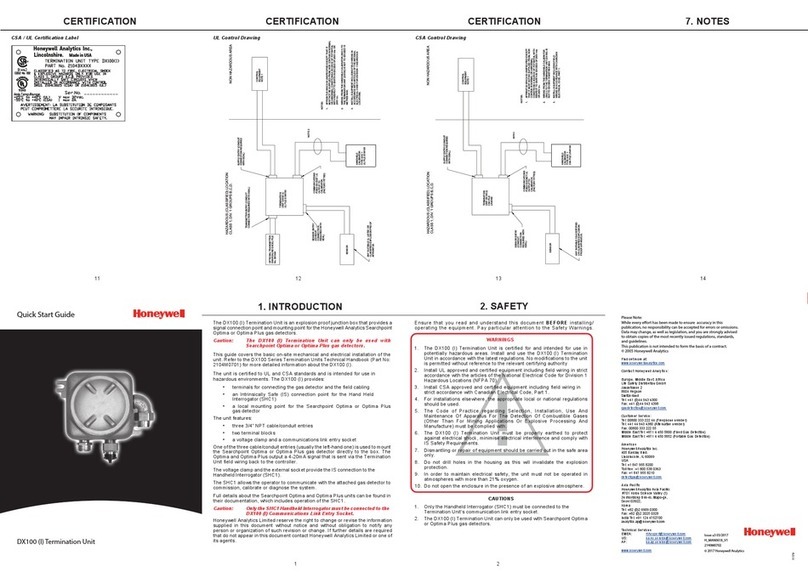

Quick Start Guide
The DX100 (M) Termination Unit is an explosion proof active junction box that
provides a signal connection point for the Searchpoint Optima and Searchline Excel
range of gas detectors and the associated field wiring, and a mounting point for the
Searchpoint Optima and Optima Plus detectors. The unit is certified to UL and CSA
standards and is intended for use in hazardous environments.
The Termination Unit also provides a digital interface between the attached gas detector
and an RS485 link to the network controller.
Note: Gas detector digital address configuration information is not provided here but in
the DX100 Series Termination Units Technical Handbook.
The DX100 (M) provides:
• terminals for connecting the gas detector and the field cabling
•an Intrinsically Safe (IS) connection point for the Hand Held
Interrogator (SHC1)
•a local mounting point for the Searchpoint Optima or Optima Plus gas
detector
The unit features three 3/4” NPT cable/conduit entries, two terminal blocks and a voltage
clamp with a communications link entry socket
When used with an Optima or Optima Plus, one of the unit’s three cable/conduit entries
(usually the left-hand one) is used to mount the gas detector directly to the box. The gas
detectors output a 4-20mA signal that is sent via the Termination Unit and field wiring back
to the system controller.
The voltage clamp and the external socket provide the IS connection to the
Handheld Interrogator (SHC1) which allows operator interaction with the attached gas
detector to commission, calibrate or diagnose the system. Full details about the gas
detectors can be found in their respective technical documents, which include operation of
the SHC1.
Caution: Only the SHC1 Handheld Interrogator should be connected to the
DX100 (M) communication link entry socket.
This guide covers the basic on-site mechanical and electrical installation of the unit. Refer
to the DX100 Series Termination Units Technical Handbook (Part No: 2104M0701) for
more detailed information about the DX100 (M).
Information notices
The types of information notices used throughout this document are as follows:
WARNINGS
Indicates hazardous or unsafe practice that could result in severe injury or
death to personnel.
Caution: Indicates hazardous or unsafe practice which could result in
minor injury to personnel, or product or property damage.
Note: Provides useful/helpful/additional information.
1. INTRODUCTION
6. CERTIFICATION CERTIFICATION
This section specifies UL and CSA certification information for the DX100 (M)
Termination Unit. It includes relevant Control Drawings.
AHoneywell Analytics certification label is located on the right-
hand side of the DX100 (M) Termination Unit.
The label contains all the relevant information regarding the
product’s identification and certification state.
The following diagram showsthe UL/CSA
Certification Label.
The part number for the DX100 (M) Termination Unit is
2104B2382.
UL/CSA Certification Label
UL Control Drawing
TERMINATION UNIT DX100 (M) UL FILE E136193
COMMUNICATIONS FIXED SOCKET I.S. OUTPUT TO CALIBRATOR. (FACTORY FITTED)
NOTE 2
CONTROL EQUIPMENT NOTE 1
SENSOR
ANY SUITABLE UL LISTED OR CLASSIFIED EXPLOSION PROOF APPARATUS.
HANDHELD CALIBRATOR TYPE SHC 1 UL FILE E136193
NOTES: 1. APPARATUS WHICH IS UNSPECIFIED EXCEPT THAT IT
MUST NOT BE SUPPLIED FROM, NOR CONTAIN IN NORMAL OR ABNORMAL CONDITIONSA SOURCE OF POTENTIAL WITH RESPECT TO EARTH IN EXCESS OF 250V rms OR 250V d.c.
2. WIRING FROM THE HANDHELD CALIBRATOR (SHC1) TO
THE TERMINATION UNIT (DX100) IS NOTTO EXCEED 15 METRES MAX.
3. INSTALL EQUIPMENT INCLUDING FIELD WIRING IN
ACCORDANCE WITH ARTICLES OF THE NATIONAL ELECTRICAL CODE FOR DIVISION 1HAZARDOUS LOCATIONS.
SENSOR ENTRY
(CONDUIT CONNECTION REQUIRED WITH SEAL)
NON HAZARDOUS AREA
SUPPLY ENTRY (CONDUIT CONNECTION REQUIRED WITH SEAL)
OPTIONAL TRANSMITTER SEARCHLINE EXCEL FILE No. E91044
TRANSMITTER ENTRYP(CONDUIT CONNECTIONPREQUIRED WITH SEAL)
HAZARDOUS (CLASSIFIED) LOCATION CLASS 1 DIV. 1 GROUPS B,C,D.
2. SAFETY
Ensure that you read and understand this document BEFORE installing/
operating the equipment. Pay particular attention to the Safety Warnings.
WARNINGS
1. The DX100 (M) Termination Unit is certified for and intended for use in
potentially hazardous areas. Install and use the DX100 (M) Termination Unit
in accordance with the latest regulations. No modifications to the unit is
permitted without reference to the relevant certifying authority
2. Install UL approved and certified equipment including field wiring in strict
accordance with the articles of the National Electrical Code for Division 1
Hazardous Locations (NFPA 70).
3. Install CSA approved and certified equipment including field wiring in strict
accordance with Canadian Electrical Code, Part 1.
4. For installations elsewhere, the appropriate local or national regulations
should be used.
5. The Code of Practice regarding Selection, Installation, Use And Maintenance
Of Apparatus For The Detection Of Combustible Gases (Other Than For
Mining Applications Or Explosive Processing And Manufacture) must be
complied with.
6. The DX100 (M) Termination Unit must be properly earthed to protect against
electrical shock, minimise electrical interference and comply with IS Safety
Requirements.
7. Dismantling or repair of equipment should be carried out in the safe area
only.
8. Do not drill holes in the housing as this will invalidate the explosion protection.
9. In order to maintain electrical safety, the unit must not be operated in
atmospheres with more than 21% oxygen.
10. Do not open the enclosure in the presence of an explosive atmosphere.
CAUTIONS
Only the Handheld Interrogator (SHC1) must be connected to the
Termination Unit’s communication link entry socket.
Honeywell Analytics reserve the right to change or revise the information supplied in this
document without notice and without obligation to notify any person or organization of
such revision or change. If further details are required that do not appear in this
document contact Honeywell Analytics or one of its agents.
CSA Control Drawing
SENSOR ENTRY (CONDUIT CONNECTION REQUIRED WITH SEAL)
NON HAZARDOUS AREA
SUPPLY ENTRY (CONDUIT CONNECTION REQUIRED WITH SEAL)
COMMUNICATIONS FIXED SOCKET I.S. OUTPUT TO CALIBRATOR. (FACTORY FITTED)
NOTE 2
CONTROL EQUIPMENT NOTE 1
SENSOR
TERMINATION UNIT DX100 (M) CSA FILE LR48148
TRANSMITTER ENTRYP(CONDUIT CONNECTIONPREQUIRED WITH SEAL)
HAZARDOUS (CLASSIFIED) LOCATION CLASS I, DIV. 1 GROUPS B,C,D.
ANY SUITABLE CSA LISTED OR CLASSIFIED EXPLOSION PROOF APPARATUS.
HANDHELD CALIBRATOR TYPE SHC 1 CSA FILE LR48148
OPTIONALTRANSMITTER SEARCHLINE EXCEL FILE No. LR48148
NOTES: 1. APPARATUS WHICH IS UNSPECIFIED EXCEPT THAT IT
MUST NOT BE SUPPLIED FROM, NOR CONTAIN IN NORMAL OR ABNORMAL CONDITIONS A SOURCE OF POTENTIAL WITH RESPECT TO EARTH IN EXCESS OF 250V rms OR 250V d.c.
2. WIRING FROM THE HANDHELD CALIBRATOR (SHC1) TO THE
TERMINATION UNIT (DX100) IS NOT TO EXCEED 15 METRES MAX.
3. INSTALL EQUIPMENT INCLUDING FIELD WIRING
IN ACCORDANCE WITH CANADIAN ELECTRICAL CODE, PART 1
CERTIFICATION
14
This publication is not intended to form the basis of a contract, and the company reserves the
right to amend the design and specification of the instruments without notice.
A company of the Zellweger Luwa Group
total environmental solutions
Certification label
MEMBERS OF THE ZELLWEGER ANALYTICS DIVISION
UK AND INTERNATIONAL
ENQUIRIES
Zellweger Analytics Ltd
Hatch Pond House
4 Stinsford Road
Nuffield Estate
Poole
Dorset
BH17 0RZ, UK
Tel: [phone]
Fax: [phone]
Email: [email protected]
ASIA PACIFIC
Zellweger Analytics Ltd
Asia Pacific Regional Office
1 Scotts Road
#25-04 Shaw Centre
Singapore 228208
Tel: [phone]
Fax: [phone]
Email:[email protected]
BELGIUM
Zellweger Analytics NV
Leuvensesteenweg 392a
Chee de Louvain
B-1932 Zaventem
Belgium
Tel: [phone]
Fax: [phone]
Email: [email protected]
FRANCE
Zellweger Analytics France SA
Les Fermes Californiennes
62 avenue de l’Europe
Emerainville
77436 MARNE LA VALLEE
CEDEX 2
France
Tel: [phone]
Fax: [phone]
GERMANY
Zellweger Analytics GmbH
Sollner Strasse 65b
D-81479 Munchen
Germany
Tel: [phone]
Fax: [phone]
Email:
[email protected]
ITALY
Zellweger Analytics srl
Via F. Primaticcio 168
1-20147 Milano
Italy
Tel: [phone]
Fax: [phone]
Email: [e-mail]
MIDDLE EAST
Zellweger Analytics Limited
PO Box 52196
Dubai UAE
Tel: [phone]
Fax: [phone]
Email:zela[email protected]t.ae
NETHERLANDS
Zellweger Analytics BV
Postbus 157
NL-3740
AD Baarn
Tel: [phone]
Fax: [phone]
Email: [email protected]
SPA IN
Zellweger Analytics SA
Avda Remolar 31
08820 El Prat de Llobregat
Barcelona
Spain
Tel: [phone]
Fax: [phone]
Email: [email protected]
USA
Zellweger Analytics, Inc.
5089 Bristol Industrial Way
Suite B & C
Buford, Georgia 30518
USA
Tel: [phone]
Toll Free: [phone]
Fax: [phone]
Email: [e-mail]
13
12
6. SPECIFICATIONS
Connections
Inputs
Outputs
Power Supply
Searchpoint Optima
Searchpoint Optima Plus
Searchline Excel
Searchline Excel Cross-Duct
Field wiring.
IS protected Honeywell SHC1 Handheld
Interrogator communications (RS485)
4-20mA (Non-isolated).
18-32VDC.
Environmental
Operating temperature UL -25°C to 40°C (-13°F to 104°F).
CSA -55°C to 40°C (-67°F to 104°F).
Enclosure
Entry Socket One IS protected Communications Link Entry Socket
for connecting the Honeywell SHC1 Handheld
interrogator.
Cable/Conduit Entries Three 3/4 NPT entries (one each side and one in the
bottom) to accept gas detector and field cabling or 3/4”
conduit.
Size 212mm (8.35in.) wide x 152.4mm (6in.) high x
Weight
Material
Ingress Protection
Certification
Digital Interface
117.5mm (4.625in.) deep. Add approximately 60mm
(2.36in.) to the height for the Communications Link
Entry Socket.
2.5kg.
Aluminium.
IP66 to BS EN 60529, Degrees of protection provided
by enclosures (IP code).
UL Class I, Div 1, Groups B, C, D
CSA Class I, Div 1, Groups B, C, D
(see Certification for details)
Use the Modbus®RTU communications protocol
Field Wiring from 22-12 AWG (0.326 to 3.31mm2), 105C
DX100 (M) Termination Unit
Quick Start Guide
Issue a3 03/2017
H_MAN0617_V1
2104-M-0703
© 2017 Honeywell Analytics
1117 9
Please Note:
While every effort has been made to ensure
accuracy in this publication, no responsibility
can be accepted for errors or omissions. Data
may change, as well as legislation, and you
are strongly advised to obtain copies of the
most recently issued regulations, standards,
and guidelines.
This publication is not intended to form the
basis of a contract.
© 2017 Honeywell Analytics
Find out more at:
www.honeywellanalytics.com
Contact Honeywell Analytics:
Europe, Middle East, Africa
Life Safety Distribution GmbH
Javastrasse 2
8604 Hegnau
Switzerland
Tel: [phone]
Fax: [phone]
[email protected]
Customer Service:
Tel: [phone] (Freephone number)
Tel: [phone] (Alternative number)
Fax: [phone]
Middle East Tel: [phone] (Fixed Gas Detection)
Middle East Tel: [phone] (Portable Gas Detection)
Americas
Honeywell Analytics Inc.
405 Barclay Blvd.
Lincolnshire, IL 60069
USA
Tel: [phone]
Toll free: [phone]
Fax: [phone]
[email protected]
Asia Pacic
Honeywell Analytics Asia Pacic
#701 Kolon Science Valley (1)
34 Worldcup Buk-ro, Mapo-gu,
Seoul 03922,
Korea
Tel: [phone]
Fax: [phone]
India Tel: [phone]
[email protected]
Technical Services
EMEA: [email protected]
US: [email protected]
AP: [email protected]
www.honeywell.com
©2016 Life Safety Distribution
GmbH. All rights reserved.
This document contains
proprietary information of Life
Safety Distribution GmbH and its
affiliated companies and is
protected by copyright and other
international laws. Reproduction
or improper use without specific
written authorization of Life
Safety Distribution GmbH is
strictly forbidden.
C
Honeywell Analytics Inc.
Lincolnshire. Made in USA

4
8 9 10
5 6
7
3. MAIN FEATURES 4. INSTALLATION
INSTALLATION
It is important before starting these procedures that the detailed information
provided in the DX100 Series Termination Units Technical Handbook about
DX100 (M) installation has been carefully considered at the planning stage.
General Installation Guidelines
1. Read the Warnings and Cautions at the beginning of this document and all the
relevant instructions before starting any of the installation procedures.
2. Identify external cable requirements and the necessary cable entry ports to be used
on the Termination Unit.
3. Refer to the documentation for the associated control system for details about
external network connection information, field wiring, interconnections, etc.
4. Refer to the relevant handbooks for details about the gas detectors.
5. Isolate all associated power supplies and ensure that they remain OFF during the
procedures. Ensure a gas-free atmosphere.
MECHANICAL INSTALLATION PROCEDURES
Mechanical Installation Guidelines
1. Identify a suitable location where the Termination Unit can be mounted. The
Termination Unit should be fitted to a flat surface.
2. When fitting a Termination Unit consideration should be made regarding the
probability of mechanical impacts and interference from other equipment and
apparatus.
3. The mounting plates for the Searchline Excel gas detectors, and to which the
DX100 (M) unit is attached, have fixing holes that are unthreaded. Unit and
gas detector system component mounting holes are threaded. For the identity
of other plate holes refer to the Searchline Excel Technical Handbook.
With Searchpoint Optima
This procedure describes how the
DX100 (M) is installed at the
mounting location and then the
Optima gas detector is fitted to the
Termination Unit.
(1) Securely fit the Termination
Unit at the required monitoring
point.
Use the two Termination Unit
mounting lugs. Ensure the
communications link entry socket connector is located at the bottom. This
fulfils the requirement to position the Optima sensor horizontally so that the
risk of fouling the gas detector's optical surfaces is reduced.
(2) Remove the Termination Unit lid.
Use the lugs on the lid to unscrew it anticlockwise from the Termination Unit
base.
(3) Fit the Optima detector to the left-hand entry.
First remove the 3/4 NPT approved blanking plug.
(4) Fit approved certified 3/4 NPT cable glands or conduit fittings to the
Termination Unit cable/conduit entries as required.
(5) Fit the external field wiring through the cable/conduit fittings and secure.
(6) Terminate the gas detector and field wiring.
Refer to Electrical Installation.
With Searchline Excel Open-Path
The DX100 (M) is fitted to the
Excel receiver’s mounting plate
and then the units are wired.
(1) Securely fit the Termination
Unit to the mounting plate
so that the communications
link entry socket connector
is located at the bottom.
Use the Termination Unit
mounting holes marked Gon
the diagram below. The box
uses two of the four holes
depending on the plate’s
horizontal orientation.
(2) Remove the Termination Unit lid.
Use the lugs on the lid to unscrew it
anticlockwise from the Termination
Unit base.
(3) Attach the Searchline Excel gas
detector's cable to the Termination
Unit.
Fit to the bottom left entry after
removing the 3/4 NPT blanking plug.
(4) Fit approved certified 3/4 NPT cable
glands or conduit fittings to the
Termination Unit cable/conduit entries as necessary.
This section shows the main features of the Termination Unit and also details
important dimensions for the unit when installing.
INSTALLATION
INSTALLATION INSTALLATION
(5) Fit the external field wiring through the cable/conduit fittings and secure.
(6) Terminate the gas detector and field wiring.
Refer to Electrical Installation.
With Searchline Excel Cross-Duct
The DX100 (M) is fitted to the
Cross-Duct mounting plate and then
the units are wired.
(1) Securely fit the Termination
Unit to the mounting plate so
that the communications link
entry socket connector is
located at the bottom.
Use the mounting holes marked
Gon the diagram below.
(2) Remove the Termination Unit
lid.
Use the lugs on the lid to
unscrew it anticlockwise from
the Termination Unit base.
(3) Attach the two cables from the Searchline Excel Cross-Duct gas detector to
the Termination Unit.
Fit the transmitter's cable to the bottom left entry after
removing the 3/4 NPT blanking plug. Fit the receiver's
cable to the right-hand entry after removing the 3/4
NPT blanking plug (see the diagram). Use suitably
approved certified glands/adaptors.
(4) Fit an approved certified 3/4 NPT cable gland or
conduit fitting to the Termination Unit cable/conduit
entry as necessary.
(5) Fit the external field wiring through the cable/conduit
fitting and secure.
(6) Terminate the gas detector and field wiring.
Refer to Electrical Installation.
ELECTRICAL INSTALLATION
Electrical Installation Guidelines
1. Isolate all associated power supplies and ensure that they remain OFF
during the procedures. Ensure a gas-free atmosphere.
2. Ensure that approved and certified cable glands have been fitted to the
Termination Unit cable entries where used for field wiring, with sealing
washers where necessary to maintain the ingress protection rating.
3. Ensure that any cable gland/conduit locking rings are fitted before terminating
the cables.
4. Make sure that a conduit sealing fitting is installed within 460mm (18in.) of the
Termination Unit on all conduit runs. The following diagram shows a vertical
conduit seal fixed in the conduit run close to a Termination Unit fitted with an
Optima unit. Excel Open-Path and Cross-Duct installations should be similar.
5.
6.
7.
8.
9.
Ensure that approved and certified blanking plugs are fitted to all unused
Termination Unit cable entries.
The Termination Unit mounting plate must be bonded to a protective earth.
Suitable crimps and/or ferrules must be fitted when connecting more than
one wire to a Termination Unit terminal.
The field terminals of the Termination Unit accept single or multi-stranded
wire from 22-12 AWG (0.326 to 3.31 mm2), 105C. Cables should be
routed carefully to avoid physical and environmental hazards such as
mechanical stress and high temperatures.
In order to ensure correct operation and to meet requirements for RFI and
EMC, it is recommended that all field cables are screened with the cable
screen connected at one end only (see the Technical Handbook).
Connect the gas detector and field wiring to the terminal blocks in the DX100 (M)
Termination Unit according to the following wiring diagrams and tables.
3
INSTALLATION
Searchpoint Optima
16
1
6
TB1
Optima Wires
green/yellow
(earth)
blue (B)
orange (A)
white (4-20mA)
black (0V)
red (+24VDC)
TB2
Field Wires
earths Modbus B
Modbus A
0VDC - in
+24VDC - in
4-20mA - out Screen - Modbus Drain
Terminal/ Gas Detector Wiring Field Wiring
Number Function Colour
TB1 1- - -
2A Orange -
3B Blue -
4- -Drain
5- -Modbus B
6- -Modbus A
TB2 1 +24VDC Red -
2- -+24VDC - Supply
3 4-20mA White 4-20mA - Output
4- - -
5 0V Black -
6- -0V - Supply
Earth - Earth Green/Yellow Earth
Posts Barrier Earth
Searchline Excel Open-Path
16
1
6
TB2
TB1
Field Wires
0VDC - in
+24VDC in
Modbus A
earth
earth
4-20mA - out
Modbus B
Modbus Drain
Screen -
Excel Receiver
Wires
black (0V)
green/yellow (earth)
blue (B)
orange (A) white (4-20mA)
red (+24VDC)
Terminal/ Gas Detector Wiring Field Wiring
Number Function Colour
TB1 1- - -
2A Orange -
3B Blue -
4- -Drain
5- -Modbus B
6- -Modbus A
TB2 1 +24VDC Red -
2- -+24VDC - Supply
3 4-20mA White 4-20mA - Output
4- - -
5 0V Black -
6- -0V - Supply
Earth - Earth Green/Yellow Earth
Posts Barrier Earth
GG
GG
G
G
Searchline Excel Cross-Duct
Terminal/ Gas Detector Wiring Field Wiring
Number Function Colour Receiver/Transmitter
TB1 1- - - -
2 A Orange - -
3 B Blue - -
4- - - Drain
5- - - Modbus B
6- - - Modbus A
TB2 1 +24VDC Red Receiver & Transmitter -
2- - - +24VDC - Supply
3 4-20mA White Receiver only 4-20mA - Output
4- - - -
5 0V Black Receiver & Transmitter -
6- - - 0V - Supply
Earth - Earth Green/ Receiver & Transmitter Earth
Posts Yellow Barrier Earth
16
1
6
TB2
TB1
Cross-Duct
Receiver Wires
green/yellow
(earth)
orange (A)
blue (B)
white (4-20mA)
black (0V)
red (+24VDC)
Cross-Duct
Transmitter Wires
green/yellow (earth)
black (0V)
red (+24VDC)
Field Wires
0VDC - in
+24VDC - in
Modbus A
earth
earth
4-20mA - out
Modbus B
Screen -
Modbus Drain
Flexible Conduit
Cross-Duct
Mounting Plate
Field
Cable/
Conduit
DX100 (M)
Cross-Duct Receiver
Cross-Duct
Transmitter
Flexible Conduit
Searchline Excel
Mounting Plate
Field
Cable/
Conduit
DX100 (M)
Searchline
Excel
Receiver
Handheld
Interrogator Socket
Optima
DX100 (M)
Field Cable/Conduit
INSTALLATION
