Honeywell HD6 Series User manual

HD6 Series
Housings
Installation Manual
900.0696 August 2006 Rev. 1.02

Rev. 1.02 ii 900.0696
1-Aug-06
ISSUE DATE REVISIONS
1.0 December 2005 Initial Release
1.01 June 2006
Remove Ultradome; revise power wiring distance chart;
changed CAT5 to UTP; removed UTC option
1.02 August 2006
Revised Important Safeguards regarding Installation and
water/moisture for specific housing types.

FCC COMPLIANCE STATEMENT
INFORMATION TO THE USER: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at
his own expense.
CAUTION: Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instruction in the literature
accompanying the product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLEPARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Rev. 1.02 iii 900.0696
1-Aug-06

Rev. 1.02 iv 900.0696
1-Aug-06

IMPORTANT SAFEGUARDS
1. READ INSTRUCTIONS – All of the safety and operating instructions should be read before the appliance is
operated.
2. RETAIN INSTRUCTIONS – The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS – All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS – All operating and use instructions should be followed.
5. CLEANING – Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
6. ATTACHMENTS – Do not use attachments not recommended by the product manufacturer as they may
result in the risk of fire, electric shock, or injury to persons.
7. INSTALLATION – The indoor housings and rugged dome housing are not designed to be waterproof.
Exposure to rain or water may damage the unit. The weather dome housing is designed to be installed in an
outdoor environment and is waterproof when installed and sealed as recommended in this manual.
8. WATER AND MOISTURE:
Indoor Housings and Rugged Dome Housing - Do not use these units near water or in an unprotected
outdoor installation, or any area classified as a wet location.
Weather Dome Housing – These units can be installed in an outdoor environment provided they are installed
and sealed as recommended in this manual.
9. ACCESSORIES - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product
may fall, causing serious injury to a child or adult and serious damage to the equipment. Use only with a cart,
stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of
the product should follow the manufacturer’s instructions and should use a mounting accessory
recommended by the manufacturer. Wall or shelf mounting should follow the manufacturer’s instructions and
should use a mounting kit approved by the manufacturer.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart combination to overturn.
11. VENTILATION - Slots and openings in the cabinet and the back or bottom are provided for
ventilation and to ensure reliable operation of the equipment and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be blocked by placing the product on
a bed, sofa, rug, or other similar surface. Equipment should never be placed near or over a radiator or heat
register. This product should not be placed in a built-in installation, such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s instructions have been adhered to.
12. POWER SOURCES – This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your facility, consult your product dealer or
local power company. For products designed to operate from battery power or other sources, refer to the
operating instructions.
13. GROUNDING OR POLARIZATION – The power supply supplied with this unit may be equipped with a
polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
14. OVERLOADING – Do not overload outlets and extension cords as this can result in a risk of fire or
electric shock.
Rev. 1.02 v 900.0696
1-Aug-06

Rev. 1.02 vi 900.0696
1-Aug-06
IMPORTANT SAFEGUARDS, CONTINUED
15. POWER-CORD PROTECTION – Power supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs,
convenience receptacles, and the point where they exit from the monitor.
16. OBJECT AND LIQUID ENTRY – Never push objects of any kind into this unit through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid
of any kind on the unit.
17. SERVICING – Do not attempt to service this unit yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
18. DAMAGE REQUIRING SERVICE – Unplug the unit from the outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. Indoor Housings and Rugged Dome Housing - If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to restore the unit to its normal
operation.
e. If the unit has been dropped or the enclosure has been damaged.
f. When the unit exhibits a distinct change in performance - this indicates a need for service.
19. REPLACEMENT PARTS – When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
20. SAFETY CHECK – Upon completion of any service or repairs to this unit, ask the service technician to
perform safety checks to determine that the unit is in proper operating condition.
21. LIGHTNING AND POWER LINE SURGES – For added protection of this unit during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect
the cable system. This will prevent damage to the unit due to lightning and power-line surges.
22. HEAT – The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
23. WALL OR CEILING MOUNTING – The product should be mounted to a wall or ceiling only as recommended
by the manufacturer.

Rev. 1.02 vii 900.0696
1-Aug-06
IMPORTANT NOTICE
All companies make changes and improvements in their products. Because this product can be set up
to interface with equipment not manufactured by Honeywell Video Systems, there is a possibility that the
interface protocols may have changed since Honeywell Video Systems tested this product with the
interfacing equipment. Therefore, this unit may not be currently compatible with equipment produced by
other manufacturers. The existence of past successful installations proves our intent to provide
equipment compatible with other manufacturers, but does not guarantee success.
Honeywell Video Systems recommends purchasing a single unit for bench testing prior to purchasing
and installing this product in quantity. Should any problems occur, Honeywell Video Systems will
provide technical support (at the user’s expense) to analyze the interface protocols of your system. The
end user must agree to give Honeywell Video Systems reasonable access to the system in order to
study and correct the protocol incompatibility.
In the event that Honeywell Video Systems is unable to make the units work together in the system, we
will accept the return of any Honeywell Video Systems products associated with the installation and
refund the amounts paid for these products. Because Honeywell Video Systems recommends bench
testing the equipment prior to installation, we will not be liable for any installation cost, lost revenues, or
other cost resulting from the incompatibility.

Rev. 1.02 viii 900.0696
1-Aug-06
Notes:

Rev. 1.02 ix 900.0696
1-Aug-06
TABLE OF CONTENTS
SECTION 1: INTRODUCTION .................................................................................................................. 1
1.1 PRODUCT DESCRIPTION .................................................................................................................. 1
1.2 RECOMMENDED CABLING AND CONNECTORS............................................................................. 1
SECTION 2: BASIC INSTALLATION ........................................................................................................ 3
2.1 DROPPED CEILING HOUSING........................................................................................................... 3
2.2 HARD CEILING HOUSING.................................................................................................................. 5
2.3 PENDANT DOME HOUSING .............................................................................................................. 7
2.4 HD6 RUGGED DOME HOUSING...................................................................................................... 10
2.5 WEATHER DOME HOUSING............................................................................................................ 15
SECTION 3: WIRING THE HOUSING..................................................................................................... 19
3.1 INTRODUCTION................................................................................................................................19
3.1.1 Power............................................................................................................................ 19
3.1.2 Control Data.................................................................................................................. 21
3.1.3 Video............................................................................................................................. 23
3.1.4 Alarm............................................................................................................................. 23
3.2 WIRING – STANDARD....................................................................................................................... 24
3.2.1 Dropped / Hard Ceiling Installation .............................................................................. 24
3.2.1 Dropped / Hard Ceiling Installation, Continued ........................................................... 25
3.2.2 Pendant Dome Installation ........................................................................................... 27
3.2.3 HD6 Rugged Housing Installation................................................................................ 29
3.2.4 Weather Dome Installation ........................................................................................... 30
3.3 WIRING – UNSHIELDED TWISTED PAIR (UTP) OPTION................................................................. 33
3.3.1 Dropped Ceiling / Hard Ceiling / Pendant Dome Installation....................................... 33
3.3.2 HD6 Rugged Housing Installation................................................................................ 37
3.3.3 Weather Dome Installation ........................................................................................... 39

Rev. 1.02 x 900.0696
1-Aug-06
LIST OF FIGURES
Figure 1: Dropped Ceiling Housing Installation 3
Figure 2: Hard Ceiling Housing Installation 5
Figure 3: Pendant Dome Housing Installation 7
Figure 4: Safety Cable Installation 10
Figure 5: Installing Conduit Fitting In Housing 11
Figure 6: Mounting Bracket Hole Detail 12
Figure 7: Changing Orientation of the Bracket 13
Figure 8: Heater/Blower Option 14
Figure 9: Safety Cable Installation 16
Figure 10: Standard Wiring – Dropped / Hard Ceiling Installation 25
Figure 11: Installing Top Plate in Housing 26
Figure 12: Standard Wiring – Pendant Housing 28
Figure 13: Standard Wiring – HD6 Rugged Housing Installation 29
Figure 14: Standard Wiring – HD6 Weather Dome – No Connector 31
Figure 15: Standard Wiring – HD6 Weather Dome –14-pin Connector 32
Figure 16: Unshielded Twisted Pair (UTP) Option Wiring – Hard / Dropped / Pendant Housing 36
Figure 17: Unshielded Twisted Pair (UTP) Option – HD6 Rugged Dome 38
Figure 18: Unshielded Twisted Pair (UTP) Option – HD6 Weather Dome – No Connector 40

Rev. 1.02 1 900.0696
1-Aug-06
SECTION 1:
INTRODUCTION
1.1 PRODUCT DESCRIPTION
An HD6 is a pan and tilt mechanism containing a camera and lens that is controlled
remotely by an operator using a Diamond series, Maxpro series, Pelco (P and D code
only), or VCL control system. The HD6 is enclosed in a housing for dropped or hard
ceiling applications or in a pendant dome for indoor applications. The HD6 is housed in
a Weather Dome or Rugged Dome for outdoor applications. For nitrogen pressurized
applications, refer to the Nitrogen Pressurized Dome Installation Manual. The whole
assembly is often referred to as a "dome". The pan and tilt mechanism with camera and
lens is often referred to as a "scan".
The indoor pendant housing can be mounted on a Honeywell Video Systems indoor
pendant ceiling dome mount or indoor wall dome mount. The weather dome can be
mounted on a Honeywell Video Systems outdoor wall mount, pendant mount, roof
mount, or parapet mount.
This installation guide provides instructions for mounting the different types of housing s.
Refer to the User Manual for operation and programming information.
1.2 RECOMMENDED CABLING AND CONNECTORS
Type Recommended Cable Part Number Maximum Distance
Video Coax, RG-59/U, 75 Ohms
BNC Connector, Crimp On for RG-59/U
BNC Connector, Screw Type for RG-59/U
849518-0054
842374-0194
842374-0391
1000 Feet (305 Meters)
Data Twisted Shielded Pair, RS-422 Data 849518-0334 4000 Feet (1219 Meters)
Power 18 AWG 2-Conductor , Vinyl Jacket 849518-0336 See Gauge Chart for Each
Unit
Alarm Belden 8205 849518-0217 10,000 Feet
Unshielded
Twister Pair
(UTP) Option
UTP Cabling
1 twisted pair for data
1 twisted pair for video
849518-0399 DIP Switch Selectable
0-300 (0-90 Meters)
300-600 (90-180 Meters)
600-900 (180-270 Meters)
900-1200 (270-365 Meters)
1200-1500 (365-455 Meters)
UTP Receiver required at monitor 843216-0953 1500 Feet (455 Meters)
Digital Interface
Option
CAT5 Cable with an RJ-45 Connector for
10baseT or 100baseT Ethernet

Rev. 1.02 2 900.0696
1-Aug-06
Notes:

SECTION 2:
BASIC INSTALLATION
2.1 DROPPED CEILING HOUSING
WARNING: Installation must be performed by qualified technical
personnel and must be in accordance with all national and local
mechanical and electrical codes.
Perform the following steps to install a dropped ceiling housing . Refer to Figure 1
HOUSING
LOWER DOME
MOUNTING POSTS
(3 PLACES)
ATTACH LANYARD TO BOTTOM
TURN SCREW CLOCKWISE TO
EXTEND SUPPORT CLAMPS AND
SECURE DOME TO CEILING
(TYPICAL 3 PLACES)
WING TAB (3 PLACES)
CABLE CLAMP
SAFETY CABLE TIE POINT
(METAL TAB WITH HOLE ON SIDE OF CAN)
CONNECT SECURELY TO BUILDING
SUPPORT STRUCTURE
DROPPED CEILING PLATE
SPRING LATCH
(RELEASES TOP PLATE)
SCAN ALIGNMENT STUDS
CUSTOMER 2 FT
SPAN DROPPED
CEILING GRID
SUPPORTS
.62 (15.7) DROPPED
CEILING TILE
CUT-OUT IN CEILING TILE
7 5/8” DIA.
(193.8)
APPROX 5.00
(127)

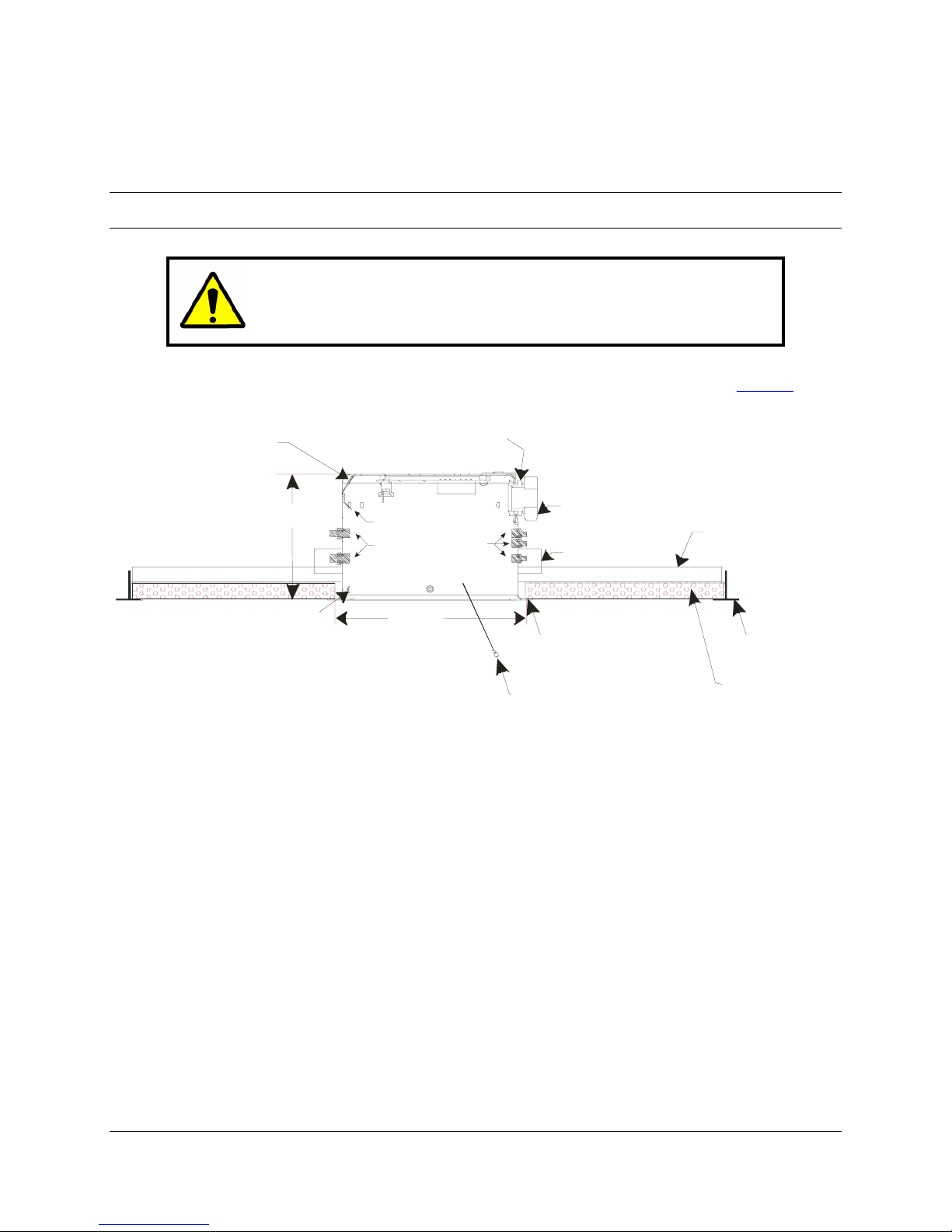

Figure 1: Dropped Ceiling Housing Installation
1. Select the location(s) of the housing (s). Each HD6 requires a 24Vac ±10% power
source when measured at the dome. Ensure a 24Vac @ 1.1A power source is
available at the dome. Refer to Section 3.1.1 for maximum wiring distances to the
dome.
2. Remove the ceiling panel (2’x4’ or 2’x2’) at the dome location.
3. Place the ceiling tile on the dropped ceiling plate. Trim the ceiling tile so you can
press the ceiling tile into the dropped ceiling plate.
4. Cut a hole in the ceiling tile flush with the hole in the center of the plate.
5. Secure a safety cable (supplied by installer) to a building support structure.
Honeywell Video Systems recommends using 3/32” plastic coated aircraft cable
(part 849518-0311) and looping sleeves (part 849511-0057). These parts can be
ordered from the Honeywell Video Systems parts department.
Rev. 1.02 3 900.0696
1-Aug-06

2.1 DROPPED CEILING HOUSING, CONTINUED
6. Place the housing in the ceiling mount.
The space between the wing tabs on the housing and
the housing flange should be greater than the
thickness of the ceiling tile and the mount. Make sure
the wing tabs on the housing are staggered so the tabs
are not at the same height.
7. Position the wing tabs flat against the housing . Push the housing through the hole
in the ceiling tile and the mount (some jostling is required). Using a screwdriver,
turn the three screws in the housing clockwise to rotate the tabs out and tighten the
tabs against the ceiling mount.
8. Attach the safety cable (from the building support structure) to the housing by
threading the cable through a looping sleeve, through the hole in the tab (beside the
conduit fitting) on the housing , and then through the looping sleeve again. Secure
by crimping the looping sleeve. The safety cable tab on the housing can be rotated
as needed for clearance in the ceiling.
9. Place the ceiling tile with the plate and the housing on the ceiling support grid.
10. Refer to
Section 3 for wiring instructions.
Refer to Section 3.2 for standard wiring.
Refer to Section 3.3 for Unshielded Twisted Pair (UTP) wiring.
Rev. 1.02 4 900.0696
1-Aug-06

2.2 HARD CEILING HOUSING
WARNING: Installation must be performed by qualified technical
personnel and must be in accordance with all national and local
mechanical and electrical codes.
Perform the following steps to install a HD6 hard ceiling dome. Refer to Figure 2.
HOUSING
SEAL CUT-OUT
USING TAPE OR
PLASTIC CHANNEL
(SUPPLIED BY
INSTALLER)
LOWER DOME
MOUNTING POSTS
(3 PLACES)
ATTACH LANYARD TO BOTTOM
TURN SCREW CLOCKWISE TO
EXTEND SUPPORT CLAMPS AND
SECURE DOME TO CEILING
(TYPICAL 3 PLACES)
WING TAB (3 PLACES)
CABLE CLAMP
SAFETY CABLE TIE POINT
(METAL TAB WITH HOLE ON SIDE OF CAN)
CONNECT SECURELY TO BUILDING
SUPPORT STRUCTURE
DRYWALL CEILING
APPROX 5.00
(127)
CUT-OUT IN CEILING
7 5/8” DIA.
(193.8)
SPRING LATCH
(RELEASES TOP PLATE)
SCAN ALIGNMENT STUDS
Compass Tool
(part number 518058-2120)
Pin
Hole
Figure 2: Hard Ceiling Housing Installation
1. Select the location(s) of the housing (s). Each HD6 requires a 24Vac ±10% power
source when measured at the dome. Ensure a 24Vac @ 1.1A power source is
available. Refer to Section 3.1.1 for maximum wiring distances to the dome.
2. Cut a 7–5/8" (193.8mm) diameter hole in the ceiling using the compass tool (part
number 518058-2120) provided with the hard ceiling housing . See Figure 2.
a. Drill a 1/8” diameter hole in the ceiling where the center of your dome is to be
located.
b. Insert the pin on the tool in the drilled hole.
c. Scribe a line on the ceiling using the hole in the other end of the tool.
d. Cut out the hole for the housing using the scribed line.
Rev. 1.02 5 900.0696
1-Aug-06

2.2 HARD CEILING HOUSING, CONTINUED
3. If the ceiling is drywall or plaster, Honeywell Video Systems recommends sealing the
entire perimeter of the ceiling cut-out with tape or plastic channel (provided by
installer). This prevents dust and material from dropping from ceiling.
4. Secure a safety cable (supplied by installer) to a building support structure in the
ceiling. Honeywell Video Systems recommends using 3/32" plastic coated aircraft
cable (part number 849518-0311) and splicing sleeves (part number 849511-0057).
These parts can be ordered from the Honeywell Video Systems parts department.
5. Attach the safety cable (from the building support structure) to the housing by
threading the cable through a splicing sleeve, through the hole on the metal tab
(beside conduit fitting) on the housing , and then through the splicing sleeve again.
Secure by crimping the splicing sleeve. The safety cable tab can be rotated as
required for clearance in ceiling.
6. Insert the housing in the ceiling.
a. Make sure the space between the wing tabs on the
housing and the housing flange is greater than the
thickness of the ceiling. Make sure the wing tabs
on the housing are staggered so the tabs are not at
the same height.
b. Position the wing tabs flat against the housing . Insert the housing through the
hole in the ceiling (some jostling is required). Using a Phillips screwdriver, turn
the three screws in the housing clockwise to rotate the tabs out and tighten the
tabs against the ceiling.
7. Refer to
Section 3 for wiring information.
Refer to Section 3.2 for standard wiring.
Refer to Section 3.3 for Unshielded Twisted Pair (UTP) wiring.
Rev. 1.02 6 900.0696
1-Aug-06

2.3 PENDANT DOME HOUSING
WARNING: Installation must be performed by qualified technical
personnel and must be in accordance with all national and local
mechanical and electrical codes.
Perform the following steps to install a HD6 pendant dome on a Honeywell Video
Systems indoor wall or ceiling pendant dome mount:
INSERT PIN FOR
SAFETY CABLE
MOUNTING
HOLES
(3 PLACES)
BLACK NIPPLE
TOP PENDANT
HOUSING
LOWER DOME
MOUNTING POSTS
(3 PLACES)
SPRING LATCH
(RELEASES TOP PLATE)
SCAN ALIGNMENT STUDS
SAFETY CABLE INSTALLATIO
N
DETAILA
(SUPPLIED BY INSTALLER)
ATTACH THE SAFETY CABLE
TO A BUILDING SUPPORT STRUCTURE
SPLICING SLEEVE
SAFETY CABLE
SPLICING SLEEVE
LOOPAROUND
1/4” DIA x 1-3/4” LG. PIN
INSERTED IN TOP OF DOME
Figure 3: Pendant Dome Housing Installation
1. Select the location(s) of the housing (s). Each HD6 requires a 24Vac ±10% power
source measured at the dome. Ensure a 24Vac @ 1.1A power source is available.
2. Install the mount using the instructions provided with your specific mount.
Rev. 1.02 7 900.0696
1-Aug-06

2.3 PENDANT DOME HOUSING , CONTINUED
3. Run the field wiring (control data, video, power, and alarm) and a safety cable
(secured to a building support structure) through the mount.
Honeywell Video Systems recommends using 3/32” plastic coated aircraft cable
(part number 849518-0311) and looping sleeves (part number 849511-0057) for the
safety cable. (Refer to Detail A in Figure 3.)
The safety cable materials may be purchased from the Honeywell Video Systems
parts department. The wiring and safety cable must extend at least one foot past the
pipe for wiring purposes.
Refer to
Section 3 for detailed wiring information.
WARNING: If installing the pendant dome on a threaded mount, do not
attach the safety cable to a building support structure until after the dome
is threaded onto the mount.
4. Locate the housing decorative cover flange supplied with the mount. Refer to the
instructions provided with your specific mount. Slide the flange over the cabling and
up onto the mount. Secure the flange temporarily (use tape) to the mount out of the
way of the cabling.
5. Locate the pendant housing.
a. Using a screwdriver, remove the two hairpin clips securing the ¼” pin in the
black nipple. Slide the ¼” pin out of the black nipple. Remove the black dust
cover plug by inserting a screwdriver in the slot of the plug and pulling the plug
out of the nipple. Set the clips and pin aside. (They will be reinstalled later.)
Discard the dust cover plug.
b. Remove the top plate (located in the top of the pendant housing) by pressing
the spring latch on the top plate until the top plate is released, then lower the top
plate down.
c. Insert the field wiring (data, power, video, and alarm) from the mount through
the black nipple on the pendant housing.
d. Insert the ¼” pin in the ¼” holes in the black threaded nipple on the pendant
housing.
e. Secure the pin on each end using the two hairpin clips.
f. Route the safety cable (attached to the building support structure) through a
splicing sleeve, around the pin in the housing, and then through the sleeve
again. Secure the safety cable by crimping the sleeve using a crimping tool.
See Figure 3, Detail A.
Rev. 1.02 8 900.0696
1-Aug-06

2.3 PENDANT DOME HOUSING, CONTINUED
g. Carefully slide the black nipple on the pendant housing into the mounting pipe.
If installing the dome on a threaded mount, thread the dome into the mount at
this time then connect the safety cable to a building support structure.
WARNING: Do not force the dome into the mount; the threads on the
dome are plastic and could be damaged if force is used.
h. Line up the three mounting holes on the housing with the holes in the mount
piping. Use the three self-tapping hex head screws supplied with the mount to
secure the dome to the mount.
i. Slide the decorative cover flange on the mount (step 4 above) over the black
nipple on the housing.
6. Connect the field wiring to the housing mounting plate (removed in step 5 above).
Refer to
Section 3 for wiring information.
Refer to Section 3.2 for standard wiring.
Refer to Section 3.3 for Unshielded Twisted Pair (UTP) wiring.
Rev. 1.02 9 900.0696
1-Aug-06

2.4 HD6 RUGGED DOME HOUSING
Rev. 1.02 10 900.0696
1-Aug-06
WARNING: Installation must be performed by qualified technical
personnel and must be in accordance with all national and local
mechanical and electrical codes.
Perform the following steps to install a rugged dome housing.
1. Select the location(s) of the housing (s). Each HD6 requires a 24Vac ±10% power
source measured at the dome. Ensure a 24Vac @ 1.1A power source is available.
The blower only option requires an additional 24Vac @ 0.5A power source.
2. Secure a safety cable (supplied by installer) to a building support structure.
Honeywell Video Systems recommends using 3/32" plastic coated aircraft cable
(part 849518-0311) and splicing sleeves (part 849511-0057). These parts can be
ordered from the Honeywell Video Systems parts sales department.

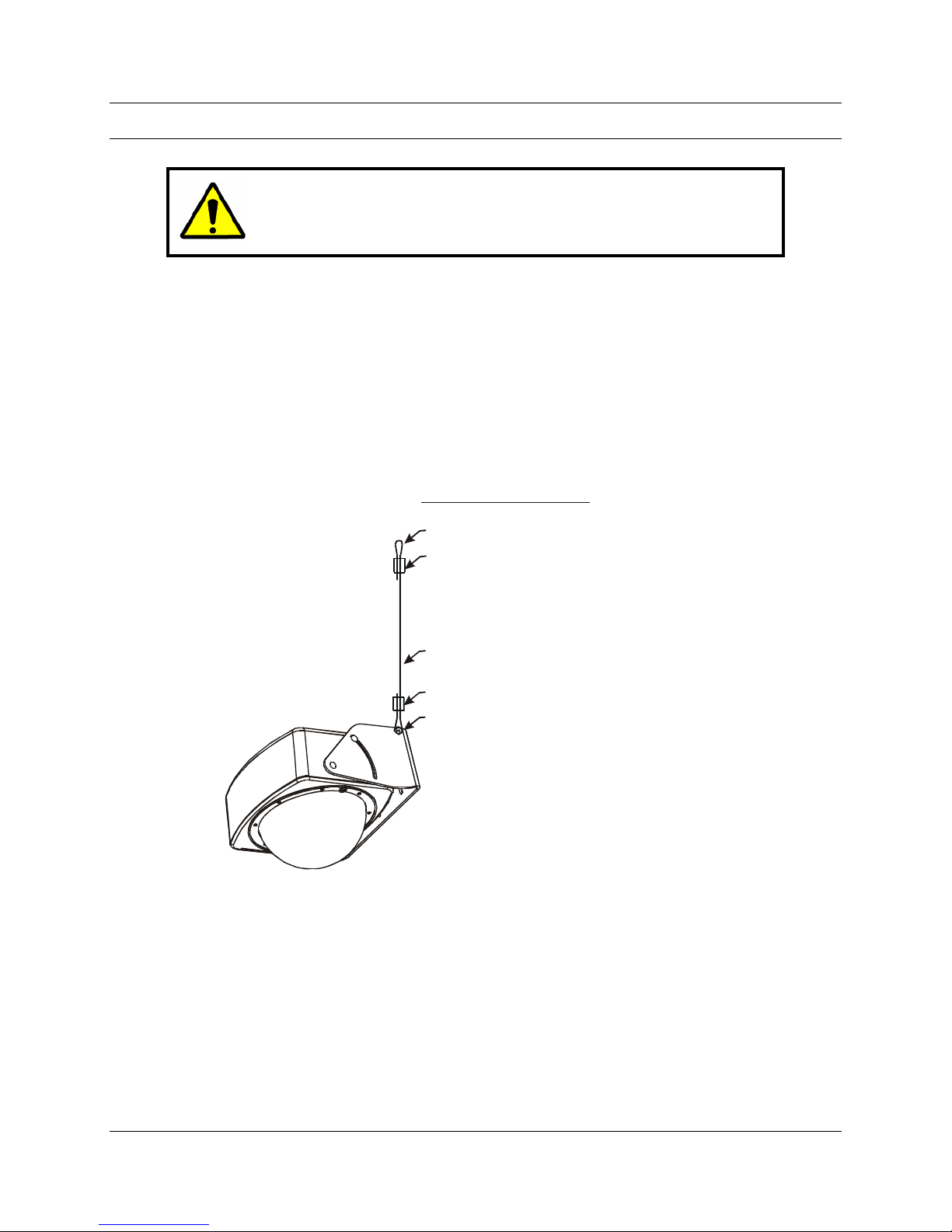

SAFETY CABLE INSTALLATION
(SAFETY CABLE SUPPLIED BY INSTALLER)
ATTACH THE SAFETY CABLE
TO ABUILDING SUPPORT STRUCTURE
SPLICING SLEEVE
SAFETY CABLE
SPLICING SLEEVE
LOOP THROUGH HOLE
IN MOUNTING BRACKET
Figure 4: Safety Cable Installation
3. Attach the safety cable from the building structure to the mounting bracket. Route
the safety cable through one side of a splicing sleeve (not supplied), then through
the hole in the side of the mounting bracket, then through the other side of the
splicing sleeve. Secure the safety cable by crimping the splicing sleeve.
