Captuvo™SL42
Enterprise Sled for Apple
®
iPhone
®
6 and iPhone
®
6 Plus
Quick Start Guide
Rev A 07/15
Aller à www.honeywellaidc.com pour le français.
Vai a www.honeywellaidc.com per l'italiano.
Gehe zu www.honeywellaidc.com für Deutsch.
Ir a www.honeywellaidc.com para español.
Перейти на русскоязычный сайт www.honeywellaidc.com.
Pro češtinu jdi na www.honeywellaidc.com.
Pre slovenčinu choďna www.honeywellaidc.com
Para Português, acesse www.honeywellaidc.com.br.
日本語 : www.honeywellaidc.com をご覧ください。
如要到中国 www.honeywellaidc.com（简体）。
查看繁体版请登陆 www.honeywellaidc.com
한글 www.honeywellaidc.com 로이동합니다 .
ʲʡʤʱʸʢʬʡʺʩʸˬʺʡʥʺʫʡʨʰʸʨʰʩʠʤʸʺʠʬʸʥʡʲwww.honeywellaidc.com.
Çäè´á Åàˆ moc.cdiallewyenoh.www ààú¬ ÇàõÑéí¬

Getting Started
The Captuvo SL42 Enterprise Sleds (Agency Model: SL-ES-G) used
with the Apple iPhone®6 and iPhone 6 Plus include an integrated
imager for scanning all types of bar codes.
Note: Honeywell is not an authorized Apple repair center. Please
return only your sled to us for repair. Honeywell is not liable
for any non-Honeywell product shipped to our repair center.
Note: Refer to your Apple iPhone documentation for important
product and safety information.
User Documentation
To download the sled documentation, visit www.honeywellaidc.com.
Note: Due to the availability of different models, your sled may look
slightly different from the illustrations included in this
document.
Application Software
Note: The sleds may require special application software. Refer to
www.honeywellaidc.com/Captuvo/developer-resources.html
for information regarding software.

Front View
Scan Button
Mic
Door Release
Speaker
Audio
Jack
Access
MicroUSB Port
DC Power Jack
Phone Sleep/
Wake Button
Volume Buttons
Scan Button

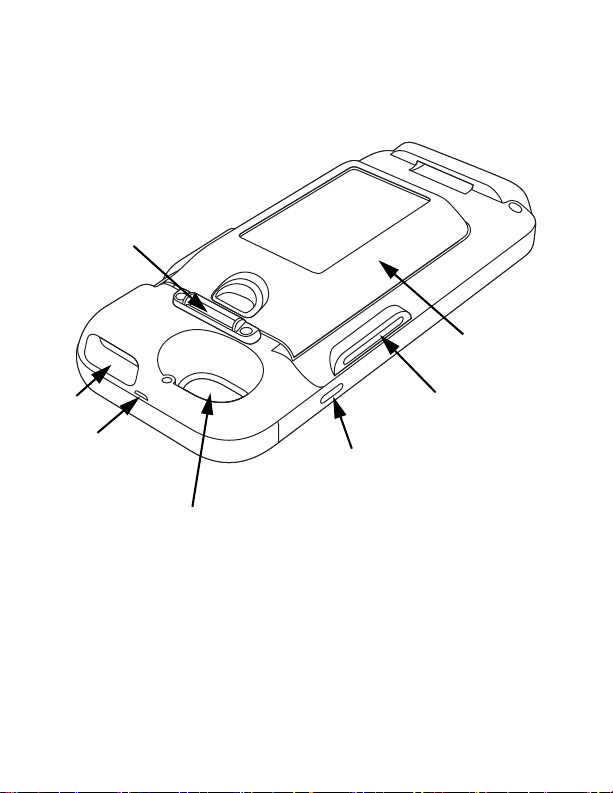

Back View
Main Camera Access
Imager
LED
Battery Door
Hand Strap
Connector
Scan Button
iPhone Sleep/
Wake Button

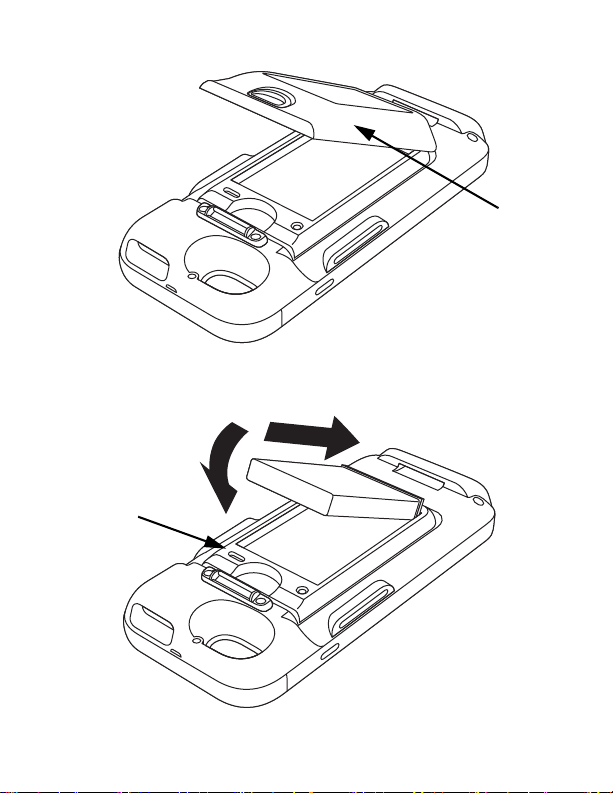

Inserting the Battery
Ensure all components are dry prior to mating sleds/batteries with
peripheral devices. Mating wet components may cause damage
not covered by the warranty.
We recommend use of Honeywell Li-Ion battery packs. Use of any
non-Honeywell battery may result in damage not covered by the
warranty.
There is a danger of explosion if the batteries are incorrectly
replaced. Replace the batteries with only the same or equivalent
type recommended by the manufacturer. Dispose of used batteries
according to the recycle program for batteries as directed by the
governing agency for the country where the batteries are to be dis-
carded.
!
!
!

Battery Door
MicroUSB Port
(use to update
firmware)

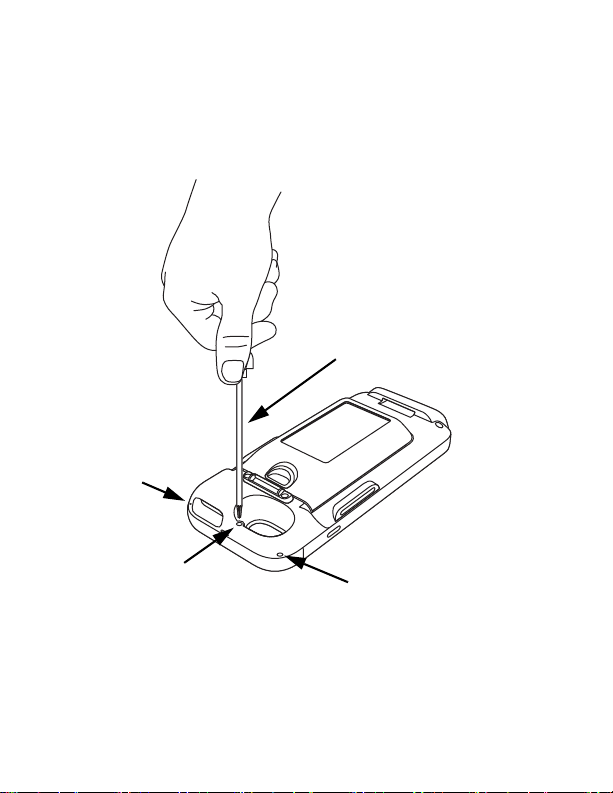

Sled Security Mechanism
Note: To reduce the risk of the Apple iPhone being removed or
disengaging from the sled, we recommend that you lock the
security mechanism(s). The iPhone 6 Plus sled has two
security mechanisms.
TORX (T5)
Security Mechanism
(iPhone 6) Security Mechanism
(iPhone 6 Plus)
Security Mechanism
(iPhone 6 Plus)

Installing the Apple iPhone into Sled
1. Remove the security mechanism screw(s) and open the door by
pulling the top toward the front of the sled. The door can be then
be pulled up and rotated out.
2. Slide your phone into the sled.
Note: Be careful that the connectors are not accidentally damaged.

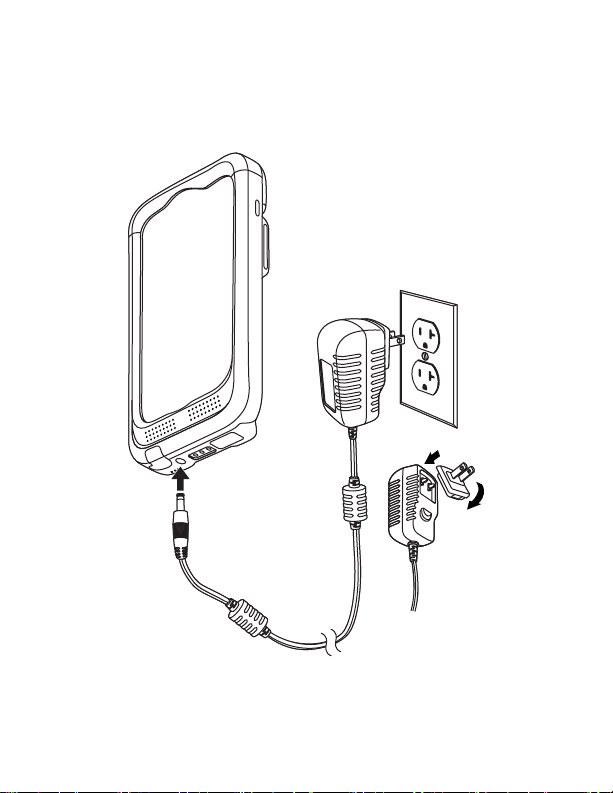

Charging Using Wall Adapter
Note: If you use the wall adapter, both the sled and the iPhone
charge simultaneously.

Transferring Data Using USB to PC
Note: You can transfer data when the iPhone is in the sled and it is
connected to a PC/laptop using an over-the-counter
microUSB-to-USB cable. Neither the sled nor the iPhone will
charge via USB.

LED Behavior
Sled Connected to External Power Source
Sled Not Connected to External Power Source
Note: If you change the default factory setting using the Captuvo
SDK, the LED behavior is the same as the factory default
behavior, except for a sled that is charging while connected to
an external power source and between 60-95% charged. In
this case, the LED pulses green.
Color Indication
Blinking Red Battery error.
Solid Amber Sled battery is charging while connected to
an external power source and is between 0-
95% charged.
Solid Green Sled battery is connected to an external
power source and is more than 95% charged.
Color Indication
Blinking Red Battery error.
LED Off Battery charge is > 20% and is operating
normally.
Blinking Amber Battery charge is < 20%.

Scan Demo
You may test scanning a bar code using two methods.
Out-of-the-Box Method
1. Press and hold either of the scan buttons for three seconds.
2. Open the iOS “Notes” application or other iOS application with
data entry input fields.
3. Place the cursor in a data entry field within the application.
4. Scan a bar code. The bar code data should generate in the
designated data entry input field.
Note: To conserve battery power, this mode times out after 5
minutes of non-use. You may optimize or cancel this mode by
using the SDK.
Honeywell Price Check Method
1. Download the Honeywell Price Check application from the Apple
App StoreSM.
2. Scan a bar code.
Note: This application is for demonstration purposes only and does
not process any data.

Installing Hand Strap
1. Hook the hand strap onto the pin at the top of the sled.
2. Slide the opposite end of the hand strap through the slot at the
other end of the sled.
3. Fold the strap and press the hook and loop pieces together to
secure.
Operating Temperature
The maximum operating temperature range for the sleds is 0°C to
35°C (32°F to 95°F).

Support
To search our knowledge base for a solution or to log into the Tech-
nical Support portal and report a problem, go to
www.hsmcontactsupport.com.
User Documentation
For localized versions of this document and to download the user
guide, go to www.honeywellaidc.com.
Limited Warranty
For warranty information, go to www.honeywellaidc.com and click
Resources > Warranty.
Patents
For patent information, see www.hsmpats.com.

Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make
changes in specifications and other information contained in this
document without prior notice, and the reader should in all cases
consult HII to determine whether any such changes have been
made. The information in this publication does not represent a com-
mitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced, or translated into another language with-
out the prior written consent of HII.
Copyright 2015 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Apple and iPhone are trademarks of Apple Inc., registered in the
U.S. and other countries. App Store is a service mark of Apple Inc.
“Made for iPhone” means that an electronic accessory has been
designed to connect specifically to iPhone and has been certified by
the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this
accessory with iPhone may affect wireless performance.
