VERISHIELD - VS 332i
Instrucciones de uso ES
Mode d’emploi FR
Instruções do utilizador PT
User instructions
®
BC

LED [C8] colour GREEN *A4 RED *A5
Battery level 100-10% 10-0%
BATTERY STATUS
Type - C 100%
Charge level
CHARGE LEVEL
LED colour
GREEN *C10
ORANGE *C10
0-99%

2
(D) TEST RESULTS AND TECHNICAL DATA
(C) OPERATING THE HEADSET - HEADSET CONTROLS
Dose ButtonC2
Power Indicator
C4
Dose Indicator
C3
Power ButtonC1 Hear-Through Dial
C5
Multi-Function Button
C6
Volume Button Up
Volume Button Down
C7
USB-C & Charging Indicator
C8
C10
Pairing Indicator
C9
Microphone for voice calls
C11
OVERVIEW
C1
C2
C4
C3
C5
C10
C6
C9
C8
C7
C11
Frequency, Hz *D1 125 250 500 1000 2000 3150 4000 6300 8000 NRR
x dB
Canada
Class xx
Mean Attenuation, dB *D2 x x xx xxxxxx
Standard Deviation, dB *D3 xxxxxxxxx
TESTED ACCORDING TO ANSI S3.191974
Verishield is tested and approved in accordance with ANSI S3.191974 Standard at Michael &
Associates Inc., USA. Verishield Attenuation Data according to American National Standards
Institute Specifications ANSI S3.191974 (in passive mode, electronics switched off)
The level of noise entering a person’s ear, when hearing protection is worn as directed, is closely
approximated by the difference between the A-weighted environmental level and the NRR.
EXAMPLE:
1. The environmental noise level at the ear is xx dB (A).
2. The NRR is xx decibels (dB).
3. The level of noise entering the ear is approximately equal to xx dB (A).
CAUTION: For noise environments dominated by frequencies below 500 Hz, the C-weighted
environmental noise level should be used. Improper fit of this device will reduce its effectiveness
in attenuating noise. Although hearing protectors can be recommended for protection against the
harmful effects of impulse noise, the Noise Reduction Rating (NRR) is based on the attenuation
of continuous noise and may not be an accurate indicator of the protection attainable against
impulse noise, such as gunfire. Constant or repetitive exposure to impulsive noise may lead to
serious injury, including temporary or permanent deafness. The Noise Reduction Rating (NRR)
calculated from the attenuation data is xx dB. Earmuffs must be properly fitted to attenuate noise
effectively. Refer to instructions.
NOTE: The Noise Reduction Rating is derived from testing procedures at an independent
laboratory and in accordance to acceptable A.N.S.I. standards. Actual noise reduction can vary
from laboratory results as labelled. Protection is maximized when: proper protector is selected for
application, a good training program is utilized and proper fitting techniques are followed.

EN User instructions

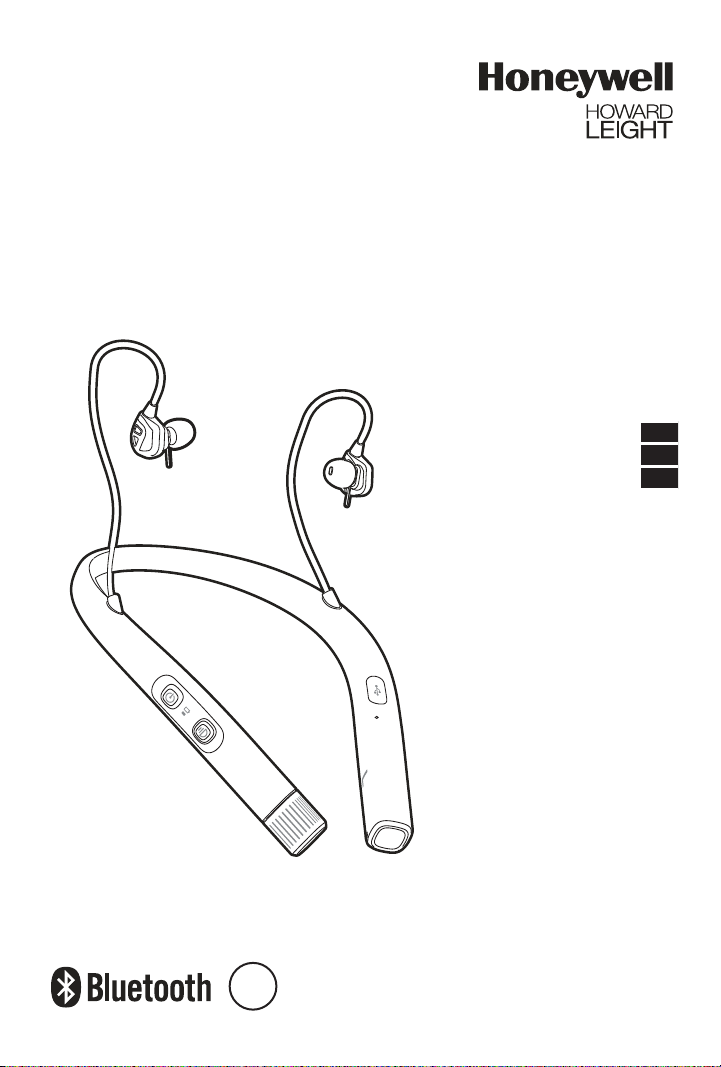

PRODUCT DESCRIPTION Verishield - VS 332i
The VeriShield VS 332i headset is an in-the-ear hearing protector with built-in personal sound
exposure monitoring, hear through and Bluetooth for connecting to Bluetooth enabled devices, such
as a mobile phone and communication radios. The headset combines a high level of noise reduction
with sound amplification to allow workers to be aware of their surroundings, hear warning signals
and alerts while still being protected. Headset shall be used for protection from noise, intended use
of headset is solely for hearing protection and shall not be used for any other purpose.
The wearer should check correct operation before use. If failure is detected, the wearer should
stop using the product and refer to Honeywell’s advice for maintenance, power management and
charging.
Following features are available in the headset:
- Calibration of the dose microphones
- Fit Test, to evaluate the attenuation performance
- Dose, pick up and measurement of personal noise exposure.
- Bluetooth for connection to mobile phones and communication radios.
- Firmware upgrade
(A) CHARGING INSTRUCTIONS
1. Open the rubber lid covering the USBC charging port - see section A.
2. Plug the charger into an USBC outlet on the neckband - see section A.
3. Keep following temperature range during whole charging cycle: 0°C to 40°C/ 32°F to 104°F
WARNING! Performance may deteriorate with battery usage. Battery lifetime will depend on
temperature and activated modes. Typical expected period of continuous use: Only hear-through
active - approximately xx hours. Bluetooth active - approximately xx hours.
BATTERY STATUS
LED *C4 Colour: *A4 GREEN, *A5 RED - see section A
(B) WEARING INSTRUCTIONS
1. Chose an eartip of the correct size. Compress the foam by rolling it into a small crease-free
cylinder.
2. Fit the eartip to the earpiece. Make sure the tip fully covers the pipes.
3. Reach around your head and gently pull the ear to straighten the ear canal.
4. Push the eartip into the ear canal while gently twisting the earpiece. There is a difference between
the left and the right hand side earpieces. A marking on the earpiece and cable will show you
which earpiece is made for which ear.
5. Keep the eartip in place until the foam has started to expand, about 510 seconds.
6. The earpiece shall be inserted well into the bowl of the ear.
7. Fit the cable behind your neck. Use the slider to make sure the cable is secured in a way so that it
does not get caught up during use.
IMPORTANT USER INFORMATION
1. The eartips should be fitted, adjusted and maintained in accordance with the instructions.
2. The eartips should be worn at all times in noisy surroundings
3. The eartips should be regularly inspected for serviceability.
4. Clean the unit using a moist cloth. Do not use solvents or other chemicals as they may harm the
unit. Do not use sharp object on any parts of the unit or its accessories. Gently tap the earpieces
to dislodge dirt and foreign objects
5. Always fit the earpiece with eartips. Tips mounted to the transducer housing will protect the
sound ports/pipes and prevent them from being filled with dirt or water. Dirt or water in the sound
tubes will affect the system performance and may cause permanent damage to the equipment.
6. Before and after use, store in a dry, cool place. The temperature should not exceed +50°C.
7. This product may be adversely affected by certain chemical substances. Further information
should be sought from the manufacturer.
8. OBSOLENCE: All Honeywell thermoplastic hearing protection products will remain in good
condition with regard to shelf life while the product is stored in a warehouse under controlled
conditions. For Headset: Humidity less than 80%, Temperature 0°C to 50°C.

(C) OPERATING THE HEADSET  GETTING STARTED
CONNECT TO PERSONAL NOISE EXPOSURE APP
Enable Bluetooth on your mobile device and ensure the mobile device is within 10m of the
headset. The headset is connected through the App. Next time the headset is turned on, it will try
automatically connect.
CONNECT TO PERSONAL NOISE EXPOSURE APP
First time pairing Open the app and follow on-screen instructions
Finding a headset Initiate from app *C4 flashing blue
Confirm a connected headset Open the app and follow on-screen
instructions. Press *C1 Once *C4 solid blue 2s
Clear Connected Headsets Hold *C1 10s while powering on * C4 flashing blue, red
Cancel Connection Press *C2 in connection process
PERSONAL NOISE EXPOSURE MONITORING
Dose safe (0-85%) *C3 blinks green
Dose warning (85%-100%) *C3 blinks orange + Warning tone
Dose Alarm (Above 100%) *C3 blinks red + Warning tone
Reset Dose Hold *C2 for 5s On success, *C3 double flashes green + audio tone
Silence Dose Alarm Press *C2 Audio tone off. *C3 flashes red and stops.
Dose status voice message Press *C2
Dose level low (0-40%)
Dose level medium (41-70%)
Dose level high (71-100%)
Dose level too high (100+%)
FIT TEST (MAY BE ALSO ACTIVATED THROUGH THE APP)
Perform Fit test Double press *C2 Repeated audio tone + Voice Feedback
Fit test result: Good fit Positive audio tone + Voice Feedback
Fit test result: Poor fit Negative audio tone + Voice Feedback
Fit test result: Not available Voice message; Fit test not possible
GETTING STARTED
Power On
Power Off Hold *C1 for 3s Audio Tone and *C4 solid green 5s
Audio Tone and *C4 flashes red
Adjust hear-through volume Rotate dial *C5 Ambient volume +/-
Auto shut off No activity in 4 hours Audio Tone and *C4 flashes red
HEADSET CONTROLS
C1 Power Button C5 Hear-Through Dial C9 Pairing Indicator
C2 Dose Button C6 Multi-Function Button C10 USB C & Charging Indicator
C3 Dose Indicator C7 Volume Button Up C11 Microphone for voice calls
C4 Power Indicator C8 Volume Button Down

5
EN User instructions
CONNECT TO EXTERNAL DEVICES
First time pairing At powering on select the headset
VS332i Audio in mobile settings *C10 flashing blue. Paired *C10 solid blue 5s
Manual pairing Hold *C6 for 2s *C10 flashing blue. Paired *C10 solid blue 5s
Clear paired device list Hold *C6 for 2s *C10 flashing blue. red
Pairing error *C10 solid red 5s
CALL MAKING
Answer incoming call Press *C6
End call Press *C6
Reject incoming call Hold *C6 3s
Mute/Unmute Microphone Hold *C8 2s
Unmute Press *C7
AUDIO PLAYBACK FROM PHONE
Play Press *C6
Pause Press *C6
Volume Up Press *C7
Volume Down Press *C8
MAINTENANCE
Firmware Over the
Air (FOTA) update Refer to mobile app for instructions *C4 flashing blue, when complete - solid blue,
then off
Factory reset
Turn the device Off and remove the
batteries. Press and Hold *C2 for 20s while
re-inserting the batteries
*C4 flashing blue. Device then enters Recovery
mode, *C4 solid blue
Recovery mode Firmware has been updated and device is in
a Recovery state *C4 Solid blue until firmware has been updated
Device Self-Check The device is completing an automatic self-
check to prevent data corruption
*C4 blinking blue until the Self-Check is
complete
Error State The device has encountered an error *C3 Solid Red + *C4 Solid Red
CONNECT TO EXTERNAL DEVICES, AUDIO & CALL MAKING
Enable Bluetooth on your mobile device and ensure that the mobile device is within 10m of the
headset. The headset must be selected in the mobile device settings. Next time the headset is
turned ON, it will try to automatically pair with the last paired device.
CALIBRATION
Calibration in progress Refer to mobile app
for instructions
*C3 Blinking Green
Calibration complete *C3 Solid Green
POWER MANAGEMENT
Power On Above 10% battery life *C4 Solid Green
Power Low Less then 10% battery life *C4 Flashing Red
Auto shut off After 4 hours of no activity Audio tone
CALIBRATION
The headset can be calibrated, please follow the instructions in the App
MAINTENANCE
POWER MANAGEMENT

6
(D) TECHNICAL INFORMATION
In-the-ear product.
Material of neckband: PC/ABS/TPE.
Material of ear piece: Metal.
Material of cables: xxx.
Weight: xxx g.
Replacement eartips: Contact your distributor or sales representative
INFORMATION ABOUT THE FREQUENCY BANDS AND POWER USED
BY RADIO EQUIPMENT:
The product is equipped with Bluetooth Low Energy that operates in the frequency range 2.402to
2.480GHz. Maximum output power 4.0 dB .
Product is Bluetooh SW5.0 compliant. Supported Bluetooth profiles are Hands Free Profile,
Headset Profile, Advanced Audio Distribution Profile and Audio Video Remote Control Profile.
PATENTS
Patents pending. For patent information, see http://www.honeywellaidc.com/patents
FCC AND INDUSTRY CANADA STATEMENTS
COMPLIANCE STATEMENT
VS332i complies with Part 15 of the FCC Rules and Industry Canada Licenseexempt RSS
standard(s). Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
WARNING
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

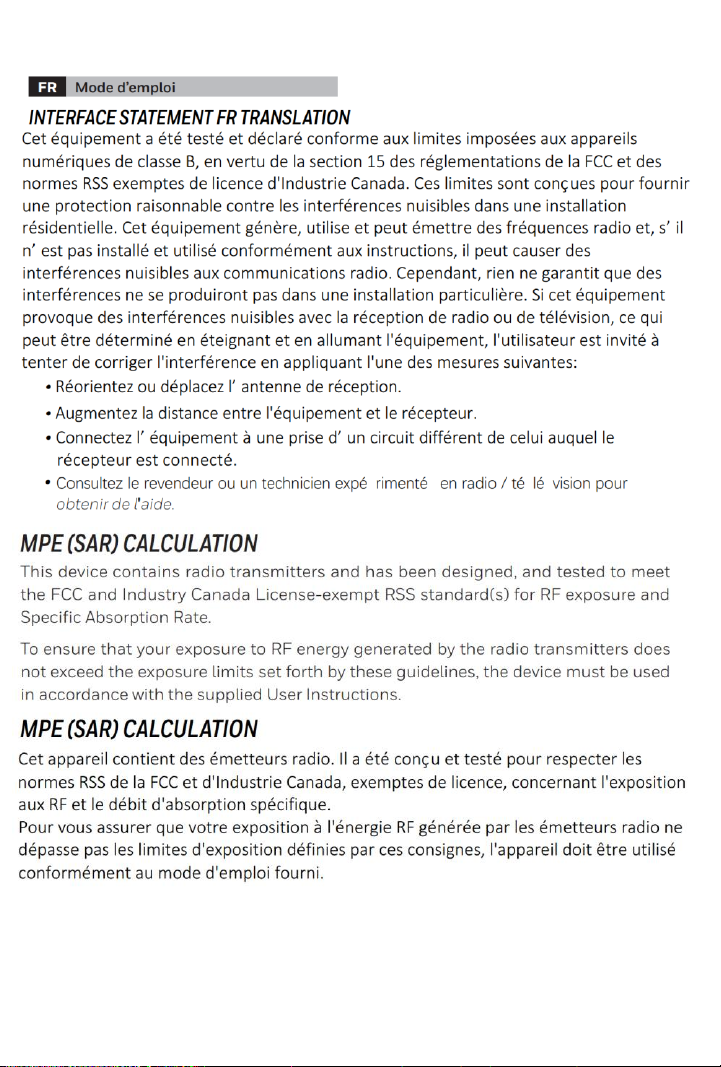

INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules and Industry Canada License-exempt RSS standard(s). These
limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help
/* MPE (SAR) CALCULATION */
This device contains radio transmitters and has been designed, and tested to meet the FCC and
Industry Canada License-exempt RSS standard(s) for RF exposure and Specific Absorption Rate.
To ensure that your exposure to RF energy generated by the radio transmitters does not exceed
the exposure limits set forth by these guidelines, the device must be used in accordance with the
supplied User Instructions.

7
EN WARRANTY: This product is covered by a one year warranty against defects in material and
workmanship. The warranty does not cover damage caused by misuse, abuse or unauthorized
modifications. Any attempt to modify or disassemble the product will void the warranty.
EN
EN DISCLAIMER: If the recommendations and directions mentioned in this user manual are not followed, the
protection and function afforded by the earmuffs may be severely impaired. This may cause consequences for the
user for which Honeywell Safety Products USA, Inc. shall not be responsible. Honeywell Safety Products USA, Inc.
does not represent or warrant that the Product is compatible with any specific third party hardware or software
other than as expressly specified by Honeywell and further does not represent or warrant that any type of warning
signals including communication with other people in the surroundings can be heard and understood by the wearer
of this hearing protector. The sound characteristics of the warning signals as well as of the background noise, can
vary in different situations. Any attempt to modify or disassemble the product may impact noise attenuation and
product functionality. Honeywell further inform the Customer that Voice communication over Bluetooth Hands Free
and Headset Profile is not considered secure and can potentially be monitored by a third party within the Bluetooth
radio coverage range. Customer understands and warrants that Customer has the responsibility to implement and
maintain reasonable and appropriate security measures relating to the Product, the information used, and the
network environment. This obligation includes complying with applicable security, cybersecurity standards, and
best practices. Honeywell shall not be liable for damages caused by a Security or Cybersecurity Event resulting from
Customer’s failure to maintain reasonable and appropriate security measures. Customer is responsible for all such
damages.
ES RECLAMACIÓN: La inobservancia de las recomendaciones y de las instrucciones indicadas en este Manual
de uso la protección y el funcionamiento ofrecidos por las orejeras pueden verse perjudicados seriamente. Ello
puede tener consecuencias negativas para el usuario, y de las cuales Honeywell Safety Products USA, Inc. no podrá
considerarse responsable. Honeywell Safety Products USA, Inc. no declara o garantiza que el producto es compatible
con otro hardware o software específicos de terceras partes, salvo el que se haya especificado expresamente por
Honeywell y que, además, no representa o garantiza que cualquier tipo de señales de advertencia, inclusive la
comunicación con otras personas de entorno pueda oírse y entenderse con el usuario de este protector auditivo. El
sonido característico de las señales de advertencia así como del ruido de fondo puede variar según las situaciones.
Si se intenta modificar o desmontar el producto, esto puede tener una influencia negativa en la atenuación sonora o
en el funcionamiento del producto. Además, Honeywell quiere informar a los clientes que la comunicación por voz a
través de las manos libres del Bluetooth y el perfil de los auriculares no debe considerarse segura del todo, por lo que
puede ser monotorizada potencialmente por terceras partes dentro del rango de cobertura de la radio Bluetooth. El
cliente comprende y garantiza que éste tiene la responsabilidad de implementar y mantener medidas de seguridad
razonables y adecuadas para el producto, la información utilizada y el entorno de la red de trabajo. Dicho compromiso
abarca también respetar la seguridad, las normas de la seguridad cibernética y las buenas prácticas. Honeywell no
se hará responsables de aquellos daños causados por problemas de seguridad o de seguridad cibernética que sean
causa de que el cliente no ha sabido tomar las medidas necesarias y mantener una seguridad razonable y adecuada.
Este tipo de daños son siempre responsabilidad.
FR EXONÉRATION DE RESPONSABILITÉS : Si les recommandations et indications mentionnées dans ce mode
d’emploi ne sont pas suivies, la protection et les fonctions procurées par les caches-oreilles peuvent être sérieusement
altérées. L’utilisateur peut donc être sujet aux conséquences ultérieures afférentes, concernant lesquelles Honeywell
Safety Products USA, Inc. ne sera pas responsable. Honeywell Safety Products USA, Inc. ne déclare ni ne garantit que
le produit et du matériel ou un logiciel tiers spécifique soient compatibles, sauf indication expresse d’Honeywell, ni
ne déclare ni ne garantit que tout type de signal d’avertissement, notamment toute communication avec d’autres
personnes alentour, puisse être entendu et comprise par le porteur de ce protecteur auditif. Les caractéristiques
sonores des signaux d’avertissement ainsi que du bruit de fond, peuvent varier en fonction des situations. Toute
tentative de modifier ou de démonter le produit, peut influer sur l’atténuation du bruit et le bon fonctionnement du
produit. Honeywell informe en outre le client que la communication vocale sur Bluetooth Hands Free et Headset
Profile n’est pas considérés être sécurisée, et peut être surveillée par un tiers via la couverture radio Bluetooth.
Le client sait et garantit qu’il est chargé de prendre des mesures de sécurité raisonnables concernant le produit,
les informations utilisées et le réseau. Cette obligation concerne le respect des normes en vigueur en matière de
sécurité, de cybersécurité et de principes communément acceptés. Honeywell ne pourra être tenue responsable de
tout dégât causé par un problème de sécurité ou de cybersécurité, résultant du fait que le client n’ait pas pris les
mesures de sécurité raisonnables. Le client est responsable de l’ensemble de ce type de dégâts.

8
EN The use of the WEEE Symbol indicates that this product may not be treated as Household
waste. By ensuring this product is disposed of correctly, you will help protect the environment. For
more detailed information about The recycling of this product, please contact your local authority,
your household/industrial waste disposal service provider or the shop where you purchased the
product.
ES El uso del símbolo RAEE (WEEE por sus siglas en inglés) indica que el producto no debe
tratarse como residuos del hogar. Asegúrese de que este programa se desecha correctamente
y de este modo le ayudará a proteger el entorno. Para obtener información detallada acerca del reciclaje de este
producto, póngase en contacto con la administración local, con el proveedor de servicios de la recogida de residuos
industriales/del hogar, o con el negocio donde haya comprado su producto.
FR L’utilisation du symbole WEEE indique que ce produit ne peut pas être traité à titre de déchets domestiques.
En veillant à ce que ce produit soit correctement mis au rebut, vous contribuerez à l’écologie. Pour de plus amples
informations sur le recyclage de ce produit, veuillez contactez les autorités locales, la compagnie de récupération et
de traitement des déchets domestiques / industriels, ou le magasin qui vous a vendu le produit.
EN SPECIAL INTEREST GROUP (SIG, INC)
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Honeywell Safety Products USA, Inc. is under license. Other trademarks and trade names are
those of their respective owners.
ES GRUPO CON INTERESES ESPECIALES (SIG, INC)
La marca denominativa Bluetooth® y su logotipo son marcas registradas propiedad de Bluetooth SIG,
Inc. Cualquier uso que Honeywell Safety Products USA, Inc. haga de dichas marcas, siempre lo hace con
licencia. Otras marcas y nombre comerciales son propiedad de sus propietarios.
FR SPECIAL INTEREST GROUP (SIG, INC)
La marque Bluetooth® et les logos sont des marques déposées et sont détenus par Bluetooth SIG, Inc. et
l’utilisation de ces marques par Honeywell Safety Products USA, Inc. est sous licence. Les autres marques et
noms commerciaux sont détenus par leurs propriétaires respectifs.

7
9
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisee aux deux conditions suivantes:
1. l'appareil ne doit pas produire de brouillage, et
2. l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi,
meme si le brouillage est susceptible d'en compromettre le fonctionnement.
