INSTALLATION GUIDE / OWNER’S MANUAL
HE220, HE260 Humidifier
and Installation Kit
(INSTALL KIT SOLD SEPARATELY)

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 2
IMPORTANT
Please read these instructions and keep them in your records.
WELCOME
To the comfortable world of humidified air. When you use your Honeywell humidifier,
notice that your skin is not as dry, and that your scratchy throat and irritated nasal
passages that aggravate allergies and asthma are steadily improving.
You have also taken the first step in reducing the zapping you create when you walk on
your carpet and then touch your TV, computer, metal door knob or your pet. Your
furniture and woodwork are also benefitting from the difference that humidified air
makes.
Congratulations! You have just made a great investment in improving the comfort of
your home.
APPLICATION
This kit contains your new Honeywell HE220 or HE260 Humidifier, H8908 Humidistat
and all the accessories required for replacement installation. Installation Kit for new
install sold separately (HKIT2A1001).
INSTALLATION
Preparing for the Installation
Be sure to identify all the required (Table 1) accessories (included) and make sure the
appropriate tools are available before beginning the installation.

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
3 69-2630ES—03
Included With Humidifier
Required Tools
Tools required for installation include:
• Tin snip.
• Screwdriver.
• Adjustable or open-end wrench.
• Drill, punch or awl.
•Level.
Table 1. Included Accessories.
Quantity Accessory
1 Pressure switch
1 H8908 Humidistat
1 bag Saddle Valve Assembly:
Saddle valve and top clamp (1)
Threaded bottom clamp (1)
Bolts (2)
Rubber gasket (1)
Brass insert (1)
Plastic bushing (1)
Brass compression ring (1)
Brass compression nut (1)
1 Plug-in transformer

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 4
Determining Best Location for Humidifier
CAUTION
Temperature and Static Pressure Hazard.
Can cause property or equipment damage.
Locate humidifier where ambient temperature is between 32°F (0°C) and
160°F (71°C).
Do not install humidifier where freezing temperatures could occur.
Be sure supply plenum static pressure is no greater than 0.4 in. wc and water
pressure is no greater than 124 psi.
• Select a location for the humidifier on the supply (warm air stream) plenum. See
Fig. 1.
• Select a location that cannot damage the air conditioner A-coil during installation.
• Do not locate the humidifier on the furnace body.
• Allow adequate clearance in front of and above the humidifier so you can easily
remove the cover to perform routine maintenance.
— Mount the humidifier at least 3 in. (78 mm) above the furnace body to allow
adequate space for the solenoid valve and drain line.
— Mount the humidifier in a conditioned space to prevent freezing.
Fig. 1. Typical humidifier installation locations.
Selecting Water Supply Location
• Use either hard or soft water in the humidifier and either hot or cold water. The
water flow rate, with the humidifier running, is 3.5 gal/hr (13 liters/hr) to flush the pad
and provide moisture for evaporation.
M12808A
HORIZONTAL
DOWN
FLO
LOWBOY
RETURN
RETURN
RETURN
HIGHBOY
RETURN

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
5 69-2630ES—03
• Make sure that the 20 ft (6.2m) of feed water tubing provided is adequate to connect
the water supply (saddle valve) with the humidifier solenoid valve.
Locating Closest Floor Drain
• Select location with access to a floor drain to provide drainage for air conditioner
condensation and humidifier drainage.
• If you do not have a drain available, we recommend that you install the Honeywell
Whole House Drum or Disk Humidifier. Make sure that the 10 ft (3.1m) of drain
tubing is adequate to reach from the humidifier drain connection to the floor drain.
Selecting Location for Humidistat
• Select a location for the humidistat on the return plenum or on the wall in the living
space.
— Mounting on the return plenum is the easiest installation for the control wiring
circuit.
For return duct mounting, the humidistat should be mounted upstream from the
humidifier or bypass so that it is properly sensing the relative humidity of the living
space. Locate the control at least 8 in. (203 mm) upstream from the humidifier in the
return air duct. (See Fig. 2.)
Fig. 2. Selecting duct location for humidistat.
Locating Closest 120V Electrical Outlet
• Select location with access to an outlet. If not available, contact an electrician to
have one installed.
• Make sure that the humidifier cord is adequate to reach from the humidifier to the
outlet.
• Make sure that the 20 ft (6.2m) of thermostat wire is adequate to reach from the
humidifier solenoid, to the pressure switch, to the humidistat.
ALTERNATE LOCATION
RETURN
AIR
RETURN
AIR
6 in. (152 mm)
MINIMUM 15 in. (381 mm)
MINIMUM
BEST
LOCATION
RETURN AIR DUCT M12831

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 6
Installing the Humidifier
WARNING
Hazardous Voltage
Can cause personal injury or equipment damage.
Do not cut or drill into any air conditioning or electrical accessory.
CAUTION
Sharp Edges Installation Hazard.
Can cause personal injury.
Wear gloves and safety glasses.
1. Turn off power to the air handing system at the circuit breaker.
2. Draw a level line on the plenum in the location
chosen for the humidifier. (Leveling assures optimal humidifier performance.)
3. Locate the template (form number 69-2521 included in the box). For the
HE220 model, cut out the template along the dotted line.
4. Tape the template in position and trace around the template.
5. Remove the template and carefully cut the rectangular opening.
6. Disassemble the humidifier; remove the cover and take out the humidifier pad
assembly. See Fig. 3.
Fig. 3. Disassembling humidifier.
M12304A
WATER
FEED NOZZLE
FRAME
HUMIDIFIER
HOUSING
WATER
FEED TUBE
HUMIDIFIER
PAD ASSEMBLY
COVER
SIDEWALL
BY-PASS SIDEWALL

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
7 69-2630ES—03
7. Make sure the humidifier housing is
level, then position it in the opening
so the plastic tabs are in place on the
lower sheet metal edge of the open-
ing. Use pliers, as necessary, to flat-
ten cut edges. See Fig. 4.
8. Secure the humidifier housing to the
opening at the top and bottom using
sheet metal screws.
9. Use the 6 in. (155 mm) starter collar
as a template to mark the opening for
the bypass.
Fig. 4. Installing humidifier on duct.
10. Carefully cut the opening for a 6 in. (155 mm) starter collar. See Fig. 5. Use a
drill, punch or awl to start the cut in the middle of the circle. Cut in an outward
spiral to assist in controlling the cut.
Fig. 5. Cutting bypass opening.
DUCT
LEVEL
SHEET METAL
SCREWS (4)
PLASTIC
TABS (2)
OPENING
TO AIR DUCT
STARTING
HOLE
6 IN. ROUND TEMPLATE
M20172

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 8
11. Assemble the summer shutoff
damper into the starter collar.
Verify that the damper rotates
freely between the open and
closed positions. Make sure the
handle is accessible. Mark the
damper Closed position as Sum-
mer and the Open position as
Winter. See Fig. 6.
12. Remove liner to expose foam
adhesive. Position starter collar
over opening.
13. Slide one end of the flexible duct-
ing over the starter collar and
secure with one of the connecting
straps.
Fig. 6. Installing the starter collar.
14. Insert the plain collar
into the humidifier port
and secure with sheet
metal screws. Con-
nect the flexible duct-
ing over the collar and
secure with a con-
necting strap. See Fig.
7.
15. Seal the duct connec-
tions with duct tape
(not included).
16. Reinstall the humidi-
fier pad assembly in
the humidifier hous-
ing.
17. Hinge the cover in
place and secure with
the thumbscrew
located at the bottom
of the cover. Fig. 7. Connecting bypass ducting.
SUMMER
WINTER
M20173
M20785
PLAIN COLLAR
HUMIDIFIER PORT

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
9 69-2630ES—03
Connecting the Plumbing
Use hot or cold water and either hard or softened water in the humidifier.
1. Shut off the water.
CAUTION
Chemical Hazard.
Can cause personal injury or equipment damage.
Do not use any line connected to an air conditioner.
Do not use gas line.
2. Use the self-piercing saddle valve (included) to tap into the water supply line at
the location selected. See Fig. 8. If tapping into galvanized pipe, drain line and
pre-drill 3/17 in. tap for saddle valve.
NOTE: The saddle valve is not designed to regulate water flow. The valve is
either open or closed.
IMPORTANT
To prevent debris from clogging the solenoid in-line filter, be sure to install the
saddle valve handle pointing toward the ceiling.
Fig. 8. Installing the saddle valve.
M20175
SCREW DRIVER
WATER LINE

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 10
3. Use 1/4 in. (6 mm) OD tub-
ing and connect the saddle
valve to the inlet side of the
solenoid valve on the
humidifier (see Fig. 9).
a. Place the brass com-
pression nut over the
tubing.
b. Install brass insert into
end of tubing.
c. Slide the plastic com-
pression ring over the
tubing. (Discard copper
compression ring pro-
vided with valve.)
Fig. 9. Installing feed tubing.
NOTE: To prevent leaking, use plastic (Delrin) sleeve rings with plastic tubing.
Use copper sleeve rings only with copper tubing.
d. Insert the tubing into the solenoid valve fitting and support the valve while
tightening the compression nut.
NOTE: Do not over-tighten the compression nut. Moderate tightness prevents
leaking.
e. Repeat steps a. through d. for solenoid valve fitting.
f. Secure tubing with clamps provided.
4. Connect a 1/2 in. (13 mm) drain tube
to the humidifier drain fitting and run
to the floor drain (see Fig. 10).
a. Slide the drain clamp over the
tubing.
b. Push the tubing over the drain
nipple on the humidifier.
c. Hand-tighten the clamp around
the tubing to secure the humidi-
fier drain.
d. Fasten the drain tubing (can use
duct tape) along the route to pre-
vent movement and ensure
downward slope for correct drain-
age.
NOTE: Cut tubing to correct length so
the tubing terminates at the
drain.
Fig. 10. Installing the drain tubing.
M20176
BRASS COMPRESSION NUT
PLASTIC
COMPRESSION RING
BRASS INSERT
M20177

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
11 69-2630ES—03
Installing the Pressure Switch
IMPORTANT
Do not install the switch in an
area where temperature
exceeds rating of
-40°F to 190°F (-40°C to
88°C).
1. Disconnect power from the
humidifier before installing.
2. Mount the switch vertically with
pressure connectors facing
down, using provided self-tap-
ping screws to secure the switch
to the duct.

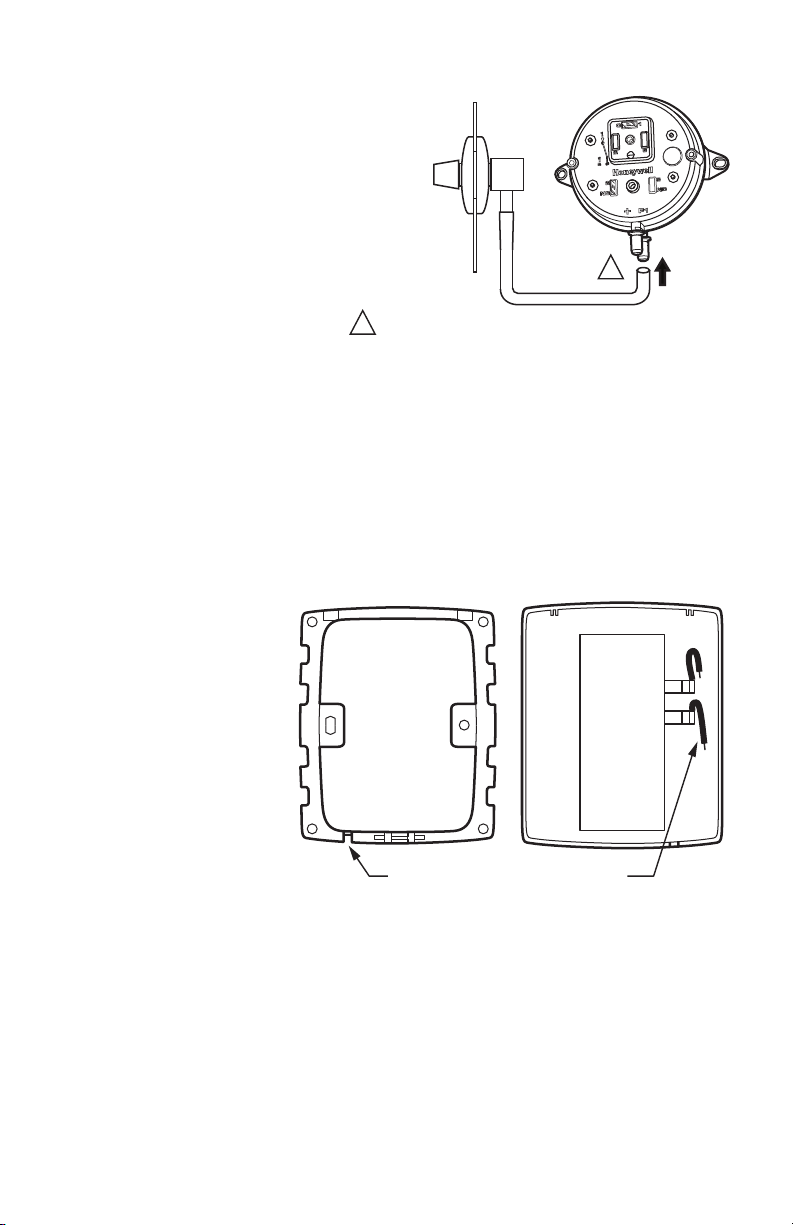

Fig. 11. Pressure switch—oriented vertically.
3. The return duct is recommended,
however the switch can also be
mounted to the supply duct.
4. Cut a 3/4-in. diameter hole in the
duct within 10 feet of the switch to
ensure the provided tubing reaches
the pressure tap elbow.
5. Insert the black rubber gasket into
the duct hole.
6. Connect the tubing to the tubing fit-
ting elbow and insert the tubing fit-
ting elbow into the black rubber
gasket.
7. Connect the other end of the tubing
to the applicable pressure connec-
tion on the switch.
a. Black connection if installed on
the supply
b. Grey connection if installed on
the return
c. Both grey and black if installed
on both
Fig. 12. Mounting the pressure switch.
M27300
M27303
A
B
SUPPLY DUCT INSTALL - AIR LINE ONLY TO TAP A,
CONNECTED TO THE + PORT ON THE AIR FLOW SWITCH
RETURN DUCT INSTALL - AIR LINE ONLY TO TAP B,
CONNECTED TO THE – PORT ON THE AIR FLOW SWITCH
SUPPLY/RETURN DUCT INSTALL - AIR LINE CONNECTED
TO BOTH THE + AND – PORTS ON THE AIR FLOW SWITCH

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 12
IMPORTANT
With low-speed airflow or
variable speed systems it
is recommended to run
tubing to both the supply
and return ducts.
8. You may cut the tubing to fit
the connection length
between the elbow fitting and
switch. It is also recom-
mended to secure the hose
to existing structures to avoid
accidental disconnection.
Fig. 13. Install tubing.
Installing the Humidistat
Installing on Mounting Duct
1. Apply the template to the duct location chosen for the humidistat. Make
sure the template is level before drilling the holes.
2. Refer to the tem-
plate (provided with
the H8908 Humidi-
stat Installation
Instructions) to drill
the control assem-
bly opening and
mounting holes for
the H8908.
3. Remove the H8908
case from the base.
4. Position the foam
gasket on the H8908
base.
5. Position the base on
the duct with the
arrow up.
Fig. 14. Humidistat base and rear view.
6. Secure the base to the duct using the four 1 in. (25 mm) mounting screws pro-
vided with humidistat.
7. Connect the low-voltage wires to the leads and replace the H8908 case. See
Fig. 14.
NOTE: For wall mounting instructions, see the H8908 Installation Instructions.
M27304
INSIDE
OF DUCT
CONNECT TUBING TO + CONNECTION IF PRESSURE TAP IS
MOUNTED TO SUPPLY DUCT. CONNECT TO – IF PRESSURE
TAP IS MOUNTED TO RETURN DUCT.
1
1
M20179
WIRE SLOT HUMIDISTAT WIRES
HUMIDISTAT BASE REAR OF HUMIDISTAT

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
13 69-2630ES—03
WIRING
CAUTION
Hazardous Voltage.
Can cause personal injury or equipment damage.
Disconnect power supply before installing or servicing equipment.
IMPORTANT
All wiring must com-
ply with applicable
local code, ordi-
nances and regula-
tions.
Wire the humidifier solenoid
valve, pressure switch,
humidistat and transformer.

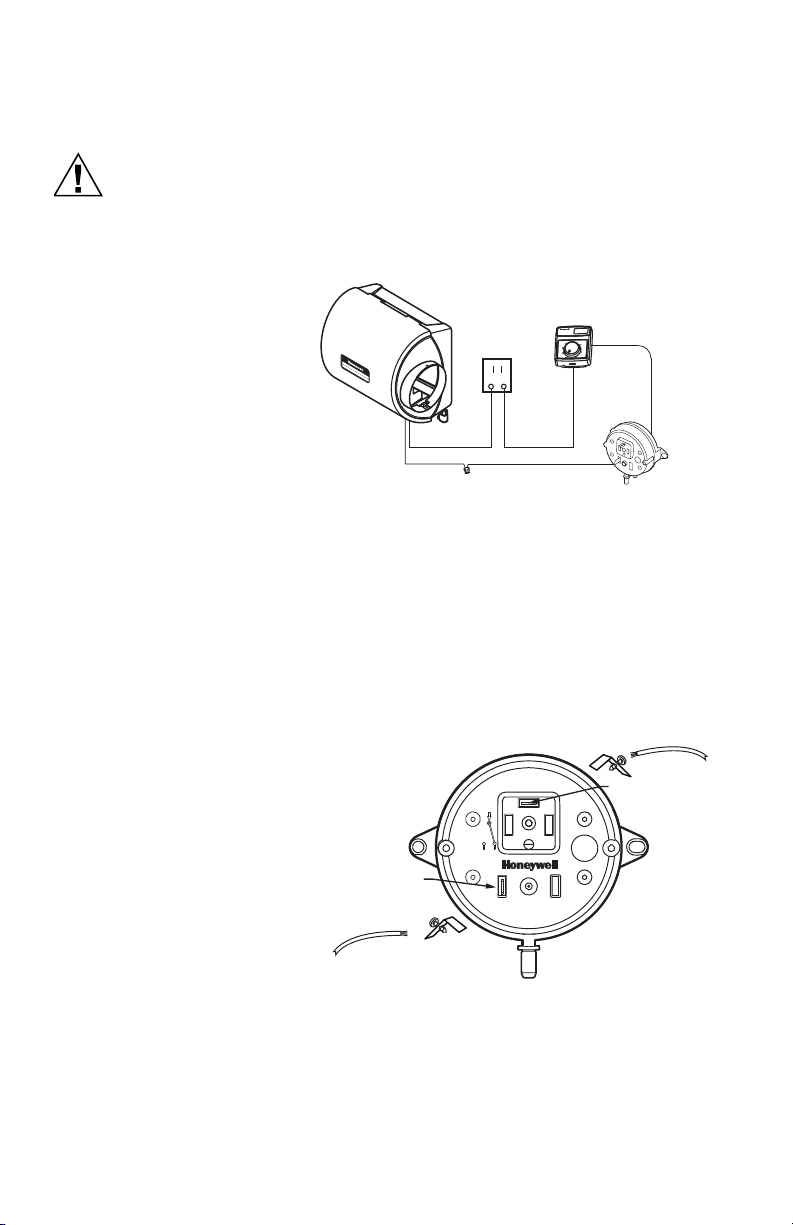

See Fig. 15.
Fig. 15. Wiring the controls.
1. Run the two-strand thermostat wire from the humidifier to the humidistat, and
from the humidistat to the pressure switch.
2. Cut lengths of thermostat wire to reach between components, leaving adequate
wire at both ends for connections.
NOTE: Humidistat and pressure switch can be wired in any order.
3. At the humidifier, con-
nect the black and
white conductors to
the two yellow humidi-
fier wires. (The red
wires from the humid-
ifier are not used.)
4. At the humidistat,
connect both black
conductors to the two
humidistat terminals.
Use a wire nut to con-
nect together the two
white conductors.
Fig. 16. Close-up of pressure switch wiring.
5. At the pressure switch, connect the black and white conductors to the C and NO
pressure switch terminals (NC terminal is not used).
M28974
HUMIDIFIER
SOLENOID
VALVE
HumidityControl
Régulateurd'humidité
-20¡F
-10¡F
0¡F
+10¡F
+20¡F
Over20¡F
15%
20%
25%
30%
35%
40%
HUMIDITY
SETTING
OUTDOOR
TEMPERATURE
-30¡C
-25¡C
-20¡C
-10¡C
-5¡C
Over0¡C
HUMIDISTAT
AIR PRESSURE
SWITCH
TRANSFORMER
ATTACH
ADAPTOR
WIRE TO HVAC
C TERMINAL
M27398A
COMMON (C) TERMINAL
1/4 (6) X 1/32 (1) THICK
QUICK CONNECT
NORMALLY OPEN (NO)
TERMINAL 1/4 (6) X 1/32 (1)
THICK QUICK CONNECT
ATTACH ADAPTER
WIRE TO HUMIDIFIER
C TERMINAL
C1
23
1
23
23
NC
NO
+
PI
ASSEMBLED
IN MEXICO

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 14
TESTING HUMIDIFIER OPERATION
Checklist
Humidifier is level.
Control wiring was reviewed using circuit diagram.
Humidifier is plugged in.
Feed line has no kinks.
Drain line slopes continuously down and ends at floor drain.
Water hose inside humidifier is connected to PerfectFlow™ water distribution tray.
After installation use the following steps to check the humidifier operation:
1. Turn on the power and the water supply
2. Turn the H8908 Humidistat to On and turn on the heat by setting the thermostat
to 10ºF (6ºC) above room temperature.
IMPORTANT
The furnace blower must be on to activate the humidifier.
3. Make sure that water is flowing out of the drain hose. If water does not flow, see
Troubleshooting Your Humidifier section.
4. Check for leaks.
5. Reset the thermostat and H8908 Humidistat to a comfortable setting for auto-
matic operation.
OPERATION
How Your Humidifier Works
Your Honeywell humidifier uses the principle that vapor (evaporated water) is created
when warm air blows over a water-soaked area. As the vapor circulates, the relative
humidity rises.
Your humidity control monitors the relative humidity and activates the humidifier
accordingly. The humidifier has a water supply that dispenses water evenly over a
humidifier pad. The warm dry air, from the furnace, passes over the humidifier pad and
picks up the moist air to circulate it throughout your home.
Humidified air feels warmer and more comfortable so you may be able to lower your
thermostat heating setpoint, which saves money on your heating fuel bills. The end
result is that your humidifier gives you a comfortable environment that is also energy
efficient.
Controlling Your Humidity Settings
Your H8908 Humidistat controls your humidifier.
• Choose the humidity control setting using the combination of relative humidity/
outdoor temperature setting scale on your humidity control dial.

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
15 69-2630ES—03
• Match the dial setting to the outdoor temperature to optimize the humidity level
while reducing the moisture condensation on your windows. See Table 2 to adjust
the humidity control to the recommended setting.
NOTE: As the outside temperature drops, a lower humidity setting is recom-
mended to accommodate dewpoint effects. These settings should
reduce the accumulation of moisture and ice on windows and other
areas of the home.
• Adjust the humidity control setting to adjust for indoor activities such as cooking,
showering and clothes drying, which can cause excessive levels of humidity that
can accumulate moisture on your windows.
NOTE: If these activities persist for more than a few hours, set the humidity
control to the lowest setting to turn off the humidifier. If the condition
does not improve, ventilate your home to remove the moisture.
MAINTAINING YOUR HUMIDIFIER
A regular maintenance program prolongs the life of your humidifier and makes your
home more comfortable. The frequency of cleaning depends on the condition of your
water.
You can use either hard or soft water in your humidifier, but hard water mineral
deposits are more difficult to clean than soft water deposits.
Use the following procedure to clean your Honeywell humidifier.
WARNING
Serious Personal Injury Hazard.
Can cause electrical shock and injury from moving parts.
Disconnect power and shut off water supply before removing cover.
IMPORTANT
Never oil any part of the humidifier.
Table 2. Setting Your Humidistat.
When Outside
Temperature is: Use This Control Setting:
-20°F (-29°C) 15
-10°F (-23°C) 20
0°F (-18°C) 25
+10°F (-12°C) 30
+20°F (-7°C) 35
Above 20°F (-7°C) 40

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 16
Every 1 to 3 Months (Depending on Water Quality)
1. Disconnect the power and turn off the humidifier water supply.
2. Remove the humidifier cover. See Fig. 17.
3. Remove the humidifier pad
assembly from the humidifier
by grasping the top of the tray
and pulling it toward you.
4. Pull one side of the humidifier
pad assembly frame toward
you and remove the tray from
the frame.
5. Gently pinch the water nozzle
catches inward until you can
lift the water nozzle off the tray.
6. Slide the humidifier pad out of
the frame.
7. Carefully remove any mineral
deposits from the tray and
frame. Be sure the frame drain
hole has nothing blocking it.
8. Disconnect the drain hose
from the drain fitting on the
bottom of the humidifier hous-
ing.
9. Clean the drain fitting, if neces-
sary.
10. Bend the drain hose to loosen
any mineral deposits.
11. Flush the drain hose with pres-
surized water (a running tap)
to clean the hose. Fig. 17. Cleaning your humidifier.
12. Reattach the drain hose to the drain fitting.
13. Slide the humidifier pad back into the frame.
14. Snap the water nozzle back on the tray.
15. Reattach the tray to the frame.
16. Place the humidifier pad assembly in the humidifier housing and press until the
assembly is completely seated. Be careful not to pinch or kink the water feed
tube.
17. Replace the humidifier cover.
18. Verify the humidifier operation by following the steps in the Checking Your
Humidifier for Correct Operation section.
End of Humidification Season
• Clean the humidifier and shut it off at the end of the heating season.
• Use Every 1 to 3 Months section steps to shut down for the season.
IMPORTANT
Be sure the humidifier power is off.
M12327A
PerfectFlo™ WATER
DISTRIBUTION TRAY
HUMIDIFIER PAD ASSEMBLY
WATER FEED NOZZLE
HUMIDIFIER HOUSING
SIDEWALL
BYPASS SIDEWALL
COVER
WATER FEED TUBE

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
17 69-2630ES—03
Vacation
• When leaving on vacation, turn off the humidifier water supply and your humidistat.
• When you return, turn on the humidifier water supply and reset your humidistat.
CHECKING YOUR HUMIDIFIER FOR
CORRECT OPERATION
After winter startup or servicing, use the following steps to check your humidifier
operation:
1. Turn on the humidifier power and water supply.
2. Turn the humidistat to its highest setting and set the thermostat to 10°F (6°C)
above the room temperature.
3. Observe that water is flowing out of the drain hose.
NOTE: The furnace blower must be running to activate the humidifier.
4. Reset the thermostat and humidistat to a comfortable setting for automatic oper-
ation.
TROUBLESHOOTING YOUR HUMIDIFIER
Table 3. Troubleshooting Humidifier.
Problem What to look for What to do
Water leakage Leaking joints. Shut off water.
Tighten connections.
Brass tubing inserts Verify that brass tubing inserts are
used.
Saddle valve leaking. Verify rubber pad is installed on saddle
valve.

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 18
No water to
drain. Electrical Verify control circuit wiring. Check all connections.
Humidistat Turn humidistat up and down and listen
for contact to click.
Humidifier power Verify that outlet has power.
Solenoid After verifying other wiring components,
turn on furnace fan, turn humidistat up
and down, and listen for solenoid to
click.
Plumbing Verify plumbing connections.
Check for kinks.
Saddle valve Verify that needle pierces water line and
then backs out needle to open valve.
Humidifier Remove cover and verify that water
flows into distribution tray.
Drain tubing Verify no obstructions.
Air leakage Check duct joints Seal with duct tape.
Low humidity Furnace blower not
operating. •Reset circuit breaker or check for blown fuse.
•Check that the furnace power is on.
•Check all external wiring
connections.
•Check the humidity control setting.
•Call a professional heating
contractor.
Rapid air changes.
Drafts (cold air is dry
and is an added load
to the humidifier).
•Keep doors and windows closed.
•Close fireplace damper when not in
use.
•Keep exhaust fan running time to a
minimum.
•Seal around doors and windows.
High humidity Condensation on
walls. •Turn off humidity control and water until condensation is completely
evaporated.
Heavy condensation
on windows. •Turn humidity control down low enough to eliminate condensation
caused by moisture from bathing,
mopping, cooking, etc. If moisture
persists, more ventilation is needed.
Table 3. Troubleshooting Humidifier. (Continued)

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
19 69-2630ES—03
LIMITED ONE-YEAR WARRANTY
Honeywell warrants this product, excluding humidifier pad, to be free from
defects in the workmanship or materials, under normal use and service, for a
period of one (1) year from the date of purchase by the consumer. If, at any
time during the warranty period, the product is defective or malfunctions,
Honeywell shall repair or replace it (at Honeywell’s option) within a reasonable
period of time.
If the product is defective, return it, with a bill of sale or other dated proof of
purchase, to the retailer where you purchased it.
This warranty does not cover removal or reinstallation costs. This warranty
shall not apply if it is shown by Honeywell that the defect or malfunction was
caused by damage which occurred while the product was in the possession of
a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within
the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY
LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY,
FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR
ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so this
limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL
MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO
THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
This warranty gives you specific legal rights, and you may have other rights
which vary from state to state.
If you have any questions concerning this warranty, please write to Honeywell
Customer Care, 1985 Douglas Drive, Minneapolis, MN55422. In Canada,
write Retail Products ON15-02H, Honeywell Limited/Honeywell Limitée, 35
Dynamic Drive, Toronto, Ontario M1V 4Z9.

HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
customer.honeywell.com
® U.S. Registered Trademark
© 2011 Honeywell International Inc.
69-2630ES—03 M.S. Rev. 09-11
Printed in United States
