Honeywell Kromschroder TZI Series Manual

8 Edition 06.16
Industrial & Commercial Thermal
Technical Information · GB
• Electrical ignition of gas burners
• Ignition and burner control with a single electrode possible
• TZI 7,520/33R complies with CSA
Ignition transformers TZI, TGI

TZI, TGI · Edition 06.16 2
▼= To be continued
Contents
Ignition transformers TZI, TGI .......................1
Contents ............................................2
1 Application ........................................3
1.1 Examples of application ...........................5
1.1.1 Double-electrode operation...........................5
1.1.2 Single-electrode operation............................5
2 Certification .......................................6
3 Function ...........................................7
3.1 Connection diagrams .............................. 7
4 Selection ..........................................8
4.1 Selection table .....................................8
4.1.1 Type code ..............................................8
5 Project planning information . . . . . . . . . . . . . . . . . . . . . . 9
5.1 Operation ..........................................9
5.2 Installation .........................................9
5.3 Cable selection ....................................9
5.3.1 Ignition cable ..........................................9
5.4 Reduction of EMC, wiring.........................10
5.5 Single-electrode operation .......................10
5.6 Intermittent operation/Star electrodes...........10
5.7 Duty cycle .........................................11
6 Accessories .......................................12
6.1 High-voltage cable ...............................12
6.2 Radio interference suppressed electrode
adapters ..............................................12
7 Technical data ....................................13
7.1 Dimensions ........................................14
Feedback ...........................................15
Contact.............................................15

TZI, TGI · Edition 06.16 3
TZI 5-15/100, TZI 7-25/20,
TZI 7,5-12/100, TZI 7,5-20/33 TGI
Application
1 Application
Ignition transformers TZI and TGI are designed for
high-voltage spark ignition of gas burners and gas-
ignited or directly ignited oil burners. The ignition
transformers can also be used on burners with single-
electrode operation; the ignition current and ionization
current flow over a common electrode. The ignition
transformer TZI must be mounted in a housing, e.g. in a
control cabinet. It fulfils the requirements for enclosure
IP 00. Ignition transformer TGI in its die-cast aluminium
housing meets the requirements for enclosure IP 54. It
is suitable for on-site mounting near to the burner.

TZI, TGI · Edition 06.16 4
Application

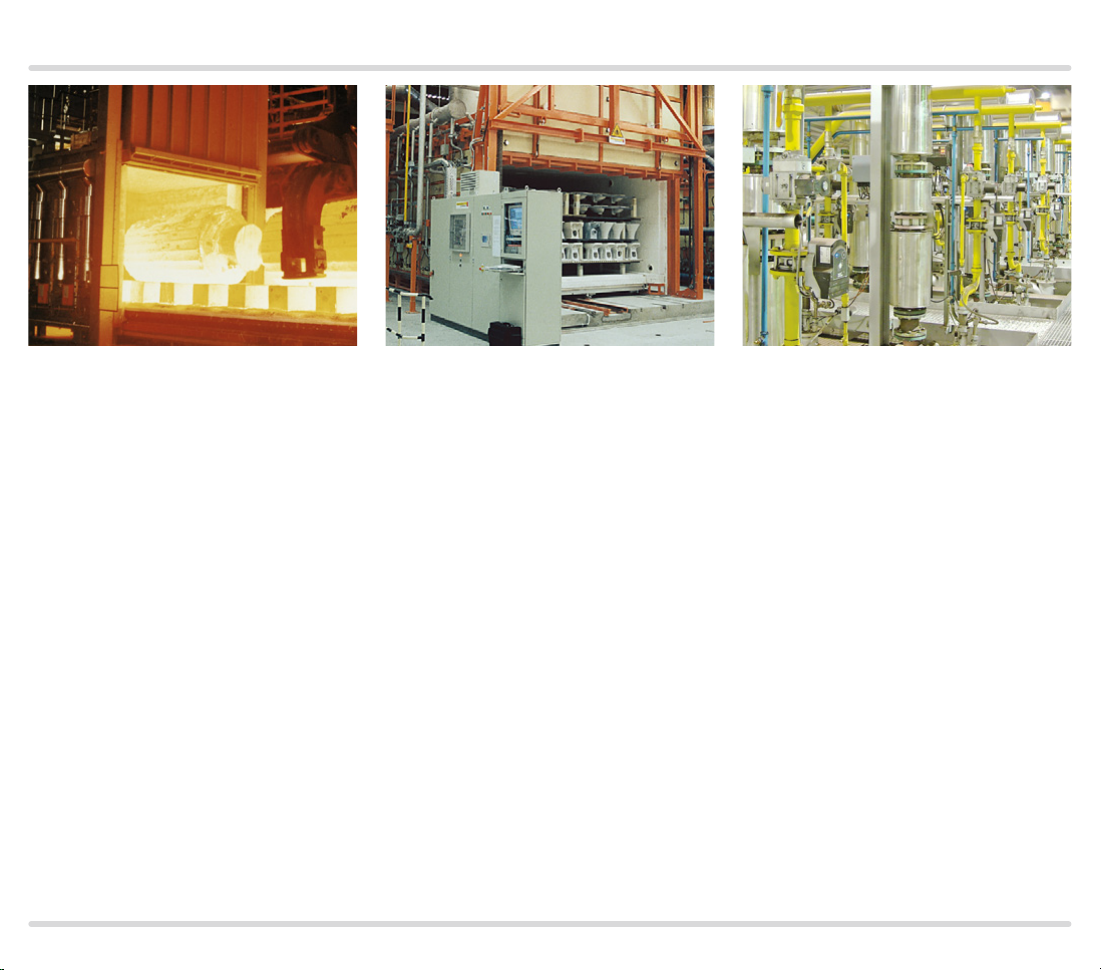

Bogie hearth forging furnace
in the metallurgical industry
Intermittent shuttle kiln
in the ceramics industry
Walking beam furnace
with overhead firing

TZI, TGI · Edition 06.16 5
IFD 258
BIO/
BIC
VAS
VR..R
GIK
N
L1
TGI
IFD 258
BIO/
BIC
VAS
GIK
N
L1
TGI
VR..R
Application

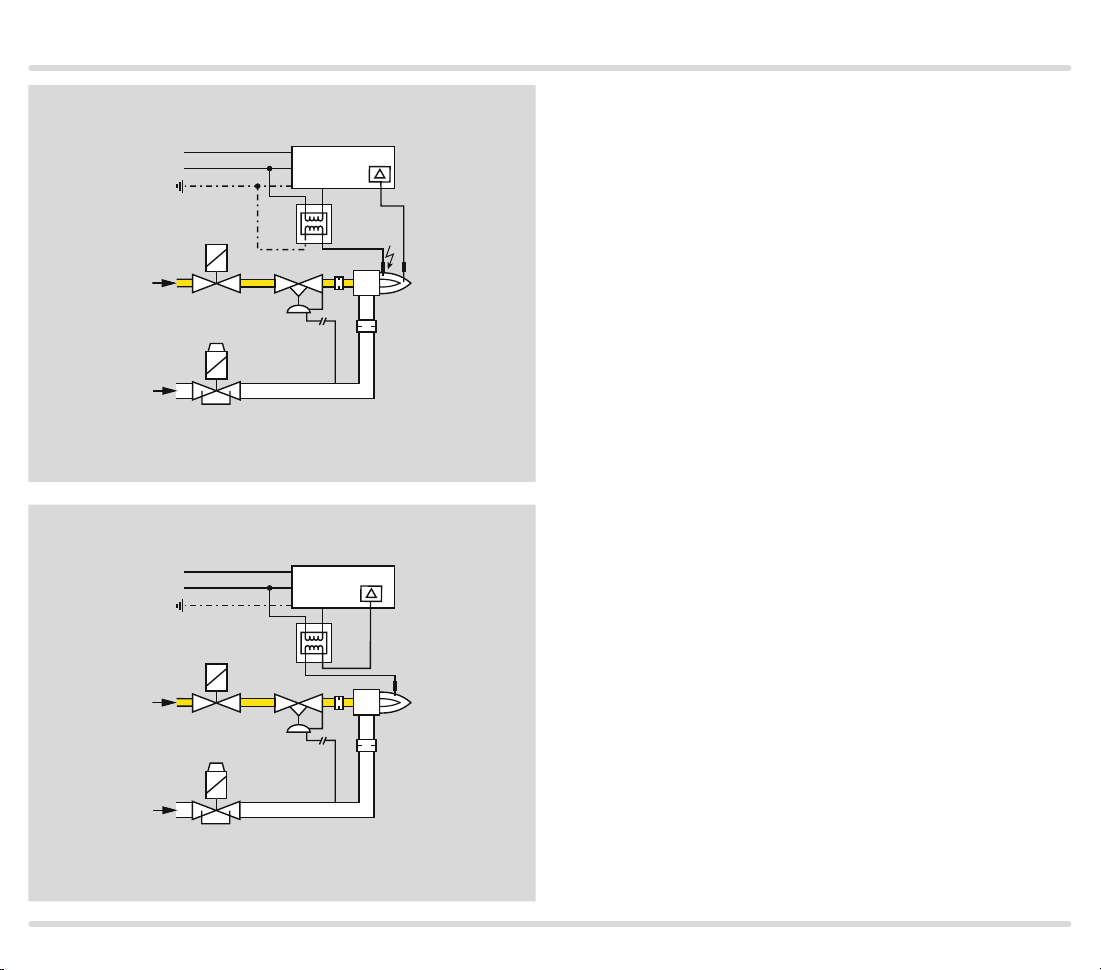

1.1 Examples of application
1.1.1 Double-electrode operation
Ignition using ignition electrode
Ignition transformer TGI is supplied with voltage via
the automatic burner control unit IFD 258. The ignition
transformer generates a high voltage. This high voltage
creates ignition sparks between the ignition electrode
and burner ground. After the burner start, a current
flows via the ionization electrode for flame control.
1.1.2 Single-electrode operation
Ignition using an ignition and ionization electrode.
After burner start, a flame control current flows via the
same electrode that is also used for ignition.

TZI, TGI · Edition 06.16 6
Certification
2 Certification
Ignition transformers TZI and TGI are built for applica-
tions pursuant to the Machinery Directive 2006/42/EC.
TZI 7,520/33R
Complies with Canadian Standards Association
CSA C22.2 No. 131962.

TZI, TGI · Edition 06.16 7
H
∅7 mm (0.275")
Function
3 Function

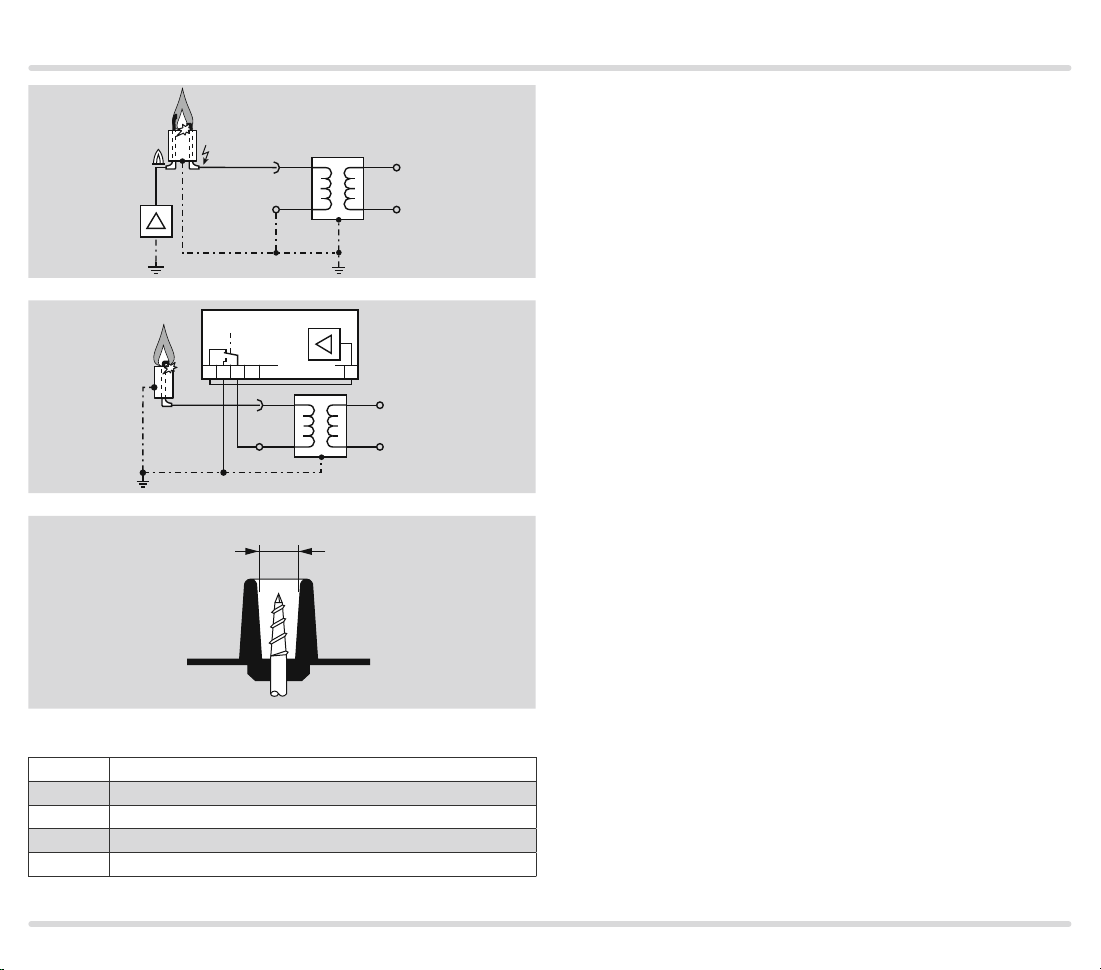

3.1 Connection diagrams
Ignition: double-electrode operation
Ignition: single-electrode operation
Single-electrode operation is possible only in conjunc-
tion with suitable automatic burner control units. The
switchover between ignition and monitoring is per-
formed by the automatic burner control unit.
High-voltage connection
Cut end of high-voltage cable is inserted into the
shroud and screwed onto the wood screw (H).
Legend
HHigh-voltage connection
br Connection cable brown
bk Connection cable black
bl Connection cable blue
gn/ye Connection cable green/yellow
L1
N
Burner control unit
bk
bl
gn/ye
H
br
IZ
L1
N
bk
bl
gn/ye
H
br

TZI, TGI · Edition 06.16 8
Selection
4 Selection
4.1 Selection table
R W
TZI 5-15/100  
TZI 7-25/20  
T Z I 7, 5-12 /100  
TZI 7,5-20/33  
TGI 5-15/100  
TGI 7-25/20  
TGI 7,5-12/100  
TGI 7,5-20/33  
Order example
TZI 5-15/100W
= standard, = available
4.1.1 Type code
Code Description
TZI
TGI
Ignition transformer
Ignition transformer, enclosed
5
7
7,5
High voltage: 5 kV
7 kV
7.5 kV
-12
-15
-20
-25
Output current: 12 mA at 50 Hz (9 mA at 60 Hz)
15 mA at 50 Hz (11 mA at 60 Hz)
20 mA at 50 Hz (15 mA at 60 Hz)
25 mA at 50 Hz (18 mA at 60 Hz)
/20
/33
/100
Duty cycle: 20%
33%
100%
R
W
Mains voltage: 115 V
230 V

TZI, TGI · Edition 06.16 9
Project planning information
5 Project planning information
5.1 Operation
The ignition transformers are suitable only for applica-
tions for igniting gas burners and gas-ignited or directly
ignited oil burners. An automatic burner control unit
with integrated fuse (max. 4 A) must be provided to
activate the ignition transformers. Do not operate the
transformers when no ignition sparks are created (dis-
tance between spark electrode and burner ground = 2 ±
0.5 mm). The duty cycle and the ambient temperature
must not exceed the permissible limits.
5.2 Installation
Installation position for TZI and TGI: install with the
connections facing down. Position the ignition trans-
former right next to the burner (recommended ignition
cable length: max. 5 m, recommended < 1 m).
TZI
The length of the mains cable is approx. 410 mm.
Fix the ignition transformer in a housing or control
cabinet.
5.3 Cable selection
Use mains cable suitable for the type of operation and
complying with local regulations.
Install an equipotential bond (4 mm2, compliant with
local regulations) between burner and ignition trans-
former.
TGI
The TGI housing has two A/F 27 cable glands with dou-
ble seal inserts for two cables up to 7 mm in diameter. A
seal insert for 10 to 14 mm is enclosed and can be used
in the A/F 27 cable gland, see page 14 (Dimensions).
5.3.1 Ignition cable
Use unscreened high-voltage cable for the ignition ca-
ble, see page 12 (Accessories). The ignition capacity
is lower when using a screened ignition cable.
Ignition cable length:
Recommended < 1 m, max. 5 m. The longer the ignition
cable, the lower the ignition capacity.
Use radio interference suppressed terminal boots only
on the burner (with 1 kΩresistor), see page 12 (Ac-
cessories).

TZI, TGI · Edition 06.16 10
Project planning information
5.4 Reduction of EMC, wiring
Avoid external electrical interference.
Lay cables individually and, if possible, not in a metal
conduit.
Do not lay UV/ionization cable and ignition cables to-
gether and lay them as far apart as possible.
Screw the ignition cable securely into the high-voltage
connection on the ignition transformer and run to the
burner by the shortest possible route, see page 7
(High-voltage connection).
Use radio interference suppressed terminal boots only
on the burner (with 1 kΩresistor), see page 12 (Ac-
cessories).
5.5 Single-electrode operation
Single-electrode operation is possible only in conjunc-
tion with suitable automatic burner control units.
For single-electrode operation, wire an equipotential
bond between the burner and the automatic burner
control unit, see page 7 (Ignition: single-electrode
operation). Ensure that the wiring has been done cor-
rectly, otherwise the connected units will be damaged.
5.6 Intermittent operation/Star electrodes
We recommend using 7.5 kV ignition transformers for
On/Off intermittent operation or when using burners
with star electrodes.

TZI, TGI · Edition 06.16 11
Project planning information
5.7 Duty cycle
The duty cycle indicates for how long the ignition trans-
former can be switched on within 180 s, without it be-
ing overloaded.
-20 0 20 40 60
0
20
40
60
80
100
Duty cycle [%]
Ambient temperature [°C]
For ignition transformers, the duty cycle is dependent
on the ambient temperature.
TZI/TGI duty cycle in % – see page 13 (Technical
data).
Converting the duty cycle into seconds:
Duty cycle [s] =
Duty cycle [%] × 180 s
100%
Example
Ignition transformer TZI 725/20W with a duty cycle of
20% for an ambient temperature of 20 to +35°C.
Duty cycle =
20 [%] × 180 s
100% = 36 s
In an ambient temperature of 20 to +35°C, this results
in a maximum duty cycle of 36 s within 180 s for the
ignition transformer.
For an automatic burner control unit with an ignition
time tZ= 6 s, for example, the resultant timing cycle is a
maximum of 2 ignitions per minute.
0 60 120 180
tZ= 6 s
t [s]
Legend

TZI, TGI · Edition 06.16 12
Accessories
6 Accessories
6.1 High-voltage cable
FZLSi 1/7 50°C (58°F) to 180°C (356°F),
Order No. 04250410,
FZLK 1/7 5°C (23°F) to 80°C (176°F),
Order No. 04250409.
6.2 Radio interference suppressed electrode
adapters
Plug cap, 4 mm (0.16 inch), interference-suppressed,
Order No. 04115308.
Straight adapter, 4 mm (0.16 inch), interference-sup-
pressed,
Order No. 04115307.
Straight adapter, 6 mm (0.2 inch), interference-sup-
pressed,
Order No. 04115306.

TZI, TGI · Edition 06.16 13
Technical data
7 Technical data
Type Input Output Duty cycle** Enclosure Weight
V AC Hz* A* VmA* %kg
TZI 5-15/100W 230 50 (60) 0.45 (0.35) 5000 15 (11) 100 IP 00 1.5
TZI 7-25/20W 230 50 (60) 1.1 (0.8) 7000 25 (18) 20 IP 00 1.5
TZI 7,5-12/100W 230 50 (60) 0.6 (0.45) 7500 12 (9) 100 IP 00 2
TZI 7,5-20/33W 230 50 (60) 0.9 (0.7) 7500 20 (15) 33 IP 00 2
TZI 5-15/20R 115 50 (60) 1(0.7) 5000 15 (11) 20 IP 00 0.9
TZI 5-15/100R 115 50 (60) 0.9 (0.7) 5000 15 (11) 100 IP 00 1.5
TZI 7-25/20R 115 50 (60) 2.2 (1.6) 7000 25 (18) 20 IP 00 1.5
T Z I 7, 5-12 /100 R 115 50 (60) 1.2 (0.9) 7500 12 (9) 100 IP 00 2
TZI 7,5-20/33R 115 50 (60) 1.8 (1.35) 7500 20 (15) 33 IP 00 2
TGI 5-15/100W 230 50 (60) 0.45 (0.35) 5000 15 (11) 100 IP 54 3
TGI 7-25/20W 230 50 (60) 1.1 (0.8) 7000 25 (18) 20 IP 54 3
TGI 7,5-12/100W 230 50 (60) 0.6 (0.45) 7500 12 (9) 100 IP 54 3.5
TGI 7,5-20/33W 230 50 (60) 0.9 (0.7) 7500 20 (15) 33 IP 54 3.5
TGI 5-15/100R 115 50 (60) 0.9 (0.7) 5000 15 (11) 100 IP 54 3
TGI 7-25/20R 115 50 (60) 2.2 (1.6) 7000 25 (18) 20 IP 54 3
TGI 7,5-12/100R 115 50 (60) 1.2 (0.9) 7500 12 (9) 100 IP 54 3.5
TGI 7,5-20/33R 115 50 (60) 1.8 (1.35) 7500 20 (15) 33 IP 54 3.5
* Values in brackets apply to 60 Hz.
** For temperatures between -20 and +35°C.
Converting the duty cycle into seconds, see page 11
(Duty cycle).
Ambient temperature:
20 to +60°C.

TZI, TGI · Edition 06.16 14
74
92
73
769 86
73
792 110
99
92
TZI 5-15/100, TZI 7-25/20 TZI 7,5-12/100, TZI 7,5-20/33
TGI
Technical data
7.1 Dimensions
TZI
Length of connection cable: approx. 410 mm
TGI
140
180
95 M20 (A/F 27)
M20 (A/F 24)
103
165
∅5.0

TZI, TGI · Edition 06.16
Feedback
Finally, we are offering you the opportunity to assess this “Technical Information (TI)” and to give us your opinion,
so that we can improve our documents further and suit them to your needs.
Clarity
Found information quickly
Searched for a long time
Didn’t find information
What is missing?
Comprehension
Coherent
Too complicated
No answer
Scope
Too little
Sufficient
Too wide
No answer
No answer
Navigation
I can find my way around
I got “lost”
No answer
Use
To get to know the product
To choose a product
Planning
To look for information
My scope of functions
Technical department
Sales
No answer
Remarks
Elster GmbH
Postfach 2809 · 49018 Osnabrück
Strotheweg 1 · 49504 Lotte (Büren)
Germany
Tel [phone]0
Fax [phone]370
[e-mail]
www.kromschroeder.com
Contact
The current addresses of our international agents
are available on the Internet:
www.kromschroeder.de/Weltweit.20.0.html?&L=1
We reserve the right to make technical
modifications in the interests of progress.
Copyright © 2016 Elster GmbH
All rights reserved.
Feedback
Contact
03250846
Kromschröder AG
Michael Rehkamp
[e-mail]
Osnabrück
