HEGS5BLX
Keyboard Controller
User Guide
900.0799 – June 2006 - Rev 1.01

Rev. 1.01 ii 900.0799
20-Jun-06
ISSUE DATE REVISIONS
900.0723
1.0 May 2006 Initial Release
900.0799
1.0 June 2006
Correct controller power supply part #/add power supply
part # to converter; correct RS232 RX/TX terminals on
terminal block
1.01 June 2006 Revise connections to power connector

FCC COMPLIANCE STATEMENT
INFORMATION TO THE USER: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at
his own expense.
CAUTION: Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
USERS OF THE PRODUCT ARE RESPONSIBLE FOR CHECKING AND
COMPLYING WITH ALL FEDERAL, STATE, AND LOCAL LAWS AND
STATUTES CONCERNING THE MONITORING AND RECORDING OF
VIDEO AND AUDIO SIGNALS. HONEYWELL VIDEO SYSTEMS SHALL
NOT BE HELD RESPONSIBLE FOR THE USE OF THIS PRODUCT IN
VIOLATION OF CURRENT LAWS AND STATUTES.
Rev. 1.01 iii 900.0799
20-Jun-06

Rev. 1.01 iv 900.0799
20-Jun-06

IMPORTANT SAFEGUARDS
1. READ INSTRUCTIONS – All safety and operating instructions should be read before the unit is
operated.
2. RETAIN INSTRUCTIONS – The safety and operating instructions should be retained for future
reference.
3. HEED WARNINGS – All warnings on the unit and in the operating instructions should be adhered
to.
4. FOLLOW INSTRUCTIONS – All operating and use instructions should be followed.
5. CLEANING – Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
6. ATTACHMENTS – Do not use attachments not recommended by the product manufacturer as
they may result in the risk of fire, electric shock, or injury to persons.
7. WATER AND MOISTURE – Do not use this unit near water or in an unprotected outdoor
installation, or any area which is classified as a wet location.
8. ACCESSORIES - Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury to a child or adult and
serious damage to the equipment. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the product. Any mounting of
the product should follow the manufacturer’s instructions and should use a mounting
accessory recommended by the manufacturer. Wall or shelf mounting should follow the
manufacturer’s instructions and should use a mounting kit approved by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart combination to overturn.
10. VENTILATION - Slots and openings in the cabinet and the back or bottom are provided for
ventilation and to ensure reliable operation of the equipment and to protect it from overheating.
These openings must not be blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface. Equipment should never be
placed near or over a radiator or heat register. This product should not be placed in a built-in
installation, such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
11. POWER SOURCES – This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supplied to your home,
consult your product dealer or local power company. For products designed to operate from
battery power or other sources, refer to the operating instructions.
12. GROUNDING OR POLARIZATION – The power supply supplied with this unit may be equipped
with a polarized alternating-current line plug (a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13. OVERLOADING – Do not overload outlets and extension cords as this can result in a risk of fire or
electric shock.
Rev. 1.01 v 900.0799
20-Jun-06

Rev. 1.01 vi 900.0799
20-Jun-06
IMPORTANT SAFEGUARDS
14. POWER-CORD PROTECTION – Power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them, paying particular attention to
cords and plugs, convenience receptacles, and the point where they exit from the monitor.
15. OBJECT AND LIQUID ENTRY – Never push objects of any kind into this unit through openings as
they may touch dangerous voltage points or short-out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the unit.
16. SERVICING – Do not attempt to service this unit yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
17. DAMAGE REQUIRING SERVICE – Unplug the unit from the outlet and refer servicing to qualified
service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the unit to its normal operation.
e. If the unit has been dropped or the enclosure has been damaged.
f. When the unit exhibits a distinct change in performance - this indicates a need for service.
18. REPLACEMENT PARTS – When replacement parts are required, be sure the service technician
has used replacement parts specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
19. SAFETY CHECK – Upon completion of any service or repairs to this unit, ask the service
technician to perform safety checks to determine that the unit is in proper operating condition.
20. LIGHTNING AND POWER LINE SURGES – For added protection of this unit during a lightning
storm, or when it is left unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the cable system. This will prevent damage to the unit due to lightning and
power-line surges.
21. HEAT – The product should be situated away from heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that produce heat.
22. INSTALLATION – Do not install the unit in an extremely hot or humid location, or in a place
subject to dust or mechanical vibration. The unit is not designed to be waterproof. Exposure to
rain or water may damage the unit.
23. WALL OR CEILING MOUNTING – The product should be mounted to a wall or ceiling only as
recommended by the manufacturer

EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instruction in the literature
accompanying the product.
CAUTION
CAUTION: TOREDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLEPARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: DO NOT INSERT ANY METALLIC OBJECT THROUGH
VENTILATION GRILLS THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: THIS UNIT MUST BE OPERATED WITH A PROPERLY
GROUNDED 3-PIN CONNECTION.
NON-OBSERVANCE OF THIS STANDARD PRACTICE MAY RESULT IN A
STATIC ELECTRICITY BUILD-UP THAT MAY RESULT IN AN ELECTRIC
SHOCK WHEN EXTERNAL CONNECTIONS ARE TOUCHED.
Rev. 1.01 vii 900.0799
20-Jun-06

Rev. 1.01 viii 900.0799
20-Jun-06
Notes:

Rev. 1.01 ix 900.0799
20-Jun-06
TABLE OF CONTENTS
SECTION 1: INTRODUCTON ................................................................................................................... 1
1.1 PRODUCT DESCRIPTION ............................................................................................................ 1
1.2 ADDITIONAL INFORMATION........................................................................................................ 1
SECTION 2: INSTALLATION AND EQUIPMENT SETUP......................................................................... 2
2.1 CONNECTIONS............................................................................................................................ 2
2.2 INSTALLATION DIAGRAM ............................................................................................................ 3
SECTION 3: OPERATION......................................................................................................................... 4
3.1 CONTROLS AND LCD DISPLAY .................................................................................................. 4
3.2 POWER UP ................................................................................................................................... 9
3.3 LOGIN/LOGOUT ........................................................................................................................... 9
3.4 MODES OF OPERATION............................................................................................................ 10
3.4.1 Camera Operation Mode............................................................................................... 10
3.4.2 Monitor Operation Mode ............................................................................................... 11
3.4.3 DVR Operation Mode..................................................................................................... 11
3.4.4 Sequence Operation Mode ........................................................................................... 12
3.4.5 Alarm Acceptance.......................................................................................................... 12
3.4.6 LCD Function Keys F1-F10............................................................................................ 12
SECTION 4. HEGS5BLX CONFIGURATION ......................................................................................... 13
4.1 SYSTEM PARAMETERS ............................................................................................................. 13
SECTION 5: DOWNLOADING NEW FIRMWARE TO THE HEGS5BLX................................................. 14
5.1 INTRODUCTION ......................................................................................................................... 14
5.2 CONNECTING THE HEGS5BLX TO YOUR PC .......................................................................... 14
SECTION 6: TROUBLESHOOTING AND MAINTENANCE.................................................................... 19
6.1 TROUBLESHOOTING................................................................................................................. 19
6.2 DIAGNOSTICS............................................................................................................................ 19
6.2.1 Joystick Test Modes ...................................................................................................... 19
6.3 SERVICING THE CONTROLLER ................................................................................................ 20
6.4 PREVENTIVE MAINTENANCE.................................................................................................... 20
SECTION 7: SPECIFICATIONS.............................................................................................................. 21

Rev. 1.01 x 900.0799
20-Jun-06
LIST OF FIGURES
Figure 1: Connecting to the VideoBloX CPU Module.................................................................................... 3

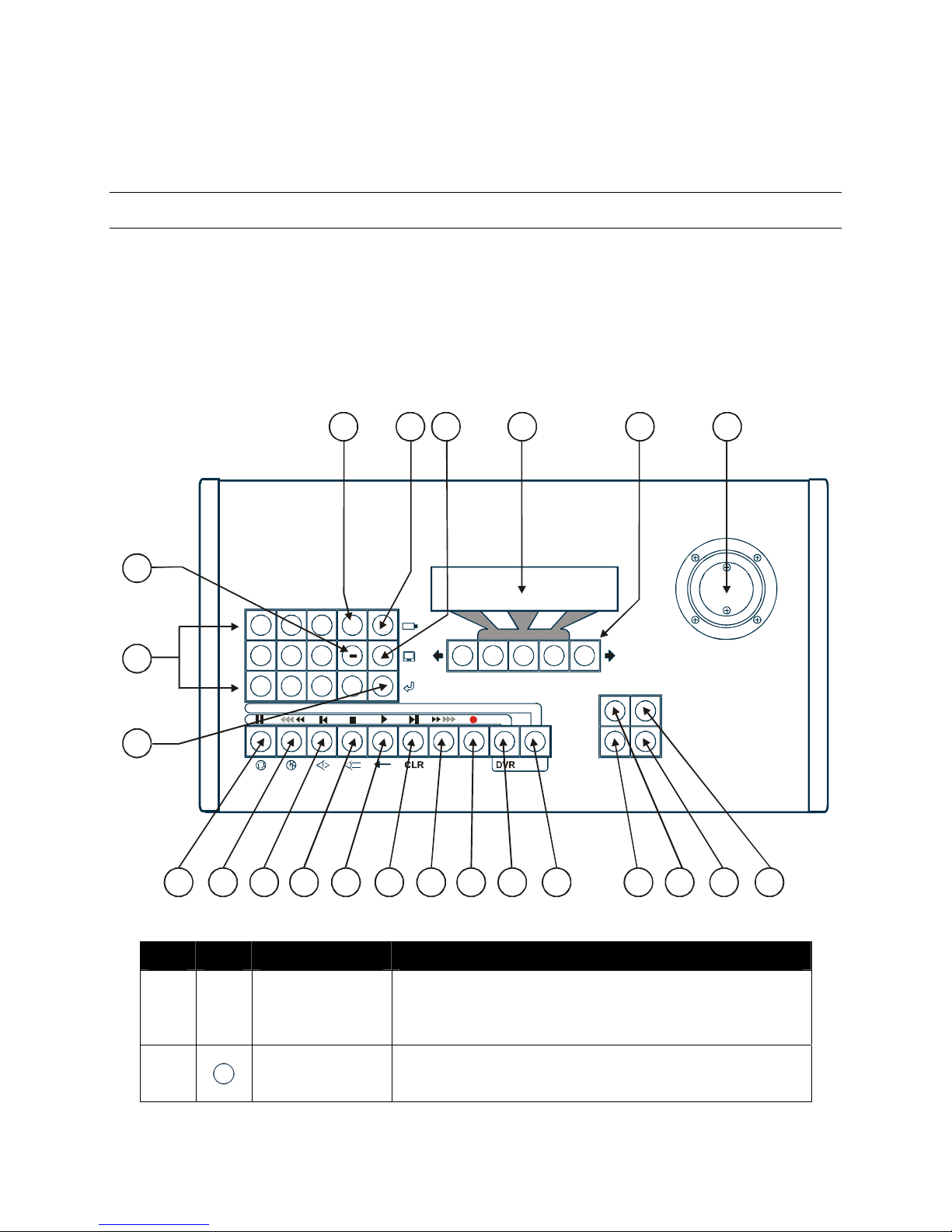

Figure 2. Controls and LCD Display .............................................................................................................. 4
Figure 3. LCD Display and Soft Keys............................................................................................................. 8
Figure 4: Ultrak Code Server Window ........................................................................................................... 15
Figure 5: CommPort Properties Window ....................................................................................................... 15
Figure 6: Enabling the CommPort ................................................................................................................. 16
Figure 7: Invalid Port Error ............................................................................................................................. 16
Figure 8. Transmit Hex File ............................................................................................................................ 16
Figure 9: Send Hex File Window ................................................................................................................... 17
Figure 10: Selecting the Hex File to Send ..................................................................................................... 17
Figure 11: Sending Hex File Status Window ................................................................................................. 18
Figure 12. Transfer Complete ........................................................................................................................ 18

SECTION 1:
INTRODUCTON
1.1 PRODUCT DESCRIPTION
The HEGS5BLX is a remote keyboard controller for Honeywell Video's VideoBloX range
of video matrix switching and control equipment. Many common functions required in
controlling a medium to large sized CCTV installation may be readily carried out from a
single compact keyboard.
The major functions, which have been integrated into the unit, are the control of the
video matrix switching equipment, pan tilt zoom units (PTZs), video cassette recorders
(VCRs), Digital Video Recorders (DVRs), controlling the operation of sequences and the
monitoring of alarms. Refer to the associated CPU and Protocol Interface Translator
(PIT) manuals for specific operation of peripheral devices.
The HEGS5BLX only works in slave mode and cannot be used to control telemetry
equipment in stand alone mode.
1.2 ADDITIONAL INFORMATION
CAUTION: Users of this product are responsible for
checking and complying with all federal, state, and local
laws and statutes concerning the monitoring and
recording of video and audio signals. Honeywell shall
not be held responsible for the use of this product in
violation of current laws and statutes.
Rev. 1.01 1 900.0799
20-Jun-06

SECTION 2:
INSTALLATION AND EQUIPMENT SETUP
2.1 CONNECTIONS
A terminal block is provided for connection between the HEGS5BLX keyboard controller and peripheral
equipment. A 6-conductor crossover cable is provided for connection between the HEGS5BLX and the
terminal block. Plug one end of the crossover cable into the connector on the back of the HEGS5BLX
and the other end into the jack on the terminal block.
Description
Power Supply Connect to power supply, part number 849193-0089,
provided with the keyboard.
COM1 (RS485 output port) RS485 D+and D- (Not Used)
COM2 (RS232 serial port) RS232 RX and TX
+12VDC
GND
RS-232 (TX) - COM2
RS-232 (RX) - COM2
RS-485 (D+) - COM1
RS-485 (D-) - COM1
Rev. 1.01 2 900.0799
20-Jun-06

2.2 INSTALLATION DIAGRAM
HEGS5BLX VideoBloX Controller
+12VDC
GND
RS-232 (TX)
RS-232 (RX)
RS-485 (D+)
RS-485 (D-)
+12VDC
GND
RS-232 (RX) RS-232 (TX)
RS-485 (D+)
RS-485 (D-)
PSU
12 VDC
2A
Honeywell
Part# 849193-0089
Part #140.0101
RS232 to RS422 Converter
5 4 3 2 1
9 8 7 6
Female DB9
Female DB9
RS232
Pin 3, RXD
Pin 2, TXD
Pin 5, GND
V+
V-
GND
-
12-30 VDC Power Supply
Part #849193-0089
+
TX+ (B)
TX- (A)
RX+ (B) Data +
RX- (A) Data -
RTS+ (B)
RTS- (A)
CTS+ (B)
CTS- (A)
SGND
4-Wire
w/Terminator
RS422 4-Wire RS422
V
ideoBloX CPU Module
RS422 Master DB9
Pin 3, RX+
Pin 4, RX-
Pin 2, TX+
Pin 1, TX-
Part #849518-0419
6x6 Crossover Cable
Multiplexer
DVR
Pin 5, GND
HVB232422
1 2 3
ON
1 2 3
ON
Note: White Space Shows Switch Position
RS422
WITH TERMINATOR
SW1 SW2 SW3
ON ON ON
RS422
SW1 SW2 SW3
ON ON OFF
``
Figure 1: Connecting to the VideoBloX CPU Module
Rev. 1.01 3 900.0799
20-Jun-06

SECTION 3:
OPERATION
3.1 CONTROLS AND LCD DISPLAY
The functionality and operation of the HEGS5BLX is dependent on the installation and
configuration of the VideoBloX switching system. The functionality of the DVR (device)
key and DVR AUX key is dependent on the device (multiplexer, DVR, VCR, etc.)
database defined and selected in the VideoBloX configuration software. Refer to the
VideoBloX Matrix Configuration Manual for details on configuring the software. The
camera key and camera AUX key functionality is dependent on the PTZ protocol settings
in the HVBPIT44 Protocol Translator. Refer to the HVBPIT44 User Manual for protocol
settings and auxiliary functions.
1
4
7
2
5
8
3
6
9
+
0
HEGS5BLX System Controller
91417
712
10 15 18
813 2011
5422221 23
16 19
1
6
3
SEQ ALM
ACK
A
UX
User 1 /
User 3 /
Preset/
ALT
AUX1 AUX 2 AUX 3AUX 4 AUX 5 AUX 6 AUX 7 AUX 8
/
2
4
Save
Figure 2. Controls and LCD Display
ID Icon Usage Description
Used to enter numbers in programming screens and
entering passwords, camera numbers, monitor numbers,
and other device numbers.
1 Numeric Keypad
Used to select the next device depending on the
operation mode (camera, monitor, sequence, DVR.)
2
+
Plus Key
Rev. 1.01 4 900.0799
20-Jun-06

ID Icon Usage Description
Used to select the previous device depending on the
operation mode (camera, monitor, sequence, DVR.)
3 Minus Key
4 Camera Key Camera Mode
5 Monitor Key Monitor Mode
6 Enter Key Used to confirm a selection
7-14
The operation of Keys 7 to 14 is dependent on the controller mode of
operation and on the system configuration defined in the VideoBloX CPU
module.
• To lock the controller in DVR mode, press the DVR key.
• To lock the controller in PTZ Auxiliary or DVR Auxiliary mode, press the
AUX key twice. The function of the auxiliary key is determined by the
system mode of the controller (Camera mode or DVR mode) The function
of the auxiliary keys when in Camera Mode is determined by the protocol
selected in the HVBPIT44 or when in DVR Mode, the DVR database
selected in the VideoBloX Configurator. Refer to the HVBPIT44 user
manual for the auxiliary functions defined for specific protocols.
Camera
Mode: Iris Open
DVR: Pause
7
Refer to
Description by
Mode
Auxiliary: Auxiliary 1
Camera
Mode: Iris Close
DVR: Rewind/Fast Rewind (Alt+ )
8
Refer to
Description by
Mode
Auxiliary: Auxiliary 2
Camera
Mode: Focus Near
DVR: Frame Rewind
9
Refer to
Description by
Mode
Auxiliary: Auxiliary 3
Camera
Mode: Focus Far
DVR: Stop
10
Refer to
Description by
Mode
Auxiliary: Auxiliary 4
Normal: Backspace
DVR: Play
11
Refer to
Description by
Mode
Auxiliary: Auxiliary 5
Rev. 1.01 5 900.0799
20-Jun-06

3.1 CONTROLS AND LCD DISPLAY, CONTINUED
ID Icon Usage Description
Normal:
CLR Clear. Used to exit menus, clear
an alphanumeric entry, abort an
operation.
DVR: Frame advance
12
Refer to
Description by
Mode
Auxiliary: Auxiliary 6
Sequence
Mode
SEQ Places the controller in Sequence
Mode. Sequences are
programmed in the VideoBloX
Configuration software.
Forward/Fast Forward (Alt +
/
)
DVR:
/
13
Refer to
Description by
Mode
Auxiliary: Auxiliary 7
Normal: Alm
Ack Alarm Acknowledge
DVR: Record
14
Refer to
Description by
Mode
Auxiliary: Auxiliary 8
15 DVR
The DVR key functionality is dependent on the VideoBloX
software configuration.
• Press the DVR key to place the system in Device/DVR
mode. The DVR LED lights solid. Continue pressing
the DVR key to scroll through the available devices
(DVR, VCR, MUX). When the desired device type is
displayed, enter the device # and then press Enter or
press the + and – keys to scroll through the available
devices of that type.
• The device functions available are aligned with the
DVR key.
• To exit this mode press a different mode key such as
camera, monitor, etc. (LED will not be lit.)
16 AUX Auxiliary
Used to access PTZ or Device/DVR Auxiliary functions.
The functionality is dependent on the device database
selected or the PTZ protocol selected.
• Press this key once to perform a single auxiliary
command. (LED will blink until command is
performed).
• Press this key twice to lock the controller in Auxiliary
mode. (LED will remain lit.)
• To exit Auxiliary mode, press the key again (LED will
not be lit.)
17 User 3 / 4
Users 3 and 4 are defined in the VideoBloX Configuration
Software under the User Tab (Configurable Keys) or the
Keyboards Tab (Configurable Keys). The programming in
the Users tab has priority over the Keyboards tab.
Pressing User 3 / 4 triggers the sequence or group
assigned to User 3. Pressing Alt+User 3 / 4 triggers the
sequence or group assigned to User 4.
Rev. 1.01 6 900.0799
20-Jun-06

Rev. 1.01 7 900.0799
20-Jun-06
3.1 CONTROLS AND LCD DISPLAY, CONTINUED
ID Icon Usage Description
18 User 1 / 2
Users 1 and 2 are defined in the VideoBloX Configuration
Software under the User Tab (Configurable Keys) or the
Keyboards Tab (Configurable Keys). The programming in
the Users tab has priority over the Keyboards tab.
Pressing User 1 / 2 triggers the sequence or group
assigned to User 1. Pressing Alt+User 1 / 2 triggers the
sequence or group assigned to User 2.
19 Alt
Used as a shift key for grayed keys (e.g. Save, User 2,
User 4).
Examples:
1. Holding this down and then pressing the
Preset/Save key will save a PreShot.
2. Holding this down and then pressing the User 1/
2 key, selects User 2
20 Preset/Save
1. Used to recall a preprogrammed view or PreShot on
the current dome or PTZ.
2. Alt + Preset/Save will save a PreShot.
21 LCD Display
Line 1 provides operator feedback – system status
updates.
Line 2 is used in conjunction with the Soft Keys to provide
user login/logout and activation of user defined keys F1-
F10.
22 Soft Keys Used in conjunction with the LCD display to provide user
login/logout and activation of user defined keys F1-F16.

3.1 CONTROLS AND LCD DISPLAY, CONTINUED
ID Icon Usage Description
Use varies based on the mode of the controller.
Camera
Mode:
Provides 3-axis proportional control of the
current dome or PTZ.
Sequence
Mode:
Alt + Left = Previous Sequence
Alt + Right = Next Sequence
Alt + Up = Start Sequence
Alt + Down = Stop Sequence
23 Joystick
Monitor
Mode
Alt + Left = Previous Monitor
Alt + Right = Next Monitor
Alt + Up = Selects the next camera to
the currently selected monitor
Alt + Down = Selects the previous
camera to the currently
selected monitor.
Cam 1 Mon 1
Login F1
A
B C D E
Figure 3. LCD Display and Soft Keys
Soft Keys ID Icon Usage Description
A LEFT ARROW Use to move between menu items.
Used to select option shown on the left side of
screen. In the figure above, it would be used to select
Login.
B
LEFT CENTER
BUTTON
C CENTER BUTTON
Used to select option shown on the center of screen.
(In the figure above, no option is available at this
position.)
Used to select option shown on the right side of
screen. In the figure above, it would be used to select
F1.
D
RIGHT CENTER
BUTTON
E RIGHT ARROW Use to move between menu items.
Rev. 1.01 8 900.0799
20-Jun-06

3.2 POWER UP
When power is applied to the HEGS5BLX, the LCD displays the following messages:
519685-1980 A
Booting in 5s
Boot Mngr MMDDYY
(counts down to 0)
After 5 seconds, the application starts
Then the address of the controller is displayed.
922.0255 Rev.A
HEGS5BLX 030106
Address = n
The controller defaults to Login mode. If the controller is communicating with the
VideoBloX control system, the following message is displayed.
If the controller is not communicating with the VideoBloX control system, the
following is displayed on the LCD.
Login ⏐F1
HEGS is Off-line
Login ⏐F1
HEGS is On-line
3.3 LOGIN/LOGOUT
Login
1. Press the soft key that corresponds to Login on the LCD display.
2. Key in your password using the numeric keyboard and press Enter. The controller is
placed in camera mode of operation. Note: Passwords are defined in the
VideoBloX Configurator.
3. To prevent unauthorized control of the system, the operator must press the Login
key again, re-enter his/her password and press Enter before any system control
operation may be carried out.
Rev. 1.01 9 900.0799
20-Jun-06

3.3 LOGIN/LOGOUT, CONTINUED
Logout
If you are logged into the system, press the soft key that corresponds to Login to log
out. The display returns to the Login screen.
Login ⏐F1
Please Login
3.4 MODES OF OPERATION
After the operator has logged in, he/she can change the mode of operation by pressing
the required mode function key.
Login (Logout)
Camera
Monitor
DVR
Sequence
3.4.1 Camera Operation Mode
When in "Camera" mode, select a camera value by pressing the corresponding numbers
on the numeric keypad and then pressing Enter. The camera value selected is switched
to the currently selected monitor. The +(Next) and –(Previous) keys may be used to
step forwards or backwards through the various cameras in the system.
Should the camera on the currently active monitor be equipped with pan, tilt, and zoom
(PTZ) features, then the joystick may be used to control the pan and tilt. Move the
joystick left and right for pan movement and up and down for tilt movement. Rotate the
joystick knob clockwise or counterclockwise for lens zoom in and zoom out functions.
For focus and iris functions, use the following keys:
Iris Open
Iris Close
+ Auto Iris
Focus Near
Focus Far
Rev. 1.01 10 900.0799
20-Jun-06
