Honeywell FocusPRO TH6110D1005/U User manual

FocusPRO
®
6000Series
Programmable
Digital
Thermostat
User Guide
Read and save these instructions.
For help please visit yourhome.honeywell.com
Function buttons
Press to select the
function displayed just
above each button.
(Functions change
depending on the task.)
Temperature buttons
Press to set preferred temperature.
Battery holder
Thermostat controls
Digital display
Hold Button
Press to override programmed
temperature control
Reference card

2
SetClock/Day/
Schedule
Auto
Wake Wed
Fan
In Recovery
System
Auxiliary
Heat On
Heat
Heat
Setting
Inside
AM
72
72
6:30
Replace Battery
MCR29458
Display screen
Low battery
warning
Press the FAN
button to select:
Auto: Fan runs only
when heating or
cooling system is on.
On: Fan runs
continuously.
Press the SYSTEM button
to select:
Heat: Heating system control.
Cool: Cooling system control.
Off: All systems off.
Auto: Thermostat
automatically selects heating
or cooling depending on the
indoor temperature.
Em Heat: Emergency &
Auxiliary Heat control.
Compressor is locked out.
(Select models only.)
Function buttons
Press the button beneath
each function to view
or change settings
(functions change
depending on the task)

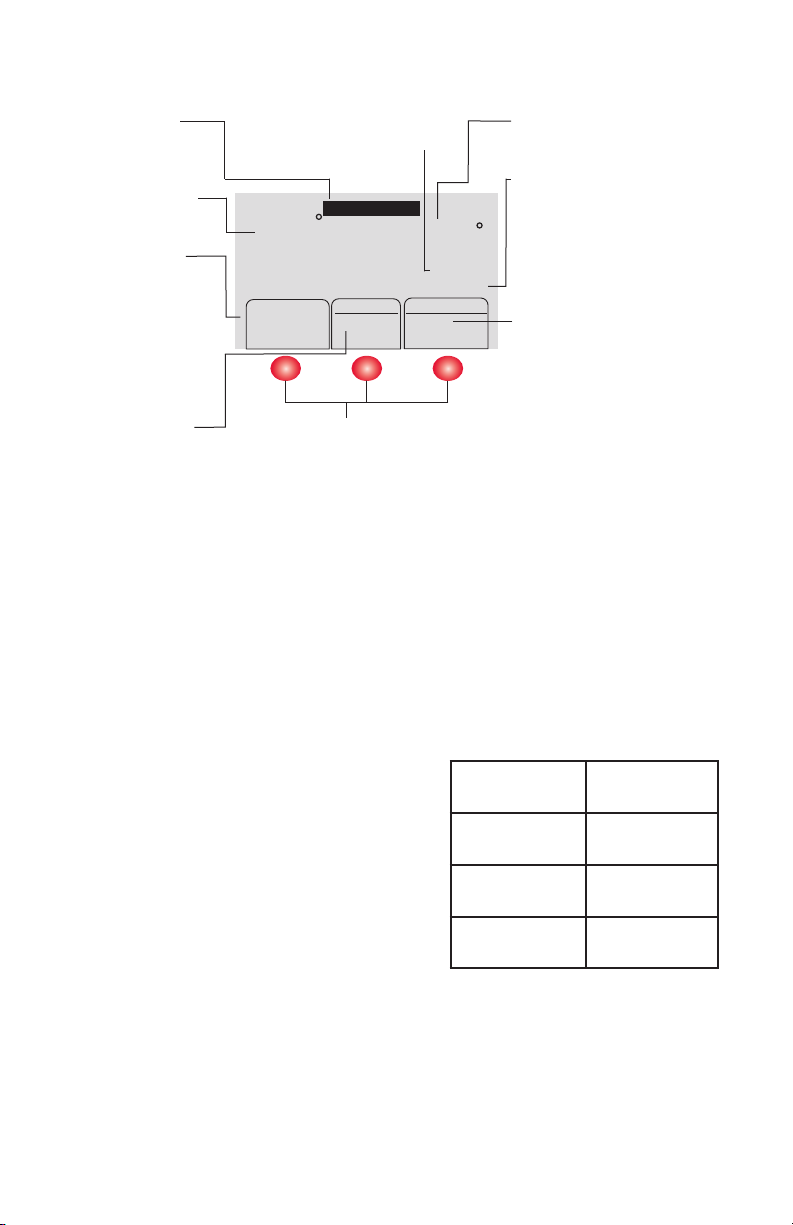

System Status
Cool On: Cooling system
is on.
Heat On: Heating system
is on.
Temperature setting
Current inside
temperature
Auxiliary heat (Only
for heat pumps with
auxiliary heat)
Press the SET
button to change:
Clock: Current time.
Day: Current day.
Schedule: Current
thermostat program
schedule.
Program Schedule
You can program four time periods each day, with different settings for weekdays
and weekends. We recommend the pre-set settings (shown in the table below),
since they can reduce your heating/cooling expenses.
Wake - Set to the time you
awaken and the temperature you
want during the morning, until
you leave for the day.
Leave - Set to the time you leave
home and the temperature you
want while you are away (usually
an energy-saving level).
Return - Set to the time you
return home and the temperature
you want during the evening, until
bedtime.
Sleep - Set to the time you go to bed and the temperature you want overnight
(usually an energy-saving level).
NOTE: Leave and Return periods can be canceled on weekends.
Heat Cool
Wake
(6:00 am) 70 °75 °
Leave
(8:00 am) 62 °83 °
Return
(6:00 pm) 70 °75 °
Sleep
(10:00 pm) 62 °78 °

3

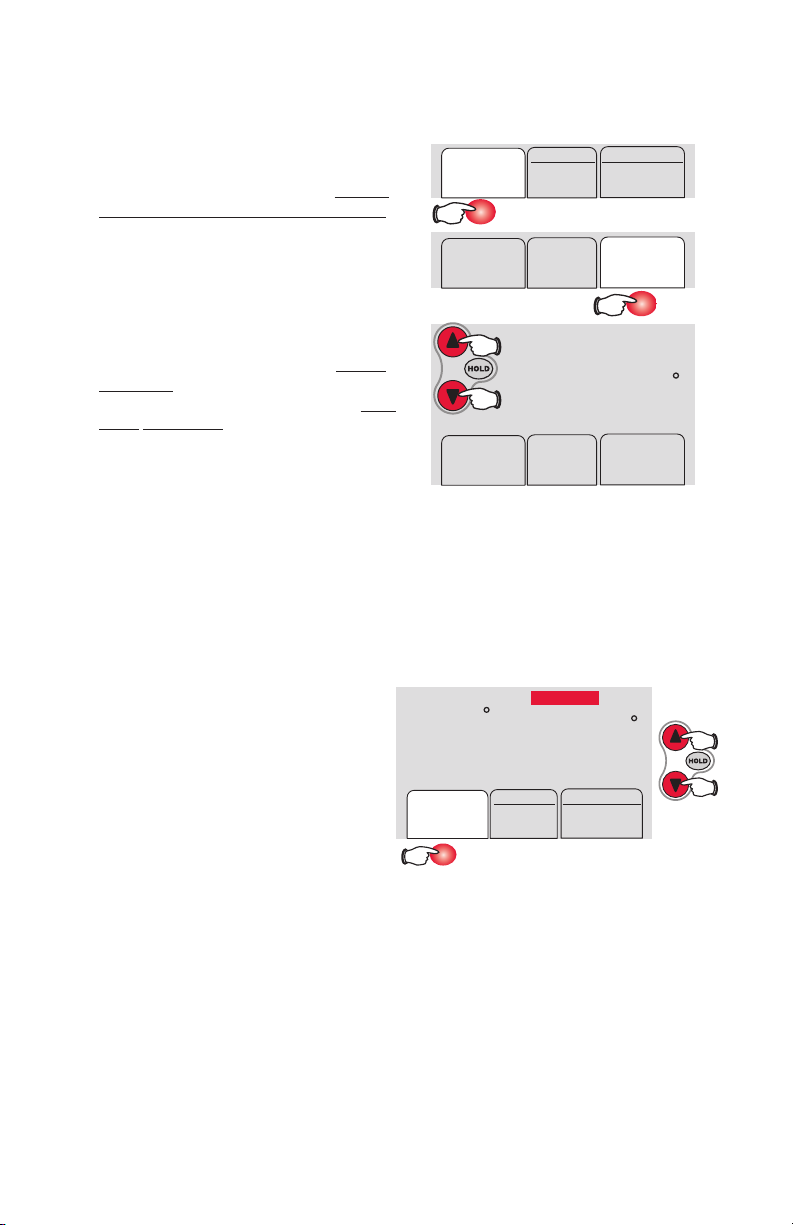

Program schedule override (temporary)
To adjust program schedules
1. Press SET CLOCK/DAY/SCHEDULE,
then SET SCHEDULE.
2. Press sor tto set your weekday
Wake time (Mon–Fri), then press
NEXT.
3. Press sor tto set the temperature
for this time period, then press NEXT.
4. Set time and temperature for the
next time period (Leave). Repeat
steps 2 and 3 for each weekday time
period.
5. Press NEXT to set weekend time
periods (Sat-Sun), then press DONE
to save & exit.
NOTE: Make sure the thermostat is
set to the system you want to program
(Heat or Cool).
NOTE: You can press CANCEL PERIOD to
eliminate unwanted time periods (except
Wake).
SetClock/Day/
Schedule
Auto
FanSystem
Cool
Done
Set DaySet Schedule
Mon Tue Wed Thu Fri
Done CancelPeriod
Leave
Set Schedule
Next
Heat
Setting
AM
62
8:00
MCR29462
RunSchedule
Auto
FanSystem
Heat
Heat
Setting
Inside
AM
69
75
6:30
Temporary
MCR29463
Press sor tto immediately adjust
the temperature. This will temporarily
override the temperature setting for
the current time period.
The new temperature will be
maintained only until the next
programmed time period begins.
For example, if you want to turn up
the heat early in the morning, it will
automatically be lowered later, when
you leave for the day.
To cancel the temporary setting at
any time, press RUN SCHEDULE.
NOTE: Make sure the thermostat is
set to the system you want to control
(heat, cool or auto).

4

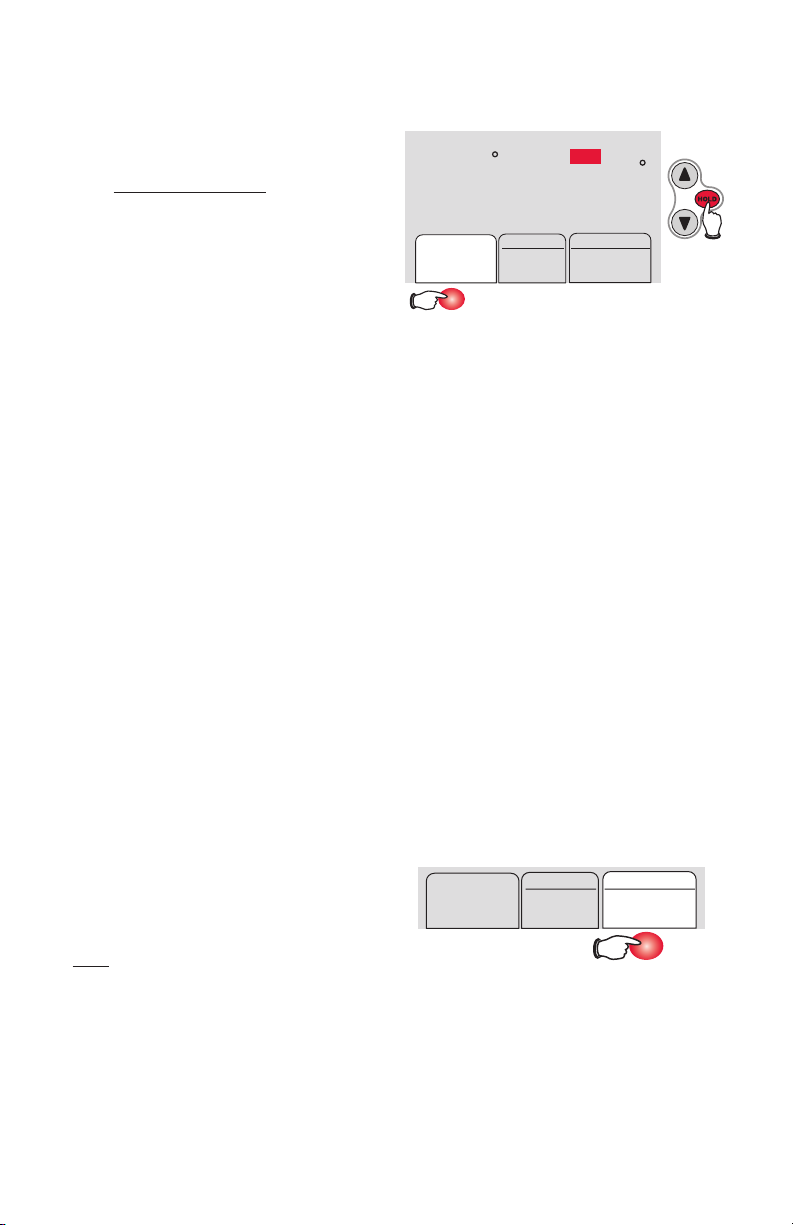

Auto changeover (heat/cool)
Auto Changeover is a feature used in climates where both air conditioning
and heating are used on the same day. When the system is set to Auto, the
thermostat automatically selects heating or cooling depending on the indoor
temperature.
Heat and cool settings must be at least 3 degrees apart. The thermostat will
automatically adjust settings to maintain this
3-degree separation (called “deadband”).
The 3-degree separation between heating and cooling set temperatures is fixed,
and cannot be changed.
1. Press system button until screen
displays “Auto”.
NOTE: The Auto system setting may
not appear, depending on how your
thermostat was installed
SetClock/Day/
Schedule
Auto
FanSystem
Auto
MCR29465

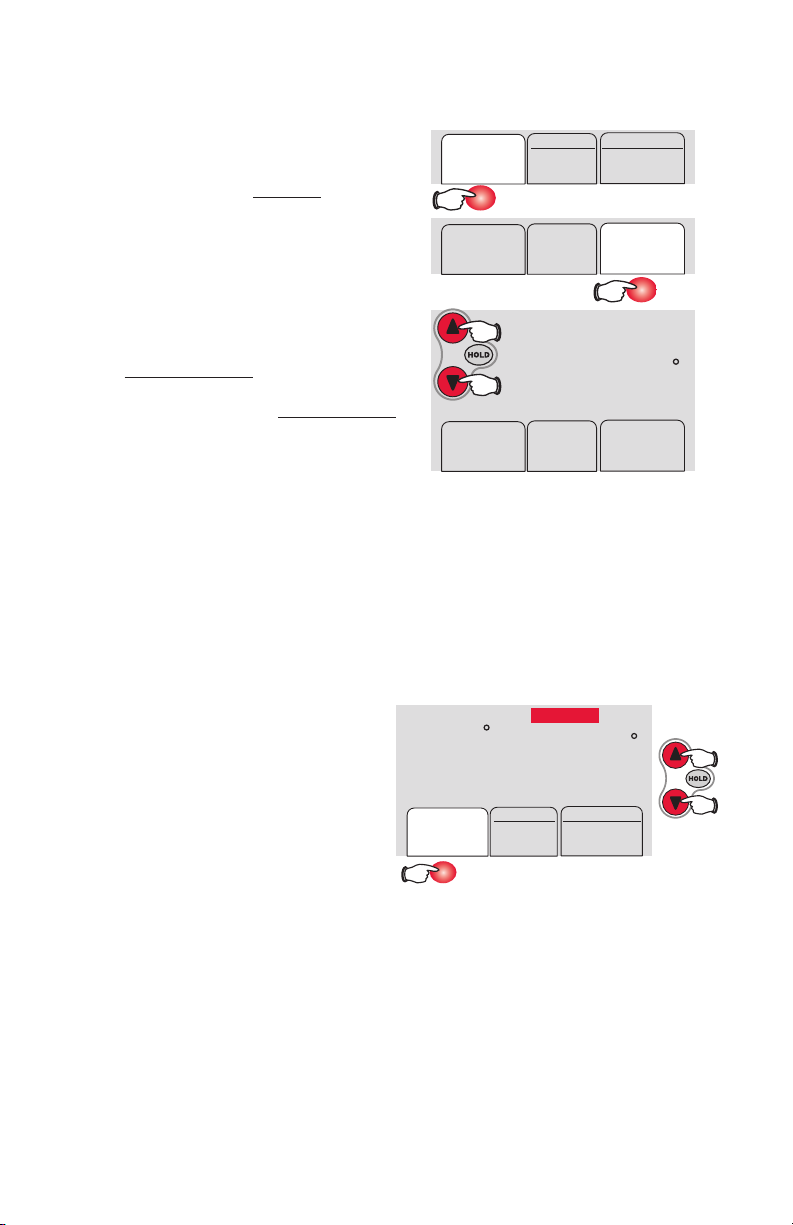

Program schedule override (permanent)
RunSchedule
Auto
FanSystem
Heat
Heat
Setting
Inside
AM
69
75
6:30
Hold
MCR29464
Press HOLD to permanently adjust
the temperature. This will override
the temperature settings for all time
periods.
The “Hold” feature turns off the program
schedule and allows you to adjust the
thermostat manually, as needed.
Whatever temperature you set will
be maintained 24 hours a day, until
you manually change it, or press RUN
SCHEDULE to cancel “Hold” and resume
the programmed schedule.
NOTE: Make sure the thermostat is set
to the system you want to control (heat,
cool or auto).

5
SetClock/Day/
Schedule
Auto
FanSystem
Cool On
Cool
Cool
Setting
Inside
AM
75
75
6:30
MCR29466
Damage can occur if the compressor is
restarted too soon after shutdown. This
feature forces the compressor to wait for
a few minutes before restarting.
During the wait time, the display will
flash the message Cool On (or Heat On
if you have a heat pump). When the safe
wait time has elapsed, the message
stops flashing and the compressor turns
on.
Built-in compressor protection
Message flashes until safe
restart time has elapsed.
Adaptive Intelligent Recovery eliminates guesswork when setting your schedule.
It allows the thermostat to “learn” how long your furnace and air conditioner take
to reach the temperature you want.
Just set your program schedule to the time you want the house to reach your
desired temperature. The thermostat then turns on the heating or cooling at just
the right time to reach your scheduled temperature at your scheduled time.
For example: Set the Wake time to 6 am and the temperature to 70°. The heat
will come on before 6 am, so the temperature is 70° by the time you wake at 6.
Note: When Adaptive Intelligent Recovery is in effect, the thermostat will display
“In Recovery”.
Adaptive Intelligent Recovery™

6
For assistance with this product, please
visit yourhome.honeywell.com.
Or call Honeywell Customer Care toll-
free at 1-800-468-1502.
Customer assistance
Turn thermostat over to find
model number and date code.
Press and pull to remove.
CAUTION
Equipment damage hazard
To prevent possible compressor damage, do not operate cooling system
when outdoor temperature is below 50°F (10°C).
xxxxxxx xxxxxxx
MCR29468
Replace Battery
MCR29467
Batteries are optional (to provide
backup power) if your thermostat
was wired to run on AC power when
installed.
Install fresh batteries immediately when
the REPLACE BATTERY warning
begins flashing. The warning flashes
about two months before the batteries
are depleted.
Even if the warning does not appear,
you should replace batteries once a
year, or before leaving home for more
than a month.
If batteries are inserted within two
minutes, the time and day will not
have to be reset. All other settings are
permanently stored in memory, and do
not require battery power.
Battery replacement
Insert fresh AA alkaline
batteries, then reinstall
battery holder.
Press and pull to remove.

7
Troubleshooting
If you have difficulty with your thermostat, please try the following suggestions.
Most problems can be corrected quickly and easily.
Display is
blank
• Check circuit breaker and reset if necessary.
• Make sure power switch at heating & cooling system is
on.
• Make sure furnace door is closed securely.
• Make sure fresh AA alkaline batteries (depending on
model) are correctly installed (see page 6).
Heating
or cooling
system does
not respond
• Press SYSTEM button to set system Heat (see page 2).
Make sure the temperature is set higher than the Inside
temperature.
• Press SYSTEM button to set system to Cool (see page 2).
Make sure the temperature is set lower than the Inside
temperature.
• Check circuit breaker and reset if necessary.
• Make sure power switch at heating & cooling system is
on.
• Make sure furnace door is closed securely.
• Wait 5 minutes for the system to respond.
Temperature
settings do
not change
Make sure heating and cooling temperatures are set to
acceptable ranges:
• Heat: 40° to 90°F (4.5° to 32°C).
• Cool: 50° to 99°F (10° to 37°C).
“Cool On” or
“Heat On” is
flashing
• Compressor protection feature is engaged. Wait 5
minutes for the system to restart safely, without damage
to the compressor (see page 5).
To restore
default
settings
Follow these steps to restore default settings:
1. Press SET CLOCK/DAY/SCHEDULE.
2. Press SET SCHEDULE.
3. Press DONE and NEXT at the same time for 4 seconds.

Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
http://yourhome.honeywell.com
Honeywell Limited
705 Montrichard Avenue
Saint-Jean-sur-Richelieu, Quebec
J2X 5K8
® U.S. Registered Trademark.
© 2013 Honeywell International Inc.
69-1921EFS—07 M.S. Rev. 12-13
Printed in U.S.A. 69-1921EFS-07
Honeywell warrants this product, excluding battery, to be free from defects in the
workmanship or materials, under normal use and service, for a period of five (5) years
from the date of purchase by the consumer. If at any time during the warranty period the
product is determined to be defective or malfunctions, Honeywell shall repair or replace it
(at Honeywell’s option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you
purchased it; or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the
determination whether the product should be returned to the following address:
Honeywell Return Goods, Dock 4 MN10-3860, 1985 Douglas Dr. N., Golden Valley, MN
55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply
if it is shown by Honeywell that the defect or malfunction was caused by damage which
occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms
stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE
OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY,
EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON
THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
IS HEREBY LIMITED TO THE FIVE-YEAR DURATION OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
If you have any questions concerning this warranty, please write Honeywell Customer
Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502.
5-year limited warranty

Veuillez lire le mode d’emploi et le conserver en lieu sûr.
Pour obtenir de l’aide veuillez visiter yourhome.honeywell.com
FocusPRO
®
6000Série
Thermostat
numérique
programmable
Guide de l’utilisateur
Commandes de thermostat
Bouton de retenue
Appuyez pour supplanter
la commande de température
programmée
Porte-piles
Boutons de température
Appuyez pour régler la température voulue.
Affichage numérique
Boutons de fonctions
Appuyez pour
sélectionner la fonction
indiquée au-dessus de
chaque bouton. (Les
fonctions changent
selon la tâche.)
Carte de référence

2
SetClock/Day/
Schedule
Auto
Wake Wed
Fan
In Recovery
System
Auxiliary
Heat On
Heat
Heat
Setting
Inside
AM
72
72
6:30
Replace Battery
MCR29458
Écran d’affichage
Appuyez sur le
bouton SET pour
modifier :
Horloge : Heure actuelle.
Jour : Jour actuel.
Programme : Horaire de
programmation actuel du
thermostat.
Température
intérieure
actuelle
Boutons de fonctions
Appuyez sur le boutons
en-dessous de chaque
fonction pour afficher ou
modifier les réglages (les
fonctions changent selon la
tâche)
Avertissement
de piles faibles
Réglage
de température
État du système
Cool On : Le système de
refroidissement est en marche.
Heat On : Le système de
chauffage est en marche.
Chauffage auxiliaire
(Seulement pour thermopompes
avec chauffage auxiliaire)
Appuyez sur le bouton
SYSTEM pour sélectionner :
Heat : Commande le système de
chauffage.
Cool : Commande le système de
refroidissement.
Off : Tous les systèmes sont à
l’arrêt.
Auto : Le thermostat sélectionne
automatiquement le chauffage ou
la climatisation en fonction de la
température intérieure.
Em Heat : Commande le
fonctionnement du système
de chauffage d’urgence et du
système de chauffage d’appoint. Le
compresseur est mis sous sécurité.
(Certains modèles seulement.)
Appuyez sur le
bouton FAN pour
sélectionner :
Auto : Ventilateur fonctionne
seulement quand le
système de chauffage ou
de refroidissement est en
marche.
On: Le ventilateur fonctionne
sans interruption.
Horaire de programmation
Vous pouvez programmer quatre périodes de temps par jour avec des
réglages différents pour les jours de semaine et les fins de semaine. Nous
recommandons ces préréglages (illustrés dans le tableau ci-dessous) puisqu’ils
peuvent réduire les dépenses de
chauffage et de refroidissement.
Wake (Lever) - Réglez à l’heure
du lever et à la température
voulue le matin, jusqu’à votre
départ.
Leave (Départ) - Réglez à
l’heure du départ de la maison
et à la température voulue
durant votre absence (en règle
générale, un niveau d’économie
d’énergie).
Return (Retour) - Réglez à l’heure de votre retour à la maison et à la
température que vous voulez durant la soirée, jusqu’au coucher.
Sleep (Sommeil) - Réglez à l’heure du coucher et à la température voulue
durant votre sommeil (en règle générale, un niveau d’économie d’énergie).
REMARQUE : Les périodes de départ et de retour peuvent être annulées les
fins de semaine.
Chauffage Climatisation
Lever
(06:00) 70 °75 °
Départ
(08:00) 62 °83 °
Retour
(18:00) 70 °75 °
Sommeil
(22:00) 62 °78 °
