Honeywell Lyric T5 Wi-Fi User manual

Quick Install Guide
Lyric™T5 WiFi Thermostat
For more information visit yourhome.honeywell.com/lyric
33-00151EF_A.indd 1 6/24/2016 4:20:31 PM

2

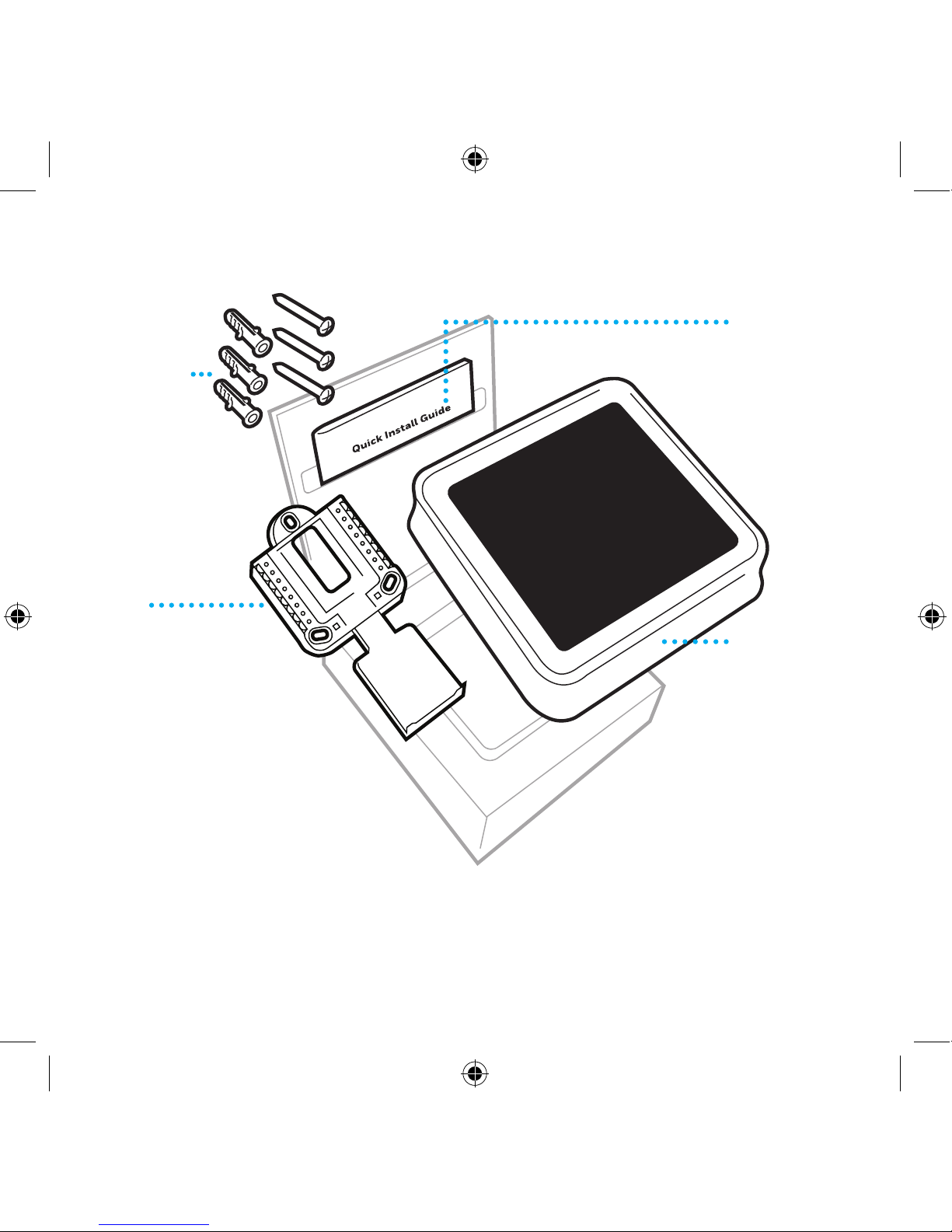

Included in your box:
Screws and
anchors
UWP
Mounting
System
(UWP)
Lyric T5
Wi-Fi
Thermostat
Quick Install
Guide
33-00151EF_A.indd 2 6/24/2016 4:20:32 PM

3
Get the most from Lyric T5 WiFi Thermostat
Multiple programming options that fit your lifestyle:
1. LocationBased scheduling – The Lyric thermostat uses your smart-
phone’s location to know when you’re away, and saves you energy. Through
geofence technology, it senses your return and helps make you comfortable
upon arrival. You can always manually change your preset Home and Away
temperature either on the thermostat or on the app.
2. Smart scheduling – Use a combination of geofencing and time scheduling
to fit your busy, active lifestyle.
3. TimeBased scheduling – Program your thermostat for one week; each day
(each day is a different schedule); MonFri, Sat, Sun; or MonFri, SatSun.
All days with four adjustable periods per day.
4. No scheduling – Control your comfort manually by adjusting temperature
set points only.
Smart Alerts. Push notifications remind you of filter changes and warn you of
extreme indoor temperatures.
Adaptive recovery. Learns your heating and cooling system to deliver the opti-
mal temperature at the right time.
Auto Change From Heat to Cool. Automatically determine if your home needs
heating or cooling to provide maximum comfort.
!
33-00151EF_A.indd 3 6/24/2016 4:20:32 PM

4

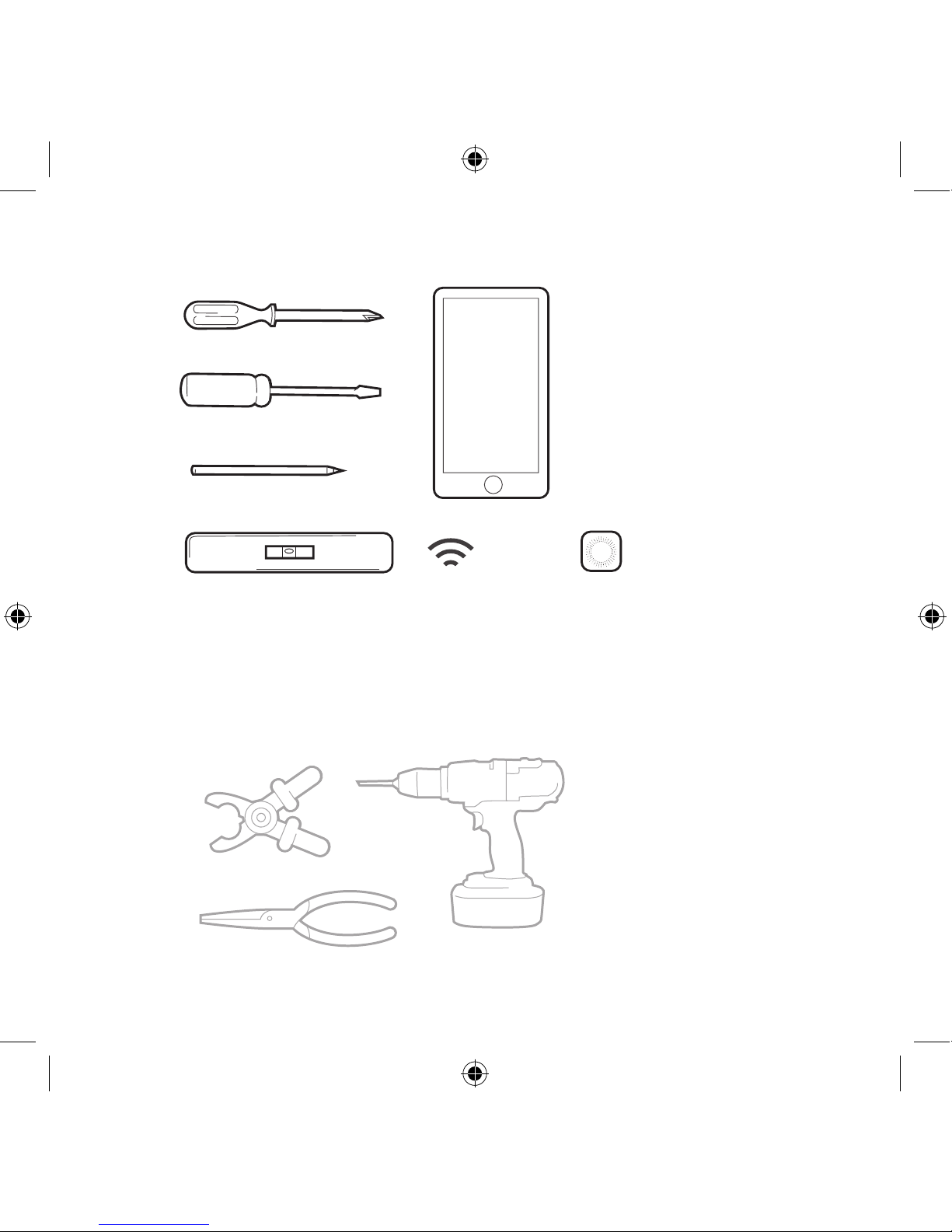

Tools you will need:
You may need:
Wire stripper
Needle-nose pliers Drill and
drill bit (7/32 in)
Smartphone
To install your
thermostat and
photograph
existing wiring.
Honeywell Lyric app
To configure your
system and connect
to your smartphone.
Small flat head scr
ewdriver
Phillips scr
ewdriver
Pencil
Le
vel Home Wi-Fi
Password
33-00151EF_A.indd 4 6/24/2016 4:20:32 PM

5
Compatibility
• Compatible with most heating, cooling and heat pump systems
• Required: 24 VAC power (“C” wire)
• Does not work with electric baseboard heat (120240V)
• Does not work with millivolt systems
• Does not support Universal Input (S terminals) for indoor and outdoor sensors
• Does not support Universal Relay (U terminals) for ventilation
• Android or iOS smartphone, tablet, or device
For help, contact:
WEB yourhome.honeywell.com/support
EMAIL [email protected]
PHONE 18006333991
SOCIAL Twitter: @Honeywell_Home, Facebook: Honeywell Home
CAUTION: MERCURY NOTICE
If this product is replacing a control that contains mercury in a sealed tube, do not place the old
control in the trash. Contact your local waste management authority for instructions regarding
recycling and proper disposal.
CAUTION: EQUIPMENT DAMAGE HAZARD
Compressor protection is bypassed during testing. To prevent equipment damage, avoid cycling the
compressor quickly.
CAUTION: ELECTRICAL HAZARD
Can cause electrical shock or equipment damage. Disconnect power before beginning installation.
REQUIRED: 24 VAC POWER (“C” WIRE)
33-00151EF_A.indd 5 6/24/2016 4:20:32 PM

6

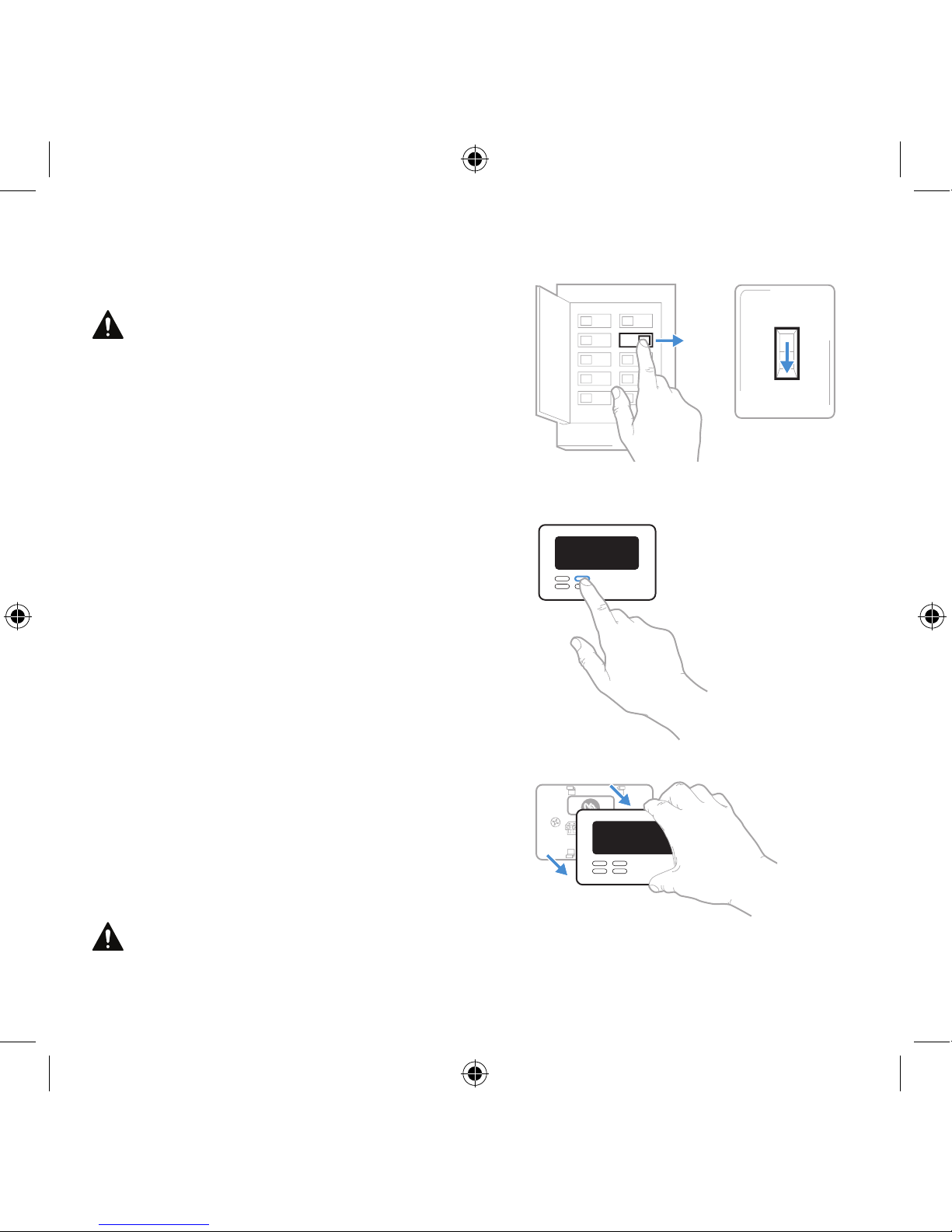

Removing your old thermostat
2 Check that your system is off.
Change the temperature on your old
thermostat. If you don’t hear the system
turn on within 5 minutes, the power is
off.
1 Turn power OFF.
To protect yourself and your equipment,
Turn off the power at the breaker box
or switch that controls your heating/
cooling system.
3 Remove the old thermostat’s
faceplate.
On most thermostats, you can take off
the faceplate by grasping and gently
pulling. Some thermostats may have
screws, buttons, or clasps.
Do not remove any wires from your
thermostat at this time!
OFF
OFF
ON
75
Breaker box
Switch
33-00151EF_A.indd 6 6/24/2016 4:20:32 PM

7

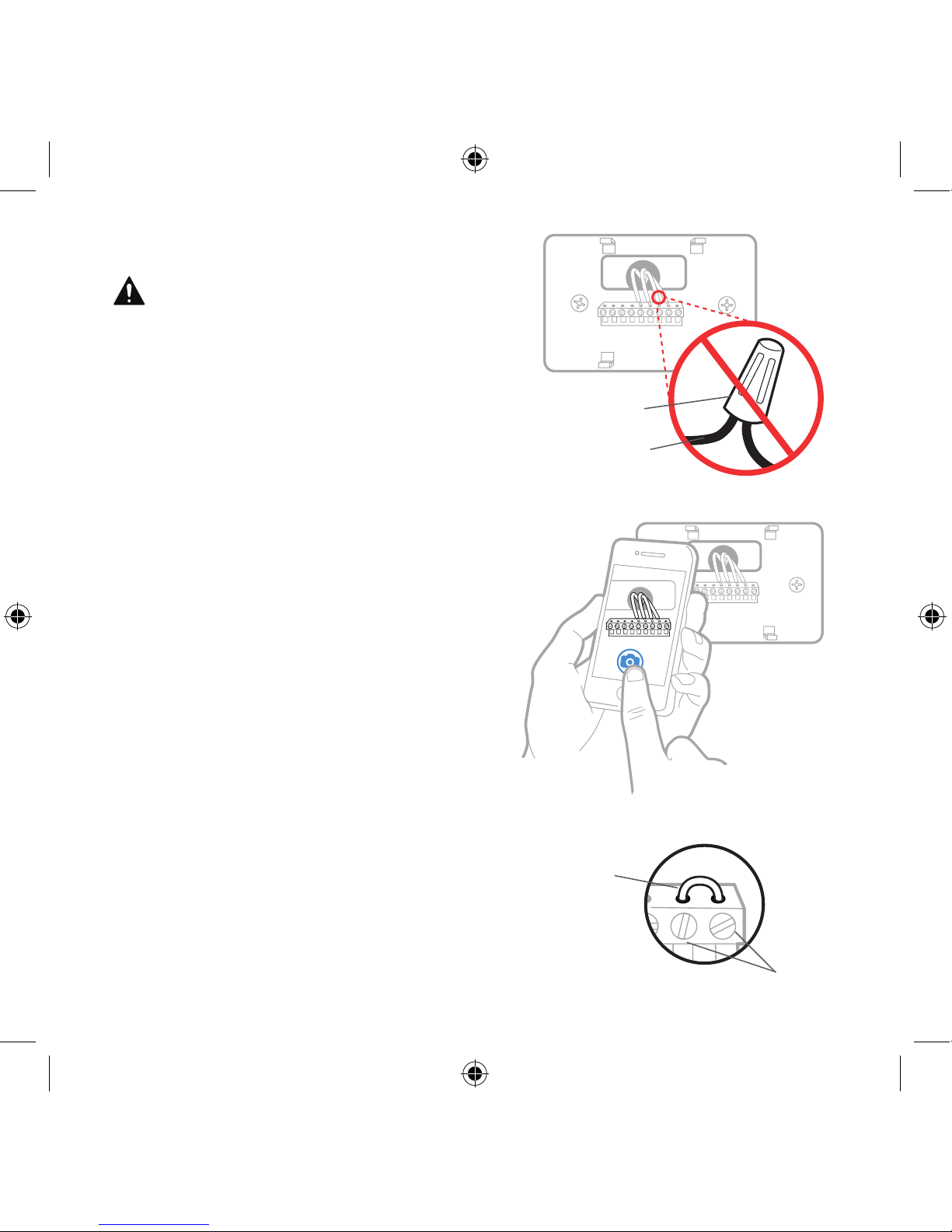

5 Take a picture of how your wiring
looks right now.
Be sure to include the letters next
to the terminals where the wires
are inserted. This will be a helpful
reference when wiring your Lyric
thermostat.
4 Make sure there are no 120/240V
wires.
Do you have thick black wires with
wire nuts?
Is your thermostat 120V or higher?
If you answered yes to either of these
questions, you have a line voltage
system and the Lyric thermostat will
not work.
If you are unsure visit:
yourhome.honeywell.com/support
6 Remove any jumpers
A jumper connects one terminal to
another terminal. It may look like a
small staple or even a colored wire and
must be removed before continuing.
The Lyric thermostat does not need
jumpers.
YRRC
Example of
a jumper
Wire nut
Thick black wire
Terminals
33-00151EF_A.indd 7 6/24/2016 4:20:32 PM

8
7 Record if you have wires in the following terminals.
Do not include jumpers as a part of your count. The Lyric thermostat does not
need jumpers.
Terminal Wire Color
R
R
H
Rc
8 Write down the color of the wires.
Check mark the wires that are connected to terminals. Next to the check mark,
write down the color of the wire. Do not include jumpers as a part of your count.
Check all that apply (Not all will apply):
Terminal Wire Color
Y
Y2
G
C
Terminal Wire Color
A or L/A
O/B
W2 or AUX
E
W
K
Required
S and U terminals are not supported with this thermostat.
If there are wires in terminals that are not listed, you will need additional
wiring support. Visit yourhome.honeywell.com/support to find out if the Lyric
thermostat will work for you.
33-00151EF_A.indd 8 6/24/2016 4:20:32 PM

9

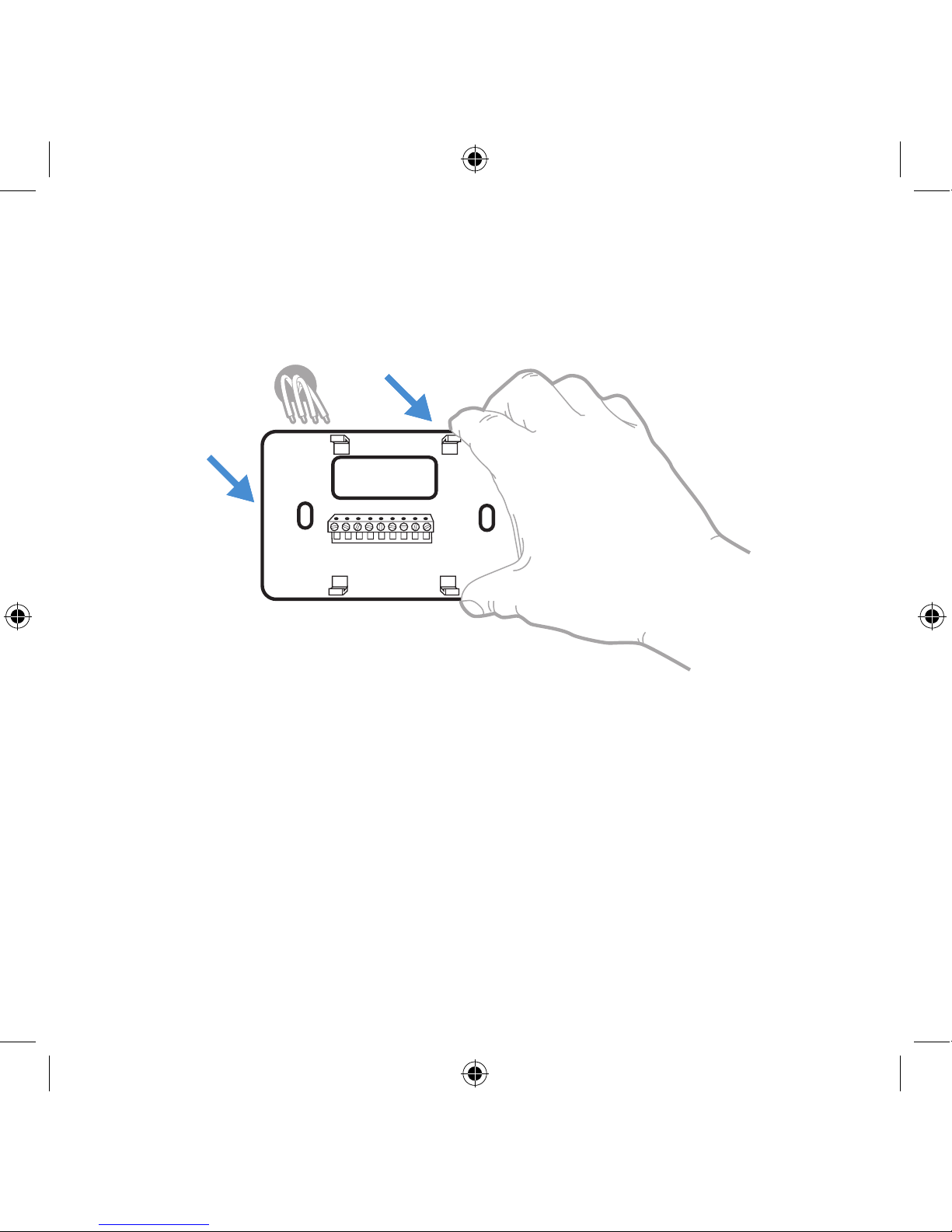

9 Disconnect the wires and remove the old wall plate.
Use a screwdriver to release wires from terminals.
Tip: To prevent wires from falling back into the wall, wrap the wires
around a pencil.
33-00151EF_A.indd 9 6/24/2016 4:20:32 PM

10
Installing your Lyric T5 WiFi Thermostat
Lyric T5 WiFi
Thermostat Screws UWP
Mounting
System Anchors Wall
33-00151EF_A.indd 10 6/24/2016 4:20:33 PM

11
11 Bundle and insert wires through
the UWP.
Gather the wires and guide them
through the hole in the middle of the
UWP.
Make sure at least 1/4-inch of each
wire is exposed for easy insertion
into the wire terminals.
10 Insert the wall anchors.
It is recommended that you use the
wall anchors included in the box to
mount your thermostat.
You can use the UWP to mark where
you want to place the wall anchors.
Tip: Use a 7/32 drill bit.
33-00151EF_A.indd 11 6/24/2016 4:20:33 PM

12
12 Set R-switch position.
Set the R-switch up or down based on your wiring notes in Step 7.
If you have one R wire (labeled R, RH, or Rc ), then set the R-switch to the up
position (1 wire) and insert that wire into the R terminal.
If you have two R wires (one labeled R or RH and the other labeled Rc), then set
the R-switch to the down position (2 wires), insert the R or RH wire into the R
terminal, and insert the Rc wire into the Rc terminal.
R (only)
RC(only)
RH(only)
R
RC
Set the R-Switch
If you checked Insert Wire(s) into Terminal(s
RH
RC
R wire
RCwire
RHwire
R wire
RCwire
RHwire
RCwire
Rc
R
Rc
R
Rc
R
Rc
R
Rc
R
RSwitch
UWP Mounting System
33-00151EF_A.indd 12 6/24/2016 4:20:33 PM

13
13 Connect wires from Step 8.
Tip: Do not mount the UWP to the
wall prior to connecting the wires.
Push down on the tabs to put the
wires into the holes of their corre-
sponding terminals on the UWP
(one wire per terminal) until it is
firmly in place.
Gently tug on the wires to verify
they are secure.
Tip: If you need to release the wires
again, push down the terminal tabs
on the sides of the UWP.
14 Mount the UWP and close the door.
Mount the UWP using the provided
screws. Install all three screws for
a secure fit on your wall. Close the
door after you’re finished.
This wiring is just and example,
yours may vary.
Use 3x
supplied
screws #8
11/2”
G
C
U
U
Y
2
Y
S
S
S
Y
U
U
G
C
Y
A
Rc
W
K
W2
R
L/A
O/B
AUX
E
33-00151EF_A.indd 13 6/24/2016 4:20:33 PM

14

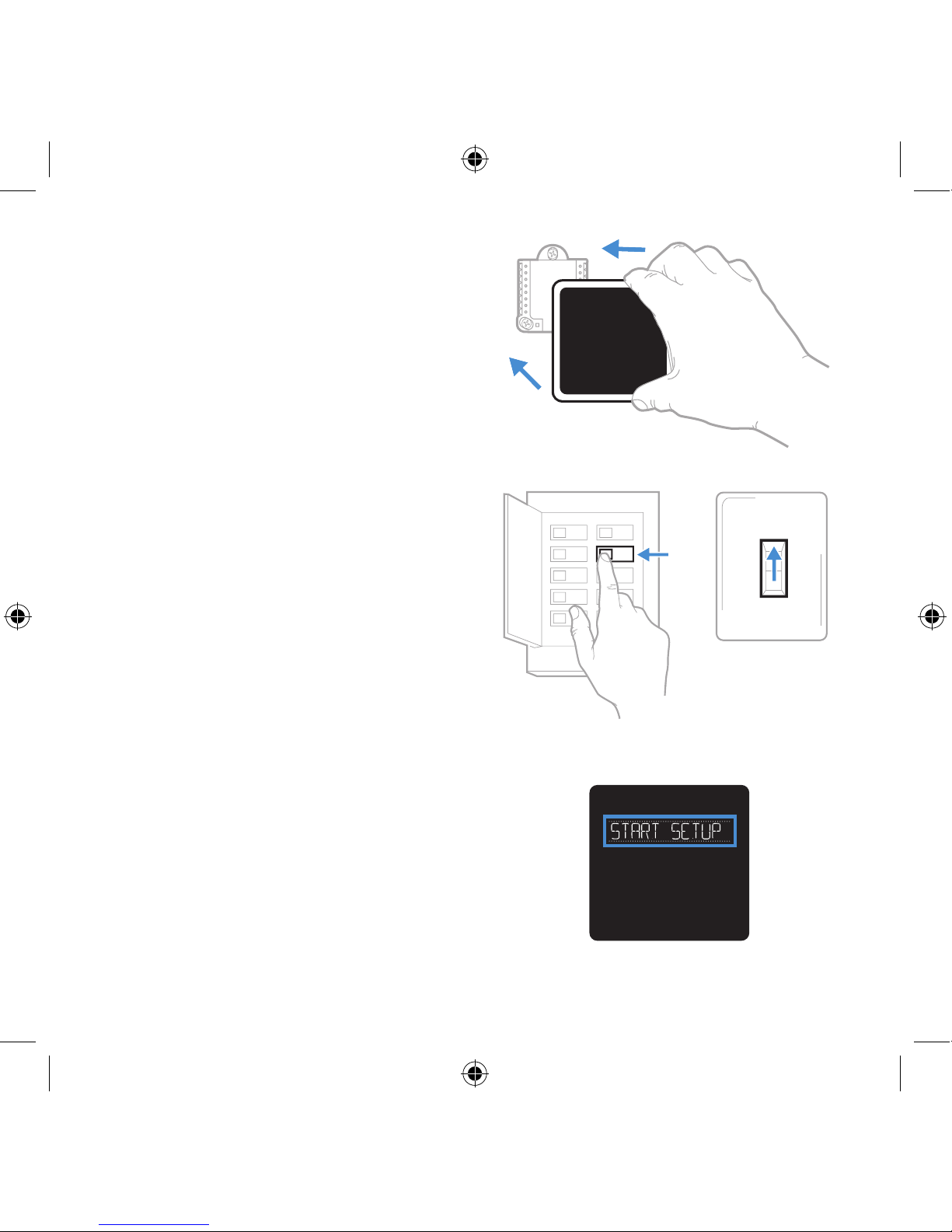

16 Turn your power ON.
Turn on the power at the breaker box
or switch that controls the heating/
cooling system. ON
OFF
ON
15 Attach your thermostat.
Align the thermostat onto the
UWP and firmly snap it into place.
17 Return to the thermostat.
Return to the thermostat. Confirm the
screen shows START SETUP. If it does,
continue to “Setup with Lyric App” on
page 15.
If your thermostat does not show
START SETUP, please contact
Honeywell support.
Breaker box
Switch
33-00151EF_A.indd 14 6/24/2016 4:20:47 PM

15
iOS
Search the App
Store for Honeywell
Lyric. Create an
account and log in
to configure and
connect.
Android
Search Google
Play for Honeywell
Lyric. Create an
account and log in
to configure and
connect.
Lyric

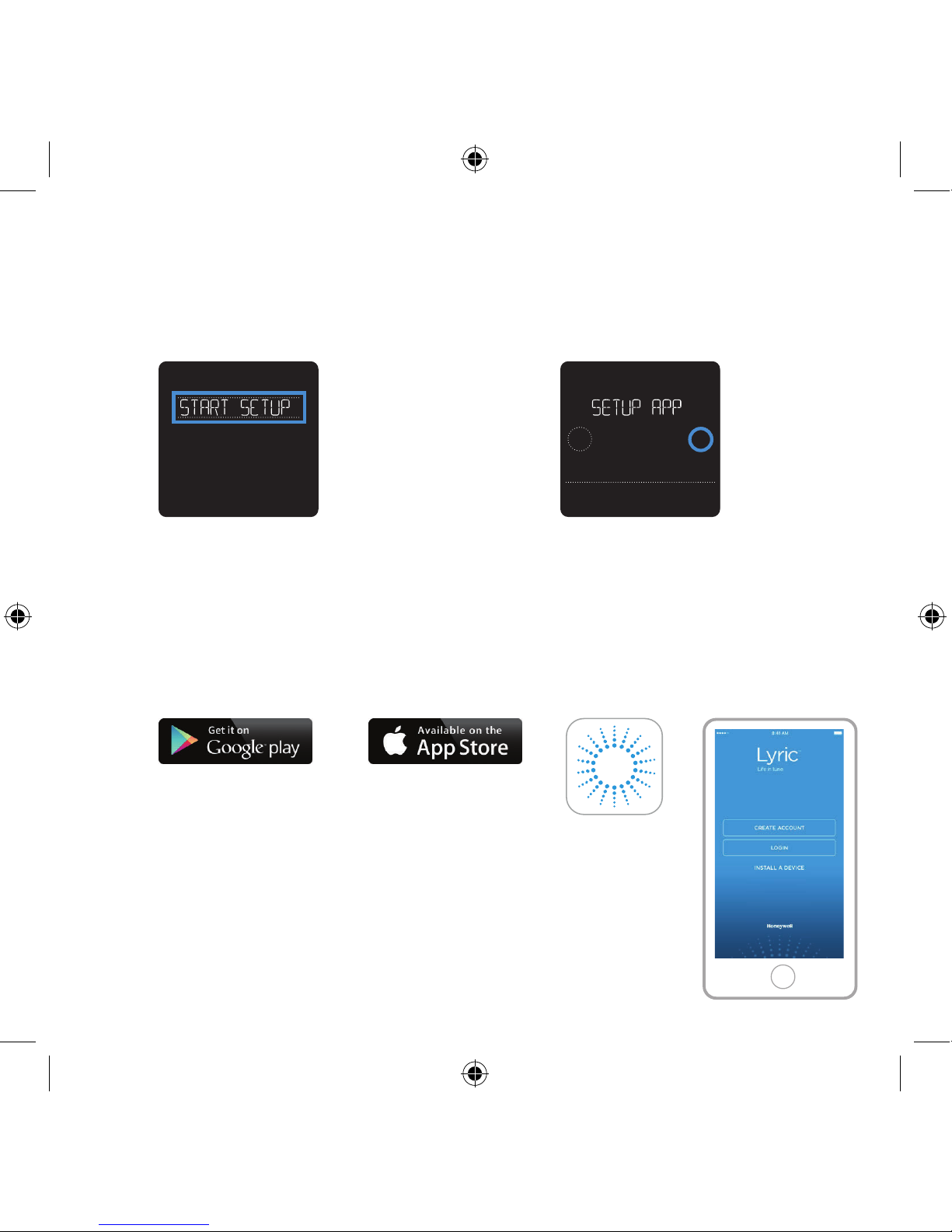

1 Start Setup with app.
Touch START SETUP on
thermostat.
Setup with Lyric App
No Yes
Back
2 Select to setup with app.
Touch Yes on the SETUP APP
screen.
3 Log in to configure and connect.
Your Lyric thermostat is not yet configured to control your heating/cooling
system.
To setup your system, download and open the Lyric app, and then touch “Install
Lyric T5 Now”. If your thermostat does not appear on the screen, tap ‘Install a
device’ and follow the prompts to continue.
33-00151EF_A.indd 15 6/24/2016 4:20:50 PM

16
If your WiFi network is not working, you can
setup your thermostat manually and connect
your phone later.

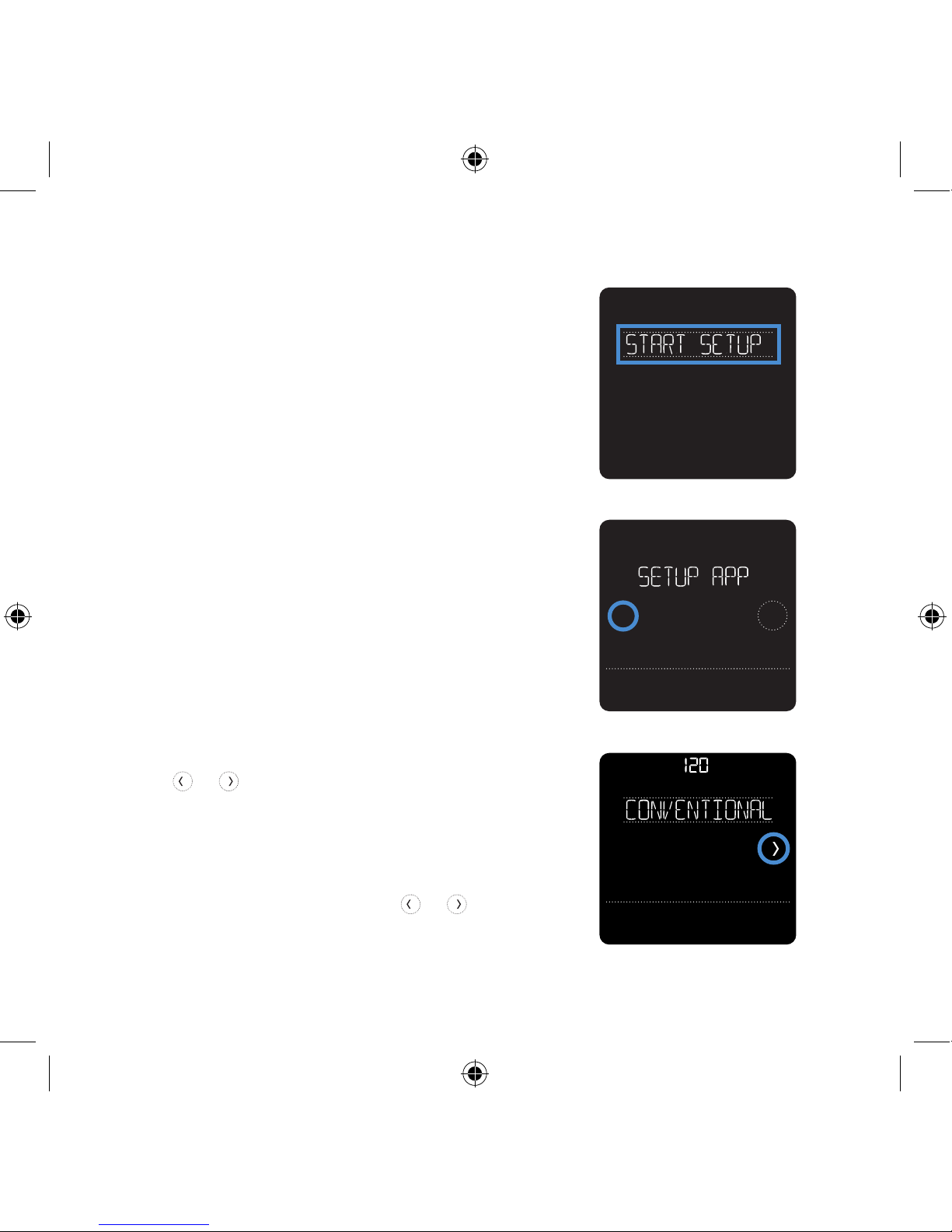

1 Start manual setup.
Touch START SETUP to begin.
Manual Setup
Back Edit
No Yes
Back
3 Navigate and edit options.
Use or to navigate through all the
setup options. To see a list of all setup
options, go to pages 1819.
To edit an option value, touch Edit.
The value is now blinking. Use or to
select the correct value.
Touch Done once the correct value is
selected.
2 Select manual setup.
On the SETUP APP screen, touch No.
33-00151EF_A.indd 16 6/24/2016 4:20:50 PM

17

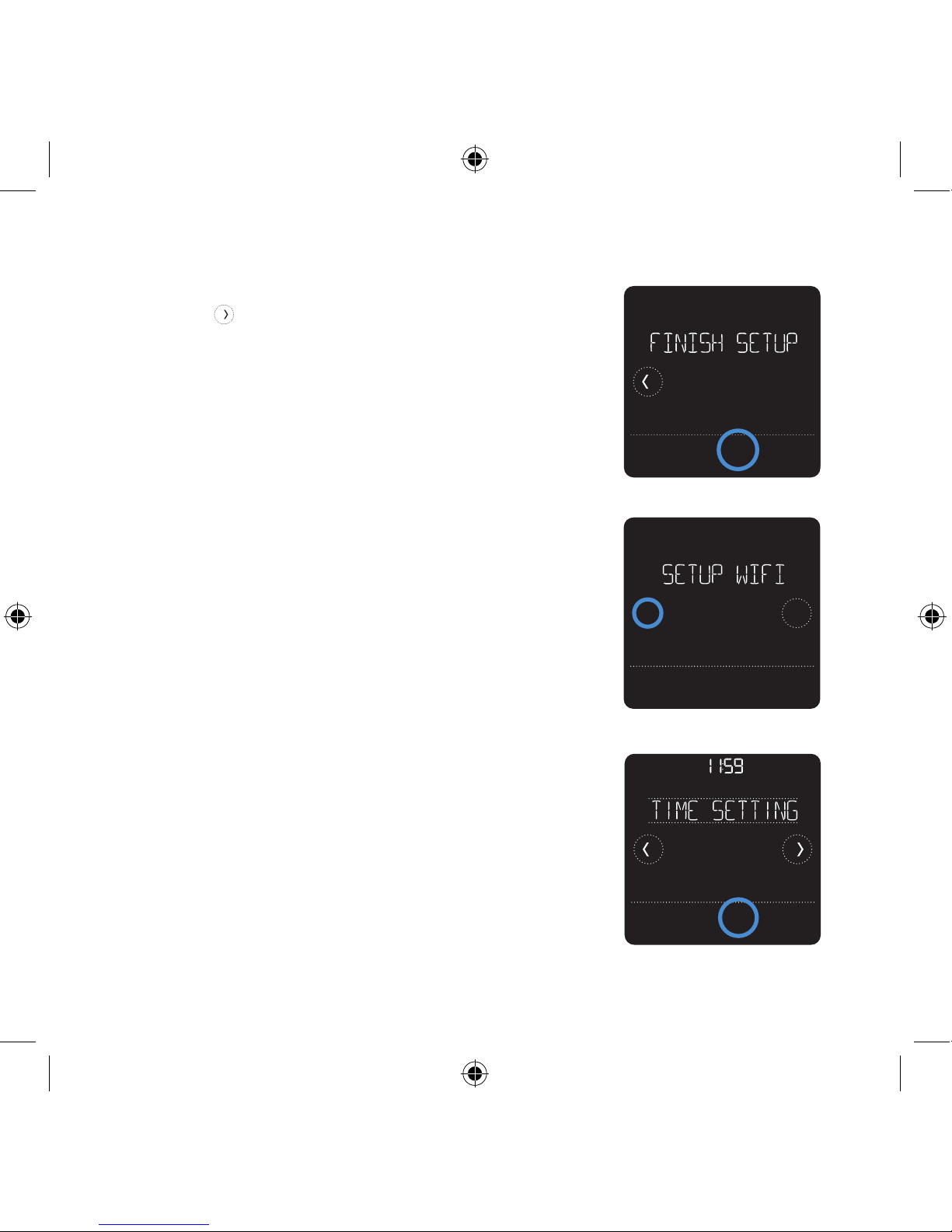

4 Finish Setup.
Touch until you see Finish Setup.
Touch Select.
Manual Setup (cont.)
Back Select
No Yes
Back
PM
Back Select
5 Setup WiFi.
If you know that your WiFi is still not
working at this point, you have to
manually set the time and date. Select No
on the SETUP WIFI screen.
6 Set time and date.
Set the clock format, time, daylight
saving time, and date on the next
screens.
7 Your thermostat is now setup.
Refer to page 20 for more information
about basic operation.
33-00151EF_A.indd 17 6/24/2016 4:20:51 PM

18
Equipment Setup Options
Option # Option Name Option Value (factory default in bold)
120 Schedule Type No Schedule
MOSU = Every day the same
MOFR SA SU = 511 schedule
MO-FR SA-SU = 5-2 schedule
Each Day = Every day different
Note: You can change default MOFR, SASU schedule here. To edit periods during days,
temperature setpoints, or to turn Schedule On/Off, touch MENU and go to SCHEDULE.
200 System Type Conventional Forced Air, Heat Pump, Boiler, Cool Only
Note: This option selects the basic system type your thermostat will control.
205 Equipment Type Conventional Forced Air Heat:
Standard Gas, High Efficiency Gas, Oil, Electric, Hot Water Fan Coil
Heat Pump:
Air to Air, Geothermal
Radiant Heat:
Hot Water, Fan Coil, Steam
Note: This option selects the equipment type your thermostat will control. Note: This
feature is NOT displayed if feature 200 is set to Cool Only.
218 Reversing Valve O/B on Cool, 0/B on Heat
Note: This option is only displayed if the Heat Pump configured. Select whether reversing
valve O/B should energize in cool or in heat.
220 Cool Stages /
Compressor Stages
#200=Conventional/
200=Heat Pump
0, 1, 2
Note: Select how many Cool or Compressor stages of your equipment the thermostat will
control. Maximum of 2 Cool/Compressor Stages.
221 Heat Stages,
Aux/E Stages
#200=Conventional/
200=Heat Pump
Heat Stages: 0, 1, 2
Aux/E stages: 0, 1
Note: Select how many Heat or Aux/E stages of your equipment the thermostat will
control. Maximum of 2 Heat Stages for conventional systems. Maximum of 1 Aux/E stage
for systems with more than 1 heating equipment type.
33-00151EF_A.indd 18 6/24/2016 4:20:51 PM

19
Option # Option Name Option Value (factory default in bold)
300 System Changeover On, Off
Note: Thermostat can automatically control both heating and cooling to maintain the
desired indoor temperature. To be able to select “automatic” system mode on thermostat
home screen, turn this feature ON. Turn OFF if you want to control heating or cooling
manually.
130 Outdoor Temperature No, Internet
Note: This option selects the outdoor temperature data source. Default setting is No. If the
thermostat is connected to the Internet and registered to a Lyric account, it automatically
starts to receive outdoor temperature from the Internet. Outdoor temperature is needed
for Compressor and Aux heat lockouts - features 355 and 356.
355 Balance Point
(Compressor
Lockout)
Off, 5 °F to 60 °F (in 5 °F increments) or 15.0 °C to 15.5 °C
(in 2.5 °C or 3.0 °C increments)
Note: This option is only displayed if Heat Pump configured, both Compressor and Aux
stages are set, and Aux Heat type is set to Electric. Use this feature to optimize your com-
fort and increase life of your equipment. Set temperature under which your Heat Pump
is inefficient to run to maintain your desired temperature and run Aux heat only. Outdoor
temperature from Internet and registration to your Lyric account is needed for this feature.
356 Aux Heat Lock Out
(Aux Heat Outdoor
Lock Out)
Off, 5 °F to 65 °F (in 5 °F increments) or 15.0 °C to 18.5 °C
(in 2.5 °C or 3.0 °C increments)
Note: This feature is only displayed if Heat Pump configured, both Compressor and Aux
stages are set, and Aux Heat type is set to Electric. Use this feature to optimize your energy
bills and do not allow to run more expensive Aux heat above certain outdoor temperature.
Outdoor temperature from Internet and registration to your Lyric account is needed for
this feature.
1000 Vent Type None, Passive
Note: Turn Passive on (Fan Only) for the thermostat to control the fan for ventilation. You
can also set your ventilation preferences in Menu.
1011 Vent Percent On Time 10% - 100% (30%)
Note: This feature is only displayed if passive ventilation is selected. Default is 30%. The
thermostat operates the fan based on the percentage entered. For example, if Percent on
Time is set to 50%, the fan will run at random times during a 1 hour period until it reaches
a 50% run time (approximately 30 minutes).
Equipment Setup Options
33-00151EF_A.indd 19 6/24/2016 4:20:51 PM

20
Mode
Menu Fan
Mode Fan
Heat Auto

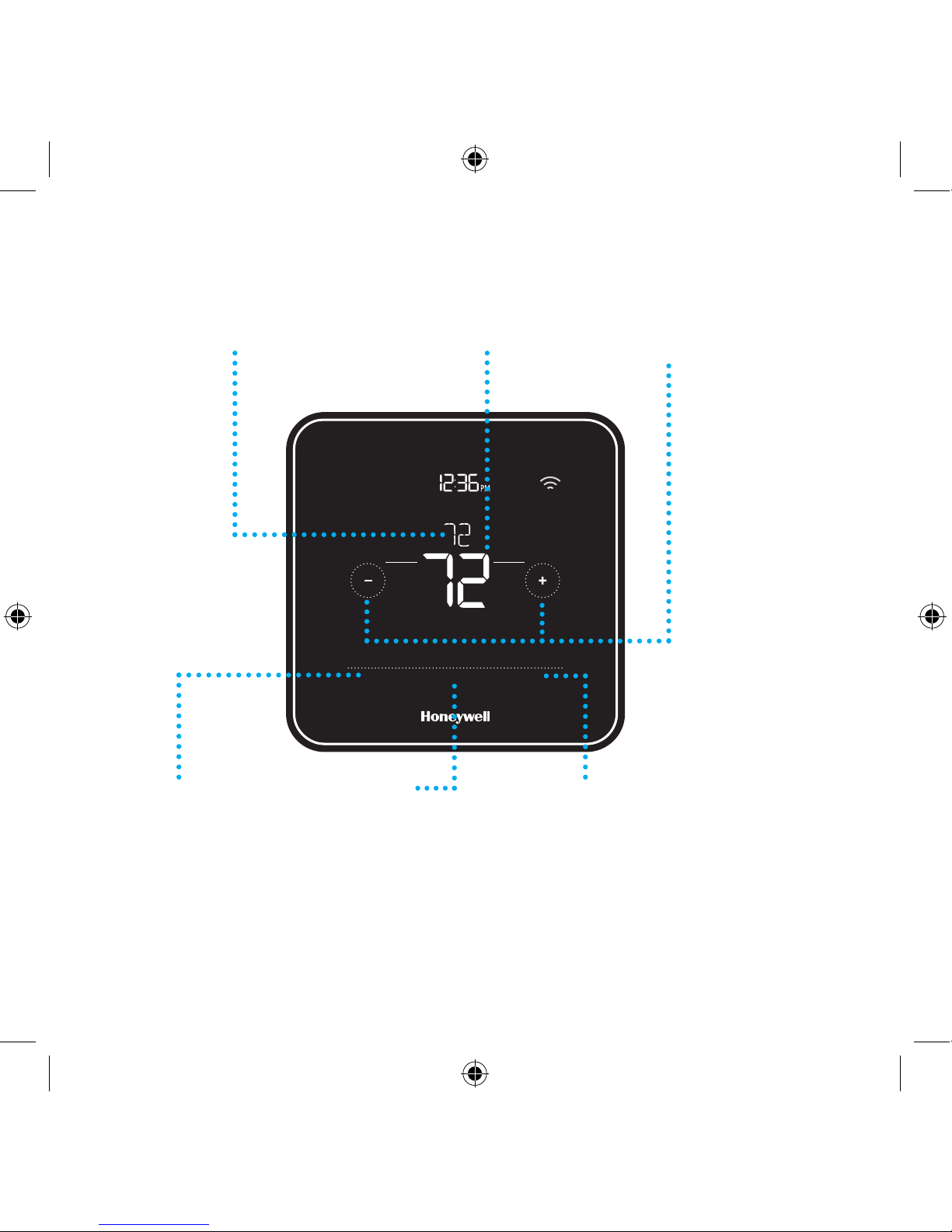

How to use your Lyric T5 WiFi Thermostat
The screen will wake up by touching the center area of displayed temperature.
Mode
Select system mode
Auto/Heat/Cool/Off/
EM Heat (emergency
heat).
Menu
Contains features:
schedule, screen lock,
ventilation, WiFi,
clean screen, and
other thermostat
settings.
Fan
Select Fan mode
Auto/On/Circulate.
Desired temperature
Displays desired
indoor temperature.
Indoor Temperature
Displays current
indoor temperature.
Adjust temperature
Touch + or - to set
your desired indoor
temperature.
33-00151EF_A.indd 20 6/24/2016 4:20:51 PM
