Honeywell Tradeline T8611M User manual

Wallplate Installation
Mount the thermostat horizontally on the wall or on a
2 in. x 4 in. wiring box.
1. Position and level the wallplate (for appearance
only). The thermostat functions properly even when
not level.
2. Use a pencil to mark the mounting holes. See
Fig. 2.
3. Remove the wallplate from the wall and drill two
3/16 inch holes in the wall (if drywall) as marked.
For firmer material such as plaster, drill two 7/32
inch holes. Gently tap anchors (provided) into the
drilled holes until flush with the wall.
4. Position the wallplate over the holes, pulling the
wires through the wiring opening.
5. Loosely insert the mounting screws into the holes.
6. Tighten the mounting screws.
WIRING
All wiring must comply with local electrical codes and
ordinances. Refer to Fig.3 and 4 for typical hookup.A
letter code is located near each terminal for identification.
CAUTION
Electrical Shock or Equipment Damage Hazard.
Can shock individuals or short
equipment circuitry.
Disconnect power supply before installation.
1. Loosen the terminal screws on the wallplate and
connect the system wires. See Fig.5.
X-XX UL
INSTALLATION INSTRUCTIONS
Deluxe Programmable
Heat Pump Thermostat
T8611M
APPLICATION
The T8611M Deluxe Programmable Heat Pump Thermostat provides electronic control of 24 Vac single-zone two
compressor or two speed heat pump systems with auxiliary heat. TheT8611M can be configured to run a single
compressor heat pump system. Refer to Table 1 for a general description of the thermostat.All T8611 thermostats
require a common wire to supply power.
Table 1. Description ofT8611 Thermostats.
RECYCLING NOTICE
If this control is replacing a control that contains
mercury in a sealed tube, do
not place your old
control in the trash.
Contact your local waste management authority
for instructions regarding recycling and the proper
disposal of the old thermostat.
INSTALLATION
When Installing this Product…
1. Read these instructions carefully. Failure to follow
the instructions can damage the product or cause
a hazardous condition.
2. Check the ratings given in the instructions and on
the product to make sure the product is suitable for
your application.
3. Installer must be a trained, experienced service
technician.
4. After completing installation, use these instructions
to check out the product operation.
Location
Install the thermostat about 5 ft (1.5m) above the floor in
an area with good air circulation at average temperature.
See Fig. 1.
Do not install the thermostat where it can be affected by:
— drafts, or dead spots behind doors and in corners.
— hot or cold air from ducts.
— radiant heat from sun or appliances.
— concealed pipes and chimneys.
— unheated (uncooled) areas such as an outside wall
behind the thermostat.
T8611 Changeover System Selection Fan Selection Comments
M Automatic Em Heat-Heat-
Off-Cool-Auto On-Auto Down-selectable for single compressor systems.
®U.S. Registered Trademark
Copyright © 2000 Honeywell ••All Rights Reserved
69-1415

69-1415 2
DELUXE PROGRAMMABLE HEAT PUMPTHERMOSTAT
WIRES
THROUGH WALL
WALL
MOUNTING
HOLES
M15044
MOUNTING
SCREWS
WALL
ANCHORS
(2)

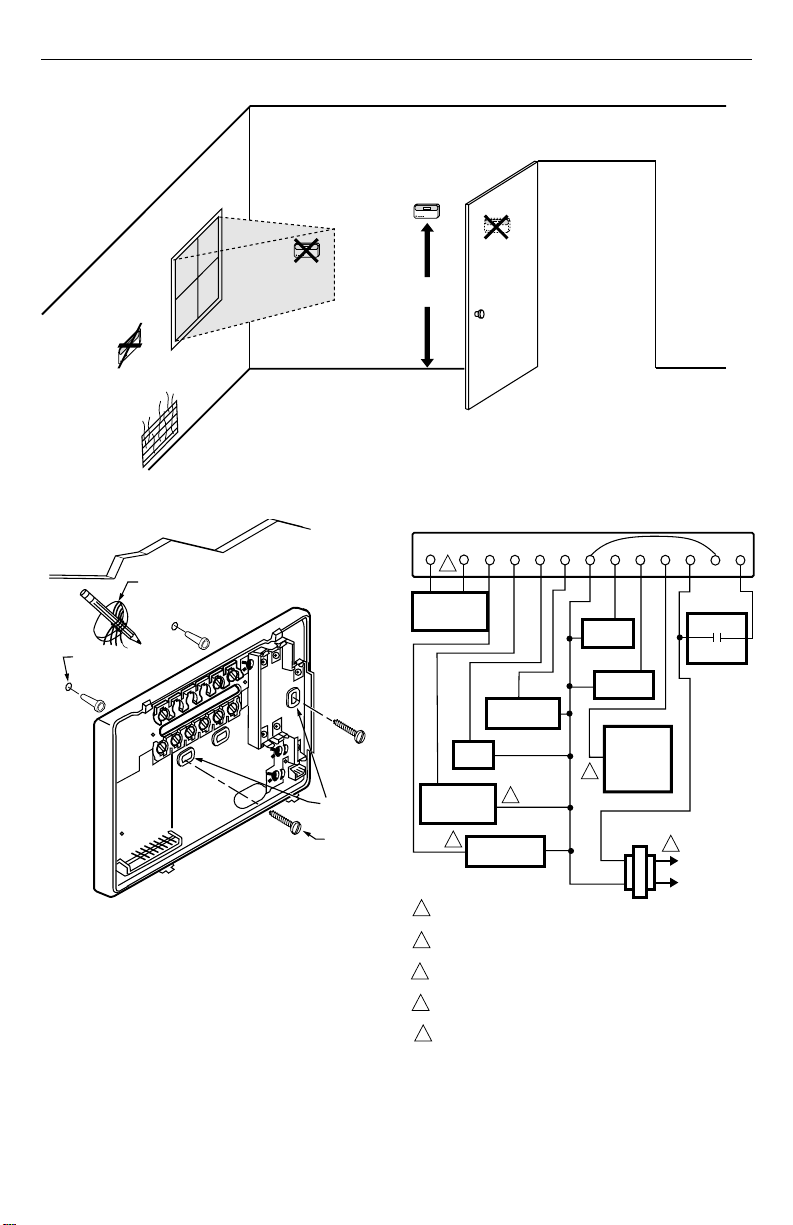

Fig. 1.Typical location of thermostat.
5 FEET
[1.5 METERS]
YES
NO
NO
NO
M10106
Fig. 2. Mounting the wallplate.
Fig. 3.Typical hookup in heat pump application
with emergency heat relay and O/B terminal.
L1
(HOT)
L2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
USE OUTDOOR SENSOR C7089B1000 AND CONFIGURE
INSTALLER SETUP NUMBER 24 TO 1.
BE SURE INSTALLER SETUP NUMBER 3 IS SET TO 2 FOR TWO
COMPRESSOR SYSTEMS.
WIRE EQUIPMENT MONITOR OR DEFROST RESET CONTROL
PER MANUFACTURER INSTRUCTIONS.
CONFIGURE IN INSTALLER SETUP.
1
AUX. HEAT
RELAY
M13289
COMPRESSOR
CONTACTOR 1
FAN
RELAY
RO T O T O/B G Y1 C E W3
OUTDOOR
TEMPERATURE
SENSOR
COOL/HEAT
CHANGEOVER
VALVE
EM. HEAT
RELAY
THERMOSTAT
1
2
2
Y2 L
COMPRESSOR
CONTACTOR 2
EQUIPMENT
MONITOR
OR DEFROST
RESET
CONTROL
5
3
4
X2X1
5
3
4
EQUIPMENT
MONITOR 2

69-14153
DELUXE PROGRAMMABLE HEAT PUMP THERMOSTAT
Fig. 6. Mounting thermostat on wallplate.
Using Thermostat Keys
The thermostat keys are used to:
•set current day and time,
•program times and setpoints for heating and cooling,
•temporarily override program temperatures,
•display present setting,
•configure Installer Setup,
•check System-Test,
•display outdoor temperature (select models),
•set the system operation,
•set the fan operation.
See Fig.7 for the key location.
NOTE: Always press the keys with your fingertip or
similar blunt tool.Sharp instruments like a pen or
pencil point can damage the keyboard.
SETTINGS
System and Fan Settings
The system default setting is Heat and the fan default
setting is Auto. Use the System and Fan keys to change
the settings. See Fig.8.The fan settings can be set
individually for each program period.The system selection
is for all the program periods.
System settings control the thermostat operation as follows:
Em Heat:Defrost reset output relay (L) is on contin-
uously.The thermostat cycles the Emergency Heat
relay and the highest heat stage.Cooling system is
off.Compressor is de-energized.
Heat:The thermostat controls the heating.
Off: Both the heating and cooling are off.
Cool:The thermostat controls the cooling.
Auto:The thermostat automatically changes between
heating and cooling operation, depending on the
indoor temperature.
Fan settings control the system fan as follows:
On: Fan operates continuously.
Auto: Fan operates with equipment.
Fig. 5. Proper wiring technique.
Mounting Thermostat
1. Engage tabs at the top of the thermostat and
wallplate. See Fig. 6.
2. Press lower edge of case to close and latch.
NOTE: To remove the thermostat from the wall, first pull
out at the bottom of the thermostat;then remove
the top.
M4826
FOR WRAPAROUND
INSERTION STRIP
7/16 IN. (11 MM).
FOR STRAIGHT
INSERTION STRIP
5/16 IN. (8 MM).
M14634
PRESS LOWER
EDGE OF CASE
TO LATCH.
ENGAGE TABS
AT TOP OF
THERMOSTAT
AND WALLPLATE.
A.
B.
L1
(HOT)
L2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
USE OUTDOOR SENSOR C7089B1000 AND CONFIGURE
INSTALLER SETUP NUMBER 24 TO 1.
BE SURE INSTALLER SETUP NUMBER 3 IS SET TO 1 FOR
SINGLE COMPRESSOR SYSTEMS.
WIRE EQUIPMENT MONITOR OR DEFROST RESET CONTROL
PER MANUFACTURER INSTRUCTIONS.
CONFIGURE IN INSTALLER SETUP.
1
M13290
COMPRESSOR
CONTACTOR
FAN
RELAY
RO T O T O/B G Y1 C E
OUTDOOR
TEMPERATURE
SENSOR
COOL/HEAT
CHANGEOVER
VALVE
EM. HEAT
RELAY
THERMOSTAT
1
2
2
W3 L
AUX. HEAT
RELAY
EQUIPMENT
MONITOR
OR DEFROST
RESET
CONTROL
5
3
4
X2
X1
EQUIPMENT
MONITOR 2
5
3
4
Fig. 4.Typical hookup in heat pump system with
emergency heat relay for single compressor systems.

69-1415 4
DELUXE PROGRAMMABLE HEAT PUMPTHERMOSTAT
Fig. 7.T8611M key locations and descriptions.
LED Indication
Two LED indicators are located on the upper right top of
the thermostat.They indicate when a CHECK or FAIL
signal is sent to the thermostat from the system.See
Fig.9.The CHECK LED is on continuously when the
thermostat system setting is in the Emergency Heat
position.
Temperature Settings
Refer to Table 2 for the default program settings. If the
daytime energy savings period is not used, press the
period key (Leave or Return) until the time is blank.The
fan setting feature is available on select thermostat
models. See the Owners Guide for complete instructions
on changing the program.
Fig. 9. LED location.
Table 2. Default Program Settings.
Period Time Heat Setpoint Cool Setpoint Fan Setting
Wake 6:00 AM 70°F
(21°C) 78°F (25.5°C) Auto
Leave 8:00 AM 62°F
(16.5°C) 85°F (29.5°C) Auto
Return 6:00 PM 70°F
(21°C) 78°F (25.5°C) Auto
Sleep 10:00 PM 62°F
(16.5°C) 82°F (28°C) Auto
M10675A
TWO LED
INDICATORS
TWO LED INDICATORS ON MOST MODELS.
1
1
Fig. 8.T8611M System and Fan key locations.
M4624
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
INCREASE TEMPERATURE
SETTING OR SCROLL
FORWARD THROUGH
INSTALLER SETUP OPTIONS
DECREASE TEMPERATURE
SETTING OR SCROLL
BACKWARD THROUGH
INSTALLER SETUP OPTIONS
DISPLAY INFORMATION
SUCH AS PRESENT
SETTINGS AND OUTDOOR
TEMPERATURE
RETURN TO
NORMAL
OPERATIONS
ENTER
INDEFINITE
OR TIMED
HOLD MODE
SET CURRENT
DAY AND TIME
SET CURRENT OR
PROGRAM DAY
CHANGE BETWEEN
DAYLIGHT SAVINGS
AND STANDARD TIME
INCREASE TIME SETTING
OR SCROLL FORWARD
THROUGH INSTALLER SETUP
AND SYSTEM TEST
DECREASE TIME SETTING
OR SCROLL BACKWARD
THROUGH INSTALLER
SETUP AND SYSTEM TEST
COPY ONE PROGRAMMED
DAY TO ANOTHER DAY
SET WAKE TIMES
AND SETPOINTS
CHANGE BETWEEN
HEATING AND COOLING
SETPOINTS
SET LEAVE TIMES
AND SETPOINTS
SET RETURN TIMES
AND SETPOINTS
SET SLEEP
TIMES AND
SETPOINTS
SELECT SYSTEM
OPERATION
SELECT FAN
OPERATION
M14625
HoldTemp
Run
Program
Copy
Daylight
Time
Set Current
Day/Time
System Fan
Time Set Program
Day
System
Fan
Wake Leave Return Sleep
Heat/Cool
Settings

69-14155
DELUXE PROGRAMMABLE HEAT PUMP THERMOSTAT
INSTALLER SETUP
NOTE: For most applications, the thermostat factory
settings do not need changing. Review the
Factory Setting column in Table 3 and if no
changes are necessary, go to the Installer
System-Test section.
The Installer Setup is used to customize the thermostat
to specific systems.Some of the options include
temperature display, changeover and outdoor
temperature display. Use the Installer Setup numbers
listed in Table 3.The table includes all the configuration
options and the factory-settings for theT8611.
A combination of key presses are required to use the
Installer Setup feature.
1. To enter the Installer Setup, press and hold the
Information i key and the increase ▲ and
decrease ▼keys until the first number is displayed.
All display segments appear for approximately
three seconds before the number displays.
See Fig. 10 and 11.
2. To advance to the next Installer Setup, press the
Time ▲key.
3. To change a setting, press the increase ▲or
decrease ▼key.
4. To scroll the Installer Setup numbers backward,
press the Time ▼key.
5. To exit the Installer Setup, press Run Program.
Table 3.Thermostat Installer Setup Options.
Fig. 10. Display of all LCD segments.
Fig.11. Display of Installer Setup number and setting.
IMPORTANT
Only configurable numbers are shown on the
device; for example, if the thermostat does not
have a system key, Installer Setup Number 12 will
not be displayed.ReviewTable 3 Factory Setting
column and mark any desired changes in the
Actual Setting column.When Installer Setup is
complete, review the settings to confirm they
match the system.
(Continued)
Installer
Setup
Number
(Press Time
▲ key to Factory Setting Other Choices
(Press ▲or ▼key to change) Actual
Select change) Display Description Display Description Setting
Not used. 1 thru 4 ——— — —
Number of
compressor
stages.
3 2 Two compressor
stages or two speed
compressor.
1 Single stage compressor
systems.
Heating cycle. (Not used) —— —3—3 cph. —
6 6 Auxiliary heat. 3, 6 or 9 6—6 cph used for last stage of
heat pump systems.
7 9 Emergency heat. 3, 6
or 9 9—9 cph used for electric heat.
Not used. 8 thru 11 ——— — —
System setting
adjustment. 12 1 Manual changeover. 0 or 2 0—Auto changeover.
2—Fixed auto changeover.
Adaptive
Intelligent
Recovery™
control.
13 0 Adaptive Intelligent
Recovery™control is
activated (system
starts early so setpoint
is reached by start of
program period).
1 Conventional recovery (system
starts recovery at programmed
time).
Degree
temperature
display.
14 0 Temperature is
displayed in °F. 1 Temperature is displayed in °C.
M14559
Aux Ht
Set Day/TimeSet Program
Mon
Wake Leave Return Sleep OutdoorRoom
Filter
Wait
System
Fan
Em Heat
On
Auto
Off
Cool
Auto
AM
PM
Hold for
Heat Cool
Repl Batt
Recovery
DST
TueWed Thu Fri Sat Sun
Days
Temporary Setting
Em Ht
M14618
INSTALLER SETUP
NUMBER DISPLAY
(COLUMN 2 OF TABLE 3)
FACTORY SETTING OR OTHER
CHOICE DISPLAY (COLUMN 3
OR 5 OF TABLE 3)

69-1415 6
DELUXE PROGRAMMABLE HEAT PUMPTHERMOSTAT
Table 3.Thermostat Installer Setup Options (Continued).
Installer
Setup
Number
(Press Time
▲ key to Factory Setting Other Choices
(Press ▲or ▼key to change) Actual
Select change) Display Description Display Description Setting
Not used. 15 ——— — —
Clock format. 16 0 12-hour clock format. 1 24-hour clock format
Not used. 17 and 18 ——— — —
Extended fan
operation in
heating.
19 0 No extended fan
operation after the
call for heat ends.
1 Fan operation is extended
90 seconds after the call for
heat ends.
Extended fan
operation in
cooling.
20 0 No extended fan
operation after the
call for cool ends.
1 Fan operation is extended
90 seconds after the call for
cool ends.
Not used 21 thru 23 ——— — —
Outdoor
temperature
display
(models with
OT terminals).
24 0 No outdoor
temperature is
displayed.
1 Outdoor temperature is
displayed. Needs a C7089B1000
Outdoor Sensor to operate.
Not used. 25 thru 28 ——— — —
O/B terminal
energized in
heating or
cooling.
29 0 O/B terminal is
energized for
reversing valve in
cooling.
1 O/B terminal is energized for
reversing valve in heating.
Deadband. 30 3 Heating and cooling
setpoints can be set
no closer than 3°F
(1.5°C).
4 thru
10 Heating and cooling setpoints can be set no closer than the
chosen value:
4—4°F (2°C).
5—5°F (2.5°C).
6—6°F (3°C).
7—7°F (3.5°C).
8—8°F (4°C).
9—9°F (4.5°C).
10—10°F (5°C).
Not used. 31 and 32 ——— — —
Minimum-off-
time for the
compressor.
33 5 5 minute minimum
off time for the
compressor.
0 thru
4Minimum number of minutes (0 thru 5) the compressor will be off
between calls for the
compressor.
Temperature
range stops in
heating.
34 90 Highest setpoint
setting for heating. 40 to 89 Temperature range (1°F increments) of heating setpoint.
Temperature
range stops in
cooling.
35 45 Lowest setpoint
setting for cooling. 46 to 99 Temperature range (1°F increments) of cooling setpoint.
Not used. 36 ——— — —
Temperature
display
adjustment.
37 0 No difference in
displayed temperature
and actual room
temperature.
-3 thru
31—Display adjusts to 1°F higher than actual room temperature.
2—Display adjusts to 2°F higher
than actual room temperature.
3—Display adjusts to 3°F higher
than actual room temperature.
-1—Display adjusts to 1°F lower
than actual room temperature.
-2—Display adjusts to 2°F lower
than actual room temperature.
-3—Display adjusts to 3°F lower
than actual room temperature.

69-14157
DELUXE PROGRAMMABLE HEAT PUMP THERMOSTAT
3. PressTime ▲or Time ▼until the current time is
displayed.
NOTE: Tapping the Set Current Day/Time
changes the time in one-hour increments.
2. Press Day until the current day is displayed.
NOTE: Sun=Sunday, Mon=Monday,
Tue=Tuesday, Wed=Wednesday,
Thu=Thursday, Fri=Friday, Sat=Saturday.
NOTE: If the current time is Daylight Savings
Time, press DaylightTime until DST is
displayed.
4. Press Run Program.
INSTALLER SYSTEM-TEST
Use the Installer System-Test to check the thermostat
operation.Refer toTable 4 for a list of the system tests.
To start the system test:
CAUTION
Equipment Damage Hazard.
Minimum compressor off-time is bypassed
during the Installer System-Test.
Be aware that equipment damage can occur if
the compressor is cycled too quickly.
Press and hold the increase ▲and decrease ▼ keys at
the same time until number 10 appears. All segments of
the display are displayed before test number 10 appears.
See Fig. 12 and 13.
Table 4. Installer System-Tests.
Fig. 12. Display of all LCD segments.
Fig. 13. Display of test number.
IMPORTANT
Review the settings to confirm they match the
system. Press Run Program to exit the Installer
Setup.The thermostat has saved the Installer
Setup changes and initiated a reset in order to
operate using the new settings. Be sure to set
the current day and time immediately.
Setting Current Day and Time
1. Press Set Current Day/Time.
NOTE: On initial powerup or after an extended
power loss, 1:00 pm flashes on the
display until a key is pressed.
Test
Number System-Test Description
10-19 Heating equipment can be turned on
and off.
20-29 Emergency heat equipment can be turned
on and off.
30-39 Cooling equipment can be turned on
and off.
40-49 Fan equipment can be turned on and off.
60 0 to
60 19 Keyboard keys test.
70-79 Thermostat information displayed including
date code and software versions.
M14619
Time SetProgram
System Fan
Run
Program
Hold Temp
Set Current
Day/Time
Set Current
Day/Time
Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Set Day/Time
Mon
PM
M14620
Time SetProgram
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day
Day
Heat/Cool
Settings
Daylight
Time Copy
Set Day/Time
PM
Tue
M14621
Time SetProgram
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day
Time
Heat/Cool
Settings
Daylight
Time Copy
Set Day/Time
AM
Tue
M14622
Time SetProgram
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time
Daylight
Time
Copy
Set Day/Time
AM
DST
Tue
M14623
Time Set Program
System Fan
Run
Program
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Wake Room
System
Fan
Heat
Auto
AM
DST
Tue
M14559
Aux Ht
Set Day/TimeSet Program
Mon
Wake Leave Return Sleep OutdoorRoom
Filter
Wait
System
Fan
Em Heat
On
Auto
Off
Cool
Auto
AM
PM
Hold for
Heat Cool
Repl Batt
Recovery
DST
TueWed Thu Fri Sat Sun
Days
Temporary Setting
Em Ht
M14612

69-1415 8
DELUXE PROGRAMMABLE HEAT PUMPTHERMOSTAT
NOTE: Press any key and the displayed numbers change. Press Time ▼ to go to the previous test and the Time ▲
to go to the next test.The Run Program Key will not exit this test. To exit, press Time ▲or Time ▼ and then
the Run Program key.
Refer to Table 5 for descriptions of specific system tests.
NOTE: Press Time ▲to advance to the next test and press Time ▼to go back to the previous test. Press Run
Program to exit the system test.
Table 5.Installer System-Test Options.
Key to
Press Test Number Description
Heating Equipment System-Test
Time ▲10 Enter heating equipment system-test.
▲11 Stage-one heat comes on. The system fan is also energized.
▲12 Stage-two heat comes on. Stage-one heat and system fan remain on.
▲13 Stage-three heat comes on. Stage one and two remain on.
▼12 Stage-three hat turns off.
▼11 Stage-two heat turns off.
▼10 Stage-one heat and system fan turn off.
Emergency Heating Equipment System-Test
Time ▲20 Change from heating to emergency heating equipment system-test.
▲21 Emergency heat comes on.
▲22 Stage-two emergency heat comes on.
▼21 Stage-two emergency heat turns off.
▼20 Emergency heat turns off.
Cooling Equipment System-Test
Time ▲30 Change from heating or emergency heating to cooling equipment system-test.
▲31 Cool and system fan come on.
▲32 Stage-two cooling comes on.
▼31 Stage-two cooling turns off.
▼30 Cool and system fan turn off.
Fan Equipment System-Test
Time ▲40 Change from cooling to fan equipment system-test.
▲41 Fan comes on.
▼40 Fan turns off.
Key Operation System-Test
Time ▲60 Change from fan to key operation system-test.

69-14159
DELUXE PROGRAMMABLE HEAT PUMP THERMOSTAT
5. Press the increase ▲key again to display the
EEPROM identification code (Example: 314 =
EEPROM ID 314).
6. Press the Run Program key to exit the system test.
(The system-test times out after four minutes
without any key presses.)
CHECKOUT
Outdoor Temperature Sensor
(Select Models)
Allow the outdoor temperature sensor to absorb the
outdoor air for a minimum of five minutes before
taking a reading.
4. Press the increase ▲key again to display the
software revision number (Example: 001=Revision
number 1).
THERMOSTAT INFORMATION
1. Press the Time ▲ key to access the thermostat
information.
3. Press the increase ▲key again to display the
software identification code (Example: 02 =
software ID code 2).
(Continued)
2. Press the increase ▲key to display the production
date code.The first two large digits are the month
and the third digit is the last digit of the year
(Example: 027=February 1997).
TROUBLESHOOTING GUIDE
Symptom Possible Cause Action
Display will not
come on. Thermostat is not being powered. •Check for 24 Vac between R and C terminals.
—If missing 24 Vac:
—Check if the circuit breaker is tripped—reset the
circuit breaker.
—Check if the system fuse is blown—replace the
fuse.
—Check if the power switch on the HVAC equipment
is in the Off position—set to the On position.
—Check wiring between thermostat and HVAC
equipment—replace any broken wires and tighten
any loose connections.
—If 24 Vac is present, proceed with troubleshooting.
Temperature
display is incorrect. Room temperature display has been reconfigured. Enter Installer Setup number 37 and reconfigure the display.
Thermostat is configured for °F
or °C display. Enter Installer Setup number 14 and reconfigure the display.
Bad thermostat location. Relocate the thermostat.
Temperature
settings will not
change. (Example:
Cannot set the
The upper or lower temperature
limits were reached. Check the temperature setpoints: •Heating limits are 40 to 90°F (4.5 to 32°C).
•Cooling limits are 48 to 99°F (7 to 37°C).
heating higher or
the cooling lower.) The setpoint temperature range
stops were configured. Check Installer Setup numbers 34 and 35 and reconfigure the setpoint stops.
M14613
M14614
M14615
M14616
M14617

69-1415 10
DELUXE PROGRAMMABLE HEAT PUMPTHERMOSTAT
Troubleshooting (Continued).
Symptom Possible Cause Action
Heating will not
come on. No power to the thermostat. •Check for 24 Vac between R and C terminals.
—If missing 24 Vac:
—Check if the circuit breaker is tripped—reset the
circuit breaker.
—Check if the system fuse is blown—replace the
fuse.
—Check if the power switch on the HVAC equipment
is in the Off position—set to the On position.
—Check wiring between thermostat and HVAC
equipment—replace any broken wires and tighten
any loose connections.
—If 24 Vac is present, proceed with troubleshooting.
Thermostat minimum off time is
activated. Wait up to five minutes for the system to respond.
System selection is not set to
Heat. Set system selection to Heat.
Heating setpoint is below room
temperature. Check heating setpoint. Set heating setpoint to desired temperature.
Cooling will not
come on. No power to the thermostat. •Check for 24 Vac between R and C.
—If missing 24 Vac:
—Check if the circuit breaker is tripped—reset the
circuit breaker.
—Check if the system fuse is blown—replace the
fuse.
—Check if the power switch on the HVAC equipment
is in the Off position—set to the On position.
—Check wiring between thermostat and HVAC
equipment—replace any broken wires and tighten
any loose connections.
—If 24 Vac is present, proceed with troubleshooting.
Thermostat minimum off time is
activated. •Wait up to five minutes for the system to respond.
•Enter Installer Setup number 33. Reconfigure minimum off
time (if required).
System selection is not set to
Cool. Set system selection to Cool.
Cool setpoint is above room
temperature. Check cooling setpoint. Set cooling setpoint to desired temperature.
Heating or cooling
come on
momentarily and
shut off.
Heat or cool circuit is opening
up or becoming high
impedance.
Add resistor in parallel with load or install interface relay.
System on indicator
(flame=heat,
snowflake=cool) is
displayed, but no
warm or cool air is
coming from the
registers.
Heating or cooling equipment is
not operating. Verify operation of heating or cooling equipment in self-test.
Outdoor
temperature
not displayeda.
Option not activated. Enter Installer Setup number 24 and set to 1. Thermostat must
have OT terminals and a C7089B1000 installed.
Outdoor
temperature Outdoor sensor is connected
incorrectly. Refer to C7089B1000 installation instructions and check wiring between the thermostat and sensor.
display is
incorrecta.Wrong sensor. Replace sensor with C7089B1000 Sensor.
a Select models.

69-141511
DELUXE PROGRAMMABLE HEAT PUMP THERMOSTAT

69-1415 12
DELUXE PROGRAMMABLE HEAT PUMPTHERMOSTAT
Home and Building Control
Honeywell Limited-Honeywell Limitée
35 Dynamic Drive
Scarborough, Ontario
M1V 429
69-1415 G.H. 8-00 Printed inTaiwan R.O.C.
Home and Building Control
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422
www.honeywell.com
