Honeywell VisionPRO TH8000 Series User manual

Operating Manual
TH8000 Series
Touchscreen Programmable Thermostat
69-1912ES-06

Read and save these instructions.
Need Help?
For assistance with this product please call Customer Care toll-free at 1-800-468-1502
® U.S. Registered Trademark.
US Patent No. 6595430, D509151 and other patents pending.
Copyright © 2013 Honeywell International Inc. All rights reserved.
BE CAREFUL! Never use sharp instruments, such as a pencil
or pen, to press touchscreen keys. To prevent damage to the
thermostat, always press keys with your fingertip.
This thermostat contains a Lithium battery which may contain Perchlorate material.
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate
This manual covers the following models
TH8110U: For 1 Heat/1 Cool systems
TH8320U: For up to 3 Heat/2 Cool systems
TH8321U: For up to 3 Heat/2 Cool systems with dehumidification
(Pull thermostat from wallplate and turn over to find model number)

1 69-1912ES—06
About your new thermostat
Thermostat features ............................... 2
Programming at a glance ....................... 3
Quick reference to controls .................... 4
Quick reference to status display ........... 5
Programming & Operation
Clock setting........................................... 6
Fan setting.............................................. 7
System setting........................................ 8
Using program schedules....................... 9
Program schedule overrides ................ 12
Vacation hold........................................ 14
Special features.................................... 15
Screen lock........................................... 16
Screen cleaning.................................... 17
Humidity display & control.................... 18
Appendices
Battery installation................................ 20
Advanced functions .............................. 21
In case of difficulty................................ 26
Optional remote sensors ...................... 28
This thermostat is ready to go!
Your new thermostat is pre-
programmed and ready to go.
See page 3 to check settings.
Table of contents
CAUTION: EQUIPMENT DAMAGE
HAZARD. To prevent possible
compressor damage, do not operate
cooling system when outdoor
temperature is below 50˚F (10˚C).
TH8000 Series

Operating Manual
69-1912ES—06 2
About your new thermostat
Congratulations! You’ve just purchased the world’s most advanced, easy-to-use thermo-
stat. It has been designed to give you many years of reliable service and touchscreen
climate control.
Features
• 7-day program schedules maximize comfort and economy.
• Armchair programming: Just pull thermostat from the wall to set schedules.
• Energy-saving settings for maximum cost savings.
• One-touch temp control overrides program schedule at any time.
• Precise comfort control keeps temperature within 1°F of the level you set.
• Change/check reminders let you know when to service or replace filters, batteries
and other critical components.
• Large touchscreen display with backlight is easy to read—even in the dark.
• Select models display and control summer humidity.
• Select models accommodate optional outdoor or indoor remote sensors.

TH8000 Series
3 69-1912ES—06
About your new thermostat
Your new thermostat is pre-programmed and ready to go. Just set the time and day. Then
check the settings below and change if needed:
1. Set clock......................................................................................................... See page 6
2. Select fan setting: Preset to Auto ................................................................. See page 7
3. Select system setting: Preset to Heat.......................................................... See page 8
4. Program schedules: Preset to energy-saving levels
while you’re at work or asleep (assumes you
wake at 6 am, leave at 8 am, return at 6 pm
and go to bed at 10 pm)......................................................................... See pages 10-13
ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and
manually adjust the temperature (see pages 12-14).
This thermostat is ready to go!

Operating Manual
69-1912ES—06 4
SCHED HOLD CLOCK SCREEN MORE
MON TUEWED THU FRI SAT SUN
AM
FAN
AUTO
SYSTEM
HEAT
Following
Schedule
Inside Set To
OK TO PICK MULTIPLE DAYS
70
6:01
70
Press day(s) to set program schedule (see page 11)
Press to select fan
operation (see page 7)
Press to select system
type (see page 8)
Press to set program
schedule (see page 11)
Press to adjust
temperature settings
(see pages 11-14)
Press for more options
(select models only)
Press to override
program schedule
(see pages 12-14)
Press to set clock
(see page 6)
Press to lock keypad for 30
seconds to clean screen
(see page 17)
Quick reference to controls

TH8000 Series
5 69-1912ES—06
SCHED HOLD CLOCK SCREEN MORE
WED
AM
FAN
AUTO
SYSTEM
HEAT
Following
Schedule
Inside Set To
Recovery
70
6:01
70
Current inside temperature Current day of week Temperature setting
Program schedule on
(does not display
when off)
Fan setting
Other display messages:
• Cool On: Cooling system is activated
• Heat On: Heating system is activated
• Aux Heat On: Auxiliary heating system is activated
Quick reference to status display
System setting
Current time
Adaptive Intelligent
Recovery in effect
(see page 15)

Operating Manual
69-1912ES—06 6
To set the current time display, press CLOCK,
then press s or t to adjust the time. Press and
hold s or t to advance the time more quickly.
Press DONE to save & exit (or press CANCEL to
exit without changing the time).
Note: The real-time clock should never require
adjustment since it automatically updates for daylight
savings time, and stores all date/time information.
Note: To change the current week day display, see
page 22.
Press CLOCK
Adjust time, then press DONE
SCHED HOLD CLOCK SCREEN MORE
WED
AM
FAN
AUTO
Inside Set To
70
6:01
70
DONE CANCEL
WED
AM
FAN
AUTO
Inside Set To
70
6:02
70
Clock setting

TH8000 Series
7 69-1912ES—06
Press FAN to select fan operation, then press
DONE.
• On: Fan is always on.
• Auto: Fan runs only when the heating or
cooling system is on.
• Circ: Fan runs randomly, about 35% of the
time, not counting any run time with the
heating or cooling system.
You can press FAN to override the fan settings
you’ve programmed for different time periods
(see page 11). If you select On or Circ, the set-
ting you select will remain active until you press
FAN again to select Auto (see page 27 for more
information).
Press FAN
SCHED HOLD CLOCK SCREEN MORE
WED
AM
SYSTEM
HEAT
Following
Schedule
Inside Set To
70
6:01
70
FAN
AUTO
Fan setting
Note: If a fan schedule is programmed,
“Auto” will run the fan schedule.

Operating Manual
69-1912ES—06 8
SCHED HOLD CLOCK SCREEN MORE
WED
AM
Following
Schedule
Inside Set To
70
6:01
70
FAN
AUTO
SYSTEM
HEAT
Press the SYSTEM button to select, then press
DONE.
• Heat: Thermostat controls only the heating
system.
• Cool: Thermostat controls only the cooling
system.
• Off: Heating and cooling systems are off.
• Auto: Thermostat automatically selects
heating or cooling depending on the indoor
temperature.**
• Em Heat (only for heat pumps with
auxiliary heat): Thermostat controls
Emergency and Auxiliary Heat.
Compressor is locked out.**
** Select models only
System setting

TH8000 Series
9 69-1912ES—06
Save money by setting program schedules
It’s easy to program your system for maximum energy savings. You can program four time
periods each day, with different settings for weekdays and weekends.
Set to the time you awaken and the temperature you want
during the morning, until you leave for the day.
Set to the time you leave home and the temperature you
want while you are away (usually an energy-saving level).
Set to the time you return home and the temperature you
want during the evening, until bedtime.
Set to the time you go to bed and the temperature you want
overnight (usually an energy-saving level).
WAKE
6:00 am
70 °
LEAVE
8:00 am
62 °
RETURN
6:00 pm
70 °
SLEEP
10:00 pm
62 °

Operating Manual
69-1912ES—06 10
This thermostat is pre-set with energy-saving program settings. We recommend these
settings, since they can reduce your heating/cooling expenses.
(See next page to adjust times and temperatures of each time period.)
Wake
(6:00 am)
Leave
(8:00 am)
Return
(6:00 pm)
Sleep
(10:00 pm)
Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)
70 °78 °70 °78 °
62 °85 °62 °
[Or cancel period]
85 °
[Or cancel period]
70 °78 °70 °
[Or cancel period]
78 °
[Or cancel period]
62 °82 °62 °82 °
Energy-saving settings for maximum cost savings

TH8000 Series
11 69-1912ES—06
To adjust program schedules
1. Press SCHED,then EDIT.
2. Press day buttons (MON-SUN) to select day(s).
3. Press s or t to set Wake time for selected
day(s).
4. Press s or t to set Heat and Cool
temperature for this time period.
5. Press other time periods (LEAVE, RETURN,
SLEEP) to set time and temperatures for each.
6. Press DONE to save & exit (or press CANCEL
to exit without saving changes).
Note: You can press CANCEL PERIOD to eliminate any
unwanted time period.
Note: Press FAN to customize fan settings for any time
period (see page 7).
Set time for program
period to start
Press EDIT
Select day(s) Set heat/cool levels
SCHED HOLD CLOCK SCREEN MORE
WED
AM
Following
Schedule
Inside Set To
70
6:00
70
FAN
AUTO
DONEWAKE LEAVE RETURN SLEEPEDIT CANCEL
WED
AM
Following
Schedule
Inside Set To
70
6:00
70
FAN
AUTO
Press SCHED
DONE WAKE LEAVE RETURN SLEEP CANCEL
MON TUEWED THU FRI SAT SUN
AM
PM
CANCEL
PERIOD
HEAT
COOL
OK TO PICK MULTIPLE DAYS
70
6:00
78
FAN
AUTO

Operating Manual
69-1912ES—06 12

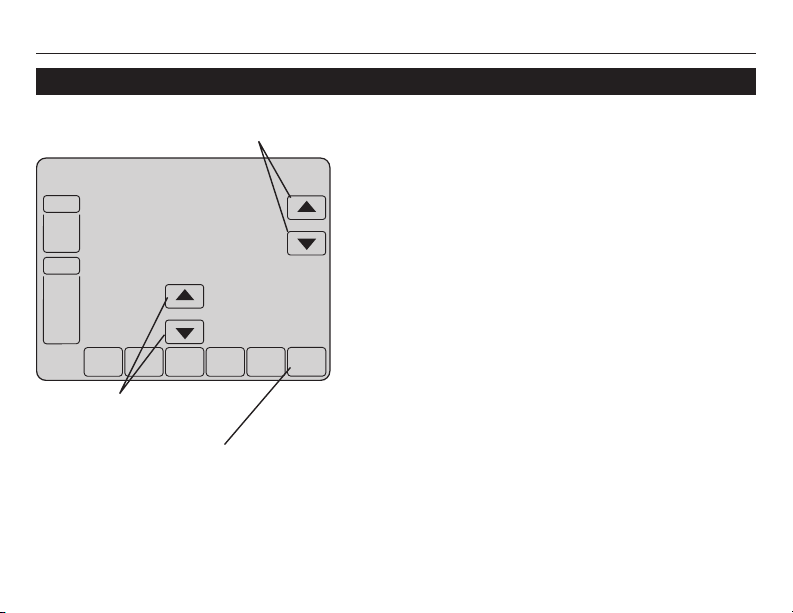

Program schedule override (temporary)
Press s or t to immediately adjust the temper-
ature. This will temporarily override the tempera-
ture setting for the current time period.
The new temperature will be maintained only
until the time you set. When the timer expires,
the program schedule will resume and set the
temperature to the level you’ve programmed for
the current time period.
To cancel the temporary setting at any time,
press CANCEL (or SCHED). The program schedule
will resume.
Adjust temperature
Press to set timer
Press CANCEL (or SCHED) to
resume program schedule
Heat On
SCHED HOLD CLOCK SCREEN MORE
CANCEL
WED
AM
PM
Inside
Hold Temperature
Until
Set To
73
8:00
70
FAN
AUTO
SYSTEM
HEAT

TH8000 Series
13 69-1912ES—06
Program schedule override (permanent)
Press HOLD Adjust temperature Press HOLD to permanently adjust the
temperature. This will turn off the program
schedule.
Whatever temperature you set will be maintained
24 hours a day until you manually change it or
press CANCEL (or SCHED) to cancel “Hold” and
resume the program schedule.
Press CANCEL (or SCHED) to
resume program schedule
Heat On
SCHED HOLD CLOCK SCREEN MORE
CANCEL
WED
AM
Inside Set To
Permanent
Hold
73
8:00
70
FAN
AUTO
SYSTEM
HEAT

Operating Manual
69-1912ES—06 14
Vacation hold
This feature can suspend the program schedule
for extended periods of time.
Press s or tto set the temperature you want,
then press s or tto set the time of day you
want the schedule to resume when you return.
Press HOLD twice, then press s or tto select
the number of days.
Whatever temperature you set will be maintained
24 hours a day for the number of days you
select. After this number of days have elapsed,
the previously programmed schedule will resume
at the time you set.
If you return earlier than expected, press CANCEL
(or SCHED) to cancel “Hold” and resume the pro-
gram schedule.
1. Set temperature
2. Press to set time for
schedule to resume
3. Press HOLD twice
4. Press to select number of days
SCHED HOLD CLOCK SCREEN MORE
CANCEL
WED
AM
PM
Inside
Hold Temperature
Until
Set To
55
6:00
70
FAN
AUTO
SYSTEM
HEAT
SCHED HOLD CLOCK SCREEN MORE
CANCEL
WED
Inside
DAYS
Hold Temperature
Until
Set To
55
14
70
FAN
AUTO
SYSTEM
HEAT

TH8000 Series
15 69-1912ES—06
Special features
Auto Changeover: When set to Auto, the thermostat automatically selects heating or
cooling depending on the indoor temperature.
Adaptive Intelligent Recovery: This feature allows the thermostat to “learn” how long
the furnace and air conditioner take to reach programmed temperature settings, so the
temperature is reached at the time you set. For example: Set the Wake time to 6 am, and
the temperature to 70°. The heat will come on before 6 am, so the temperature is 70° by
the time you wake at 6. The message “Recovery” is displayed when the system is acti-
vated before a scheduled time period.
Compressor Protection: This feature forces the compressor to wait a few minutes before
restarting, to prevent equipment damage. During the wait time, the message “Wait” is dis-
played on screen.

Operating Manual
69-1912ES—06 16
Screen lock
To prevent tampering, the screen can be partially
or fully locked.
When partially locked, the screen displays
SCREEN LOCKED for several seconds if a locked
key is pressed. To unlock the screen, press any
unlocked key while SCREEN LOCKED appears on
the screen.
When the screen is fully locked, no keys function.
To lock or unlock the screen, see advanced func-
tion 0670 on page 25.
See advanced function
0670 (page 25) for
screen lock options
SCHED HOLD CLOCK SCREEN MORE
WED
PM
Following
Schedule
Inside Set To
SCREEN LOCKED
70
6:00
70
FAN
AUTO
SYSTEM
HEAT

TH8000 Series
17 69-1912ES—06
Screen cleaning
Press SCREEN to lock the screen for cleaning.
The screen will remain locked for 30 seconds so
you can clean the screen without changing any
settings.
After 30 seconds, press DONE to resume normal
operation, or press SCREEN again if you require
more time for cleaning.
Note: Do not spray any liquid directly on the thermostat.
Spray liquids onto a cloth, then use the damp cloth to
clean the screen. Use water or household glass cleaner.
Avoid abrasive cleansers.
Press SCREEN
Screen lock timer (30 seconds)
SCHED HOLD CLOCK SCREEN MORE
WED
PM
Following
Schedule
Inside Set To
SCREEN LOCKED
70
6:00
70
FAN
AUTO
OK TO
CLEAN
SCREEN
30

Operating Manual
69-1912ES—06 18
About your new thermostatHumidity level display (select models)
Select models can display the current indoor
humidity level.
(If an optional outdoor sensor is installed, the
outdoor temperature is shown instead of the
humidity level. Press MORE to display the humid-
ity level.)
Indoor humidity level
SCHED HOLD CLOCK SCREEN MORE
WED
PM
FAN
AUTO
SYSTEM
HEAT
Following
Schedule
Inside Set To
Humidity
70
6:00
70
43
