Honeywell VisionPRO TH8000 Series User manual

69-1701
OWNER’S GUIDE
® U.S. Registered Trademark • Patents Pending
© 2004 Honeywell International Inc.
All Rights Reserved
TH8000 Series
Programmable Thermostats
69-1701.fm Page 1 Monday, March 8, 2004 12:40 PM

2 69-1701
CONTENTS
Features.......................................................................................................................................... 3
Home Screen .................................................................................................................................. 4
Programming Your Heating and Cooling Schedule......................................................................... 6
Operating Your Thermostat............................................................................................................. 12
Replacing Your Batteries................................................................................................................. 19
Cleaning Your Thermostat Screen .................................................................................................. 22
Reading Your Outdoor Temperature (Select Models)...................................................................... 23
Reading Your Remote Indoor Temperature (Select Models)........................................................... 24
Reading Your Inside Humidity Level (Select Models) ..................................................................... 28
Controlling Your Inside Dehumidification Setting (Select Models) .................................................. 29
Advanced Settings .......................................................................................................................... 34
Frequently Asked Questions and Answers ..................................................................................... 42
Limited Five-Year Warranty............................................................................................................. 43
Customer Assistance ...................................................................................................................... 44
IMPORTANT
The thermostat has a touch screen interface. Touch keys appear, as necessary, to
complete tasks. Always press the keys with your fingertips. Sharp instruments like a pen or
pencil point can damage the thermostat.
69-1701.fm Page 2 Monday, March 8, 2004 12:40 PM

3 69-1701
FEATURES
• Large, Clear Display with Backlighting—current temperature, set temperature and time are
easy-to-read and all are displayed on the home screen.
• Menu Driven Programming—Guides you through the scheduling process, showing only
necessary information and choices on each screen.
• Ability to Select Multiple Days—allows you to easily customize the thermostat for your
unique schedule.
• Real-Time Clock—keeps time during power failure; automatically updates for daylight
savings.
• Armchair Programming—allows you to remove thermostat from wall to set the schedule.
• Precise Temperature Control (+/- 1°F)—reliable, consistent comfort.
• Multiple HOLD options—allows you to modify schedule indefinitely or for a specific time.
• Change Reminders—reminds you to service or replace the air filter, humidifier pad,
ultraviolet lamp or thermostat batteries.
• Programmable Fan—increases air quality when combined with a whole-house air cleaner.
• Outdoor Temperature Indication (Select Models)—shows current outdoor temperature on
the display to help you plan outdoor activities.
NOTE: The home screen may differ slightly, depending on the heating and/or cooling system you
have and the thermostat settings for your system type.
69-1701.fm Page 3 Monday, March 8, 2004 12:40 PM

4 69-1701

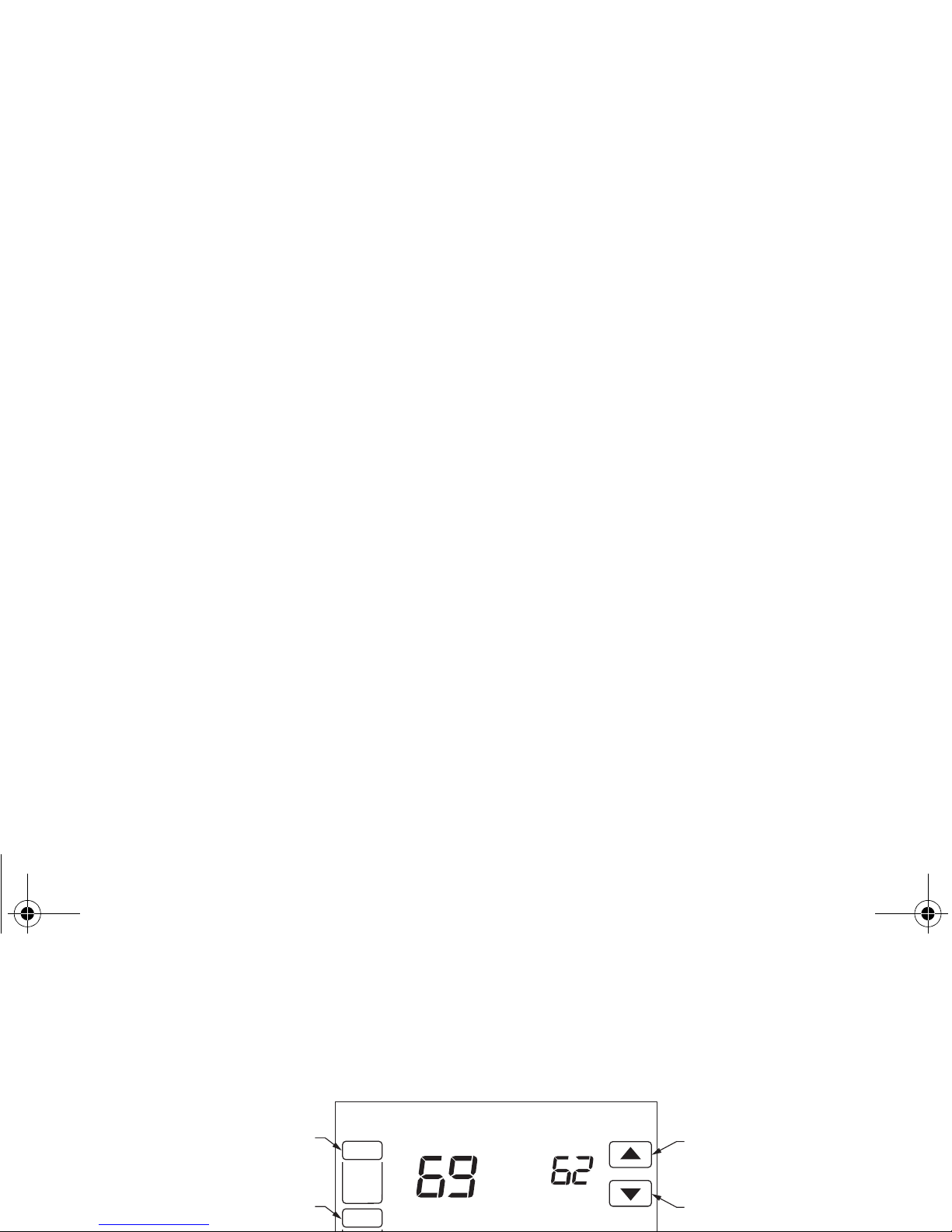

Home Screen Key Description
SCHED HOLD CLOCK SCREEN MORE
TUE
AM
FAN
AUTO
SYSTEM
HEAT
Following
Schedule
Inside Set To
M19952
FAN
SELECTS ON/AUTO/CIRC
SYSTEM
SELECTS EM. HEAT/HEAT/OFF/COOL/AUTO
SCHED
ENTERS SCHEDULING MODE
HOLD
SETS A PERMANENT HOLD AND
ACTIVATES VACATION HOLD
SCREEN
LOCKS OUT THE SCREEN TO ALLOW FOR CLEANING
CLOCK
SETS THE TIME FORWARD OR BACK
UP ARROW
RAISES TEMPERATURE SETTING
DOWN ARROW
LOWERS TEMPERATURE SETTING
MORE (SELECT MODELS)
SHOWS ADDITIONAL SYSTEM
INFORMATION
69-1701.fm Page 4 Monday, March 8, 2004 12:40 PM

5 69-1701

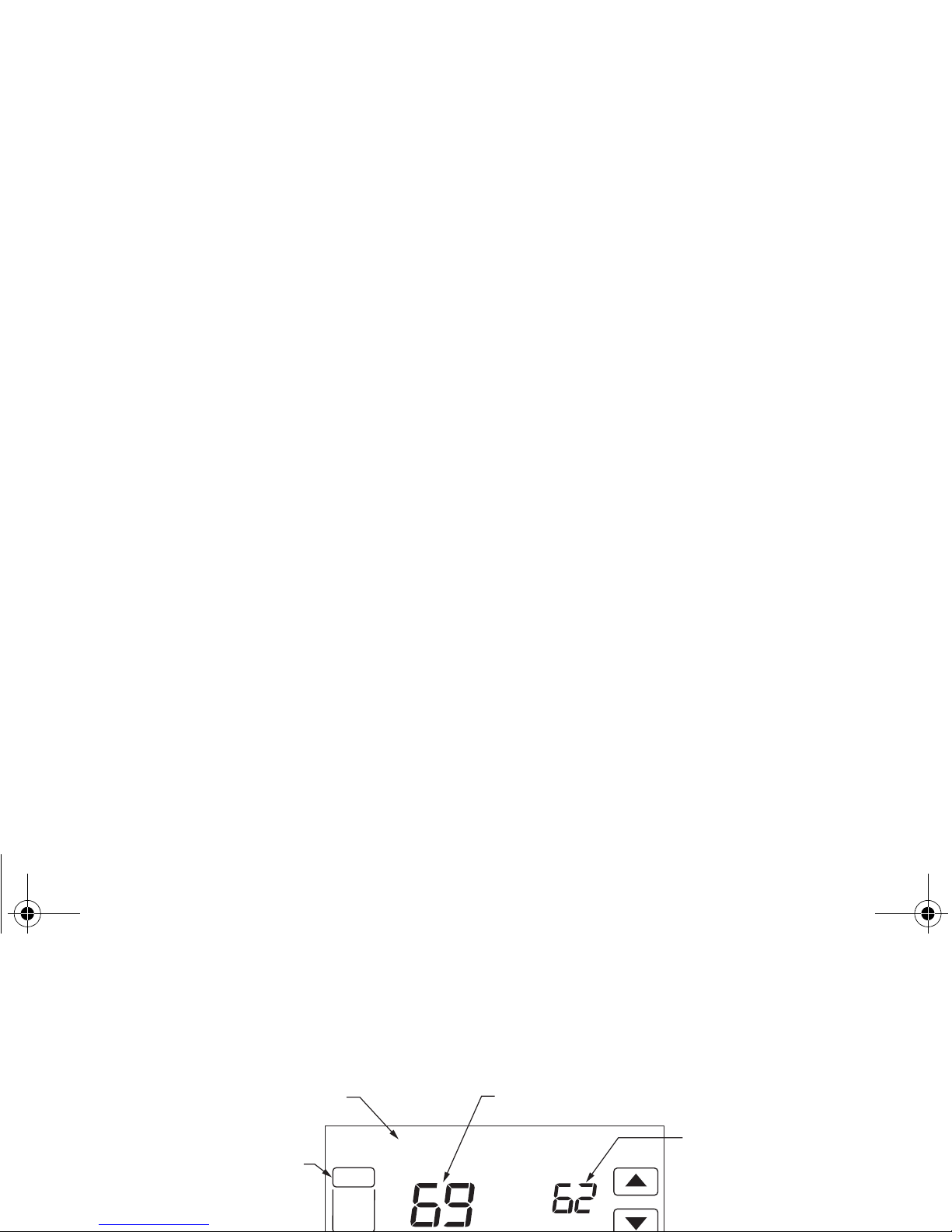

Home Screen Display Description
SCHED HOLD CLOCK SCREEN MORE
TUE
AM
FAN
AUTO
SYSTEM
HEAT
Following
Schedule
Inside Set To
M19953
FAN
SHOWS FAN SETTING
TUE
SHOWS CURRENT DAY OF THE WEEK
SYSTEM
SHOWS CURRENT SYSTEM POSITION
TIME
DISPLAY CURRENT TIME OF DAY,
HOLD TIME REMAINING OR NUMBER
OF VACATION DAYS REMAINING
INSIDE TEMPERATURE
SHOWS THE CURRENT INSIDE TEMPERATURE
SET TO TEMPERATURE
SHOWS THE CURRENT
SET TEMPERATURE
FOLLOWING SCHEDULE
SHOWS THE THERMOSTAT IS
FOLLOWING THE PROGRAMMED
SCHEDULE
69-1701.fm Page 5 Monday, March 8, 2004 12:40 PM

6 69-1701
Programming Your Heating and Cooling Schedule
Your thermostat can control up to four different schedule periods per day:
Wake—Period when you awaken and want your home at a comfortable temperature.
Leave—Period when you are away from home and want an energy-saving temperature.
Return—Period when you return home and want your home back to a comfortable temperature.
Sleep—Period when you are asleep and want an energy-saving temperature.
NOTE: Schedule times are in 15-minute intervals.
Editing Schedule
1. Press Sched key.
2. Press Edit key.
CANCEL
MON TUE WED THU FRI SAT SUN
OK TO PICK MULTIPLE DAYS
M19954
69-1701.fm Page 6 Monday, March 8, 2004 12:40 PM

7 69-1701
3. It is OK to pick multiple days. Select any combination of days to edit. These days are
scheduled with the same times and temperatures. Check marks appear next to days selected.
4. Press Wake key. Once pressed, Wake flashes to show it is selected.
5. Press Up and Down keys to modify time and heat and cool temperatures from this screen.
NOTE: The Fan setting can be programmed for On, Auto, or Circ for each period selected. See
Fan Schedule section for more information.
6. Press Leave key and repeat step 5.
7. Press Return key and repeat step 5.
8. Press Sleep key and repeat step 5.
DONE WAKE LEAVE RETURN SLEEP CANCEL
MON TUE WED THU FRI SAT SUN
AM
FAN
ON
AUTO
CIRC
CANCEL
PERIOD
HEAT
COOL
OK TO PICK MULTIPLE DAYS
M19955
69-1701.fm Page 7 Monday, March 8, 2004 12:40 PM

8 69-1701
9. When complete, press Done key. “Saving Changes” appears on the screen to indicate
changes are being saved to the day(s) modified.
NOTE: To set a Program Schedule for the remaining days of the week, repeat steps 1-9. Example:
If Mon - Fri was selected first, go back and repeat steps 1-9 for Sat and Sun.
10. To exit schedule without saving changes, press Cancel key any time.
MON TUE WED THU FRI
SAVING
CHANGES
M19956
69-1701.fm Page 8 Monday, March 8, 2004 12:40 PM

9 69-1701
Cancelling a Schedule Period
NOTE: You may want to cancel a period to match your lifestyle; for example, if someone is always
home during the day on Tuesday, you can cancel the Leave and Return periods (the
thermostat would then control to the Wake temperature until the Sleep period).
1. Press Sched key.
2. Press Edit key.
3. Select the Day(s) of the week desired.
4. Press schedule period you want to cancel (Wake, Leave, Return or Sleep). Once selected, the
period flashes.
69-1701.fm Page 9 Monday, March 8, 2004 12:40 PM

10 69-1701
5. Press “Cancel Period” key. The time, temperature(s) and fan setting disappear. The bar above
the selected period is removed, indicating the scheduled period was cancelled.
NOTE: To reinstate a schedule period, press arrow keys to set desired time and temperatures.
6. Press Done key.
DONE WAKE LEAVE RETURN SLEEP CANCEL
MON TUE WED THU FRI SAT SUN
FAN
HEAT
COOL
OK TO PICK MULTIPLE DAYS
M19957
69-1701.fm Page 10 Monday, March 8, 2004 12:40 PM

11 69-1701
Setting Time
1. Press Clock.
2. Use arrows to set current time.
3. Press Done key.
IMPORTANT
The current day of the week should already be set correctly. If not, see advanced settings
to set the day.
DONE CANCEL
TUE
AM
M19958
69-1701.fm Page 11 Monday, March 8, 2004 12:40 PM

12 69-1701
Operating Your Thermostat
Setting Fan and System Keys
SETTING FAN KEY
The Fan key selections vary based on your heating and/or cooling system type.
On—fan runs continuously. Use this setting for improved air circulation or for more efficient central
air cleaning.
Auto—fan follows fan program schedule. See Fan Schedule section for more information.
Circ— fan runs randomly approximately 35% of time. Use this setting for improved air circulation or
for more efficient central air cleaning when you do not want the fan running continuously.
SETTING SYSTEM KEY
The System key selections vary based on your heating and/or cooling system type.
Heat — thermostat controls your heating system.
Off —both heating and cooling systems are off.
Cool — thermostat controls your cooling system.
Auto — thermostat controls both your heating and cooling system based on temperature.
Em. Heat (heat pump systems only) —thermostat controls emergency heat and auxiliary heat, if
needed. Heat pump is not operational.
69-1701.fm Page 12 Monday, March 8, 2004 12:40 PM

13 69-1701
Setting Temperature Overrides
Your thermostat has three temperature override options: Hold Temperature Until, Permanent Hold
and Vacation Hold.

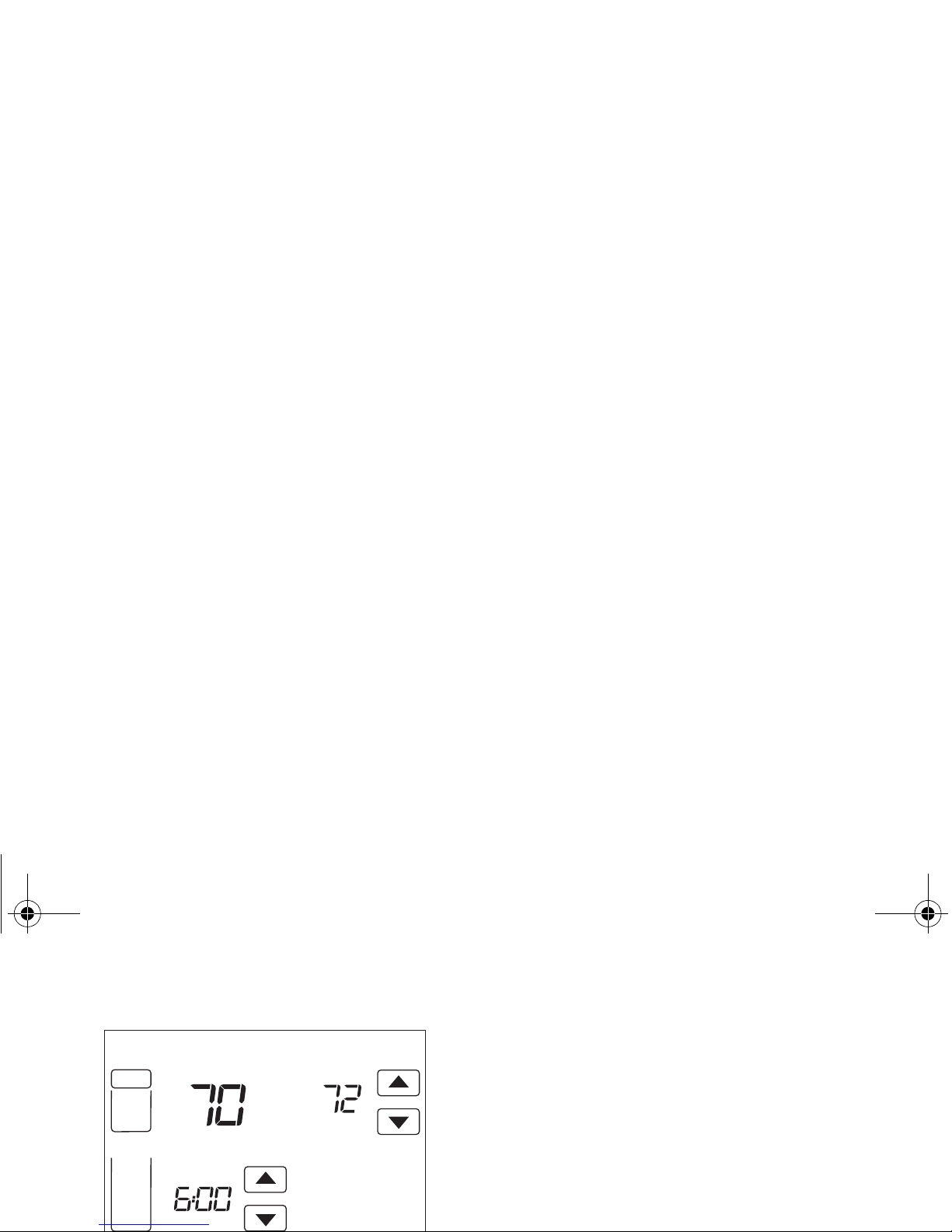

HOLD TEMPERATURE UNTIL (TEMPORARY HOLD)
Holds temperature temporarily until the next scheduled period time or until the time the user sets.
1. Press Up or Down arrow next to the temperature you want to adjust. “Hold Temperature Until”
time appears on the screen. The Hold Temperature Until time defaults to the start time of the
next scheduled period.
NOTE: The Time Up and Down arrows are shown for approximately seven seconds. Pressing on
the screen time (where the Hold Temperature Until time is shown) allows the arrows to
reappear.
2. Press Up or Down arrow next to the Time key to set desired time for the thermostat to resume
schedule.
69-1701.fm Page 13 Monday, March 8, 2004 12:40 PM

14 69-1701
3. Press the Cancel or Sched key to cancel “Hold Temperature Until” and resume schedule.
NOTE: Once “Hold Temperature Until” time is reached, the thermostat shows “Following
Schedule” on the screen to indicate that “Temporary Hold” has ended.
PERMANENT HOLD
Permanent Hold changes the temperature setting until Permanent Hold is cancelled.
1. Press Hold key. “Permanent Hold” appears on the screen.
2. Press Up or Down arrow next to the temperature you want to set during “Hold”.
SCHED HOLD CLOCK SCREEN
CANCEL
TUE
PM
FAN
AUTO
SYSTEM
HEAT
Inside
Hold Temperature
Until
Set To
M19959
69-1701.fm Page 14 Monday, March 8, 2004 12:40 PM

15 69-1701
3. Press Cancel key to cancel “Permanent Hold” and resume the schedule.
VACATION HOLD
Changes temperature setting for a designated number of days.
1. Press the Up and Down arrow keys to set the desired temperature while away on vacation.
Notice that “Hold Temperature Until” time is shown on the screen. (This is the time the
Vacation Hold override expires after the number of days ends.)
2. Press Hold key twice. Screen shows “Hold Temperature Until” one day.
3. Press Up and Down arrow keys to change the number of Days you desire thermostat to
override the schedule.
NOTE: Days Up and Down arrows appear for approximately seven seconds. Pressing just below
Hold Temperature Until on the screen allows the Days Up and Down arrows to reappear.
SCHED HOLD CLOCK SCREEN
CANCEL
TUE
AM
FAN
AUTO
SYSTEM
HEAT
Inside Set To
Permanent
Hold
M19960
69-1701.fm Page 15 Monday, March 8, 2004 12:40 PM

16 69-1701
4. To cancel the Vacation Hold override early, press the Cancel key.
NOTE: When the number of days of Vacation Hold expires, the screen shows “Following
Schedule” to indicate that Vacation Hold has ended.
SCHED CLOCK SCREEN
CANCEL
THU
FAN
AUTO
SYSTEM
HEAT
Inside
DAYS
Hold Temperature
Until
Set To
M19961
69-1701.fm Page 16 Monday, March 8, 2004 12:40 PM

17 69-1701
Fan Schedule
Press Fan key while in the Scheduling Screen to program the System Fan. Choices available from
the Scheduling Screen:
Auto (default position)—fan runs with equipment. Programmable for all schedule periods (Wake,
Leave, Return and Sleep).
On—fan runs continuously (programmable for all schedule periods).
Circ—fan runs randomly for approximately 35% of schedule period (programmable for all schedule
periods).
Fan Status Displayed on Home Screen
If the Fan program is scheduled, Auto is shown and any programmable mode that is set;
for example, if during Wake period, Fan is set to Auto, only Auto is shown in the Fan area. However,
if during the Wake period, fan is scheduled to On, both Auto and On are shown. Auto indicates fan is
running its schedule; On indicates Fan schedule is set to On.
69-1701.fm Page 17 Monday, March 8, 2004 12:40 PM

18 69-1701
Manual Override of Fan Schedule
Auto—fan is automatically following the Fan schedule (choices are Auto, On or Circulate).
On—overrides Fan schedule. Fan is continuously On.
Circ—overrides Fan schedule. Fan circulates randomly for approximately 35% of time until the Auto
position is selected.
SCHED HOLD CLOCK SCREEN
THU
AM
FAN
ON
AUTO
SYSTEM
HEAT
Following
Schedule
Inside Set To
M19962
69-1701.fm Page 18 Monday, March 8, 2004 12:40 PM

19 69-1701
Replacing Your Batteries
Not all thermostat models require batteries. If your thermostat has batteries, a low battery warning
flashes on the home screen for approximately 30 days.
NOTE: If the batteries are not replaced when the Low Battery warning is flashing, the LO batt
screen will display continuously and the thermostat will not operate until the batteries are
replaced.
NOTE: Although the thermostat has a low battery indicator, replace the batteries once each year to
prevent leakage and to prevent the thermostat and heating/cooling system from shutting
down due to lack of battery power in the thermostat.
M19963
69-1701.fm Page 19 Monday, March 8, 2004 12:40 PM

20 69-1701
1. Remove thermostat from the base by pulling straight out.
2. Install three new AAA alkaline batteries so all positive ends alternate up, down, up.
NOTE: Always use AAA alkaline batteries.
WALL
M19919
REMOVE DURING
INSTALLATION
69-1701.fm Page 20 Monday, March 8, 2004 12:40 PM
