Hoover HSV87-LX1-ID User manual

OWNER’S MANUAL / 使用手冊
Operating and Servicing Instructions / 操作及維修手冊
www.hoover.com.hk
IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.
重要提示：在裝配及使用前請仔細閱讀本手冊。
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.
IF USED COMMERCIALLY WARRANTY IS VOID.
本產品只適用於家庭使用。如果用於商業用途保用無效。
©2014 Techtronic Floor Care Technology Limited. All Rights Reserved.

2
CONTENTS
Important Safety Instructions.......................................................................................3
Battery Disposal ............................................................................................................4
Vacuum Assembly.........................................................................................................5
Carton Contents..........................................................................................................5
Attach Main Body .......................................................................................................5
Attach Handle .............................................................................................................5
Change Battery...........................................................................................................5
How To Use ....................................................................................................................6
Vacuum Description ....................................................................................................6
On-Off Switch..............................................................................................................6
Battery Charge Indicator.............................................................................................7
Charger: LED Operations ...........................................................................................7
Maintenance...................................................................................................................8
Emptying and Cleaning Dirt Container .......................................................................8
Advanced Cleaning.....................................................................................................8
Cleaning the Filter.......................................................................................................8
Removing Blockages ..................................................................................................9
Troubleshooting ..........................................................................................................10
Other Information ........................................................................................................11
Warranty .......................................................................................................................11
Service..........................................................................................................................22

3
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using the cordless upright vacuum cleaner, basic safety
precautions should always be observed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY:
• Do not charge the unit outdoors.
• Turn off the vacuum cleaner control before removing or replacing the battery.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by person responsible for their safety.
• Use only as described in this manual.
• Do not use with damaged cord or plug. If the appliance is not working, as it should,
has been dropped, damaged, left outdoors, or dropped into water, return it to a
Hoovertm Authorised Service Agent or suitably qualified person for examination, repair
or adjustment.
• Do not abuse the charger cord. Keep the charger cord away from heated surface.
Do not pull the charger cord around sharp edges or corners. Do not close the char-
ger cord in a door.
• Do not handle the plug or appliance with wet hands.
• This product uses a rechargeable Lithium-Ion battery. Do not throw the battery into
fire or expose to high temperatures, as it may burst.
• Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce airflow.
• Keep hair, loose clothing, fingers and all parts of the body away from openings and
moving parts.
• Do not pick up hot coals, cigarette butts, matches or anything hot, smoking or burn-
ing objects.
• Do not pick up flammable or combustible materials (lighter fluid, petrol, kerosene,
etc) or use in the presence of explosive liquids or vapour.
• Do not vacuum up harmful or toxic material (chlorine bleach, ammonia, drain
cleaner, etc).
• Do not use without the filter in place.
• Do not vacuum up hard or sharp objects such as glass, nails, screws, coins, etc.
• Turn off all controls before unplugging.
• Take extra care when cleaning on stairs
• Store the appliance indoors in a cool, dry area.
• Use only the charge supplied by the manufacturer to recharge.
• Do not continuously leave the charger connected to the mains when not in use.
! !
IMPORTANT
For dry debris use only.

4
! !
IMPORTANT
Always switch off and remove the battery from the vacuum before assembling,
opening or emptying the dirt container.
BATTERY RECYCLING:
• Please check with your local authority for recycling advice.
BATTERY DISPOSAL
• CAUTION: The battery used in this device may present a risk of fire or
chemical burn if mistreated. Do not disassemble, heat, or incinerate. Replace
battery with HOOVER® battery Part # BH50000 only. Use of another battery may
present a risk of fire or explosion.
• Dispose of used battery promptly. Keep away from children.
• Do not disassemble and do not dispose of in fire.
• Do not attempt to disassemble the battery or remove any component projecting from the
battery terminals. The battery and charger have no user serviceable parts. Fire or injury
may result. Prior to disposal, protect exposed terminals with heavy insulating tape to
prevent shorting.
WARNING: RISK OF EXPLOSION OR
EXPOSURE TO TOXIC MATERIAL
SAVE THESE INSTRUCTIONS
BATTERY RECYCLING
Your cleaner uses a Lithium-Ion battery. When
these batteries no longer recharge, they must be
removed from the cleaner and recycled.
Please check with your local authority for
recycling advice.
The battery is to be disposed of in one piece.
Do not attempt to take apart.
IMPORTANT

5
1. VACUUM ASSEMBLY
A B
1.2
1.3
1.6 1.7
1.4
1.1
ATTACH MAIN BODY
CHARGE BATTERY
A. Floorhead
B. Main Body
C. Handle
D. Lithium-Ion Battery
E. Battery Charger
Remove all parts from carton and
identify each item shown.
Make sure all parts are located before
disposing of packing materials.
1.2 Line up floor head with main body and
firmly push together until floor head locks
into place.
ATTACH HANDLE
1.3 Insert handle section into main body.
1.4 Secure with screw.
NOTE: Do not overtighten screw.
NOTE: Fully charge
battery before first use.
1.5 Plug charger into
the mains. Push down
firmly. LED indicator will
light within 2 seconds
if inserted properly.
Ensure the initial charge
is 3 hours.
Remove the battery
from charger after fully
charged.
CARTON CONTENTS
C
D E
1.5
1.6 To remove battery,
pull up release flap while
holding the charger.
1.7 NOTE: Make sure
on/off switch on machine
is set to off.
NOTE: Use only
manufacturer’s supplied
or recommended battery
and charger.

6
On
Off
2.1
2. HOW TO USE

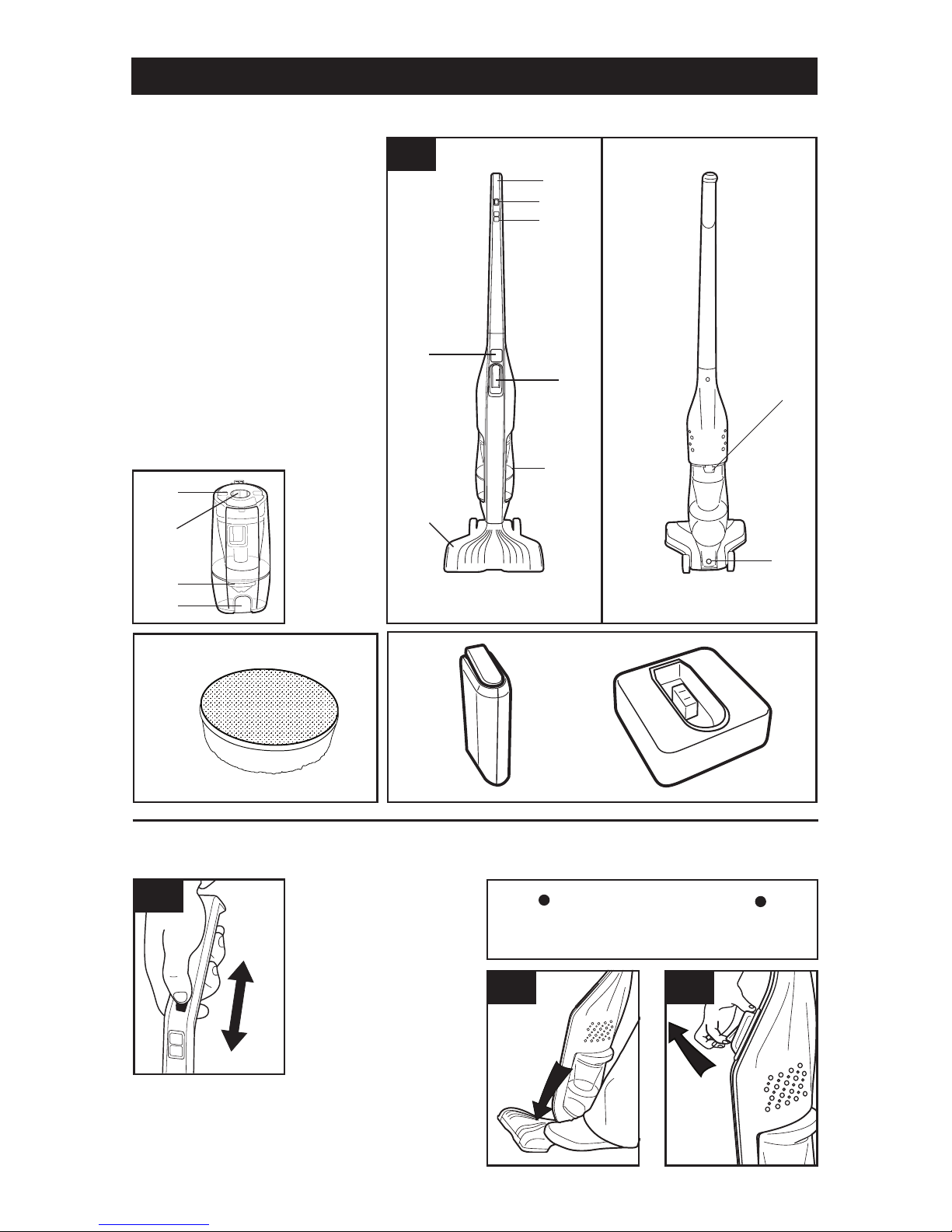

VACUUM DESCRIPTION
2.2 On/off switch:
O Off
I Hard floors
II Carpets
2.2
2.3 2.4
Handle
On/off switch
Brushbar on/off indicator
Battery charge indicator
Battery slot
Dirt container
Floor head
Dirt container release button
Filter cap
Filter
Separator
Quick release button
Floor head removal button
Filter
Battery
Charger
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
ON-OFF SWITCH
IMPORTANT
Do not use brushbar on hard floors
as it may cause damage.
1
2
3
4
5
6
7
8
13
9
10
11
12
1514 16

7
BATTERY CHARGE INDICATOR
CHARGER: LED OPERATIONS
All three LEDs will light momentarily when the power switch is turned on. The battery charge
indicator will then indicate remaining capacity as below:
3 LEDs lit Remaining capacity is more than 75%
2 LEDs lit Remaining capacity is more than 50%
1 LED lit Remaining capacity is more than 25%
1 LED blinking Remaining capacity is less than 25%
LED lit, battery not
in charger
No charging is taking
place
Normal condition
LED lit continuously Battery is charging Leave battery in charger
LED pulses (gradually
dimming & brightening)
Battery is fully charged Remove battery from
charger

8
3. MAINTENANCE

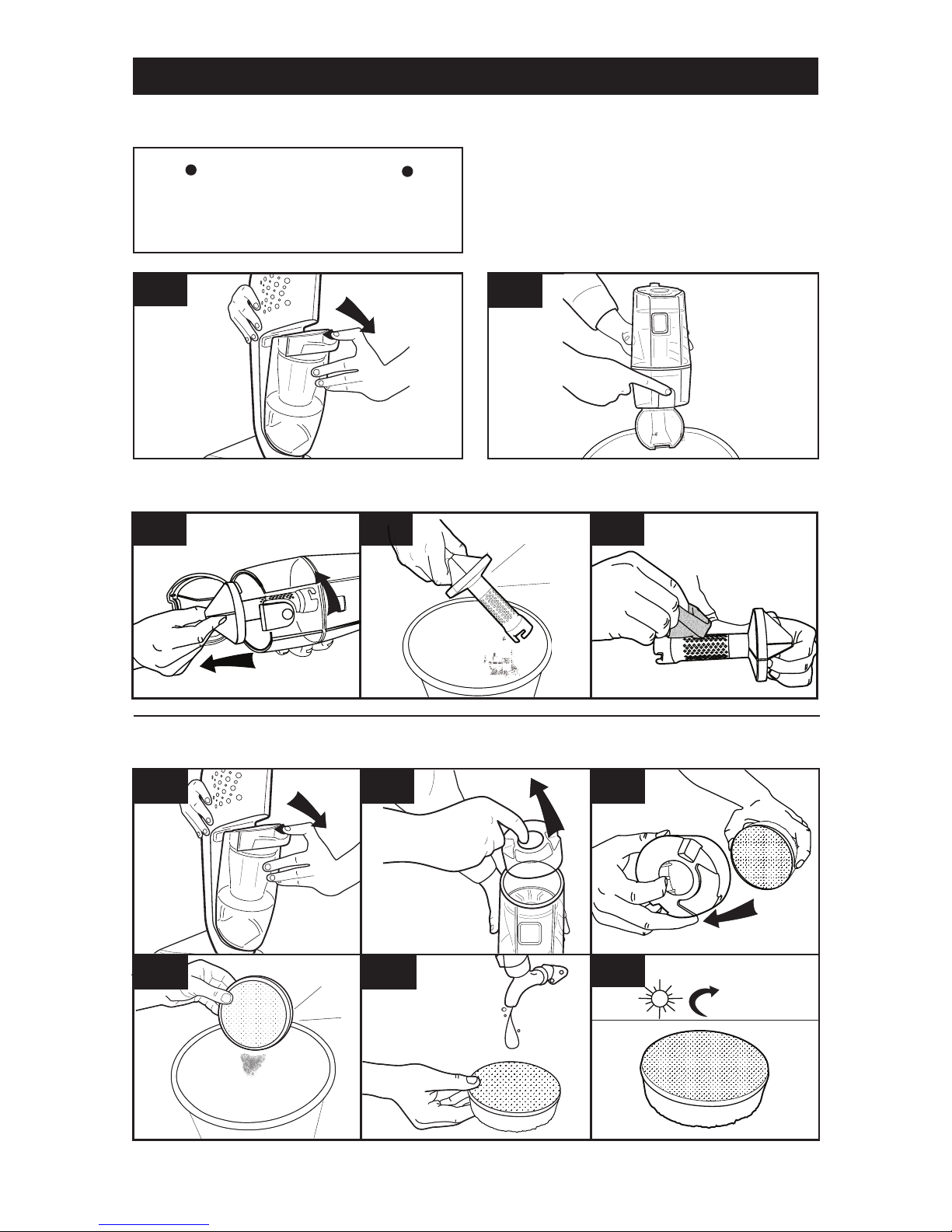

CLEANING THE FILTER
tap
3.1
3.3
3.2
3.4 3.5
EMPTYING AND CLEANING THE DIRT CONTAINER
ADVANCED CLEANING
Turn the vacuum cleaner off and remove the
battery pack before performing maintenance/
troubleshooting checks.
IMPORTANT
40º C max 24 hrs
3.6 3.7 3.8
3.9 3.10 3.11
tap

9
3. MAINTENANCE
REMOVING BLOCKAGES
Turn the vacuum cleaner off and remove the
battery pack before performing maintenance/
troubleshooting checks.
IMPORTANT
3.12 Removing debris from the brushbar.
Remove screws as indicated on floor head plate.
Lift plate to access brushbar and belt.
3.13 Removing debris from the air path. Remove
the floor head by pressing the floor head release
button on the base of the unit, and pulling in a
downward motion. Remove any blockages and
reassemble the unit.
Using a pair of scissors, cut through any threads
or hairs caught around the brushbar.
3.12
3.13 3.14

10
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Vacuum won’t
turn on
1. Battery is not correctly inserted
into the product.
1. Check the battery is inserted correctly
into the product. (Pg. 5)
2. The battery in not charged. 2. Remove and charge battery.
3. Battery is too hot. 3. Remove and let cool for 30 minutes.
Replace battery.
4. The motor Thermostat has
tripped.
4. Switch off and unplug the vacuum cleaner.
Leave for one hour before switching the
vacuum cleaner back on.
Product turns off
while in use
1. Battery is discharged. 1. Remove and charge battery.
2. Battery is too hot. 2. Remove and let cool for 30 min. Replace battery.
3. The motor Thermostat has
tripped.
3. Switch off and unplug the vacuum cleaner.
Leave for one hour before switching the
vacuum cleaner back on.
Vacuum won’t
pick up properly
1. The dirt container is full. 1. Refer to Emptying and Cleaning the
Dirt Container. (Pg. 8)
2. Dirt container is not installed
correctly.
2. Remove the dirt container from the unit by
pressing the dirt container release button
(Pg. 8) and reattach it to the unit, ensuring it
is locked firmly back into place.
3. Filter is clogged. 3. Refer to Cleaning the Filter (Pg. 8)
4. The separator is clogged 4. Refer to Advanced Cleaning (Pg. 8)
5. The air path/brush bar is blocked. 5. Refer to Removing Blockages (Pg. 9)
Brushbar won’t
rotate
1. Brushbar switch is off. 1. Refer to Maintenance (Pg. 8).
2. Brushbar is blocked. 2. Refer to Removing Blockages (Pg. 9)
LED is not lit
when the battery
is inserted into
the charger
1. Wall charger is not plugged in. 1. Check that the wall charger is plugged in.
2. Battery is inserted incorrectly
into the charger.
2. Check the battery is inserted correctly into
the charger (Pg. 5).
3. The battery is not communi-
cating with the charger.
3. Remove battery and unplug charger, wait
10 seconds, then plug charger into socket
and reinsert battery.
LED flashes twice
followed by a 1
sec. off period
1. The battery is too hot or cold. 1. Leave the battery in the charger. When
the battery reaches the correct temperature,
the battery will start charging automatically.
LED is flashing
continually
1. Battery is inserted incorrectly
into the charger.
1. Check the battery is inserted correctly into
the charger.
2. The battery or charger has
detected an error.
2. Remove battery and unplug charger, wait
10 seconds, then plug charger into socket
and reinsert battery.
LED flashes/stays
lit after battery is
removed
1. This is normal if within 10 sec
of battery removal.
1. If it still flashes after 10 seconds, unplug
charger, wait 10 sec., then plug charger
into socket.
4. TROUBLESHOOTING
IMPORTANT
! !
To reduce the risk of personal injury, remove battery pack before
performing maintenance/troubleshooting checks.

11
5. OTHER INFORMATION
6. WARRANTY
Technical Specification
Battery type: ..................................... Lithium-ion
Battery voltage: ........................................... 18V
Capacity: .........................................................1L
Weight: ......................................................3.4 kg
Charger input wattage: ...100 – 240V, 50 – 60Hz
Charging time: ........................................3 hours
Filter type: ...........................................Washable
Subject to technical change without notice.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority for recycling advice.
LIMITED 2 YEAR WARRANTY.
Please refer to the warranty terms of our authorized distributor for details.

12
目錄
重要安全指示 ...................................................................................................................................13
電池棄置處理 ...................................................................................................................................14
組裝吸塵器 .......................................................................................................................................15
包裝盒內容 ..................................................................................................................................15
安裝主機 ............................................................................................ .........................................15
安裝握把 ......................................................................................................................................15
更換電池 ......................................................................................................................................15
使用方法 ...........................................................................................................................................16
吸塵器描述 ..................................................................................................................................16
開關 ..............................................................................................................................................16
電池容量顯示燈..........................................................................................................................17
充電器：LED 作業 .....................................................................................................................17
保養 ................................................................................................................................................18
清空與清潔集塵桶 .....................................................................................................................18
深層清潔 ......................................................................................................................................18
清潔濾網 ......................................................................................................................................18
清除堵塞物 ..................................................................................................................................19
常見問題 ...........................................................................................................................................20
其他資訊 ...........................................................................................................................................21
保用 ................................................................................................................................................21
維修 ................................................................................................................................................22

! !
重要事項
僅適用於乾的碎片。
重要安全指示
請保留此手冊以供日後參考
使用無線直立式吸塵器時，
請遵循基本注意事項，包括下列幾點：
使用本產品前，請先閱讀所有的指示。
警告：為降低火災、觸電或個人受傷的
風險：
• 請勿在戶外充電。
• 請先關閉吸塵器電源，再拔出或更換電池。
• 應監督兒童，禁止他們玩弄本產品。
• 本產品不適合身體，知覺或精神障礙者，或缺乏知識與經驗的人
(包括兒童) 使用，除非他們受到監督或獲得以安全方式使用本產品的
指導，並了解相關的危險性。
• 請按照本手冊中的描述使用。
• 請勿使用損壞的電線或插頭。如果本產品無法運作，或曾經跌落、
損壞、遺留在戶外，或跌落在水中，請先將本產品送回 Hoovertm 授
權的服務代理商或適當資格的人員進行檢查、修理或調整。
• 請正確使用充電器電線。請將充電器電線遠高溫的表面。請勿沿著
尖銳邊緣或角落拉扯充電器電線。請勿讓充電器電線夾在門縫中。
• 請勿用濕的手拿著插頭或本產品。
• 本產品使用可充電式的鋰電池。請勿將電池擲入火中或曝露在高溫
下，這可能會導致電池爆炸。
• 產品的任何開口堵塞時請勿使用；請保持無灰塵、線頭、毛髮，以
及任何可降低氣流的物體堵塞。
• 讓毛髮、寬鬆的衣服、手指和身體的任一部位遠離開口和運作的組
件。
• 請勿吸入任何熱炭、煙頭、火柴，或是任何發熱、冒煙或燃燒的物
體。
• 請勿吸入易燃或可燃物質 (打火機油、汽油、煤油等)，或在有易爆液
體或氣體的環境中使用。
• 請勿吸入任何有害或有毒的物質 (氯氣、漂白劑、氨水或排水管去污
劑等)。
• 濾網若未安裝就位，請勿使用。
• 請勿吸入任何堅硬或尖銳的物體，例如玻璃、釘子、螺絲、硬幣
等。
• 請先關閉所有電源，再拔出插頭。
• 清潔樓梯時請格外小心
• 將本產品貯存在室內陰涼、乾燥的地方。
• 本產品只能使用製造商提供的充電器充電。
• 充電器不使用時，請勿長時間連接電源。
13

! !
重要事項
組裝、打開或清空集塵桶前，請先關閉吸塵器並將電池取出。
14
電池回收：
• 請向當地機構查詢回收建議。
電池棄置處理
• 注意：本產品的電池若不當棄置，可能會引發火災或化學
灼傷。請勿拆開、加熱，或是焚燒電池。只能使用組件編號 #
BH50000 的 HOOVER® 電池。使用其他電池可能會有火災或爆炸的
風險。
• 請立即處理廢棄的電池。遠離兒童。
• 請勿將電池拆開，也不要丟棄在火中。
• 請勿嘗試拆開電池，或是將電池端子處任何凸起的元件取下。電池
與充電器沒有自行維修的零件。可能會引發火災或造成傷害。棄置
前，請使用厚的絕緣膠帶保護曝露的端子，以防短路。
警告：爆炸或接觸有毒物質的風險
請保留此使用手冊以供日後參考
電池回收
本吸塵器使用鋰離子電池。當電池再也無法充電
時，必須從吸塵器中取出並回收。
請向當地機構查詢回收建議。 電池應整個棄置。
請勿嘗試拆開。
重要事項

15
1. 組裝吸塵器
安裝主機
電池充電
A. 地板吸頭
B. 主機
C. 握把
D. 鋰電池
E. 電池充電器
將所有組件從包裝盒中取出，識別如
圖每個項目。
確定已取出所有組件才棄置包裝。
1.2 將地板吸頭對齊主機，牢牢推入，直到地板吸
頭卡住定位。
安裝握把
1.3 將握把插入主機。
1.4 上緊螺絲固定。
注意：請勿過度上緊螺絲。
注意：首次使用前請將
電池充滿。
1.5 將電池插入充電
器。用力向下壓。如果
正確插入，LED 指示燈
會在 2 秒內亮起。首次
充電請確定充電 3 小
時。
充滿電後請將電池從充
電器中取出。
包裝盒內容
1.6 若要取出電池，請
拿住充電器並拉起鎖定
扣。
1.7 注意：確定產品的
電線已關閉。
注意：請務必使用製造
商提供或建議的電池與
充電器。
1.2
1.3
1.6 1.7
1.4
1.1
1.5
A B C
D E

16
On
Off
2.1
2.2
2.3 2.4
1
2
3
4
5
6
7
8
13
9
10
11
12
1514 16
2. 使用方式
吸塵器描述
2.2 開關：
O 關
I 地板
II 地毯
握把
開關
滾刷開 / 關顯示燈
電池容量顯示燈
電池槽
集塵桶
地板吸頭
集塵桶鎖定按鈕
濾網蓋
濾網
分離器
快速釋放按鈕
地板吸頭鎖定按鈕
濾網
電池
充電器
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
開關
重要事項
請勿在地板上開動滾刷，這可能會造成損壞。

17
電池容量顯示燈
充電器：LED 作業
電源開關開啟時，這三個 LED 燈全都會立即亮起。接著電池容量顯示燈會顯示剩餘電量，如下所示：
3 個 LED 亮起 剩餘電量超過 75%
2 個 LED 亮起 剩餘電量超過 50%
1 個 LED 亮起 剩餘電量超過 25%
1 個 LED 閃爍 剩餘電量不到 25%
LED 亮起，充電器中沒有
電池
目前未進行充電 正常狀況
LED 持續亮起 電池正在充電 電池留在充電器中
LED 脈動 (漸漸熄滅與亮
起)
電池充滿電 將電池從充電器中拔出

18
tap
3.1
3.3
3.2
3.4 3.5
40º C max 24 hrs
3.6 3.7 3.8
3.9 3.10 3.11
tap
3. 保養
清潔濾網
清空與清潔集塵桶
深層清潔
先關閉吸塵器電線，拔出電池，才進行保養 /
常見問題檢查。
重要事項

19
3. 保養
清除堵塞物
先關閉吸塵器電線，拔出電池組，才進行保養
/ 常見問題檢查。
重要事項
3.12 拔出滾刷中的碎片。
依照地板吸頭板上的指示取下螺絲。抬起吸頭底
蓋就能碰到滾刷與扣帶。
3.13 取出吸道中的碎片。按下機身底座上的地板
吸頭鎖定鈕並向下拉，取下地板吸頭。去除任何
堵塞物，然後重新組裝產品。
用剪刀剪去纏住滾刷的線或毛髮。
3.12
3.13 3.14

! !
20
問題 可能的原因 可能解決方法
吸塵器無法開啟 1. 電池未正確插入本產品中。 1. 確定電池正確插入本產品中。(第 15 頁)
2. 電池未充電。 2. 拔出電池並充電。
3. 電池過熱。 3. 拔出電池並冷卻 30 分鐘。更換電池。
4. 馬達恆溫器跳開。 4. 關閉吸塵器電源，並將插頭拔出。靜置 1 小
時，再重新使用吸塵器。
使用本產品時電源
關閉
1. 電池電量耗盡。 1. 拔出電池並充電。
2. 電池過熱。 2. 拔出電池並冷卻 30 分鐘。更換電池。
3. 馬達恆溫器 跳開。 3. 關閉吸塵器電源，並將插頭拔出。靜置 1 小
時，再重新使用吸塵器。
吸塵器沒有吸力 1. 集塵桶已滿。 1. 請參閱「清空與清潔集塵桶」(第 18 頁)
2. 未正確安裝集塵桶。 2. 按下集塵桶鎖定按鈕 (第18頁) 取出機身中的
集塵桶 然後重新裝回機身上，並確牢固地裝
回原位。
3. 濾網堵塞。 3. 請參閱「清潔濾網」(第 18 頁)
4. 分離器堵塞 4. 請參閱「深層清潔」(第 18 頁)
5. 吸道 / 滾刷堵塞。 5. 請參閱「清除堵塞物」(第 19 頁)
滾刷無法旋轉 1. 滾刷開關關閉。 1. 請參閱「保養」(第 18 頁)。
2. 滾刷堵塞。 2. 請參閱「清除堵塞物」(第 19 頁)
電池插入充電器時
LED 未亮起
1. 充電器未插入電源插座。 1. 確定充電器已插入電源插座。
2. 電池未正確插入充電器中。 2. 確定電池正確插入充電器中 (第 15 頁)。
3. 充電器未能充電。 3. 取出電池，拔下充電器插頭，等待 10 秒，然
後將充電器插頭插入電源插座中，並重新插
入電池。
LED 閃爍 2 次，之
後停止 1 秒
1. 電池過熱或過冷。 1. 將電池留在充電器中。電池恢復正常溫度
時，電池會自動開始充電。
LED 持續閃爍 1. 電池未正確插入充電器中。 1. 確定電池正確插入充電器中。
2. 電池或充電器檢測到錯誤。 2. 拔出電池，拔下充電器插頭，等待 10 秒，然
後將充電器插頭插入電源插座中，並重新插
入電池。
電池拔出後 LED 閃
爍 / 持續亮起
1. 如果在拔出電池的 10 秒之內發
生，此屬正常現象。
1. 如果 10 秒後仍閃爍，請拔出充電器插頭，等
待 10 秒，再將充電器插頭插到電源插座
中。
4. 常見問題
重要事項
為降低個人受傷的風險，請先拔出電池，才進行保養 / 常見問題檢查。
