Hoover U5753900 User manual

7
MODEL NO.
SECTION CONTENTS
888.321.1134
HOOVER SM 07-2010
* P RICING , SPECIFICATION’S , AND PRODUCT AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT
NOTICE . P RICING IS FOB FACTORY , C ANTON , OH
* A LL INFORMATION CONTAINED WITHIN THIS SERVICE MANUAL IS PROPRIETARY INFORMATION
OF TTI F LOOR CARE NORTH A MERICA.
* WARNING: T O REDUCE THE RISK OF ELECTRICAL SHOCK OR INJURY , ALWAYS DISCONNECT
THE APPLIANCE CORD FROM THE ELECTRICAL OUTLET OR REMOVE BATTERY PRIOR TO
SERVICING THE UNIT.

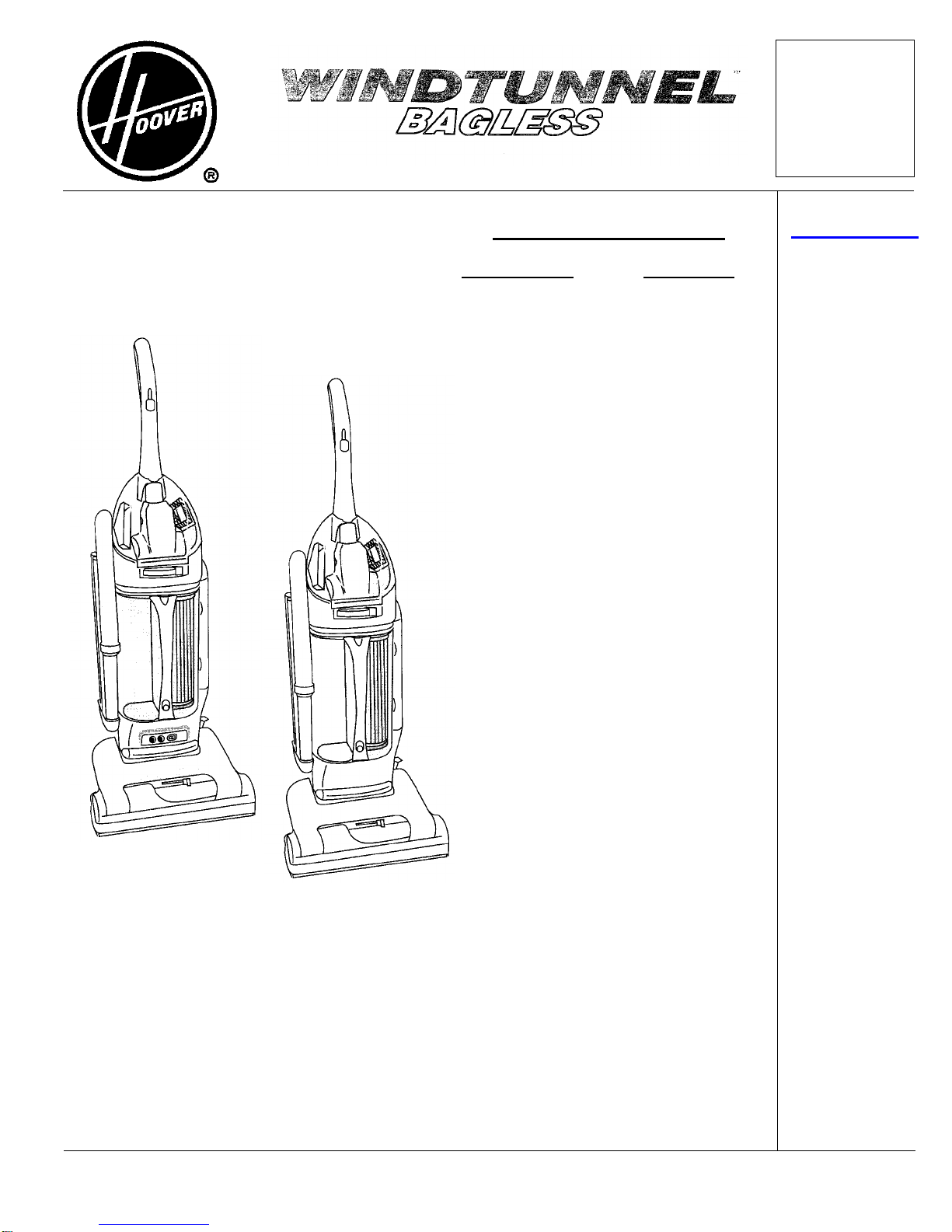

7-1
MODEL NO. PAGE NO.
U5753-900 7-2 THRU 7-6
U5760-900 7-2 THRU 7-6
U5786-900 7-2 THRU 7-6
UH40115 7-2 THRU 7-6
UH40125 7-2 THRU 7-6
U5762-900 7-7 THRU 7-11
UH40020 7-7 THRU 7-11
UH40065 7-7 THRU 7-11
UH40145B 7-7 THRU 7-11
UH40265 7-7 THRU 7-11
U5753-900
U5760-900
U5762-900
U5786-900
UH40020
UH40065
UH40115
UH40125
UH40145B
UH40265

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010 7-2

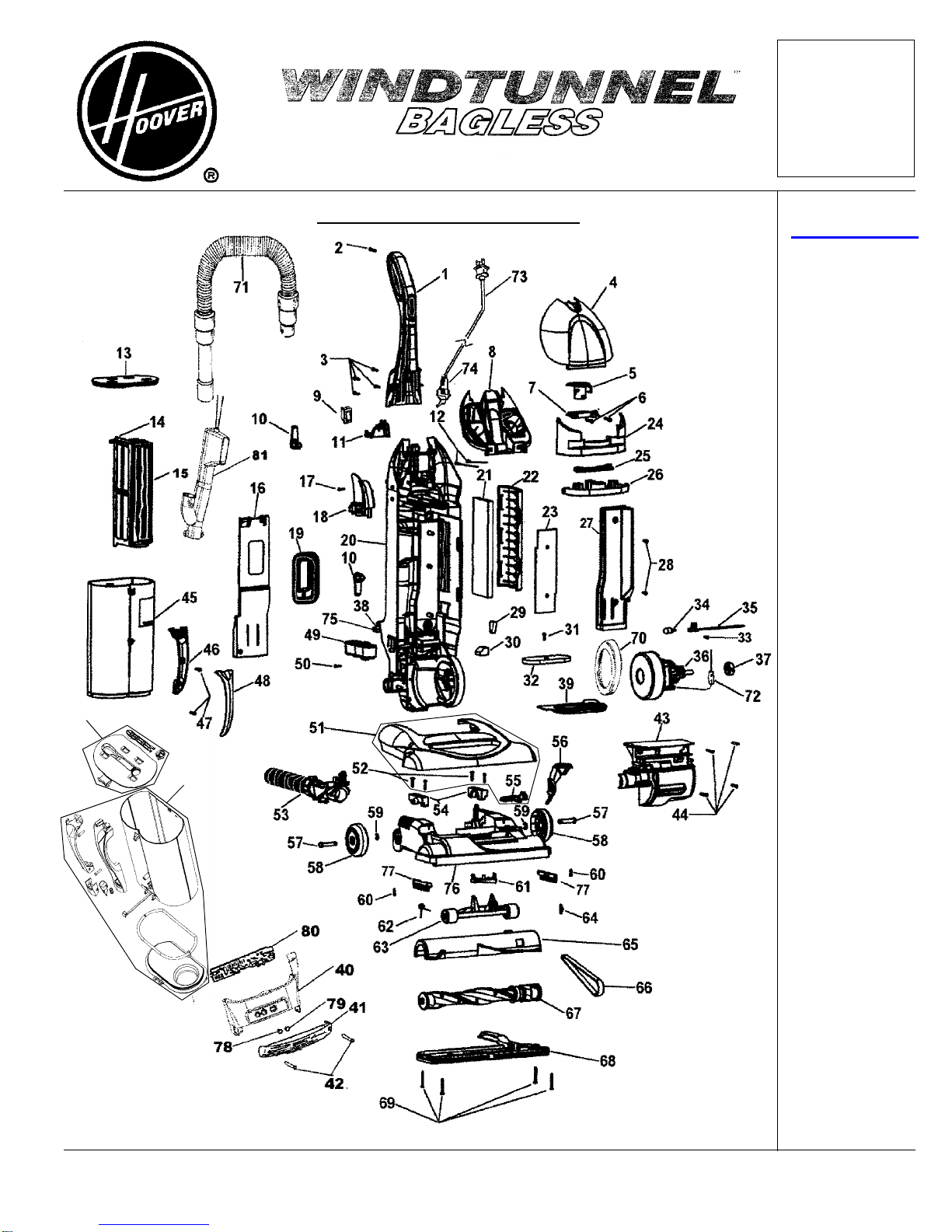

ASSEMBLY S CHEMATIC
13
45
U5753-900
U5760-900
U5786-900
UH40115
UH40125

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
ITEM PART N UMBER MODELS T O F IT PART DESCRIPTION LIST C OST
1 39466088 ALL
UPPER HANDLE ASSEMBLY -
DARK CHARCOAL GRAY
9.06
2 21447236 ALL SCREW 1.12
3 21447072 ALL SCREW .57
4 37257305 ALL TOOL DOOR WITH LOGO 5.44
92001283 ALL TOOL DOOR - SUB 4.86
5 38562034 ALL DIRT CUP LID LATCH - BLACK 1.12
6 21447242 ALL SCREW - SELF TAPPING 1.12
7 36155013 ALL
DIRT CUP LID LATCH HOLDER -
DARK CHARCOAL GRAY
1.12
8 36433146 ALL TOOL HOLDER - DARK CHARCOAL GRAY 9.74
9 28161075 ALL SWITCH - TWO BLACK LEADS 2.63
10 39442048 ALL CORD WRAP - MAGNESIUM GRAY 1.14
11 36923004 ALL SWITCH SUPPORT - DARK CHARCOAL GRAY 2.26
12 21447246 ALL SCREW 1.12
13 37249042
U5753900, U5760900
DIRT CUP LID 6.20
42249015
U5786900, UH40115,
UH40125
DIRT CUP LID ASSEMBLY 4.06
14 36426068
U5753900, U5760900
PRE-FILTER SUPPORT ASSEMBLY 10.12
36426099
U5786900, UH40115,
UH40125
PRE-FILTER SUPPORT ASSEMBLY 6.07
15 40140201 ALL CARTRIDGE FILTER 16.00 NON DISC
16 37258121 ALL
WIRE CHANNEL COVER -
DARK CHARCOAL GRAY
4.86
17 21447242 ALL SCREW - SELF TAPPING 1.12
18 36433148 ALL
UPPER WAND/HOSE HOLDER -
DARK CHARCOAL GRAY
3.16
19 38783027 ALL DIRT CUP INLET SEAL - BLACK 4.53
20 42259027 ALL
BACK HOUSING ASSEMBLY -
DARK CHARCOAL GRAY
40.24
21 40110006 ALL FINAL / EXHAUST FILTER - 2 PK 3.49 NON DISC
22 37257289 ALL
FINAL / EXHAUST FILTER DOOR -
MIST GRAY TRANSPARENT
6.79
23 ALL FOAM - MUFFLER FILTER N.A.
7-3
PART L ISTING / P RICE L IST
U5753-900
U5760-900
U5786-900
UH40115
UH40125

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
PART L ISTING / P RICE L IST
7-4
ITEM PART NUMBER MODELS T O F IT PART DESCRIPTION LIST COST
24 37258181
U5753900
DIRT CUP LATCH COVER SHROUD -
COSMIC BLUE METALLIC
5.66
37258166
U5760900
DIRT CUP LATCH COVER SHROUD -
PEWTER METALLIC
5.88
37258210
U5786900, UH40115
DIRT CUP LATCH COVER SHROUD -
SILVER PENDING
37258223
UH40125
DIRT CUP LATCH COVER SHROUD -
GRAPHITE GRAY METALLIC PENDING
25 37258185
U5753900
CAM SLOT CAP - COSMIC BLUE METALLIC 1.81
37258167
U5760900
CAM SLOT CAP - PEWTER METALLIC N.L.A.
37258206
U5786900, UH40115,
UH40125
CAM SLOT CAP - SILVER PENDING
26 38567062 ALL DIRT CUP LATCH COVER 2.57
27 37259016 ALL
MUFFLER FILTER COVER -
DARK CHARCOAL GRAY
4.86
28 21447242 ALL SCREW - SELF TAPPING 1.12
29 34131009 ALL WIRE CHANNEL FOAM 1.12
30 34131019 ALL WIRE OPENING PLUG 1.12
31 21447242 ALL SCREW - SELF TAPPING 1.12
32 38762008 ALL SECONDARY / INLET FILTER 2.47
33 21447072 ALL SCREW .57
34 27313101 ALL LAMP - LIGHT BULB 2.26
35 47173027 ALL WIRING HARNESS 4.53
36 27212057 ALL MOTOR ASSEMBLY COMPLETE 62.09
37 36322030 ALL MOTOR MOUNT - SMALL 1.12
38 21447242 ALL SCREW - SELF TAPPING 1.12
39 43615088 ALL SECONDARY / INLET FILTER RETAINER 4.53
40 37944024
U5753900
CIRCUIT BOARD COVER - COSMIC BLUE 5.31
37944027
U5760900
CIRCUIT BOARD COVER - PEWTER 5.31
37944031
U5786900, UH40115
CIRCUIT BOARD COVER - SILVER PENDING
37944042
UH40125
CIRCUIT BOARD COVER - GRAPHITE GRAY PENDING
51464006 ALL EDF NAME PLATE PENDING
41 39383107 ALL LENS 2.59
42 21447228 ALL SCREW - SELF TAPPING .57
43 37196160 ALL MOTOR COVER 9.06
44 21447230 ALL SCREW - SELF TAPPING 1.12
U5786900, UH40115,
UH40125
DIRT CUP HANDLE - ORDER #45
U5753-900
U5760-900
U5786-900
UH40115
UH40125

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
PART L ISTING / P RICE L IST
ITEM PART N UMBER MODELS T O F IT PART DESCRIPTION LIST C OST
45 42254195 ALL COMPLETE DIRT CUP ASSEMBLY 42.77
46 39457018
U5753900, U5760900
DIRT CUP HANDLE - INNER 3.39
47 21447043 ALL SCREW - SELF TAPPING .57
48 39457049
U5753900
DIRT CUP HANDLE COVER 4.86
39457033
U5760900
DIRT CUP HANDLE COVER 4.86
U5786900, UH40115,
UH40125
DIRT CUP HANDLE COVER - ORDER #45
49 36433147 ALL
LOWER WAND HOLDER -
DARK CHARCOAL GRAY
1.69
50 21447242 ALL SCREW - SELF TAPPING 1.12
51 37253419
U5753900
HOOD / NOZZLE COVER - BLUE 17.00
37253393
U5760900
HOOD / NOZZLE COVER - PEWTER 28.34
42252B76
U5786900, UH40115
HOOD / NOZZLE COVER - SILVER 43.73
42252B82
UH40125
HOOD / NOZZLE COVER - GRAPHITE GRAY PENDING
52 21447072 ALL SCREW .57
53 43516010 ALL LOWER HOSE / VALVE ASSEMBLY 13.60
54 36131094 ALL TRUNNION COVER 1.12
55 40309004 ALL HEIGHT ADJUSTMENT LEVER AND CAM 3.16
56 38458043 ALL HANDLE RELEASE LEVER 2.26
57 32434007 ALL REAR AXEL 1.12
58 38522077
U5753900, U5760900
REAR WHEEL 2.26
43247033
U5786900, UH40115,
UH40125
REAR WHEEL ASSEMBLY 6.82
59 160017-- ALL LOCK RING .58
60 21447228 ALL SCREW - SELF TAPPING .57
61 40309004 ALL HEIGHT ADJUSTMENT LEVER AND CAM 3.16
62 38355010 ALL TORSION SPRING 1.12
63 43248064 ALL FRONT WHEEL ASSEMBLY COMPLETE 9.06
64 013261AY ALL RIB SHOES .57
65 40309026 ALL BOTTOM PLATE DUCT AND NOZZLE GUARD 19.27
66 38528033 ALL FLAT BELT 1.15 NON DISC
40201160 ALL FLAT BELT - 2 PACK 1.50 NON DISC
67 48414132 ALL AGITATOR / BRUSH ROLL - 15” WOODEN 17.25
68 ORDER #65 ALL
BOTTOM PLATE DUCT AND NOZZLE GUARD
N.L.A.
7-5
U5753-900
U5760-900
U5786-900
UH40115
UH40125

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010 7-6
ITEM PART NUMBER MODELS T O F IT PART D ESCRIPTION LIST C OST
69 21447121 ALL SCREW .57
70 36322037 ALL MOTOR MOUNT - LARGE 2.59
71 43491087 ALL HOSE ASSEMBLY 13.60
72 28382093 ALL THERMAL PROTECTOR 7.58
73 46383334 ALL POWER CORD - 35’ 15.87
74 36215028 ALL CORD PROTECTOR 1.81
75 36171035 ALL HOSE CLAMP 1.12
76 37242135 ALL MAIN BODY / NOZZLE BASE 15.87
77 39511018 ALL LITTER PICKER - BLACK 2.26
78 ALL GREEN LENS - SNAP IN N.A.
79 27352030 ALL RED LENS - SNAP IN .60
80 46851083 ALL PRINTED CIRCUIT BOARD 9.44
81 43486014
U5753900, U5760900
DIRT DUCT TUBE WITH MICROPHONE 4.53
43486020
U5786900, UH40115,
UH40125
DIRT DUCT TUBE WITH MICROPHONE PENDING
38614044
U5753900, U5760900
FURNITURE NOZZLE - GRAPHITE GRAY 5.66
38614045
U5786900, UH40115,
UH40125
FURNITURE NOZZLE - BLACK 3.39
38617031 ALL CREVICE TOOL - LONG GRAPHITE GRAY 5.66
38617033 ALL CREVICE TOOL - SHORT 3.39
38634078 ALL EXTENSION TUBE - BLACK 6.79
43414197 ALL DUSTING BRUSH ASSEMBLY - BLACK 2.68
49129032 ALL TURBINE HAND TOOL 14.62
43434043 ALL
HOSE ASSEMBLY DELUXE - 20’
EXTRA REACH
43.46
PART L ISTING / P RICE L IST
U5753-900
U5760-900
U5786-900
UH40115
UH40125

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
ASSEMBLY S CHEMATIC
13
45
7-7
U5762-900
UH40020
UH40065
UH40145B
UH40265

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
PART L ISTING / P RICE L IST
ITEM PART NUMBER MODELS T O F IT PART D ESCRIPTION LIST COST
1 39466088 ALL
UPPER HANDLE ASSEMBLY -
DARK CHARCOAL GRAY
9.06
2 21447236 ALL SCREW 1.12
3 21447072 ALL SCREW .57
4 37257263
U5762900
TOOL DOOR WITH LOGO 9.06
37257305 ALL TOOL DOOR WITH LOGO 5.44
5 38562034 ALL DIRT CUP LID LATCH - BLACK 1.12
6 21447242 ALL SCREW - SELF TAPPING 1.12
7 36155013 ALL
DIRT CUP LID LATCH HOLDER -
DARK CHARCOAL GRAY
1.12
8 36433149
U5762900
TOOL HOLDER 4.17
36433146 ALL TOOL HOLDER - DARK CHARCOAL GRAY 9.74
9 28161075 ALL SWITCH - TWO BLACK LEADS 2.63
10 39442048 ALL CORD WRAP - MAGNESIUM GRAY 1.14
11 36923004 ALL SWITCH SUPPORT - DARK CHARCOAL GRAY 2.26
12 21447246 ALL SCREW 1.12
13 37249042
U5762900
DIRT CUP LID - DARK CHARCOAL GRAY 6.20
42249015
UH40020, UH40125,
UH40145B, UH40265
DIRT CUP LID ASSEMBLY 4.06
14 36426068
U5762900
PRE-FILTER SUPPORT ASSEMBLY 10.12
36426099
UH40020, UH40125,
UH40145B, UH40265
PRE-FILTER SUPPORT ASSEMBLY 6.07
15 40140201 ALL CARTRIDGE FILTER 16.00 NON DISC
16 37258121 ALL
WIRE CHANNEL COVER -
DARK CHARCOAL GRAY
4.86
17 21447242 ALL SCREW - SELF TAPPING 1.12
18 36433148 ALL
UPPER WAND/HOSE HOLDER -
DARK CHARCOAL GRAY
3.16
19 38783027 ALL DIRT CUP INLET SEAL - BLACK 4.53
20 42259027 ALL
BACK HOUSING ASSEMBLY -
DARK CHARCOAL GRAY
40.24
37255015 ALL
REAR MUFFLER COVER -
DARK CHARCOAL GRAY
1.46
21 40110006 ALL FINAL / EXHAUST FILTER - 2 PK 3.49 NON DISC
38766030 ALL FINAL / EXHAUST FILTER WITH SLIT - 1 EA 4.19
22 37257289 ALL
FINAL / EXHAUST FILTER DOOR -
MIST GRAY TRANSPARENT
6.79
23 ALL FOAM - MUFFLER FILTER N.A.
7-8
U5762-900
UH40020
UH40065
UH40145B
UH40265

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
PART L ISTING / P RICE L IST
ITEM PART N UMBER MODELS T O F IT PART D ESCRIPTION LIST C OST
24 37258166
U5762900
DIRT CUP LATCH COVER SHROUD -
PEWTER METALLIC
5.88
38258215
UH40020, UH40265
DIRT CUP LATCH COVER SHROUD -
BRONZE PENDING
37258218
UH40065
DIRT CUP LATCH COVER SHROUD -
EASY BLUE PENDING
37258224
UH40145B
DIRT CUP LATCH COVER SHROUD - CRIMSON PENDING
25 37258206 ALL CAM SLOT CAP - SILVER PENDING
26 38567062 ALL DIRT CUP LATCH COVER 2.57
27 37259016 ALL
MUFFLER FILTER COVER -
DARK CHARCOAL GRAY
4.86
28 21447242 ALL SCREW - SELF TAPPING 1.12
29 34131009 ALL WIRE CHANNEL FOAM 1.12
30 34131019 ALL WIRE OPENING PLUG 1.12
31 21447242 ALL SCREW - SELF TAPPING 1.12
32 38762008 ALL SECONDARY / INLET FILTER 2.47
33 21447072 ALL SCREW .57
34 27313101 ALL LAMP - LIGHT BULB 2.26
35 47173027 ALL WIRING HARNESS 4.53
36 27212057 ALL MOTOR ASSEMBLY COMPLETE 62.09
49811079 ALL LEAD WIRE - WHITE 12 AMP 1.12
37 36322030 ALL MOTOR MOUNT - SMALL 1.12
38 21447242 ALL SCREW - SELF TAPPING 1.12
39 43615088 ALL SECONDARY / INLET FILTER RETAINER 4.53
40 37944023
U5762900
CIRCUIT BOARD COVER - SILVER QUARTZ 5.31
37944037
UH40020, UH40265
CIRCUIT BOARD COVER - BRONZE PENDING
37944039
UH40065
CIRCUIT BOARD COVER - EASY BLUE PENDING
37944043
UH40145B
CIRCUIT BOARD COVER - RED PENDING
41 39383107 ALL LENS 2.59
42 21447228 ALL SCREW - SELF TAPPING .57
43 37196160 ALL MOTOR COVER 9.06
44 21447230 ALL SCREW - SELF TAPPING 1.12
45 42254195 ALL COMPLETE DIRT CUP ASSEMBLY 42.77
46 39457018
U5762900
DIRT CUP HANDLE - INNER 3.39
UH40020, UH40125,
UH40145B, UH40265
DIRT CUP HANDLE - ORDER #45
7-9
U5762-900
UH40020
UH40065
UH40145B
UH40265

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
PART L ISTING / P RICE L IST
ITEM PART NUMBER MODELS T O F IT PART DESCRIPTION LIST COST
47 21447043 ALL SCREW - SELF TAPPING .57
48 39457033
U5762900
DIRT CUP HANDLE COVER 4.86
UH40020, UH40125,
UH40145B, UH40265
DIRT CUP HANDLE COVER - ORDER #45
49 36433147 ALL
LOWER WAND HOLDER -
DARK CHARCOAL GRAY
1.69
50 21447242 ALL SCREW - SELF TAPPING 1.12
51 37253390
U5762900
HOOD / NOZZLE COVER - BLACK N.L.A.
42252B78
UH40020, UH40265
HOOD / NOZZLE COVER - BRONZE 43.73
42252B75
UH40065
HOOD / NOZZLE COVER - EASY BLUE 43.73
42252B81
UH40145B
HOOD / NOZZLE COVER - CRIMSON PENDING
52 21447072 ALL SCREW .57
53 43516010 ALL LOWER HOSE / VALVE ASSEMBLY 13.60
54 36131094 ALL TRUNNION COVER 1.12
55 40309004 ALL HEIGHT ADJUSTMENT LEVER AND CAM 3.16
56 38458043 ALL HANDLE RELEASE LEVER 2.26
57 32434007 ALL REAR AXEL 1.12
58 38522077
U5762900
REAR WHEEL 2.26
43247033
UH40020, UH40125,
UH40145B, UH40265
REAR WHEEL ASSEMBLY 6.82
59 160017-- ALL LOCK RING .58
60 21447228 ALL SCREW - SELF TAPPING .57
61 40309004 ALL HEIGHT ADJUSTMENT LEVER AND CAM 3.16
62 38355010 ALL TORSION SPRING 1.12
63 43248064 ALL FRONT WHEEL ASSEMBLY COMPLETE 9.06
64 013261AY ALL RIB SHOES .57
65 40309026 ALL BOTTOM PLATE DUCT AND NOZZLE GUARD 19.27
66 38528033 ALL FLAT BELT 1.15 NON DISC
40201160 ALL FLAT BELT - 2 PACK 1.50 NON DISC
67 48414132 ALL AGITATOR / BRUSH ROLL - 15” WOODEN 17.25
68 ORDER #65 ALL
BOTTOM PLATE DUCT AND NOZZLE GUARD
N.L.A.
69 21447121 ALL SCREW .57
70 36322037 ALL MOTOR MOUNT - LARGE 2.59
71 43491087 ALL HOSE ASSEMBLY 13.60
72 28382093 ALL THERMAL PROTECTOR 7.58
7-10
U5762-900
UH40020
UH40065
UH40145B
UH40265

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
PART L ISTING / P RICE L IST
U5762-900
UH40020
UH40065
UH40145B
UH40265
ITEM PART NUMBER MODELS T O F IT PART D ESCRIPTION LIST C OST
73 46383334 ALL POWER CORD - 35’ 15.87
74 36215028 ALL CORD PROTECTOR 1.81
75 36171035 ALL HOSE CLAMP 1.12
76 37242135 ALL MAIN BODY / NOZZLE BASE 15.87
77 39511018 ALL LITTER PICKER - BLACK 2.26
78 43486010
U5762900
DIRT DUCT TUBE 9.06
43486019
UH40020, UH40125,
UH40145B, UH40265
DIRT DUCT TUBE PENDING
38614044
U5762900
FURNITURE NOZZLE - GRAPHITE GRAY 5.66
38614045
UH40020, UH40125,
UH40145B, UH40265
FURNITURE NOZZLE - BLACK 3.39
38617031 ALL CREVICE TOOL - LONG GRAPHITE GRAY 5.66
38617033 ALL CREVICE TOOL - SHORT 3.39
38634078 ALL EXTENSION TUBE - BLACK 6.79
43414197 ALL DUSTING BRUSH ASSEMBLY - BLACK 2.68
49129032 ALL TURBINE HAND TOOL 14.62
43434043 ALL
HOSE ASSEMBLY DELUXE - 20’
EXTRA REACH
43.46
59156137 UH40145B - ALL BARE FLOOR BRUSH 12.46
59132033 ALL 12” HARD FLOOR BRUSH - BLACK 22.67
7-11

MODEL NO.
888.321.1134
7
HOOVER SM 07-2010
NOTES
7-12
U5753-900
U5760-900
U5762-900
U5786-900
UH40020
UH40065
UH40115
UH40125
UH40145B
UH40265

This document was created with Win2PDF available at http://www.daneprairie.com.
The unregistered version of Win2PDF is for evaluation or non-commercial use only.
