1. Product Overview
1
LTE:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B25, B26, B28, B29, B38,
B39, B40, B41, B42, B46, B48, B66
5G Sub-6 NR Band:
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66,
n77, n78, n79
EMEA Band
LTE:
B1, B2, B3, B4, B5, B7, B12, B13, B17, B20, B25, B26, B28, B29, B38,
B39, B40, B41, B42, B46, B48, B66, B71
5G Sub-6 NR Band:
n1, n2, n3, n5, n7, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71,
n77, n78, n79
NA Band
1.1 Product introduction
This product is a multimode (LTE&5G) wireless dongle, which provides 5G & LTE Cat-20
DL and Cat-18 UL connectivity. With its compact dimension and light weight, it can be
used to provide internet access on-the-go, as well as at home.
1.2 Product dimension & weight
Item
Description
Appearance
Dimension
74.5 x 44.8 x 7.7mm
Weight
41g

1. Product Overview
DG505G
2
1.3 Product specification
Item
Description
Chipset
Mediatek T750
Flash/Memory
LPDDR4X 8Gb/ NAND 8Gb
Status Indicator
Trio colors LED x1
I/O Interface
Nano-SIM
USB Type-C
Power
USB Type-C 5V/3A
Color
White
Dimension
74.5 x 44.8 x 7.7mm/ 41g
Platform Support
Windows 11/10, Linux, Chrome OS, macOS, IPadOS
Management
Web GUI

2. Quick Installation
DG505G
3
Nano
SIM
The LED indicator on the device:
Red light flashing: Firmware upgrade or Factory reset
LED
Indicator
Green light flashing:
Booting/ Searching/ 4G connecting
Green light always on: 4G connected
Blue light flashing: 5G connecting
Blue light always on: 5G connected
Red light always on: No connection
2.1 Insert the SIM card
Lift the SIM door and insert the Nano-SIM into the slot. The gold contacts facing
downward. Push the SIM card into slot smoothly with finger, do not use any tools.
2.2 Plug the dongle into your computer
Plug dongle’s USB type C cable to device (e.g. Notebook, etc.) Do not use it through
other adapter or cable.
2.3 Confirm the LED indicator status
Check dongle’s LED lighting, and wait for booting for 30~40 seconds.

2. Quick Installation
DG505G
4
2.4 Check the Ethernet network status
Check if your Ethernet network is connected.
(Note: Horizon 5G dongle supports Windows 11/10, Linux, Chrome OS, macOS, IPadOS. For Mac
OS we could support version 10 or later.
2.5 Log in to the Web UI
For further network configuration, please log in to the Web UI. Enter http://192.168.1.1
into your internet browser. You are now on your 5G dongle home page where you can
check cellular profile, signal strength, SMS and system time.

3. Web UI Introduction
DG505G
5
3.1 Web homepage
The Web User Interface is compatible with the following browsers:
•Google Chrome
•Mozilla Firefox
•Internet Explorer 11 or later.
•Safari 13 or later
•Microsoft Edge
3.1.1 How to log in to the Web UI
a. Open your web browser.
b. Type http://192.168.1.1 into the address bar and press enter. Click “Enter”
to get into the WebUI. The Home page will then load, as shown in the
screenshot below.

3. Web UI Introduction
DG505G
6
3.1.2 Status bar icons
Description
Icon displayed
Signal indicator
From no signal to excellent
Connection status
Disconnected Connected
SMS
New message / Unread message(s) in inbox
SMS inbox is full

3. Web UI Introduction
DG505G
7
3.2 Status
Here you can see the internet status, including:
•SIM status
•Connection status
•Network name
•Network type
•RSRP
•RSSI
•Band
•LTE Cell ID
•Profile name

3. Web UI Introduction
DG505G
8
3.3 Settings
3.3.1 Setup
a. Network connection
•Network connection lets you configure connection mode and data
roaming.
•Selecting connection mode Auto will establish an internet connection
automatically.
•Selecting connection mode Manual will establish an internet
connection manually. You will need to click the connect button on the
Status page, to establish a data call.
b. Profile management
Profile management allows you to set up a new APN profile or edit/delete
existing profiles that have been created.
•How to add a new profile
1) Click New.
2) Input the connection settings for your network provider, a
Profile name, Dial number and APN are mandatory.
3) Click Save.
•How to delete a profile:
1) Select the profile from the Profile name list.
2) Click Delete.
(Note: The default profile cannot be deleted.)

3. Web UI Introduction
DG505G
9
•Setting as default:
1) Select the profile from the Profile name list.
2) Click Set default.
(Note: Once the new profile has been set as default, (Default) will
be added next to the profile name.)

3. Web UI Introduction
DG505G
10
c. Network settings
You can set the Network search mode to either Auto or Manual and change
the network mode to either Auto (5G/4G) or 4G only.
Ensure that you click Apply after making any changes.
If the Network search mode is set to Manual you can click Search to scan for
networks and Register to connect to the network.
(Note: It is recommended that you keep the Network search mode set to
Auto.)

3. Web UI Introduction
DG505G
11

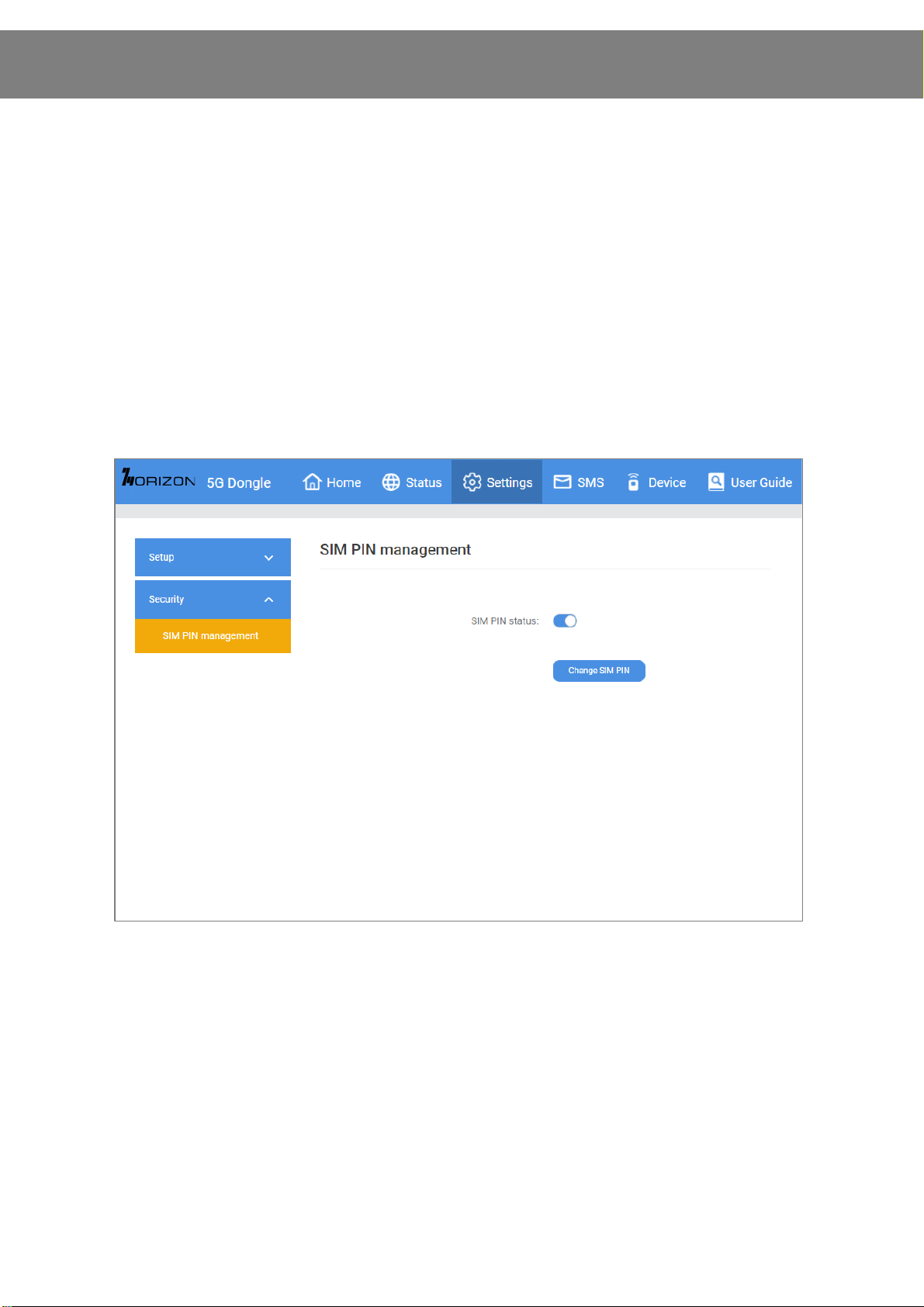

3.3.2 Security
SIM PIN management:
a. How to enable a PIN
•When a PIN is disabled, click Enable. The PIN input page is displayed.
•Enter the PIN you want to set. Your PIN must be between 4-8 digits.
•Click Apply.
•Tick Remember SIM PIN to remember the pin code.
b. How to disable a PIN
•When a PIN is enabled, click Disable. The PIN input page is displayed.
•Enter the correct PIN.
•Click Apply.

3. Web UI Introduction
DG505G
12
c. How to change the PIN
•When a PIN is enabled, click Change PIN. The PIN input page is
displayed.
•Enter the Old PIN/New PIN/Confrm PIN.
•Click Apply
(Note: when a PIN code is entered incorrectly 3 times a PUK code is
needed. You can obtain this from the Network Operator.)

3. Web UI Introduction
DG505G
13
d. How to verify PUK
•Enter correct PUK code, then enter the new PIN.
•Click Apply to confirm the new PIN code.
(Note: when a PUK code is entered incorrectly 10 times, SIM will be
locked permanently.)

3. Web UI Introduction
DG505G
14
3.4 SMS
3.4.1 SMS inbox
a. How to read an SMS
•Left-click the content of the message you wish to read.
b. How to delete an SMS
•Find the message you wish to delete in the Inbox.
•Tick the box in the far-right column for the message(s) that you wish
to delete.
•Click Delete.
c. How to delete all SMS
•Left-click at the top of the column to select all.
•Click Delete.

3. Web UI Introduction
DG505G
15
d. How to reply to an SMS
•Left-click the content of the message you wish to read.
•Write the reply message in the reply text box.
•Click Send.

3. Web UI Introduction
DG505G
16
3.4.2 SMS forwarding
SMS forwarding allows you to forward SMS messages that have been sent to your
5G Dongle to another mobile phone.
a. Enable SMS forwarding to mobile phone.
b. Enter the phone number you wish to have messages forwarded to.
c. Click Apply.
d. After clicking Apply, all incoming SMS will be forwarded to that mobile
phone number automatically.

3. Web UI Introduction
DG505G
17
3.5 Device
3.5.1 Device information
You can view information about your 5G Dongle here such as the IMEI, your
mobile phone number, serial number, and software version.

3. Web UI Introduction
DG505G
18
3.5.2 Device management
a. System time
b. Backup & Restore
