Horus HSC-ZP3102US-5 User manual

Installation & Operation Manual
HSC-ZP3102US-5
Wireless PIR Motion Sensor
(Temperature Sensor Built-In)

Introduction
Thanks for choosing the Horus wireless PIR motion sensor of the home security device.
This sensor is a Z-Wave TM enabled device (interoperable, two-way RF mesh networking
technology) and is fully compatible with any Z-Wave TM enabled network and it’s security
framework. Every mains powered Z-Wave TM enabled device acts as a signal repeater and
multiple devices result in more possible transmission routes which helps eliminate “RF
dead-spots”.
Z-Wave TM enabled device displaying the Z-Wave TM logo can also be used with it
regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave
TM enabled networks. This sensor monitors movement, and send Z-Wave TM signal when
movement is detected inside the building. With Temperature sensor built inside, it will
send the signal out when temperature changed. When the device is secure included into
Z-Wave network, above communication will be encrypted.
Product description and specifications
In
*** For indoor use only ***
Specification:
Package Content:
Protocol: Z-Wave™
Frequency Range:
908.42MHz (HSC-ZP3102US-5)
Operating Range: Up to 100 feet line of sight
Operating Temp.: -10°C~ 40°C (14°F~104°F)
Battery: Panasonic CR123A * 1PC
1pc
1pc
1pc
1set

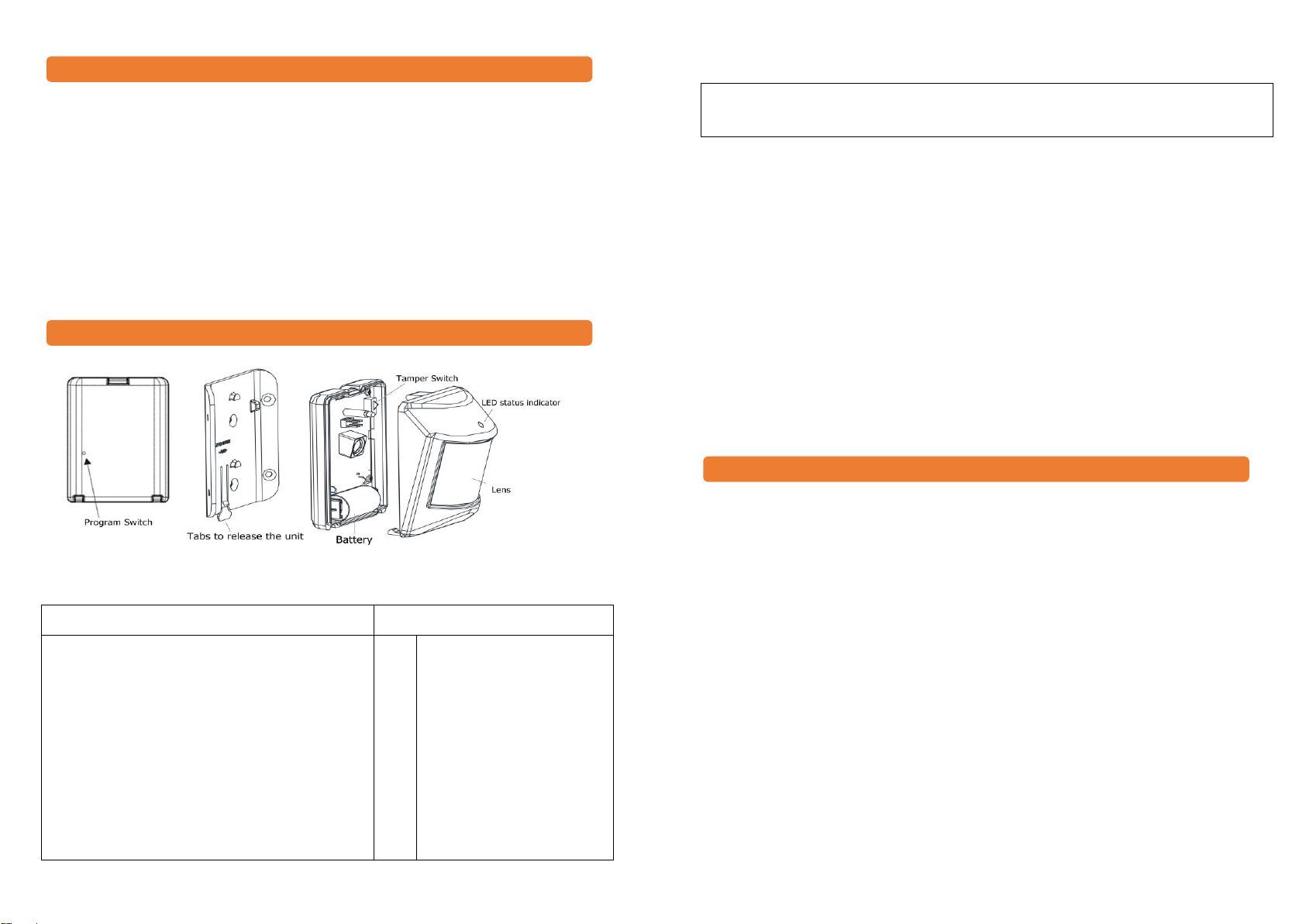

HSC-ZP3102US-5 sensor
CR123A Lithium Battery
Installation & Operation Manual
Accessory bag(including 2 screws,
1 adhesive tape & 1 bracket)
According to Directive 2014/53/EU (RED Directive) the following information shall be included:
The frequency and maximum transmitted power in EU are listed as belows,
HSC-ZP3102US-5: 868.40 –868.42 MHz: -0.15 dBm
Z-Wave Command Classes:
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_BASIC
COMMAND_CLASS_BATTERY
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_NOTIFICATION_V4 (mapping _COMMAND_CLASS_BASIC)
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SENSOR_MULTILEVEL_V5
COMMAND_CLASS_VERSION_V2
COMMAND_CLASS_WAKE_UP_V2
COMMAND_CLASS_ZWAVEPLUS_INFO_V2
Installation
Notice: If you are installing the entire Z-Wave TM system for the first time, please refer to the
installation guide of Z-Wave TM Interface Controller before installing HSC-ZP3102US-5.
1. Release cover tab to open the cover and insert a CR123A battery into the battery
compartment and LED will start to flash slowly, which means the sensor has not been
“inclusion”yet.
2. Close the cover back to sensor.
3. For “Inclusion (Auto-Inclusion)”in (adding to) a network: To add the
HSC-ZP3102US-5 to your Z-Wave network (inclusion), place your Z-Wave primary
controller into inclusion mode and the distance between sensor and controller is
suggested to be in one meter. Quick press the Program Switch of HSC-ZP3102US-5
for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion, otherwise,
HSC-ZP3102US-5 will go to sleep after 10 seconds. (P.S.: Quick press the Program
Switch to send NIF again for inclusion if the auto inclusion did not success. The
HSC-ZP3102US-5 will go to sleep after 20 seconds if the inclusion did not work).
For “Exclusion”from (removing from) a network: To remove the HSC-ZP3102US-5
from your Z-Wave network (exclusion), place your Z-Wave primary controller into
“exclusion”mode, and following its instruction to delete the HSC-ZP3102US-5 to your
controller. Quick press the Program Switch of HSC-ZP3102US-5 to be excluded. The
LED on the HSC-ZP3102US-5 should start to flash.
For “Association”: removing the cover of the HSC-ZP3102US-5 to get into “Awake”
-1-

mode, then put the Z-Wave TM Interface Controller into “association”, and following its
instruction to associate the HSC-ZP3102US-5 with other device. Close the cover
back after “association”done, afterward the HSC-ZP3102US-5 will get into “Sleep”
mode for power saving. Support grouping identifier =1 Support one association
group (5 nodes). “Association” is used for other grouping devices chain reaction.
4. Awake Mode:
It will be triggering after opening the front cover (refer Table 2), also the red LED will
keep on lasting 10 seconds and HSC-ZP3102US-5 will send “Wake Up Notification”
after 10 seconds.
5. Auto Wake Up:
Use “Wake Up” command to set up the awaking time (from 10 minutes to 1 week) and
send the wake up notification to controller
6.. Battery Capacity Detection:
* Use “Battery Get” command to have the battery capacity back in %
* It will detect the battery capacity automatically
* Low Battery Auto Report when power is lower than 2.6V +/- 0.1V
7. Temperature Report:
The user needs to get the controller for receiving the current temperature except when
the temperature is more or less than the preset degree then the sensor will
automatically report to the controller. (HSC-ZP3102US-5 will send the Multilevel
Sensor Report to Controller)
8. Configuration Command Class:
Byte
Value
Parameter 1
1
1 ~ 255 (unsigned decimal) Minutes
(default: 3 minutes)
Parameter 2
1
0x00 (Celsius) / 0x01 (Fahrenheit)
(default: 0x00)
Parameter 3
1
1 ~ 7
(default: 4)
Parameter 4
1
-10 ~ -1, 0 ~ 10 (signed decimal in Celsius)
(0xF6~0xFF, 0x0~0xA, default: 0x00)
Parameter 5
1
0x01(1°C) / 0x02(2°C)
(default: 0x02)
(Table 1)
(Parameter 1) Re-trigger duration: User can change value from 1 to 255 minutes to
setup the re-trigger time when there is no movement detected in the period of time.
Default is 3 minutes.
(Parameter 2) Celsius / Fahrenheit switching function.
(Parameter 3) Infrared sensor sensitivity adjustment, 7 levels sensitivity, 1 = most
sensitive, 7 = most insensitive, default values= 4
(Parameter 4) User Defined Celsius Adjustment , for user's own choice
(Parameter 5) Auto Temperature Report’s Interval, for user’s own choice.

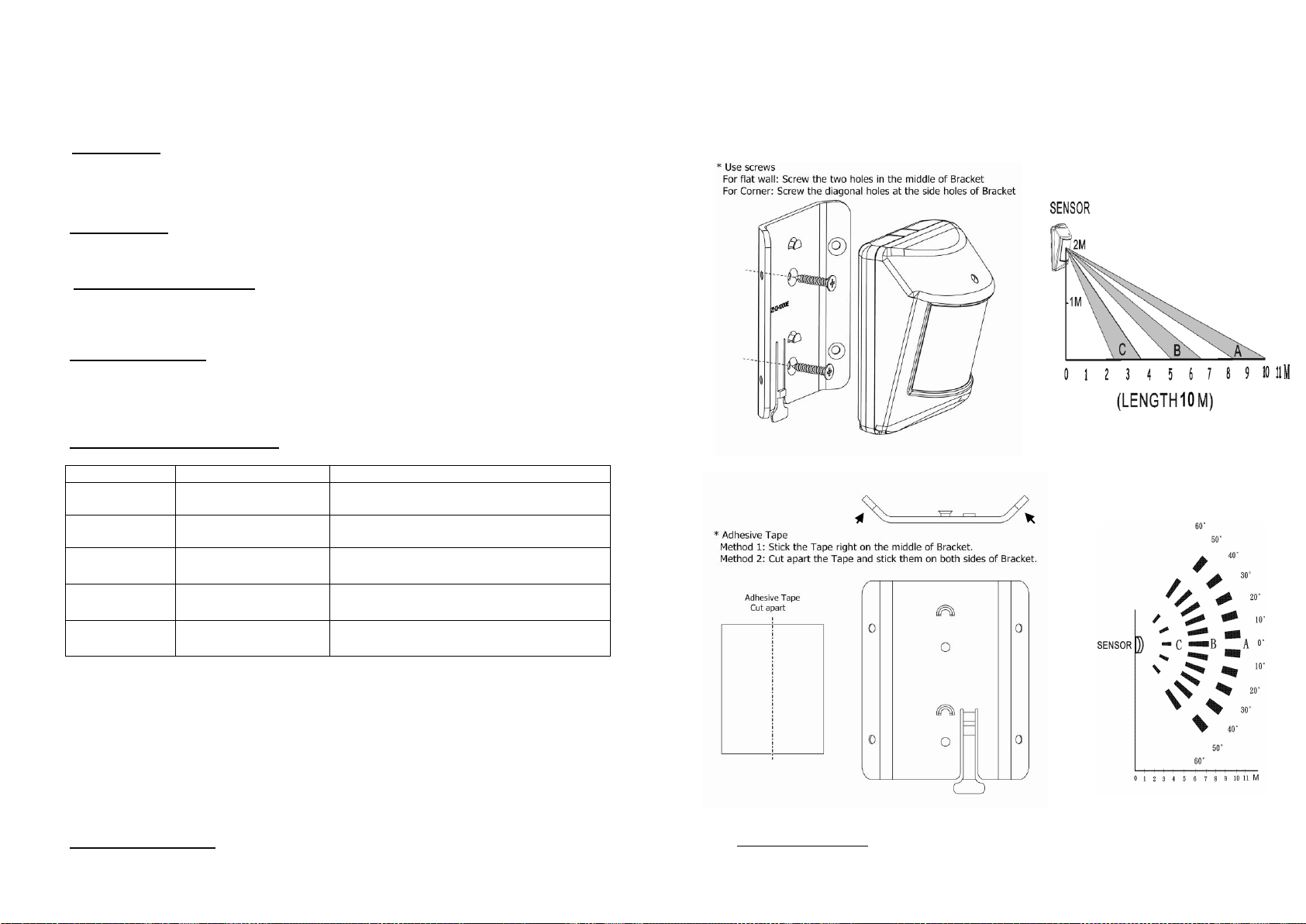

9. Mounting suggestion:
1) Using either the screws or adhesive tape to mounting the bracket of
HSC-ZP3102US-5 onto the wall or the corner.
2) Slide down & clip HSC-ZP3102US-5 into the bracket.
3) Please mount HSC-ZP3102US-5 at 2 meters high from the ground for best
performance purpose. The solid area means the detector’s coverage range.
4) To release HSC-ZP3102US-5, press the tab of the bracket & slide up
HSC-ZP3102US-5 from the bracket. Please refer the mounting method as below:
10. Factory Default Reset: Remove cover to trigged tamper switch, LED ON & send out Alarm
Report. Press Program Switch 10 times within 10 seconds, HSC-ZP3102US-5 will send the

“Device Reset Locally Notification”command and reset to the factory default. (Remark: This is
to be used only in the case of primary controller being inoperable or otherwise unavailable.)
11. All the rest commands depend on Z-Wave standard.
Operation
1. Walk in front of HSC-ZP3102US-5, sensor will send Basic set On (0xFF) , LED willl
flash once and please refer to status report as table below.
2. If no movement detected in three minutes (default is 3 minutes - based on user’s
configuration setting, refer Table 1, Parameter 1) will send Basic Set OFF (0x00), LED
will flash once, and refer to table for status.
3. The HSC-ZP3102US-5 sensor equipped with tamper switch. If the tamper switch is
triggered (or remove the cover), the PIR sensor will send Alarm Report, LED will go
solid, and refer to table for status.
4. If the tamper switch is closed (or closed the cover), HSC-ZP3102US-5 will send Alarm
Report, LED will go off, and refer to table for status.
5. Alarm report willl not be send if there is no association set. Before closing the tamper
switch (or closed the cover), the sensor is under “Awake”mode.
Alarm V1
(Movement &
Tamper Switch)
Notification V4
(Movement)
Notification
V4
(Tamper Switch)
Alarm Type
0x07
Alarm Level
0x00 (No
movement after 3
mins)
0xFF (Motion
detected)
Notification Type
0x07
0x07
Notification
Event
0x08(Motion Detected)/
0x00 (no movement after 3 mins)
0x03(remove cover)/
0x00 (cover closed)
Notification
Parameter
0x08
0x03
(Table 2)
6. Support OTA Firmware update from controller. Please refer to your controller manual.
Once OTA function success,
7. Support AES Function. Security enabled_ Z-Wave controller must be used to fully
utilize the product.
