Cabinet Construction
•Stainless steel doors, front panel and interior floor, along
with Anodized aluminum sides and interior for long life,
durability and easy maintenance
•(3) heavy duty epoxy shelves per unit are standard;
Mounted on stainless steel pilasters shelves are adjustable in
1” increments
•Cabinet door perimeter heater provides condensation control
in high humidity environments and is equipped with a back-up
heater should the primary heater fail; Manual power switch
allows for energy savings in low humidity conditions
•Cabinet and doors are 2 3/8” thick, insulated with R-134A,
CFC free foamed in place polyurethane
•Interior light automatically activated when doors are opened
•4" heavy duty casters
Door Construction
•Doors are constructed of high grade 300 Series stainless steel
inside and out (HD:Two half doors per section)
•Flush mount door handles maximize aisle space by eliminating
protruding parts
•Door hinges are all metal with tension spring closure and will not
wear out like traditional cam-lift hinges; Doors stay open at 105˚
and are self-closing at 75˚; Door hinge spring tension is adjustable
•Step door design protects door gasket when product is removed
from the box; Snap-in magnetic door gaskets are durable and easily
removed
•Door hinging is field reversible
Refrigeration System
•High efficiency refrigeration system is designed with a large capacity
condenser and evaporator resulting in lower overall power consumption
•Refrigeration system is mounted on a fully insulated rotocast platform
and is easily removable from the main unit
•Evaporator coil is coated for extended life
•Refrigeration system equipped with solid state digital controls
•Controls can be set to initiate heated defrost cycles every 3, 4,
8, 12 or 24 hours as required
•Removable, cleanable air filter protects condenser and reduces
cleaning requirements
•Hot gas condensate evaporator is standard with a condensate overflow
tube to direct excess water away from top of cabinet under extreme conditions
•Electric condensate evaporator is standard
•Refrigerant: R-404A with expansion valve control
*The FH1-AAC, FH2-AAC and the FH2-AAC-HD freezers are ENERGY STAR ertified.
Hoshizaki
©HOSHIZAKI AMERICA, INC.
618 Hwy. 74 S., Pea htree City, GA 30269 TEL [phone] FAX [phone] www.hoshizaki. om
FFHH11--AAAACC--((HHDD)) DDIIMMEENNSSIIOONNSS
W x D x H
FH1-2-AAC-(HD)
8/08
Item # 13140
SAFETEMP®REACH-IN FREEZERS
arranty
Valid in United States, Canada, uerto Rico, & U.S. Territories. Contact factory for warranty in
other countries.
T o Year - arts & Labor on entire machine.
Five Year - arts on: Compressor.
FH1-2-AAC-(HD)
Item #
Project:
Qty:
Hoshizaki reserves the right to change specifications without notice.
27.5 x 33.6 x 82.5*
*with 4" casters

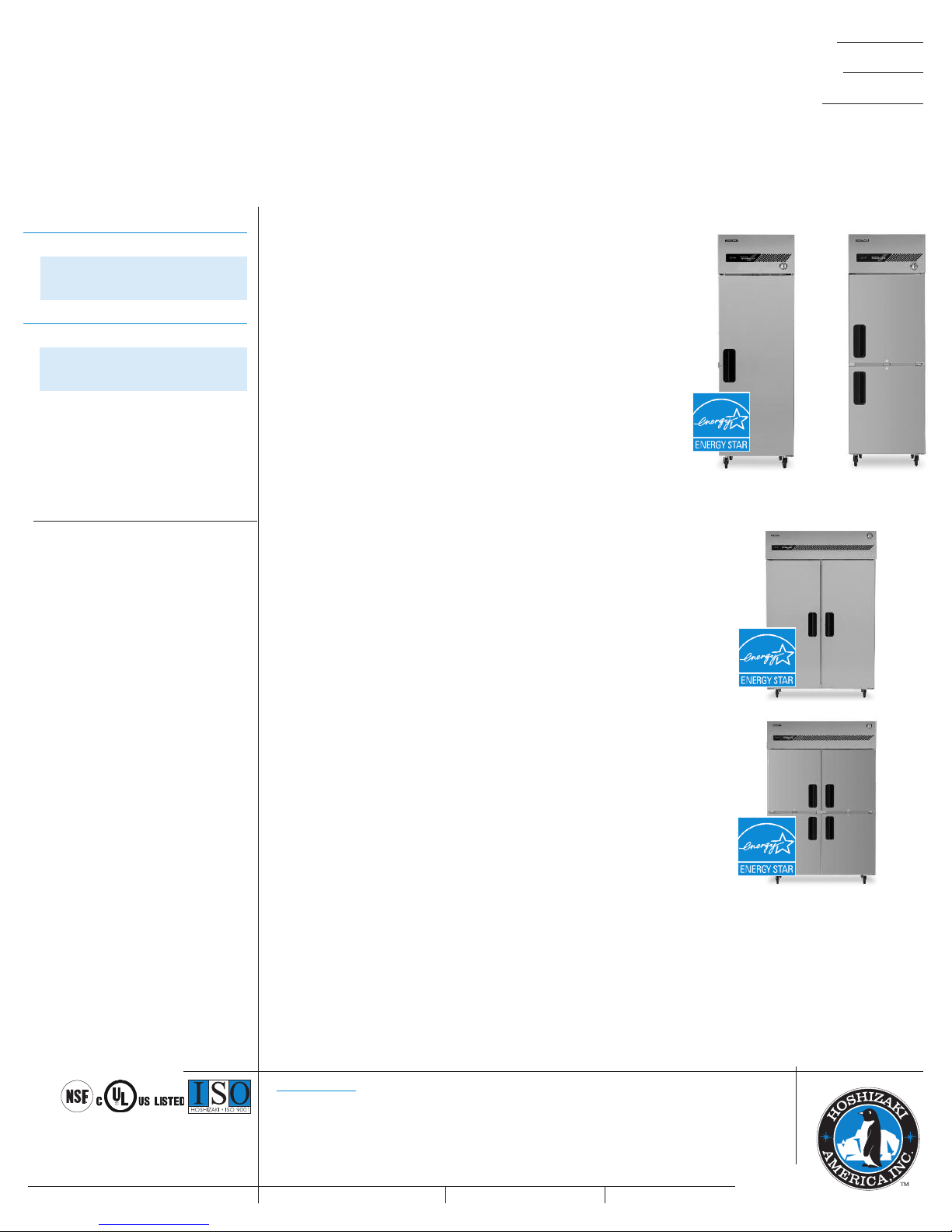

SAFETEMP®Self-Contained Reach-In Freezers
FH1-AAC-(HD)
*AutoCad available on KCL
FFHH22--AAAACC--((HHDD)) DDIIMMEENNSSIIOONNSS
W x D x H
55 x 33.6 x 82.5*
*with 4" casters
FH2-AAC-(HD)
*
*
*

©HOSHIZAKI AMERICA, INC.
618 Hwy. 74 S., Pea htree City, GA 30269 TEL [phone] FAX [phone] www.hoshizaki. om Printed in U.S.A.
OPTIONS
• 6" Die-cas legs w/s ainless • Door reversal ki
s eel fee
• Addi ional epoxy (cen er) shelves • S ainless s eel shelves
• Pa en ed foo pedal door • Universal combina ion
opener ray/pan slides
DIMENSIONS/CAPACITY
Model #
Interior Storage Capacity (CF)
Overall Width
Overall Depth
Height (including 4" casters)
Depth with Door open at 90°
Door Opening Width
Door Opening Height (Full Door)
Door Opening Height(Half Door)
Adjusta le Shelves/Center Shelves
Shelf Dimensions (W x D)
Crated Shipping Weight
Crated Height
Crated Width
Crated Depth
One Section
FH1-AAC-(HD)
ELECTRICAL & REFRIGERATION DATA
Model #
Voltage
Amperage
HACR Breaker
Electrical Connection(NEMA)
*Energy Consumption(kwh/day)
* Heat Rejection(B U/Hr.)
Approximate Nominal
Compressor B U/Hr.(HP)
Voltage Range
Am ient Temp. Range
Control Setpoint Range
*Refrigerant
27.5"
33.6"
82.5"
58.5"
21.75" ea.
59.25"
26.75"
3 / NA
21.25" x 26"
400 lb
85"
32"
38"
* Based on 100°F ambient cycling at setpoint
22.3 ft348.3 ft3
Two Section
FH2-AAC-(HD)
55"
33.6"
82.5"
58.5"
21.75" ea.
59.25"
26.75"
6 / 3
21.25" x 26"
575 lb
85"
59"
38"
One Section
FH1-AAC-(HD) Two Section
FH2-AAC-(HD)
115/60/1
11.0
15.0
5 - 15P
15.0
2158
2450 (2/3 hp)
104 - 126
45˚ - 100˚F
-10˚ - +28˚F
R-404A
115/60/1
15.5
20.0
5 - 20P
23.6
3355
3690 (1 hp)
104 - 126
45˚ - 100˚F
-10˚ - +28˚F
R-404A
SIDE VIEW (ALL UNI S)
DOOR SWING (ALL UNI S)
PLAN VIEW
65.0”
58.5”
82.5”
55.0”
33.6”
82.5”
78.5”
4”
27.5”
33.6”
82.5”
FH2-AAC
FH1-AAC
PLAN VIEW
82.5”
82.5”
FH2-AAC-HD
FH1-AAC-HD
26.75”
Hoshizaki
DDIIMMEENNSSIIOONNSS
W x D x H
FH1-AAC-(HD)
27.5 x 33.6 x 82.5*
* with 4" casters
FH2-AAC-(HD)
55 x 33.6 x 82.5*
* with 4" casters
FH1-2-AAC-(HD)
SAFETEMP®FREEZERS
• 1 sec ion freezer
• 2 sec ion freezer
33.6”
