INSTRUCTIONS FOR S4E V3
AGITATOR REPLACEMENT WITH IEC
HARNESS
Instruction guide to installing IEC Plug Harness to a S4E V3 Lancer Superchiller. This will reduce the potential
of future agitator motor replacements requiring electrical termination or modifications.
Tools and equipment requiredParts required
Pliers 80000288 - MOTOR ASSY AGI ECR1 IEC
Screwdriver – Phillips (PH2) 83000542 - HARNESS AGI IEC/SPADE ASSY
Hacksaw 79135936 - SCREW M5 X16 SS PH
Drill 79150056 - NUT M05 [HEX] SS
6mm drill bit 83000034 – P-Clip
Test & Tag Equipment
Gloves and Safety Glasses
STEP 1 – Electrical isolation and access.
1.1 Isolate the chiller and remove the electrical
lead from the power outlet.
1.2 Remove the electrical box and chiller lids.
1.3 Disconnect the agitator motor leads from the control board and remove the agitator from the water bath
cradle.
Warning
As this work requires changes to the electrical wiring it should only be
performed by a fully trained & certified technician.
APPLIANCE MUST BE ISOLATED FROM ELECTRICAL SUPPLY BEFORE
COMMENCING ANY SERVICE OR MAINTENANCE WORK.
AGITATOR MOTOR
CONTROL BOARD
ELCTRICAL BOX
AGITATOR MOTOR
Control Board

www.lancerbeverage.com Page 2 of 5
Images are for illustration purposes only as product may vary. Part No 68000132
No 091-2 7 April 2020
INSTRUCTIONS FOR S4E V3 AGITATOR
REPLACEMENT WITH IEC HARNESS
STEP 2 – Prepare to modify electrical box entry
2.1 Disconnect and remove the following electrical leads from within the electrical control box –
•power Lead
•carbonator pump
•soda recirculation pump
•water pump (where fitted)
•
TIP – Take a photo of the connections to
assist with reconnection.

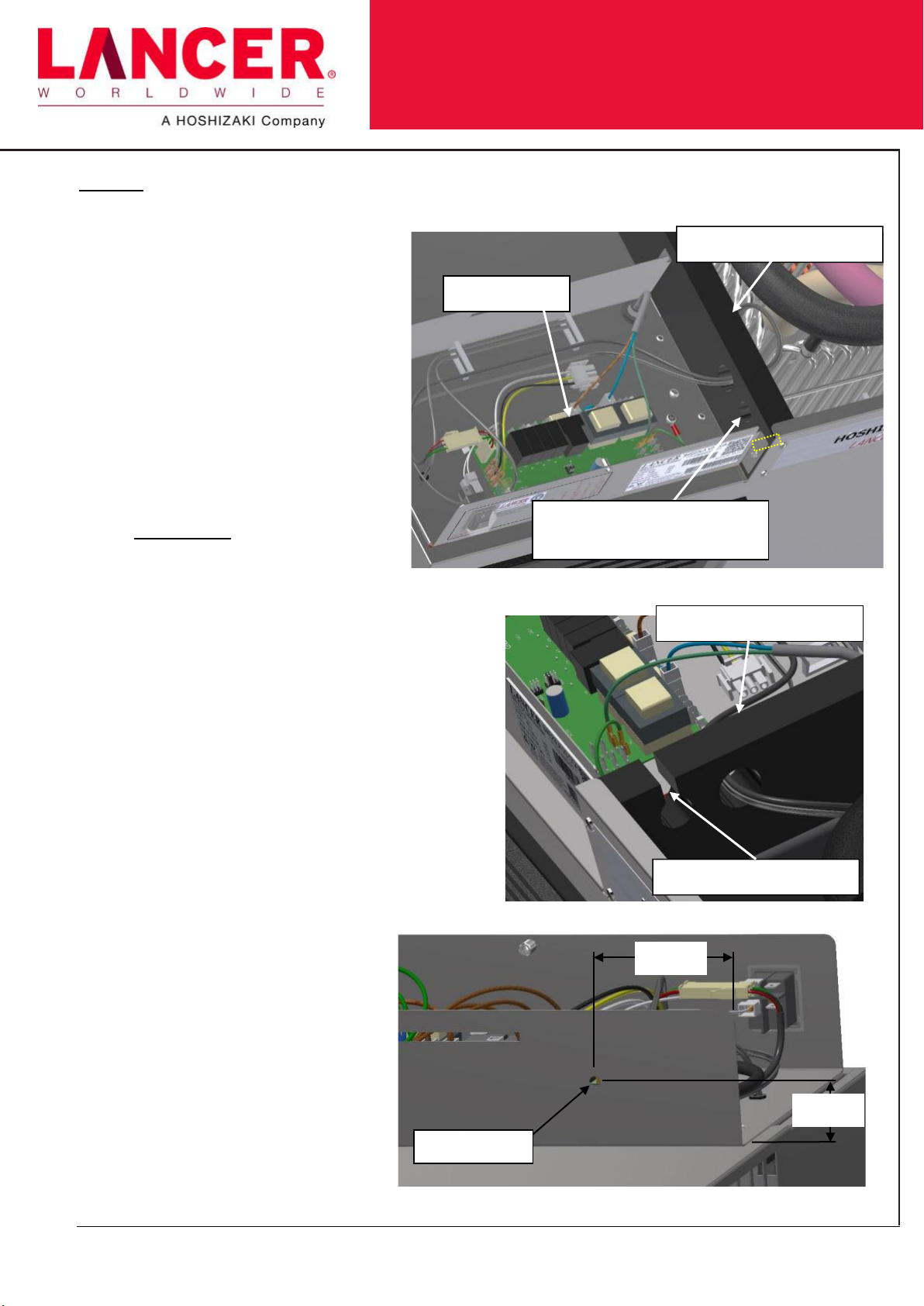

2.2 Mark cut lines on the divider panel as
a guide for cutting. This should be
approx. 10mm wide, to enable an
agitator electrical lead to fit though.
IMPORTANT: Take care not to
damage any leads or components
when cutting and drilling.
2.3 Using a hacksaw carefully cut a 10 mm wide slot
into the black plastic divider panel.
Note: Clean up plastic swarf from the cutting
process.
2.4Drill a Ø6 mm hole in the side of the
electrical box as shown.
Note: Clean up metal swarf from
the drilling process.
Black Plastic Divider Panel
Control Board
All Supply & pump Cables
removed from hole in Divider
Black Plastic Divider Panel
Slot – 9 to 10 mm Wide
Ø6 mm Hole
80 mm
35 mm

www.lancerbeverage.com Page 3 of 5
Images are for illustration purposes only as product may vary. Part No 68000132
No 091-2 7 April 2020
STEP 3– Reconnection of equipment
Reconnect and neatly lay the electrical leads back
into the electrical control box.
TIP -Reference the chiller manual electrical
drawing and previously taken photos will assist.
3.1 Power Lead
•Brown lead to terminal A.
•Blue lead to the neutral terminal J2.
•Earth lead to the earth screw with main earth
from control board.
IMPORTANT: Ensure that the supply cable is fixed to the electrical box base with the P-Clip.
3.2 Carbonator pump
•Brown lead to terminal J5.
•Blue lead to the neutral terminal J16.
•Earth lead to the earth terminal J12.
3.3 Soda recirculation pump
•Brown lead to terminal J7.
•Blue lead to the neutral terminal J18.
•Earth lead to the earth terminal J13
Terminal A
Terminal J2
P-Clip
Earth screw
POWER CABLE
J5
J16
J12
CARBONATOR PUMP
J7
J18
J13
SODA PUMP
INSTRUCTIONS FOR S4E V3 AGITATOR
REPLACEMENT WITH IEC HARNESS

www.lancerbeverage.com Page 4 of 5
Images are for illustration purposes only as product may vary. Part No 68000132
No 091-2 7 April 2020
3.4 Water pump (when fitted)
•Brown lead to terminal J6.
•Blue lead to the neutral terminal J17.
•Earth lead to the earth terminal J9.
STEP 4- adding the new harness with IEC plug
4.1 Fit and connect the Agitator harness
(83000542) to the control board.
•Brown lead to terminal J4.
•Blue lead to the neutral terminal J15.
•Earth lead to the earth terminal J10.
4.2 Attached the Agitator harness to the
drilled hole in the side of the electrical
box with the P-Clip, M5 screw and nut
supplied.
IMPORTANT:
HARNESS MUST BE SECURED IN THE “P-CLIP” AS SHOWN ABOVE
BEFORE ENERGISING.
J6
WATER PUMP
J17
J15
J4
J10
New Harness assembly 83000542
J9
M5 Screw
M5 Nut
P-Clip
Agitator harness
INSTRUCTIONS FOR S4E V3 AGITATOR
REPLACEMENT WITH IEC HARNESS

www.lancerbeverage.com Page 5 of 5
Images are for illustration purposes only as product may vary. Part No 68000132
No 091-2 7 April 2020
STEP 5- Installing the new agitator motor with an IEC plug fitted.
5.1 Fit the Agitator motor and blade into its place in the water bath cradle.
5.2 Run the Agitator cable through the clips pm the edge of the water bath into the electrical control box
and connect to the newly installed IEC plug.
NOTE: The IEC plugs for the agitator motor must be inside the electrical control box, and all the leads
must be contained in the divider bracket hole as not to get damaged by the lids.
The Harness must be secured as shown in STEP 4.2.
STEP 6 – Cleanup & testing
6.1 Refit the Electrical control box lid.
6.2 Complete the Electrical Safety Inspection and Testing (Test & Tag) procedure in line with company
and governing standards.
6.3 With a successful electrical test, reconnect the chiller to power and energize.
6.4 Confirm the agitator is functioning correctly.
6.5 Replace the chiller lid.
Agitator IEC plug and new Harness Assy IEC
plug connected in the electrical box.
Agitator Motor
Clip
INSTRUCTIONS FOR S4E V3 AGITATOR
REPLACEMENT WITH IEC HARNESS
