CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, please see
HOW TO CONTACT CUSTOMER
CARE on the back cover of this
manual.
USER'S MANUAL
Model No. HF-TR9700.0
Serial No. __
The serial number is found in the
location shown below. Write the
serial number in the space above.
www.HotelFitness.com

TABLE OF CONTENTS
WARNIN DECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS .................................................................3
BEFOREYOUBE IN .......................................................................5
ASSEMBLY ...............................................................................6
OPERATIONANDADJUSTMENT ............................................................11
HOWTOFOLDANDMOVETHETREADMILL ..................................................21
PREVENTIVEMAINTENANCE ...............................................................22
SIX-MONTHPREVENTIVEMAINTENANCERECORD ............................................24
TROUBLESHOOTIN ......................................................................25
EXERCISE UIDELINES ...................................................................28
PARTLIST ...............................................................................29
EXPLODEDDRAWIN .....................................................................31
HOWTOCONTACTCUSTOMERCARE................................................BackCover
LIMITEDWARRANTY...............................................................BackCover

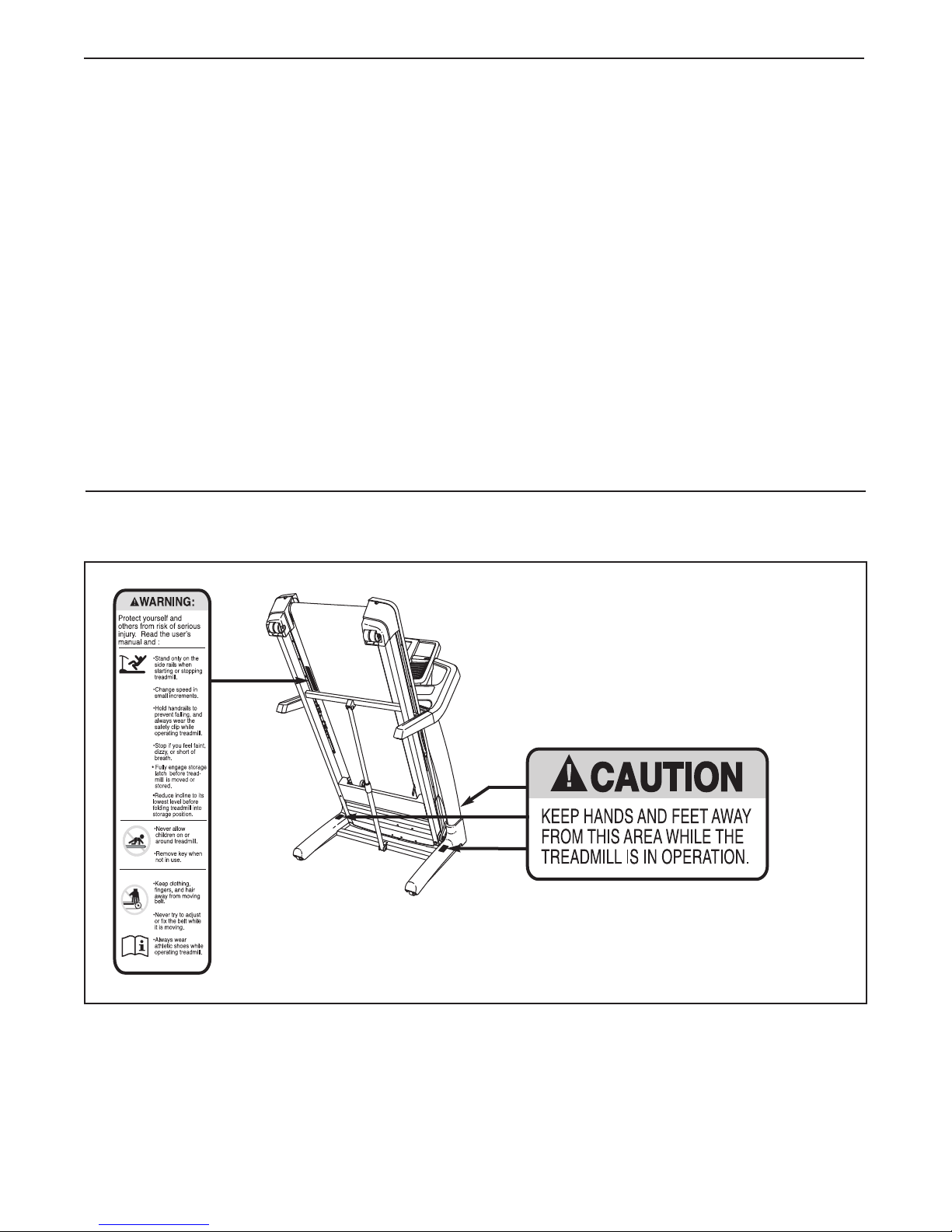

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, see the
back cover of this manual and request a free
replacement decal. Apply the decal in the loca-
tion shown. Note: The decals may not be shown
at actual size.
WARNING DECAL PLACEMENT
2
HOTEL FITNESS is a registered trademark of Hotel Fitness Club, Inc.
FREEMOTION is a registered trademark of ICON IP, Inc.

1. Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over age 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. eep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. eep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by per-
sons weighing 250 lbs. (113 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.

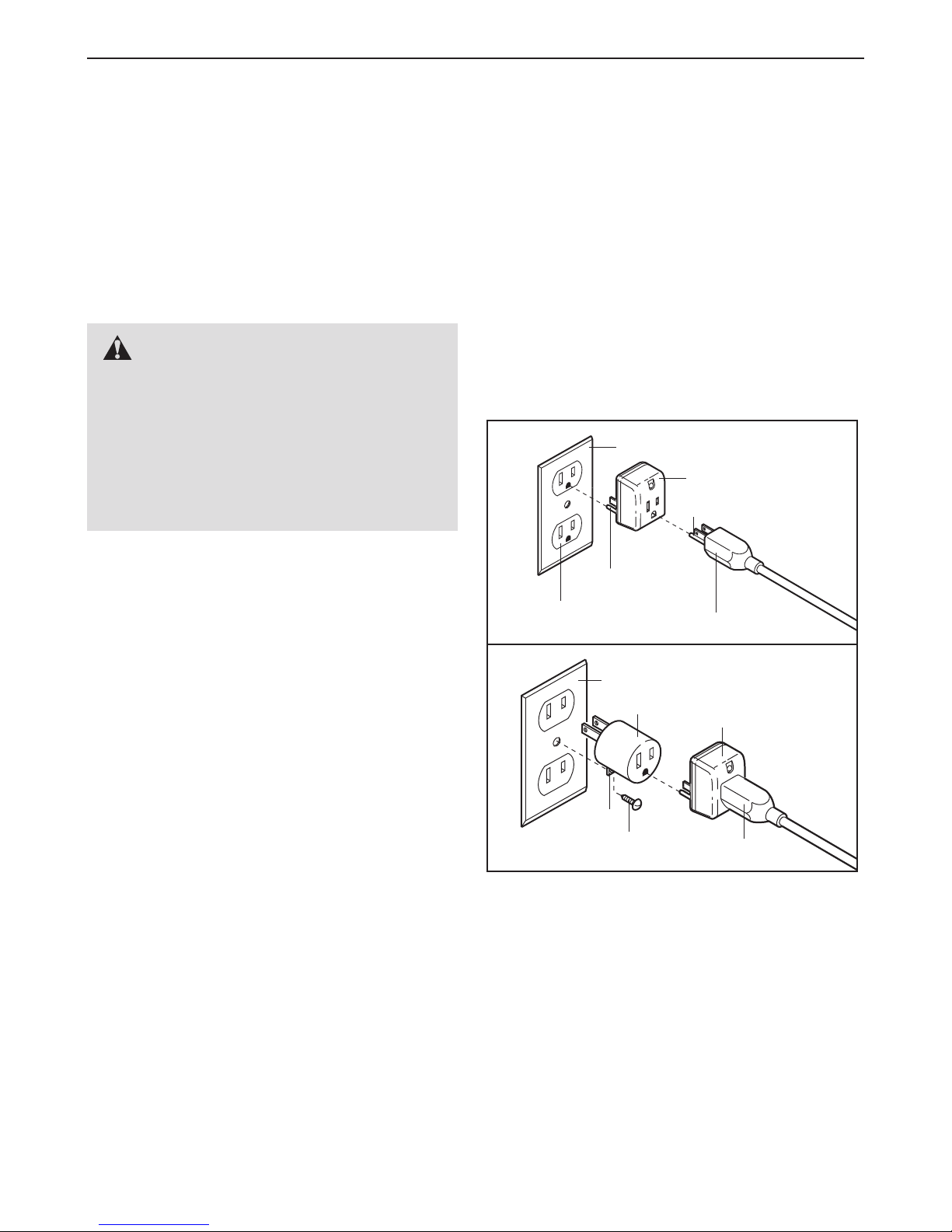

11. When connecting the power cord (see page
11), plug the power cord into a surge suppres-
sor (not included) and plug the surge sup-
pressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 11. To purchase a surge suppressor,
please see the back cover of this manual and
order part number 146148, or see your local
electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. eep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOTING on page 25 if the tread-
mill is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 13).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. Hotel Fitness
and FreeMotion Fitness assume no responsibility for personal injury or property damage sustained
by or through the use of this product.
IMPORTANT PRECAUTIONS
3

19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the “off” position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the reset/off circuit
breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 21.) You
must be able to safely lift 45 lbs. (20 kg) to
raise, lower, or move the treadmill.
22. Do not change the incline of the treadmill by
placing objects under the treadmill.
23. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. Never insert or drop any object into any
opening on the treadmill.
26. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
27. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
4
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the new HOTEL FITNESS®
TR9700 treadmill. The TR9700 treadmill offers an im-
pressive array of features designed to help you
achieve your fitness goals.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the back cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.

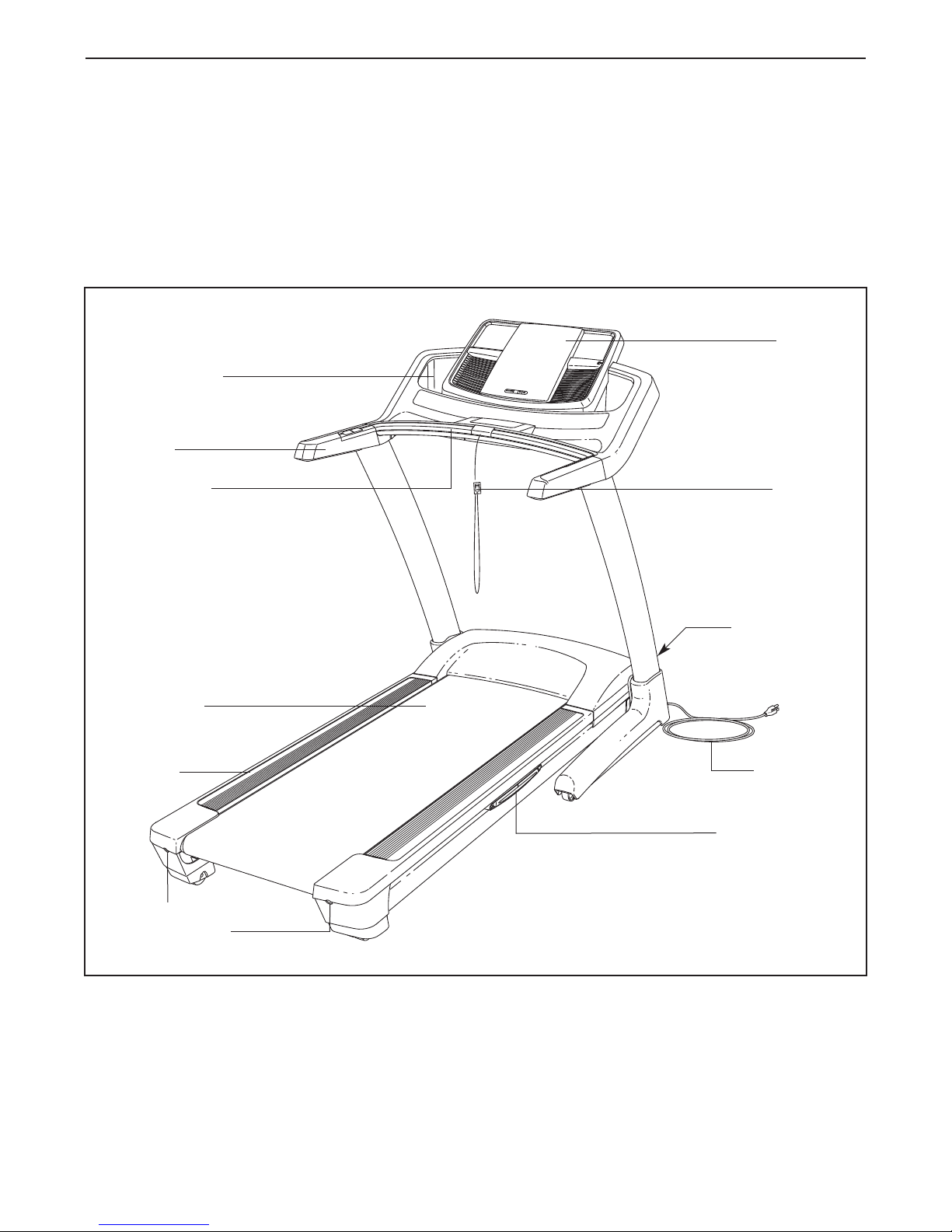

Before reading further, please look at the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Console
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Foot Rail Power Cord
Idler Roller
Adjustment Bolts
Accessory Tray
Pulse Sensor
Platform Cushion

6
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-
cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver and
adjustable wrench .

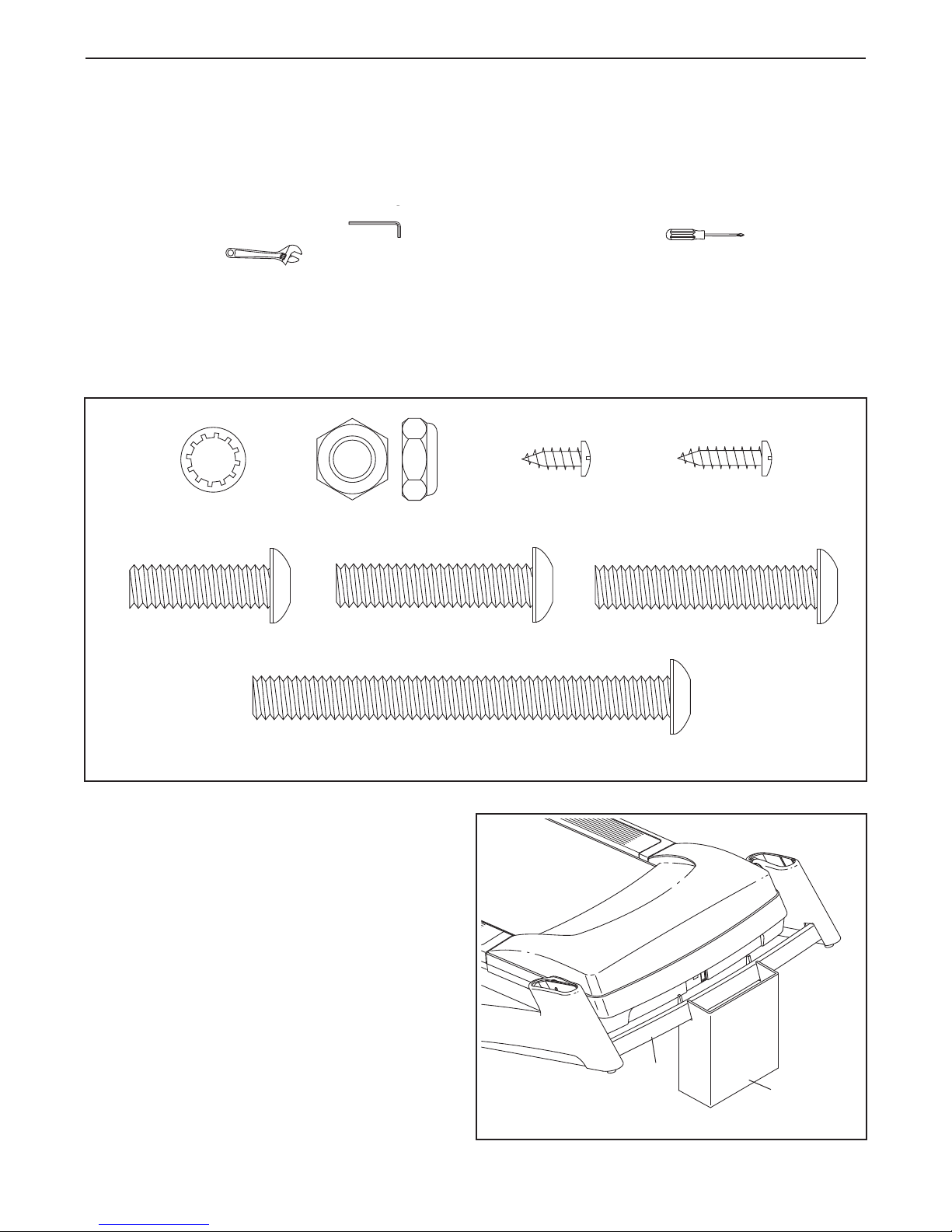

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-
bly. Extra hardware may be included.
3/8" Star
Washer (8)–8
#8 x 3/4" Screw
(7)–4
3/8" Nut (9)–2
#8 x 1/2" Screw
(17)–8
3/8" x 1 1/4" Patch Bolt (1)–4
3/8" x 3 3/4" Patch Bolt (2)–4
3/8" x 1 3/4" Bolt (5)–1 3/8" x 2" Bolt (6)–1
1. Make sure that the power cord is unplugged.
Locate the cardboard stand. With the help of a
second person, raise the front of the treadmill
and insert the crossbar on the Base (115) into
the cutout in the cardboard stand as shown.
IMPORTANT: Serious injury may occur if the
treadmill moves forward or backward and
falls off the cardboard stand. A second per-
son must hold the treadmill until assembly
step 3 is completed to prevent the treadmill
from moving, tipping, or falling.
115
Cardboard
Stand
1

7

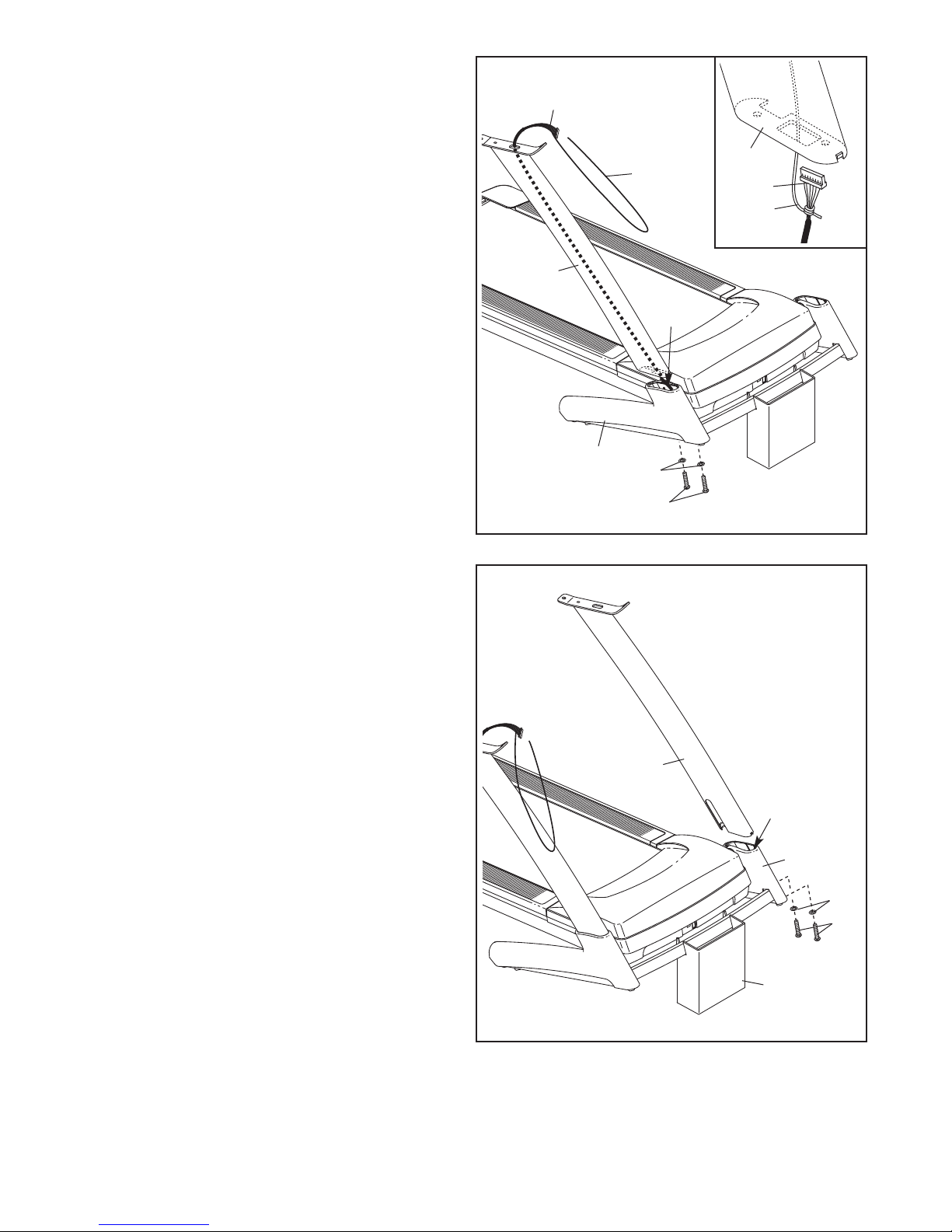

2. Have a second person hold the Right Upright
(88) near the Right Base Cover (117). See the
inset drawing. Locate the wire tie in the bottom
of the Right Upright. Tie the wire tie securely
around the end of the Upright Wire (86). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
ently pull up on the Upright Wire (86) as you
set the Right Upright (88) on the Base (115) in-
side the Right Base Cover (117). Be careful not
to pinch the Upright Wire.
Attach the Right Upright (88) to the Base (115)
with two 3/8" x 3 3/4" Patch Bolts (2) and two
3/8" Star Washers (8); do not fully tighten the
Patch Bolts yet. Note: It may be necessary to
tip the top of the Right Upright forward slightly
and rotate the bottom as you thread the Patch
Bolts into the Right Upright.
117
Wire
Tie
2
88
86
2
8
86
88
3. Attach the Left Upright (85) to the Base (115) in-
side the Left Base Cover (118) with two 3/8" x 3
3/4" Patch Bolts (2) and two 3/8" Star Washers
(8); do not fully tighten the Patch Bolts yet.
Note: It may be necessary to tip the top of the
Left Upright forward slightly and rotate the bot-
tom as you thread the Patch Bolts into the Left
Upright.
With the help of a second person, lower the
treadmill off the cardboard stand. The stand will
be used again in assembly step 8.
118
115
3
8
2
85
115
Cardboard
Stand
Wire
Tie

8

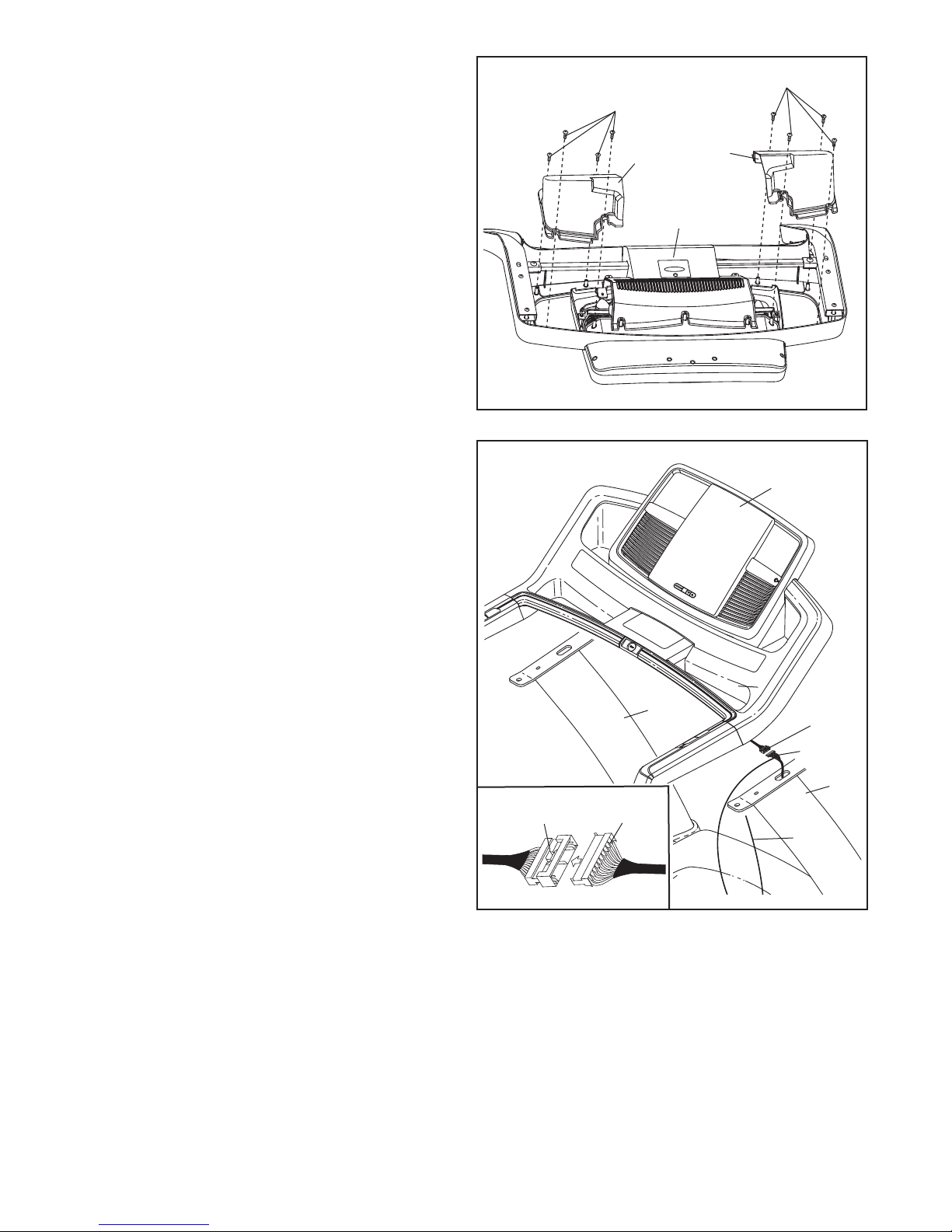

5. With the help of a second person, hold the con-
sole assembly near the Uprights (85, 88).
Connect the Upright Wire (86) to the console
wire extending from the console assembly. See
the inset drawing. The connectors should
slide together easily and snap into place. If
they do not, turn one connector and try again. IF
THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Remove the wire tie from the Upright Wire (86).
Console
Assembly
5
88
85
Wire
Tie
Console Wire 86
86
Console
Wire
4. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly.
Identify the Left Accessory Tray (90) and the
Right Accessory Tray (100).
Attach the Left Accessory Tray (90) and the
Right Accessory Tray (100) to the console as-
sembly with eight #8 x 1/2" Screws (17).
17
417
Console
Assembly
100
90

9
7. Attach the Right Bottom Handrail Cover (104)
and the Left Bottom Handrail Cover (106) to the
console assembly with four #8 x 3/4" Screws
(7).
Console
Assembly
7
7
8. Locate the cardboard stand used in step 1.
With the help of a second person, raise the
front of the treadmill and insert the crossbar on
the Base (115) into the cutout in the cardboard
stand as shown. Have the second person
hold the treadmill to prevent it from moving
forward or backward.
Firmly tighten the four 3/8" x 3 3/4" Patch Bolts
(2).
With the help of a second person, lower the
treadmill off the cardboard stand.
Cardboard
Stand
2
115
2
8
7
106
104
6. Insert the wires from step 5 into the Right
Upright (88) as you set the console assembly on
the Right Upright and the Left Upright (85). Be
careful not to pinch any wires.
Attach the console assembly to the Uprights
(85, 88) with four 3/8" x 1 1/4" Patch Bolts (1)
and four 3/8" Star Washers (8). Start all four
Bolts before tightening any of them.
Console
Assembly
6
88
8
8
1
1
8
1
1
85
8

10
10. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place; one of the hex keys is used to adjust the walking belt (see pages 26 and 27). To protect
the floor or carpet from damage, place a mat under the treadmill.
9. Raise the Frame (61) to the position shown.
Have a second person hold the Frame until this
step is completed. Orient the Storage Latch (78)
so that the large barrel and the Latch Knob (77)
are in the positions shown.
Remove the tie from the upper end of the
Storage Latch (78). Attach the upper end of the
Storage Latch to the bracket on the Frame (61)
with a 3/8" x 1 3/4" Bolt (5) and a 3/8" Nut (9).
Remove the tie from the lower end of the
Storage Latch (78). Keep the holes in the Latch
Cap (79) aligned with the holes in the Storage
Latch. Make sure to keep the Latch Cap in-
side the Storage Latch. Attach the Storage
Latch to the bracket on the Base (115) with a
3/8" x 2" Bolt (6) and a 3/8" Nut (9). Note: It may
be necessary to move the Frame (61) back and
forth to align the Storage Latch with the bracket.
Lower the Frame (61) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21). 9
9
Large
Barrel
115
79 6
61
9
5
77
78

11
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WAL ING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeʼs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, please
see the back cover of this manual and order part
number 146148, or see your local electronics store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
rounded Outlet Box
rounded Outlet Box
rounding Plug
Surge Suppressor
Surge Suppressor
rounding Pin
Adapter
Lug
Metal Screw
rounded Outlet
rounding Pin
rounding Plug

12
FEATURES OF THE CONSOLE
The treadmill console offers an impressive selection of
features designed to make your workouts more effec-
tive and enjoyable. When the manual mode of the con-
sole is selected, the speed and incline of the treadmill
can be changed with the touch of a button. As you ex-
ercise, the console will display continuous exercise
feedback. You can even measure your heart rate using
the handgrip pulse sensor or the optional chest pulse
sensor. See page 20 for information about the optional
chest pulse sensor.
In addition, the console features twenty-two preset
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session. You can even
create your own custom workouts and save them for fu-
ture use.
The console also features the new iFit interactive work-
out system. The iFit system enables the console to ac-
cept iFit interactive workout cards containing workouts
designed to help you achieve specific fitness goals. For
example, lose unwanted pounds with the 8-week
Weight Loss workout, or train for a long-distance run
with the Marathon workout. iFit workouts automatically
control the treadmill while the voice of a personal
trainer coaches you through every step of your workout.
iFit cards are available separately. To purchase iFit
cards, please see the back cover of this manual or
go to www.iFit.com. iFit cards are also available at
select stores.
You can also listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system.
To turn on the power, see page 13. To use the man-
ual mode, see page 13. To use a preset workout, see
page 16. To create and use a custom workout, see
pages 17 and 18. To use an iFit workout, see page
19. To use the stereo sound system, see page 19.
To use the information mode, see page 20.

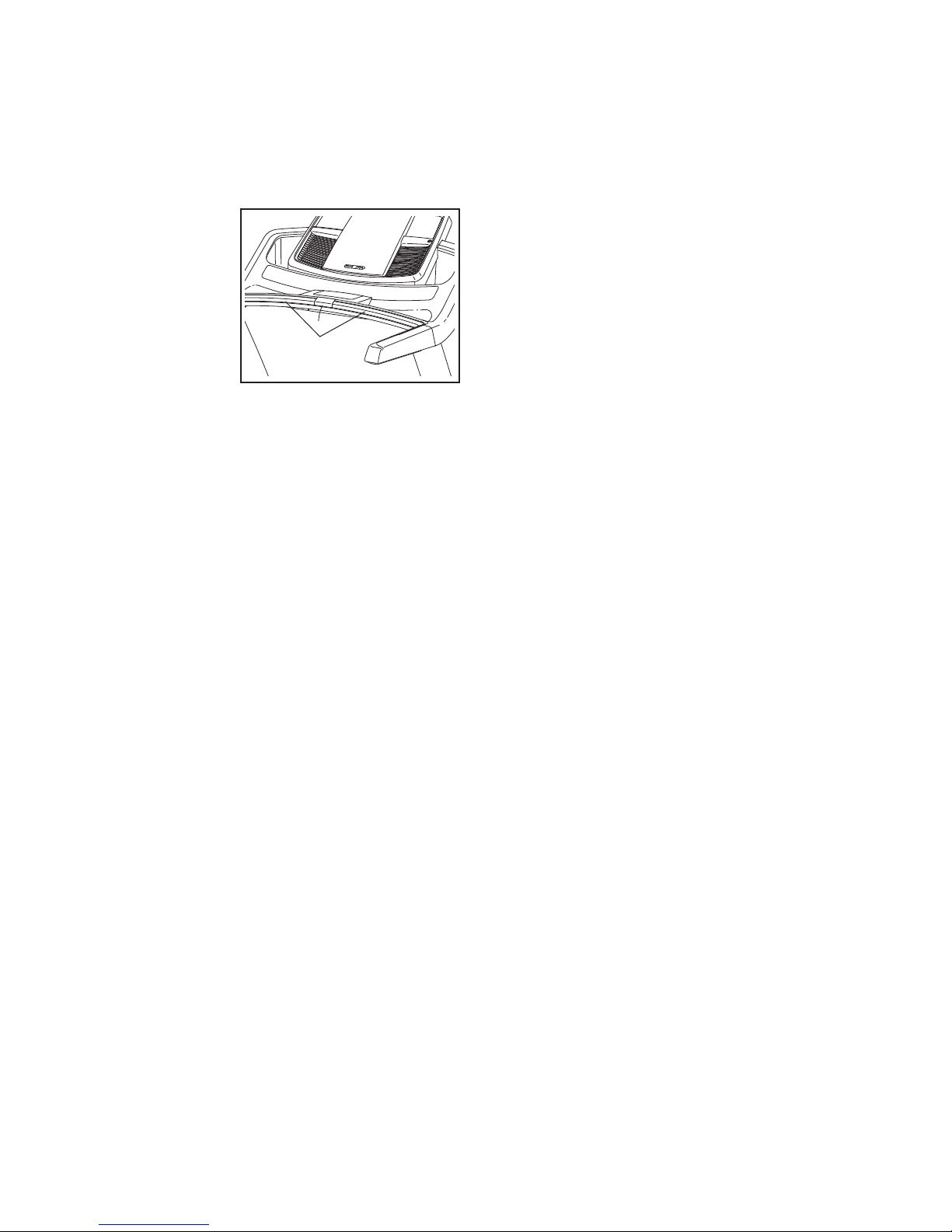

CONSOLE DIAGRAM

13
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord
(see page 11). Next, lo-
cate the reset/off circuit
breaker on the treadmill
frame near the power
cord. Make sure that the
circuit breaker is in the
“reset” position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Start/Stop button for a few seconds.
If the displays remain lit, see THE INFORMATION
MODE on page 20 to turn off the demo mode.
Next, stand on the foot rails
of the treadmill. Locate the
clip attached to the key (see
the drawing at the right),
and slide the clip securely
onto the waistband of your
clothes. Then, insert the
key into the console. After a moment, the displays will
light. IMPORTANT: In an emergency situation, the
key can be pulled from the console, causing the
walking belt to slow to a stop. Test the clip by
carefully taking a few steps backward; if the key is
not pulled from the console, adjust the position of
the clip.
IMPORTANT: If there is a sheet of clear plastic on
the face of the console, remove the plastic. To pre-
vent damage to the walking platform, wear clean
athletic shoes while using the treadmill. The first
time the treadmill is used, observe the alignment
of the walking belt, and center the walking belt if
necessary (see page 27).
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of mea-
surement, see THE INFORMATION MODE on page
20. For simplicity, all instructions in this section refer to
miles.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Each time the key is in-
serted, the manual mode
will be selected. If you
have selected a workout,
press any of the workout
buttons repeatedly until a
track appears in the speed matrix.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start/Stop but-
ton, one of the Speed increase buttons, or one of
the speed buttons numbered 1 to 12.
If you press the Start button or one of the Speed
increase buttons, the walking belt will begin to
move at 1 mph. As you exercise, change the
speed of the walking belt as desired by pressing
the Speed increase and decrease buttons on the
console or in the right handrail. Each time you
press a button, the speed setting will change by
0.1 mph; if you hold down the button, the speed
setting will change in increments of 0.5 mph. If you
press one of the numbered speed buttons, the
walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Start/Stop but-
ton. To restart the walking belt, press the
Start/Stop button, one of the Speed increase but-
tons, or one of the numbered speed buttons.
Reset
Clip
Key

14
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press one of
the Incline increase or decrease buttons or one of
the incline buttons numbered 0 to 12.
Each time you press one of the Incline increase or
decrease buttons on the console or in the left
handrail, the incline will change by 0.5%. If you
press one of the numbered incline buttons, the in-
cline will gradually change until it reaches the se-
lected incline setting. Note: After you press the but-
tons, it may take a moment for the treadmill to
reach the selected incline setting.
5. Follow your progress with the displays.
The speed matrix—
When you select the
manual mode, the
speed matrix will dis-
play a track that repre-
sents 1/4 mile (400 me-
ters). As you exercise, the indicators around the
track will appear in succession until the entire track
appears. The track will then disappear and the indi-
cators will again begin to appear in succession.
The Incline display—
The Incline display will
show the incline of the
treadmill.
The Speed display—
The Speed display will
show the speed of the
walking belt.
The Time display—The
Time display will show
the elapsed time. Note:
When a workout is se-
lected, the display will
show the time remaining
in the workout instead of the elapsed time.
The Calorie/Pulse dis-
play—The Calorie/Pulse
display can show the ap-
proximate number of
calories you have
burned. The display will
also show your heart rate when you use the hand-
grip pulse sensor or the optional chest pulse sen-
sor (see step 6 on page 15).
The Distance display—
The Distance display will
show the distance that
you have walked or run.
To reset the console, press the Start/Stop button,
remove the key, and then reinsert the key.

15
6. Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the optional chest pulse sensor at the same
time, the console will not display your heart
rate accurately. See page 20 for information
about the optional chest pulse sensor.
Before using
the handgrip
pulse sensor,
remove the
sheets of
clear plastic
from the metal
contacts. In
addition,
make sure
that your
hands are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the handrail—
avoid moving your hands. Hold the contacts for
approximately ten seconds. When your pulse is
detected, your heart rate will be shown. For the
most accurate heart rate reading, continue to
hold the contacts for about 15 seconds.
7. Turn on the fans if desired.
The fans feature high and low speed settings.
Press the Fans button repeatedly to select a fan
speed or to turn off the fans. Note: If the fans are
on when the walking belt is stopped, the fans will
turn off automatically after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Start/Stop but-
ton, and adjust the incline of the treadmill to the
lowest setting. The incline must be at the low-
est setting when you fold the treadmill to the
storage position, or you may damage the tread-
mill. Next, remove the key from the console and
put it in a secure place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmillʼs electrical compo-
nents may wear prematurely.
Contacts

16
HOW TO USE A PRESET WOR OUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
2. Select a preset workout.
To select a preset workout, press the Weight Loss,
Aerobic, Performance, Hills, or Plateaus button.
When a preset workout
is selected, the displays
will show the maximum
incline setting and the
maximum speed setting
of the workout, the
workout duration, and the workout number. In addi-
tion, profiles of the speed and incline settings of
the workout will scroll across the speed matrix and
the incline matrix.
To change the intensity level of the entire program,
press the Intensity Level increase and decrease
buttons. The intensity level will appear in the
Calorie/Pulse display.
3. Start the walking belt.
Press the Start/Stop button or the Speed increase
button to start the workout. A moment after you
press the button, the treadmill will automatically ad-
just to the first speed and incline settings of the
workout. Hold the handrails and begin walking.
Each workout is divided into one-minute segments.
One speed setting and one incline setting are pro-
grammed for each segment. Note: The same
speed and/or incline setting may be programmed
for consecutive segments.
During the workout, the
profiles will show your
progress. The flashing
segment of each profile
represents the current
segment of the workout. The height of the current
segment indicates the speed or incline setting. At
the end of each segment, a series of tones will
sound and the next segments of the profiles will
begin to flash. If a new speed and/or incline setting
is programmed for the next segment, the new
speed and/or incline setting will appear in the dis-
plays for a few seconds. The treadmill will automati-
cally adjust to the new speed and/or incline setting.
The workout will continue in this way until the last
segment of the workout ends. The walking belt will
then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or in-
cline buttons; however, when the next segment
of the workout begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the
Start/Stop button. To restart the workout, press the
Start/Stop button or the Speed increase button.
The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
4. Follow your progress with the displays.
See step 5 on page 14.
5. Measure your heart rate if desired.
See step 6 on page 15.
6. Turn on the fans if desired.
See step 7 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 15.
Current Segment

17
HOW TO CREATE A CUSTOM WOR OUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
2. Select a custom workout.
To select a custom workout, press one of the
Custom buttons repeatedly. When a custom work-
out is selected, the displays will show the maxi-
mum incline setting and the maximum speed set-
ting of the workout, the workout duration, and the
workout number. In addition, profiles of the speed
and incline settings of the workout will scroll across
the speed matrix and the incline matrix.
If the custom workout
has not yet been de-
fined, the displays will
show a workout time
of forty minutes and
flat profiles. If the
workout time is not forty minutes or the pro-
files are not flat, see HOW TO USE A CUSTOM
WOR OUT on page 18.
3. Start the walking belt and program the desired
speed and incline settings.
Press the Start/Stop button or the Speed increase
button to start the workout. A moment after you
press the button, the walking belt will begin to
move. Hold the handrails and begin walking.
Each custom workout is divided into several one-
minute segments. One speed setting and one in-
cline setting can be programmed for each seg-
ment. To program speed and incline settings for
the first segment, simply adjust the speed and in-
cline of the treadmill as desired by pressing the
speed and incline buttons.
When the first segment of the workout ends, a se-
ries of tones will sound and the current speed and
incline settings will be saved in memory. Program
a speed setting and an incline setting for the sec-
ond segment in the same way.
Continue programming speed and incline settings
for as many segments as desired; custom work-
outs can have up to forty segments. When you are
finished with your workout, press the Start/Stop
button and remove the key from the console. The
speed and incline settings that you have pro-
grammed and the workout time will then be saved
in memory.
4. Follow your progress with the displays.
See step 5 on page 14.
5. Measure your heart rate if desired.
See step 6 on page 15.
6. Turn on the fans if desired.
See step 7 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 15.

18
HOW TO USE A CUSTOM WOR OUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
2. Select a custom workout.
To select a custom workout, press one of the
Custom buttons repeatedly. When a custom work-
out is selected, the displays will show the maxi-
mum incline setting and the maximum speed set-
ting of the workout, the workout duration, and the
workout number. In addition, profiles of the speed
and incline settings of the workout will scroll across
the speed matrix and the incline matrix.
Note: If the displays
show a workout time
of forty minutes and
the profiles are flat,
see HOW TO CREATE
A CUSTOM WOR -
OUT on page 17.
3. Start the walking belt.
Press the Start/Stop button or the Speed increase
button to start the workout. A moment after you
press the button, the treadmill will automatically ad-
just to the first speed and incline settings that you
programmed previously. Hold the handrails and
begin walking.
Each custom workout is divided into several one-
minute segments. One speed setting and one in-
cline setting are programmed for each segment.
Note: The same speed and/or incline setting may
be programmed for consecutive segments.
The custom workout will function in the same way
as a preset workout (see step 3 on page 17). Note:
The intensity level buttons will not function during a
custom workout.
If desired, you can redesign the workout while
using it. To change the speed setting or the in-
cline setting for the current segment, simply
press the speed or incline buttons. When the cur-
rent segment ends, the new setting will be saved in
memory. To increase the length of the workout,
first wait until the workout is completed. Then,
press the Start/Stop button and program speed
and incline settings for as many additional seg-
ments as desired; custom workouts can have up to
forty segments. When you have added as many
segments as desired, press the Start/Stop button
and remove the key from the console. To de-
crease the length of the workout, press the
Start/Stop button and remove the key from the
console at any time before the workout is com-
pleted.
To stop the workout temporarily, press the
Start/Stop button. To restart the workout, press the
Start/Stop button. The walking belt will begin to
move at 1 mph. When the next segment of the
workout begins, the treadmill will automatically ad-
just to the speed and incline settings programmed
for the next segment.
4. Follow your progress with the displays.
See step 5 on page 14.
5. Measure your heart rate if desired.
See step 6 on page 15.
6. Turn on the fans if desired.
See step 7 on page 15.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 15.

19
HOW TO USE AN IFIT WOR OUT
To purchase iFit cards, please see the back cover of
this manual or go to www.iFit.com. iFit cards are also
available at select stores.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face-down and are inserted
into the iFit slot. When the iFit card is properly in-
serted, the iFit logo will light.
Next, select an iFit workout by pressing the iFit in-
crease and decrease buttons next to the iFit slot.
When an iFit workout is selected, the displays will
show the maximum speed setting of the workout,
the workout duration, and the workout number. In
addition, profiles of the speed and incline settings
of the workout will scroll across the speed matrix
and the incline matrix. Then, the maximum incline
setting will appear in the displays.
Each iFit workout is divided into several one-
minute segments. One speed setting and one in-
cline setting are programmed for each segment.
Note: The same speed and/or incline setting may
be programmed for consecutive segments.
3. Start the walking belt.
Press the Start/Stop button or the Speed increase
button to start the workout. A moment after you
press the button, the treadmill will automatically ad-
just to the first speed and incline settings of the
workout. Hold the handrails and begin walking.
During the workout, a personal trainer will guide
you through the workout.
If the speed or incline setting for the current seg-
ment is too high or too low, you can manually over-
ride the setting by pressing the speed or incline
buttons; however, when the next segment be-
gins, the treadmill will automatically adjust to
the speed and incline settings for the next seg-
ment.
To stop the workout at any time, press the
Start/Stop button. To restart the workout, press the
Start/Stop button or the Speed increase button.
The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
4. Follow your progress with the displays.
See step 5 on page 14.
5. Turn on the fans if desired.
See step 7 on page 15.
6. When you are finished exercising, remove the
key from the console.
See step 8 on page 15.
CAUTION: Always remove iFit cards from the
iFit slot when you are not using them.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the consoleʼs
stereo speakers, you must connect your MP3 player,
CD player, or other personal audio player to the con-
sole through the audio jack.
To use the audio jack, locate the audio wire and plug it
into the audio jack labeled IN. Then plug the audio wire
into a jack on your MP3 player, CD player, or other
personal audio player. Make sure that the audio wire
is fully plugged in.
Next, press the play button on your MP3 player, CD
player, or other personal audio player. Adjust the vol-
ume on your personal audio player or press the
Volume increase and decrease buttons on the con-
sole.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat sur-
face and not on the console.
iFit Card
iFit Slot

20
THE INFORMATION MODE
The console features an information mode that keeps
track of the total distance that the walking belt has
moved and the total number of hours that the treadmill
has been used. The information mode also allows you
to select miles or kilometers to measure distance, and
to turn on and turn off the display demo mode.
To select the information mode, hold down the
Start/Stop button while inserting the key into the con-
sole and then release the Start/Stop button. When the
information mode is selected, the following information
will be shown:
The Time display will show
the total number of hours the
treadmill has been used.
An “E” for English miles or an
“M” for metric kilometers will
appear in the Speed display.
Press the Speed increase
button to change the unit of
measurement if desired.
The console features a dis-
play demo mode, designed
to be used if the treadmill is
displayed in a store. While
the demo mode is turned on,
the console will function nor-
mally when you plug in the power cord, switch the
reset/off circuit breaker to the reset position, and insert
the key into the console. However, when you remove
the key, the displays will remain lit, although the but-
tons will not function. If the demo mode is turned on, a
“d” will appear in the Calorie/Pulse display while the in-
formation mode is selected. To turn on or turn off the
demo mode, press the Speed decrease button.
The Distance display will
show the total number of
miles or kilometers that the
walking belt has moved.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor offers hands-free oper-
ation as it tracks your heart rate during your workouts.
To purchase the optional chest pulse sensor, see
the back cover of this manual.
HOW TO ADJUST THE CUSHIONING SYSTEM
The treadmill features a cushioning system that re-
duces the impact as you walk or run on the treadmill.
To increase the firmness of the walking platform, step
off the treadmill and slide the platform cushions toward
the front of the treadmill. To decrease the firmness,
step off the treadmill and slide the platform cushions
toward the back of the treadmill. Note: It may be help-
ful to lift on the platform as you slide the cushions.
Make sure that both cushions are set at the same
firmness level. The faster you run on the treadmill,
or the more you weigh, the firmer the walking plat-
form should be.
Platform
Cushion
Platform
Cushion
Platform
Increase
Decrease
