Hotpoint CH60EKK Technical manual

This appliance must be installed in accordance with the regulations in force and
only used in a well ventilated space.
Read these instructions before installing or using the appliance and retain
them for future reference.
Use and Installation Instructions
CH60EKK
CH60EKW
CH60 EKS
Please phone us on
08448 24 24 24
to activate your
guarantee
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

2
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
CONTENTS
PAGE
Introduction 3
Installation 4
Safety Information 5-6
Features 7
The Controls 8-9
The Timer 10-15
Temperature Conversion Chart 16
Use and Care of the Ceramic Hob 17-19
High Speed Grilling 20-21
Top Oven - Conventional Cooking 22
Main Oven - Fan Cooking 23
Slow Cooking - Main Oven 24
Cooking Temperature Charts 25- 26
Care and Cleaning 27-30
Something wrong with your Cooker 31-32
Disposal of the appliance 33
Guarantee information 35
Key Contacts 36
Retention of this Instruction Book
This Instruction Book must be kept handy for reference as it contains important details on the safe and proper
use of the appliance.
If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is
also provided so the new owner can become familiar with the appliance and safety warnings.

3
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
INTRODUCTION
Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable if the
appliance has been installed in accordance with the installation instructions detailed in this booklet.
To help make best use of your cooking equipment, please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other
installation.
When the cooker is first used an odour may be emitted,
this will cease after a period of use
When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an extractor fan)
and that persons who may be sensitive to the odour avoid any fumes.
It is suggested that any pets be removed from the room until the smell has ceased. This odour is due to
temporary finish on oven liners and elements and also any misture absorbed by the insulation.
* The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the rating plate attached
to this equipment.
(c) Has not been subjected to misuse or accident or been modified or repaired by any person other
than the authorised employee or agent.
(d) Has been correctly installed.
This appliance conforms with the following European Economic Community directives:This appliance conforms with the following European Economic Community directives:
This appliance conforms with the following European Economic Community directives:This appliance conforms with the following European Economic Community directives:
This appliance conforms with the following European Economic Community directives:
- 2006/95/ECEC
ECEC
EC of 12/12/06 (Low Voltage) and subsequent modifications;
- 2004/108/ECEC
ECEC
EC of 15/12/04 (Electromagnetic Compatibility) and subsequent modifications;
- 90/396/EECEEC
EECEEC
EEC of 29/06/90 (Gas) and subsequent modifications (only for models which use gas);
- 93/68/EECEEC
EECEEC
EEC of 22/07/93 and subsequent modifications.
- 2002/96/ECEC
ECEC
EC
Technical Characteristics
Top Oven
Usable Volume: 35 Litres
ENERGY LABEL - Top Oven
Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Declared energy consumption for
Natural convection Class
heating mode: Conventional
Main Oven
Usable Volume: 65 Litres
ENERGY LABEL - Main Oven
Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Declared energy consumption for
Natural convection Class
heating mode: Fan Oven
Voltage and Frequency
230-240V~ 50Hz

4
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
INSTALLATION
WARNING - THIS APPLIANCE MUST BE EARTHED.
Mains Connection
Your cooker should have been checked to ensure that the voltage corresponds with your supply voltage, this is
stated on the rating plate, which is situated on the outer rear panel.
The model number and serial number are located on the front of the cooker, as shown on the Feature's page.
The cooker must be connected by a competent person such as one who is a, NICEIC registered contractor to a
suitable double-pole control unit with a minimum rating of 32A and a minimum contact clearance of 3mm
(applicable to newer properties, older properties where a 30A double pole control unit and a minimum contact
clearance of 3mm is acceptable).
The double pole control unit should be fitted adjacent to the cooker, in accordance with IEE regulations. The
control unit must be within 2 metres of but not directly above the appliance and should be easily accessible in
the event of an emergency.
The power supply cable should conform to B.S.6004 with a conductor size of 6mm2, minimum.
Access to the mains terminals is gained by removing the rear access cover. The mains cable must pass
through the cable clamp adjacent to the terminal block. Sufficient cable should be used to allow the cooker to
be pulled out for servicing.
Ensure that the mains cable is routed away from any brackets affixed to the rear panel and is not
trapped to the rear wall when pushing the cooker into position between cabinets.
Levelling
Four feet are fitted which can be adjusted up or down to set the height (900mm - 930mm) and level the cooker.
The feet can be simply screwed in or out to lower or raise the cooker.
After the correct height is achieved, lock the feet into position by tightening the locking nut using an open
ended spanner.
CAUTION:CAUTION:
CAUTION:CAUTION:
CAUTION: Some soft floor coverings may get damaged if the cooker is not moved carefully.
NOTE:NOTE:
NOTE:NOTE:
NOTE: Ensure oven shelves are level by using a spirit level on the rod shelves.
Siting the Cooker
The cooker is designed to fit between kitchen cabinets spaced 600mm apart. The space either side need only
be sufficient to allow withdrawal of the cooker for servicing and cleaning.
It can be used with cabinets one side or both as well as in an angled corner setting. It can also be used
freestanding.
Adjacent side walls which project above hob level, must not be nearer to the cooker than 150mm and should be
protected by heat resistant material. Any overhanging surface or cooker hood should not be nearer than 650mm.
Note: This appliance must NOT be fitted on a platform.
Moving the Cooker
Before moving your cooker, switch off at the cooker control unit, ensure that it is cool.
Open the grill door sufficiently to allow a comfortable grip on the underside front edge of the oven roof, avoiding
any grill elements.
Radio Interference
This appliance conforms to EN 55014 regarding suppression of radio and television interference.
Note: Take care in moving the cooker as it is heavy. Take care to ensure that any floor covering is not
damaged.

5
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
SAFETY
INFORMATION
When used properly your appliance is completely safe but as with any electrical product
there are certain precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.
Always
•Remove all packing from the appliance before switching on for the first time.
•Understand the controls prior to using the appliance.
•Keep children away from the appliance when cooking as the surfaces will get extremely hot during and after
use.
•Turn controls offoff
offoff
off when not in use.
•Stand back when opening an oven door to allow any build up of steam or heat to disperse.
•Always use dry good quality oven gloves when removing items from the oven/grill.
•Always place pans centrally over the hotplate making sure handles are kept away from the edge of the hob
and cannot become heated by other hotplates or pans.
•Always take care to avoid heat or steam burns when operating the controls.
•Always turn off the electricity supply at the wall switch and allow the appliance to cool before cleaning (or
changing an oven lamp if fitted).
•Always make sure the shelves are in the correct position before switching on the oven or grill.
•Always keep the oven/grill door closed when the appliance is not in use.
•Always keep the appliance clean as a build up of grease or fat from cooking can cause a fire.
•Always follow the basic principles of food handling and hygiene to prevent the possibility of bacterial
growth.
•Always keep ventilation slots clear of obstructions.
•Always refer servicing to a qualified appliance service engineer.
•Always take care when removing items from the grill compartment when the lower oven is in use as the
contents will be hot.
•Always turn off the electricity supply to the appliance at the wall switch should any glass panel (if fitted)
crack or shatter and then DO NOT USE THE APPLIANCE until repaired.
•During use, the oven becomes hot. Care should be taken to avoid touching heating elements inside the
oven.
The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by
inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be
supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the
operation of the appliance.
The appliance must be used by adults only for the preparation of food, in accordance with the instructions
outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is
dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and
unreasonable use of the appliance.

6
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
Never
•Never stare at Halogen heating units.
•Never leave children unsupervised where a cooking appliance is installed as all surfaces will be hot during
and after its use.
•Never allow anyone to sit or stand on any part of the appliance.
•Never store items above the appliance that children may attempt to reach.
•Never leave anything on the hob surface when unattended and not in use.
•Never remove the oven shelves whilst the oven is hot.
•Never heat up unopened food containers as pressure can build up causing the container to burst.
•Never store chemicals/food stuffs or pressurised containers in or on the appliance, or in cabinets
immediately above or next to the appliance.
•Never place flammable or plastic items on or near the hob.
•Never fill a deep fat frying pan more than 1/3 full of oil, or use a lid. DO NOT LEAVE DEEP FAT FRYINGDO NOT LEAVE DEEP FAT FRYING
DO NOT LEAVE DEEP FAT FRYINGDO NOT LEAVE DEEP FAT FRYING
DO NOT LEAVE DEEP FAT FRYING
PANS UNATTENDED WHILE COOKING.PANS UNATTENDED WHILE COOKING.
PANS UNATTENDED WHILE COOKING.PANS UNATTENDED WHILE COOKING.
PANS UNATTENDED WHILE COOKING.
•Never use the appliance as a room heater.
•Never use the grill to warm plates.
•Never dry any items on either the hob or oven doors.
•Never install the appliance next to curtains or other soft furnishings.
•Never operate the grill with the grill door closed as this will cause the appliance to over heat.
•Never use 'steam cleaners'.
SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE
In the event of a chip pan fire or any other pan fire.
1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and extinguish the
fire.
3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT. Injuries are often caused by
picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force of the extinguisher is likely
to tip the pan over.
Never use water to extinguish oil or fat fires.
!The appliance should not be operated by people (including children) with reduced physical, sensory or mental
capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals
should, at the very least, be supervised by someone who assumes responsibility for their safety or receive
preliminary instructions relating to the operation of the appliance.
SAFETY
INFORMATION

7
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
FEATURES
NOTE: To keep the controls cool when the appliance is used, a gentle flow of air may be blown from
beneath the control panel. If the appliance is still warm, this cooling fan may run on or restart itself
when all controls have been turned off.
This is normal and is not a fault.
The fan will stop once the appliance has cooled.
NOTE: Children should not be allowed to play with the appliance or tamper with the controls.
WARNINGS: DO NOT TOUCH THE OVEN DOORS WHEN THE OVEN IS IN USE AS THESE
AREAS CAN BECOME HOT.
Control Panel
Timer
Grill Pan Handle
fixed/detachable
High Speed Grill
1500W Dual Oval Ceramic
1800W Ceramic
1200W Ceramic
1200W Ceramic
Top Oven/Grill
Rod Shelf
Heat Clean Liner
Door Switch
Main Oven
Rod Shelf
Oven Fan
Oven Light
Model number and
Serial number Label
Removable Inner
Door Glass
Main oven door seal
split at these corners
Heat Clean Liner
Grill Pan, Food Support
and Anti-Splash Tray
Removable Inner
Door Glass
Main Oven
Door
Hob Hot Indicators
Top Oven Door
Oven Light

8
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
THE CONTROLS
Hotplate Controls
As each control knob is turned clockwise, numbers from 1 - 6 on the control knob
increase. Setting 6 is the highest/hottest and gives 100% power. Setting 1 is the
lowest/coolest and gives about 7% power. Variable power is obtainable on each of the
heating areas by selecting any number between 1 & 6.
Right Front Control
This is to control a dual circuit oval hotplate with two elements. By turning the knob
clockwise both parts of the hotplate are switched on, numbers 1-4 on the control knob,
4 is the highest setting. With the knob turned anti-clockwise, only the inner part of the
hotplate is switched on, this is also indicated by numbers 1-4 on the control knob, 4 is
the highest setting. Variable power for either the whole or the inner part of the hotplate
is obtained by selecting any number between 1 & 4.
The off position is identified by an '0'.
The hob hot warning lights will operate soon after each of the heating areas have been
switched on. Each warning light will remain illuminated until each heating area has
cooled down.
Dual Circuit
Oval Hotplate -
Ri
g
ht Front control
Hotplate Controls
Top Oven Neon Main Oven Neon
Main
Oven
Control
Timer
Top
Oven
Control
Grill
Control
Switch on the electricity supply to the cooker at the Cooker Control Unit.

9
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
Grill Control-Top Oven
The grill control will not operate unless the top oven control is in the '0' off position.
The grill control provides fully variable heat control for either the twin grill or single (left
hand side) grill by selecting any number between 1 & 4. When turned clockwise the
twin grill will be switched on and any power setting from 1 - 4 can be selected. The
power level numbers are indicated on the control knob. When turned anti-clockwise the
single grill will be switched on and any power setting from 1 - 4 can be selected. The
power level numbers are indicated on the control knob. The off position is identified by
an '0'.
Top Oven Control
This control switches on the top and bottom heating elements in the top oven. The
temperature in the oven can be set anywhere between 100°C and 220°C. The
thermostat light will glow initially and remain on until the oven reaches the required
temperature. It will then cycle off and on, as the oven thermostat maintains the correct
temperature. The off position is identified by an '0'.
Main Oven Control
This control switches on the main oven. To select Fan Cooking - Turn the control
clockwise and select any temperature between 80°C and 230°C. As the control is
turned the fan will start, the oven interior light and the main oven thermostat light will
come on and the heating element around the fan will start heating. The fan and the
oven interior light will remain on throughout cooking. The main oven thermostat light
will come on until the oven reaches the required temperature. It will then cycle off and
on as the oven thermostat maintains the correct temperature.
Notes
1. Never operate both the top oven control and the grill control together. The grill will
not operate unless the top oven control is in the '0' off position.
2. If the main oven does not switch on when the control is turned, check that the Timer
is in manual operation.
Slow Setting 'S'
The main oven has an Economy setting to select. Turn the main oven control to the
Slow Setting 'S'.
NOTE: Slow Cooking can be cooked automatically (see Timer instructions).

10
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
OVEN TIMER OPERATION
Note: Timer must be set to 'Time of Day' and 'Manual' before the oven can be used.
AUTOMATIC COOKING
The Main Oven can be controlled by the Automatic Timer.
HINTS ON AUTOMATIC COOKING
1. Select foods which will require the same cooking time and temperature.
2. To ensure food does not cool down and require reheating, set the end time so the food is ready
when you require it.
3. Always ensure that meat and poultry is defrosted before placing in the oven.
4. Whenever possible, take food out of the refrigerator and keep it as cool as possible.
5. If cooking food that requires frying before placing in the oven for automatic cooking, keep the
delay time to a minimum.
6. Never place hot or warm food in the oven for delay start cooking as it could cause the oven to be
warm and produce harmful bacteria in the food.
7. We advise that dishes containing left-over cooked poultry or meat, e.g. Shepherd's Pie, should
not be cooked automatically if there is to be a delay period.
8. Ensure that delay start times are kept to a minimum to prevent bacterial growth in food.
9. Wine or beer may ferment and cream may curdle during the delay period so it is best to add
these ingredients just before serving.
10.Foods which discolour should be protected by coating in fat or tossing in water to which lemon
juice has been added, prior to placing food in the oven.
11.Dishes containing liquid should not be filled too full to prevent boiling over.
12.Food should be well sealed (but not airtight) in a container to prevent the loss of liquid during
cooking. Aluminium foil gives a good seal.
13.Always ensure that food is piping hot and cooked thoroughly before serving.
14.Only reheat food once.

11
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
KNOW YOUR TIMER
A
U
T
O
000
.
CLOCKFACE
The timer incorporates a 24 hour clock.
Ensure the correct time of day is always set, before using your cooker.
SYMBOLS
A 'bell' symbol will light up when you select a Minute Minder Period and will remain lit for the
period set.
At the end of the Minute Minder Period, the timer will emit an audible tone and the 'bell'
symbol will disappear.
The 'cookpot' symbol will light up either:-
- When the timer is in manual mode, or
- During the actual Cook Period.
'AUTO' will light up:-
- When the timer is first turned on it will flash. It will go out when a time of day is set or
when the timer is set to manual.
The 'AUTO' symbol will flash at the end of an Auto Cooking programme to indicate that the
programme has finished.
(When the 'AUTO' symbol is flashing, to return the oven to Manual operation, turn the oven controls off,
and press the "Manual" button - The 'AUTO' symbol will go out).
TIMER FUNCTION BUTTONS
Minute Minder Button
Here you can set a time period of up to 23 hours 59 minutes, that will count down. When it reaches zero, the
timer will emit an audible tone.
For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.
AUTO COOKING PROGRAMME
Cook Period Button
Cook Period is the actual length of time for which, the timer will switch the oven(s) on as part of an "Auto
Cooking" programme. (e.g. If you set 2 hours, the food will be cooked for 2 hours).
End Time Button
The time of day at which you want an "Auto Cooking" programme to end.
For Example: If you set a "Cook Period" for 2 hours, and "End Time" of 11:00. The timer will switch the oven(s)
on at 9:00 and turn the oven(s) off at 11:00. You will hear a audible tone at 11:00, to indicate that the Auto
Cooking Programme has finished.
Notes:
- When setting an Auto Cooking programme you will need to set the oven control(s) to the required temperature(s)
when you set the timer.
- If an Auto Cooking programme has been set the oven(s) will only operate during the pre-programmed time.
Manual Button
Needs to be pressed to cancel an Auto Cooking programme and return the oven(s) to Manual operation.
"+" and "-" Buttons
Used to adjust the various timer function settings.
000
.
000
.
000
.
A
U
T
O

12
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION

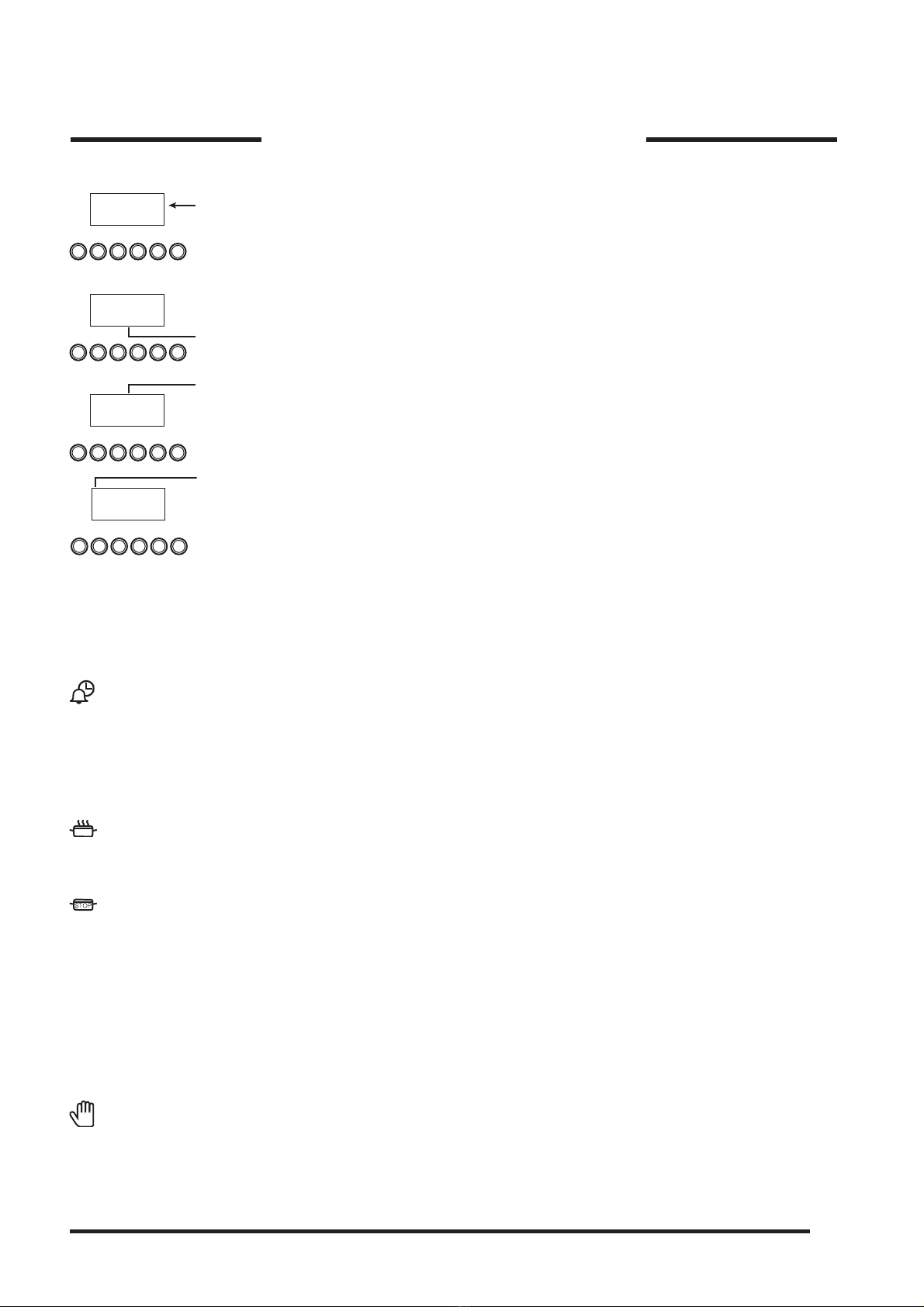

SETTING THE TIME OF DAY
Step 1 Make sure all oven controls are turned Off.
Step 2 Check the electricity supply to the cooker is turned on.
Step 3 When switched on the display will show 0.00 and the Auto symbol, flashing
intermittently.
Step 4 Press & hold in both the Cook Period & End Time buttons together.
Step 5 With the Cook Period & End Time buttons still held in, press either the "+" or "-"
buttons to set the correct time of day.
Step 6 Release all the buttons simultaneously. THE TIME OF DAY IS NOW SET.
To change the time of day repeat Steps 4, 5 & 6 above.
Note: You cannot adjust the time of day if the timer has been set for an Auto Cooking Programme.
SETTING THE MINUTE MINDER
Step 1 Ensure the time of day is set correctly.
Step 2 Press and hold the Minute Minder button.
Step 3 With the Minute Minder button held in, set the required Minute Minder period using
the "+" and "-" buttons. A 'bell' symbol will light up.
Release all buttons and the timer display will revert back to the time of day. The 'bell' symbol
will remain lit to signify that a Minute Minder period has been set.
At the end of the set time an audible tone will be heard, and the 'bell' symbol will disappear.
Step 4 To cancel the audible tone press the Minute Minder button.
Note 1 When the Minute Minder has been set, the time remaining can be checked at any time by simply pressing
the Minute Minder button.
Note 2 If necessary the Minute Minder can be cancelled before the tone sounds by pressing and holding the
Minute Minder button and then at the same time pressing the "-" button until 0.00 appears in the display
window.
A
U
T
O000
.
.
A
U
T
O
000
.
000
.
000
.
A
U
T
O

13
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

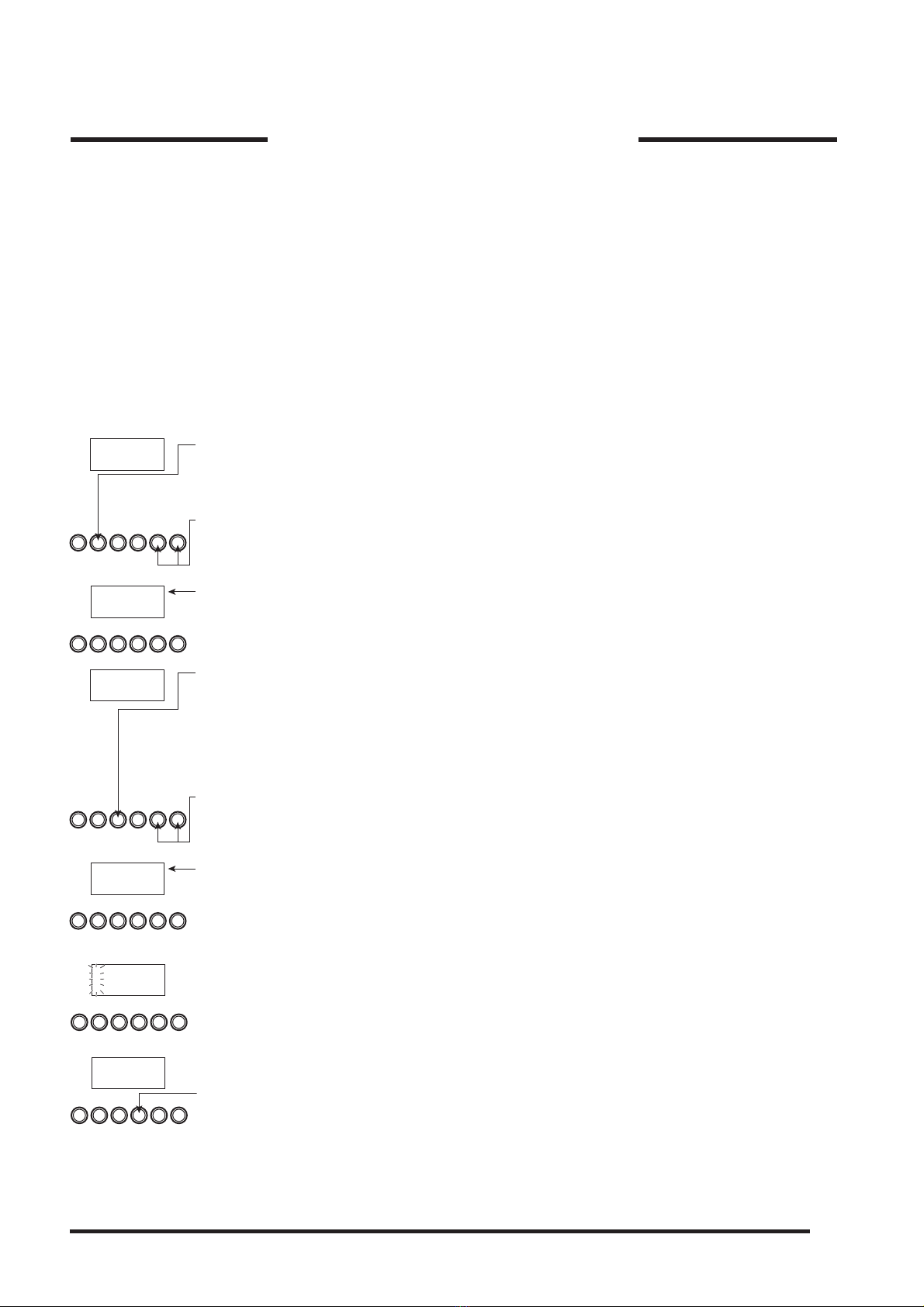

AUTO COOKING PROGRAMMES
There are two Auto Cooking programmes that can be selected using your timer:-
(a) To set the timer to switch the oven(s) On and Off Automatically
(b) To set timer to switch on immediately and OFF automatically after a set cook period.
a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY
This allows you to cook at a specified time for a chosen period before the oven switches off
Automatically.
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Press and hold in the Cook Period button. The display will read 0.00 with the
'cookpot' symbol lit.
Step 4 With the Cook Period button still held in, set the required Cook Period using the "+"
and "-" buttons.
Release the buttons and the timer display will revert to the time of day with the 'Auto'
symbol and 'cookpot' symbol lit.
Step 5 Press and hold in the End Time button. The display will read the earliest possible
end time for the Cook Period that you have set above. The 'Auto' symbol and 'cookpot'
symbol will be lit.
Step 6 With the End Time button still held in, use the "+" and "-" buttons to set the 'End
Time' (i.e. The time you require the oven to switch off ).
Release all the buttons and the timer will revert back to the time of day.
The 'Auto' symbol will remain lit to signify that an Auto Cooking Programme has been set.
The 'cookpot' symbol will go out.
Step 7 Turn the oven control(s) to the required temperature, and if necessary select the
appropriate oven function.
At the end of the Automatic Cook Period the Auto Symbol will flash and an intermittent
bleeping sound will be heard.
The audible tone will continue unless cancelled.
The 'Auto' symbol will continue to flash until the timer is returned to Manual operation (see
below).
Step 8 Press the Manual button, the audible tone will be cancelled and the oven(s) will be
returned to Manual.
Step 9 Turn the oven control(s) to the OFF position.
ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION
000
.
A
U
T
O
4120
.
A
U
T
O6120
.
A
U
T
O
4120
.
A
U
T
O6120
.
6120
.

14
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing the
Cook Period button.
Note 2 When cooking automatically the End Time can be checked at any time by simply pressing the
End Time button.

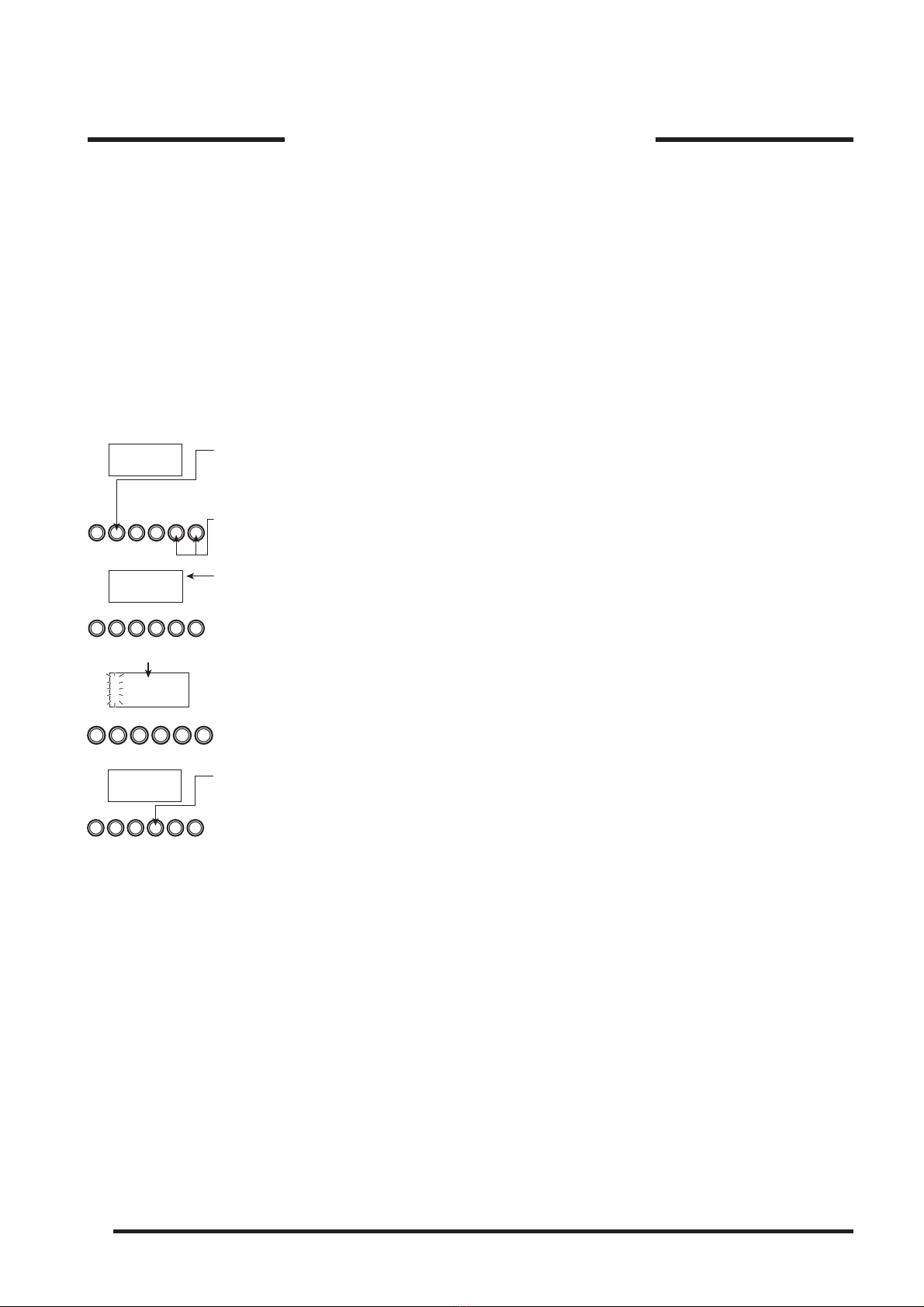

b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY AFTER A SET
COOK PERIOD
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven
function.
Step 4 Press & hold in the Cook Period button, the display will read 0.00 and the 'cookpot'
symbol will light up.
With the Cook Period button still held in set the required Cook Period using the "+" and "-"
buttons. Example: 1hr 30 minutes (as shown).
Step 5 Release all buttons.
The timer display will revert to the time of day with the 'Auto' symbol lit & 'cookpot' symbol
remaining lit.
At the end of the Cook Period the 'Auto' symbol will flash and an intermittent audible tone
will be heard. The audible tone will continue until cancelled. The 'Auto' symbol will continue
to flash until the timer is returned to Manual operation (see below).
Step 6 Press the Manual button. The audible tone will be cancelled and the oven(s) will be
returned to Manual.
Step 7 Turn the oven control(s) to the OFF position.
ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION
130
.
A
U
T
O4120
.
A
U
T
O
6120
.
NOTE: The Cookpot symbol disappears
6120
.

15
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
TO CANCEL AN AUTO COOKING PROGRAMME BEFORE THE COOK
PERIOD HAS FINISHED.
Step 1 Turn the oven control to the OFF position.
Step 2 Press the Manual button to return the oven to "Manual" operation. The 'Auto' symbol
will go out.
Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing the
Cook Period button.
OTHER NOTES ON TIMER OPERATION
1. When cooking Automatically the Cook Period can be checked at any time simply by pressing the Cook Period
button.
2. When cooking Automatically the End Time can be checked at any time by simply pressing the End Time button.
3. Having set a Cook Period and End Time an electronic device stores the information. The device within the timer
will switch the oven(s) on and off at the required times.
4. When setting an Auto Cooking Programme and a mistake is made, to clear:-
(a) Press & release the Manual button.
(b) Start the sequence again.
5. If at any time the display shows three flashing zero's 0.00 and 'Auto', it is likely that the electricity supply to the
oven has been interrupted. Reset the timer to the correct time of day.
Food in the oven may, therefore, not
have been cooked, before serving check food is thoroughly heated and completely cooked.
6. To set each function always press and hold the required function button and at the same time press "+" or "-"
buttons.
ELECTRONIC CLOCK & AUTOMATIC OVEN
TIMER OPERATION
5100
.

16
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
TEMPERATURE
CONVERSION CHART
°F Main Conventional
Oven
Top
Conventional
Oven
Main
Fan
Oven
250 120 110 100
275 140 130 120
300 150 140 130
325 160 150 140
350 180 170 160
375 190 180 170
400 200 190 180
425 220 210 200
450 - 220 210
475 - - 220
Temperatures
The recommended temperatures given are for conventional and fan ovens. When using
a fan oven it will be necessary to reduce the cooking time by 10 minutes per hour and
lower the temperature by up to 20°C. Also, in the majority of cases, it is not necessary
to pre-heat the oven. However, pre-heating is recommended when cooking items such
as Yorkshire puddings, whisked sponges and bread. Your experience with the cooker
will enable you to select the cooking time and temperature best suited for your recipe.
Condensation
Condensation may become evident on the inner door and water may drip through the
vent. This is normal when heat and moisture are present and may be a result of any of
the following:
1. Kitchen temperature and ventilation.
2. The moisture content of the food eg. meat, roast potatoes, Yorkshire pudding,
roasting meat, etc.
3. The quantity of the food being cooked at any one time.

17
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
USING THE
CERAMIC HOB
WARNING: DO NOT USE THE HOB IF IT IS CRACKED. TO AVOID ELECTRIC SHOCK - SWITCH
OFF AT THE COOKER MAINS CONTROL SWITCH IMMEDIATELY AND CONTACT YOUR
NEAREST SERVICE OFFICE (see back page).
Ratings of Cooking Zones
Front Left Front Right Back Left Back Right
Solarglo
1200 W
145mm diameter
Solarglo (Dual Oval)
1500 W
145mm x 250mm diameter
Solarglo
1800 W
180mm diameter
Solarglo
1200 W
145mm diameter
The Working of the Heating Zones
Heating only occurs within the marked circular cooking zones. The zones heat up and
cool down quicker, providing greater controllability for sensitive foods. Each heating
zone is equipped with a thermal limiter which is a safety cut-out which prevents the
ceramic glass from overheating. After several minutes at full power without a pan on
the heating zone the thermal limiter will switch the heating elements off and on
automatically to avoid any damage to the ceramic glass.
Choice of Saucepans
It is essential that the saucepan's you use on the ceramic hob are suitable.
ALWAYS USE:
•Good quality pans with smooth, flat, heavy bases.
•saucepan's manufactured from aluminium (enamelled or machined) or stainless
steel.
•Correct size saucepan's. The base of the pan must cover the heating zone
completely.
•saucepan's with lids which are well fitting to reduce cooking time and energy use.
NEVER USE:
•Pans with thin, distorted or uneven bases as these will extend cooking times, waste
electricity and cause damaging, local hotspots on the glass surface.
•Pans with ridged or recessed bases.
•Pans with damaged or rough bases which could scratch the glass surface.
•Glass or glass ceramic utensils.

18
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
CARE OF THE
CERAMIC HOB
Do Not
In order to keep your ceramic hob in good condition, follow these simple
guidelines:
Do notDo not
Do notDo not
Do not stare at halogen heating units.
Do notDo not
Do notDo not
Do not cook directly on the hob surface without a cooking utensil, as this will result
in damage to the surface of the hob.
Do notDo not
Do notDo not
Do not use the hob as a worktop surface as damage may occur to the smooth
surface of the hob.
Do notDo not
Do notDo not
Do not drag or slide utensils on the hob surface, as this will cause scratches in the
surface of the hob.
Do notDo not
Do notDo not
Do not allow a cooking utensil to come into contact with the hob surround.
Do notDo not
Do notDo not
Do not place anything between the base of the utensil and the ceramic
hob, e.g. do not use asbestos mats, aluminium or wok stand.
Do notDo not
Do notDo not
Do not leave any utensils, food or combustible items on the hob when it
is not in use.
Do notDo not
Do notDo not
Do not place aluminium or plastic foil, or plastic containers on the hob.
Do notDo not
Do notDo not
Do not leave the hotplates or cooking areas switched On unless they are being
used.
Do notDo not
Do notDo not
Do not leave heating zones uncovered when they are switched On.
We recommend not to place large preserving pans or fish kettles across two heating
areas.
Do notDo not
Do notDo not
Do not leave utensils partly covering the heated areas. Always ensure that
they are placed centrally over the heated areas and have the same
diameter as the heating area used.
Do
AlwaysAlways
AlwaysAlways
Always ensure that the bottom of the pan is both clean and dry. Dirt or moisture
between the pan and the hob can cause pitting of the surface of the glass.
We do not recommend the use of utensils with a base diameter greater than 25cm
(l0ins).
Pressure cookers or other large pans should be used on the front cooking areas.
AlwaysAlways
AlwaysAlways
Always ensure that saucepan handles are positioned safely.
AlwaysAlways
AlwaysAlways
Always take extra care when cooking foods with a high sugar content eg. jam, as
spillage will cause damage to the surface of the glass.
AlwaysAlways
AlwaysAlways
Always clean spills immediately (see Care and Cleaning).

19
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
CARE OF THE
CERAMIC HOB
IMPORTANTIMPORTANT
IMPORTANTIMPORTANT
IMPORTANT - As with any cooking appliance there could be some fire risk attached
to the heating of oil, particularly for deep fat frying, cooking utensils containing oil
must not be left unattendedmust not be left unattended
must not be left unattendedmust not be left unattended
must not be left unattended (e.g. to answer the telephone) on or in close proximity
to the patterned cooking areas.
1. Use a deep pan, large enough to completely cover the appropriate heating area.
2. Never fill the pan more than one-third full with fat or oil.
3. Never leave oil or fat unattended during the heating or cooking period.
4. Do not try to fry too much food at a time, especially frozen food. This only lowers
the temperature of the oil or fat too much, resulting in greasy food.
5. Always dry food thoroughly before frying, and lower it slowly into the hot oil or fat.
Frozen foods, in particular, will cause frothing and spitting, if added too quickly.
6. Never heat fat, or fry, with a lid on the pan.
7. Keep the outside of the pan clean and free from streaks of oil or fat.
8. Never allow excessive splashing of oil onto the hob.
Safety requirements for deep fat frying
In the unfortunate event of a chip pan fire:
1. Switch OffOff
OffOff
Off the electricity supply.
NEVERNEVER
NEVERNEVER
NEVER attempt to move the pan - burns and injuries are caused almost invariably
by picking up the burning pan and rushing outside with it.
2. Smother flames with a fire blanket or damp cloth.
NEVERNEVER
NEVERNEVER
NEVER use a fire extinguisher to put out a pan fire, as the force of the extinguisher
is likely to tip the pan over.
NEVERNEVER
NEVERNEVER
NEVER use water to extinguish oil or fat fires.
When smothering the flames DO ENSURE that you FACE and ARMS are WELL
PROTECTED from the flames to save you from becoming hurt.
3. After the fire has been extinguished LEAVE THE PAN TO COOL FOR AT LEAST 60
MINUTES BEFORE MOVING IT.
4. If you fail to put the fire out, call the fire brigade immediately.

20
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
HIGH SPEED GRILL
CAUTION: Accessible parts may become hot when the grill is in use - children should be
kept away.
Your cooker is not fitted with a conventional type of grill. The high speed grill is
designed to reduce your grilling times. It is quicker because it takes less time to warm
up from cold. Conventional grills require 5 minutes pre-heat before food is placed
beneath them, but for normal grilling the high speed grill can be used from cold
without any pre-heat. However, when toasting, optimum performance is achieved by
preheating the grill for about 1 minute.
Note:
You will notice that the grill elements are protected by a wire mesh. This stops you
from touching live parts.
DO NOT under any circumstances insert objects into the grill mesh as this could
damage or break the element tubes OR if the grill is on cause an electric shock.
During use the mesh may become soiled. Do not attempt to clean it while the grill is
still on. Turn the cooker off at the control unit and wait until it has cooled down before
cleaning.
Care must be taken to ensure the grill mesh is not distorted - DO NOT store the grill
pan handle on the grill pan grid when the rod shelf is in the top runner position.
There are two halves to the grill, one on the left and one on the right. You can choose
to have both sides on or just the left side on. Turning the control knob clockwise, will
switch both sides on. Turning it anticlockwise, will only switch the left side on. The
numbers which are displayed indicate the heat setting. Number 4 is the hottest and
number 1 the coolest.
GRILLING SHOULD NOT BE UNDERTAKEN WITH THE GRILL/TOP OVEN
DOOR CLOSED - This will cause overheating.
The grill will not operate unless the top oven control is in the '0' Off
position.
Grilling procedure
1. Open the grill/top oven door fully.
2. Position rod shelf as recommended in the chart (next page) for food being cooked.
3. Place the grill pan on the rod shelf, ensuring it is positioned centrally under the
element.
4. Never line the grill pan with aluminium foil as this may cause overheating of fat in
the grill pan.
