Hotpoint S150E User manual

Instructions
S150E

Contents
1
You must read these instructions prior to using the
appliance and retain them for future reference.
Introduction 2
Safety Information 3
Features 5
Temperature Conversion Chart 6
Controls 7
Multifunction Switch 8
Oven Timer Operation 9
Grill Pan and Handle 15
Using the Top Oven for Solarplus Grilling 16
Guide to Solarplus Grilling 18
Using the Top Oven as a Convection Oven 19
Operation when using the Top Oven as a Convection Oven 20
Top Oven Temperature Charts 21
Main Oven - Fan Grilling 23
Main Oven - Fan Grilling Roasting Chart 24
Using the Main Oven for other Functions 25
Main Oven - Convection Oven 26
Main Oven - Fan Oven 26
Main Oven Cookery Notes 27
Main Oven Temperature Charts 29
Main Oven Grilling 32
Care and Cleaning 33
Installation 37
Something Wrong? 41
Key Contacts Back Cover

Introduction
2
This appliance conforms to the following EEC Directives:
Electromagnetic Compatibility Low Voltage Equipment
89/336/EEC 73/23/EEC
92/31/EEC 93/68/EEC
93/68/EEC
To minimise the risk of injury to children please dispose of your product carefully and safely.
Remove all doors and lids. Remove the mains cable (where fitted) by cutting off flush with the
appliance and always ensure that no plug is left in a condition where it could be connected to
the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal of
you product.
Disposal of your product
Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable
if the appliance has been installed in accordance with the installation instructions detailed in
this booklet.
To help make best use of your cooking equipment, please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for
use in any other installation.
To help remove the ‘new’ smell, heat up the empty ovens to maximum temperature for a
minimum of two or three hours, keeping the oven doors closed. Ensure that the room is well
ventilated (e.g. open a window or use an extractor fan) and that persons who may be sensitive
to the odour avoid any fumes.
It is suggested that any pets be removed from the room until the smell has ceased.
This odour is due to temporary finish on oven liners and elements and also any moisture
absorbed by the insulation.
When the cooker is first used an odour may be emitted,
this will cease after a period of use
* The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage as stated on the
rating plate attached to this equipment.
(c) Has not been subjected to misuse or accident or been modified or repaired by
any person other than the authorised employee or agent.
(d) Has been correctly installed.

Always
●Always make sure you remove all packaging and literature from inside the oven
and grill compartments before switching on for the first time.
●Always make sure you understand the controls prior to using the appliance.
●Always keep children away from the appliance when in use as the surfaces will
get extremely hot during and after cooking.
●Always make sure all controls are turned off when you have finished cooking
and when not in use.
●Always stand back when opening an oven door to allow any build up of steam or
heat to disperse.
●Always use dry, good quality oven gloves when removing items from the
oven/grill.
●Always take care to avoid heat/steam burns when operating the controls.
●Always turn off the electricity supply at the wall switch before cleaning and
allow the appliance to cool.
●Always make sure the shelves are in the correct position before switching on the
oven.
●Always keep the oven and grill doors closed when the appliance is not in use.
●Always take care when removing utensils from the top oven when the main oven
is in use as the contents may be hot.
●Always keep the appliance clean as a build up of grease or fat from cooking can
cause a fire.
●Always follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
●Always keep ventilation slots clear of obstructions.
●Always refer servicing to a qualified appliance service engineer.
●During use the oven becomes hot. Care should be taken to avoid touching
heating elements inside the oven,
SAFETY ADVICE
IN THE EVENT OF A CHIP PAN OR ANY OTHER PAN FIRE:
1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the
flames and extinguish the fire.
3. LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT.
Injuries are often caused by picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the force of
the extinguisher is likely to tip the pan over. Never use water to extinguish
oil or fat fires.
3
Safety Information
When used properly your appliance is completely safe but as with any electrical product
there are certain precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.

Never
●Never leave children unsupervised where a cooking appliance is installed as all
cooking surfaces will be hot during and after use.
●Never allow anyone to sit or stand on any part of the appliance.
●Never store items above the appliance that children may attempt to reach.
●Never remove the oven shelves whilst the oven is hot.
●Never heat up unopened food containers as pressure can build up causing the
container to burst.
●Never store chemicals, food stuffs or pressurised containers in or on the
appliance, or in cabinets immediately above or next to the appliance.
●Never operate the grill with the door closed as this will cause the appliance to
overheat.
●Never use the appliance as a room heater.
●Never use the grill to warm plates.
●Never dry any items on the oven doors.
●Never install the appliance next to curtains or other soft furnishings.
●Never allow children to play with the appliance controls.
●Never use ‘steam cleaners’.
4
Safety Information

Features
5
TOP OVEN
TEMPERATURE CONTROL /
GRILL SELECT
TIMER
OVEN LIGHT
MAIN OVEN
PILOT LIGHT
TOP OVEN
PILOT LIGHT
GRILL PAN &
FOODSUPPORT
TOP OVEN
DOOR
OVEN LIGHT
OVEN SHELF
RATING PLATE
GRILL
SETTING
CONTROL
GRILL
ELEMENT
FAN GRILL
ELEMENT
STAY CLEAN
LINER
OVEN FAN
STAY CLEAN
LINER
MEAT PAN AND
ROASTINGRACK
INNER DOOR
GLASS MAIN OVEN
DOOR
GRILLSHELF
INNER DOOR
GLASS
❍❍❍❍
MAIN OVEN
TEMPERATURE
CONTROL
MULTIFUNCTION
SELECTOR
WARNING: Do not touch the glass doors when the oven is in use as these areas can
become hot.
NEVER line the shelves, floor or sides of the oven or grill with aluminium foil as
overheating and damage may result.

Temperature Conversion Chart
6
The chart below gives details of comparisons of oven settings for gas
conventional ovens and fan oven in degrees ˚F and ˚C
CONVENTIONAL
OVEN
˚F ˚C
250 120
275 140
300 150
325 160
350 180
375 190
400 200
425 220
450 230
475 240
GAS
MARK
1/2
1
2
3
4
5
6
7
8
9
FAN
OVEN
˚C
100
120
130
140
160
170
180
200
210
220

Controls
7
Grill
Control Top Oven
Temperature Control /
Grill Select
Main Oven
Temperature
Control
Timer
❍❍ ❍
❍
Multifunction
Selector
Main Oven Pilot
IMPORTANT
Before using your oven in the ordinary way, ALWAYS make sure that the timer has been
set to MANUAL operation. Unless this is done, the main oven cannot heat up. Before seek-
ing assistance, make sure this is done (refer to oven timer operation).
MULTIFUNCTION SELECTOR
Rotate the control knob in either direction to the required function. Many of the
functions will also require the main oven thermostat to be set before the oven will heat
up.
MAIN OVEN TEMPERATURE CONTROL
This is used in addition to the multifunction selector. This is used for the functions: fan
oven, fan grill, half grill and full grill and convection oven.
Turn the control clockwise to set the oven thermostat to the required temperature.
If the timer is set correctly and the selector switch set to a suitable function an indicator
light will illuminate (Fan Oven, Convection Oven and Fan Grilling modes only). This will
remain on until the oven reaches the required temperature. This light will then cycle on
and off as the thermostat maintains control of the oven temperature.
TOP OVEN TEMPERATURE CONTROL
Turn the control clockwise to set the top oven thermostat to the required temperature.
An indicator light will illuminate. This will remain on until the oven reaches the required
temperature. This light will then cycle on and off as the thermostat maintains control of
the oven thermostat.
GRILL CONTROL
The grill control is designed to provide variable heat control of either both grill elements
on together or the single left-hand grill element only. Turn the top oven control
clockwise past the temperature settings to the half grill or full grill settings, depending
on which you require. To set the grill power, turn the grill control to any setting 1 - 6.
After use always set the oven control back to ‘O’ (Off).
COOLING FAN
A gentle flow of air will be blown below the control panel when any control is used. In
some instances this will continue after switching off. This helps to keep the control panel
and knobs cool.
Top Oven Pilot
AB C
D

Multifunction Selector Switch
8
The Multifunction selector switch is
used when operating the main oven.
With the exception of the O position
the main oven light will remain on
when this selector switch is used.
Off
With the selector in this position the
main oven will not heat up. The timer
will still operate.
Fan Oven
The oven fan and a rear element are
controlled when this function is select-
ed.
Use the main oven thermostat control
to set the required temperature.
Convection Oven
Top and base elements are controlled
when this function is selected.
Usethemainoventhermostattosetthe
required temperature.
Half Grill
With this function selected only the
inner element of the grill will be on.
Use the oven thermostat control to set
the required temperature.
Oven door must be open for grilling.
Full Grill
Both inner and outer grill elements will
be on in this position.
Use the oven thermostat control to set
the required temperature.
Oven door must be open for grilling.
Fan Grill
The oven fan and fan grill element are
controlled when this function is select-
ed.
Use the oven thermostat control to set
the required temperature.
Oven door must be closed for fan
grilling.
Fan Only
The oven fan will operate when this
function is selected.
The oven thermostat control must be
set in the off position.
Light Only
Thisfunction switchesonthe oven light
only.

Oven Timer Operation
9
The Main Oven (only) can be controlled by the automatic timer.
1. Select foods which will require the same cooking time and
temperature.
2. To ensure food does not cool down and require reheating, set the end
time so the food is ready when you require it.
3. Always ensure that meat and poultry is defrosted before placing in the
oven.
4. Whenever possible, take food out of the refrigerator and keep it as
cool as possible.
5. If cooking food that requires frying before placing in the oven for auto
cooking, keep the delay start time to a minimum.
6. Never place hot or warm food in the oven for delay start cooking as it
could cause the oven to be warm and produce harmful bacteria in the
food.
7. We advise that dishes containing left-over cooked poultry or meat, e.g.
Shepherd's Pie, should not be cooked automatically if there is to be a
delay period.
8. Ensure that delay start times are kept to a minimum to prevent
bacterial growth in food.
9. Wine or beer may ferment and cream may curdle during the delay
period so it is best to add these ingredients just before serving.
10. Foods which discolour should be protected by coating in fat or tossing
in water to which lemon juice has been added, prior to placing food in
the oven.
11. Dishes containing liquid should not be filled too full to prevent boiling
over.
12. Food should be well sealed (but not airtight) in a container to prevent
the loss of liquid during cooking. Aluminium foil gives a good seal.
13. Always ensure that food is piping hot and cooked thoroughly before
serving.
14. Only reheat food once.
Automatic Cooking
Hints on
Automatic
Cooking
Note: Timer must be set to ‘Time of Day’ and ‘Manual’ before the
ovens can be used.
NEVER operate the grill or top oven when the main oven is set
to cook automatically because the oven cavity can become
warm and this may cause bacterial growth in food.

10
Know Your Timer
CLOCKFACE
The timer incorporates a 24 hour clock.
Ensure the correct time of day is always set, before using your cooker.
SYMBOLS

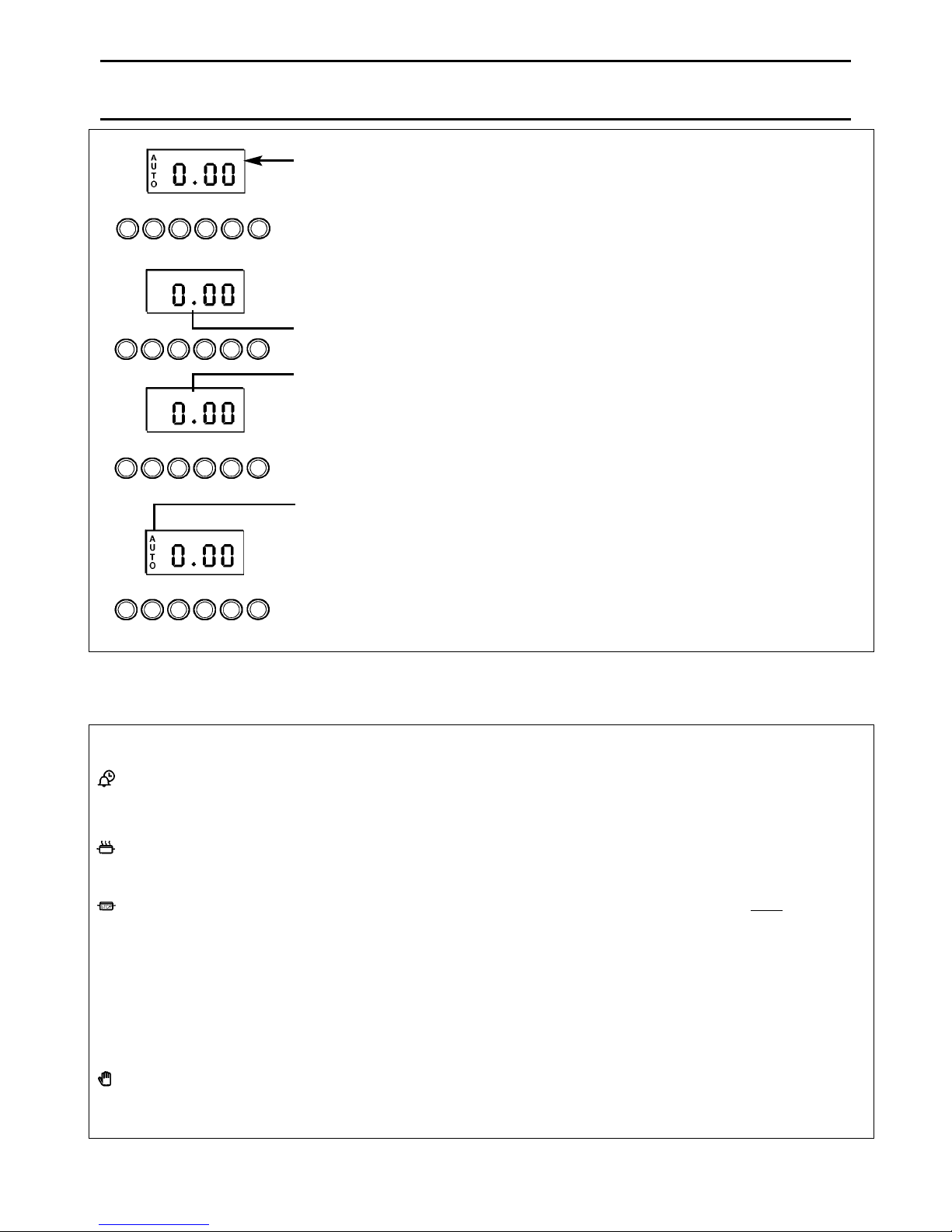

A ‘bell’ symbol will light up when you select a Minute Minder Period and will
remain lit for the period set.
At the end of the Minute Minder Period, the timer will emit an audible tone and
the ‘bell’ symbol will disappear.
The ‘cookpot’ symbol will light up either:–
– When the timer is in manual mode, or
– During the actual Cook Period.
‘AUTO’ will light up:–
– When the timer is first turned on it will flash. It will go out when a time of day
is set or when the timer is set to manual.
The ‘AUTO’ symbol will flash at the end of an Auto Cooking programme to
indicate that the programme has finished.
(When the ‘AUTO’ symbol is flashing, to return the oven to Manual operation,
turn the oven controls off, ensure that the correct time of day is set, and press
the “Manual” button – The ‘AUTO’ symbol will go out).
Here you can set a time period of up to 23 hours 59 minutes, that will count down.
When it reaches zero, the timer will emit an audible tone.
For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.
Cook Period is the actual length of time for which, the timer will switch the oven(s)
on as part of an “Auto Cooking” programme.
(e.g. If you set 2 hours, the food will be cooked for 2 hours).
The time of day at which you want an “Auto Cooking” programme to end.
For Example: If you set a “Cook Period” for 2 hours, and “End Time” of 11:00. The
timer will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00. You will hear
a audible tone at 11:00, to indicate that the Auto Cooking Programme has finished.
Notes:
- When setting an Auto Cooking programme you will need to set the oven
control(s) to the required temperature(s) when you set the timer.
- If an Auto Cooking programme has been set the oven(s) will only operate during
the pre-programmed time.
Needs to be pressed to cancel an Auto Cooking programme and return the oven(s) to
Manual operation.
Used to adjust the various timer function settings.
Minute Minder
Button
Cook Period Button
End Time Button
Manual Button
“+” and “–” Buttons

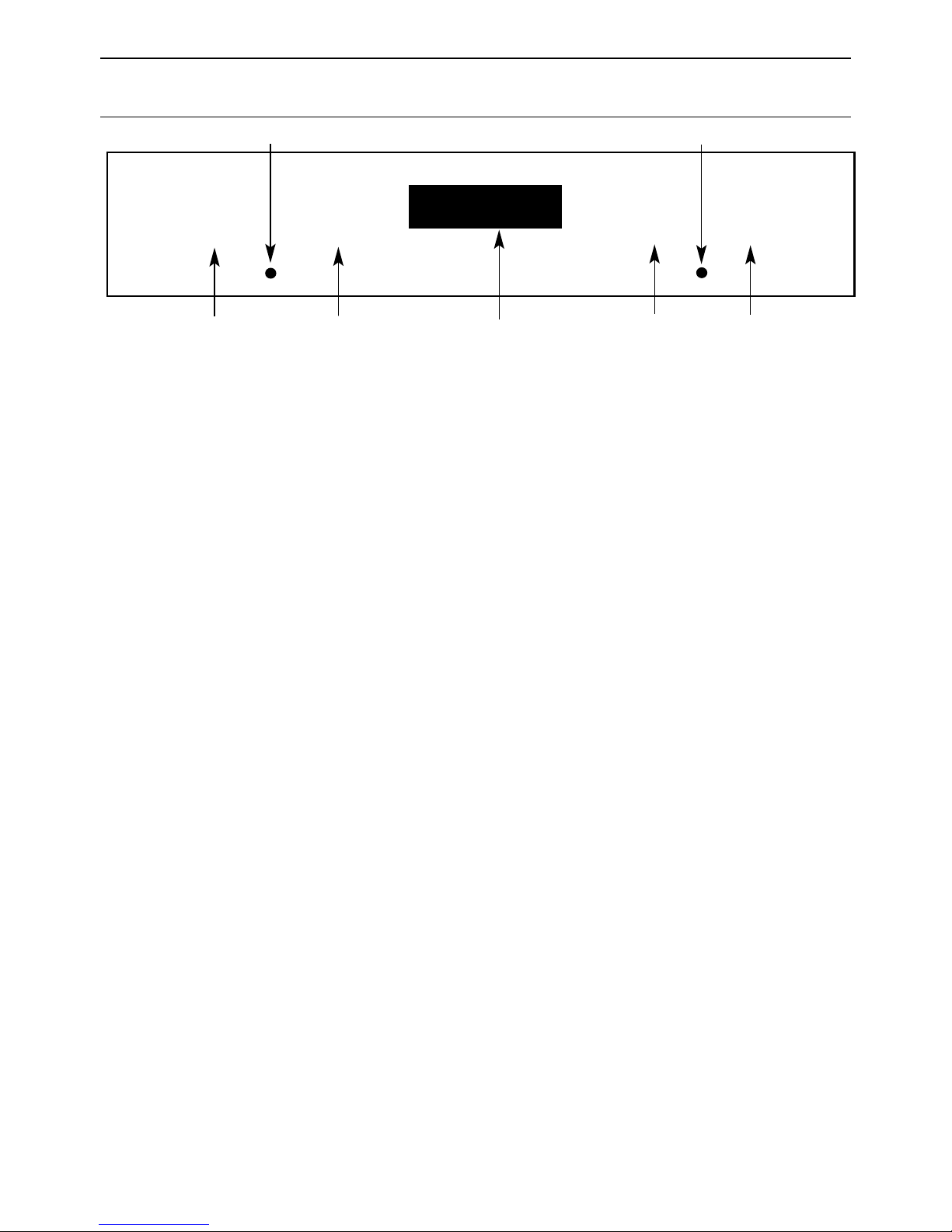

TIMER FUNCTION BUTTONS
AUTO COOKING PROGRAMME

Electronic Clock and Automatic Oven Timer Operation
11
SETTING THE TIME OF DAY
Step 1 Make sure all oven controls are turned Off.
Step 2 Check the electricity supply to the cooker is turned on.
Step 3 When switched on the display will show 0.00 and the Auto symbol,
flashing intermittently.
Step 4 Press & hold in both the Cook Period & End Time buttons together.
Step 5 With the Cook Period & End Time buttons still held in, press either the “+”
or “–” buttons to set the correct time of day.
Step 6 Release all the buttons simultaneously.
THE TIME OF DAY IS NOW SET.
To change the time of day repeat Steps 4, 5 & 6 above.
Note: You cannot adjust the time of day if the timer has been set for an
Auto Cooking Programme.
SETTING THE MINUTE MINDER
Step 1 Ensure the time of day is set correctly.
Step 2 Press and hold the Minute Minder button.
Step 3 With the Minute Minder button held in, set the required Minute Minder
period using the “+” and “–” buttons. A ‘bell’ symbol will light up.
Release all buttons and the timer display will revert back to the time of day.
The ‘bell’ symbol will remain lit to signify that a Minute Minder period has been
set.
At the end of the set time an audible tone will be heard, and the ‘bell’ symbol will
disappear.
Step 4 To cancel the audible tone press the Minute Minder button.
Note 1 When the Minute Minder has been set, the time remaining can be checked at any
time by simply pressing the Minute Minder button.
Note 2 If necessary the Minute Minder can be cancelled before the tone sounds by press
ing and holding the Minute Minder button and then at the same time pressing the
“–” button until 0.00 appears in the display window.

Electronic Clock and Automatic Oven Timer Operation
12
Step 3 Press and hold in the Cook Period button.
The display will read 0.00 with the ‘cookpot’ symbol lit.
Step 4 With the Cook Period button still held in, set the required Cook Period
using the “+” and “–” buttons.
Release the buttons and the timer display will revert to the time of day with the
‘Auto’ symbol and ‘cookpot’ symbol lit.
Step 5 Press and hold in the End Time button.
The display will read the earliest possible end time for the Cook Period
that you have set above.
The ‘Auto’ symbol and ‘cookpot’ symbol will be lit.
Step 6 With the End Time button still held in, use the “+” and “–” buttons to set
the ‘End Time’ (i.e. The time you require the oven to switch off).
Release all the buttons and the timer will revert back to the time of day.
The ‘Auto’ symbol will remain lit to signify that an Auto Cooking Programme has
been set. The ‘cookpot’ symbol will go out.
Step 7 Turn the oven control(s) to the required temperature, and if necessary
select the appropriate oven function.
At the end of the Automatic Cook Period the Auto Symbol will flash and an
intermittent bleeping sound will be heard.
The audible tone will continue unless cancelled.
The ‘Auto’ symbol will continue to flash until the timer is returned to Manual
operation (see below).
Step 8 Press the Manual button, the audible tone will be cancelled and the
oven(s) will be returned to Manual.
Step 9 Turn the oven control(s) to the OFF position.
AUTO COOKING PROGRAMMES
There are two Auto Cooking programmes that can be selected using your timer:–
(a) To set the timer to switch the oven(s) On and Off Automatically
(b) To set timer to switch on immediately and OFF automatically after a set cook period.
a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY
This allows you to cook at a specified time for a chosen period before the oven switches
off Automatically.
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).

Electronic Clock and Automatic Oven Timer Operation
13

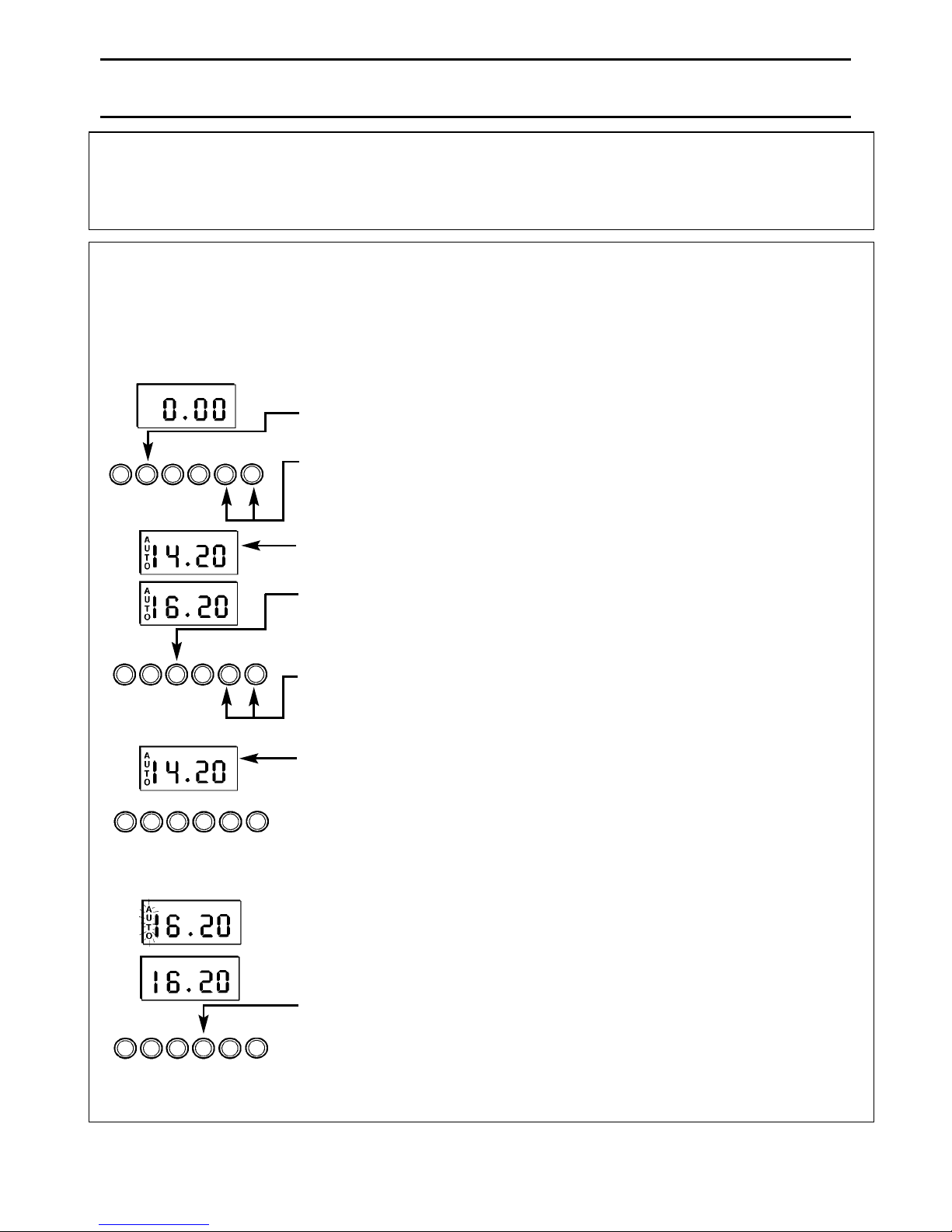

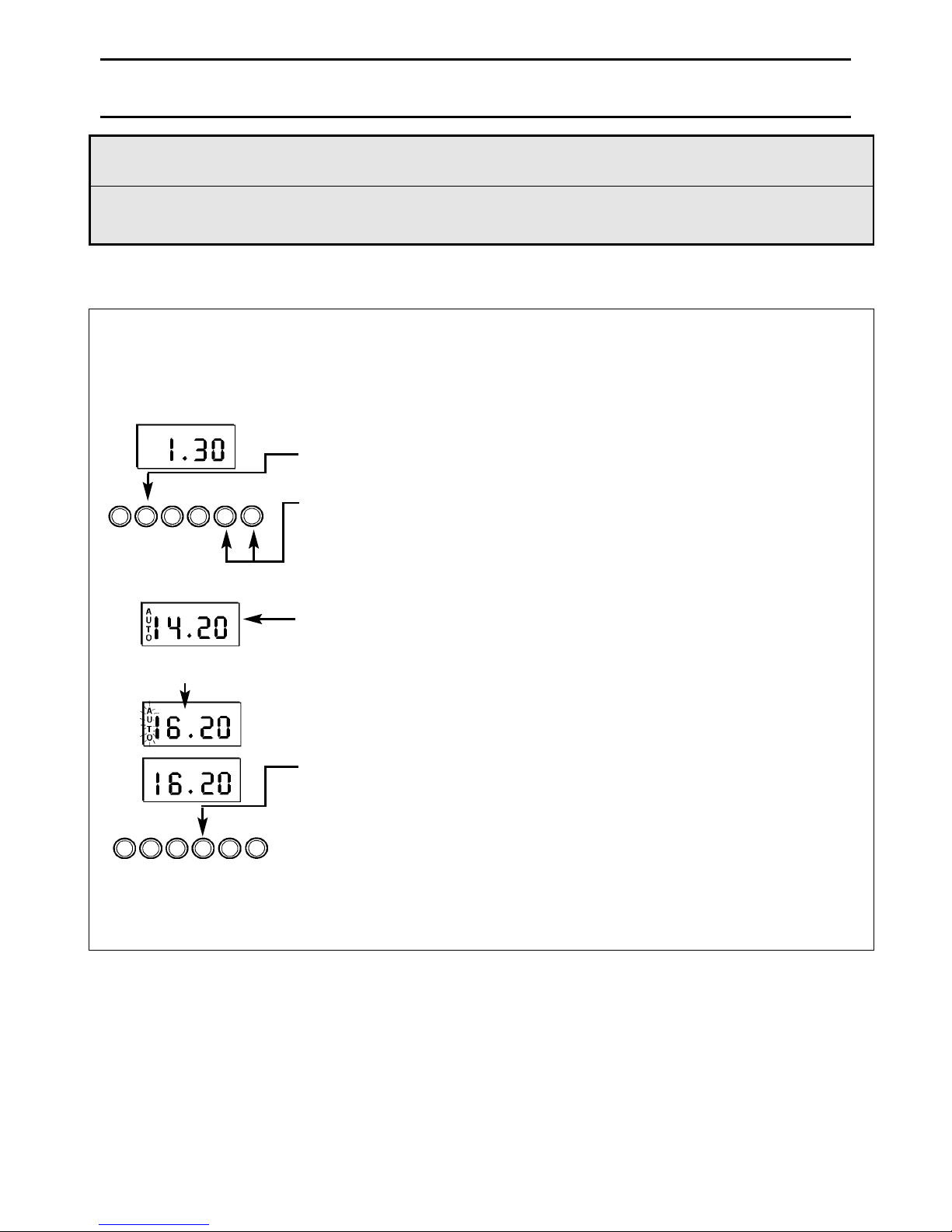

Step 4 Press & hold in the Cook Period button, the display will read 0.00 and the
‘cookpot’ symbol will light up.
With the Cook Period button still held in set the required Cook Period using the
“+” and “–” buttons. Example: 1hr 30 minutes (as shown).
Note: Cook Period is the length of time the food requires to cook.
Step 5 Release all buttons.
The timer display will revert to the time of day with the ‘Auto’ symbol lit &
‘cookpot‘ symbol remaining lit.
At the end of the Cook Period the ‘Auto’ symbol will flash and an intermittent
audible tone will be heard.
The audible tone will continue to flash until the timer is returned to Manual
operation (see below).
Step 6 Press the Manual button. The audible tone will be cancelled and the
oven(s) will be returned to Manual.
Step 7 Turn the oven control(s) to the OFF position.

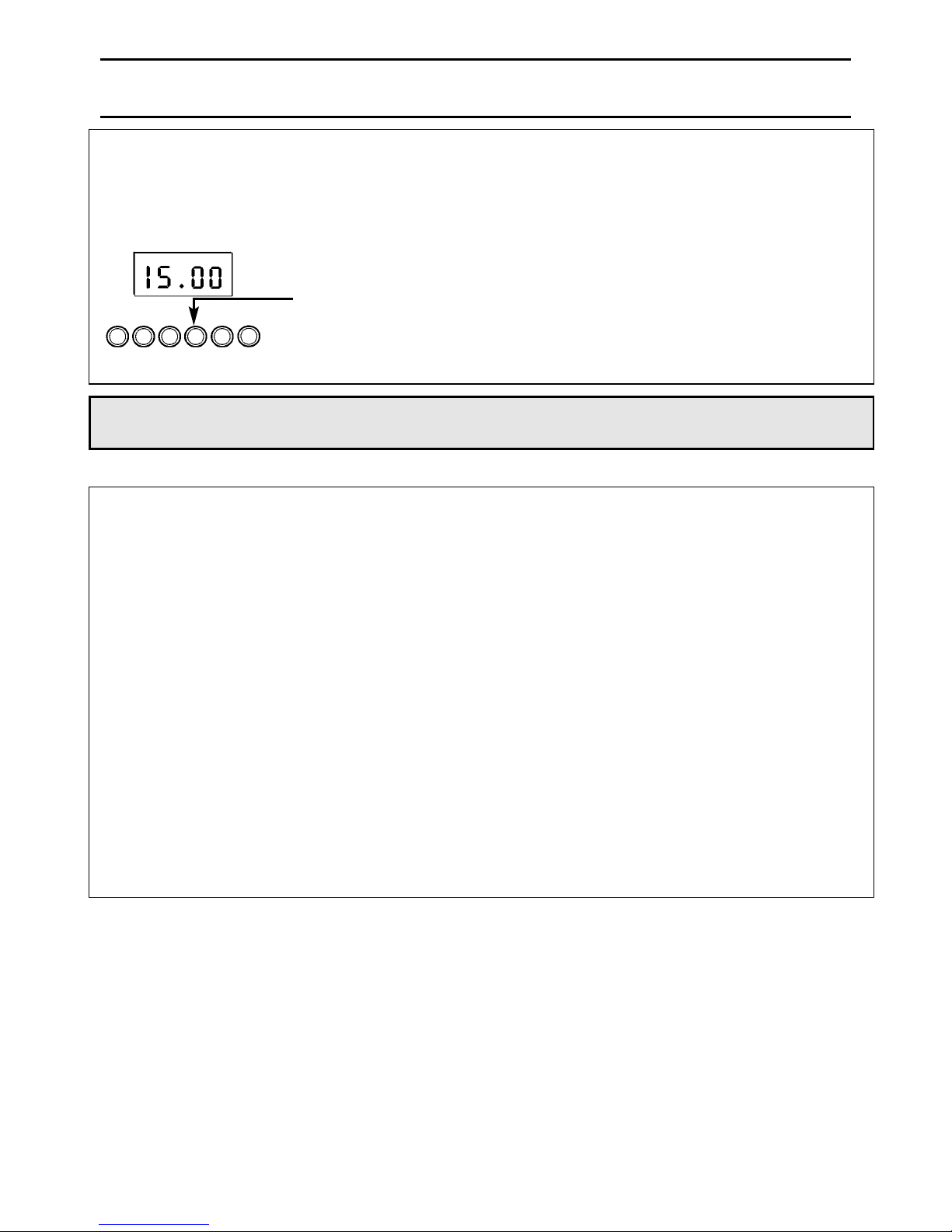

b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY AFTER A SET COOK
PERIOD
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven
function.
Note 1 When cooking automatically the Cook Period can be checked at any time by simply
pressing the Cook Period button.
Note 2 When cooking automatically the End Time can be checked at any time by simply
pressing the End Time button.
NOTE: The Cookpot symbol disappears

Electronic Clock and Automatic Oven Timer Operation
14
OTHER NOTES ON TIMER OPERATION
1. When cooking Automatically the Cook Period can be checked at any time simply by pressing the Cook
Period button.
2. When cooking Automatically the End Time can be checked at any time by simply pressing the End Time
button.
3. Having set a Cook Period and End Time an electronic device stores the information. The device within the
timer will switch the oven(s) on and off at the required times.
4. When setting an Auto Cooking Programme and a mistake is made, to clear:–
(d) Press & release the Manual button.
(e) Start the sequence again.
5. If at any time the display shows three flashing zero’s 0.00 and ‘Auto’, it is likely that the electricity supply to
the oven has been interrupted. Reset the timer to the correct time of day.
Food in the oven may, therefore, not have been cooked, before serving check food is thoroughly heated
and completely cooked.
6. To set each function always press and hold the required function button and at the same time press “+” or
“–” buttons.
TO CANCEL AN AUTO COOKING PROGRAMME BEFORE
THE COOK PERIOD HAS FINISHED.
Step 1 Turn the oven control(s) to the OFFposition.
Step 2 Press the Manual button to return the oven(s) to “Manual” operation.
The ‘Auto’ symbol will go out.
Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing
the Cook Period button.

The grill pan handle is detachable from the pan, to facilitate cleaning and storage.
The grill pan handle can be fixed as follows:
Step 1 Remove the screw and washers from the grill pan bracket (a).
Step 2 Tilt the handle over the recess (b).
Step 3 Slide it towards the centre of the pan (c).
Step 4 Locate the handle over the bracket (d).
For a fixed handle, replace the screw and washers and ensure they are fully
tightened up. If a detachable handle is required, do not replace the screw and
washers.
Grill Pan, Food Support and Anti-Splash Tray
Top Oven Shelf Positioning for Grilling
Grill Pan and Handle
15
Note: If a fixed handle is required, the grill pan cannot be kept in the main oven with the
door closed but may be stored in the top oven with the door closed, when the top oven is
not in use..
Step 1 Step 2 Step 3 Step 4
GRILL PAN FOOD SUPPORT
GRILL PAN ANTI-SPLASH TRAY
(a) (b) (c) (d)
NOTE: Preheat the grill if indicated on grill chart.
The grill pan must be placed on the correct shelf and positioned centrally under the grill
element.
Leave the control at 6 for toast, and for fast cooking of foods.
For thicker foods requiring longer cooking, turn the switch to a lower setting after the
initial sealing on both sides at 6. The thicker the food, the lower the control should be set.
DO NOT line the grill pan with aluminium foil, as this increases the amount of fat spitting
which can cause a fire.
After use always return both controls to their OFF (0) position.
ENSURE SHELVES ARE FITTED CORRECT WAY UP.
DO NOT PLACE FOOD/UTENSILS DIRECTLY ON THE OVEN FLOOR
3
2
1
3
2
1
Note: To stop fat splashing onto the grill mesh, it is important to use the anti-splash tray as
shown in the grilling chart. Always clean the grill pan, anti-splash tray and food support
after each use.

Your cooker is not fitted with a conventional grill. We have developed a Solarplus
high speed grill which is designed to reduce your grilling times. It is quicker because it
takes less time to warm up from cold. Conventional grills require 5 minutes pre-heat
before food is placed beneath them, but for normal grilling the Solarplus grill can be
used directly from cold without any pre-heat.
However, when toasting, optimum performance is achieved by pre-heating the grill for
about 1 minute.
During use the mesh may become soiled. Do not attempt to clean it while the grill is
still on. Turn off at the control and allow to cool before cleaning. Care must be taken
to ensure the grill mesh is not distorted – do not store the grill pan handle on the food
grid when the shelf is in the highest position.
IMPORTANT
GRILLING SHOULD NEVER BE UNDERTAKEN WITH THE GRILL/TOP OVEN DOOR
CLOSED.
Using the Top Oven for Solarplus Grilling
16
Note: You will notice that the grill elements are protected by a wire mesh. This stops
you from touching live parts.
DO NOT under any circumstances insert objects into the grill mesh as this could
damage the element wire, break the glass tubes or if the grill is on, cause electric
shock.

Step 1 Ensure that the timer is set to manual.
Step 2 Place the shelf in the correct position (see Grilling Guide).
Place the food/grill pan on the shelf, positioned centrally under the grill
element.
Leave the top door fully open.
Step 3 Turn knob (B) clockwise to select grill function setting:
Set to: For Half Grill (Left hand side only).
For Full Grill.
Step 4 Turn knob (A) clockwise to select the Grill Setting (1–6). (1=Low, 6=High).
Grill Controls Example:
= Full Grill Function
= Maximum Grill Setting
NOTE: Do not grill with the grill/top
oven door closed.
Step 5 After use, turn both controls A &B
anti clockwise to their off (●) position.
Operation when using the Top Oven for Grilling
17
NOTE: As you turn past the end of the oven temperature scale you will feel resistance on the
knob – continue turning clockwise until the grill setting position is selected.
Half
Grill
Full
Grill
Full
Grill
6
6Full
Grill
DO NOT allow young children near to the appliance when the grill is in use as the surfaces
get extremely hot.
DOOR POSITION
FOR GRILLING.
TOP OVEN
TEMPERATURE CONTROL /
GRILL SELECT
TIMER
GRILL
SETTING
CONTROL ❍❍❍❍
AB

Guide to Solarplus Grilling
18
Food Preheat for one
minute
Position from base of
oven. Setting Approximate
Cooking Time Pan to be used
Grill pan and food
support
3-5 minutes
10-15 minutes
25-30 minutes
6-8 minutes
10-15 minutes
10-15 minutes
10-12 minutes
10-12 minutes
5-10 minutes
Setting 6
Setting 6 for 4 minutes
then reduce to Setting 5
Setting 6 for 6-8 minutes
then reduce to Setting
4 or 5
Setting 6
Setting 4
Setting 4
Setting 6
Toasting of Bread
Products
Small cuts of meat,
Sausage, Bacon
Chops etc.
Gammon steaks
Fish Whole
Fillets
Fingers
Pre-cooked Potato
products
Pizzas
Browning of food
eg. Cauliflower
Cheese
3 or 2
3 or 2
2
2
3
3
3 or 2
3 or 2
3 or 2
Setting 6
None
None
None
None
None
None
None
Setting 6
Grill pan, anti-splash
tray and food support
Grill pan, anti-splash
trivet & food support
Grill pan and food
support
Grill pan and food
support
Grill pan and food
support
Dish placed directly
on the shelf

The top oven should be used to cook small quantities of food. The oven is designed so
that the grill element operates at a reduced heat output, this is combined with a
heating element situated underneath the floor of the oven. To ensure even cooking of
the food it is important that cooking utensils are positioned correctly on the oven
shelf so that the element is directly above. As a guide, the front of the utensil should
be approx. 100mm (4”) from the front of the shelf.
Shelf Positioning
There should always be at least 25mm (1 inch) between the top of the food and
the grill element.
DO NOT PLACE FOOD/UTENSILS DIRECTLY ON THE OVEN FLOOR
3
2
1
ENSURE SHELVES ARE FITTED THE CORRECT WAY UP
Using the Top Oven as a Convection Oven
Note: Charts are a guide only, to suit personal taste and requirements, it may be
necessary to increase or decrease temperatures by 10
o
C. It may also be necessary to increase
or decrease cooking times.
WARNING: Items stored in the top oven will get hot when the main oven is in use.
DO NOT allow young children near to the appliance when the top oven is in use as the
surfaces get extremely hot.
19
