House Beautiful Realm Fitted Look Double Wardrobe User manual

Fitted Bedrooms:
Clad-on Panels / Cornice Panels
Assembly Instructions-Please keep for future reference
Dimensions
Width - defined by user
Depth - 65.25 / 62.2cm
Height - 225.5 / 222.6cm
Important–Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please return to your local store.
IM1337_00
HHGL Limited, MK9 1BA; HHGL (ROI) Limited, D02 X576
Produced for

Safety and Care Advice
Important – Pleaseread theseinstructions fully before starting assembly
Note: If required, the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to lay out the parts before
starting assembly.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the product as close
to its final position (in the same
room) as possible.
• Assemble on a soft, level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• To reduce the
likelihood of damaging
your product, please
ensure that your power
drill is set on a low
torque setting.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time-to-time check that
there are no loose screws on
this product.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts.
• Regularly check and ensure
that all bolts and fittings are
tightened properly.
Handy hints

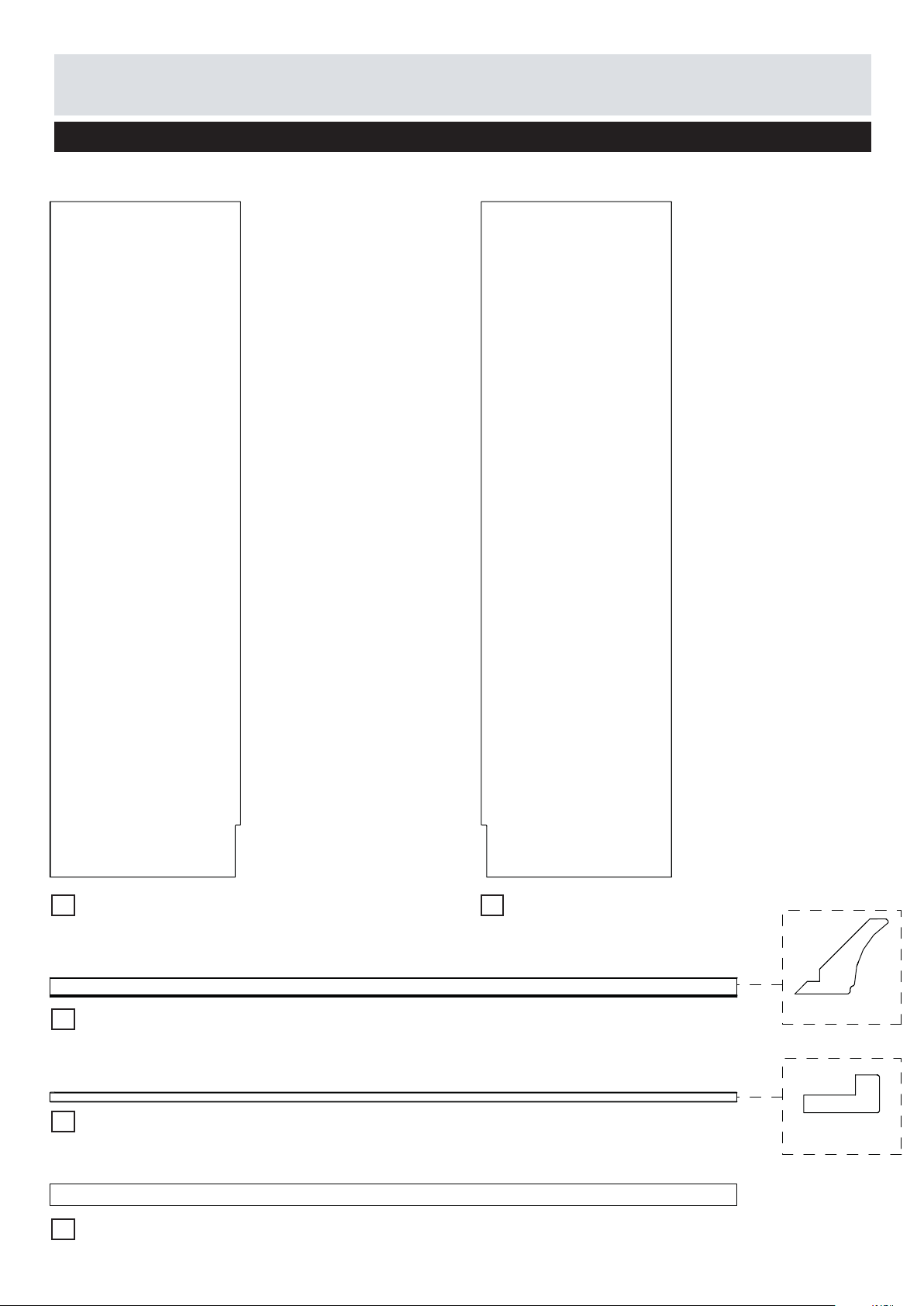

Components - Panels
Please check you haveallthe panels listed below
If you have damaged or missing components,
please return to your local store.
3
Left side panel x 1
(62 x 219.6cm)
1
Cornice panel x 1 - OPTION “TRADITIONAL” (3 x 9.3 x 244cm)
3
Cornice panel x 1 - OPTION “MODERN” (3 x 6 x 244cm)
3
Plinth panel x 1 (6.5 x 244cm)
4
Right side panel x 1
(62 x 219.6cm)
(section)
(section)
2

4
Note: The quantities below are the correct amount to complete theassembly. In some cases more fittings
may be suppliedthan are required.

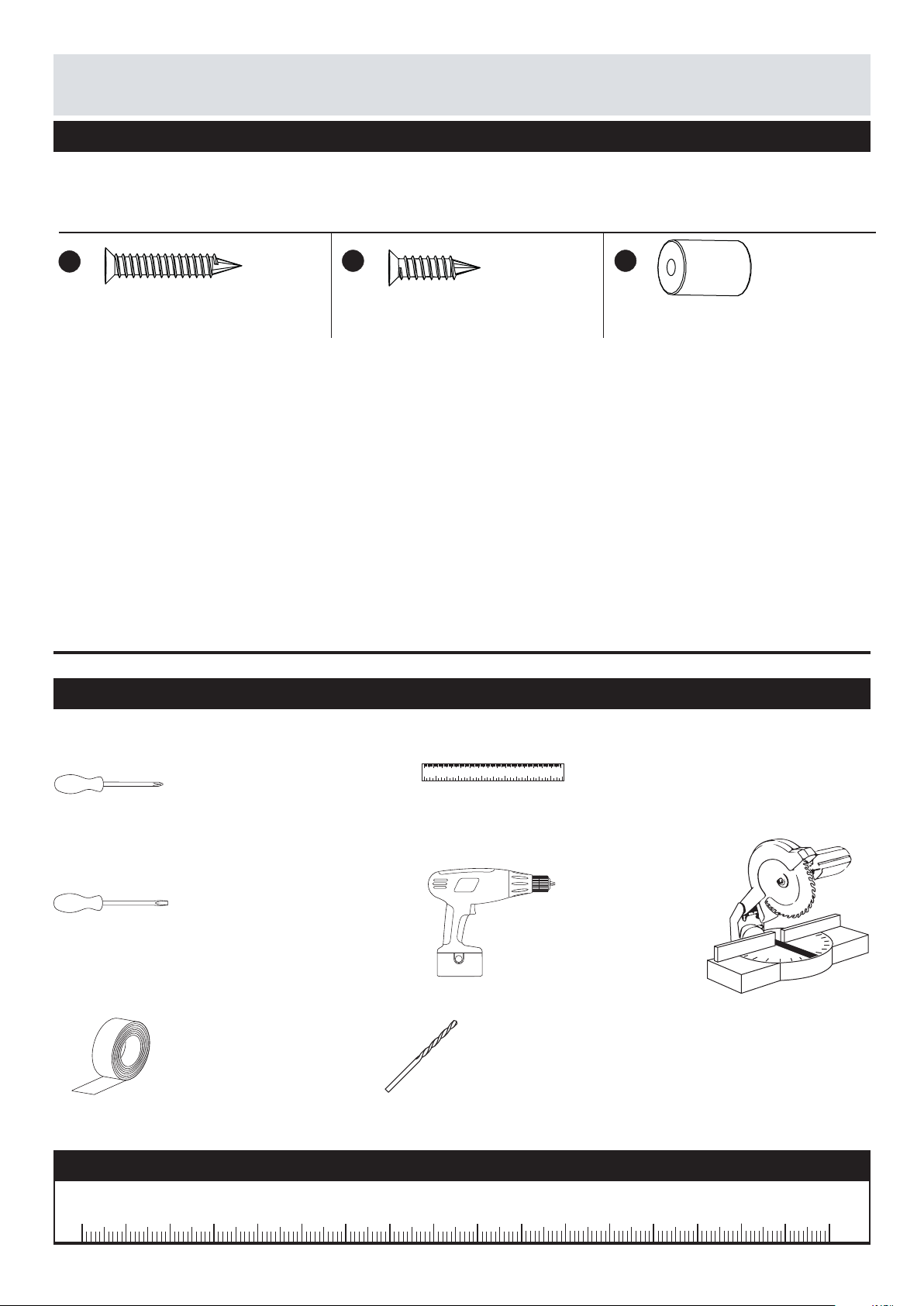

Components - Fittings
Please check you haveallthe fittings listed below
AB C
30mm screws x 23 20mm screws x 13 28mm spacers x 2
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
Phillips screwdriver
(medium & large)
Flatblade screwdriver
Double sided tape
(medium)
Tools required
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 234 5 6
Ruler/tape
measure
Drill
5mm suitable drill bit
Mitre saw
(for drilling)

Assembly Instructions

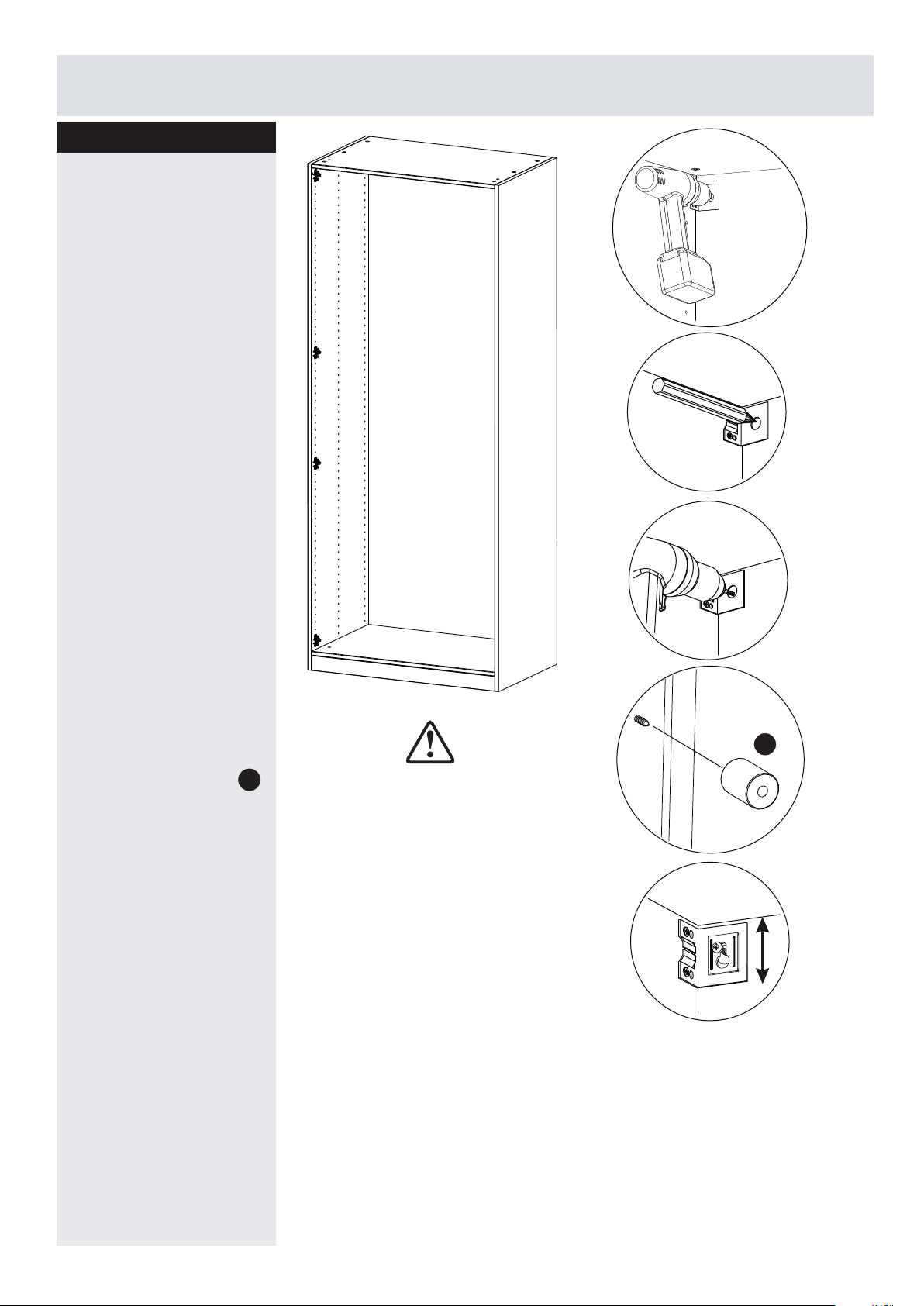

Step 1
Wall fixing
If you have any doubt in
installing this unit, please
seek the service of a
professional fitter.
Firstly drill a 5mm hole
through the wardrobe back
panel, through the holes in
the brackets.
Then place the wardrobe in
your required location,
marking the wall with a
pencil through the back
panel holes.
Prepare the wall by drilling
where you’ve marked
(move the wardrobe out of
the way to make this easier).
Before placing your wardrobe
into position, insert your
screws through the fixing
plate and bracket; on the
reverse side of the wardrobe,
slide the plastic spacers
over your screws.
Now you can put the
wardrobe against the wall
and fix it into place.
For level adjustment, move
the fixing plate up/down
before fully tightening
your screw.
N.B.: screws for wall fixing
are not provided - please
source suitable screws for
your wall type.
Warning: Always ensure the
area to be drilled is free
from hidden electrical wires,
water and gas pipes.
C
The unit must be secured to
the wall.
C
We recommend the use of the wall
fixing for safety reasons.
5

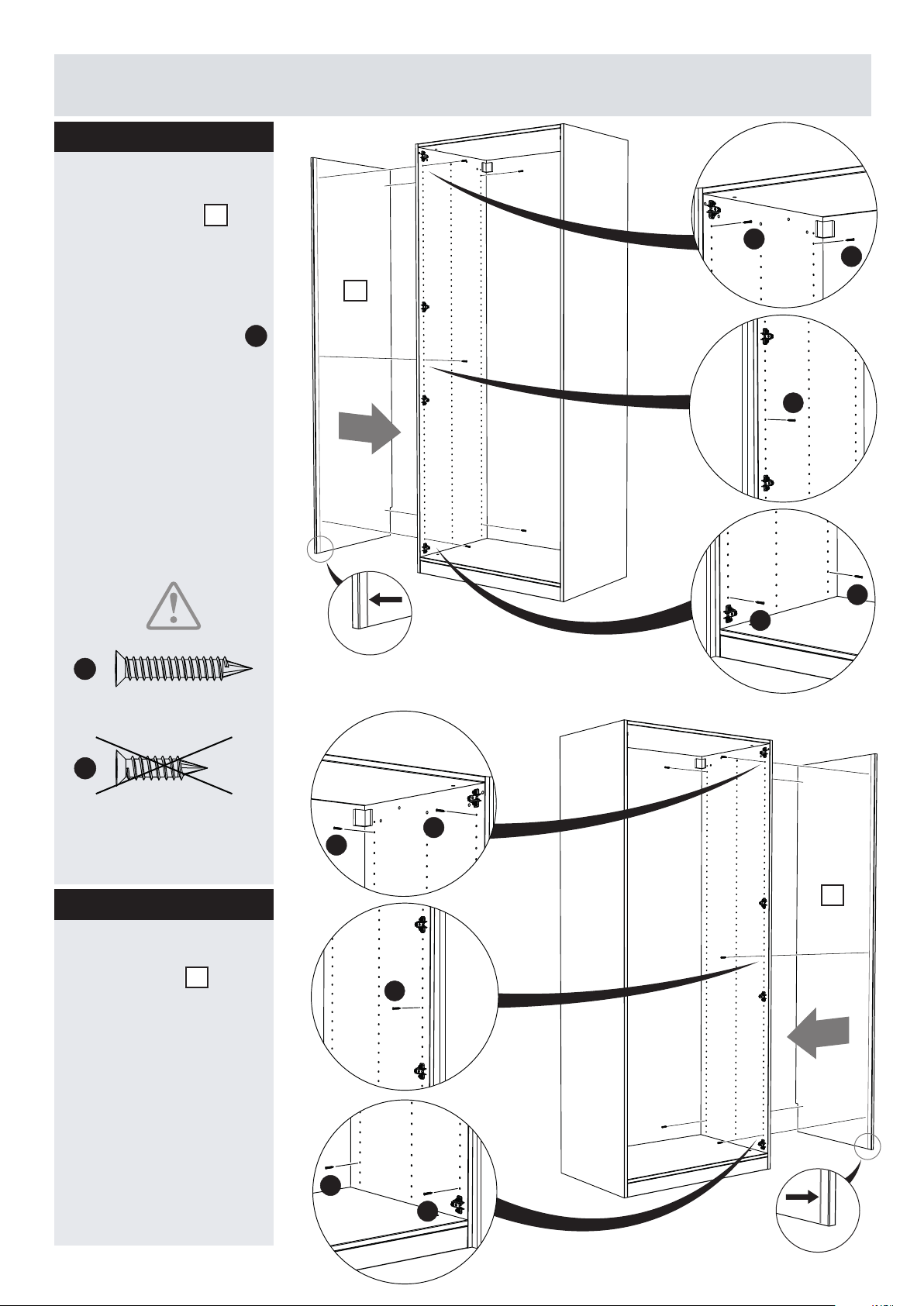

StepStep 2
Place left side panel
against the wardrobe.
PLEASE NOTE: Keep the face
with the joint of the covering
oriented towards the wardrobe.
Fix side panel with 5 screws :
Place 2 screws in the upper
part and 2 screws in the lower
part (you can use the 3rd holes
up from the base and down
from the top).
Then place a screw in the
middle part.
Fixing side panels
Assembly Instructions
A
A
A
A
A
A
1
1
Repeat the same with the
right side panel .
Step 3
2
A
B
30mm screws
20mm screws
6
A
A
A
A
A
2
Joint of the covering towards the wardrobe
Joint of the covering towards the wardrobe

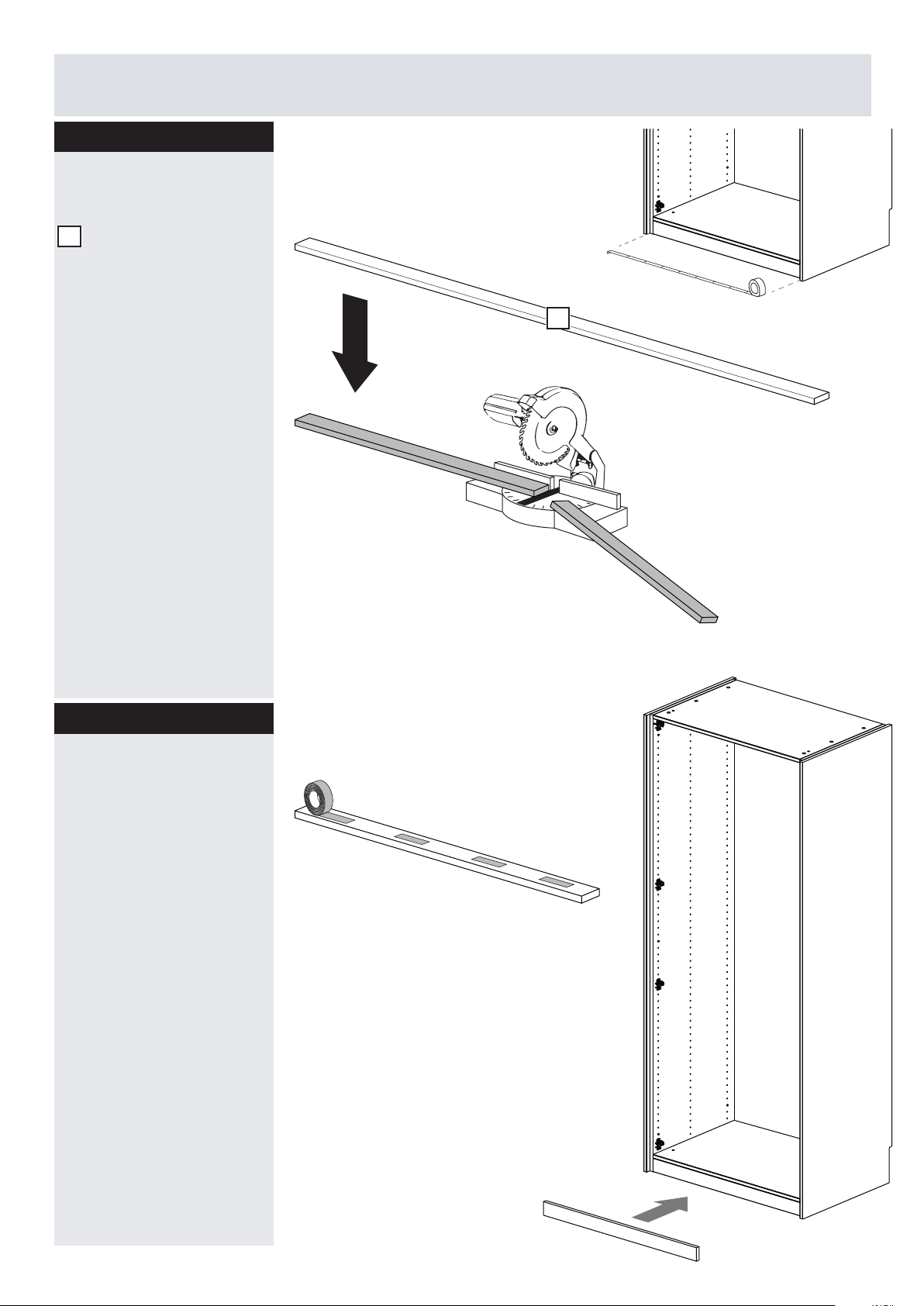

StepStep 4
You have to cut the plinth panel
depending on the
dimensions of your wardrobe
(if single, double, or if there are
multiple wardrobes joined).
Carefully use a mitre saw and
cut the plinth panel following
the required dimensions.
Preparing plinth panel
Assembly Instructions
Fix the plinth in position on
the wardrobe, using double
sided tape (not provided).
Step 5
4
4
7

(section)
StepStep 6
You can choose between two
types of cornice panels:
Each type requires different
measurements you must
follow while cutting the panels.
First prepare the two side
cornice panels: Use a mitre
saw and cut two panels
( ) 652.5mm length, with a
45° angle (only on one side),
obtaining two specular panels.
Refer to the illustrations
provided for further guidance.
Preparing cornice panels
Page
12
Left cornice panel
(top view)
Right cornice panel
(top view)
OPTION “TRADITIONAL” OPTION “MODERN”
Assembly Instructions
3
(section)
45° 45°
45°
3
8
The following instructions refer
to the “Traditional” cornice:

StepStep 7
Now prepare the front cornice
panel: Cut the panel
depending on the length of
your wardrobe.
Cut at 45° angle on both
the extremities.
Follow the examples and
measurements detailed below.
If the required measurement
exceeds the dimensions of a
single panel (244cm), you will
have to use multiple panels
to compose the front cornice.
Preparing cornice panels
551mm
486 wardrobe /
clad-on
To hide junctions of multiple front cornices we suggest you
join them along the wardrobe’s side panel junction lines.
1386 wardrobe /
clad-on
2286 wardrobe /
clad-on
936 wardrobe /
clad-on
1836 wardrobe /
clad-on
2736 wardrobe /
clad-on
Check below the different lengths required for the cornice front panel,
based on the type of unit / composition:
2351mm 2801mm
1001mm 1451mm 1901mm
Assembly Instructions
3
3
(Top view)
(Front view)
9

REAR:
Put the cornice panel against the wall,
aligned to the clad-on side panel
SIDES:
Align the cornice panel to
the clad-on side panel,
as shown
StepStep 8
Position the side cornice panels
over the wardrobe.
Carefully align them to the
wardrobe as shown below.
Positioning cornice panels
Assembly Instructions
Step 9
(Front view)
(Side view)
10
Position the front cornice panel.
Align it to the side cornices
previously placed, as
shown below.

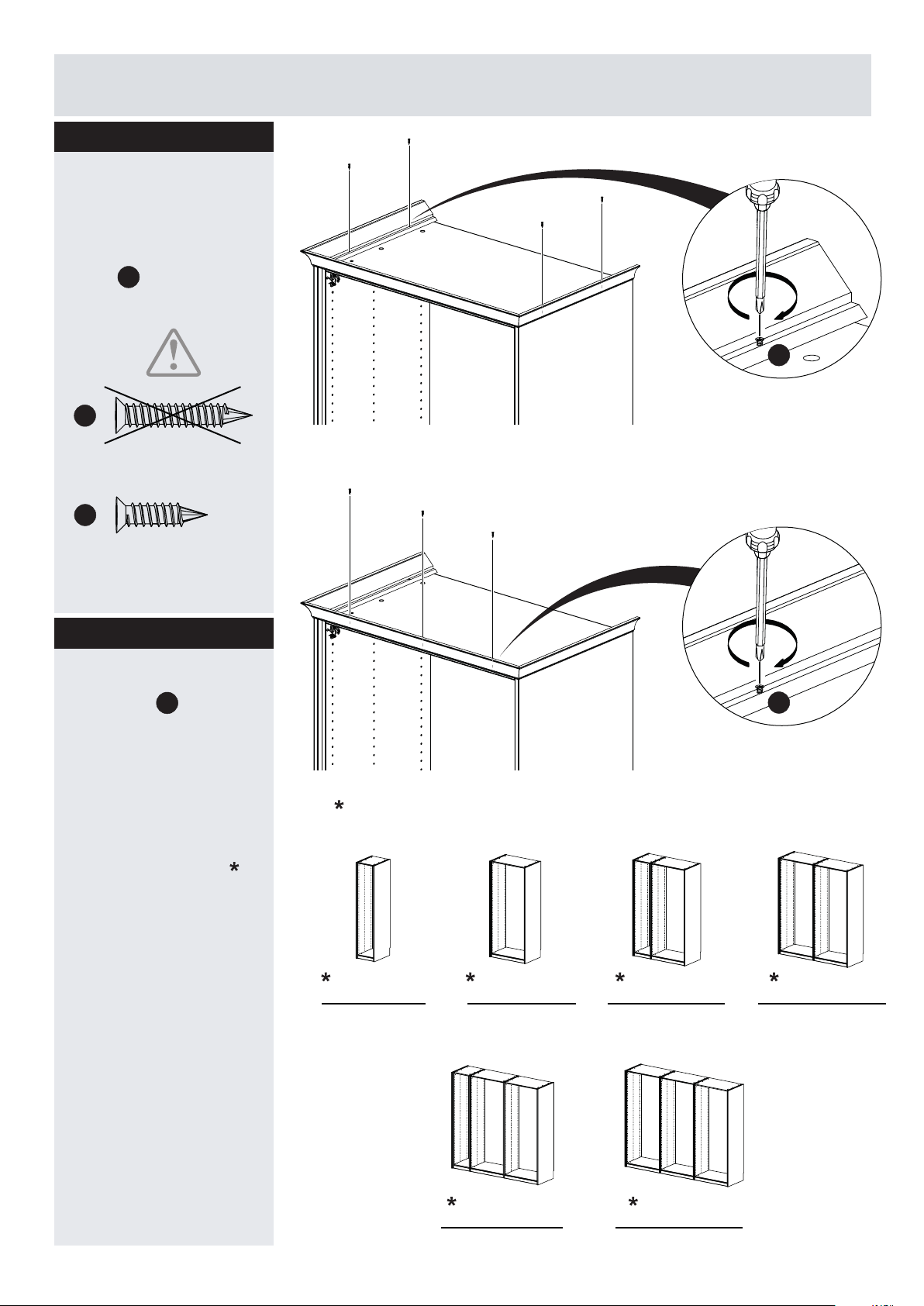

StepStep 10
Once the panels have been
placed, proceed to fix them:
Fix the side cornices with 4
screws (2 per panel).
Fixing cornice panels
Assembly Instructions
B
B
B
B
Then fix the front cornice
with screws .
PLEASE NOTE: The quantity
of screws needed to fix the
front cornice depends on the
width of the wardrobe.
To determine the number of
screws, please follow the
illustrations provided.
Step 11
2 screws 3 screws 5 screws 6 screws
9 screws8 screws
486 wardrobe /
clad-on
1386 wardrobe /
clad-on
2286 wardrobe /
clad-on
936 wardrobe /
clad-on
1836 wardrobe /
clad-on
2736 wardrobe /
clad-on
Check below the different quantities of screws required to fix the front
cornice panel, based on the type of unit / composition:
A
B
30mm screws
20mm screws
11

StepStep 6
The following instructions refer
to the “Modern” cornice:
First prepare the two side
cornice panels: Use a mitre
saw and cut two panels
( ) 622mm length, with a
45° angle (only on one side),
obtaining two specular panels.
Refer to the illustrations
provided for further guidance.
Preparing cornice panels
Assembly Instructions
3
(section)
OPTION “MODERN”
Left cornice panel
(Top view)
Right cornice panel
(Top view)
45° 45°
45°
3
12

StepStep 7
Now prepare the front cornice
panel: Cut the panel
depending on the length of
your wardrobe.
Cut at 45° angle on both
the extremities.
Follow the examples and
measurements detailed below.
Preparing cornice panels
Assembly Instructions
3
(Top view)
3
490mm
486 wardrobe /
clad-on
1386 wardrobe /
clad-on
2286 wardrobe /
clad-on
936 wardrobe /
clad-on
1836 wardrobe /
clad-on
2736 wardrobe /
clad-on
Check below the different lengths required for the cornice front panel,
based on the type of unit / composition:
2290mm 2740mm
940mm 1390mm 1840mm
To hide junctions of multiple front cornices we suggest
you to join them along the wardrobes side panels
junction line.
(Front view)
13
If the required measurement
exceeds the dimensions of a
single panel (244cm), you will
have to use multiple panels
to compose the front cornice.

StepStep 8
Position the side cornice panels
over the wardrobe.
Carefully align them to the
wardrobe as shown below.
Positioning cornice panels
Assembly Instructions
Position the front cornice panel.
Align it to the side cornices
previously placed, as
shown below.
Step 9
SIDES:
Align the cornice panel to
the clad-on side panel,
as shown
REAR:
Put the cornice panel against the wall,
aligned to the clad-on side panel
(Front view)
(Side view)
14

StepStep 10
Once the panels have been
placed, proceed to fix them:
Fix the side cornices with 4
screws (2 per panel).
Fixing cornice panels
Assembly Instructions
A
Then fix the front cornice
with screws .
PLEASE NOTE: The quantity
of screws needed to fix the
front cornice depends on the
width of the wardrobe.
To determine the number of
screws, please follow the
illustrations provided.
Step 11
A
B
30mm screws
20mm screws
A
2 screws 3 screws 5 screws 6 screws
9 screws8 screws
486 wardrobe /
clad-on
1386 wardrobe /
clad-on
2286 wardrobe /
clad-on
936 wardrobe /
clad-on
1836 wardrobe /
clad-on
2736 wardrobe /
clad-on
Check below the different quantities of screws required to fix the front
cornice panel, based on the type of unit / composition:
A
A
15
