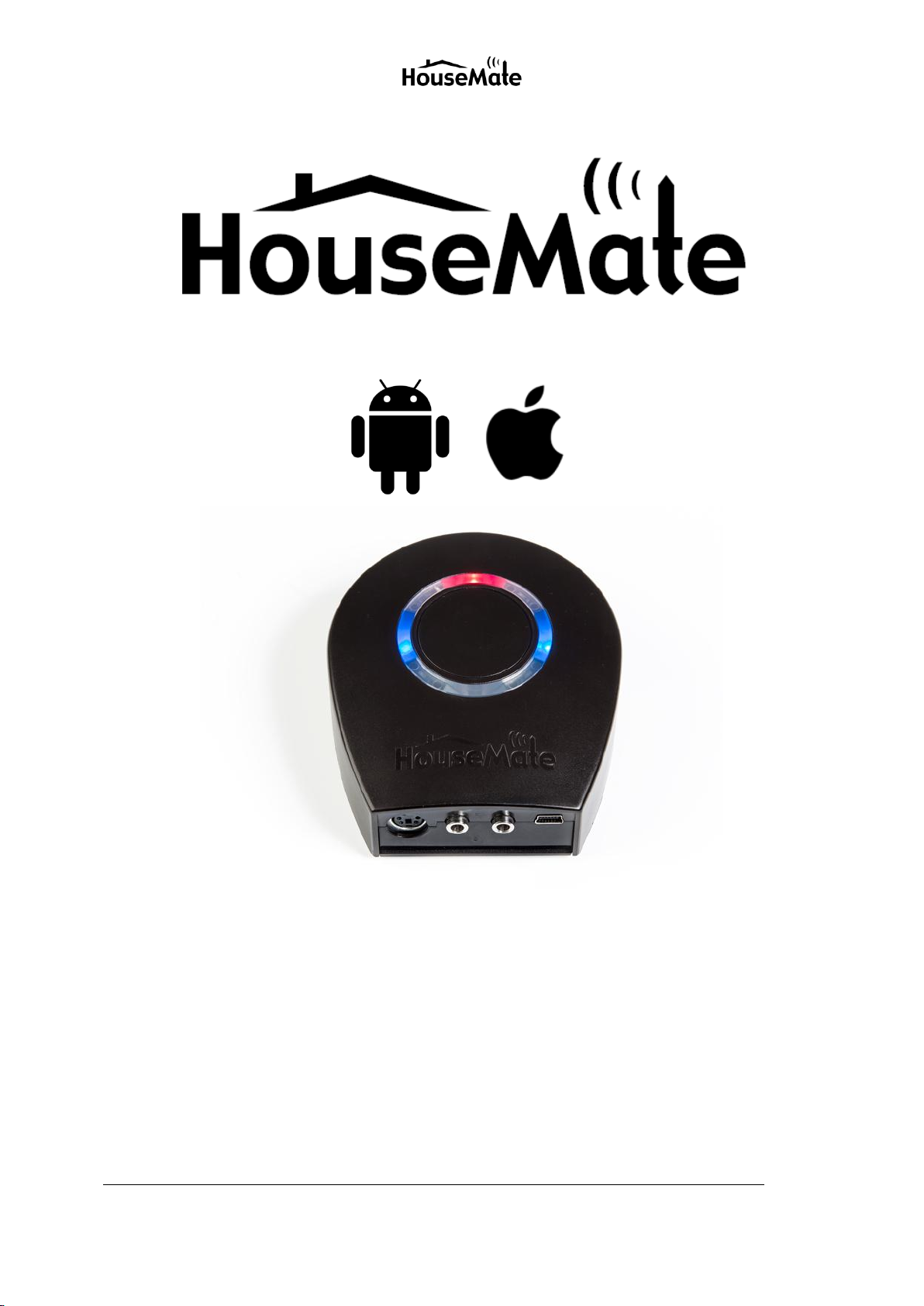

HouseMate HouseMatePro Mk4 User manual

Mk4 Pairing Instructions March 2016
Unique Perspectives Ltd.
www.housemate.ie ● [e-mail]
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: [phone] ● Fax: [phone]
Page 1 of 8
HouseMatePro Mk4 Pairing Instructions
This guide describes how to pair HouseMatePro Mk4 hardware with an Android or iOS device.
It assumes that you have already installed the ClickToPhone App on your Android device and
the HouseMate Home Control App on your iOS device.
Please note that if you wish to reboot the HouseMate for a different platform you need both an iOS
and Android device. The HouseMate is shipped booted for Android unless requested otherwise.
Distributed by Technical Solutions Australia
tecsol.com.au

Mk4 Pairing Instructions March 2016
Unique Perspectives Ltd.
www.housemate.ie ● [e-mail]
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: [phone] ● Fax: [phone]
Page 2 of 8
Using with an Android device
The first step is to install the ClickToPhone app from the Google Play
Store. Search for “ClickToPhone”.
Alternatively you can install from our website. Launch a browser on your
phone and follow the instructions at
http://www.click2go.ie/resources/manuals/clicktophone-android-app/
After installation, open the app. The setup wizard will automatically start
and you will be guided through the following steps.
-Confirming ClickToPhone as an Input Method
-Activating ClickToPhone as a Device Administrator
-Disabling the screen lock
-Choosing ClickToPhone as the current Input Method
-Installing the bundled apps
-Choosing a user level
-Choosing the contents of the ClickToPhone homepage
-Choosing the style of the ClickToPhone homepage
-Choosing a theme
-Choosing the telephony behaviour
-Choosing the scanning method and speed
-Pairing your hardware
Setting up your device
From the final step of the Wizard click on the Continue button OR if you are in Stand Alone Mode
choose Project Settings->Preferences->Bluetooth Setup->Bluetooth Settings. You will
be brought to the phone’s bluetooth settings page.
Step 1: Pairing HouseMatePro Mk4
1. Ensure that bluetooth on your phone is switched on.
2. Make sure HouseMatePro is off. This is important to
ensure that there will be sufficient time for the pairing
and connect process to complete correctly.
3. Click on the Scan for devices option.
4. Now turn on HouseMatePro by pressing it’s push button.
5. After a moment you should see “HouseMatePro
Mk4”and “HouseMate HID Mouse” appear in the
list of available devices.
Distributed by Technical Solutions Australia
tecsol.com.au

Mk4 Pairing Instructions March 2016
Unique Perspectives Ltd.
www.housemate.ie ● [e-mail]
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: [phone] ● Fax: [phone]
Page 3 of 8
Note: If your device appears as “HouseMate Switch”at this stage then it is booted for
an iOS device and will not work on an Android. You will have to connect it to an iOS device
and carry out the reboot procedure to switch it back to Android operation.
6. Click on the “HouseMatePro Mk4”entry. Do not click on the “HouseMate HID
Mouse”at this stage. After a successful pairing you should see the popup message
“HouseMatePro Mk4 has been successfully paired” and you will be brought back
to the ClickToPhone app.
7. Now the Pair the HID module window will appear with instructions on how to pair the
HID component within HouseMatePro Mk4. At the same time the software will start trying
to connect to your hardware. You must wait at this step until the ClickToPhone status
changes from Connecting to Hardware…to Connected. The blue LEDs on
HouseMate will illuminate at this point.
Step 2: Pairing the HouseMate HID Mouse
1. Now that HouseMatePro has paired and connected, click on the
Continue button of the Pairing the HID dialog to be
brought back to the phone’s bluetooth settings.
2. Now click the HouseMate HID Mouse entry and after a
moment it should automatically pair. This may take 2 or even 3
attempts
3. If successful, the HouseMate HID Mouse entry should turn
blue and move into the list of paired devices. Depending on the
make of your phone, the bluetooth symbol in the status bar
should now have two horizontal lines on opposite sides or turn a
different colour. Click the Back key to return to ClickToPhone.
The HID Mouse is now ready for use.
Step 3: Confirming the hardware settings
At this point you may be warned that there is a Hardware Settings
Conflict. This means that the hardware settings are different from those
that are defined within the current project. To check the hardware
settings click Continue and choose the required Powerdown Setting
and Relay Output Settings. Refer to the manual on the SD card for
further guidance.
Distributed by Technical Solutions Australia
tecsol.com.au

Mk4 Pairing Instructions March 2016
Unique Perspectives Ltd.
www.housemate.ie ● [e-mail]
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: [phone] ● Fax: [phone]
Page 4 of 8
Step 4: Selecting the connection Method
The last step is to choose the connection method for future
connections. There are two choices: “Wait for hardware” or
“Search and Connect”. “Wait for hardware” is the
recommended method for Mk3 and Mk4 devices. In this method
the hardware auto-reconnects to the phone when it is turned on
thus saving your phone’s battery life. The “Search and Connect”
method, though more reliable and quicker, uses more power as
the app is constantly searching for your hardware.
Rebooting for use with an iOS device.
To reboot your hardware for use with an iOS device you need to be connected to an Android.
1. Make sure that you are connected and choose Project
Settings->Preferences->Bluetooth Setup-
>Advanced Settings->Reboot for iOS
2. Enter the password “apple”
3. You will be asked to unpair the HouseMate HID Mouse
before the reboot can take place. This is because the HID
must be reconfigured as a bluetooth keyboard –
“HouseMate Switch”.
4. The unit will emit a long beep and the red and orange
lights will illuminate. HouseMate is now ready for use
with an iOS device. Note that no InfraRed signals are
erased in this procedure.
Distributed by Technical Solutions Australia
tecsol.com.au

Mk4 Pairing Instructions March 2016
Unique Perspectives Ltd.
www.housemate.ie ● [e-mail]
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: [phone] ● Fax: [phone]
Page 5 of 8
Using with an iOS device
The first step is to install the HouseMate app from the App Store. Search
for “HouseMate Home Control”.
After installation, open the app. The first time you launch the app it will
automatically open in technician mode. On future launches it is
necessary to press and hold the spanner icon in the bottom right of the
screen for 5 seconds to enter technician mode.
Setting up your device
Choose Project->Setup your devices->HouseMate hardware-
>Pair your hardware.The Pairing wizard is presented. Read the
instructions carefully as these steps must be carried out manually
within the iOS Settings page.
If you intend to use the touch-screen only then you can click Skip
and jump to step 5 below.
Step 1: Pairing the HouseMate Switch
The first step is to pair the HouseMate Switch. This switch is used to drive the iOS scanning.
When you are ready choose Settings and you will be brought to the iOS Settings page.
Navigate to Settings->Bluetooth. Turn on Bluetooth and then turn on your HouseMate
hardware by pressing it’s switch. After a moment you should see HouseMate Switch
appear.
Distributed by Technical Solutions Australia
tecsol.com.au

Mk4 Pairing Instructions March 2016
Unique Perspectives Ltd.
www.housemate.ie ● [e-mail]
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: [phone] ● Fax: [phone]
Page 6 of 8
Click on the HouseMate Switch entry to complete the pairing process. After a moment it
should move into the list of My Devices with the word Connected beside it.
Confirm that the blue LEDs on your HouseMate hardware are blinking.
Note: If your device appears as “HouseMatePro Mk4” at this stage then it is booted for
an Android device and will not work on an iOS. You will have to connect it to an Android
device and carry out the reboot procedure to switch it to iOS operation.
Step 2: Add New Switch
You are now ready to set up the HouseMate switch to drive the iOS
scanning. Navigate back to Settings and then choose General-
>Accessibility->Switch Control->Switches->Add New Switch-
>External and press your switch.
When the switch press is detected you will be prompted to enter a
name for the switch. Choose “HouseMate”.
Step 3: Choose a switch action
Now you must choose the switch action that will occur whenever
you press your switch. For scanning purposes this will be the
Select Item action.
Under Switches choose the newly added HouseMate switch and
then choose the Select Item action.
Step 4: Enable & optimize Switch Control
This is the last step to set up the HouseMate switch to drive the iOS scanning. Navigate
back to Switch Control.
Distributed by Technical Solutions Australia
tecsol.com.au

Mk4 Pairing Instructions March 2016
Unique Perspectives Ltd.
www.housemate.ie ● [e-mail]
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: [phone] ● Fax: [phone]
Page 7 of 8
Tap Behaviour
We recommend setting the Tap Behaviour option to Always Tap. In this mode the
option to carry out other actions is always displayed at the end of a complete screen
scan, rather than every time you press your switch.
Large Cursor
For high visibility of the scanning cursor we recommend turning on the Large Cursor
option.
Menu Items
If you only intend to control the HouseMate app with your HouseMate switch then
choose Menu Items->Top Level and select Hide All Items. In this set up, after you
launch HouseMate, there is no way for the user to return to the home screen or
control other Apps.
Switch Control
If you wish to start the iOS scanning at this point return to Switch Control and turn
on the Switch Control switch. iOS will start scanning the screen objects and pressing
your switch should select the currently highlighted object.
There are lots of other options under Switch Control that control the behaviour of the iOS
scanning including Auto Scanning Time, Loops and so on. Take some time exploring these
different options so that the scanning can be optimized to suit the user’s needs and abilities.
When you are finished, return to the HouseMate app for the final step of setting up your
hardware.
Step 5: Pairing the ECU Module.
HouseMate contains a second Bluetooth module, called “ECU
Module”, that communicates with the HouseMate App for
transmitting and recording InfraRed signals and other app specific
functions. Pairing this module is the final step in setting up your
hardware.
Make sure your hardware is on and then press Continue. A
popup dialog will display the text Scanning for HouseMate and
after a moment this should change to Found HouseMate and
then Connected to HouseMate.
Distributed by Technical Solutions Australia
tecsol.com.au

Mk4 Pairing Instructions March 2016
Unique Perspectives Ltd.
www.housemate.ie ● [e-mail]
Ballyline ● Callan ● Co. Kilkenny ● Ireland
Phone: [phone] ● Fax: [phone]
Page 8 of 8
You can now start using HouseMate to record and transmit InfraRed codes. Refer to the
manual for further details. Go to Project->About HouseMate->User Manual.
Rebooting for use with an Android device.
To reboot your hardware for use with an Android device you need to be connected to an iOS device.
1. Make sure that you are connected and choose Project->Setup your devices-
>HouseMate hardware->Hardware Settings->Factory Reset
2. Enter the word “factory”
3. You will be asked to unpair the HouseMate Switch before the reboot can take place. This is
because the HID must be reconfigured as a bluetooth mouse –HouseMate HID Mouse.
4. The unit will emit a long beep and the red and orange lights will illuminate. HouseMate is
now ready for use with an Android device.
Using HouseMate with more than one device.
HouseMate will auto-reconnect to up to 3 Android devices or 3 iOS devices. It will connect to the
device it finds first. Turn off the devices that you do not wish to connect to.
It is not possible to use HouseMate with an Android and an iOS device without carrying out the
reboot procedure described earlier.
Distributed by Technical Solutions Australia
tecsol.com.au
