INSTALLATION AND OPERATING
INSTRUCTIONS. READ
INSTRUCTIONS CAREFULLY BEFORE
ATTE PTING INSTALLATION. KEEP
THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
The ozelock Cyprio EasyClear™
Fountain or Waterfall pump is
designed for submersible use in
outdoor ponds. It is an integrated unit
that provides Mechanical & Biological
Filtration with an Ultra Violet Clarifier,
Fountain or Waterfall.
The appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance.
(Australia & NZ only) This appliance is
not intended for use by young
children or infirm persons unless they
have been adequately supervised by
a responsible person to ensure that
they can use the appliance safely.
Young children should be supervised
to ensure that they do not play with
the appliance.
Do not operate or leave the unit in
freezing conditions.
Do not switch the pump on out of
water! The water level should be
above the UVC indicator at the ball
joint (Fig 4A-L).
DO NOT OPERATE THIS UNIT WITHOUT
THE OUTER CAGE ATTACHED. USING
THE UNIT WITHOUT THE OUTER CAGE
AY INVALIDATE YOUR WARRANTY.
The clear tube inside the unit is made
from quartz glass and care should be
taken during installation and
maintenance. We recommend the use
of eye protection and suitable gloves.
The EasyClear 3000 is fitted with a 5W
UVC lamp. Exposure to Ultra Violet
(UV) radiation can be dangerous and
cause damage to eyes and skin. Under
no circumstances should any attempt
be made to gain access to the lamp
when the unit is switched on. When
switched on, the lamp can be checked
for operation by looking for a bluish
glow from the ball joint outlet (Fig 1-
A). Please note that this may only
become visible in low light conditions.
From 1st January 2005 installing this
product in the garden is classed as
'notifiable' in the revised Building
Regulations for England and Wales.
The Regulations now require you to
tell your local authority building
control department that you intend to
install this product before installation.
Your local authority will let you know
how you can get your installation
approved.
To help ensure your EasyClear’s long
life and to prevent damage, it is fitted
with automatic thermal Overload
Protection. This switches the pump or
UV lamp off if either overheats. If this
General Safety &
Guidelines
Overload Protection
Legislation
UV Caution

occurs, switch off the power at the
mains supply to the unit. If it is the
pump that has activated the Overload
Protection, check for the cause (it is
usually debris blocking the inlet of the
pump or obstructing the impeller).
Remove the obstruction and wait 15
minutes for the unit to cool down and.
Then switch it on again.
If it is the UV lamp that is activating
the Overload Protection (pump is still
running but UV lamp keeps going out
after running for a short time), please
contact ozelock Consumer Services
elpline on [phone].
NOTE: YOU UST SWITCH OFF THE
AINS SUPPLY BEFORE THE UNIT WILL
RESET.
Keep the filter working 24 hours a day.
Ideally it should run all year round, but
at least throughout the fish-feeding
season, (i.e. until the water
temperature falls below 10°C and the
fish stop feeding). In winter, operating
the unit will maintain a basic level of
useful bacteria in the Biological Filter,
and will help prevent the pond icing
over. owever, the unit must not be
allowed to freeze. If you switch the
unit off for winter, wash the unit
thoroughly before resuming filtration
in the spring (see ‘Winter Storage’).
Never feed your fish when the unit is
not in use.
• ALWAYS UNPLUG OR DISCONNECT
ALL APPLIANCES IN THE POND FRO
THE ELECTRICITY SUPPLY BEFORE
PUTTING YOUR HANDS IN THE WATER
WHILST EQUIP ENT IS BEING
INSTALLED, REPAIRED, AINTAINED OR
HANDLED.
• Do not use the supply cable to lift the
unit, as this may cause damage. We
recommend fitting a lifting cord to the
hook feature on the base, when the
filter is installed in deep water. (Fig 1-
).
• Check that the voltage marked on
the unit corresponds to the mains
supply.
• A 10mA OR 30mA RESIDUAL
CURRENT DEVICE (RCD) UST BE
FITTED TO THE AINS SUPPLY.
• The pump is supplied with 10m of 3
core electric cable which is
permanently connected and sealed to
the pump. The supply cable cannot be
replaced. If the cable is damaged, the
unit should be discarded. This product
is designed to be permanently wired to
the mains supply in a dry weatherproof
enclosure through a Double-Pole
Switched Fused Spur - (Disconnector) to
BS 3676, with a minimum contact
separation of 3mm in each Pole &
Fitted with a 3 or 5 Amp fuse.
• The installation must conform to the
national and local wiring regulations
which could include the use of plastic
or metal conduit to protect the cable.
• THIS APPLIANCE UST BE EARTHED
AND IT IS ESSENTIAL THAT THE
CONNECTIONS ARE ADE USING THE
FOLLOWING CODE;
The BROWN lead should be connected
to the LIVE terminal which may be
marked with an 'L' or coloured brown
or red. The BLUE lead should be
connected to the NEUTRAL terminal
which may be marked with an 'N' or
Brown - Live
Blue - Neutral
Green/Yellow - Earth
Periods of Operation
Electrical Safety

coloured blue or black. The
GREEN/YELLOW lead should be
connected to the EART terminal
which may be marked with an 'E' or
coloured green or green/yellow.
• If an extension cable is required, this
should be connected to the end of the
unit cable using a weatherproof
connector. The joint must be positioned
in a suitable weatherproof housing.
The extension cable should be of 3 core
0.75mm2 Polychloroprene rubber
insulated cable (ref: O5 RN-F) and
permanently wired to the mains supply
with a 3 or 5 Amp fuse.
• The unit cable (and extension cable)
should be positioned and adequately
protected against damage especially
where contact with gardening
equipment (lawn mowers, forks etc.)
children and domestic animals may
occur.
• CONSULT A QUALIFIED ELECTRICIAN
OR LOCAL AUTHORITY IF IN ANY
DOUBT ABOUT WIRING TO THE AINS
SUPPLY.
Position - Construct a solid and level
platform on which to place the
EasyClear™. The platform should be
greater than 300 mm (12") below the
water level. For depths between
300mm and 600mm use the fountain
stem extension segments (Fig 1-F),
which simply screw together, to allow
the fountain to be above the water
level. For general installation see Fig 4
A/B. When using the EasyClear for a
waterfall the entire unit should be
submersed.
Connection - Place the unit next to the
pond and route the cable back to the
mains supply. Ensure that you allow for
enough cable for positioning the
product in the desired location in the
pond.

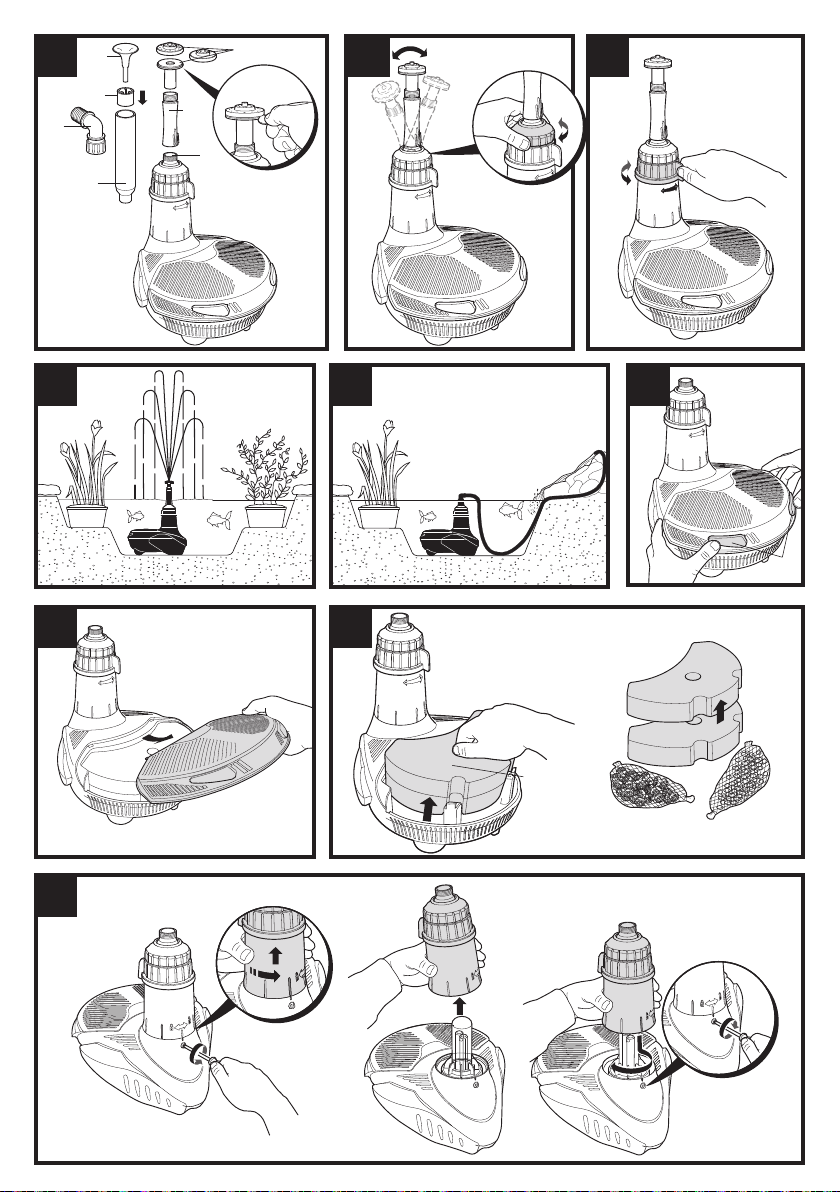

Bell Fountain (Fig 1).
Locate the Bell Support (B) to the Bell
Main Body (C) and push fully home.
Position the Bell (D) to the Body
Assembly and press into the central
location.
2 and 3 tier fountain display assembly
(Fig 1-E).
The plastic discs that create the 2 and 3
tier water displays simply snap onto the
fountain stem. Push the fountain stem
into the fountain stem extension
segment and screw onto the fountain
outlet (Fig 1-A).
(Fig 4-A for general installation guide)
Please note: The product has a water
by-pass to control water flow rates
which means a quantity of water will
always come out of the product just
below the flow control. This is normal
in operation.
Position the unit in the pond. The
fountain angle can be adjusted to be
vertical using the ball joint (Fig 2-A).
The tightness of the ball joint can be
adjusted (Fig 2-J)
If required, the 2-Tier Fountainhead
can be used to achieve an alternative
and higher display pattern than the 3-
Tier.
The fountain height can be adjusted to
suit your needs by rotating the
Fountain Flow Adjuster. (Fig 3-K)
Fountain Only
Operation
Accessory Assembly
Installation

The Bell Fountain creates a decorative
waterbell. The size of the bell can be
adjusted to suit your needs by rotating
the Fountain Flow Adjuster (Fig 3-K).
(Fig 4-B for general installation guide)
Position the pump as previously
described.
Attach a suitable length (3m maximum)
of 25 mm (1”) hose to the waterfall
hose tail (Fig 1-G) and secure with a
suitable hose clip and position the
outlet end of the hose in the desired
position.
Screw the waterfall hose tail to the
fountain outlet of the EasyClear™ (Fig
1-A) and adjust the flow using the
fountain flow adjuster, (Fig 3-K), to suit
your needs.
Note: The maximum recommended
waterfall height above pond level is
0.5m (Fig 4-B).
The UVC will automatically switch on
once the unit has been connected to
the electricity supply.
The UVC lamp can be checked for
operation by looking for a bluish glow
from ball joint outlet (Fig 1-A). Please
note that this may only become visible
in low light conditions.
See Maintenance section for Lamp
replacement.
The ozelock Cyprio EasyClear™ has
been designed to allow fast and easy
maintenance. As with all pond
equipment, occasionally it will become
necessary to clean or replace parts.
Refer to the safety sections before
attempting any maintenance.
Fountain Head (Fig 1-I)
Follow the below procedure if the
fountain head is blocked:
1 - Place a coin or similar in the slot
and gently lever off the fountain head.
2 - Rinse in clean water and
reassemble.
Foam
Follow the below procedure if flow
appears reduced:
1 - Release the Foam Cover by pushing
the two buttons (Fig 5-M) and lift the
cover (Fig 6-N).
2 - Remove the Foam (Fig 7-O). Note:-
If the unit is out of the pond for more
then 20 minutes the biological filter
action may stop working.
3 - The Foam Cover and Base should
also be rinsed.
4 – It may also be necessary to clean
out the biomedia and stones (Fig 7-P) if
these have become clogged.
5 - Reassemble the Filter.
Quartz Tube
Follow the below procedure if your
pond remains green:
1 - Remove the bayonet locking screw
(Fig 8-Q), twist and lift the bayonet
tube (Fig 8-R).
2 - Clean the Quartz Tube. Take extra
care when handling the Quartz tube. In
hard water areas, the quartz tube may
become covered in limescale, which
will reduce efficiency. Clean the tube
with a soft cloth and a gentle de-scaler
(such as vinegar and water), rinse in
water before refitting.
3 – Reassemble the bayonet tube and
Maintenance
UVC Operation
Waterfall Only
Operation

restart (Fig 8-S).
Warning! Ensure that the quartz tube
is not damaged before refitting.
Lamp Replacement
Follow the below procedure if the
lamp needs replacing or does not
illuminate:
Change the lamp at the start of the
new season. Even though the lamp still
glows it may not be giving out any
useful UV radiation. ow well the
EasyClear™ performs is related to the
strength of the UV radiation produced.
This will slowly decline from the day
your lamp is switched on. The UVC
lamp has an effective life of 12 months.
You need to change the lamp when
there is a significant reduction in water
clarity. Make sure this is due to an
expired lamp and not a badly
maintained filter or a dirty/limescaled
quartz sleeve. Both can greatly reduce
UV transmission into the water.
1 - Remove the bayonet locking screw
(Fig 8-Q), twist and lift the bayonet
tube (Fig 8-R).
2 - Remove the quartz tube, rotating
the plastic moulding anticlockwise and
lifting up and away (Fig 9-T).
3 - With the lamp now accessible pull it
out of the holder (Fig 9-U) and push in
a new lamp.
4 - Reassemble the bayonet tube and
restart (Fig 8-S).
Warning! Ensure that the quartz tube
is assembled correctly so that it
provides a completely watertight seal.
Check the condition of the two o-rings
on the Quartz Tube Assembly (Fig 11-
3). If these are damaged in any way or
you can not guarantee a water tight
seal, contact Hozelock Consumer
Services.
Biological Filter
Normally, there is no need to remove
the biomedia as any cleaning may kill
the colonies of bacteria that make toxic
waste harmless.
1 - Remove the foam.
2 - The bag of Kaldnes Biomedia (Fig 7-
P) can be removed for cleaning.
3 - Wash in pond water.
4 - Reassemble the filter and restart.
Rotor Cleaning/Replacement
Follow the below procedure if the no
water is being pumped or flow is
reduced:
1 - Release the Foam Cover by pushing
the two buttons (Fig 5-M) and lift the
cover (Fig 6-N).
2 - Remove the foam (Fig 7-O),
biomedia (Fig 7-P) and stone bag.
3 – Turn the unit over and remove the
4 fixing screws (Fig 10-V) and lift the
base clear.
4- Remove the 2 fixing screws (Fig 10-
W) and lift the Pump Assembly clear.
5 - Twist the Pump Chamber anti-
clockwise (Fig 10-X) and lift clear. The
rotor can now be pulled out for
cleaning or replacement ( Fig 10-Y).
Important! Take extra care so as to
not drop any of the small components.
See Fig 10A for assembly of the rotor.
6 - Reassemble the pump and 2 off
fixing screws (Fig 10-W).
7 - Reroute the cable (Fig 10-Z).
8 - Reassemble the filter, and restart.
A quick daily check should be carried
out to ensure that the pump is
performing satisfactorily.
Once a week- Remove the outer casing
and Fountain ead in accordance with
All Year Pump Care

the general maintenance notes.
Depending on pond water conditions,
cleaning may be required more
frequently.
Once a year- Completely disassemble
the unit including the Rotor Assembly
as described in the general
maintenance notes, and wash all
components in clean, freshwater.
Replace worn or broken parts.
When not in use, the unit should be
removed, thoroughly washed and
cleaned, dried and stored in a dry frost
protected area. Always store the unit
with the foam and foam cover off to
ensure adequate ventilation and
drying.

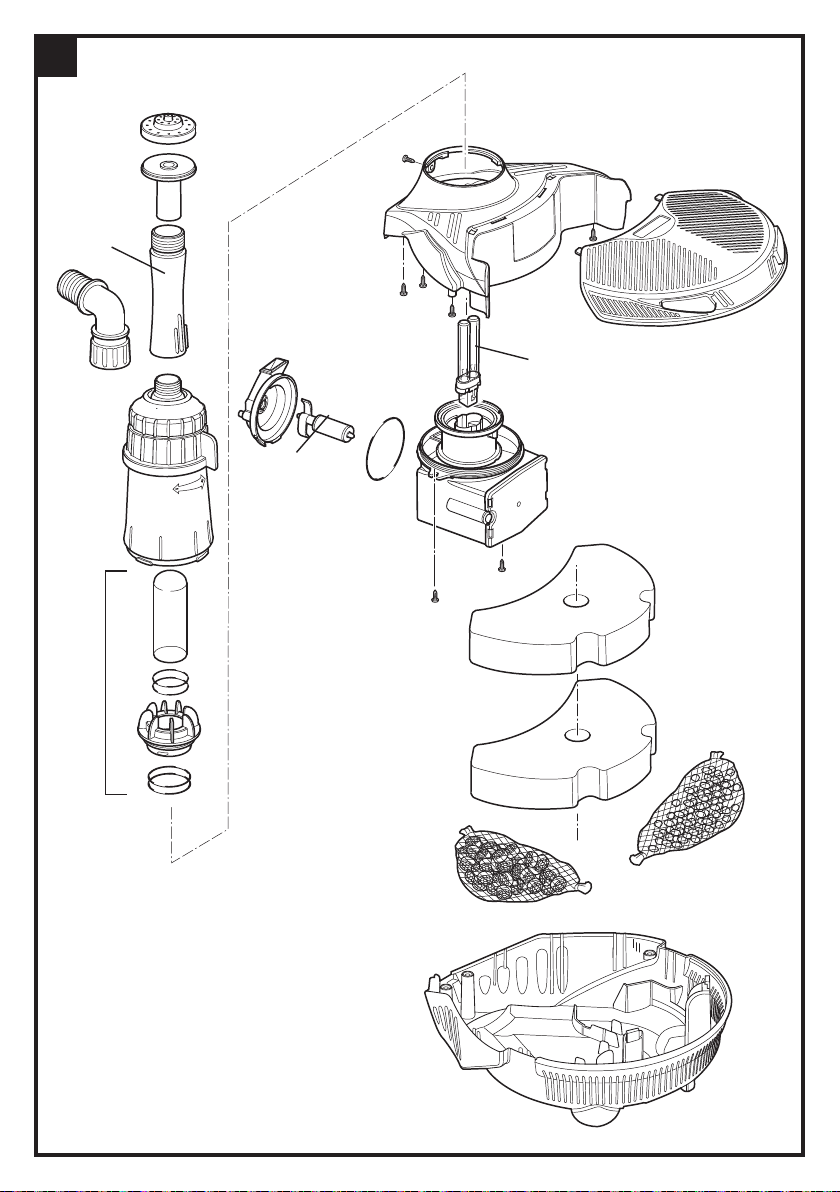

(Refer to Fig 11).
Contact the Consumer Services elpline
on [phone]
Item
Numbers
1. Foam (single) 1408
2. UV Lamp 1519
3. Quartz Tube Assembly 1526
4. Pump rotor 3418
5. Fountain and extension Z31785
segment bagged set
Under normal conditions, the
EasyClear™ will support up to 72cm of
fish. Introduce fish slowly over the first
few weeks, up to 20% of the maximum
recommended level, increasing to 50%
after six months. The balance will allow
for fish growth.
We guarantee you Clearwater or your
money back!
This guarantee runs for 12 months
after purchase, provided that:
• You have followed the installation
and operating instructions
• You are using equipment of the
correct size and stocking level for your
pond
• You consult our elpline +44 (0)121
313 1122 early enough for any
problems to be put right
• The product has been returned
undamaged. A refund can only be
authorised by ozelock Cyprio and is
made at the place of purchase.
If this unit, excluding the Rotor
Assembly, Filter Foam & UV Lamp
becomes unserviceable within 3 years
of the date of purchase it will be
repaired or replaced at our option free
of charge, unless in our opinion it has
been damaged or misused. Liability is
not accepted for damage due to
accident, improper installation or use.
Liability is limited to replacement of a
faulty unit. This guarantee is not
transferable. It does not affect your
statutory rights.
To obtain the benefits of the
guarantee, firstly contact ozelock
Cyprio Consumer Services who may
request that the filter is sent along
with proof of purchase directly to the
address provided.
DA AGE CAUSED BY RUNNING THE
EASYCLEAR OUT OF WATER OR BY
FROST INVALIDATES THE GUARANTEE.
3 Year Product
Guarantee
Spare Parts
Fish Stocking and
Density
Clearwater Guarantee
Winter Storage

Fault Finding
Please read the safety sections of these instructions before carrying out any
remedial action on the EasyClear! It may also be necessary to refer to the
maintenance section of these instructions.
LOW FLOW FROM PUMP a – The foams may be blocked and require cleaning
b - Ensure the outer cage is clean.
c - Clear any blockages and adjust the flow controls.
d - Check white flap inside pump chamber moves
freely.
e - Ensure rotor is clean and moves freely.
POOR FOUNTAIN DISPLAY a – As above
b - Clean the Fountain ead.
UV LAMP NOT WORKING a - Check power supply is on.
b - Check fuse, RCD and wiring.
c - Replace the lamp.
d - The Overload Protection may have operated –
see Overload Protection section.
PUMP NOT WORKING a - Check power supply is on.
b - Check fuse, RCD and wiring.
c- Check the rotor is not blocked
d - The Overload Protection may have
operated – see Overload Protection section.
e - Ensure the outer cage is clean.
f – Check for water ingress in lamp area

ozelock Ltd.
Midpoint Park,
Birmingham B76 1AB. England
Tel: [phone]
[e-mail]
www.hozelock.com
33854-002
PLEASE
NOTE:
Do not
dispose of in
household
waste
