1 Setting Up Your PC

HP Vectra PC User's Guide 1 Setting Up Your PC •• 7
Unpacking the PC
1. When you receive the PC, unpack and gather all the components.
NOTE The operating system software, drivers, and HP utilities are preloaded on models
supplied with a hard disk. No diskettes are supplied.
2. Place the computer on a sturdy desk, close to easily accessible power outlets, and with
enough space for the keyboard, mouse, and any other accessories.
3. Position the computer so that its rear connectors are easily accessible.
4. Place the display on top of the computer. (If you have a large display, place it next to
the computer.)
WARNING If you are in any doubt that you cannot lift the display safely, do not attempt to
move it without help.
Keyboard
Power Cord Computer
Display
Mouse

HP Vectra PC User's Guide 1 Setting Up Your PC •• 8

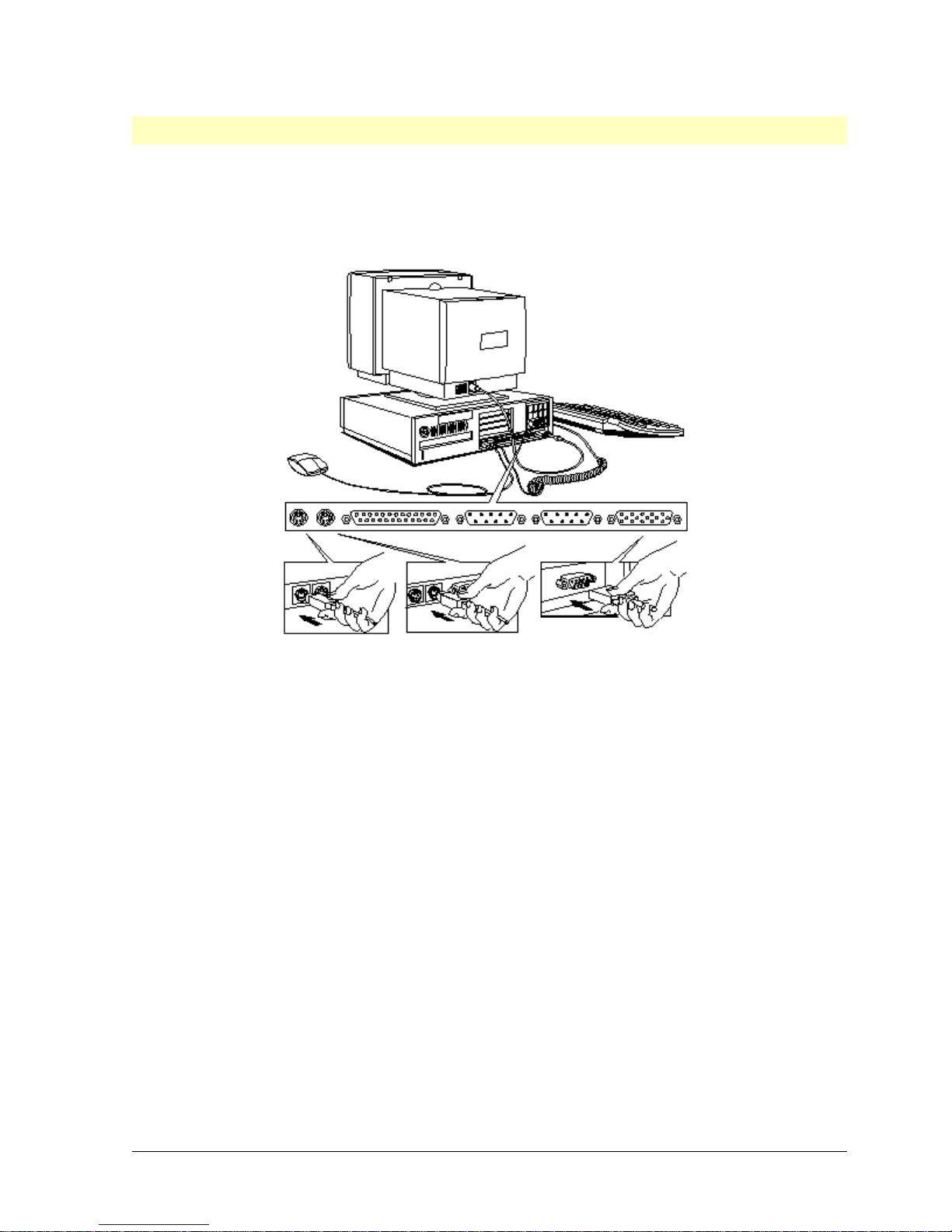

Connecting the Mouse, Display, and Keyboard
1. Connect the mouse, keyboard, and display cables to the back of the computer. The
connectors are shaped to go in one way only.
2. Tighten the display cable attachment screws.
Mouse Cable Keyboard
Cable
Display Cable

HP Vectra PC User's Guide 1 Setting Up Your PC •• 9
Connecting a Printer or Plotter
If you have a printer or plotter, connect its cable to the back of the computer and tighten the
attachment screws.
Connector for Parallel Printer Connectors for Serial Printers

HP Vectra PC User's Guide 1 Setting Up Your PC •• 10
Connecting the Power Cables
1. If fitted, remove the label covering the computer’s power connector.
2. Connect the power cables to the display and computer. (The connectors are shaped to
go in one way only.)
3. Connect the display’s power cable and the computer’s power cable to a grounded
outlet.
WARNING For your safety, always connect the equipment to a grounded wall outlet.
Always use a power cable with properly grounded plugs, such as the one
provided with this equipment, or one in compliance with your national
regulation. This PC has been designed to operate on all power systems,
including ‘IT’ power systems. It is disconnected from the power by removing the
power cable from the power outlet. This means the PC must be located close
to an easily accessible power outlet.

HP Vectra PC User's Guide 1 Setting Up Your PC •• 11
Starting the PC for the First Time
Your PC’s hard disk has preinstalled software that is initialized the first time you start the PC.
The initialization takes approximately three minutes, and sets up your software to use the
hardware installed in your computer.
To initialize your software:
1. Switch on the display and then the computer.
Then power-on the
computer
First power-on
the display
2. The PC performs a power-on system hardware test which checks the configuration. This
test is performed each time the PC is switched on. A screen is displayed that shows the
progress of the test and indicates any errors found. If an error is detected, see “If a
Power-On Error Message Appears.”
3. The software initialization routine starts. It displays the software license agreement and
gives you an opportunity to read Working in Comfort (ergonomic advice for computer
users). You may be asked to enter information during the intiialization routine, for
example:
◊◊ The name of the person who will use the computer and your company name. (If
necessary, the name of the user can be changed later.)
◊◊ The current date and time.
◊◊ The type of printer (for example, HP LaserJet 4M). You may also be requested to
enter the connection used by the printer (for example, LPT1 for a parallel printer or
COM1 for a serial printer).
◊◊ The model number of your display. (HP display model numbers are shown on the
rear of the display.)
4. Follow any other instructions that are displayed on the screen.

HP Vectra PC User's Guide 1 Setting Up Your PC •• 12
5. Adjust the display screen’s brightness and contrast to your needs. If the picture does not
fill the screen or is not centered, adjust it using the controls on the display. Refer to the
display’s manual for details.
Adjust the display’s
brightness to your
needs
6. Set the keyboard angle and mouse to comfortable positions.
7. After the initialization has finished, fill in your Warranty Registration card.

HP Vectra PC User's Guide 1 Setting Up Your PC •• 13
Creating Master Diskettes
It is very important that you create master diskettes for your preloaded software. HP
recommends that you do this within thirty (30) days of receiving your PC, using new
diskettes. These diskettes can then be used to restore the preloaded software to your PC in
case of corrupted files.
1. Double-click the mouse on the Master Diskette Creation Utility icon in the HPutils group
in the Windows Program Manager.
2. Follow the screen messages to create master diskettes of your preloaded software. The
messages will tell you how many diskettes are required.

HP Vectra PC User's Guide 2 Using Your PC •• 14
2 Using Your PC

HP Vectra PC User's Guide 2 Using Your PC •• 15
Error! Bookmark not defined.Using the HP Setup Program
The integrated (ROM-based) Setup program displays your PC’s configuration and allows
you to set certain parameters.

HP Vectra PC User's Guide 2 Using Your PC •• 16
Error! Bookmark not defined.Starting the Setup Program
1. Turn on the display and the computer.
If the computer is already turned on, save your data and exit all programs, then press CTRL
ALT and DELETE to restart the PC.
2. Press F2 while <Setup=F2> is displayed at the bottom of the screen during the power-
on system hardware test.
<Setup=F2>
NOTE To avoid missing [F2] (which is displayed only briefly), you can press [F2] as soon
as the power-on-system-hardware-test has passed the Flexible Disk Drives test.
3. The Setup program will appear.
Setup Version xx.
Administrator Password...Not Set User Password..........Not Set
Date (YYYY,mm,dd)......1995/01/07
Flexible Drive 1.........1.44 MB Time (hh:mm:ss)........12:04:30
Flexible Drive 2.........none Power-on Numlock State.On
Start from FDD...........Enabled Key Autorepeat.........Medium
If a password has been set, you will be prompted to enter it.
◊◊ Use the arrow keys to move the highlight from one field to another.
◊◊ Use the [F7] or [F8] key to display available values.
◊◊ Use the [F3] key to save your settings and exit the Setup program.
◊◊ Use the [F12] key to exit the Setup program without saving any changes.

HP Vectra PC User's Guide 2 Using Your PC •• 17
Setup Fields
The following section explains the fields that you may wish to change, for example, the date
and time if your PC does not show the correct local time.
Date and Time Enter the correct values.
Power-on Numlock
State This field determines if the numeric keys on the right of the keyboard are set to numeric values (On) or cursor control (Off)
when the PC is started.
Key Autorepeat This field determines the speed that a key repeats itself when
the key is held down. Options available are Slow, Medium,
and Fast.
The other fields are explained later in the manual at the place where you may need to
modify the settings. For easy reference, all Setup fields can be located in the index, under
“HP Setup program fields”.

HP Vectra PC User's Guide 2 Using Your PC •• 18
Error! Bookmark not defined.Using the Security Features
To protect your PC and its data against unauthorized access, the following actions can be
taken:
•Setting passwords to prevent the PC being started in your absence, and prevent
modifications being made to your system configuration.
•Disabling startup from the flexible disk drive, hard disk drives, or both.
•Disabling the flexible disk drive or drives so that data cannot be copied in your absence.
•Locking the computer’s cover to prevent unauthorized access to the internal
components.
The following sections describe how to perform these tasks.

HP Vectra PC User's Guide 2 Using Your PC •• 19
Error! Bookmark not defined.Setting Passwords
When you set a password, two levels of protection may be selected:
•User Password—requests that a password be entered when the PC is powered on.
The Setup program can be run, but the password must be entered to change the
configuration.
•Administrator Password—provides additional security by preventing changes to the
configuration settings in the Setup program, even if the User password is known. If this
password is set, a forgotten User password can be reset from the Setup program.
When either or both passwords are set, the Setup program can be started and the
settings displayed, but no changes are allowed unless the correct password is entered.
CAUTION A jumper is provided on the system board that allows forgotten passwords to
be cleared. To prevent unauthorized personnel from using this method to
bypass your passwords, you are strongly recommended to lock the cover of the
computer using the key provided.

HP Vectra PC User's Guide 2 Using Your PC •• 20
Error! Bookmark not defined.How To Set a Password
1. Start the Setup program (see “Using the HP Setup Program”).
2. Use the right arrow key to move the highlight to the User Passwordor Administrator
Passwordfield, as required.
3. To set your password, press ENTER once.
a. Type your password and press ENTER.
b. Type your password and press ENTER again.
The screen displays Set.
If you wish to erase your password, press ENTER twice.
NOTE It is recommended that you set a password that you can easily remember. If you
forget a password, see “Software Problems.”
4. Press [F3] to save your password and exit the Setup program.

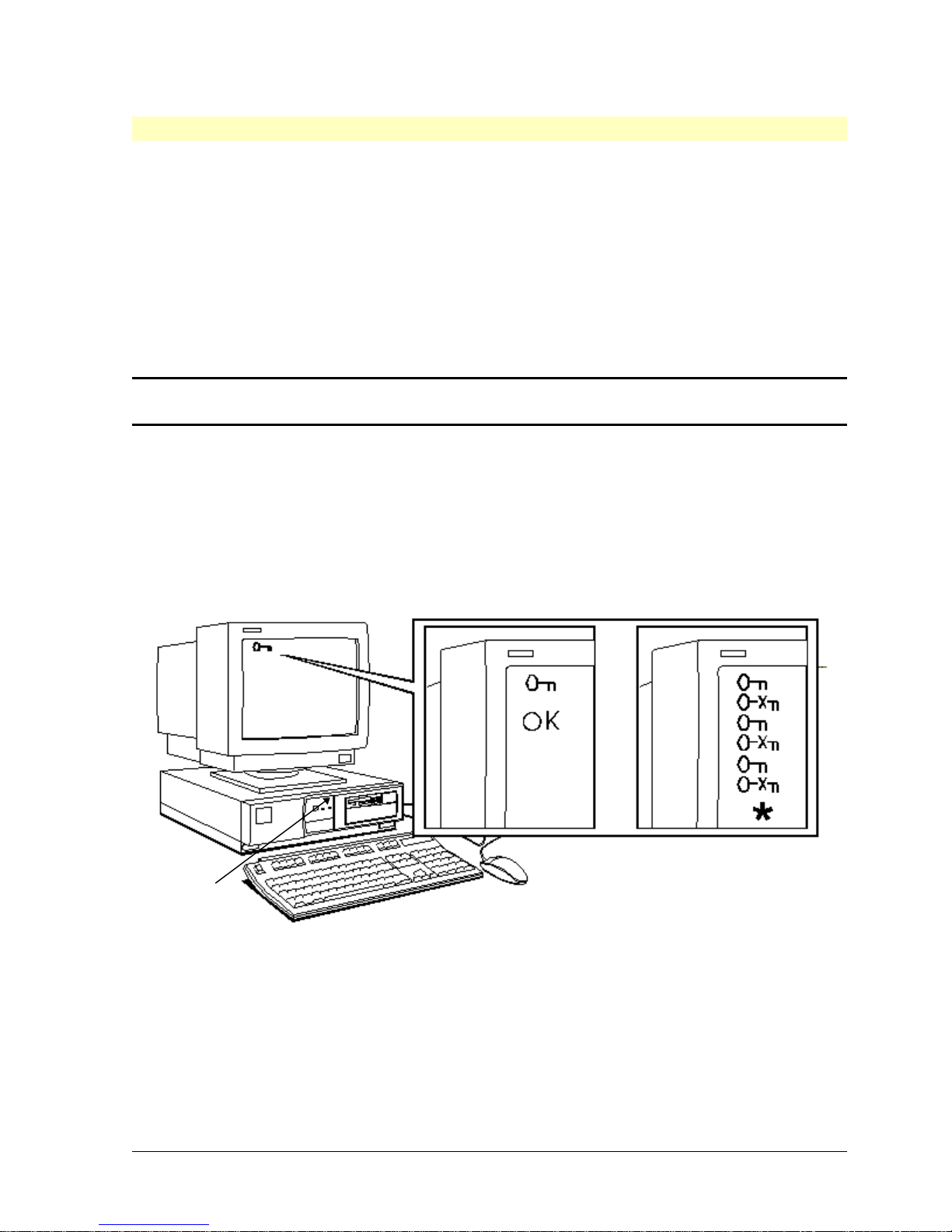

5. When you have set a User password, the next time the PC is started the power-on
prompt is displayed. Type your User password and press ENTER to use the PC.
You have three chances to enter the password. After three unsuccessful attempts, the
‘*’ prompt appears and you must restart your PC (by pressing the power button twice)
before you can try again.
Wrong password. Restart the PC,
then enter the correct password.
Power
Button
