HP StorageWorks 3800ux User manual

Conversion Guide
hp StorageWorks
3800ux/7100ux Optical Jukebox
First Edition (May 2004)
Part Number: AA991-96001
This guide describes procedures for converting an existing HP StorageWorks Jukebox from MO to UDO or
mixed-media technology.

© Copyright 2004 Hewlett-Packard Development Company, L.P.
Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written consent of Hewlett-Packard. The information contained in this
document is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The information is provided
“as is” without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard Company products are
set forth in the express limited warranty statements for such products. Nothing herein should be construed as constituting an additional
warranty.
Printed in the U.S.A.
3800ux/7100ux Optical Jukebox Conversion Guide
First Edition (May 2004)
Part Number: AA991-96001

33800ux/7100ux Optical Jukebox Conversion Guide
Contents
Contents
About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Document conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Text symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Getting help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HP technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HP storage web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HP authorized reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1 Preparing for Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Conversion options and kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Converting an existing MO jukebox to UDO technology (making the unit UDO-ready). . . . . . . . . . . . . .10
Retrofitting and reinstalling 14x MO drives for a mixed-media jukebox . . . . . . . . . . . . . . . . . . . . . . . . . .10
Increasing number of drives in jukebox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Increasing slot capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Tools and firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2 Convert an MO Jukebox to UDO or Mixed-Media Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Upgrade the firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Access inside the jukebox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Remove existing drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Remove the interposer board(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Remove the SCSI interface PCA(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Remove obsolete cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Install an expansion (lower) power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Install and cable the buffer board(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Install new interposer board(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Install and reconnect cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Install the drive modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Install UDO drives in MO modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Retrofit and reinstall MO drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Contents
43800ux/7100ux Optical Jukebox Conversion Guide
3 Completing the Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Testing the conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Finishing the firmware upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Labeling the jukebox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

53800ux/7100ux Optical Jukebox Conversion Guide
About this Guide
About this Guide
About this Guide
This conversion guide provides information to help you:
■Converting an existing MO jukebox to UDO technology (making the unit UDO-ready)
■Retrofitting and reinstalling 14x MO drives for a mixed-media jukebox
■Increasing number of drives in jukebox
“About this Guide” topics include:
■Related documentation, page 6
■Conventions, page 7
■Getting help, page 8

About this Guide
63800ux/7100ux Optical Jukebox Conversion Guide
Related documentation
In addition to this guide, HP provides corresponding information:
■HP StorageWorks 3800ux/7100ux Optical Jukebox Getting Started Poster
■HP StorageWorks 3800ux/7100ux Optical Jukebox Setup Guide
■HP StorageWorks 3800ux/7100ux Optical Jukebox User’s Guide
■HP StorageWorks 3800ux/7100ux Optical Jukebox Service Manual

About this Guide
73800ux/7100ux Optical Jukebox Conversion Guide
Conventions
Conventions consist of the following:
■Document conventions
■Text symbols
Document conventions
This document follows the conventions in Table 1.
Text symbols
The following symbols may be found in the text of this guide. They have the following
meanings:
WARNING: Text set off in this manner indicates that failure to follow directions in the
warning could result in bodily harm or death.
Caution: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or data.
Tip: Text in a tip provides additional help to readers by providing nonessential or optional
techniques, procedures, or shortcuts.
Note: Text set off in this manner presents commentary, sidelights, or interesting points of
information.
Table 1: Document conventions
Convention Element
Blue text: Figure 1 Cross-reference links
Bold Menu items, buttons, and key, tab, and box
names
Italics Text emphasis and document titles in body text
Monospace font User input, commands, code, file and directory
names, and system responses (output and
messages)
Monospace, italic font Command-line and code variables
Blue underlined sans serif font text
(
http://www.hp.com )Web site addresses

About this Guide
83800ux/7100ux Optical Jukebox Conversion Guide
Getting help
If you still have a question after reading this guide, contact an HP authorized service provider
or access our web site:
http://www.hp.com .
HP technical support
Telephone numbers for worldwide technical support are listed on the following HP web site:
http://www.hp.com/support/ . From this web site, select the country of origin.
Note: For continuous quality improvement, calls may be recorded or monitored.
Be sure to have the following information available before calling:
■Technical support registration number (if applicable)
■Product serial numbers
■Product model names and numbers
■Applicable error messages
■Operating system type and revision level
■Detailed, specific questions
HP storage web site
The HP web site has the latest information on this product, as well as the latest drivers. Access
the storage site at:
http://www.hp.com/country/us/eng/prodserv/storage.html . From this web
site, select the appropriate product or solution.
HP authorized reseller
For the name of your nearest HP authorized reseller:
■In the United States, call 1-800-345-1518
■In Canada, call 1-800-263-5868
■Elsewhere, see the HP web site for locations and telephone numbers: http://www.hp.com

93800ux/7100ux Optical Jukebox Conversion Guide
1
Preparing for Conversion
Overview
This chapter explains what is needed to convert an existing jukebox into several
configurations. The following topics are presented.
■Conversion options and kits, page 10
■Tools and firmware, page 12

Preparing for Conversion
10 3800ux/7100ux Optical Jukebox Conversion Guide
Conversion options and kits
To convert a jukebox from a magneto optical (MO) system to an ultra-density optical (UDO)
or mixed-media system, first make the existing MO jukebox UDO-ready. After this is
complete, you can install new UDO drives in place of the MO drives, or in addition to
retrofitted existing MO drives. The following sections describe the kit required for each
option.
Converting an existing MO jukebox to UDO technology (making the unit
UDO-ready)
Converting an existing MO jukebox to UDO technology involves converting the jukebox and
installing four UDO drives as described in “Install UDO drives in MO modules” on page 31,
and using Kit AA991A. Items included in the kit are listed in Table 2. Converting to a unit
with 10 UDO drives will also require kit AA992A described in the next section.
Retrofitting and reinstalling 14x MO drives for a mixed-media jukebox
If you are retrofitting and reinstalling MO drives, do so after you have made the jukebox
UDO-ready. Four existing 14x MO drives will be retrofitted and reinstalled using the
instructions in “Retrofit and reinstall MO drives” on page 33. Use Kit AA992A.
Note: This procedure is done only after making the jukebox UDO-ready.
Items included in the kit are listed in Table 3.
Table 2: Contents of Kit AA991A
Part Description Quantity Part Number
Upper Interposer board 1 AA969-67002
UDO drive, with cables 2 AA993-63001
SCSI jumper 2 AA969-63010
Buffer board 1 AA965-67002
LVD SCSI terminator 1 5183-2657
Upper interposer to buffer LVD 68-pin SCSI cable 1 AA969-63002
Upper interposer to controller 50-pin GPIO cable 1 AA969-63004
Table 3: Contents of Kit AA992A1
Part Description Quantity Part Number
Lower interposer board 1 AA965-67003
Second buffer board 1 AA965-67002
LVD SCSI terminator 1 5183-2657
SCSI jumper cable 1 AA969-63010
Lower interposer to buffer LVD 68-pin SCSI cable 1 AA969-63003
Second power supply 200 1 C1107-60032
AC and DC power cables 1 of each N/A

Preparing for Conversion
113800ux/7100ux Optical Jukebox Conversion Guide
Note: Only 14x MO drives can be upgraded and included in a mixed-media jukebox. 2x, 4x, and
8x MO drives are not supported in a mixed-media configuration.
Increasing number of drives in jukebox
A jukebox can be upgraded from 4 or 6 drives to contain 6 or 10 drives. For each additional 2
UDO drives added to the jukebox, use Kit AA993A, the contents of which are presented in
Table 4.
Increasing slot capacity
If the existing jukebox has only 128 slots and the customer is upgrading capacity to 238 slots,
a capacity module will be needed to allow the system to use the additional slots. Use Kit
C1159P, the contents of which are presented in Table 5.
Blank drive assembly 1 AA969-62005
Media detect station 1 AA968-04001
MO drive ACI cable (1 per 2 drives) 2 AA969-63005
MO drive cable (1 per 2 drives) 2 AA969-63007
Configuration module 1 C1104-66502
1.
The SCSI jumper cable, the power supply, and the configuration module that come with this kit may
not be needed for this procedure. HP recommends that you remove them from the customer site and
dispose of them.
Table 3: Contents of Kit AA992A1(Continued)
Part Description Quantity Part Number
Table 4: Contents of Kit AA993A
Part Description Quantity Part Number
UDO drive 2 AA961-67001
Drive brackets assembly 2 AA993-63002
UDO drive ACI cable 2 (1 per drive tray) AA969-63008
UDO LVD drive cable 2 (1 per drive tray) AA969-63006
UDO drive power cable 2 (1 per drive tray) C1107-61620
Table 5: Contents of Kit C1159P
Part Description Quantity Part Number
Configuration Module 1 C1104-66502

Preparing for Conversion
12 3800ux/7100ux Optical Jukebox Conversion Guide
Tools and firmware
When upgrading or converting the library, connect your PC to the jukebox to perform the
following two tasks:
■Download firmware to the jukebox controller and drives.
■Verify proper operation of the drives after conversion or firmware installation.
Specific tools and firmware are required.
Tools
■Compatible host computer on which to run HP StorageWorks Library and Tape Tools
(L&TT)
■HP StorageWorks Library and Tape Tools, which can be downloaded from
http://www.hp.com/support/tapetools
■For laptops, Adaptec APA-1480/60 single-ended, high-density male cable with a
high-byte terminated adapter (50-pin high-density female to 68-pin high density male)
■T-10, T-15, and T-20 Torx drivers
Firmware
The first step in performing a conversion is to obtain the most current version of the jukebox
controller and drive firmware for the model and option of the jukebox to which you are
converting. Firmware can be downloaded from
http://www.hp.com/go/support . Follow the
menu choices to the firmware for this jukebox.

133800ux/7100ux Optical Jukebox Conversion Guide
2
Convert an MO Jukebox to UDO
or Mixed-Media Technology
Overview
Converting an MO jukebox to UDO or mixed-media technology requires that the following
procedures be performed.
■Upgrade the firmware, page 14
■Access inside the jukebox, page 15
■Remove existing drives, page 18
■Remove the interposer board(s), page 19
■Remove the SCSI interface PCA(s), page 20
■Remove obsolete cables, page 21
■Install an expansion (lower) power supply, page 22
■Install and cable the buffer board(s), page 24
■Install new interposer board(s), page 25
■Install and reconnect cables, page 29
■Install the drive modules, page 31

Convert an MO Jukebox to UDO or Mixed-Media Technology
14 3800ux/7100ux Optical Jukebox Conversion Guide
Upgrade the firmware
Before performing the hardware conversion, upgrade the firmware to the correct level for
UDO jukeboxes.
Note: Use HP StorageWorks Library & Tape Tools (L&TT) to get the proper firmware. Download this
software and the corresponding user’s guide on the web from
http://www.hp.com/support/tapetools .
1. If there are disks in any of the drives, use the control panel to remove them.
2. Record the customer’s default configurations so that the jukebox can be correctly restored,
if necessary.
Go to the CONF* menu on the control panel to access and display the current jukebox
configurations.
Caution: Do not switch off power to the jukebox until you are sure the SCSI bus is inactive.
Switching off the jukebox when the SCSI bus is active can cause data loss and/or
indeterminate bus states.
3. If the host computer does not have HP StorageWorks Library and Tape Tools (L&TT), you
will need to connect to a laptop that does have L&TT to update the jukebox firmware. To
do so, perform the following tasks.
a. Power off the jukebox.
b. Ensure that your host computer is also powered off and disconnect it from the
jukebox.
c. Remove any cable connections to the single-ended ports on the interface module.
d. Connect a SCSI cable between your laptop computer and the 50-pin single-ended
SCSI ports on the SCSI interface PCA. (If there are two SCSI interface PCAs, connect
to the PCA that is attached directly to the module.)
e. Power on the laptop computer and the jukebox.
4. Follow the HP StorageWorks L&TT instructions to download the UDO jukebox firmware.
■Download firmware for an AA969A for a UDO-only conversion.
■Download firmware for an AA974A for a mixed-media conversion.
Note: This will require an override because the UDO firmware does not match the hardware ID
string, which is still MO technology. Set CONFIG 40 to ON from the jukebox OCP. Also, the jukebox
display will likely show DEVICE FAILED. Again, this is because the MO hardware, which is HVD or
S/E SCSI, is still in place, and UDO requires LVD.
5. Wait until the jukebox is at the READY or DEVICE FAILED or FIRMWARE MISMATCH
state after the download.
6. If a laptop is connected to the jukebox in step 3, power off the jukebox and disconnect the
laptop at this time.

Convert an MO Jukebox to UDO or Mixed-Media Technology
153800ux/7100ux Optical Jukebox Conversion Guide
Access inside the jukebox
To access inside the jukebox:
1. Power off the jukebox using the power switch, located in the upper opening on the back of
the jukebox.
Caution: Do not switch off power to the jukebox until you are sure the SCSI bus is inactive.
Switching off the jukebox when the SCSI bus is active can cause data loss and/or
indeterminate bus states.
Note: For steps 2 - 4, please refer to Figure 1, page 16.

Convert an MO Jukebox to UDO or Mixed-Media Technology
16 3800ux/7100ux Optical Jukebox Conversion Guide

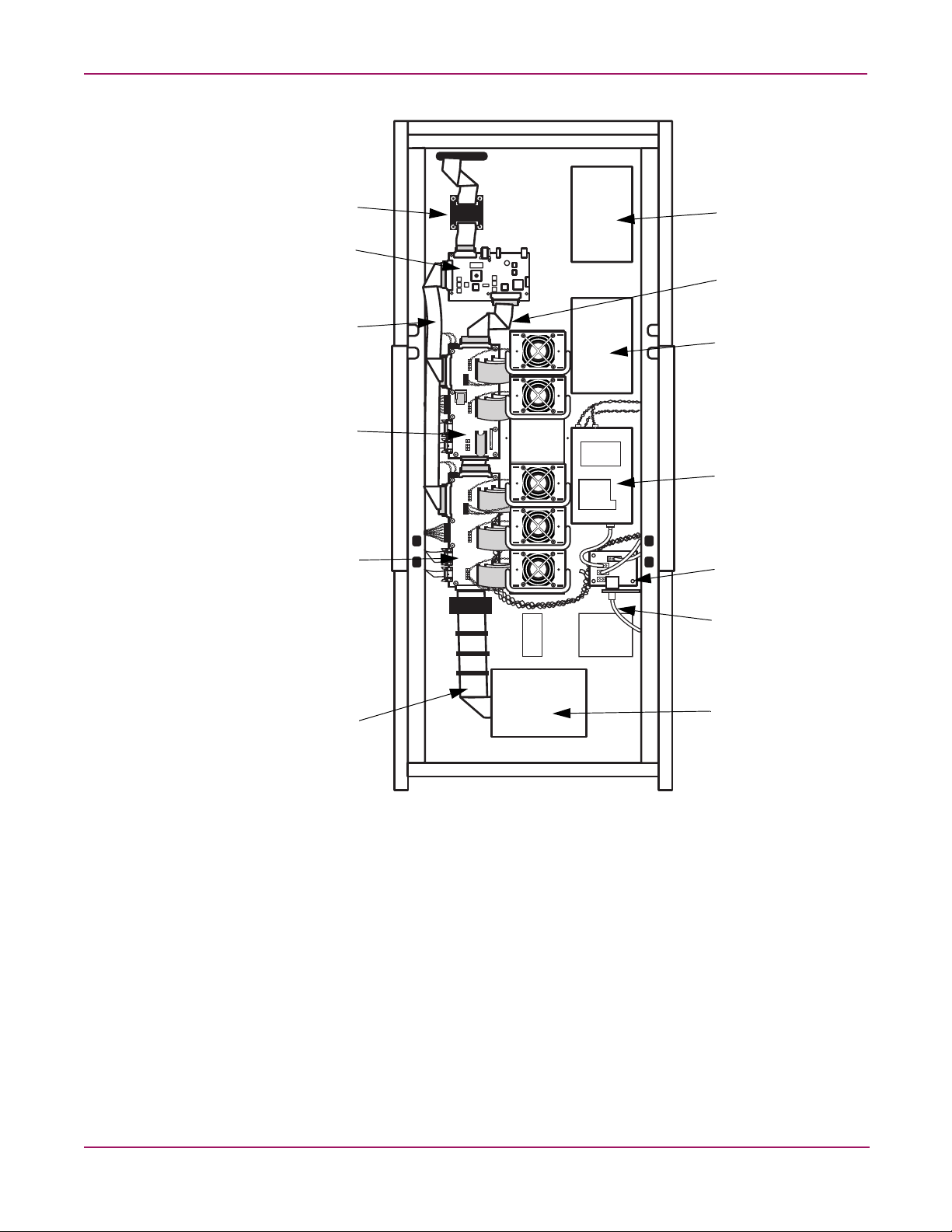

Figure 1: Jukebox features (view from the right side)
1Filter board
2Controller board
3Upper interposer board
4Lower interposer board
5SCSI interface module
6AC relay board
7Power supply for jukebox
8Power supply for upper interposer board
9Power supply for lower interposer board
-50-pin GPIO cable
q50-pin library SCSI cable
w68-pin SCSI cable
e Power cable
1
2
3
4
5
6
7
8
9
-
q
w
e

Convert an MO Jukebox to UDO or Mixed-Media Technology
173800ux/7100ux Optical Jukebox Conversion Guide
2. Unplug the jukebox.
3. Remove outer access panels on the right of the jukebox, as you face the jukebox front:
a. Remove the bottom access panel by pulling the bottom of the panel away from the
jukebox, then lifting the panel from the jukebox.
b. Remove the middle access panel by removing the 2 T-20 torx screws from the bottom
of the panel and lifting the panel from the jukebox.
c. Remove the top access panel by removing the 2 T-20 torx screws from the bottom of
the panel and lifting the panel from the jukebox.
4. Remove the two inner access panels by removing the 7 T-20 torx screws that secure each
panel and removing the panels from the unit.

Convert an MO Jukebox to UDO or Mixed-Media Technology
18 3800ux/7100ux Optical Jukebox Conversion Guide
Remove existing drives
Caution: Parts can be damaged by electrostatic discharge. Keep parts in their containers
until needed. Ensure you are properly grounded when touching static-sensitive components.
To remove existing drives:
1. Disconnect cables that connect the drives to the interposer board at the interposer board
end.
2. For each drive module, remove the 2 T-20 torx screws from each side of the drive module
(4 screws total).
3. Carefully slide the drive module back and out of the chassis.
Note: If you are converting to mixed-media, set aside the drive modules for later use. If you are
converting to UDO only, discard or recycle these drives.

Convert an MO Jukebox to UDO or Mixed-Media Technology
193800ux/7100ux Optical Jukebox Conversion Guide
Remove the interposer board(s)
Caution: Parts can be damaged by electrostatic discharge. Keep parts in their containers
until needed. Ensure you are properly grounded when touching static-sensitive components.
To remove the interposer board(s):
1. Remove all cables from the interposer board(s).
Jukeboxes with 4 or 6 drives will have only one interposer board. Jukeboxes with 10 drives
will have two interposer boards (see Figure 1).
2. If there is a configuration module on the upper interposer board, remove it and set it aside
for later use.
3. For each interposer board, remove the 8 T-20 torx screws that secure it to the jukebox (see
Figure 2).
4. Remove the interposer board(s) from the jukebox.
5. Discard or recycle the interposer board(s).

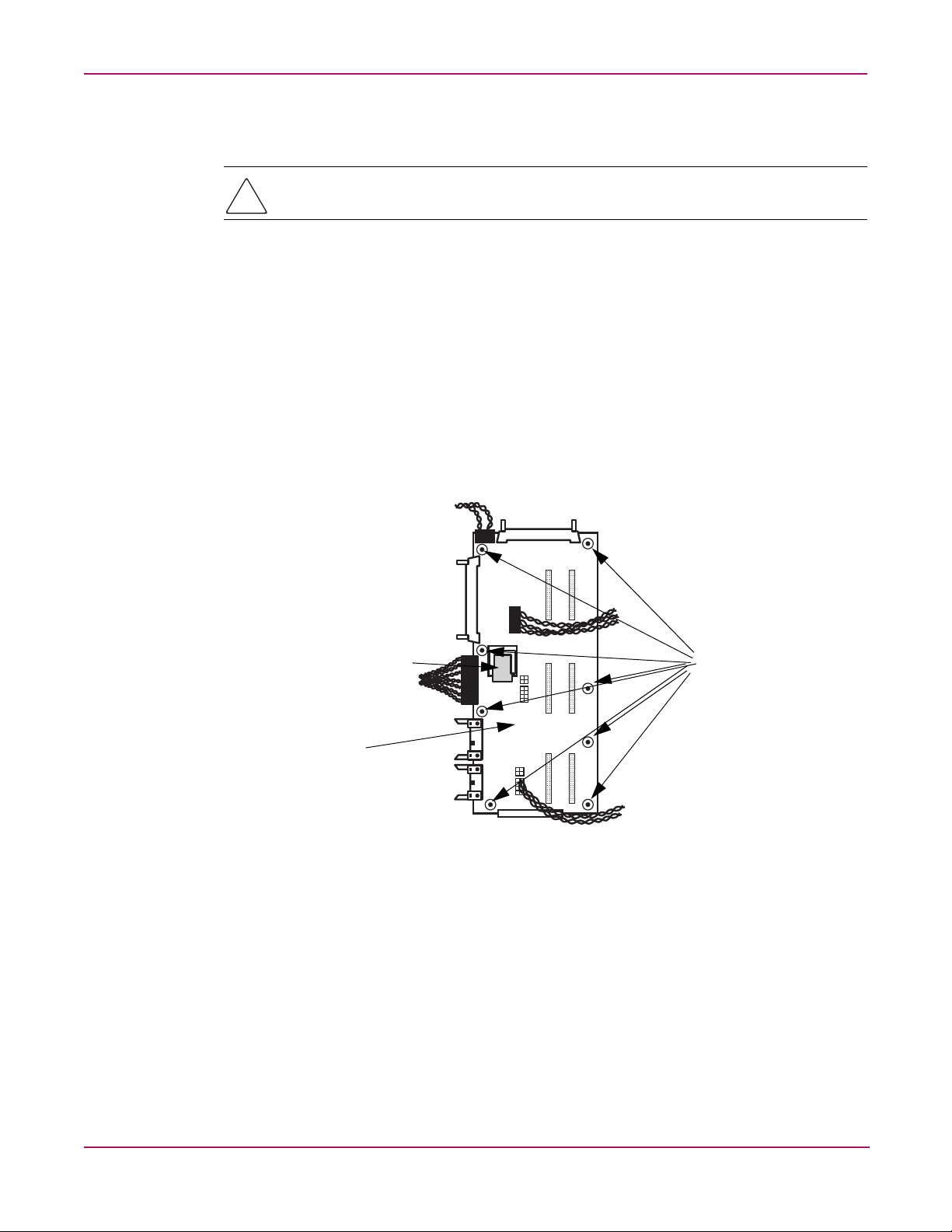

Figure 2: Upper interposer board and screws that secure it to the jukebox
1Upper interposer board
2Configuration module
3Screws
1
3
2

Convert an MO Jukebox to UDO or Mixed-Media Technology
20 3800ux/7100ux Optical Jukebox Conversion Guide
Remove the SCSI interface PCA(s)
Caution: Parts can be damaged by electrostatic discharge. Keep parts in their containers
until needed. Ensure you are properly grounded when touching static-sensitive components.
To remove the SCSI interface PCA(s):
1. Remove the SCSI interface PCA module(s) from the jukebox by removing the 2 screws
that secure it to the jukebox and pulling it from the jukebox frame.
2. Remove all cables from the SCSI interface PCA module(s).
3. Remove the 6 T-15 screws that secure the SCSI interface PCA to the module.
4. Remove the SCSI interface PCA from the module.
5. If there is a second SCSI interface PCA, remove it as well.
6. Throw away all terminators (including the 68-pin terminators) from the obsolete SCSI
interface PCA(s). New LVD SCSI terminators are required and are provided with the kits.
7. Discard or recycle the PCA(s).

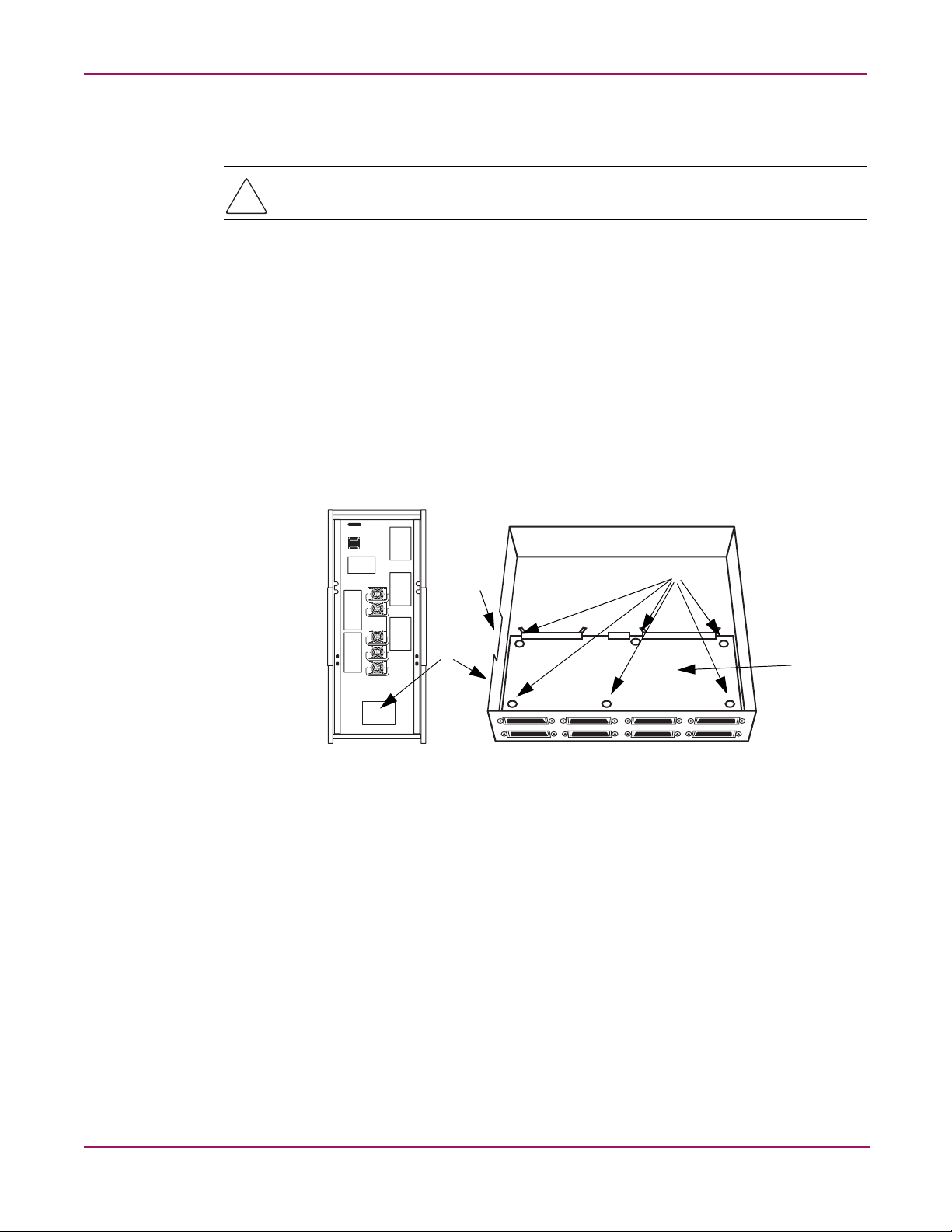

Figure 3: SCSI interface PCA
1SCSI interface PCA
2SCSI interface PCA module
3Screws
4Notch for internal cables to the module
1
4
3
21
3
4
