HP OmniBook Plug-In Modules
User’s Guide
For other Service and User Manuals, go to www.ManualDepot.com

1-2
Notice
This manual and any examples contained herein are provided “as is” and are
subject to change without notice. Hewlett-Packard Company makes no warranty of
any kind with regard to this manual, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose. Hewlett-Packard
Co. shall not be liable for any errors or for incidental or consequential damages in
connection with the furnishing, performance, or use of this manual or the examples
herein.
Consumer transactions in Australia and the United Kingdom: The above disclaimers
and limitations shall not apply to Consumer transactions in Australia and the United
Kingdom and shall not affect the statutory rights of Consumers.
© Copyright Hewlett-Packard Company 1998. All rights reserved. Reproduction,
adaptation, or translation of this manual is prohibited without prior written
permission of Hewlett-Packard Company, except as allowed under the copyright
laws.
The programs that control these products are copyrighted and all rights are
reserved. Reproduction, adaptation, or translation of those programs without prior
written permission of Hewlett-Packard Co. is also prohibited.
Portions of the programs that control this product may also be copyrighted by
Microsoft Corporation, SystemSoft Corp., Crystal Semiconductor Corporation,
Phoenix Technologies, Ltd., and NeoMagic Corporation. See the individual
programs for additional copyright notices.
Microsoft, MS, MS-DOS, and Windows are registered trademarks of Microsoft
Corporation. Pentium and the Intel Inside logo are U.S. registered trademarks and
MMX is a U.S. trademark of Intel Corporation.
For warranty information, see the Support and Service booklet.
,I[PIXX4EGOEVH'SQTER]
1SFMPI'SQTYXMRK(MZMWMSR
4VYRIVMHKI%ZI
'YTIVXMRS'%97%

1-3
Contents
1. Using OmniBook Plug-In Modules.......................... 1-5
Replacing a Plug-In Accessory Module ....................... 1-7
To replace a plug-in module............................. 1-7
Using the Floppy Disk Drive ............................... 1-9
To connect the floppy disk drive externally .................. 1-9
To insert or eject a floppy disk ........................... 1-10
Using the CD-ROM Drive ................................. 1-11
To insert or remove a CD ............................... 1-11
To open the CD-ROM drive manually ...................... 1-12
Using the Zip Drive ..................................... 1-13
To install the Zip drive software .......................... 1-13
To insert or eject a Zip disk ............................. 1-14
To eject a Zip disk manually............................. 1-14
Using the DVD Drive .................................... 1-15
To insert or eject a DVD ................................ 1-15
To eject a DVD manually ............................... 1-16
Using the Second Battery ................................. 1-17
To handle and store the battery safely ...................... 1-17
To maintain and preserve battery life ...................... 1-18
2. Troubleshooting ....................................... 1-19
Solving Problems with Plug-In Accessories..................... 1-21
Floppy disk drive problems ............................. 1-21
CD-ROM drive problems ............................... 1-22
Zip drive problems ................................... 1-22
DVD Drive Problems .................................. 1-23
Battery problems .................................... 1-23
3. Specifications and Regulatory Information................... 1-25
Hardware Specifications and Safety ......................... 1-27
To use the CD-ROM and DVD drive safely ................... 1-27
Regulatory Information .................................. 1-28
U.S.A. ............................................ 1-28
Canada ........................................... 1-29
Japan ............................................ 1-29
Europe ........................................... 1-30

1-5
1
Using OmniBook Plug-In
Modules

1-6
Using OmniBook Plug-In Modules
The OmniBook Plug-in Modules User’s Guide describes OmniBook plug-in accessory
modules and shows you how to install and use them. For complete information
about operating the OmniBook, consult the OmniBook Reference Guide and the
online User’s Handbook.
This manual explains how to
♦ Replace a plug-in module in the OmniBook.
♦ Use the floppy disk drive.
♦ Use the CD-ROM drive.
♦ Use the Zip drive.
♦ Use the DVD drive.
♦ Use the second battery.

Using OmniBook Plug-In Modules
6ITPEGMRKE4PYK-R%GGIWWSV]1SHYPI
1-7
Replacing a Plug-In Accessory Module
-QTSVXERX Shut down the OmniBook before removing or inserting the plug-in module using the
Start menu, or press and hold the blue power button until the display shuts down.
This is not necessary if you are removing a second battery from the plug-in module
bay and inserting another battery.
To replace a plug-in module
1. From the Start menu, shut down Windows (this is not necessary if you are
removing a battery from the plug-in module bay and inserting another battery).
2. Slide the safety latch for the plug-in slot into its recess.
3. Slide and hold the release latch, then pull out the module, as shown.

Using OmniBook Plug-In Modules
6ITPEGMRKE4PYK-R%GGIWWSV]1SHYPI
1-8
4. Slide the plug-in module into the OmniBook until it clicks into place.
'%98-32 &IWYVIXLIWEJIX]PEXGLMWSTIR3XLIV[MWI]SYGSYPHHEQEKIXLIQSHYPISV]SYV
3QRM&SSO
5. Slide the safety latch back to its original position (in the direction of the arrow).

Using OmniBook Plug-In Modules
9WMRKXLI*PSTT](MWO(VMZI
1-9
Using the Floppy Disk Drive
You can install the floppy disk drive in the plug-in module bay or attach it externally
to the parallel port.
This section describes how to
♦ Connect the floppy disk drive externally.
♦ Insert or eject a floppy disk.
To connect the floppy disk drive externally
If you want to use the floppy disk drive while also using any other OmniBook plug-in
module, you can use the floppy cable (optional accessory F1380A) to connect the
floppy disk drive module to the OmniBook via the parallel port.

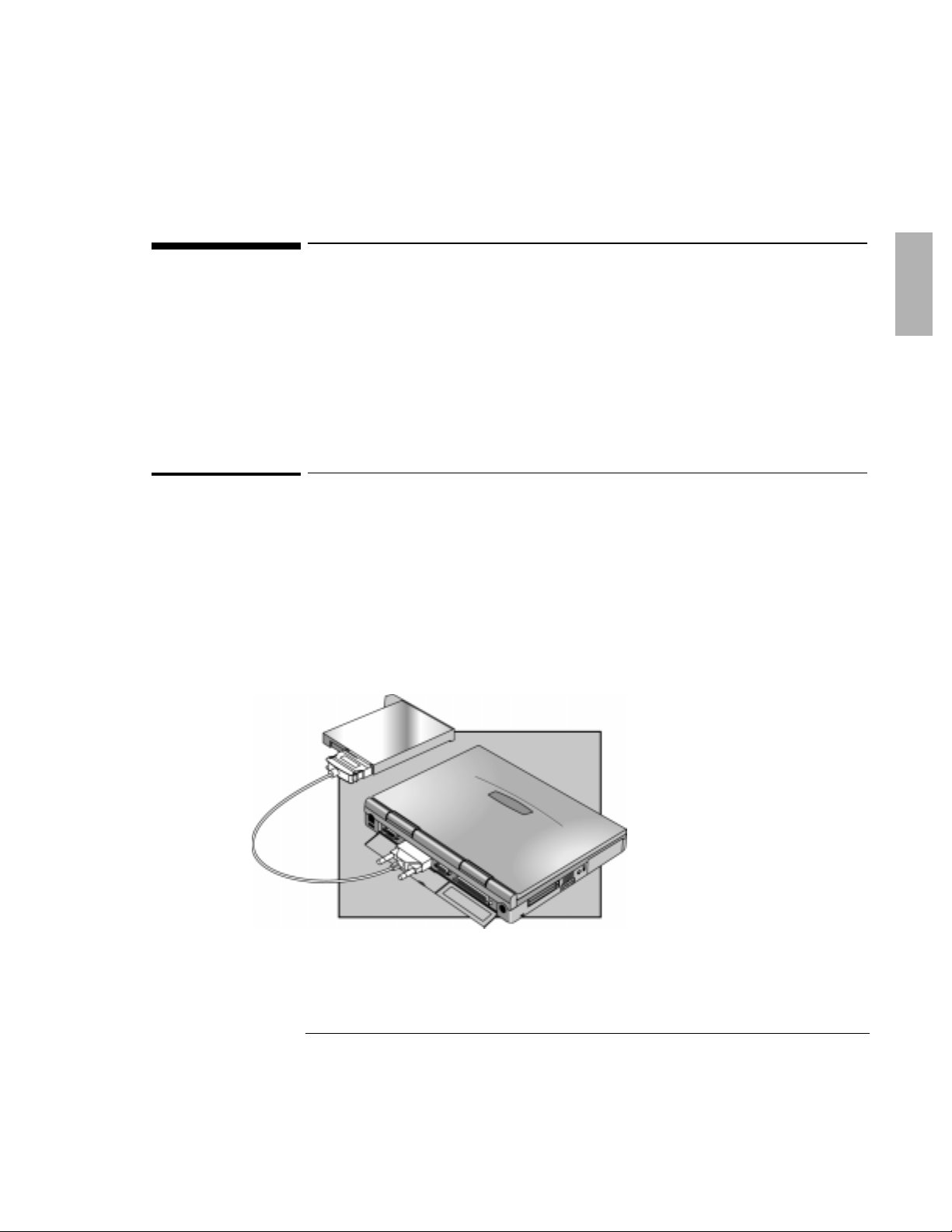

1. Connect the floppy cable to the floppy disk drive module and tighten the
knurled thumbscrews.
2. Connect the other end of the floppy disk drive cable to the OmniBook parallel
port, as shown below.

Using OmniBook Plug-In Modules
9WMRKXLI*PSTT](MWO(VMZI
1-10
To insert or eject a floppy disk
'%98-32 (SRSXMRWIVXSVVIQSZIEJPSTT]HMWO[LMPIXLI3QRM&SSOMWEGXMZIP]VIEHMRKSV
[VMXMRKHEXE3XLIV[MWI]SYGSYPHPSWIHEXESVXLI3QRM&SSOGSYPHWXST
VIWTSRHMRK
1. Hold the disk with its face up, then slide it into the floppy disk drive slot until it
clicks into place.
2. To remove the floppy disk, press the eject button on the front of the drive.

Using OmniBook Plug-In Modules
9WMRKXLI'(631(VMZI
1-11
Using the CD-ROM Drive
You can install the CD-ROM drive module in the plug-in module bay. This section
describes how to
♦ Insert or remove a CD.
♦ Open the CD-ROM drive manually.
To insert or remove a CD
'%98-32 (SRSXVIQSZIE'([LMPIXLI3QRM&SSOMWEGXMZIP]VIEHMRKHEXE3XLIV[MWIXLI
3QRM&SSOGSYPHWXSTVIWTSRHMRKERH]SYGSYPHPSWIHEXE

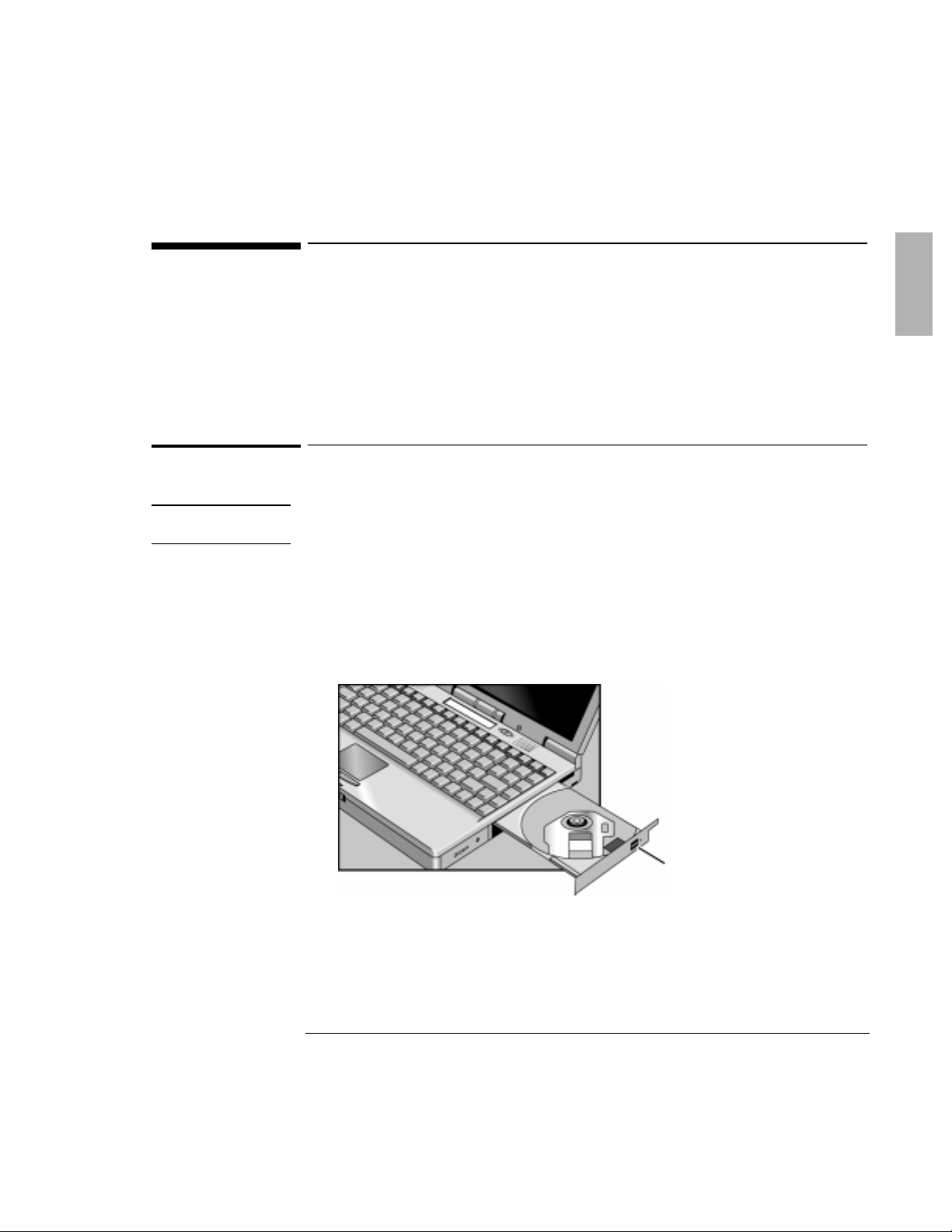

1. Press the button on the face of the CD-ROM drive. If you are using this drive for
the first time, be sure to remove the cardboard packing insert if it is present.
2. Place the CD into the drive (label facing up) and gently press down to seat the
CD on the spindle–or–remove the CD.
3. Close the door to the drive.
Open button

Using OmniBook Plug-In Modules
9WMRKXLI'(631(VMZI
1-12
To open the CD-ROM drive manually

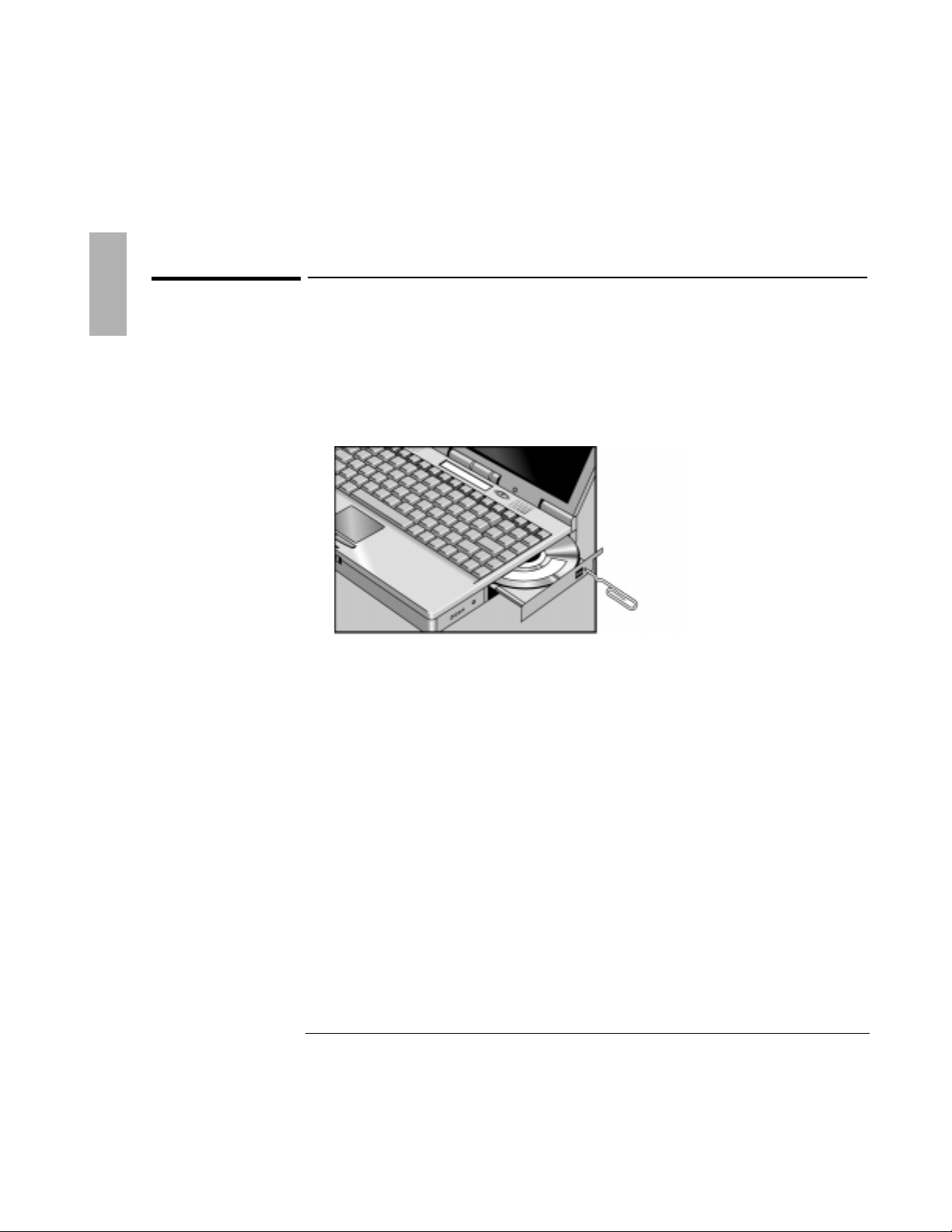

If you lose power to the OmniBook, or if you’ve removed the CD-ROM module from
the OmniBook, you can manually open the CD-ROM drive to remove a CD.
• Carefully insert a straightened paper clip into the emergency eject hole, as
shown below.

Using OmniBook Plug-In Modules
9WMRKXLI>MT(VMZI
1-13
Using the Zip Drive
The Zip drive module allows you to store up to 100 MB of data on a Zip disk. You
cannot boot from the Zip drive.
This section describes how to
♦ Install software for the Zip drive.
♦ Insert or eject a Zip disk.
♦ Eject a Zip disk manually.
To install the Zip drive software
The Zip drive comes with a CD containing software for the Zip drive. Follow these
steps to set up this software.
1. Set up a CD-ROM drive for your OmniBook. (The Zip drive does not have to be
installed at this time.)
2. Insert the Zip CD in the CD-ROM drive.
3. Click Start, Run, then type drive@MRWXEPP and click OK, where drive is the drive
letter of the CD-ROM drive. For example, type H@MRWXEPP if the CD-ROM is drive D.
This installs the Zip software so it’s ready whenever you insert the Zip drive.
To obtain the latest versions of Zip drivers and software, go to the Iomega website at
http://www.iomega.com.
-QTSVXERX If you are using Windows NT and have purchased a Zip drive, you must download
and install the latest version of the Phoenix APM and Card Executive drivers. These
NT drivers must be installed for your Zip drive to work properly. To obtain the
drivers and more information, go to the HP OmniBook website at
http://www.hp.com/omnibook.
The update to the Phoenix drivers contains the Zip-fix hotfix from Microsoft.

Using OmniBook Plug-In Modules
9WMRKXLI>MT(VMZI
1-14
To insert or eject a Zip disk
When the OmniBook is reading or writing data to the Zip drive, the drive indicator
appears on the OmniBook status panel (above the function keys).
'%98-32 %P[E]WXYVRSRTS[IVXSXLI3QRM&SSOFIJSVIMRWIVXMRKE>MTHMWO;LIR]SYMRWIVX
E>MT(MWOXLIKVIIRFYW]PMKLX[MPPJPEWLQSQIRXEVMP]ERHKSSYX-JXLIPMKLX
GSRXMRYIWXSFPMROWPS[P]TYWLXLIHMWOINIGXFYXXSRXSINIGXXLI>MTHMWOXLIR
MRWIVXMXEKEMR
(SRSXMRWIVXSVVIQSZIE>MTHMWO[LMPIXLI3QRM&SSOMWEGXMZIP]VIEHMRKSV
[VMXMRKHEXE3XLIV[MWIXLI3QRM&SSOGSYPHWXSTVIWTSRHMRKERH]SYGSYPHPSWI
HEXE
1. To insert the Zip disk, hold the disk with its face up and then gently insert it into
the Zip drive.
2. To eject the Zip disk, gently press the eject button on the front of the Zip disk
drive. Do not use excessive force. The green busy light blinks as the disk spins
down. The drive takes a few seconds to eject the disk. Store all your Zip disks in
their protective case when not in use.
If you’re using Windows 95, right-click the Zip drive in Windows Explorer or My
Computer and select Eject. This will not work in Windows NT 4.0.
To eject a Zip disk manually
The OmniBook must be powered on for normal disk ejection from the Zip drive. If
you need to remove a Zip disk from the drive when power is off, carefully push a
straightened paper clip into the emergency eject hole located on the eject button.
'%98-32 9WIXLIQERYEPHMWOINIGXTVSGIHYVISRP][LIR3QRM&SSOTS[IVMWSJJ(SRSXXV]
XSJSVGMFP]VIQSZIE>MTHMWOJVSQXLIHVMZI-JXLIHMWOHSIWRSXINIGXMQQIHMEXIP]
VITIEXXLIQERYEPHMWOINIGXTVSGIHYVI

Using OmniBook Plug-In Modules
9WMRKXLI(:((VMZI
1-15
Using the DVD Drive
Digital Versatile Disk (DVD) is a new standard of data storage. DVD disks deliver up
to seven times the storage of CDs. DVD drives can also read standard CDs. You
cannot boot from a CD or DVD in the DVD drive.
This section describes how to
• Insert or eject a DVD.
• Eject a DVD manually.
To insert or eject a DVD
'%98-32 (SRSXMRWIVXSVVIQSZIE(:([LMPIXLI3QRM&SSOMWEGXMZIP]VIEHMRKHEXE
3XLIV[MWIXLI3QRM&SSOGSYPHWXSTVIWTSRHMRKERH]SYGSYPHPSWIHEXE
1. Press the button on the face of the DVD drive. If you are using this drive for the
first time, be sure to remove the cardboard packing insert if it is present.
2. Place the DVD into the drive (label facing up) and gently press down to seat the
DVD on the spindle–or–remove the DVD.
3. Slide the DVD tray back into the module to close it.
Open button

Using OmniBook Plug-In Modules
9WMRKXLI(:((VMZI
1-16
To eject a DVD manually
If you lose power to the OmniBook, or if you’ve removed the DVD module from the
OmniBook, you can manually open the DVD drive to remove a DVD.
• Carefully insert a straightened paper clip into the emergency eject hole, as
shown below.

Using OmniBook Plug-In Modules
9WMRKXLI7IGSRH&EXXIV]
1-17
Using the Second Battery
To increase the time you can work on battery power, you can install a second
battery in the OmniBook’s plug-in module bay.
The Battery indicator above the keyboard shows the combined charge level of the
both the primary and second battery.
This section contains instructions on the following:
• To handle and store the battery safely
• To maintain and preserve the battery life
To handle and store the battery safely
To safely use the battery, follow these instructions:
• To avoid risk of fire, burns, or damage to your battery pack, do not allow metal
objects to touch the battery contacts.
• The battery pack is suitable for use only with compatible OmniBook models
and specified battery charger. Check the Support and Service booklet for your
local HP contact.
• Do not disassemble. There are no serviceable parts inside. Do not dispose of
the battery pack in fire or water.
• Handle a damaged or leaking battery with extreme care. If you come in contact
with the electrolyte, wash the exposed area with soap and water. If it contacts
the eye, flush the eye with water for 15 minutes and seek medical attention.
• Do not expose the battery pack to high storage temperatures (above 60 °C,
140 °F).
• When the battery is not in use, store it in a battery pouch or other
nonconductive case.
• When discarding a battery pack, contact your local waste disposal provider
regarding local restrictions on the disposal or recycling of batteries.
• To obtain a replacement battery, contact your local dealer or HP sales office.
• Do not charge the battery pack if the ambient temperature exceeds 45 °C
(113 °F).

Using OmniBook Plug-In Modules
9WMRKXLI7IGSRH&EXXIV]
1-18
To maintain and preserve battery life
To preserve the life of your battery, be sure to charge the battery regularly. In cases
of long-term storage, the battery must be charged at 20-50% to save capacity loss by
self-discharge and to avoid deterioration of battery performance.
• Do not leave batteries unused for long periods of time. If you have more than
one, rotate them.
• If you use ac power, make a point of using the battery once a week to keep it
fresh.
• Unplug your ac adapter when the computer is not in use.

1-19
2
Troubleshooting

1-20
Troubleshooting
If you run into problems installing your OmniBook accessories, you can use the
suggestions in this chapter to correct the problems.
If you have questions that this manual doesn’t answer, you can
• If you have problems, see the problem-solving suggestions and references listed
in the troubleshooting section of this manual, the OmniBook Reference Guide,
and the online User’s Handbook.
• Check with your computer system administrator, if you have one.
• Contact your dealer, or contact Hewlett-Packard—see the OmniBook Support
and Service booklet or OmniBook Support in the online OmniBook Library.
