HP EliteBook Revolve 810 G2 Tablet User manual

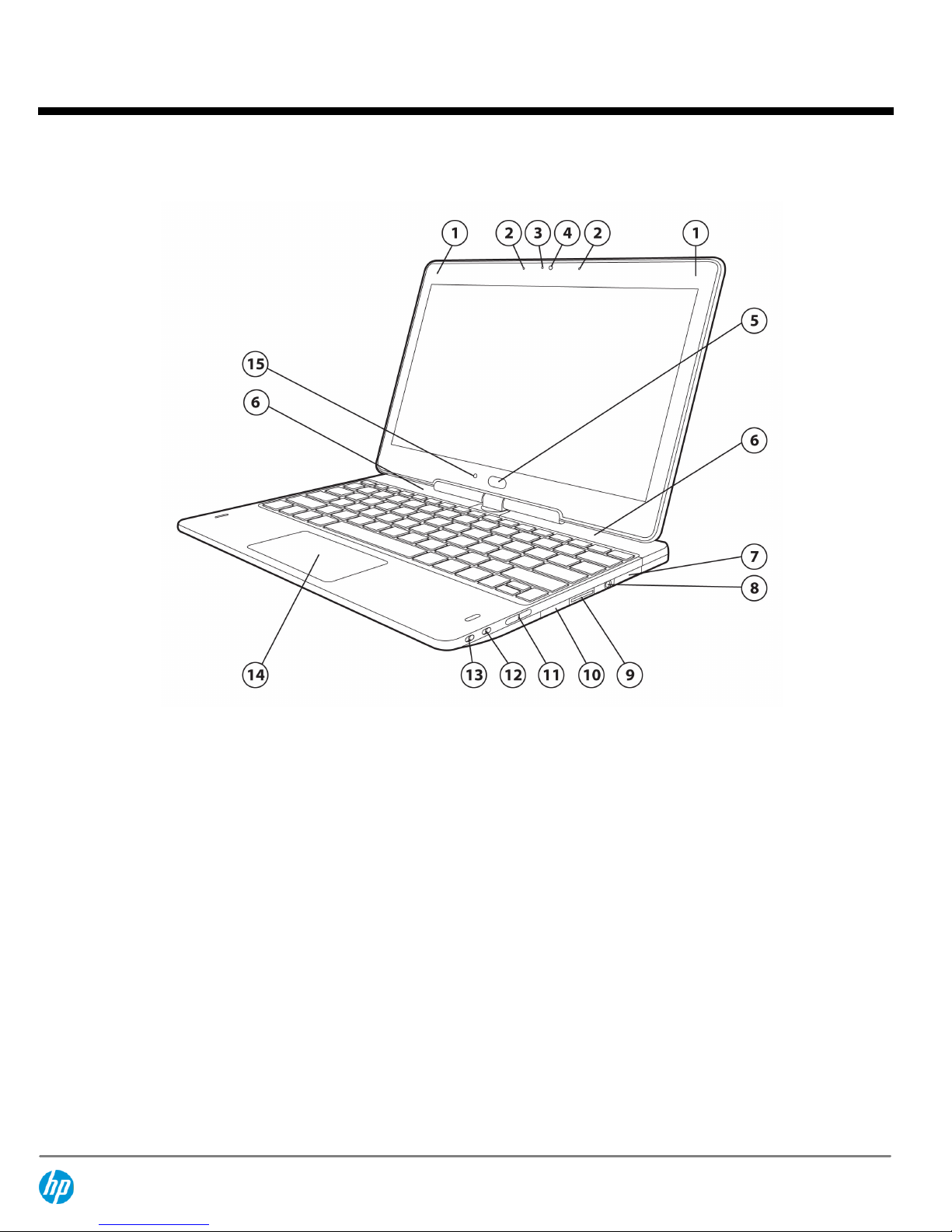

Front, Right
1. WLAN antennas 9 MicroSD slot
2. Dual-microphone array 10. Speaker
3. Webcam LED 11. Volume up/down button
4. 720p HD Webcam 12. Rotation lock button
5. Home button 13. Power button
6. WWAN antennas* 14. Clickpad image sensor
7. Side docking connector 15. Ambient light sensor
8. Audio jack
* WWAN is planned to be available in March 2014. . All WWAN modules listed are available preconfigured. Only the HP lt4112
LTE/HSPA+ Mobile Broadband Module is sold separately as an optional feature. WWAN use requires separately purchased service
contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location,
environment, network conditions, and other factors. 4G LTE is not available in all regions and requires Windows.
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Overview
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 1

Rear
1. RJ-45 (Ethernet) jack 4. DisplayPort 1.2
2. USB 3.0 port 5. USB 3.0 charging port
3. Security lock slot 6. Power connector
Left
1. Vent
2. Speaker
Bottom
1. Service cover 4. Battery bay cover release latch
2. Vents 5. Battery bay
3. Near Field Communication (NFC) antenna
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Overview
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 2

At A Glance
Windows 8.1 Pro 64, Windows 8.1 64, Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro
64), Windows 7 Professional 64, Windows 7 Home Premium 64, or FreeDOS 2.0
11.6-inch diagonal LED-backlit, ultra-slim, HD UWVA display (1366 x 768) with capacitive multi-touch screen
Industrial, business rugged HP DuraCase construction features a full magnesium alloy chassis, wear-resistant HP DuraFinish,
and stainless steel hinges
Full-sized backlit (optional), spill-resistant keyboard with bottom-case drain
Clickpad image sensor
Choice of 4th Generation Intel® Core™ i7, i5 Core with Turbo Boost Technology or 4th Generation Intel® Core™ i3 Core
Intel vPro technology enables you to remotely monitor, diagnose, and repair PCs over the network, even if a system's OS is
inoperable or it is powered off (vPro not available with Core i3-4010U or Core i5-4200U.)
Choice of up to 256 GB M.2 Solid State Drive or 256 GB SED M.2 Solid State Drive
Flexible wireless connectivity options:
Integrated WWAN modules with GPS support (optional, available March 2014)
Integrated Intel 802.11 (2x2) a/b/g/n ac, or a/b/g/n with Bluetooth 4.0 combo card
Integrated Intel 802.11a/b/g/n (2x2) wireless LAN module
6-cell polymer long life battery (44 WHr)
Integrated Intel HD 4400 Graphics
Integrated 720p HD Webcam
DTS Studio Sound with integrated stereo speakers and dual microphone array
Security features including HP Client Security, Common Criteria Certified Discrete TPM 1.2 Embedded Security Chip, and security
lock slot
Separate launch buttons for easy access to the following features: Windows, power, rotation lock, volume up and down
DisplayPort v1.2 for high resolution support
Optional HP 2013 UltraSlim docking station
Sensors include Gyroscope, Accelerometer, Compass, Ambient Light Sensor, Near Field Communication (NFC)
microSD slot
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Overview
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 3

PRODUCT NAME
HP EliteBook Revolve 810 G2 Tablet
OPERATING SYSTEM
Preinstalled Windows 8.1 Pro 64*
Windows 8.1 64*
Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)**
Windows 7 Professional 64***
Windows 7 Home Premium 64***
FreeDOS 2.0
Supported Windows 8.1 Enterprise 64*
Windows 7 Professional 32***
Windows 7 Enterprise 32***
Windows 7 Enterprise 64***
Windows 7 Ultimate 32***
Windows 7 Ultimate 64***
Windows 7 Home Premium 32***
Windows 7 Home Basic 32***
Windows 7 Home Basic 64***
* Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8.1 functionality. See http://www.microsoft.com/
** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8 Pro software.
You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating
systems to avoid loss of your data
** Systems may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for details.
PROCESSOR*
4th Generation Intel® Core™ i7-4600U with Intel HD Graphics 4400 (2.1 GHz, 4 MB L3 cache, 2 cores, 15 W)*
Up to 3.3 GHz with Intel Turbo Boost Technology**
4th Generation Intel® Core™ i5-4300U with Intel HD Graphics 4400 (1.9 GHz, 3 MB L3 cache, 2 cores, 15 W)*
Up to 2.9 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i5-4200U with Intel HD Graphics 4400 (1.6 GHz, 3 MB L3 cache, 2 cores, 15 W)*
Up to 2.6 GHz with Intel Turbo Boost Technology**
4th Generation Intel® Core™ i3-4010U with Intel HD Graphics 4400 (1.7 GHz, 3 MB L3 cache, 2 cores, 15 W)*
* Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. 64-bit computing on Intel® architecture requires a computer system with a
processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel® 64 architecture. Processors will not
operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will vary depending on your
hardware and software configurations. Intel's numbering is not a measurement of higher performance.
** Intel® Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost performance
varies depending on hardware, software and overall system configuration. See www.intel.com/technology/turboboost for more
information.
NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 4

CHIPSET
Mobile Intel® QM87 (vPro support available with Core i7-4600 or Core i5-4300)
INTEL CORE I5 WITH VPRO/CORE I7 WITH VPRO TECHNOLOGY CAPABLE
Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select
processors, an Intel Centrino® Advanced-N or Ultimate-N WLAN module and a preinstalled Windows operating system. It provides
advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active Management
Technology 9.0 (iAMT) offers built-in manageability and proactive security for networked notebook PCs, even when they are
powered off* or when the operating system is inoperable. It can help identify threats before they reach the network, isolate
infected systems, and update PCs regardless of their power state.
*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-VPN)
corporate network connection which is either cable or wireless LAN.
NOTE: Some functionality of this technology, such as Intel® Active management technology and Intel Virtualization technology,
requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel vPro
technology is dependent on 3rd party software providers. Microsoft Windows required. For hard drives, GB = 1 billion bytes. Actual
formatted capacity is less. Up to 30 GB for Windows 8 is reserved for system recovery software.
GRAPHICS
Integrated:
UMA: Intel HD Graphics 4400
DISPLAY
Internal
11.6-inch diagonal LED-backlit, anti-glare, HD* AG UWVA Touchpanel (1366 x 768)
Ultra- Wide-viewing angle
LVDS - low voltage differential signaling
Capacitive multitouch screen with digitizer
Tough, durable Corning Gorilla Glass 3
External
Up to 32-bit per pixel color depth
DisplayPort v1.2
Supports resolutions up to 2560 x 1600, 30-bit color depth at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120
Hz
Number of Supported Displays
Number of Displays with 2013 UltraSlim Docking Station UMA Discrete
EliteBook Revolve 810 G2 3 n/a
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 5

* HD content required to view HD images.
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
STORAGE AND DRIVES
Solid State Drive
128/180/256 GB M.2 Solid State Drives
256 GB SED M.2 Solid State Drive
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows 7)
and 30 GB (for Windows 8.1) of system disk is reserved for the system recovery software.
MEMORY
Standard
DDR3L PC3-12800 SDRAM (1600 MHz)
One SODIMM slot supporting dual-channel memory plus 4 GB soldered down
4 GB and 8 GB SODIMMs
Maximum
Upgradeable to 12288 MB with optional 8192 MB SODIMM in slot 1 and 4096 MB soldered down
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
NOTE: Maximum memory capacities assume Windows 64-bit operating systems. With Windows 32-bit operating systems,
memory above 3 GB may not all be available due to system resource requirements.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to
ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
NETWORKING/COMMUNICATIONS
Wireless
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry
standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard,
factory configurable feature only. Integrated Bluetooth is also available as both a factory configurable and after-market option
and can be combined with any of the supported wireless LAN and wireless WAN options.
Broadband Wireless (WWAN)
HP hs3110 HSPA+ Mobile Broadband*
HP lt4111 LTE/EV-DO/HSPA+ Mobile Broadband Module*,** (US)
HP lt4112 LTE/HSPA+ Mobile Broadband Module*,**,*** (EMEA, APJ)
Wireless LAN (WLAN)
Intel Dual Band Wireless-AC 7260 802.11 ac (2x2) WiFi + BT 4.0 combo****, *****
Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi + BT 4.0 combo****
Intel Dual Band Wireless-N 7260NB 802.11 a/b/g/n (2x2) WiFi****
* WWAN is is planned to be available in March 2014. All WWAN modules listed are available preconfigured. Only the HP lt4112
LTE/HSPA+ Mobile Broadband Module is sold separately as an optional feature. WWAN use requires separately purchased service
contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location,
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 6

environment, network conditions, and other factors. 4G LTE is not available in all regions and requires Windows.
** 4G LTE not available on all products, in all regions and only available on products featuring Intel processors.
*** Sold separately or as an optional feature.
****WLAN is an optional feature. Wireless access point and Internet service is required and is not included. Availability of public
wireless access points limited.
***** The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the
draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices.
Communications
Integrated Intel 82579LM Gigabit* Network Connection (vPro configurations)
* The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does
not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network
infrastructure is required.
AUDIO/MULTIMEDIA
Audio
DTS Studio Sound
Integrated stereo speakers
Integrated microphone (dual-microphone array)
Buttons for volume up and down
Headphone/microphone combo jack
Webcam
Integrated 720p HD webcam
HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 7

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
The HP backlit (optional), spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain
system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive
components underneath. The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with
desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt
keys, and 12 function keys. U.S. and International key layouts are available. Other features include an integrated numeric keypad,
hotkeys for instant access to power conservation, brightness, and other features, 19 mm x 19 mm key pitch (center-to-center
spacing), 2.0 mm stroke, and comfort-dished keycaps.
Pointing Devices
Clickpad image sensor
Buttons and Function Keys
Function keys are:
F1 - Ambient Light Sensor
F2 - Battery Gauge
F3 - Sleep
F4 - Display Switching
F5 - Speaker Mute
F6 - Volume Down
F7 - Volume Up
F8 - mic mute
F9 - Brightness Down
F10 - Brightness Up
F11 - Backlit keyboard
F12 - WiFi toggle
SENSORS
Accelerometer
Compass
Ambient Light Sensor
Near Field Communication (NFC)
SOFTWARE AND SECURITY
Preinstalled Software with Windows Operating System
Security
HP Client Security (incl. Cred Mgr and Password Mgr)
HP Drive Encryption
2
HP Device Access Manager with Just In Time Authentication
HP File Sanitizer
HP Trust Circles Standard
3
Absolute Data Protect
Computrace
1
Microsoft Defender
Microsoft Security Essentials
4
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 8

Privacy Manager (Web only)
Validity Fingerprint Driver
HP BIOS with Sure Start
5
BIOS Features
HP Sure Start
5
HP BIOS Protection
6
(Follow NIST 800-147, 155 Guidelines)
HP Automatic Drive Lock
HP DriveLock
HP SpareKey
8
Update via Network
Power On Authentication
Pre-Boot Security
HP Disk Sanitizer
7
(Not for SSD)
Master Record Security (backup/restore)
Secure Erase
9
(SSD & HDD)
Measured Boot
Hybrid Boot
Secure Boot
Absolute Persistence Module (for all Absolute products)
1
HP Value Add
HP Ceement
Digital ENERGY STAR® Logo W8
Getting Started with Windows 8
HP 3D DriveGuard
HP ePrint Driver
10
HP Firmware & Driver Installer
HP Hotkey Support
HP Manageability
HP PageLift App
HP PageLift Desktop App
HP Performance Advisor
HP Quick Start
HP Recovery Manager
HP Registration App
HP Remote Graphics
HP Setup
HP Software Setup
HP Support Assistant
HP Recovery Disc Creator (HPRDC)
HP WallPaper
Internet Explorer 9
Internet Explorer 10
IE Home
System Default Settings for Win8
UEFI System Diagnostics W8
Wireless Button Driver
3rd Party
Adobe® Flash Player (Commercial)
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 9

Amazon Kindle App
PDF Complete, Corporate Edition
Box.Net (UK only)
Box 50GB CMIT Cloud Offer
BTB Host and ISP Stub
BTB Host End Block
Bing Search for IE9
Bing Search for IE10
Netflix App
Skype Desktop App
11
Skype App
11
Microsoft Products
Buy Office
Lync Optimized
12
1
The Absolute Persistence agent is shipped turned off, and is activated with customer purchase of a subscription. Service may be
limited. Check with Absolute for availability outside the U.S. The optional subscription service of Absolute Recovery Guarantee is a
limited warranty. Certain conditions apply. For full details visit:
http://www.absolute.com/company/legal/agreements/computrace-agreement . If Data Delete is utilized, the Recovery Guarantee
payment is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and
either create a PIN or purchase one or more RSA SecurID tokens from Absolute Software
2
Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of Drive
Encryption and prevents data access. Drive encryption planned to be available in October 2013.
3
HP Trust Circles Standard, when included, allows up to 5 Trust Circles with up to 5 contacts in each Trust Circle. Optional Trust
Circles Professional required for unrestricted number of Trust Circles and members contacts. Trust Circles Reader is available to
allow a contact to participate in an invited Trust Circle. Requires Windows.
4
Opt in and internet connection required for updates.
5
HP Sure Start is available only on EliteBook 800 and Workstation ZBook series products. HP Tools partition with HP BIOS
required for automatic recovery.
6
May require a manual recovery step for recovery if all copies of BIOS are compromised or deleted.
7
For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial setup required.
Web history deleted only in Internet Explorer and Firefox browsers and must be user enabled.
8
Requires initial user set up.
9
For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.
10
Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,
supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional
broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and
availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.
11
Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,
supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional
broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and
availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.
12
Lync software is sold separately. Requires internet access.
Security
Standard
Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2 Embedded Security Chip
Security lock slot
HP Sure Start
HP BIOS (BIOS Protection)
8
Secure Erase
1
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 10

Computrace Persistence
2
DriveLock and Automatic DriveLock
Preboot Security
Master Boot Record recovery (Windows 7 only)
HP Client Security Software:
Drive Encryption
Credential Manager
Password Manager
Absolute Data Protect (Windows 8 and 8.1 only)
6
Computrace (Windows 7 only)
7
Face Recognition
6
One Step Logon
SpareKey
3
Device Access Manager with Just In Time Authentication
Embedded Security (Windows 7 only)
Privacy Manager (Windows 7 only)
Microsoft Security Essentials (Windows 7 only)
4
DigitalPass (Windows 7 only)
Central Management capable
5
Optional
HP Combo Lock
1
For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.
2
Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription. Subscriptions
can be purchased for terms ranging for multiple years. Service is limited, check with Absolute for availability outside the U.S
3
Requires initial user setup.
4
Opt-in and Internet connection required for updates
5
In order to deploy and receive updated policies, the client needs to be connected to the network server and requires separately
purchased DigitalPersona Pro software. System access may not prevent users from logging into the system on the first attempt if
policy updates haven't yet been received and applied.
6
HP Revolve with Windows 8 and 8.1 includes includes a 4 year license of Absolute Data Protect to locate your device, lock and
prevent unauthorized access and remotely delete personal data. See http://www.absolute.com/landing/2012/computrace-hp for
complete details. Absolute Data Protect agent is shipped turned off, and must be activated by customers. Service may be limited,
check with Absolute for availability outside the U.S. The optional subscription service of Absolute Recovery Guarantee is a limited
warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-
agreement . If Data Delete is utilized, the Recovery Guarantee payment is null and void. In order to use the Data Delete service,
customers must first sign a Pre-Authorization Agreement and either create a PIN or purchase one or more RSA SecurID tokens
from Absolute Software.
7
HP Revolve with Windows 7 includes the Computrace agent, shipped turned off, and is activated with customer purchase of a
subscription. Service may be limited. Check with Absolute for availability outside the U.S. The optional subscription service of
Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:
http://www.absolute.com/company/legal/agreements/computrace-agreement . If Data Delete is utilized, the Recovery Guarantee
payment is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and
either create a PIN or purchase one or more RSA SecurID tokens from Absolute Software.
8
May require a manual recovery step for recovery if all copies of BIOS are compromised or deleted.
For more information on HP security solutions refer to: http://www.hp.com/go/security .
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 11

Management
LANDesk Management Suite (optional)
1, 2
LANDesk Security Suite(optional)
1, 2
HP System Software Manager (available at no charge as a download from the web)
HP Softpaq Download Manager (available at no charge as a download from the web)
1
Sold separately or as an optional feature.
2
LANDesk software is sold separately. Managed devices must be connected to the management server. Location based
functionality requires active LANdesk maintenance service. Wipe functionality performs a "Windows 8 Reset" and requires
Windows 8. Lock performs a Windows "Lock Computer."
POWER
Power Supply
External HP 45W Slim Smart AC Adapter
External 65W EM Smart AC Adapter (Asia, PRC, India only)
Power cord is configurable; either 3.2 feet or 6 feet (1.0 or 1.8 meter
Primary Battery
HP 6-cell polymer long life (44WHr)
Battery Life
HP 6-cell polymer long life battery (44WHr)
Up to 10 Hours 45 minutes*
System Standby Time
Up to 137 hours
Power Conservation
Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic
mode)
Intel Display Power Saving technology
Hibernation
Standby
ACPI compliance
* Windows 7 battery life will vary depending on various factors including product model, configuration, loaded applications,
features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally
decrease with time and usage. See www.bapco.com for additional details.
ENVIRONMENTAL
US ENERGY STAR ®
IT ECO declaration
EPEAT® Gold registered in the U.S. (with Microsoft OS). EPEAT status varies by country- please see epeat.net for
registration status in your country.
US Federal Energy Management Program (FEMP)
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 12

WEIGHTS & DIMENSIONS
Weight
Starting at 3.08 lb (1.40 kg) (weight will vary by configuration)
Dimensions (w x d x h)
8.34 x 11.22 x 0.80 in (at front) / 212 x 285 x 22.2 mm (at front)
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and
components. Weight includes 6-cell battery, lightest SSD, and 1 SODIMM.
PORTS/SLOTS
Ports
DisplayPort – One (v1.2)
Stereo headphone/microphone combo jack – One
Power Connector – One
Side Docking Connector – One
RJ-45 (Ethernet) – One
USB 3.0 – One
USB 3.0 Charging – One
Digital Media Slots
microSD Media Reader Slot – supports SD, SDHC, SDXC
SERVICE AND SUPPORT
Limited, 90-day warranty, depending on country); 1 and 3 year limited warranty options available. 3-year limited warranty on
battery. Optional HP Care Pack Services are extended service contracts which go beyond your standard warranties. For more
details visit: http://www.hp.com/go/cpc
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Features
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 13

SYSTEM UNIT
Stand-Alone Power
Requirements (AC Power)
Nominal Operating
Voltage
110/220 V
Average Operating Power 10.2 W
Max Operating Power < 45 W
Temperature Operating 32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating -4° to 140° F (-20° to 60° C)
Relative Humidity Operating 10% to 90%, non-condensing
Non-operating 5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Shock Operating 40 G, 2 ms, half-sine
Non-operating 200 G, 2 ms, half-sine
Random Vibration Operating 0.75 grms
Non-operating 1.50 grms
Altitude (unpressurized) Operating -50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating -50 to 40,000 ft (-15.24 to 12,192 m)
Planned Industry
Standard
Certifications
UL Yes
CSA Yes
FCC Compliance Yes
ENERGY STAR® Select models*
EPEAT Gold**
ICES Yes
Australia /
NZ A-Tick Compliance
Yes
CCC Yes
Japan VCCI Compliance Yes
KC Yes
BSMI Yes
CE Marking Compliance Yes
BNCI or BELUS Yes
CIT Yes
GOST Yes
Saudi Arabian Compliance
(ICCP)
Yes
SABS Yes
UKRSERTCOMPUTER Yes
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Technical Specifications
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 14

* Configurations of the HP EliteBook Revolve 810 G2 that are ENERGY STAR qualified are identified as HP EliteBook Revolve 810 G2
ENERGY STAR on HP websites and on www.energystar.gov .
** EPEAT® Gold registered in the U.S. See www.epeat.net for registration status by country.
For accessibility information on HP products, please visit: http://www.hp.com/accessibility .
DISPLAYS
11.6-inch diagonal LED HD
(1366 x 768)
Active Area 9.88 x 5.67 in (25.61 x 14.40 cm)
Dimensions (W x H) 11.53 x 6.49 in (29.3 x 16.5 cm)
Diagonal Size 11.6 in (29.46 cm)
Contrast Ratio 300:1 (typical)
Refresh Rate 60 Hz
Brightness 400 nit (typical)
Pixel Resolution Format 1366 x 768
Configuration RGB Stripe
Backlight LED
Viewing Angle 40/40/15/30 (Left/Right/Down/Up) (typical)
STORAGE AND DRIVES
Internal Storage
128 GB* M.2 Solid State
Drive
Drive Weight 10 grams
Capacity 128 GB
Height 0.091 in (2.3 mm)
Width 0.87 in (22 mm)
Interface SATA 3 (6 Gb/s)
Performance Maximum Sequential
Read
Maximum Sequential Write
Up to 515 MB/s Up to 465 MB/s
Logical Blocks 250,069,680
Operating Temperature 32° to 158°F (0° to 70°C) [case temp]
Features ATA Security; ATA-8; SATA 3.0; DIPM; TRIM
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Technical Specifications
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 15

180 GB* M.2 Solid State
Drive
Drive Weight 10 grams
Capacity 180 GB
Height 0.091 in (2.3 mm)
Width 0.87 in (22 mm)
Interface SATA Gen 3 (6 Gb/s)
Performance Maximum Sequential
Read
Maximum Sequential Write
Up to 540 MB/s Up to 490 MB/s
Logical Blocks 351,651,888
Operating Temperature 32° to 158°F (0° to 70°C) [case temp]
Features ATA Security; ATA-8, SATA 3.0; DIPM; TRIM
256 GB* M.2 Solid State
Drive
Drive Weight 10 grams
Capacity 256 GB
Height 0.091 in (2.3 mm)
Width 0.87 in (22 mm)
Interface SATA Gen 3 (6 Gb/s)
Performance Maximum Sequential
Read
Maximum Sequential Write
Up to 515 MB/s Up to 465 MB/s
Logical Blocks 500,118,192
Operating Temperature 32° to 158°F (0° to 70°C) [case temp]
Features ATA Security; ATA-8, SATA 3.0; DIPM; TRIM
180 GB* M.2 SED Solid
State Drive
Drive Weight 10 Grams
Capacity 180 GB
Height 0.091 in (2.3 mm)
Width 0.87 in (22 mm)
Interface SATA 3 (6 Gb/s)
Performance Maximum Sequential
Read
Maximum Sequential Write
Up to 540 MB/s Up to 490 MB/s
Logical Blocks 351,651,888
Operating Temperature 32° to 158°F (0° to 70°C) [case temp]
Features ATA Security; ATA-8, SATA 3.0; DIPM; TRIM; TCG Opal 1.0
* For solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows 7) and 30
GB (for Windows 8.1) of system disk is reserved for the system recovery software.
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Technical Specifications
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 16

NETWORKING/COMMUNICATIONS
Intel® 82579LM Gigabit
Network Connection
Ethernet Features 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbti/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023. Clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE(Energy Efficient Ethernet)
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection
Power
Management
ACPI compliant - multiple power modes
Energy Detect Low Power Mode(Green Ethernet)
Performance
Features
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload( ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
MACSec Offload (802.3ae)
Intel vPro
iSCSI Boot
Manageability Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Interface PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.
NOTE : Intel 82579 PCIe interface is not PCIe compliant. It operates at half of
PCIe specification V1.1 (2.5GT/S) speed.
NIC Device Driver Name Intel 82579LM/82579V Ethernet Network Connection
HP hs3110/3114 HSPA+
Mobile Broadband
Module *
Technology/Operating
Bands
Modes: WCDMA/HSDPA/HSUPA/HSPA+/AWS/GSM/EDGE/GPRS
Penta-band WCDMA/HSDPA/HSUPA/HSPA+/AWS: 850/900/1900/2100/AWS
MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Wireless Protocol
Standards
GSM/GPRS/EDGE: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and
MSC1 - MSC9.
UMTS/WCDMA: Release 99 and Release 7
Advanced Receiver Type 3i
GPS GPS Standalone, A-GPS: L1 (Internet- and Network assisted)
Wireless parametric
standards
Complies with 3GPP specifications
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Technical Specifications
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 17

Maximum data rates GPRS/EDGE: Multi-slot Class 33, Class B
WCDMA PS: UL (384 kbps) / DL (384 kbps)
UL/DL HSPA: UL (5.76 Mbps)/ DL (7.2 Mbps)
UL/DL HSPA+: UL (5.76 Mbps)/ DL (21Mbps)
Maximum output power WCDMA/HSPA/HSPA+ 2100/1900/900/850/AWS MHz:
+24dBm (Power Class 3)
GPRS 1900/1800 MHz: +30dBm (Power Class 1)
GPRS 900/850 MHz: +33dBm (Power Class 4)
EDGE 1900/1800 MHz: +26dBm (Power Class E2)
EDGE 900/850 MHz: +27dBm (Power Class E2)
Maximum power
consumption
2500mA (peak); 600mA (average)
Power consumption,
sleep mode
3.6 mA
Power management USB selective suspend, Connected Standby
Integrated notebook wireless button
Antenna type Dual high efficiency 5 band antennae with spatial diversity, mounted in the
display enclosure
Form Factor M.2 Socket 2, USB 2.0 interface high speed
Weight <6 g
Dimensions (Length x
Width x Thickness)
2.01 x 1.18 x 0.18 in (42 x 30 x 2.3 mm)
SIM card supply voltage 1.8 V/3.0 V UICC (SIM/UICC/USIM)
Voltage, Operating 3.135V~4.4V (3.3 V recommended)
Temperature, Operating 14° to 131° F (-10° to 55° C) (Normal operation)
-4° to 158° F (-20° to 70° C) (Extended operation)
Temperature, storage -40° to 185° F (-40° to 85° C)
Humidity LED Off - Radio Off; Solid LED On - Radio On
Configuration utilities HP Connection Manager
LED Activity LED Off - Radio Off; Solid LED On - Radio On
* Mobile Broadband is an optional feature sold separately or as an add on feature. Connection requires
wireless data service contract, network support, and is not available in all areas. Contact service provider
to determine the coverage area and availability. Connection speeds will vary due to location, environment,
network conditions, and other factors.
HP lt4111 LTE/EV-
DO/HSPA+ 4G WWAN *
Technology/Operating
Bands
LTE FDD all bands with diversity: 1900 MHz (Band II)
1
, 1700/2100MHz (Band IV
(AWS), 850 MHz (Band V), 700MHz (Band XIII), 700MHZ (Band XVII), 1900MHz G
Block (Band XXV)
WCDMA/HSDPA/HSUPA/HSPA+: all bands with diversity: 2100 MHz (Band I),
1900 MHz (Band II) , AWS 1700/2100MHz (Band IV), 850 MHz (Band V), 800
MHz (Band VIII)
GSM/GPRS/EDGE: 1900 MHz, 1800 MHz , 850 MHz , 900 MHz
CDMA: Cellular 800MHz (BC0), PCS 1900MHz (BC1)
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Technical Specifications
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 18

Wireless Protocol
Standards
3GPP Release 8 LTE Specification
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
EVDO Release 0 and Release A
Wireless Parametric
Standards
Complies with 3GPP specifications Release 8 for LTE
Maximum Data Rates LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
GPS Standalone GPS, A-GPS, GPS XTRA
GPS Bands 1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz
Maximum Output Power LTE: +23 dBm (+/- 1 dBm)
WCDMA: +23 dBm (+/- 1 dBm)
GSM850/900, GMSK: +32dBm (+/- 1dBm)
GSM850/900, 8PSK: +27dBm (+/- 1dBm)
DCS1800 / PCS 1900, GMSK: +29dBm (+/- 1dBm)
DCS1800 / PCS 1900, 8PSK: +26dBm (+/- 1dBm)
CDMA: +24dBm (+/- 1dBm)
Maximum Power
Consumption
LTE: 1,200 mA (peak); <900 mA (average)
WCDMA: 1,100 mA (peak); <800 mA (average)
EGPRS: 2,500 mA (peak); <700 mA (average)
Power Consumption,
Sleep Mode
2 mA
Power Management USB selective suspend, Integrated notebook wireless button
Antenna Type Dual high efficiency multi-band antennae with spatial diversity
Form Factor M.2, 3042-S3 Key B
Weight 6 g
Dimensions (Length x
Width x Thickness)
42 mm × 30 mm × 2.3 mm
Voltage, Operating 3.135 V to 4.4 V (3.3 V +1.1V/-0.165V)
Temperature, operating
(from TIA/EIA/IS-98-D)
-13° to 140° F (-25° to 60° C)
Temperature, non-
operating, 96 hours (from
MIL-STD 202 Method 108)
-40° to 185° F (-40° to 85° C)
Humidity, Non-operating 95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
LED Activity LED Off - Radio Off; Solid LED On - Radio On
1
1900 MHz (Band II) and 850 MHz (Band V) not supported at launch but support planned in a future
firmware update.
* 4G LTE not available on all products, in all regions and requires Windows. WWAN use requires separately
purchased service contract. Check with service provider for coverage and availability in your area.
Connection speeds will vary due to location, environment, network conditions, and other factors.
HP lt4112 LTE/HSPA+ Technology/Operating LTE FDD all bands with diversity: 2100 MHz (Band I), 1900 MHz (Band II), 1800
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Technical Specifications
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 19

Gobi 4G Module * Bands
MHz (Band III), 850 MHz (Band V), 2600 MHz (Band VII), 900 MHz (Band VIII),
800 MHz (Band XX, DD800)
WCDMA/HSDPA/HSUPA/HSPA+ all bands with diversity: 2100 MHz (Band I),
1900 MHz (Band II), 850 MHz (Band V), 900 MHz (Band VIII)
GSM/GPRS/EDGE: 1900 MHz (Band II), 1800 MHz (Band III), 850 MHz (Band V),
900 MHz (Band VIII)
Wireless Protocol
Standards
3GPP Release 8 LTE Specification
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
Wireless Parametric
Standards
Complies with 3GPP specifications Release 8 for LTE
Maximum Data Rates LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
GPS Standalone
GPS Bands 1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz
Maximum Output Power LTE: +23 dBm (+/- 2 dBm)
WCDMA: +23.5 dBm (+/- 1 dBm)
GPRS Band II, III: +29.5 dBm (+/- 1 dBm)
GPRS Band V, VIII: +32.5 dBm (+/- 1 dBm)
EGPRS Band II, III: +26.5 dBM (+/-1.5 dBm)
EGPRS Band V, VIII: +27.5 dBM (+/-1.5 dBm)
Maximum Power
Consumption
LTE: 1,200 mA (peak); <900 mA (average)
WCDMA: 1,100 mA (peak); <800 mA (average)
EGPRS: 2,800 mA (peak); <700 mA (average)
Power Consumption,
Sleep Mode
3 mA
Power Management USB selective suspend, Integrated notebook wireless button
Antenna Type Dual high efficiency multi-band antennae with spatial diversity
Form Factor M.2, USB 2.0 interface
Weight 6 g
Dimensions (Length x
Width x Thickness)
42 mm × 30 mm × 2.3 mm
Voltage, Operating 3.135 V to 4.4 V (3.3 V +1.1V/-0.165V)
Temperature, operating
(from TIA/EIA/IS-98-D)
14° to 131° F (-10° to 55° C)
Temperature, non-
operating, 96 hours (from
MIL-STD 202 Method 108)
-40° to 185° F (-40° to 85° C)
Humidity, Non-operating 95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
LED Activity LED Off - Radio Off; Solid LED On - Radio On
* 4G LTE not available on all products, in all regions and requires Windows. WWAN use requires separately
purchased service contract. Check with service provider for coverage and availability in your area.
Connection speeds will vary due to location, environment, network conditions, and other factors.
QuickSpecs
HP EliteBook Revolve 810 G2 Tablet
Technical Specifications
DA - 14835 Worldwide — Version 3 — January 29, 2014 Page 20
