HP Pavilion dv2000 - Entertainment Notebook PC User manual

Notebook Tour
User Guide

© Copyright 2006 Hewlett-Packard
Development Company, L.P.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: May 2006
Document Part Number: 411669-001

Table of contents
1 Components
Top components ................................................................................................................................... 2
TouchPad ............................................................................................................................ 2
Lights ................................................................................................................................... 3
Buttons, switches, and speakers ......................................................................................... 6
Keys ..................................................................................................................................... 9
Hotkey quick reference ...................................................................................................... 10

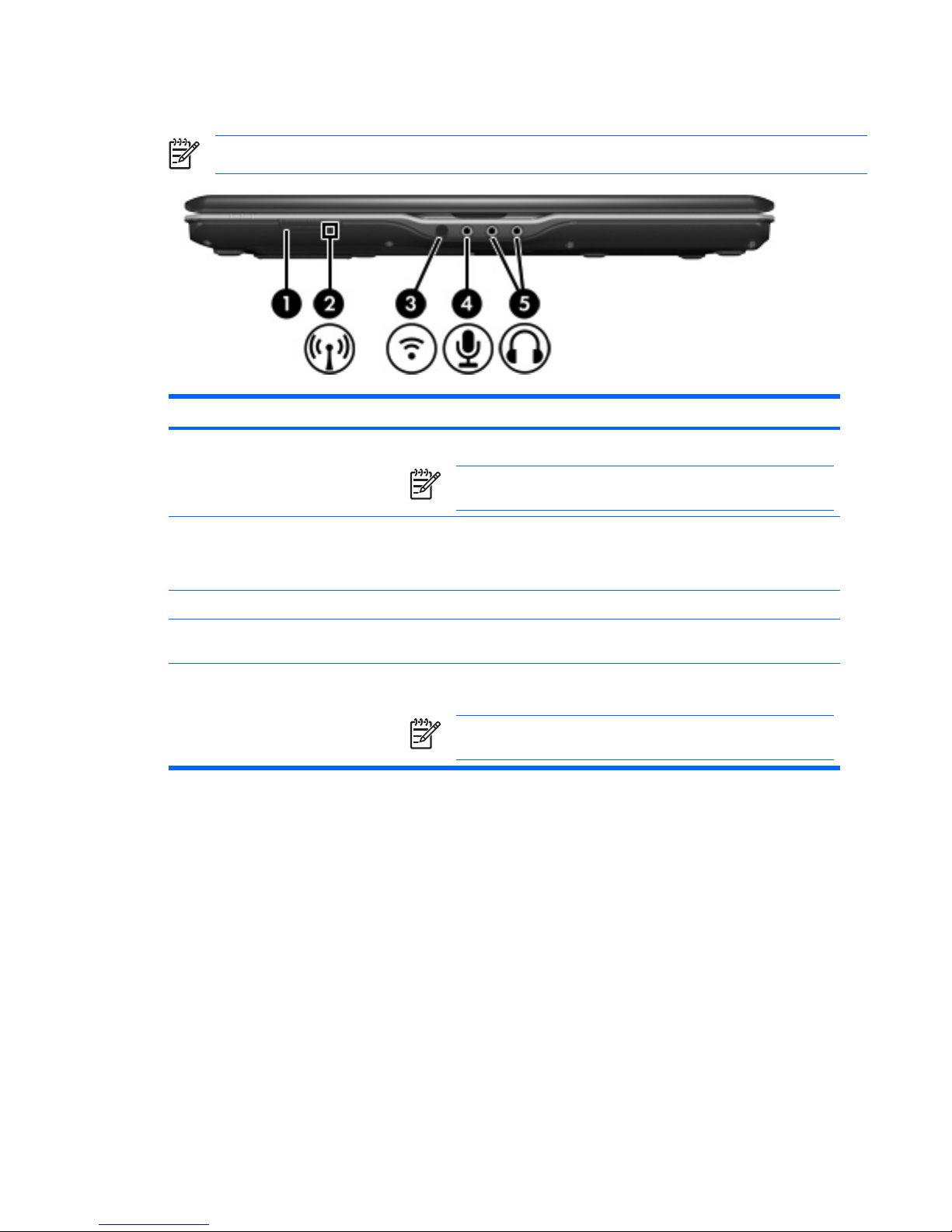

Front components .............................................................................................................................. 11
Rear components ............................................................................................................................... 12
Right-side components ....................................................................................................................... 13
Left-side components ......................................................................................................................... 14

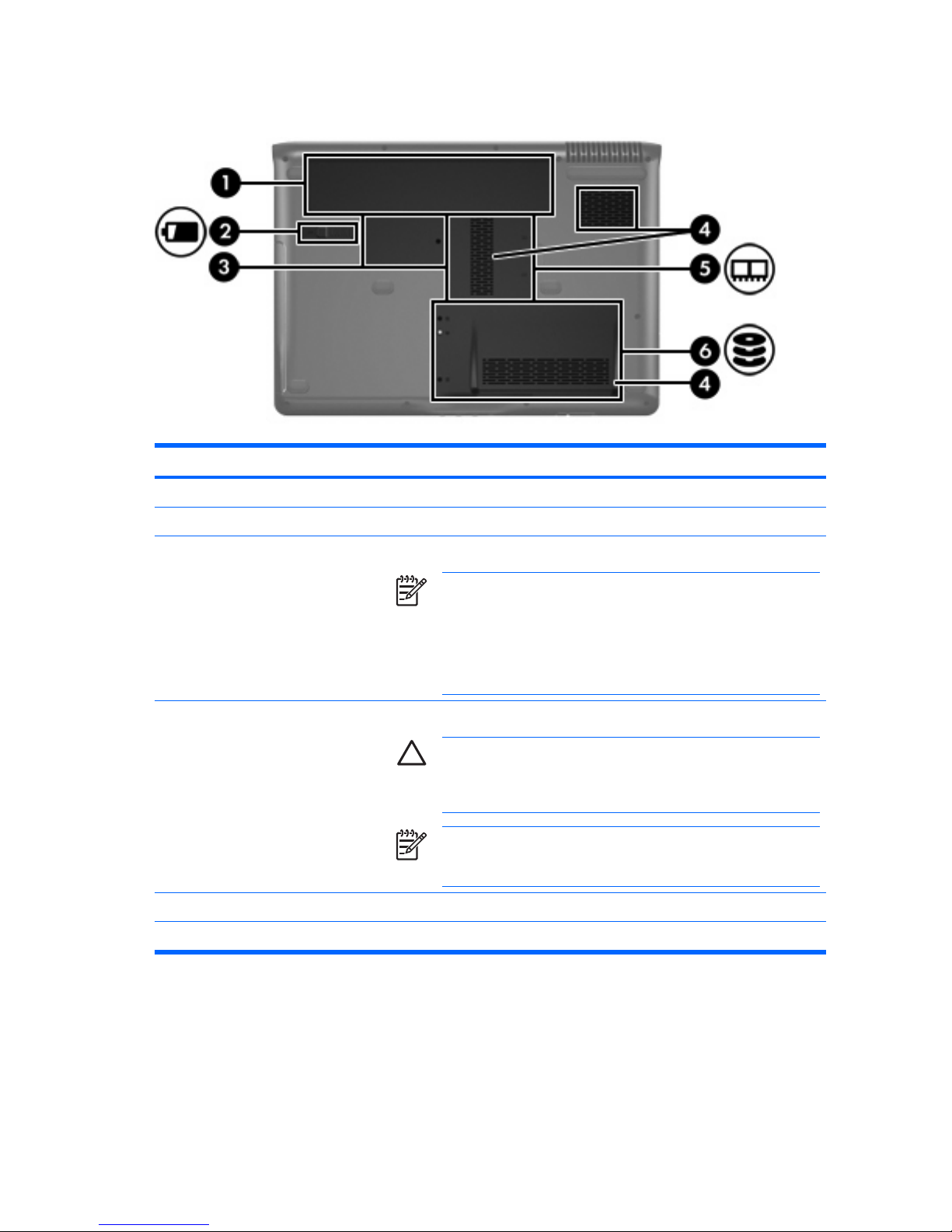

Bottom components ........................................................................................................................... 16
Display components ........................................................................................................................... 17
Wireless antennae (select models only) ............................................................................................. 18
Additional hardware components ....................................................................................................... 19
Labels ................................................................................................................................................. 20
2 Specifications
Operating environment ....................................................................................................................... 21
Rated input power .............................................................................................................................. 22
Index ................................................................................................................................................................... 23
ENWW iii

iv ENWW

1 Components
This chapter explains the hardware features of the computer.
To see a list of hardware installed in the computer:
1. Select Start > My Computer.
2. In the left pane of the System Tasks window, select View system information.
3. Select Hardware tab > Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE Components included with the computer may vary by region and by model. The
illustrations in this chapter identify the standard features included in most computer models.
ENWW 1

Top components
TouchPad
Component Description
(1) TouchPad light Blue: TouchPad is enabled.
Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on
the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) Right TouchPad button* Functions like the right button on an external
mouse.
(5) TouchPad scroll zone* Scrolls up or down.
(6) TouchPad on/off button Enables/disables the TouchPad.
*This table describes factory settings. To view and change pointing device preferences, select Start
> Control Panel > Printers and Other Hardware > Mouse.
2 Chapter 1 Components ENWW

Lights
NOTE Refer to the illustration that most closely matches your computer.

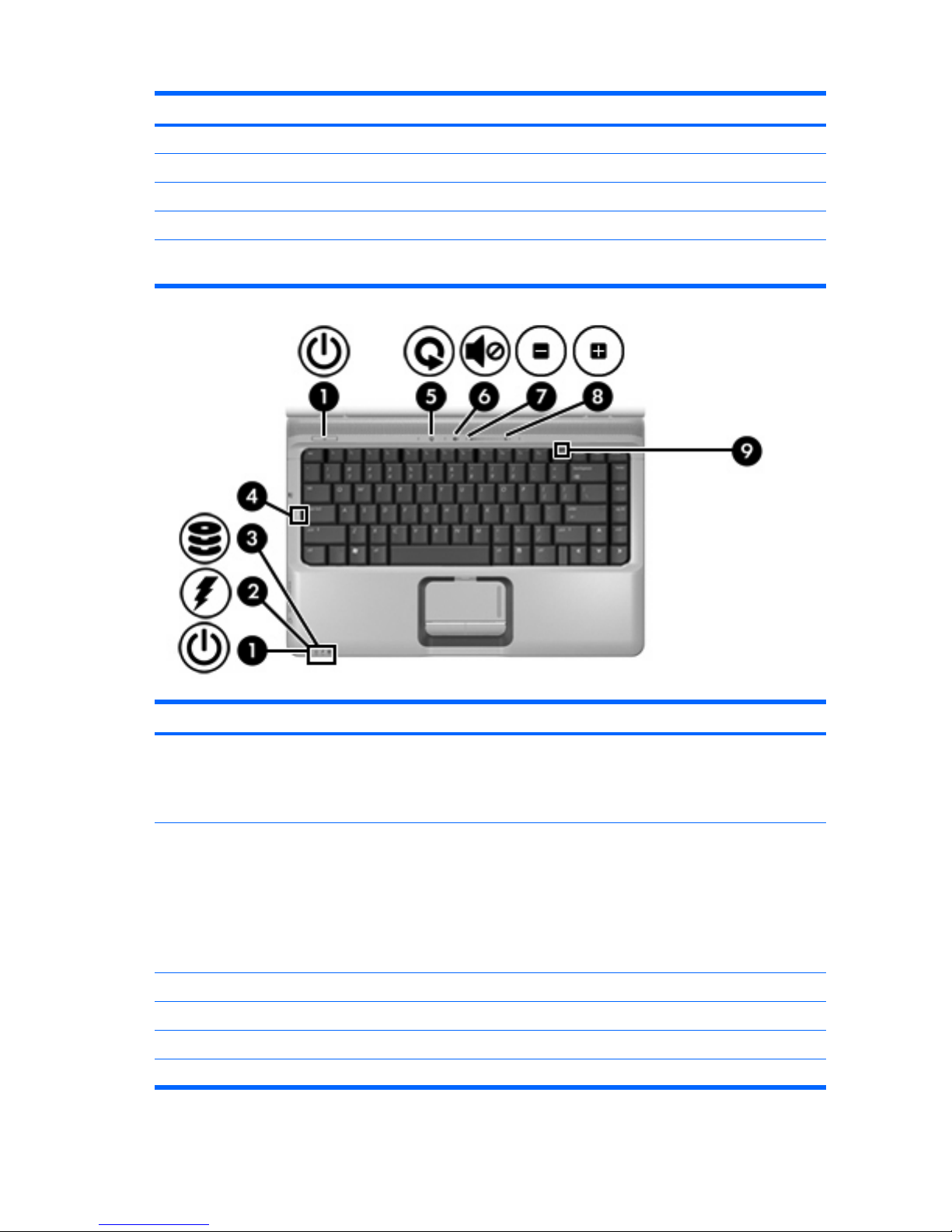

Component Description
(1) Power lights (2)* On: The computer is on.
Blinking: The computer is in standby.
Off: The computer is off or in hibernation.
(2) Battery light On: A battery is charging.
Blinking: A battery that is the only available power source has reached a low-
battery condition. When the battery reaches a critical low-battery condition, the
battery light begins blinking rapidly.
Off: If the computer is plugged into an external power source, the light is turned
off when all batteries in the computer are fully charged. If the computer is not
plugged into an external power source, the light stays off until the battery
reaches a low-battery condition.
(3) Drive light Blinking: The hard drive or optical drive is being accessed.
(4) Caps lock light On: Caps lock is on.
(5) Media button light Blinks once: The media button has been pressed.
(6) DVD button light Blinks once: The DVD button has been pressed.
(7) Previous/rewind light Blinks once: The previous/rewind button has been pressed.
(8) Play/pause light Blinks once: The play/pause button has been pressed.
(9) Next/fast forward light Blinks once: The next/fast forward button has been pressed.
(10) Stop light Blinks once: The stop button has been pressed.
(11) Volume mute light Blue: Computer sound is turned on.
ENWW Top components 3

Component Description
Amber: Computer sound is turned off.
(12) Volume down light Blinking: The volume scroll zone is being used to decrease speaker volume.
(13) Volume up light Blinking: The volume scroll zone is being used to increase speaker volume.
(14) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.
There are 2 power lights. Both display the same information. The light on the power button is visible only when the computer
is open; the other power light is always visible on the front of the computer.
Component Description
(1) Power lights (2)* On: The computer is on.
Blinking: The computer is in standby.
Off: The computer is off or in hibernation.
(2) Battery light On: A battery is charging.
Blinking: A battery that is the only available power source has reached a low-
battery condition or acritical low-battery condition.
Off: If the computer is plugged into an external power source, the light is turned
off when all batteries in the computer are fully charged. If the computer is not
plugged into an external power source, the light stays off until the battery
reaches a low-battery condition.
(3) Drive light Blinking: The hard drive or optical drive is being accessed.
(4) Caps lock light On: Caps lock is on.
(5) Media button light Blinks once: The media button has been pressed.
(6) Volume mute light Blue: Computer sound is turned on.
4 Chapter 1 Components ENWW

Component Description
Red: Computer sound is turned off.
(7) Volume down light Blinking: The volume scroll zone is being used to decrease speaker sound.
(8) Volume up light Blinking: The volume scroll zone is being used to increase speaker sound.
(9) Num lock light Blinking: Num lock is on or the embedded numeric keypad is enabled.
There are 2 power lights. Both display the same information. The light on the power button is visible only when the computer
is open; the other power light is always visible on the front of the computer.
ENWW Top components 5

Buttons, switches, and speakers
NOTE Refer to the illustration that most closely matches your computer.
Component Description
(1) Power button* When the computer is
●Off, press to turn on the computer.
●On, press to enter hibernation.
●In standby, briefly press to exit standby.
●In hibernation, briefly press to exit hibernation.
If the computer has stopped responding and Microsoft® Windows® shutdown
procedures cannot be used, press and hold the power button for at least 5
seconds to turn off the computer.
(2) Speakers (2) Produce sound.
(3) Media button If QuickPlay is not installed and the computer is
●On, the media opens the music program or Media menu, allowing you to
select a multimedia program.
●Off, the media button does not function.
●In standby, the media button resumes from standby into Windows.
If QuickPlay is installed and the computer is
●On, the media button opens the music program or Media menu, allowing
you to select a multimedia program.
●Off, the media button opens the music program or the Media menu,
allowing you to select a multimedia program.
●In standby, the media button resumes from standby into Windows.
6 Chapter 1 Components ENWW

Component Description
NOTE The media button does not affect the hibernation file or the
procedure for restoring from hibernation.
(4) DVD button When the computer is
●On, the DVD button opens the default DVD program to start a DVD in the
optical drive.
●Off, the DVD button opens QuickPlay to start a DVD in the optical drive.
If the QuickPlay software is not installed, the computer starts in Windows.
●In hibernation, opens QuickPlay to start a DVD in the optical drive. If the
QuickPlay software is not installed, the computer resumes from
hibernation.
NOTE Refer to the QuickPlay online Help for details on using
QuickPlay.
(5) Previous/rewind button When a disc is playing in the optical drive:
●Press to play the previous track or chapter.
●Press fn+ this button to rewind.
(6) Play/pause button When a disc is in the optical drive and is
●Not playing, press to play the disc.
●Playing, press to pause the disc.
(7) Next/fast forward button When a disc is playing in the optical drive:
●Press once to play the next track or chapter.
●Press fn+ this button to fast forward.
(8) Stop button When a disc is playing in the optical drive, press to stop the current disc activity.
(9) Volume mute button Mutes and restores speaker sound.
(10) Volume scroll zone Adjusts volume. Slide your finger to the left to decrease volume and to the right
to increase volume. Alternatively, you can tap the left half of the scroll zone to
decrease volume, or you can tap the right half of the scroll zone to increase
volume.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in
the Help and Support Center.
ENWW Top components 7

Component Description
(1) Power button* When the computer is
●Off, press to turn on the computer.
●On, press to enter hibernation.
●In standby, briefly press to exit standby.
●In hibernation, briefly press to exit hibernation.
If the computer has stopped responding and Microsoft® Windows® shutdown
procedures cannot be used, press and hold the power button for at least 5
seconds to turn off the computer.
(2) Speakers (2) Produce system sound.
(3) Media button If QuickPlay is not installed and the computer is
●On, the media button opens the music program or Media menu, allowing
you to select a multimedia program.
●Off, the media button does not function.
●In standby, the media button resumes from standby into Windows.
If QuickPlay is installed and the computer is
●On, the media button opens the music program or Media menu, allowing
you to select a multimedia program.
●Off, the media button opens the music program or the Media menu,
allowing you to select a multimedia program.
●In standby, the media button resumes from standby into Windows.
NOTE The media button does not affect the hibernation file or the
procedure for restoring from hibernation.
(4) Volume mute button Mutes and restores speaker sound.
8 Chapter 1 Components ENWW

Component Description
(5) Volume scroll zone Adjusts volume. Slide your finger to the left to decrease volume and to the right
to increase volume. Alternatively, you can tap the left half of the scroll zone to
decrease volume, or you can tap the right half of the scroll zone to increase
volume.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in
the Help and Support Center.

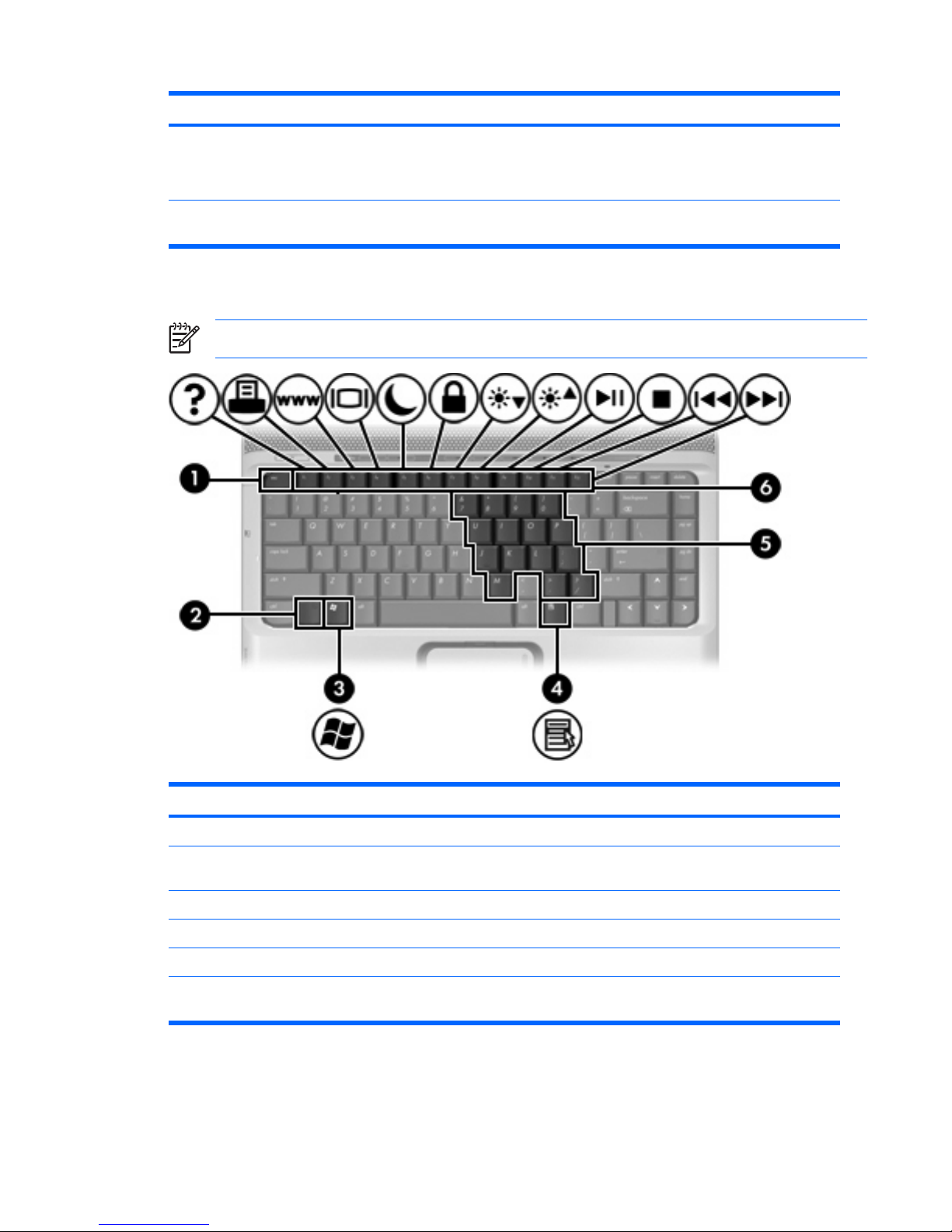

Keys
NOTE Your computer may look slightly different from the illustration in this section.
Component Description
(1) esc key Displays system information when pressed in combination with the fn key.
(2) fn key Executes frequently used system functions when pressed in combination with
a function key or the esc key.
(3) Windows logo key Displays the Microsoft Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in combination with
the fn key.
ENWW Top components 9

Hotkey quick reference
To perform this function Press
Display information. fn+esc
Clear system information. fn+esc or press enter
Open the Help and Support Center. fn+f1
Open the Print Options window. fn+f2
Open a Web browser. fn+f3
Alternate between computer display and external
display.
fn+f4
Initiate standby. fn+f5
Initiate QuickLock. fn+f6
Decrease screen brightness. fn+f7
Increase screen brightness. fn+f8
Play, pause, or resume an audio CD or a DVD. fn+f9
Stop an audio CD or a DVD. fn+f10
Play the previous track or section on an audio CD
or a DVD.
fn+f11
Play the next track on an audio CD or a DVD. fn+12
10 Chapter 1 Components ENWW

Front components
NOTE Your computer may look slightly different from the illustration in this section.
Component Description
(1) Wireless switch (select models
only)*
Turns the wireless feature on or off, but does not create a wireless connection.
NOTE To establish a wireless connection, a wireless network must
already be set up.
(2) Wireless light Blue: An integrated wireless device, such as a wireless local area network
(LAN) device and/or a Bluetooth® device, is turned on.
Amber: an integrated wireless device is turned off.
(3) Consumer infrared lens Links the computer to the HP Remote Control.
(4) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array microphone,
or monaural microphone.
(5) Audio-out (headphone) jacks (2) Produce sound when connected to optional powered stereo speakers,
headphones, ear buds, a headset, or television audio.
NOTE Depending on your computer model, the computer may have
1 or 2 audio-out (headphone) jacks.
ENWW Front components 11

Rear components
Component Description
Vent Enables airflow to cool internal components.
CAUTION To prevent overheating, do not obstruct vents. Use the
computer only on a hard, flat surface. Do not allow another hard
surface, such as an adjoining optional printer, or a soft surface, such
as pillows or thick rugs or clothing, to block airflow.
NOTE The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal fan
to cycle on and off during routine operation.
12 Chapter 1 Components ENWW

Right-side components
Component Description
(1) Optical drive Reads an optical disc.
(2) Optical drive light Blinking: The optical drive is being accessed.
(3) USB ports (2) Connect optional USB devices.
(4) RJ-11 (modem) jack Connects a modem cable.
(5) Power connector Connects an AC adapter.
ENWW Right-side components 13

Left-side components
NOTE Refer to the illustration that most closely matches your computer.
Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE The security cable is designed to act as a deterrent, but may
not prevent the computer from being mishandled or stolen.
(2) S-Video-out jack Connects an optional S-Video device such as a television, VCR, camcorder,
overhead projector, or video capture card.
(3) External monitor port Connects an external VGA monitor or projector.
(4) Expansion port 3 Connects the computer to an optional expansion product.
NOTE The computer has only one expansion port. The term
expansion port 3 describes the type of expansion port.
(5) RJ-45 (network) jack Connects a network cable.
(6) USB port Connects an optional USB device.
(7) 1394 port Connects an optional IEEE 1394 or 1394a device, such as a camcorder.
(8) Digital Media Slot Supports the following optional digital card formats: Secure Digital (SD)
Memory Card, MultiMediaCard (MMC), Secure Digital Input/Output (SD I/O),
Memory Stick (MS), Memory Stick Pro (MSP), xD-Picture Card (XD), xD-
Picture Card (XD) Type M.
(9) Digital Media Slot light On: A digital card is being accessed.
(10) ExpressCard slot Supports optional ExpressCard/54 cards.
14 Chapter 1 Components ENWW

Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE The security cable is designed to act as a deterrent, but may
not prevent the computer from being mishandled or stolen.
(2) S-Video-out jack Connects an optional S-Video device such as a television, VCR, camcorder,
overhead projector, or video capture card.
(3) External monitor port Connects an external VGA monitor or projector.
(4) Expansion port 3 Connects the computer to an optional expansion product.
NOTE The computer has only one expansion port. The term
expansion port 3 describes the type of expansion port.
(5) RJ-45 (network) jack Connects a network cable.
(6) ExpressCard slot Supports optional ExpressCard/54 cards.
ENWW Left-side components 15

Bottom components
Component Description
(1) Battery bay Holds the battery.
(2) Battery release latch Releases the battery from the battery bay.
(3) Mini Card compartment Holds a wireless LAN device (select models only).
NOTE To prevent an unresponsive system and the display of a
warning message, replace with only a Mini Card device authorized for
use in the computer by the governmental agency that regulates
wireless devices in your country. If you replace the device and then
receive a warning message, remove the device to restore computer
functionality. Then contact Customer Care through the Help and
Support Center.
(4) Vents (3) Enable airflow to cool internal components.
CAUTION To prevent overheating, do not obstruct vents. Use the
computer only on a hard, flat surface. Do not allow another hard
surface, such as an adjoining optional printer, or a soft surface, such
as pillows or thick rugs or clothing, to block airflow.
NOTE The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal fan
to cycle on and off during routine operation.
(5) Memory module compartment Contains the memory module slots.
(6) Hard drive bay Holds the hard drive.
16 Chapter 1 Components ENWW
