Introduction
Welcome
Congratulation and thank you for the purchasing D series power amplifiers.
The D Series amplifiers define the standard for portable PA systems with unmatched
performance, technology, affordability and enormously light weight.
These amplifiers are designed to provide a big impact in sound reproduction and to
produce the best and highest quality audio at an affordable price.
We wish you great enjoyment and satisfaction when using your amplifier, whether you
are an installation, or reinforcement engineer.
Unpacking and Installation
Although it is neither complicated to install nor difficult to operate your amplifier, a few
minutes of your time is required to read this manual for a properly wired installation and
becoming familiar with its features and how to use them. Please take a great care may
be needed when moving your set and are required if it ever becomes necessary to re-
turn your set for service. Never place the unit near radiator, in front of heating vents, to
direct sun light, in excessive humid or dusty location to avoid damages and to guaranty
a long reliable use.
Connect your unit with the system components according to the description on the fol-
lowing pages.
CLIP
PROTECT
SIGNAL
POWER
CHANNEL 2CHANNEL 1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
15
17
19
22
29
54
0
1
2
3
4
5
6
7
8
9
10
11
12
13
15
17
19
22
29
54
D300
PROFESSIONAL POWER AMPLIFIER
D300 / D500
CLASS-D POWER AMPLIFIER
Introduction

3
D300 / D500
Features
Compact size, High performance and lightweight with Class-D Technology.
Integrated Peck limiters provide maximum output while protecting your speakers.
Various (XLR, 1/4” Phone, RCA) inputs ensure compatibility with any source.
5-Way Binding Post, 4-Pole Speakon outputs ensure compatibility with any speaker
connection.
Mode selection with Stereo, Parallel and Bridged MONO.
Advanced protection includes abnormal voltage, over current and High temperature.
Desktop and 19-inches rack mountable type.
Low distortion and low noise level.
Ideal commercial and industrial use.
•
•
•
•
•
•
•
•
•
Features

4
D300 / D500
Front Panel Controls
1. Power Button
Turns amplifier power on and off. Blue LED
will illuminate when power is turned on.
2. Gain(Level) Controls
Two black rotary level controls, One for
each channel.
3. Indicators :
Signal Presence Indicator : Two green LED’s,
illuminate when the channel input signal ex-
ceeds -20dBu
Clip Indicator : Two yellow LEDs, illuminate
when the channel’s output is being overdriven
Protect Indicator : Two red LEDs, illuminate
when thermal compression begins or/and any
fault detected
CLIP
PROTECT
SIGNAL
POWER
CHANNEL 2CHANNEL 1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
15
17
19
22
29
54
0
1
2
3
4
5
6
7
8
9
10
11
12
13
15
17
19
22
29
54
D300
PROFESSIONAL POWER AMPLIFIER
Front Panel Controls
1 3 2

5
D300 / D500
Rear Panel Controls
UNBALANCEDBALANCED BALANCED
CH 2 CH 1
CH 2 CH 1
CONNECT 1CONNECT 2
INPUT SPEAKER OUTPUT
BRIDGE
min. 8
BRIDGE PARALLEL
STEREO
MODE
CH 1
BRIDGE
CH 2
CH 2
CONNECT 2
CONNECT 1
PROFESSIONAL POWER AMPLIFIER
1. Balanced XLR Inputs
Two 3-pin XLR input connectors are pro-
vided.
2. MODE Selection
Three mode are provided.Stereo, Parallel
and Bridged mono.
3. 5-Way Binding Post Jacks
One pair per channel, accepts banana
plugs or bare wire.
Note : Binding post outputs on European
models come with safety plugs installed to
prevent European power plugs from being
inserted The side entry positions for these
connectors should be use with European
models .
4. 1/4 Inch Inputs
Two 1/4 inch input connectors are pro-
vided.
5. RCA(Phono) Inputs
Two RCA inputs are provided.(One per
channel).
6. 4-Pole Speakon Output Connectors
These two connectors accept 2-pole or
4-pole Speakon connectors. The channel
connector is wired for both channels so it can
be used for bridge-mono wiring or stereo wir-
ing of two speakers to a single Speakon
7. AC Power Connector
Rear Panel Controls
1
4 5 6 7
12 3

6
D300 / D500
Get Started

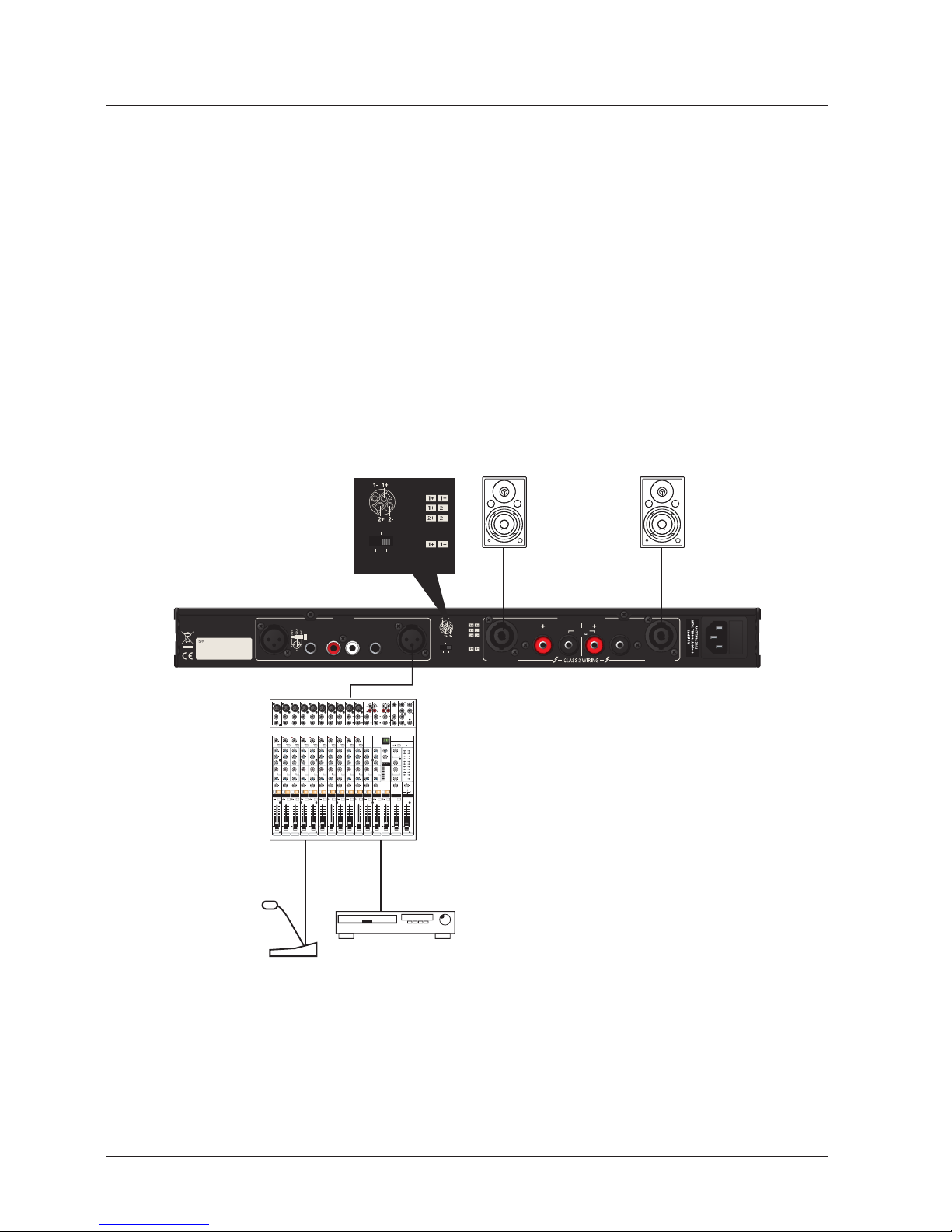

This is the default mode the amplifier is set to from the factory.
